WMS2 Media Sys Select New
Key Features
Control
• Receiving Card: Novastar A8s-N
• Processor: Novastar TB50
• Receiving Card: Novastar A8s-N
• Processor: Novastar TB50
Dimensions
• System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
• Cabinet Thickness: 33mm
• System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
• Cabinet Thickness: 33mm
Optics
• Pixel Pitch (mm): 2.6mm
• Pixel Density (dot/m2): 147,456
• Brightness (cd/m2): 700-800 NITS
• Pixel Pitch (mm): 2.6mm
• Pixel Density (dot/m2): 147,456
• Brightness (cd/m2): 700-800 NITS
Product Information
SKU: 1226300192
GTIN: 810087374228
HS-Code: 8529909299

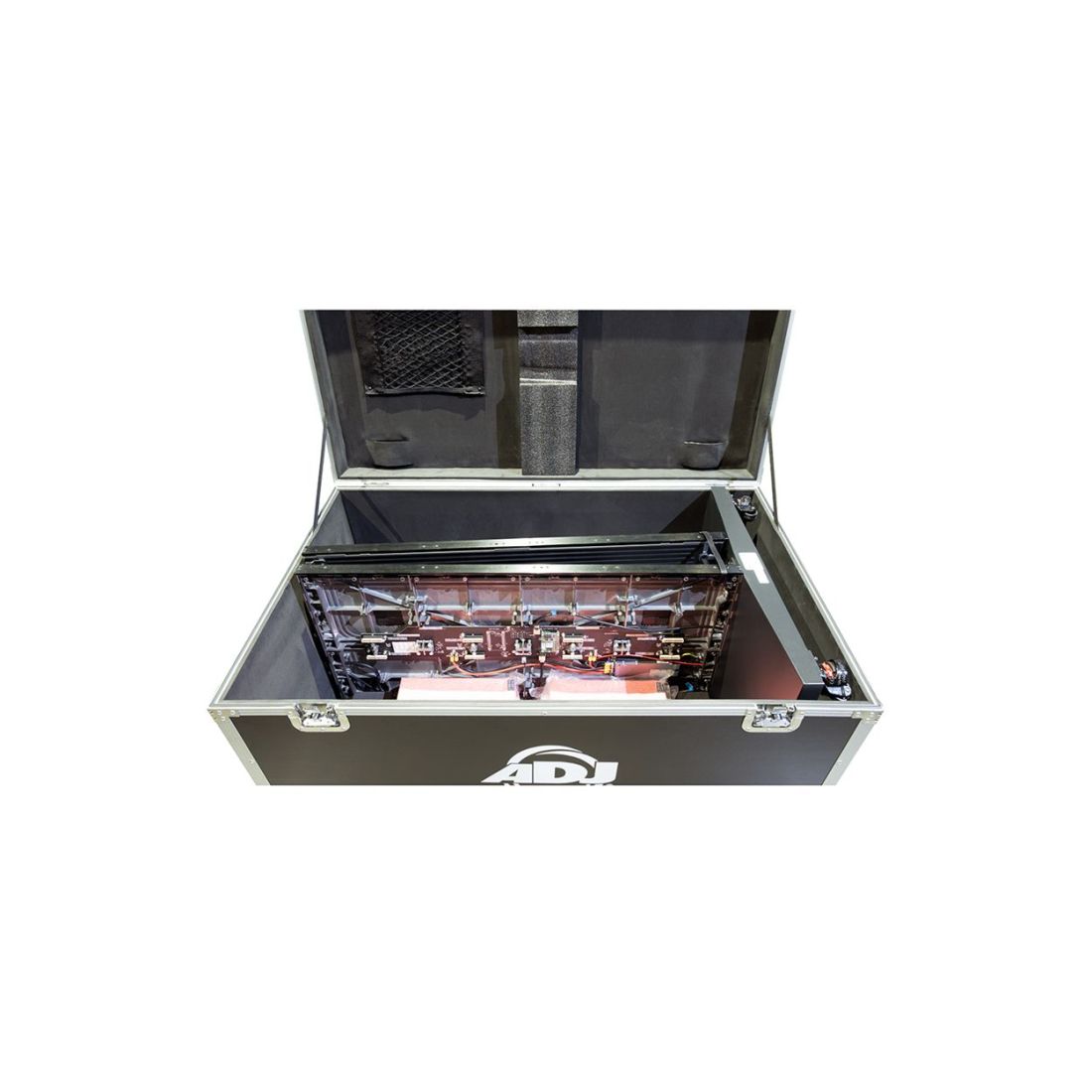

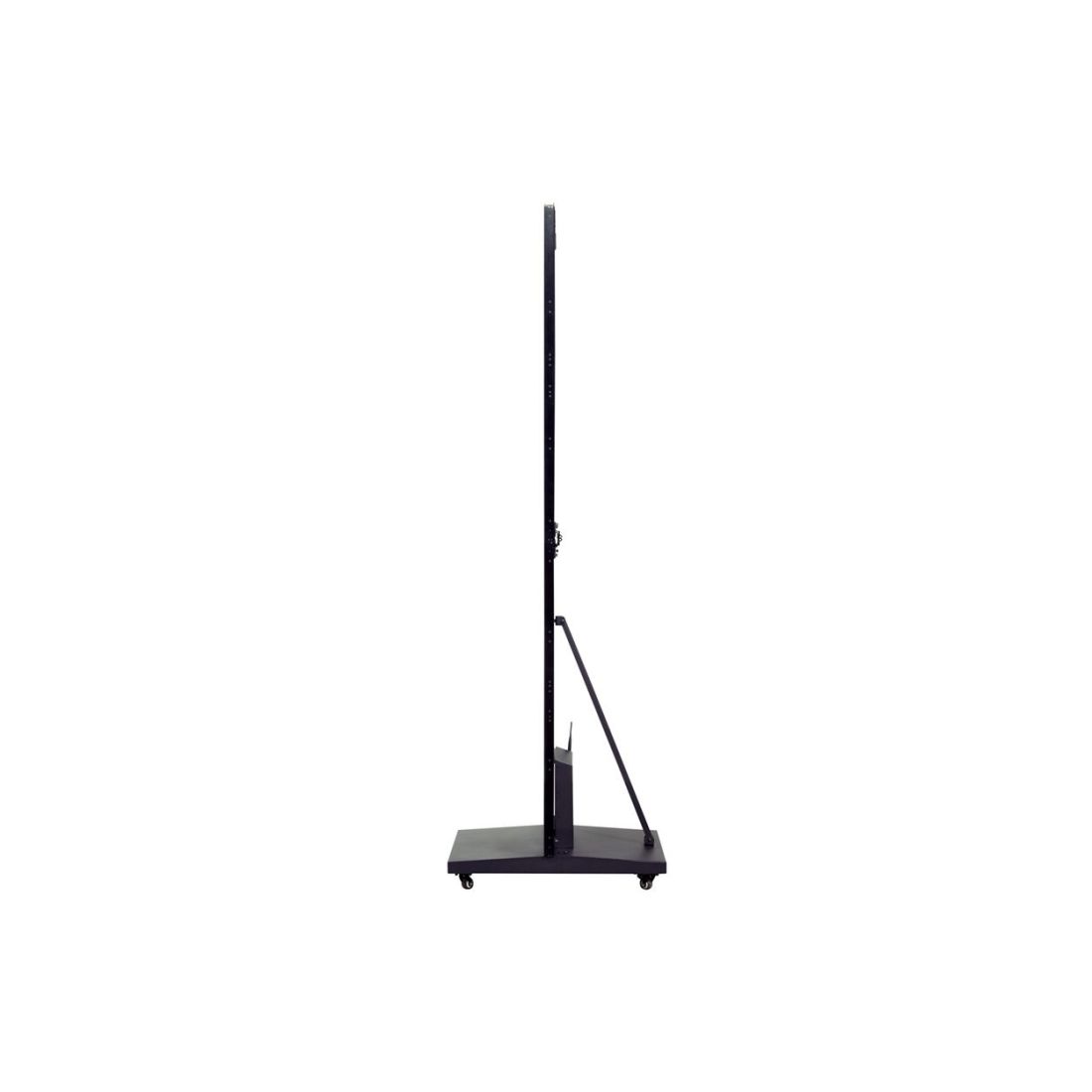

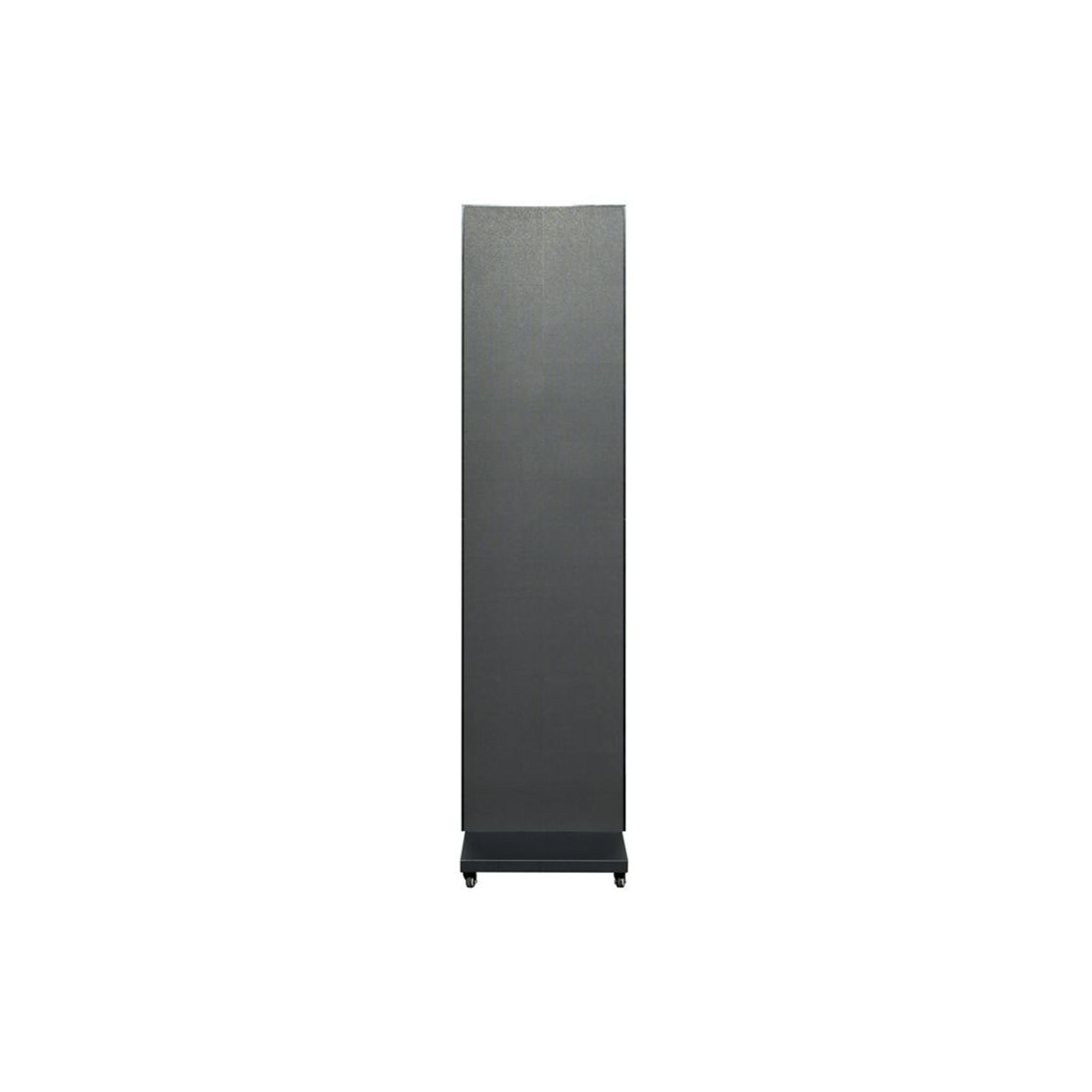

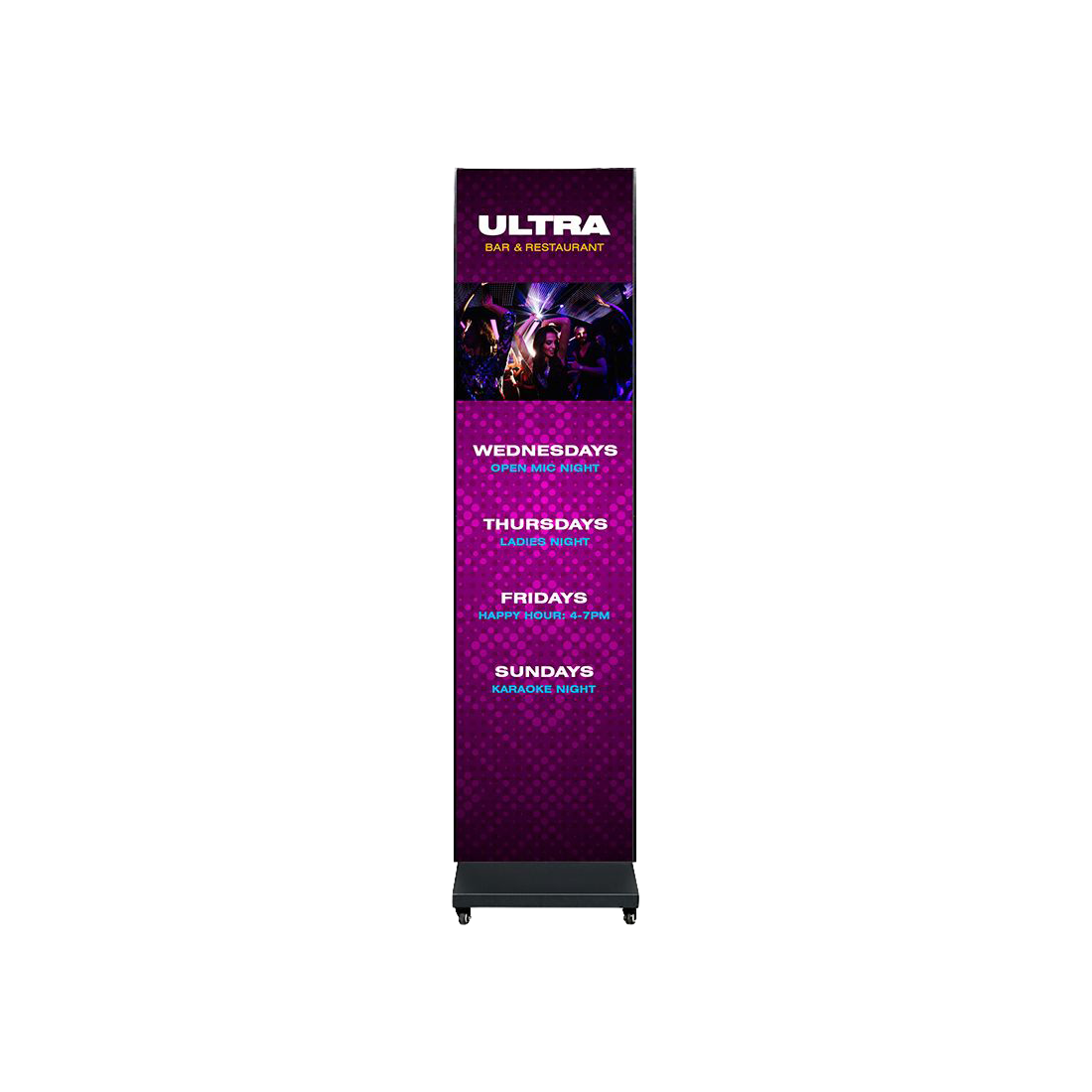

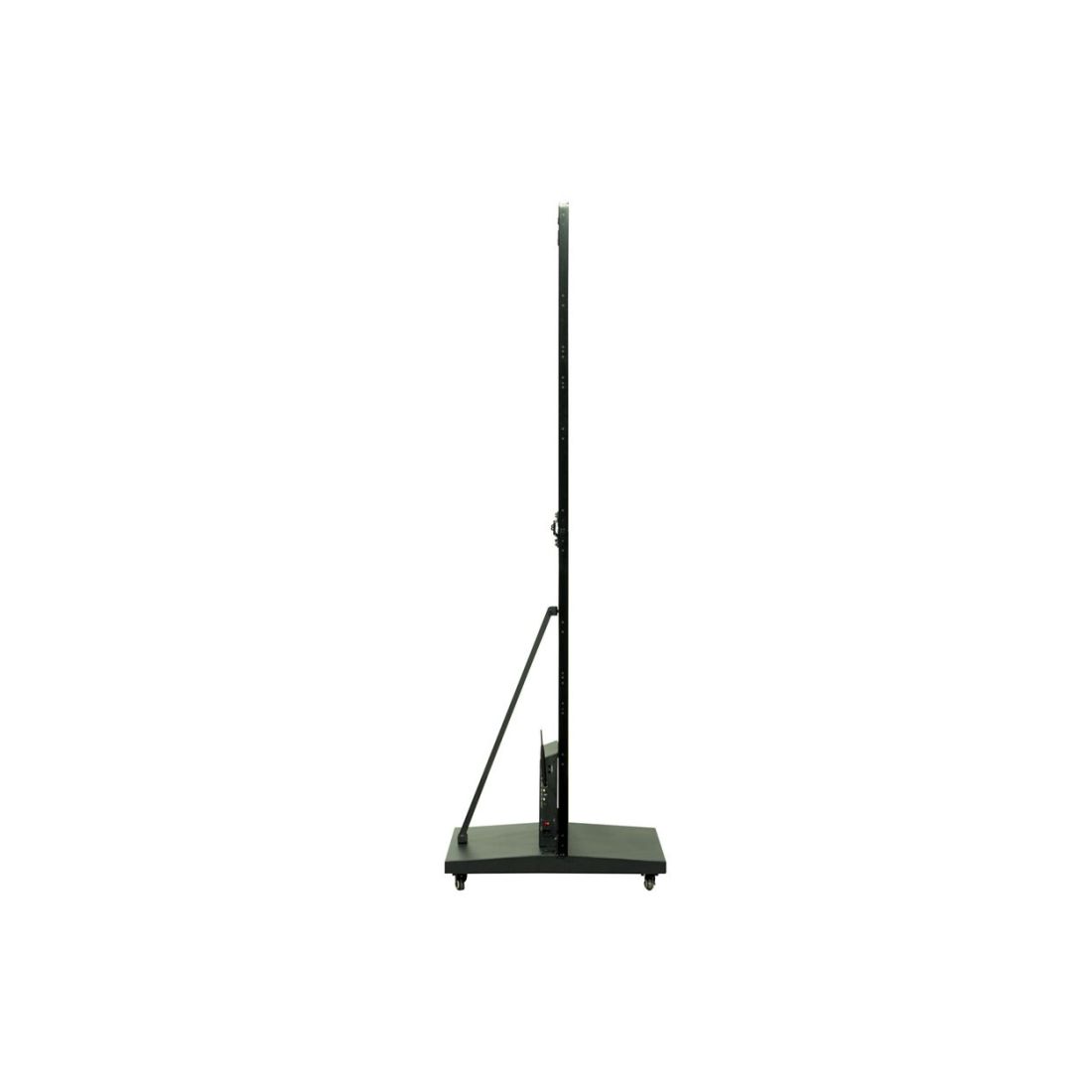

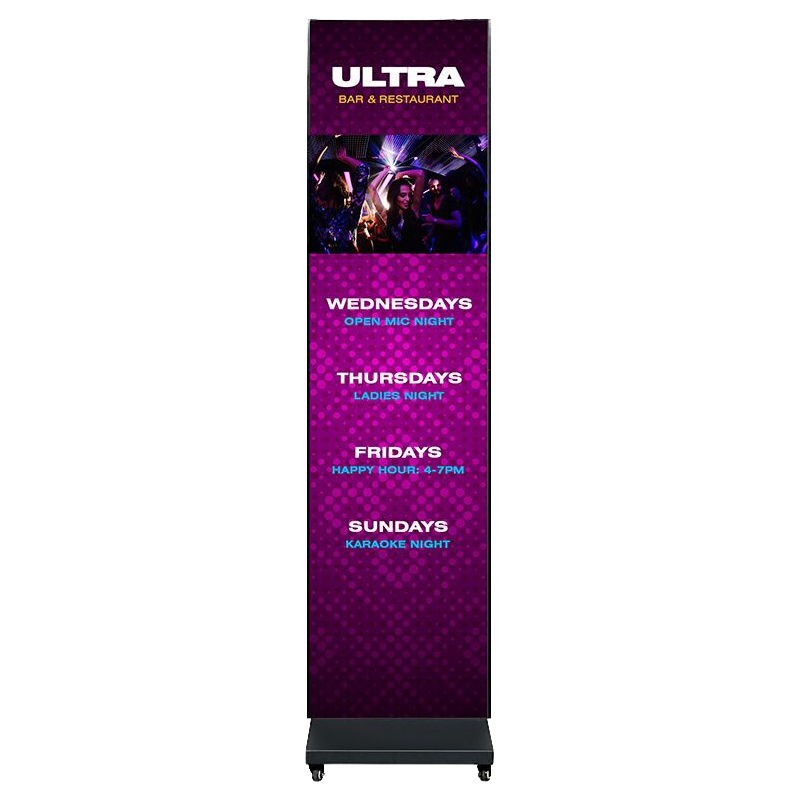

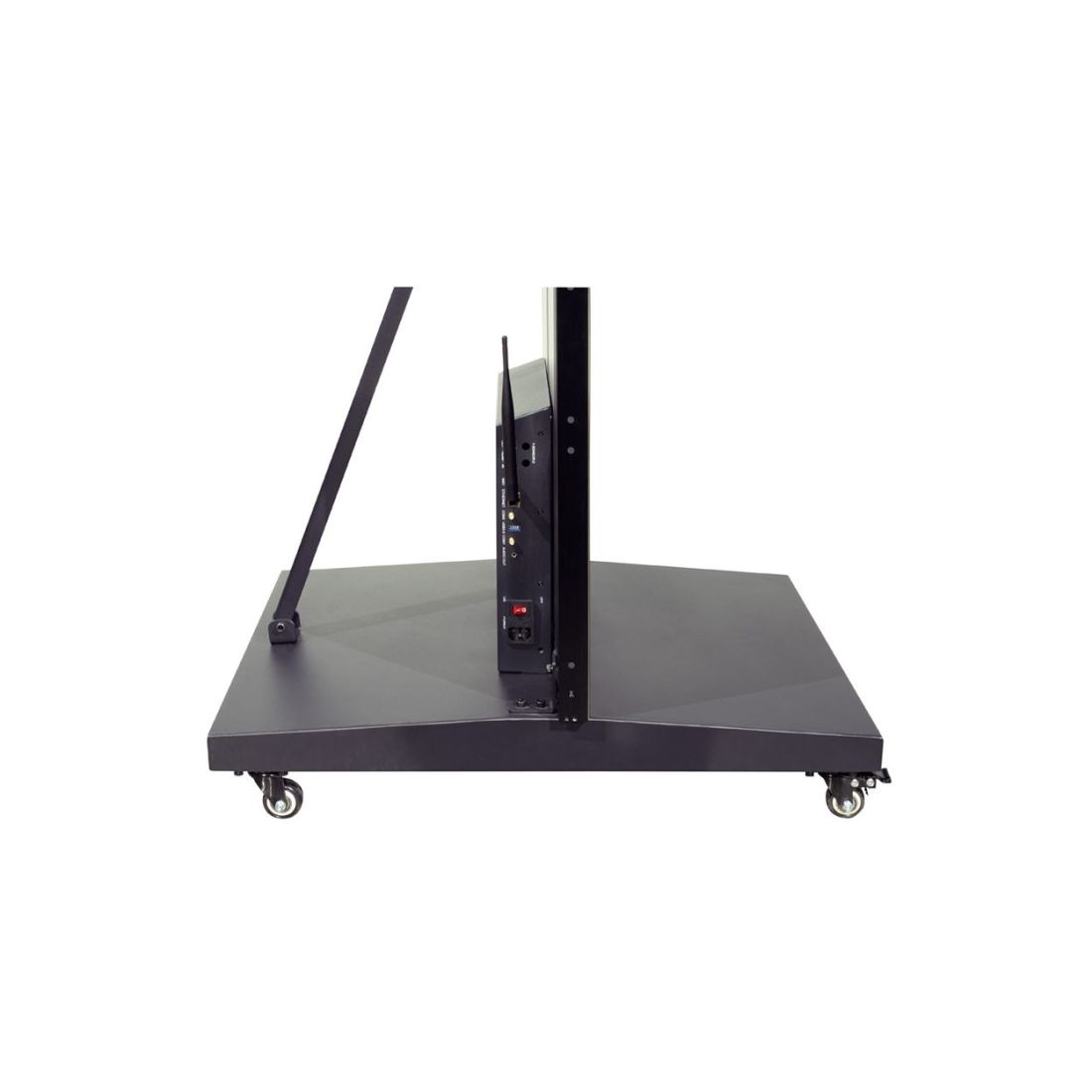

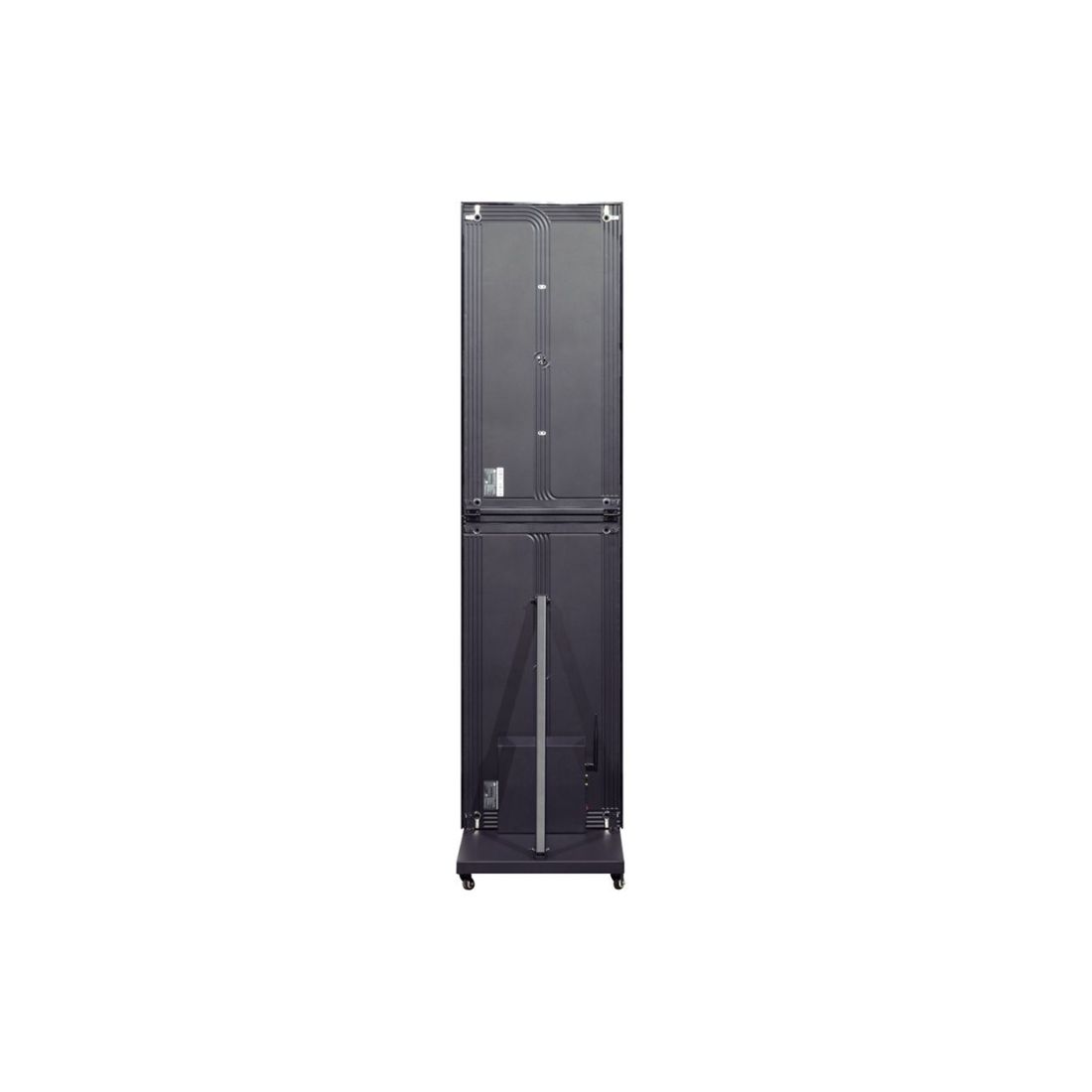

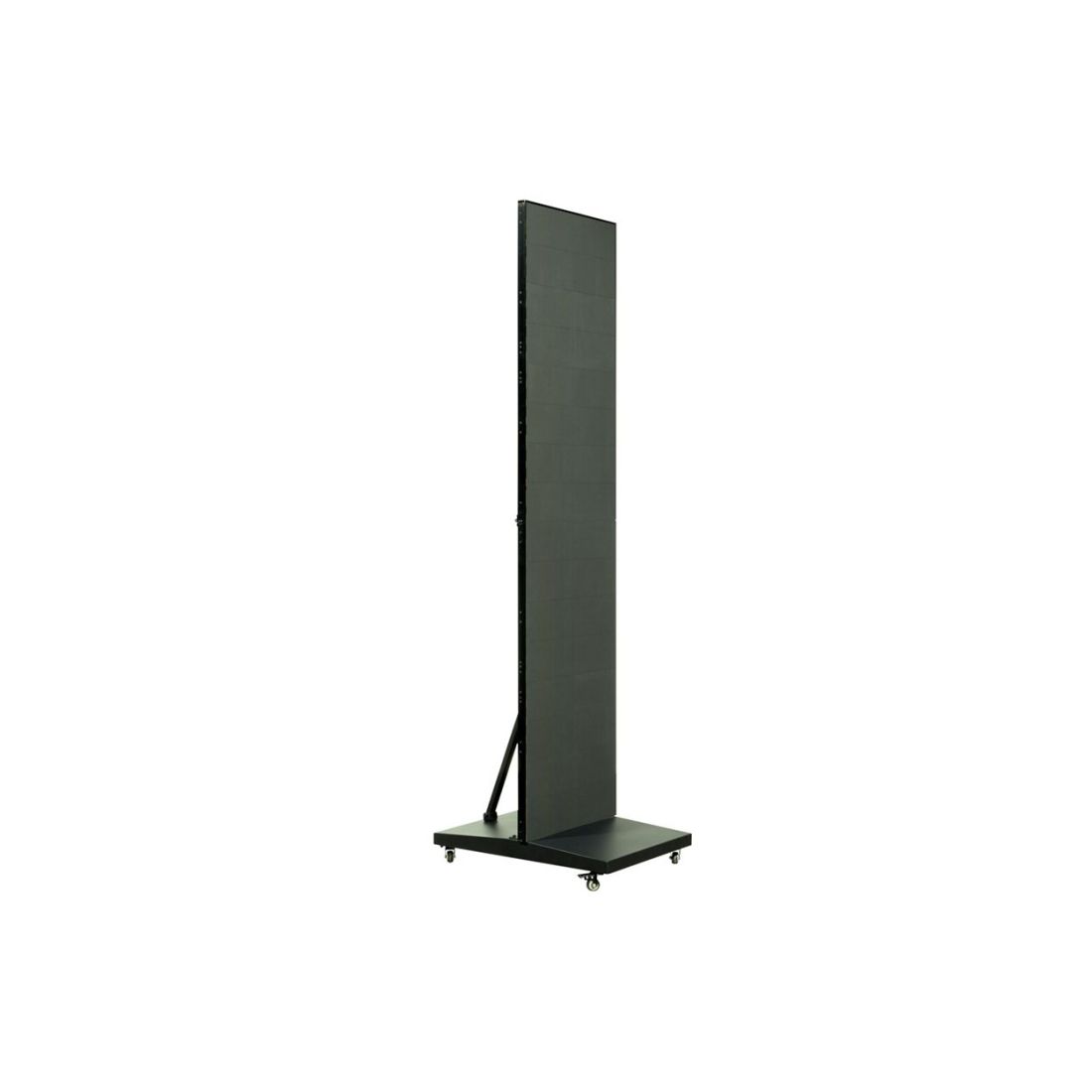

The WMS2 Media Sys is a state-of-the-art LED video display designed to enhance retail spaces, trade shows, and live events. This all-in-one system includes two WMS2 LED video panels, a display stand with an integrated Novastar video processor, and a durable flight case for effortless transport.
Featuring an ultra-high-resolution 2.6mm pixel pitch and a brightness of 700-800 NITS, the WMS2 delivers vivid visuals and crisp details, even in well-lit environments. Its 3840Hz refresh rate and ≥14-bit grayscale ensure smooth, flicker-free playback for videos, animations, and real-time messaging.

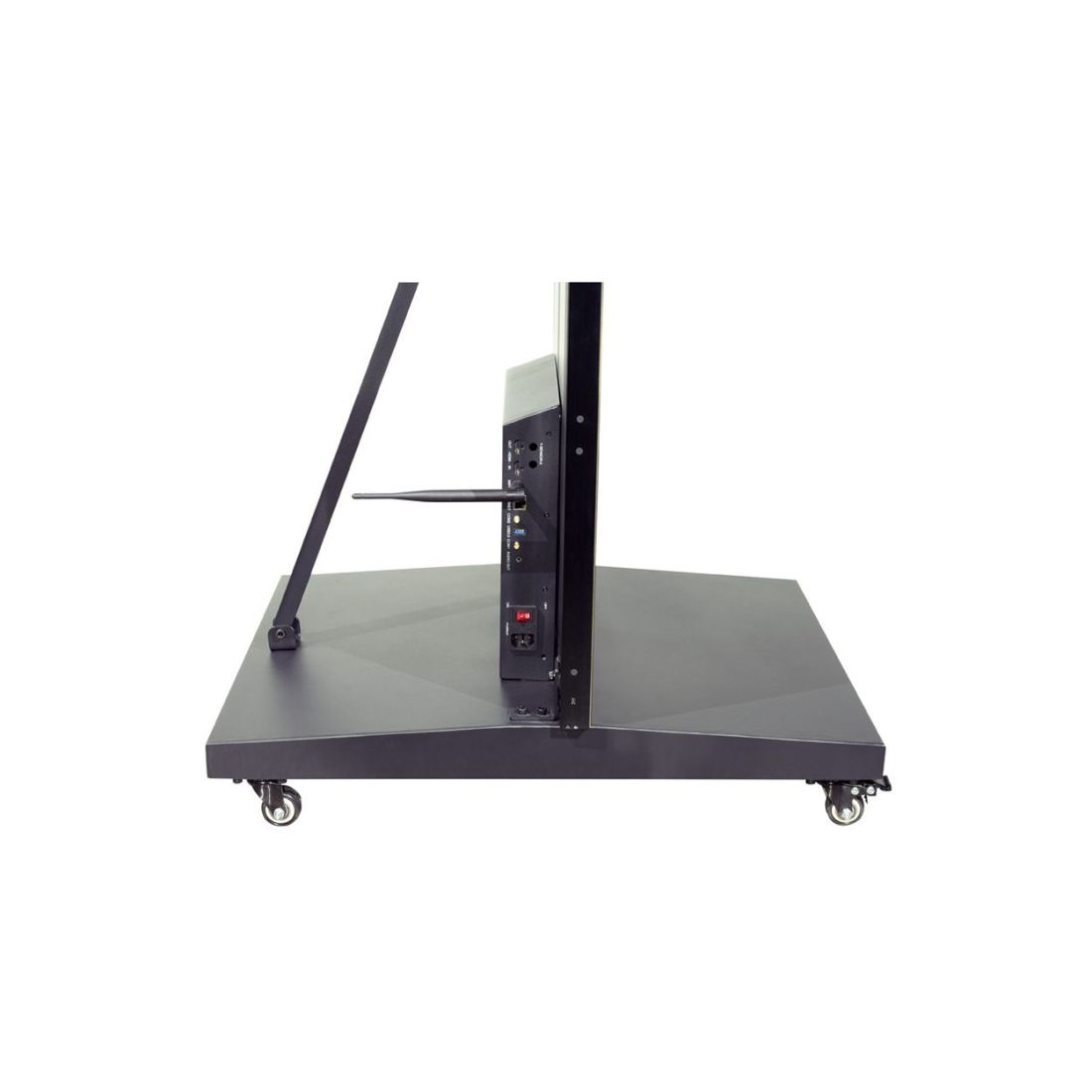

Engineered for convenience, the system supports a "Roll and Set" installation method with front-access maintenance. The Novastar TB50 processor and A8s-N receiving card enable seamless content management, while energy-efficient LED technology minimizes power consumption.
Designed for indoor use, the WMS2 Media Sys operates in a temperature range of -20°C to 40°C and features an IP20 rating for durability. The ETL-certified WMS1 LED panels ensure reliability and compliance with industry standards.
Elevate customer engagement, amplify branding opportunities, and simplify content management with the ADJ WMS2 Media Sys—your ultimate solution for high-impact digital displays.
Gallery
Specification
- • Pixel Pitch (mm): 2.6
- • Pixel Density (dot/m²): 147,456
- • LED sealing Type: SMD1515
- • Module Size (mm x mm): 250 x 250mm
- • Module Resolution (PX x PX): 96 x 96 Dots
- • Panel Resolution (PX x PX): 384 x 192
- • Average Life (Hours): 50,000

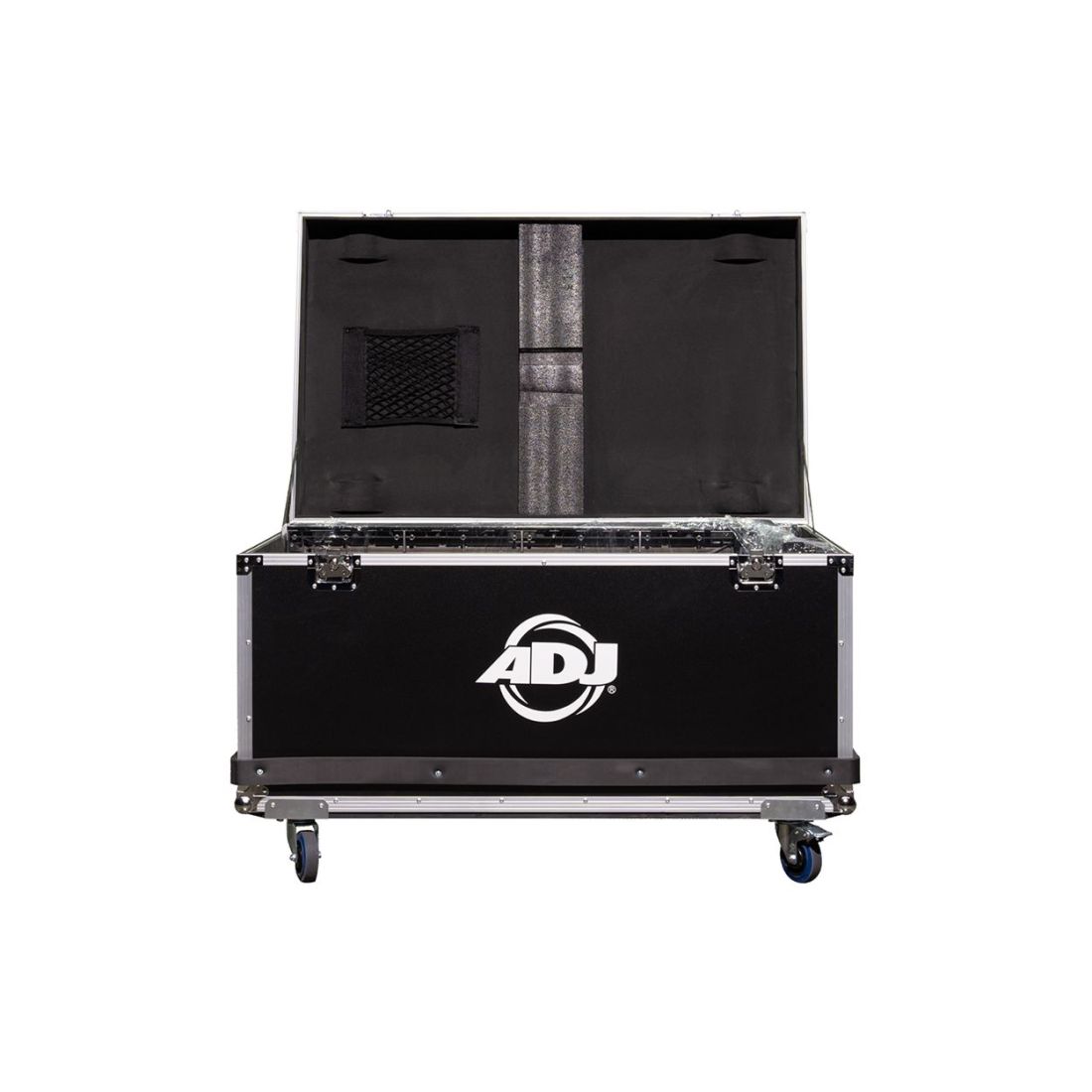

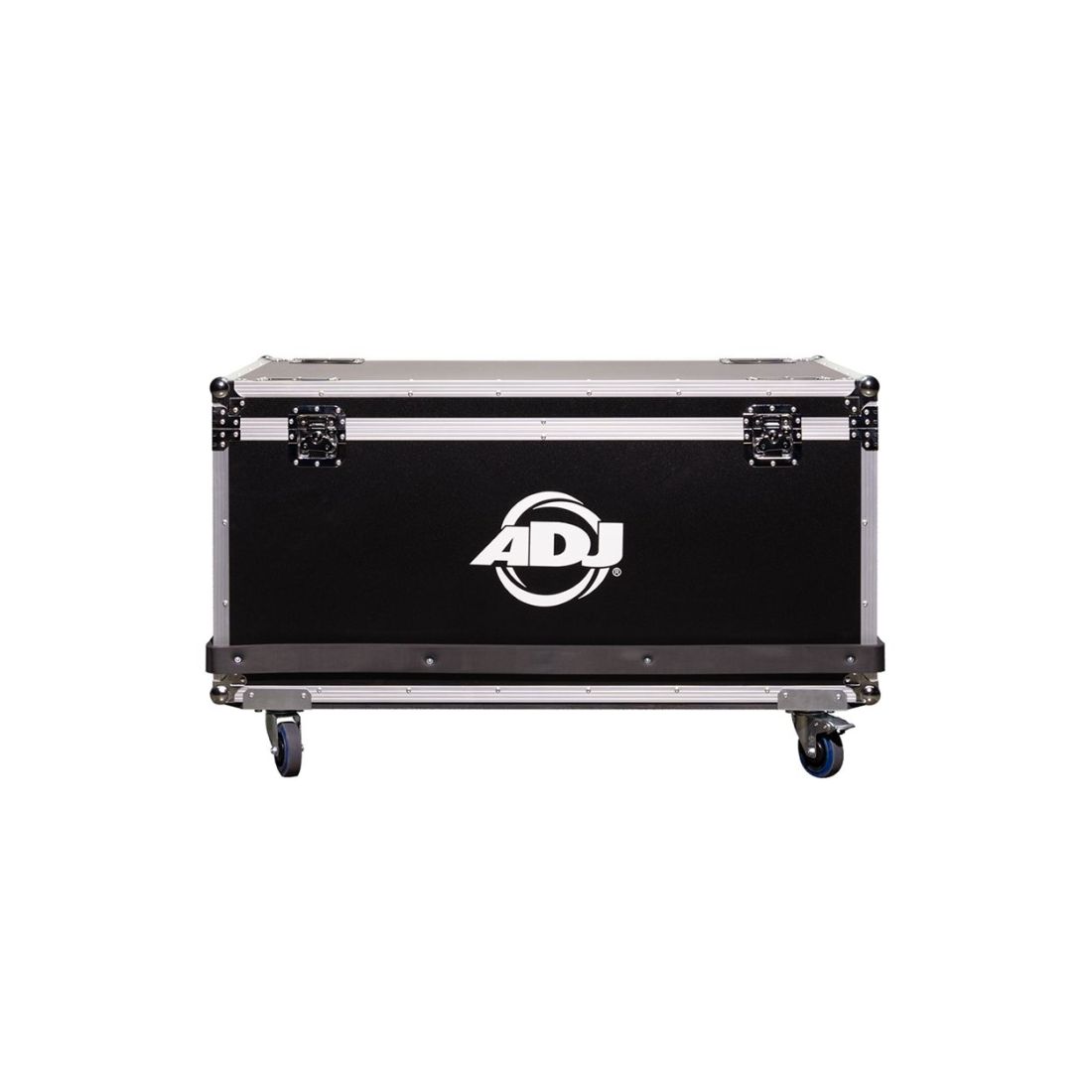

- • Transport: Single System Flight Case
- • One WMS2 Media System
- • Installation Method: Roll and Set
- • Maintenance: Front
- • Configuration*: CFD455, 3840Hz.
- • Brightness (cd/m²): 700-800 NITS
- • Horizontal Viewing Angle (Deg): 160
- • Vertical Viewing Angle (Deg): 140
- • Grey Scale (Bit): ≥14
- • Refresh Rate (Hz): 3840
- • Input Voltage (V): 100-240VAC
- • Max Power Dissipation (W/m²): 520
- • Average Power Consumption (W/m²): 180
- • Receiving Card in WMS2 Panels: Novastar A8s-N
- • Processor: Novastar TB50
- • Working Environment: Indoor
- • IP Rating: IP20
- • Working Temperature (°C): -20 ~ +40
- • Work Humidity (RH): 10%~90%
- • Storage Temperature Range: -40 ~ +80
- • Operation Humidity (RH): 10%~90%
- • Flight Case Dimensions (LxWxH): 1155 x 714 x 689.52mm
- • System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
- • LED Panel Thickness: 33.4mm
- • System Weight (In Flight Case): 80 kg
Specifications subject to change without notice
