WMS2 Select New
Key Features
Control
• Receiving Card: Novastar A8s-N
• Receiving Card: Novastar A8s-N
Dimensions
• Cabinet Size: 1000 x 500mm
• Cabinet Weight: 9.5Kg
• Cabinet Thickness: 33mm
• Cabinet Size: 1000 x 500mm
• Cabinet Weight: 9.5Kg
• Cabinet Thickness: 33mm
Optics
• Pixel Pitch (mm): 2.6mm
• Pixel Density (dot/m2): 147,456
• Brightness (cd/m2): 800 NITS
• Pixel Pitch (mm): 2.6mm
• Pixel Density (dot/m2): 147,456
• Brightness (cd/m2): 800 NITS
Product Information
SKU: 1226300164
GTIN: 810087372293
HS-Code: 8529909299

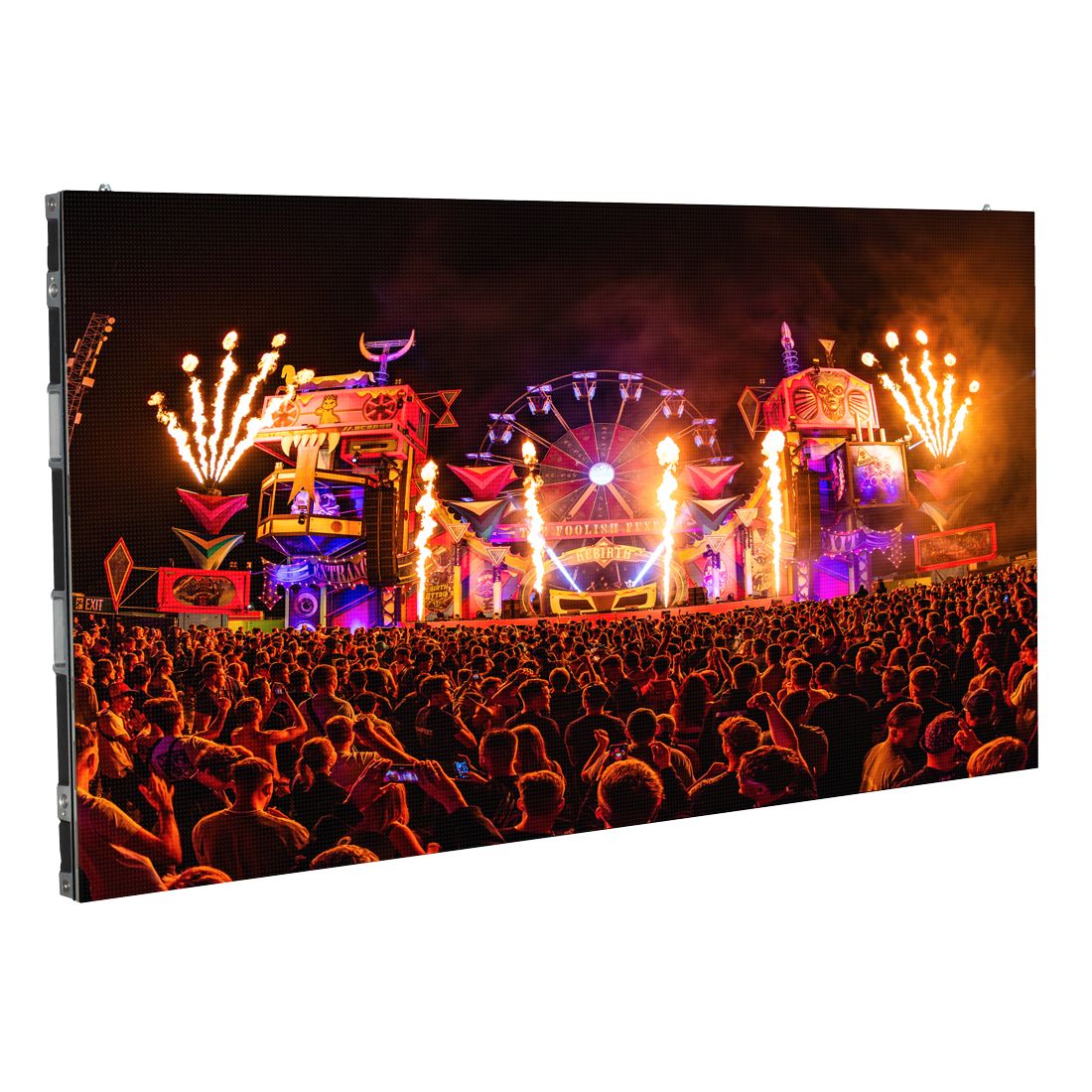

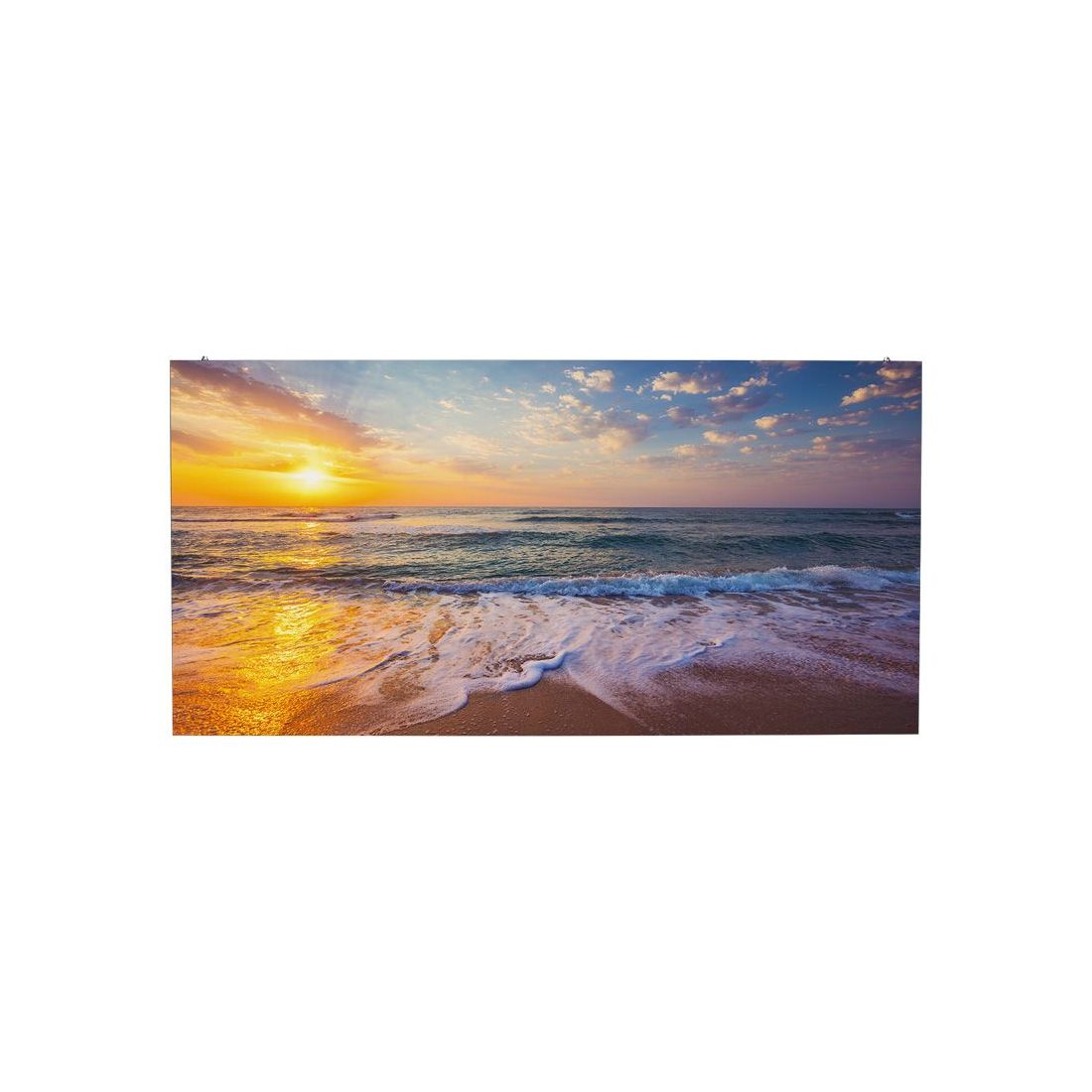

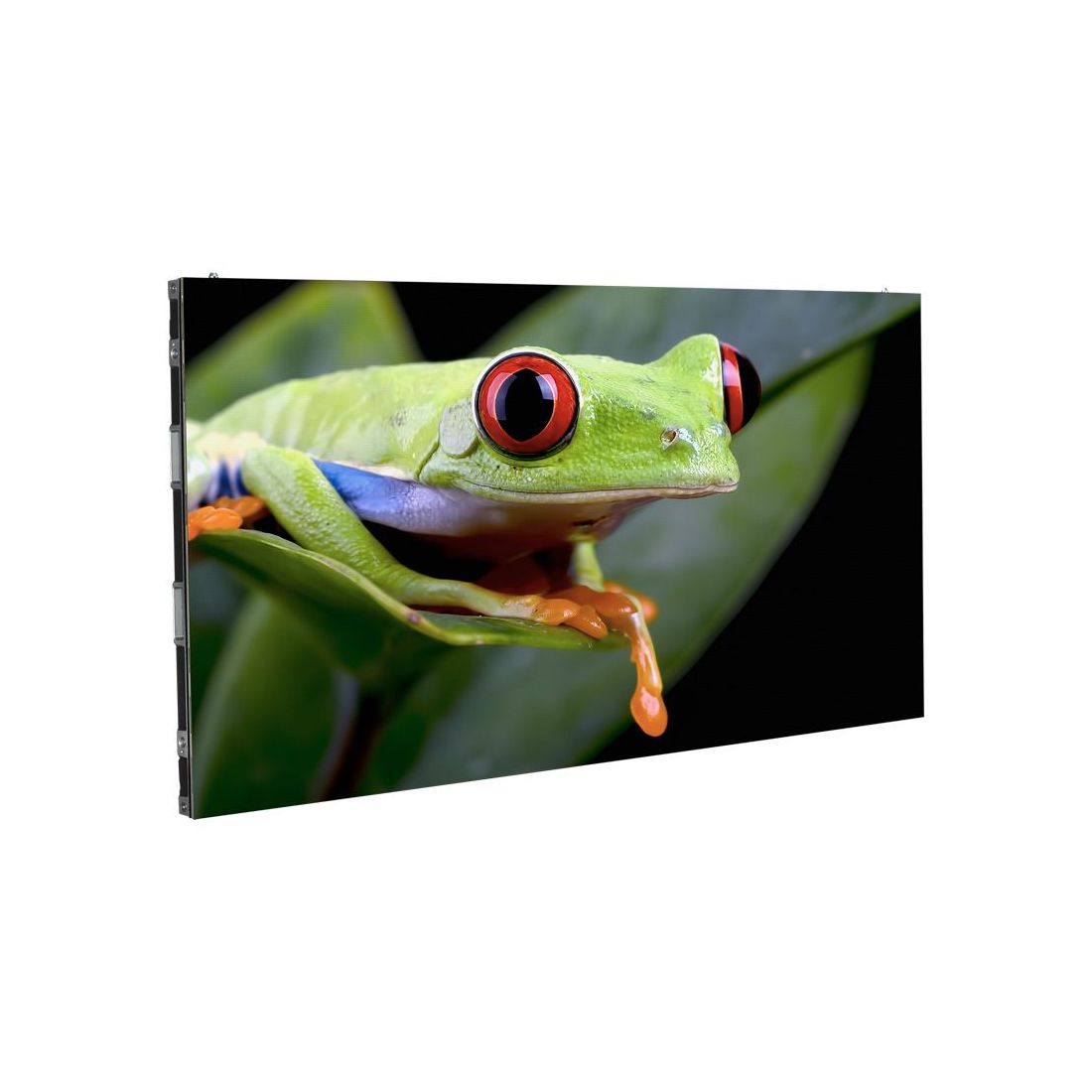

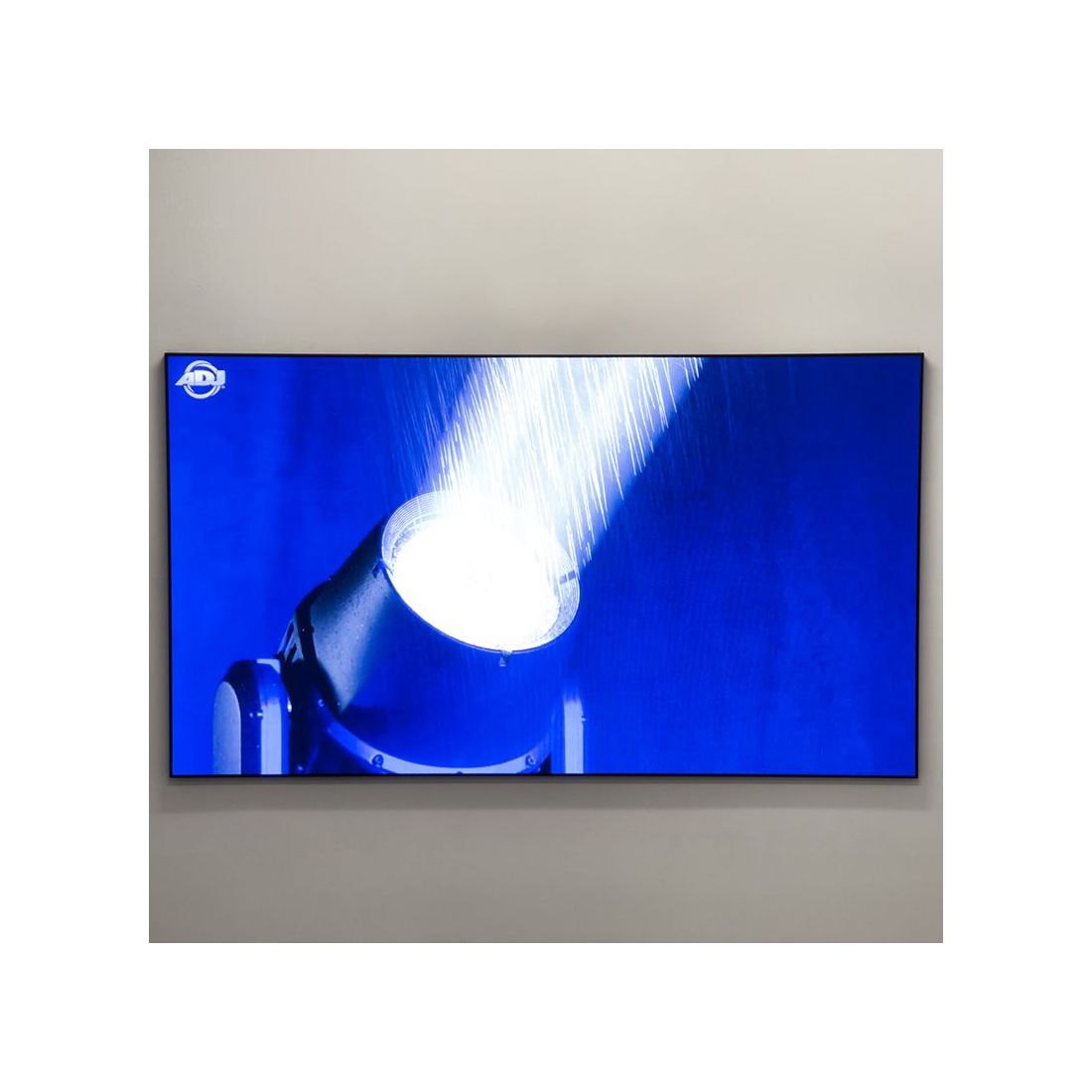

Discover the cutting-edge ADJ WMS2 LED Video Panel – a pinnacle in high-resolution display technology designed for seamless integration into a diverse array of projects. Expanding ADJ’s professional LED video panel portfolio, the WMS2 stands out as the company’s highest resolution offering to date. Perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences.
Boasting a pixel pitch of 2.6mm and a pixel density of 147,456/m2, the WMS2 guarantees exceptional definition, even at close viewing distances. The RGB SMD1515 color mixing LEDs produce a vibrant spectrum, supported by a brightness of 800 NITS. With a wide viewing angle of 160° (horizontal) by 140° (vertical) and a rapid refresh rate of 3840Hz, this video panel ensures a captivating and smooth visual performance.

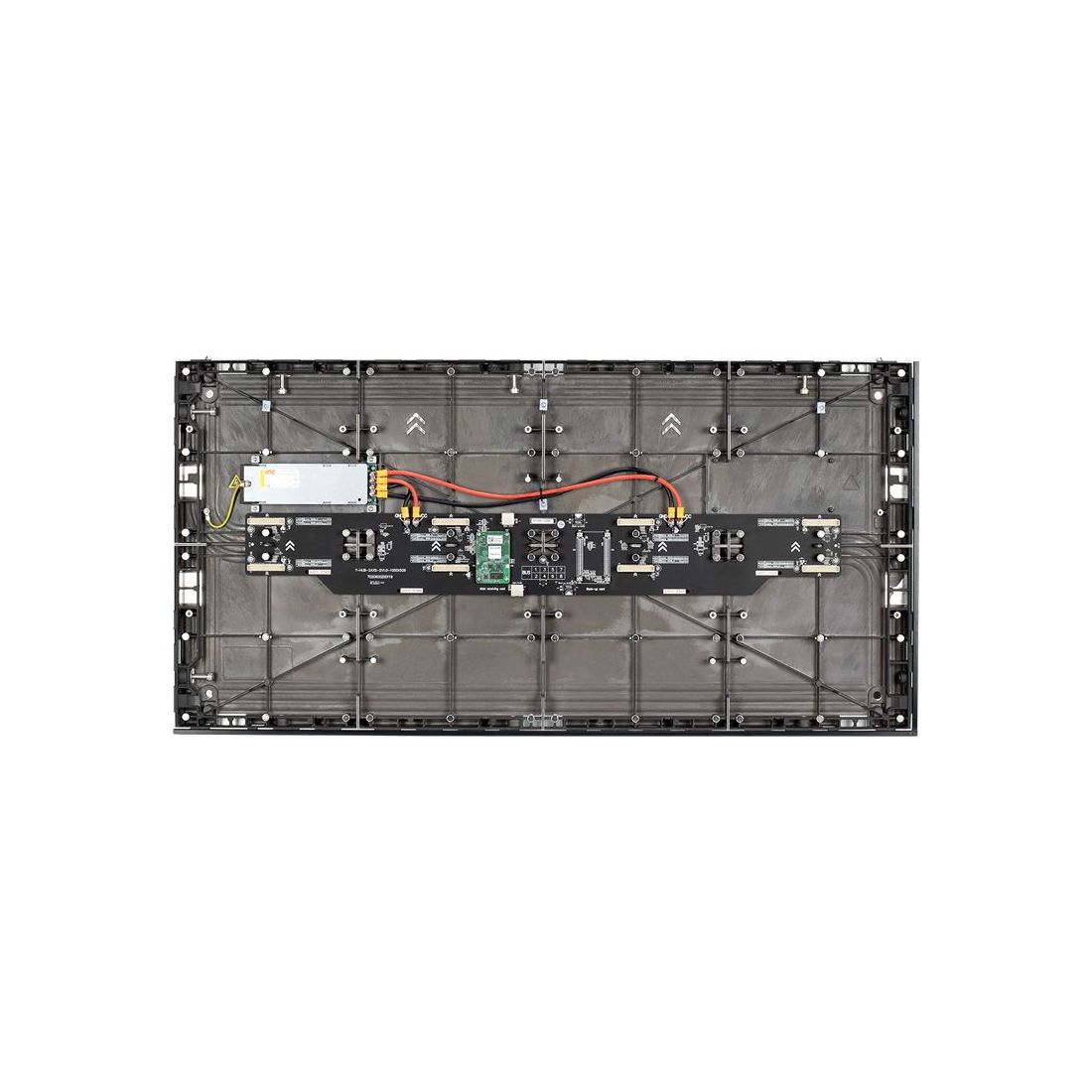

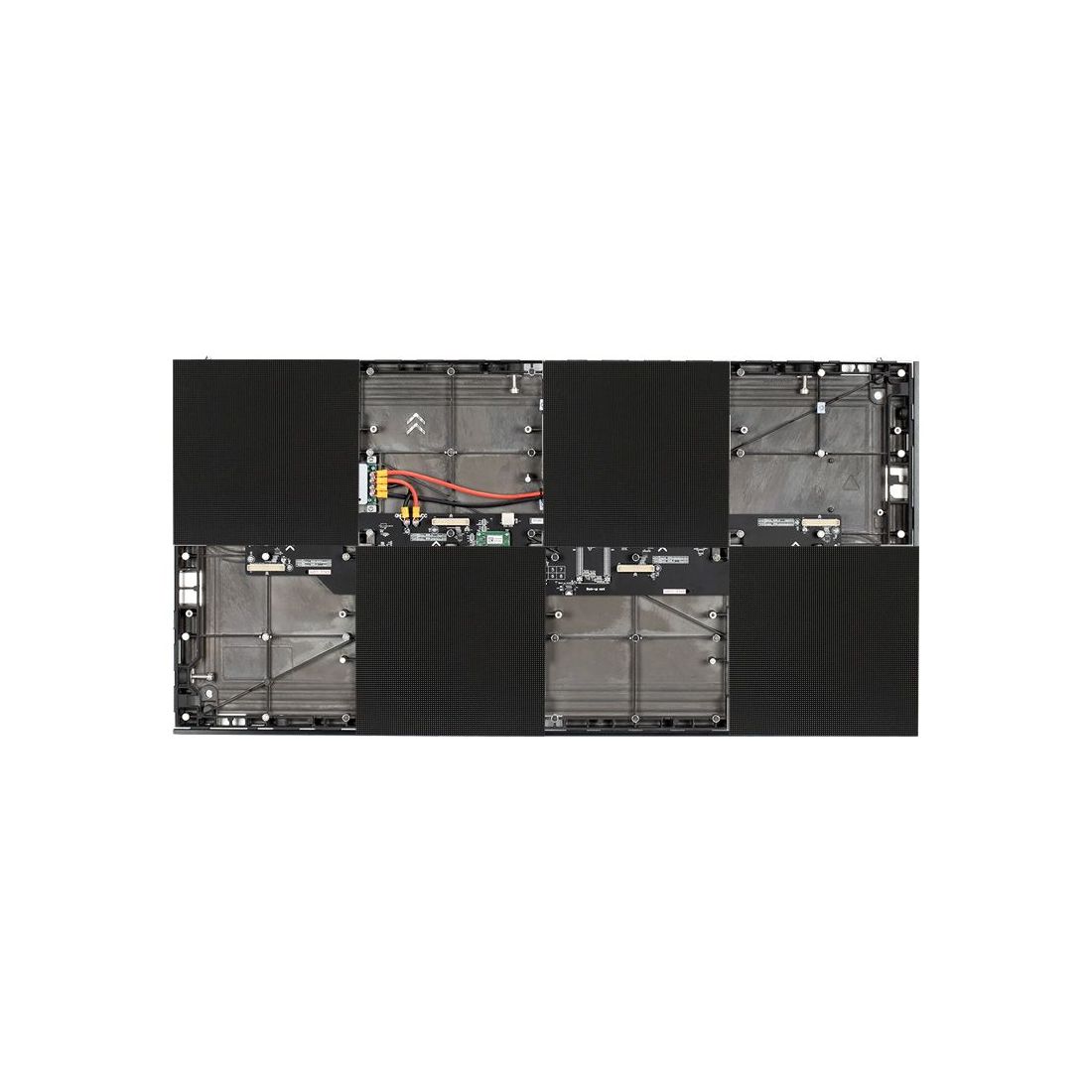

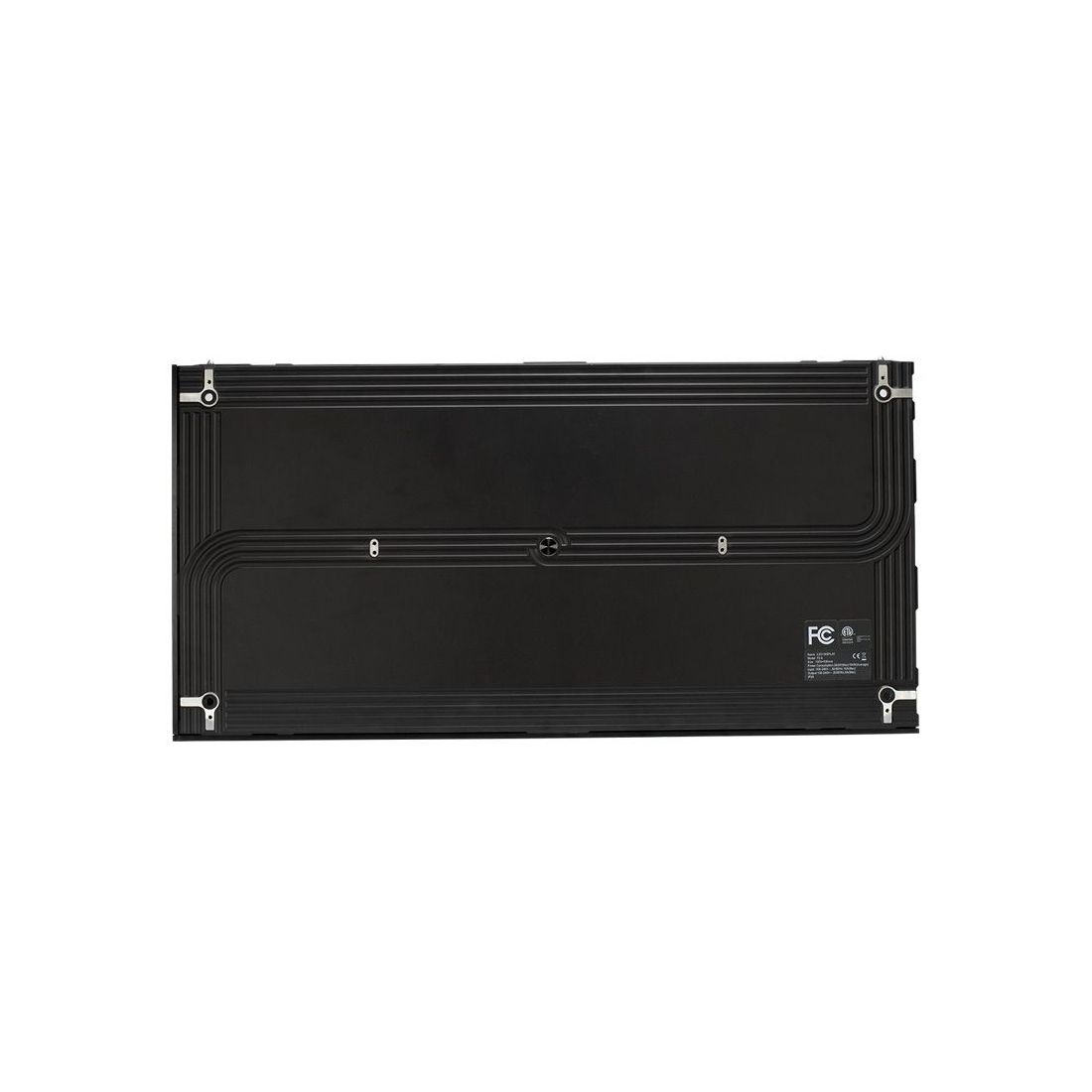

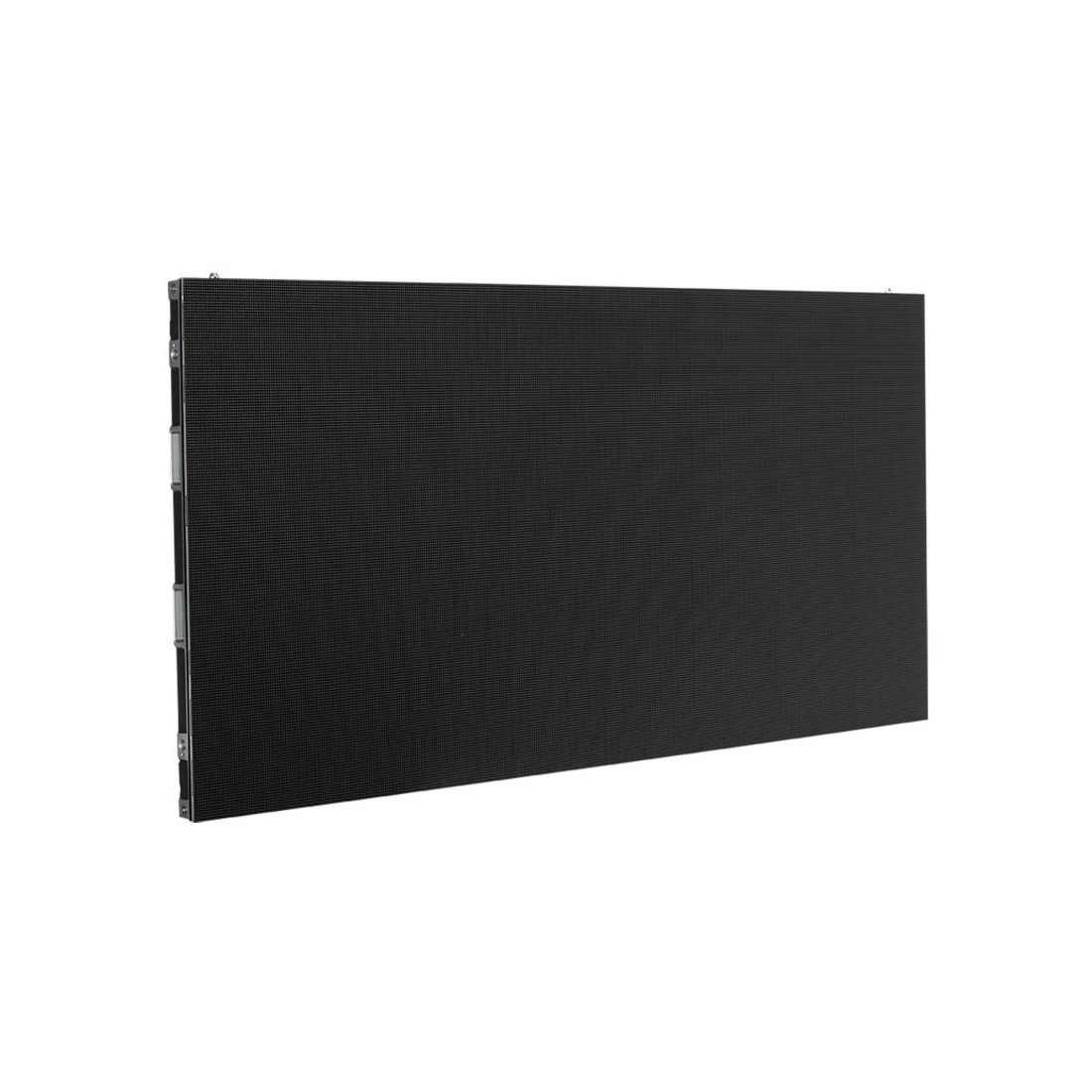

Measuring 1000mm x 500mm, the WMS2 consists of eight individual modules, each with 96 x 96 pixels, offering flexibility in arrangement. The panel’s frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation.
With a slim 33mm thickness and a weight of 9.5 kgs., the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting or hanging, catering to various installation preferences. Join the LED video panel revolution with ADJ’s crystal clear, and incredibly vibrant WMS2.
Gallery
Specification
- • Pixel Pitch (mm): 2.6mm
- • Pixel Density: 147,456 pixels/m2
- • Resolution: 384 x 192 pixels/panel,
- • LED sealing Type: SMD1515 Kinglight Copper

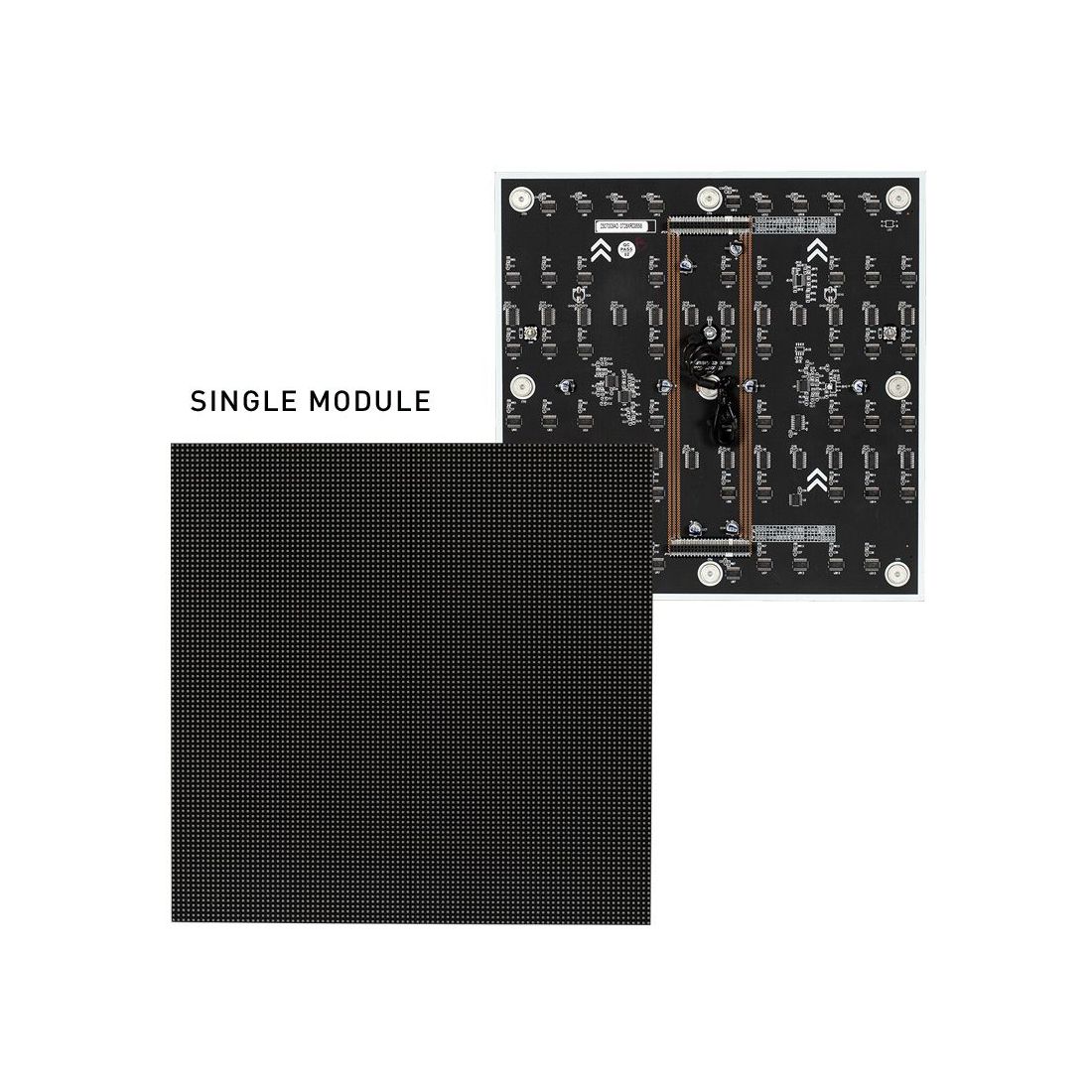

- • Module Size (mm x mm): 250 x 250
- • Module Resolution: 96 x 96 pixels
- • Average Life (Hours): 50000H
- • Installation Method: Hang or Wall Mount

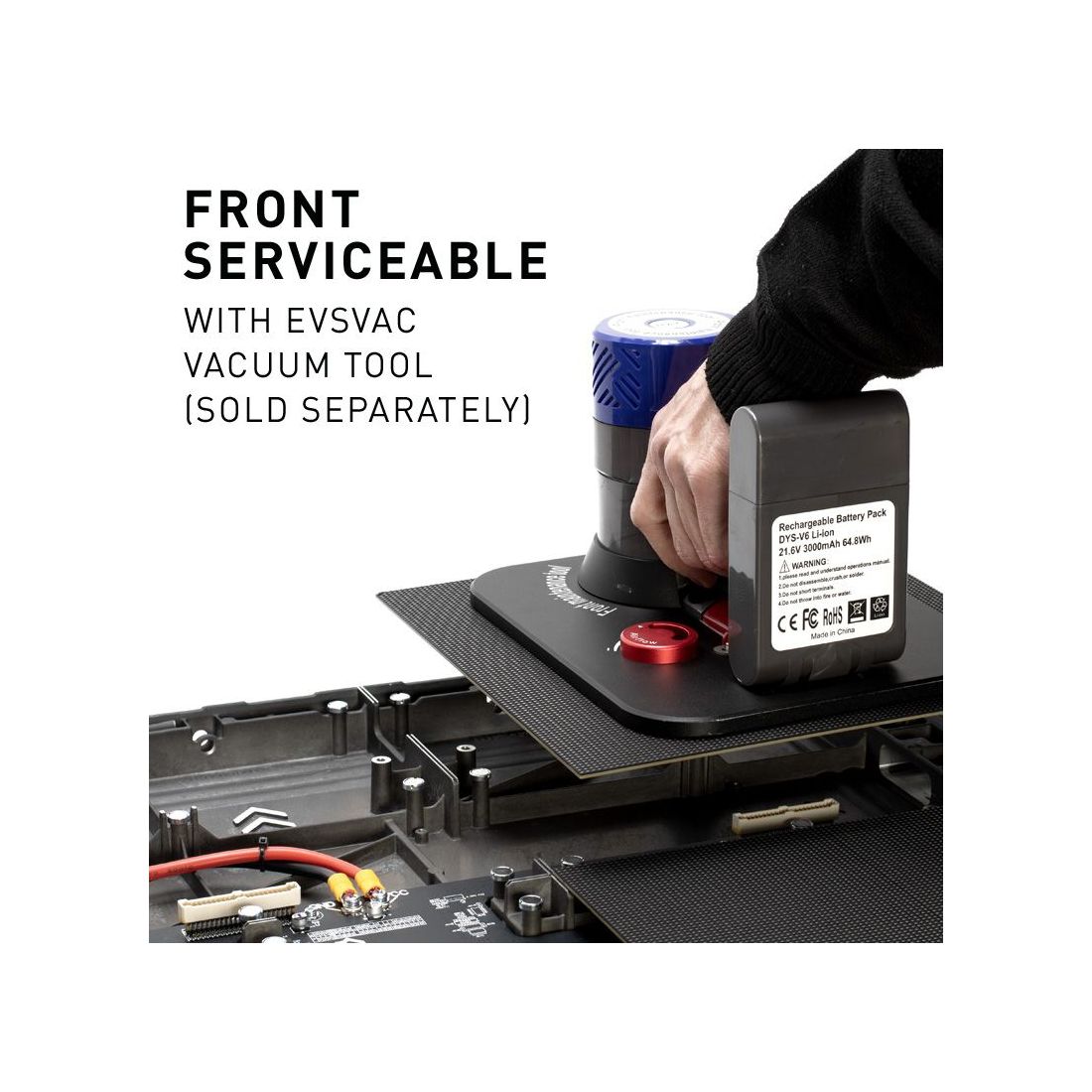

- • Maintenance: Front Serviceable
- • Brightness: 800 NITS
- • Horizontal Viewing Angle (Deg): 160°
- • Vertical Viewing Angle (Deg): 140°
- • Grey Scale (Bit): ≥14, CFD435
- • Refresh Rate (Hz): 3840Hz
- • Input Voltage (V): 100-240VAC
- • Max Power Dissipation (W/m²): 350
- • Average Power consumption (W/m²): 140
- • Receiving Card: Novastar A8s-N
- • Working Environment: Indoor
- • Waterproof Level: IP20
- • Working Temperature: -20°C ~ +40°C
- • Storage temperature range: -40°C ~ +80°C
- • Operation humidity (RH): 10%~90%
- • Cabinet Size (mm x mm): 1000 x 500mm
- • Cabinet Weight: 9.5 kg
- • Cabinet Thickness (mm): 33mm
- • EVSVAC (EVSVAC) - Vacuum Tool to Remove Modules
- • WMSHDC (WMS132) - Horizontal Data Cable for WMS Panel Series
- • WMSHPC (WMS106) - Horizontal Power Cable for WMS Panel Series
- • WMSMAT (WMS080) - WMS2 Magnet Adjustment Tool
- • WMSMDC32 (WMS158) - 32-foot, MainData Cable for WMS Panel Series
- • WMSMPC16 (WMS145) - 16.4-foot, Main Power Input Cable for WMS Panel Series
- • WMSRB1 (WMS015) - Free Hang, 1-Meter Rigging Bar (only for landscape orientation)
- • WMST2X2 (WMS041) - Frame Trim for 2x2 WMS Video Wall
- • WMST3X3 (WMS054) - Frame Trim for 3x3 WMS Video Wall
- • WMST4X4 (WMS067) - Frame Trim for 4x4 WMS Video Wall
- • WMSVDC (WMS119) - Vertical Data Cable for WMS Panel Series
- • WMSVPC (WMS093) - Vertical Power Cable for WMS Panel Series
- • WMSWB1 (WMS028) - 1-Meter, Wall Mount Bracket
Specifications subject to change without notice
