WMS1 Media Sys Select New
Key Features
Control
• Receiving Card: Novastar A8s-N
• Processor: Novastar TB50
• Receiving Card: Novastar A8s-N
• Processor: Novastar TB50
Dimensions
• System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
• Cabinet Thickness: 33,4mm
• System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
• Cabinet Thickness: 33,4mm
Optics
• Pixel Pitch (mm): 1.95mm
• Pixel Density (dot/m2): 262,144
• Brightness (cd/m2): 700-800 NITS
• Pixel Pitch (mm): 1.95mm
• Pixel Density (dot/m2): 262,144
• Brightness (cd/m2): 700-800 NITS
Product Information
SKU: 1226300191
HS-Code: 8529909299

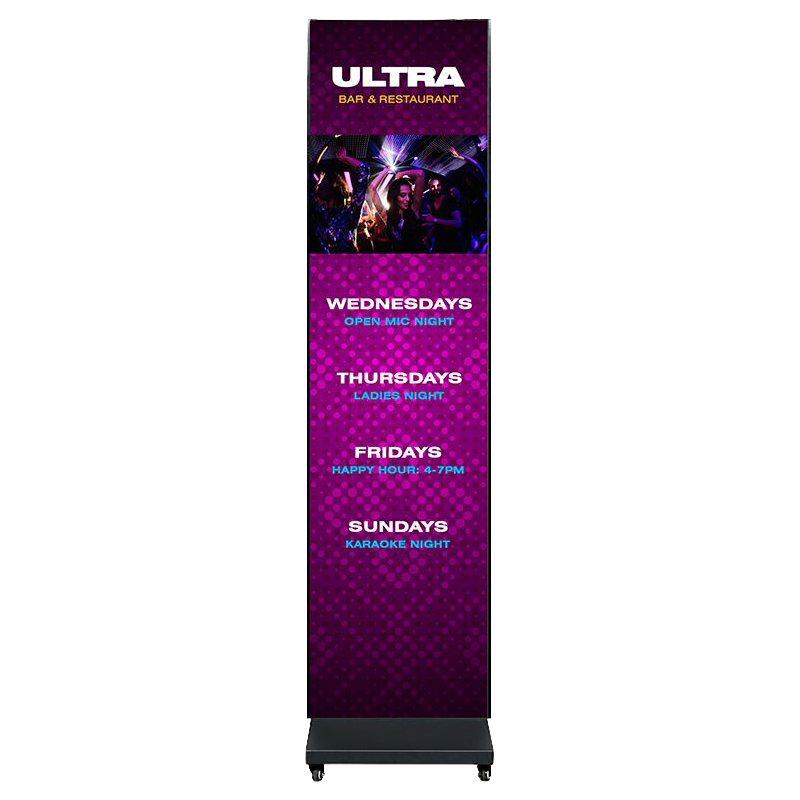

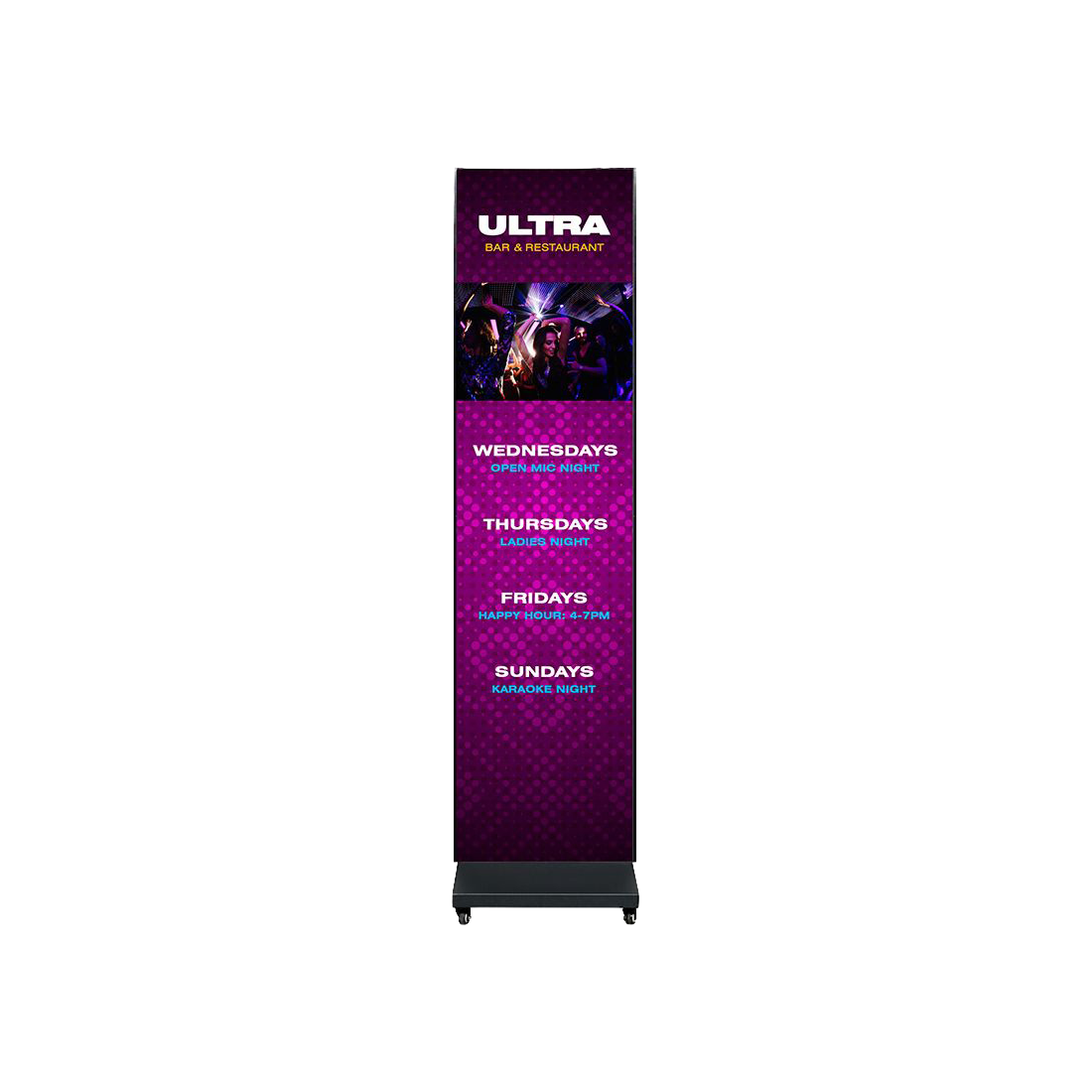

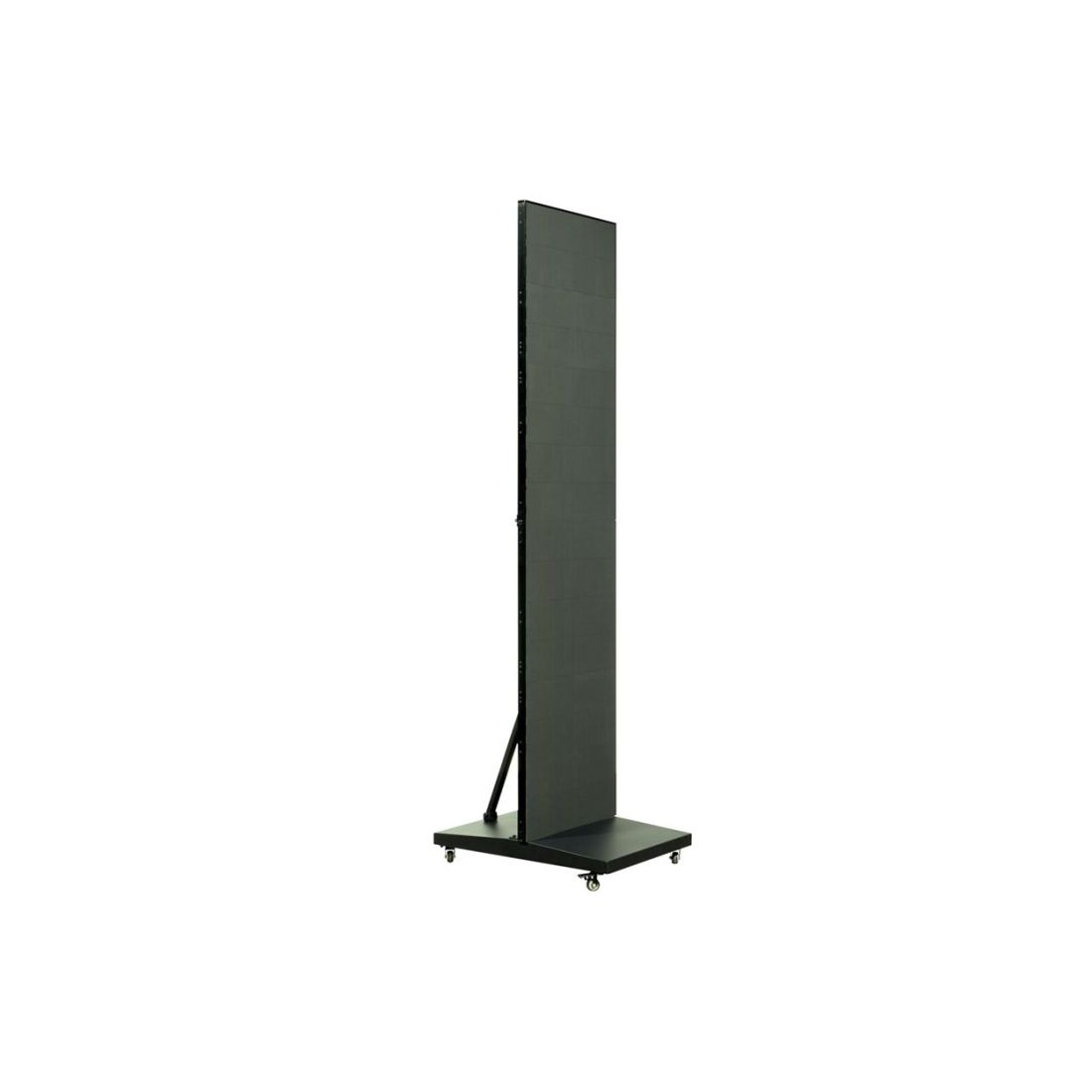

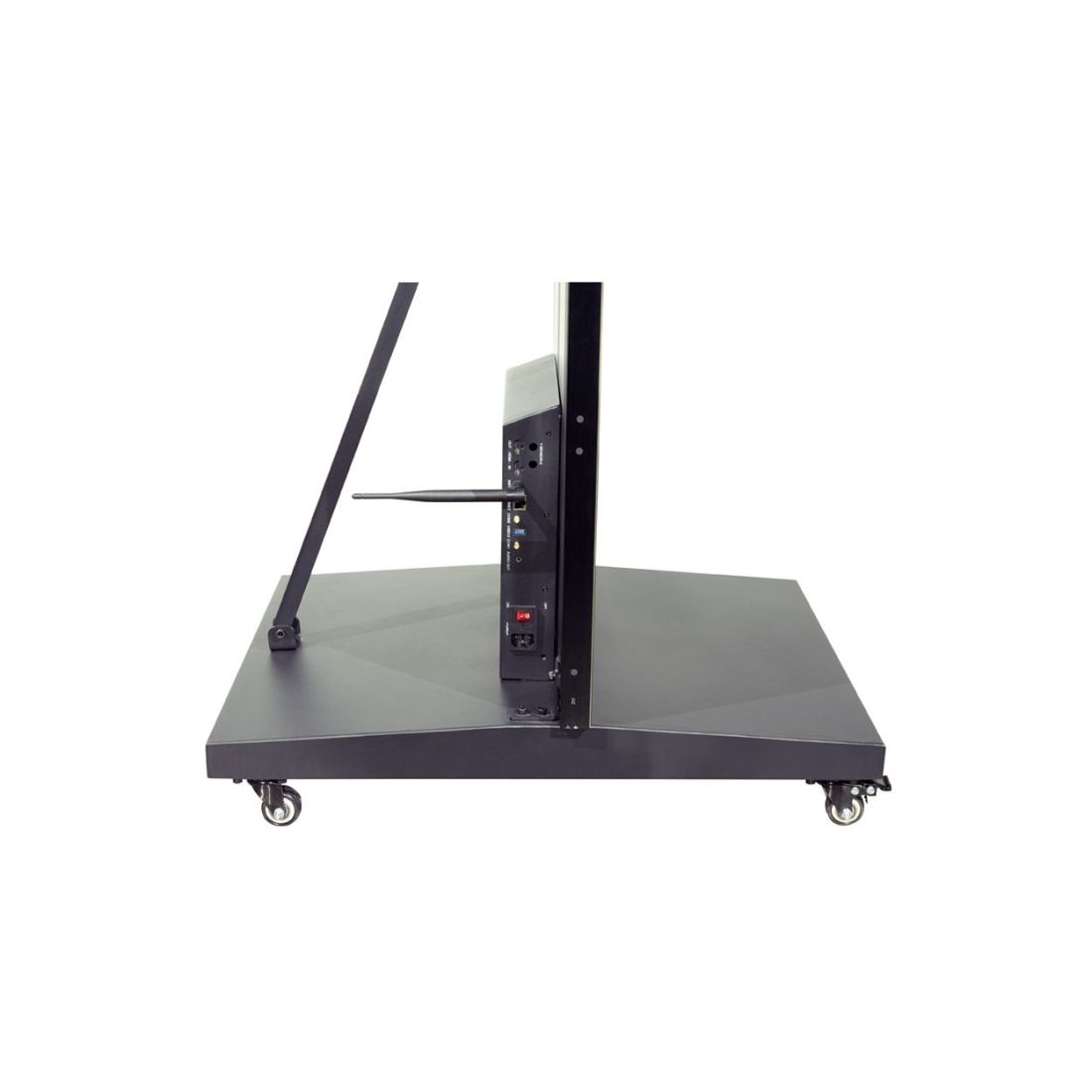

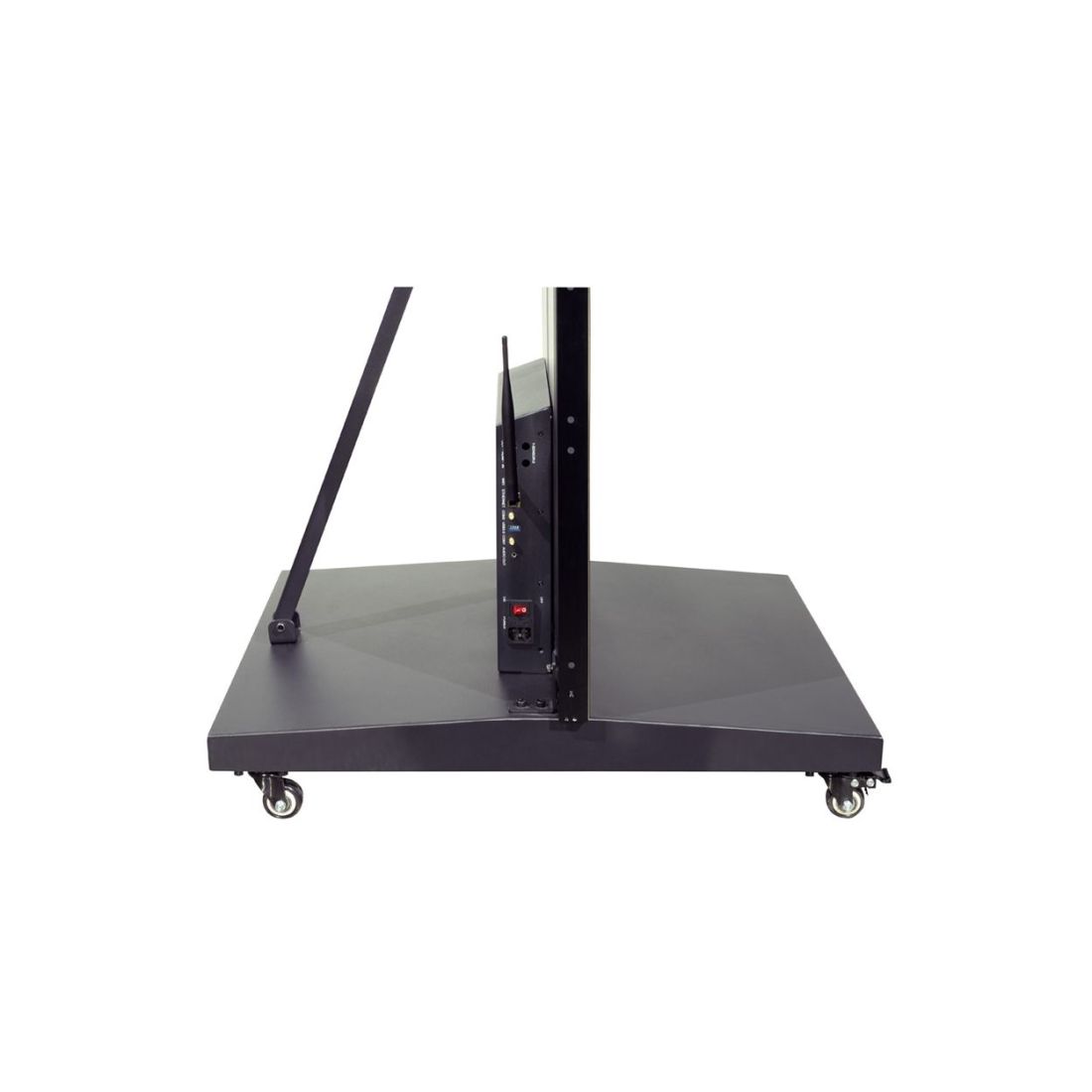

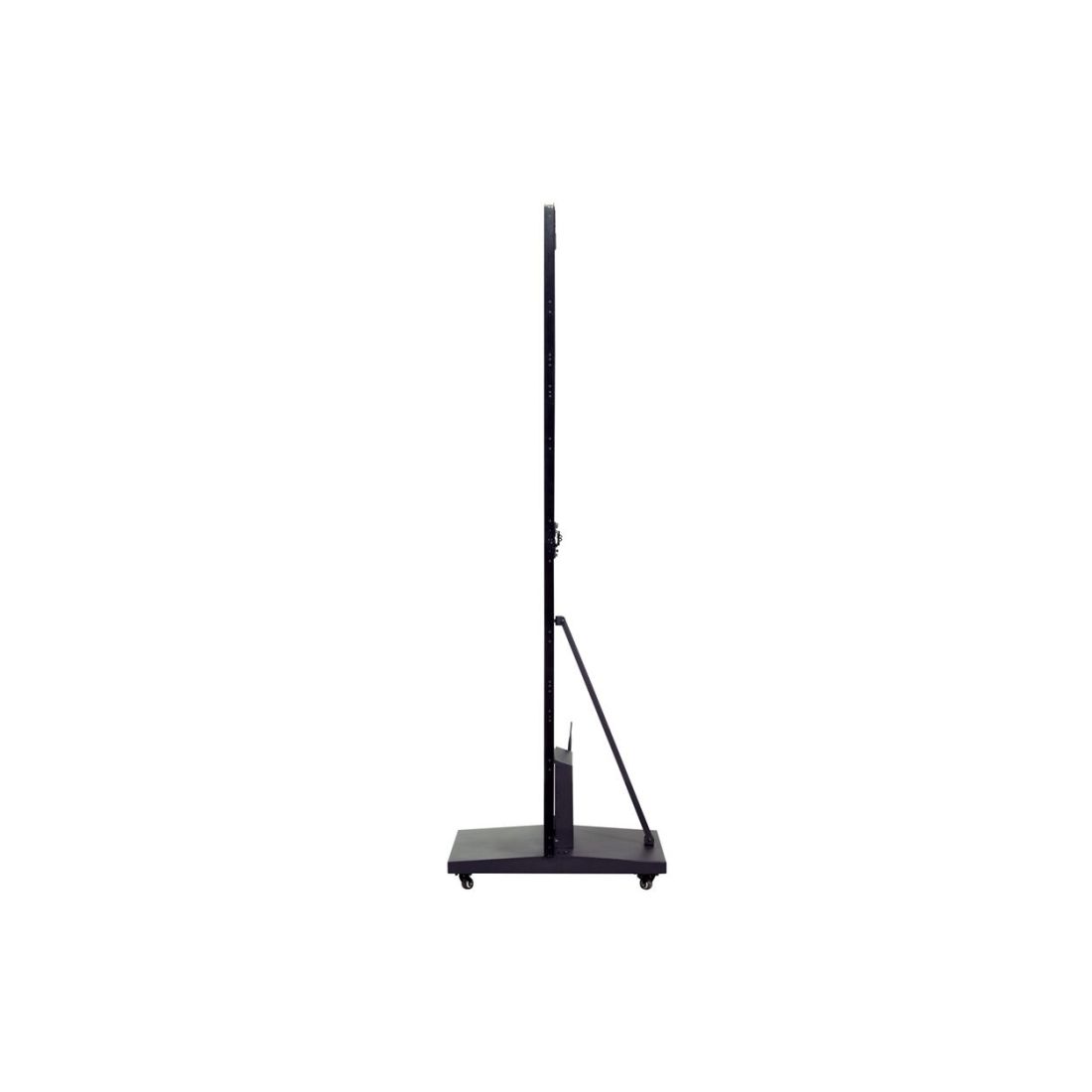

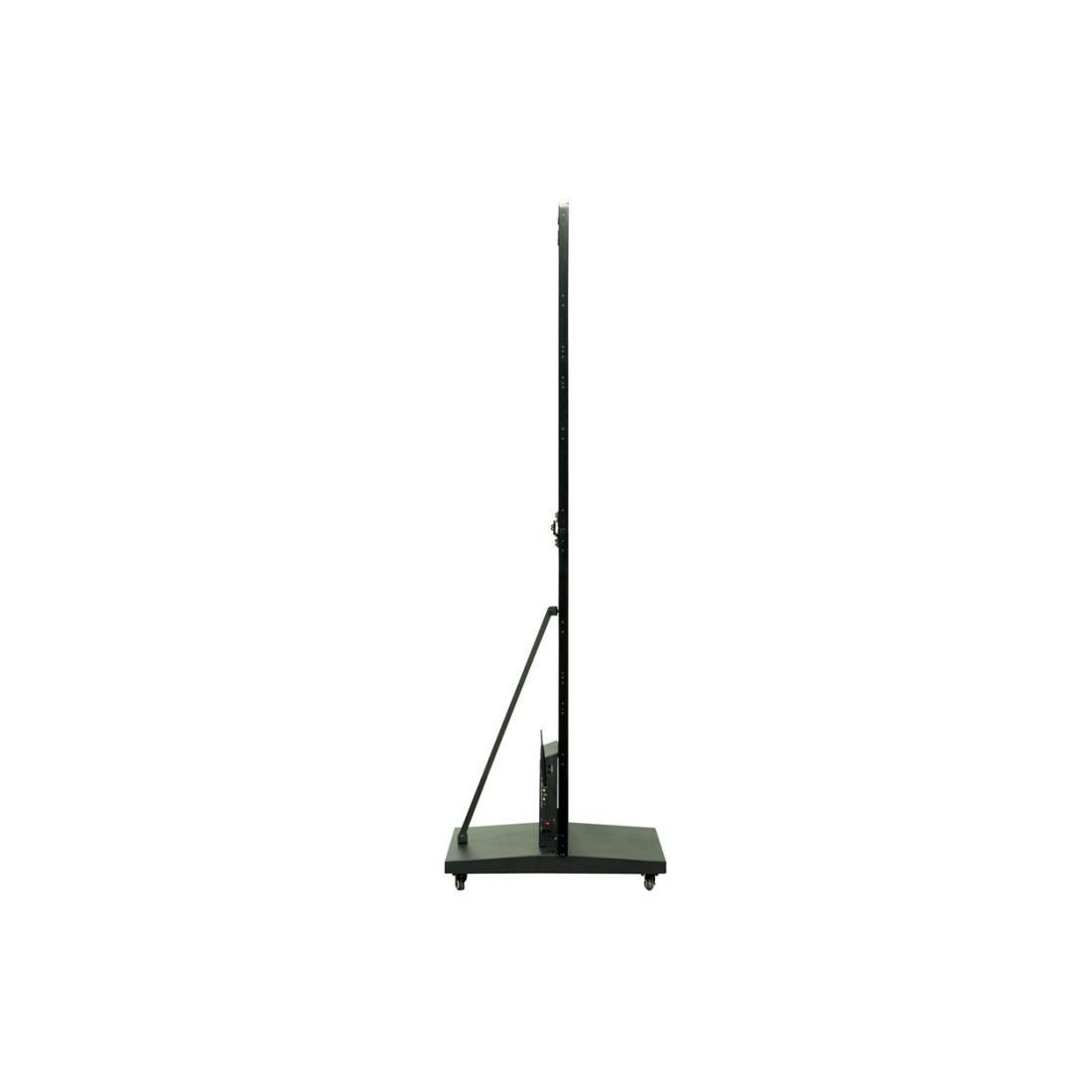

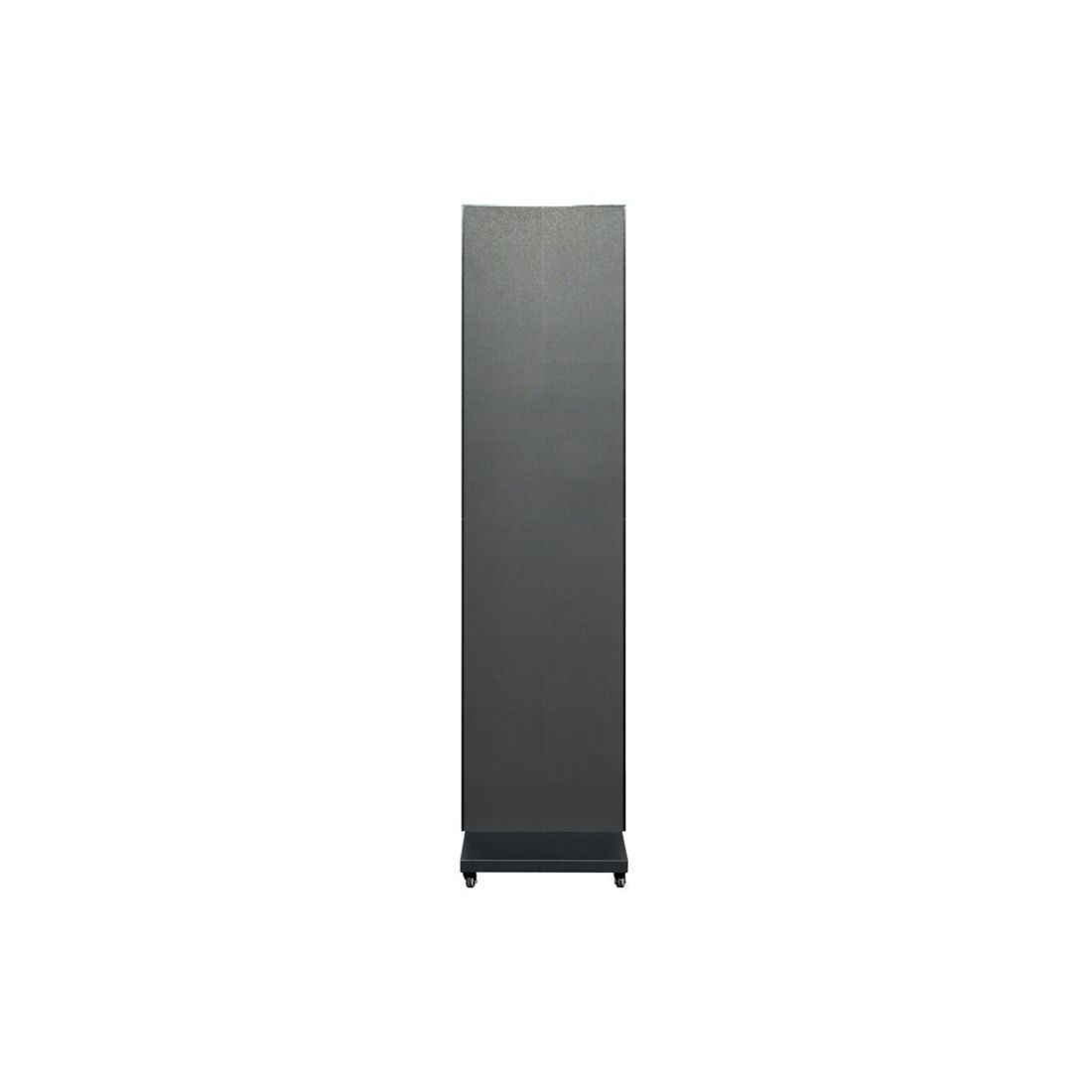

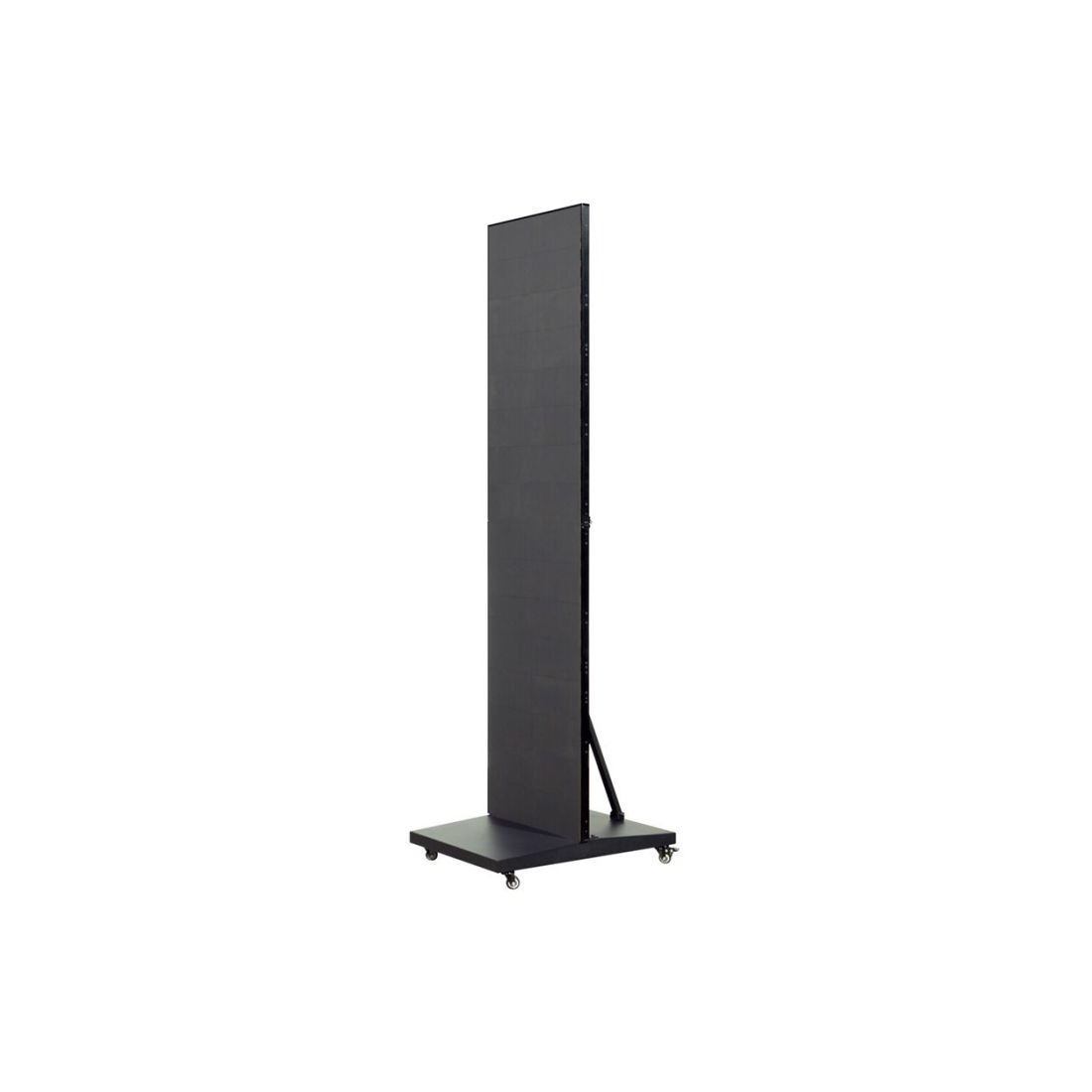

The WMS1 Media Sys is a cutting-edge LED video display designed to elevate retail environments, trade shows, and live events. This all-in-one system includes two WMS1 LED video panels, a display stand with a built-in Novastar video processor, and a durable flight case for easy transport.
The LED video panels feature an ultra high-res 1.95mm pixel pitch with a brightness 700-800 NITS, the WMS1 ensures vivid visuals and crisp detail, even in well-lit areas. Its 3840Hz refresh rate and ≥14-bit grayscale deliver smooth, flicker-free playback for videos, animations, and real-time messaging.

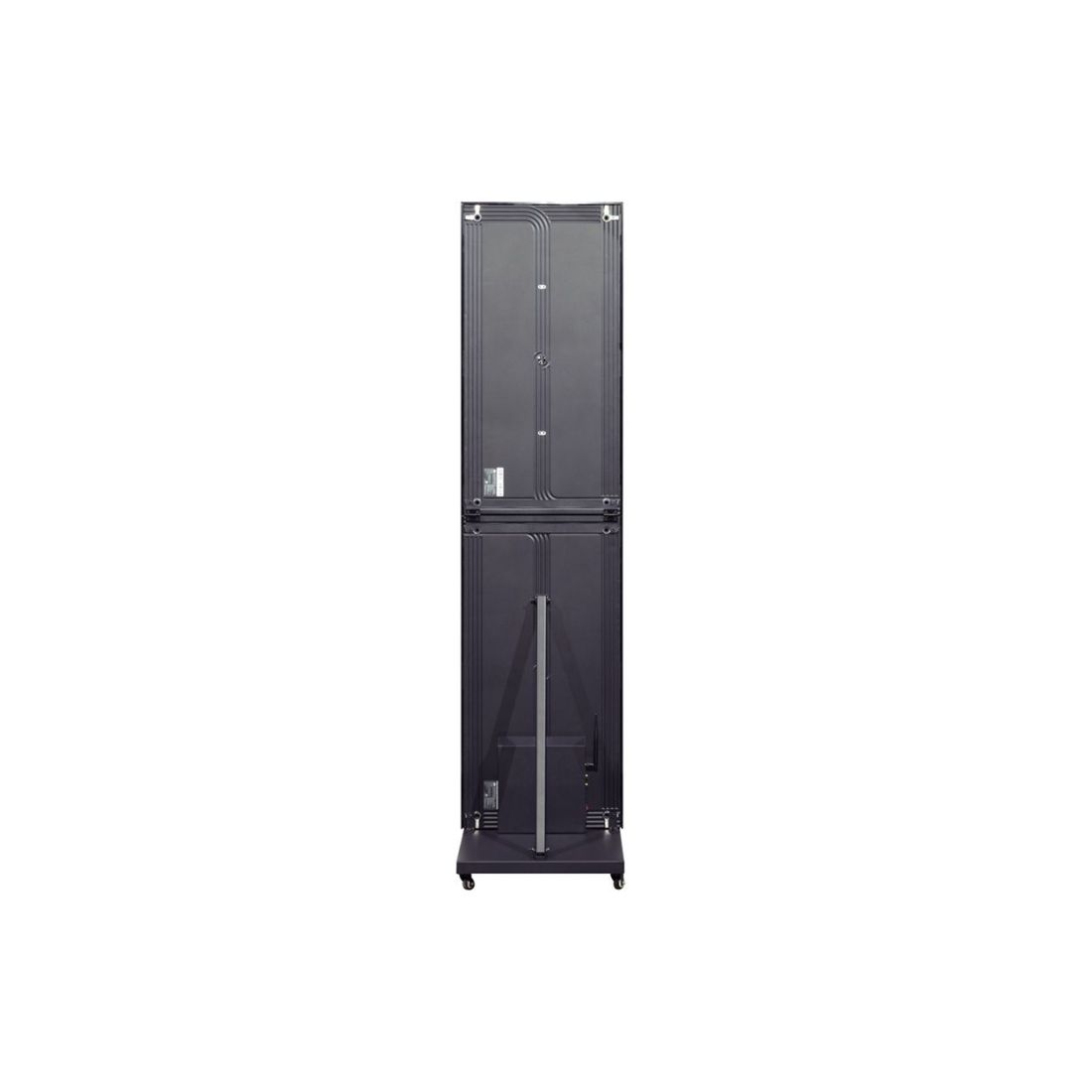

Designed for effortless setup and maintenance, the system utilizes a "Roll and Set" installation method with accessible front maintenance. The Novastar TB50 processor and A8s-N receiving card enable seamless content management, while energy-efficient LED technology minimizes power usage. Users can conveniently manage content via computer, mobile devices, USB drives, and cloud-based platforms.
Built for indoor applications, the WMS1 Media Sys operates in a wide range of environments (-20°C to 40°C) and features an IP20 rating for durability. The ETL-certified WMS1 LED panels ensure reliability and compliance with industry standards.
Enhance customer engagement, maximize branding opportunities, and streamline content delivery with the ADJ WMS1 Media Sys—an essential tool for communicating high-impact visuals.
Gallery
Specification
- • Pixel Pitch (mm): 1.95
- • Pixel Density (dot/m²): 262,144
- • LED sealing Type: SMD1212
- • Module Size (mm x mm): 250 x 250mm
- • Module Resolution (PX x PX): 128 x 128 Dots
- • Panel Resolution (PX x PX): 512 x 256
- • Average Life (Hours): 50,000

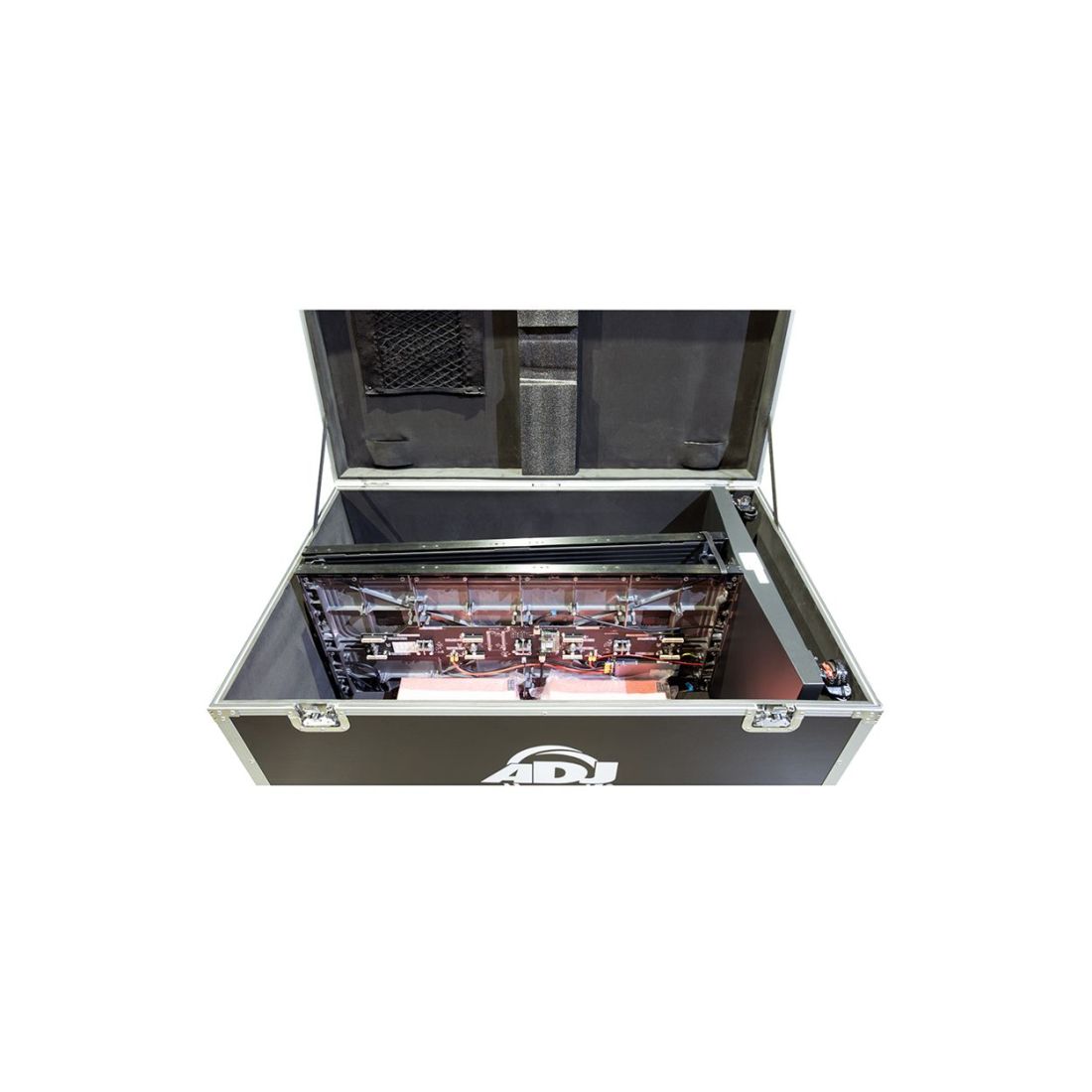

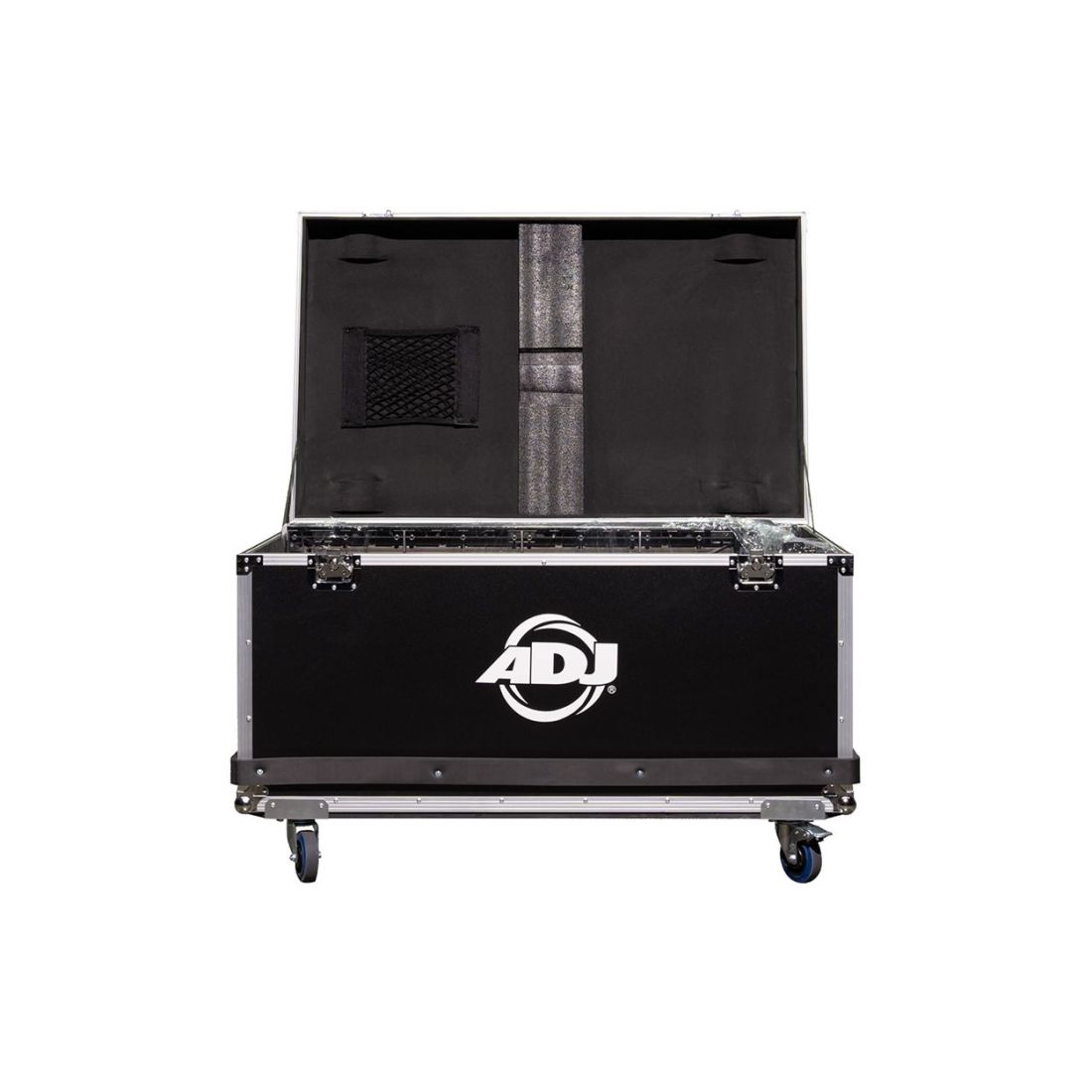

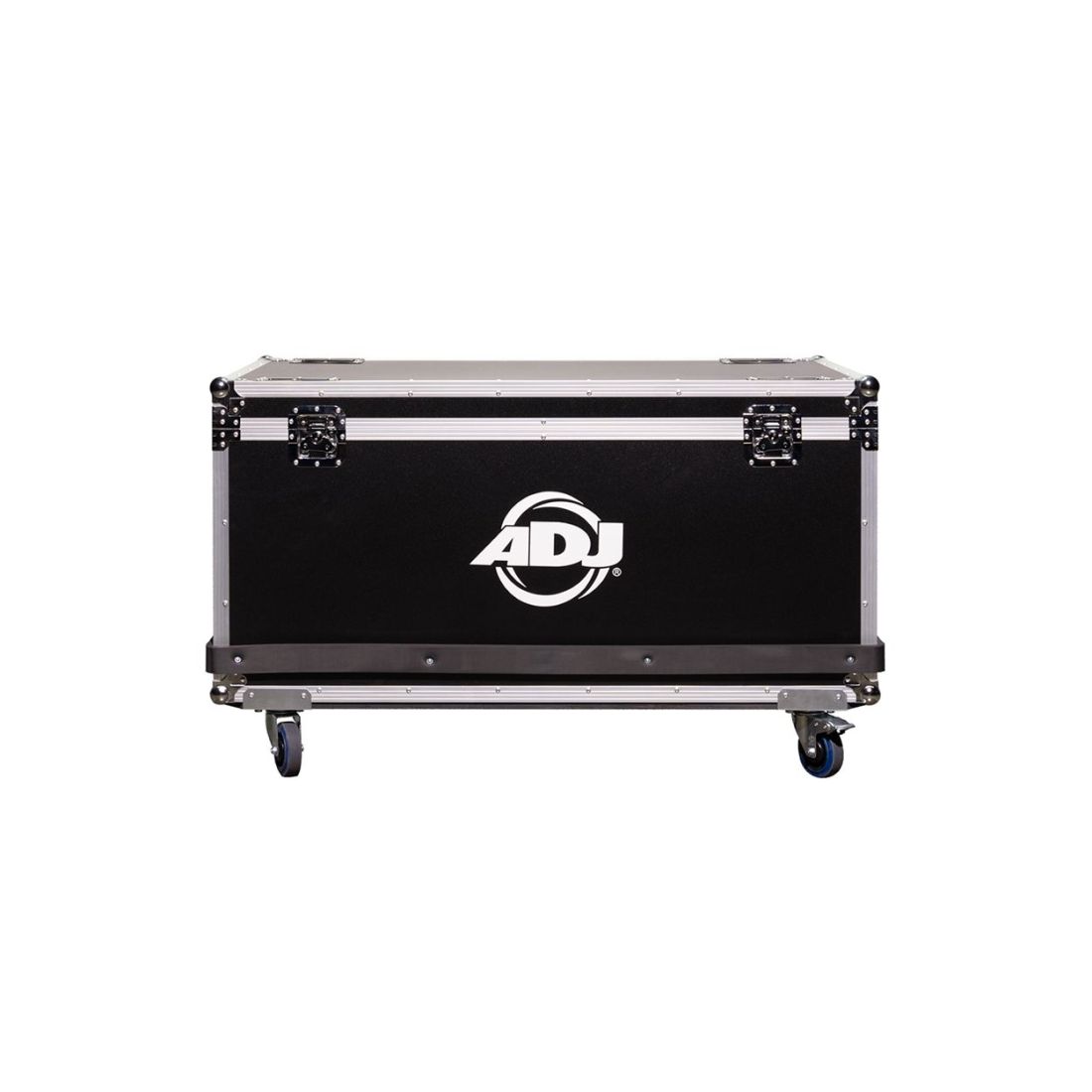

- • Transport: Single System Flight Case
- • One WMS1 Media System
- • Installation Method: Roll and Set
- • Maintenance: Front
- • Configuration*: DP3265S, 3840Hz.
- • Brightness (cd/m²): 700-800nits
- • Horizontal Viewing Angle (Deg): 160
- • Vertical Viewing Angle (Deg): 140
- • Grey Scale (Bit): ≥14
- • Refresh Rate (Hz): 3840
- • Input Voltage (V): 100-240VAC
- • Max Power Dissipation (W/m²): 520
- • Average Power Consumption (W/m²): 180
- • Receiving Card in WMS2 Panels: Novastar A8s-N
- • Processor: Novastar TB50
- • Working Environment: Indoor
- • IP Rating: IP20
- • Working Temperature (°C): -20 ~ +40
- • Work Humidity (RH): 10%~90%
- • Storage Temperature Range: -40 ~ +80
- • Operation Humidity (RH): 10%~90%
- • Flight Case Dimensions (LxWxH): 1155 x 714 x 689.52mm)
- • System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
- • LED Panel Thickness: 33.4mm
- • System Weight (In Flight Case): 80 kg
- • EVSVAC (Vacuum Tool for EVS & WMS Series Module Removal) ADJ strongly recommends that every customer owns this tool - especially if the display will be collapsed for storage or transport.
Specifications subject to change without notice
