Wifly QA5 IP Archive
Product Information

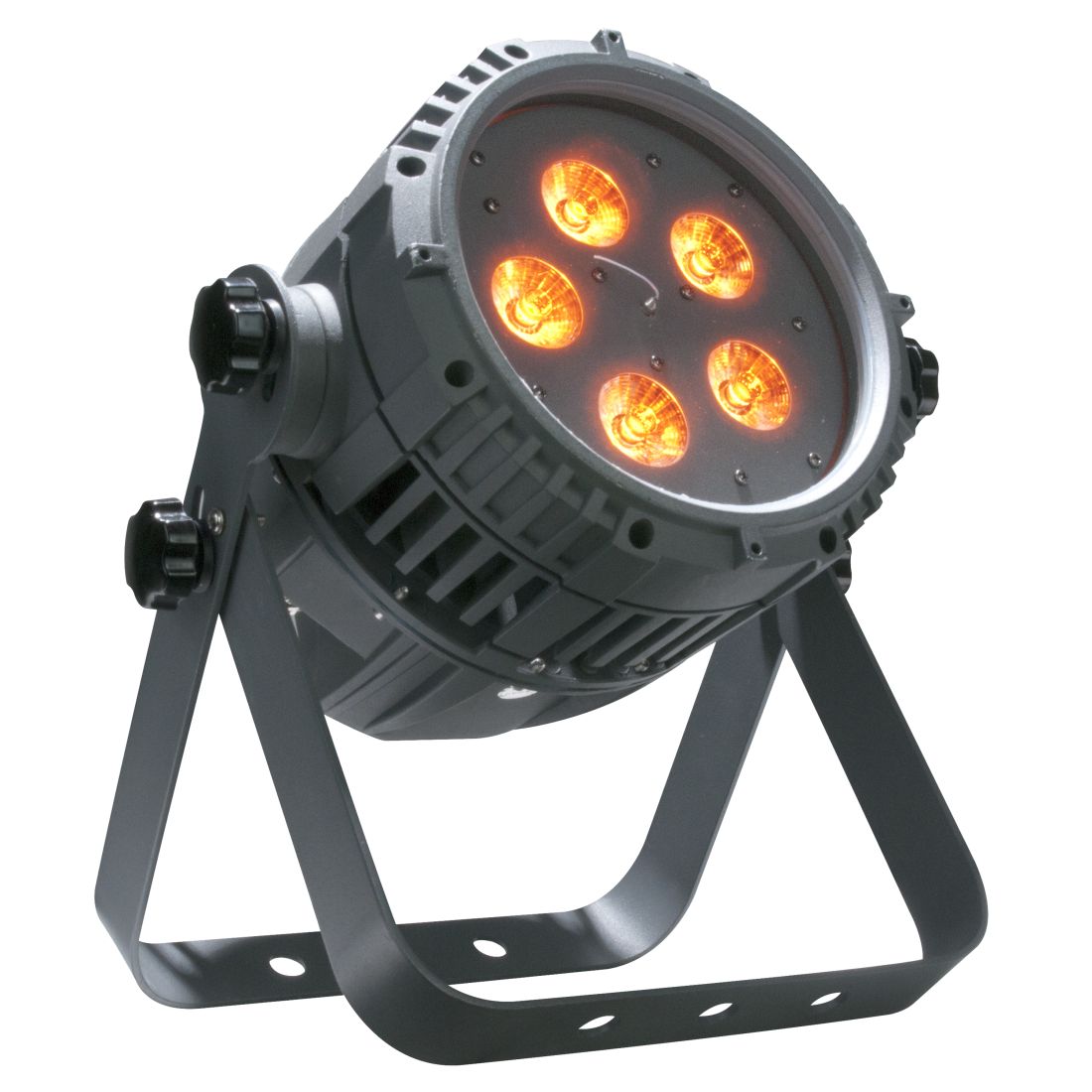

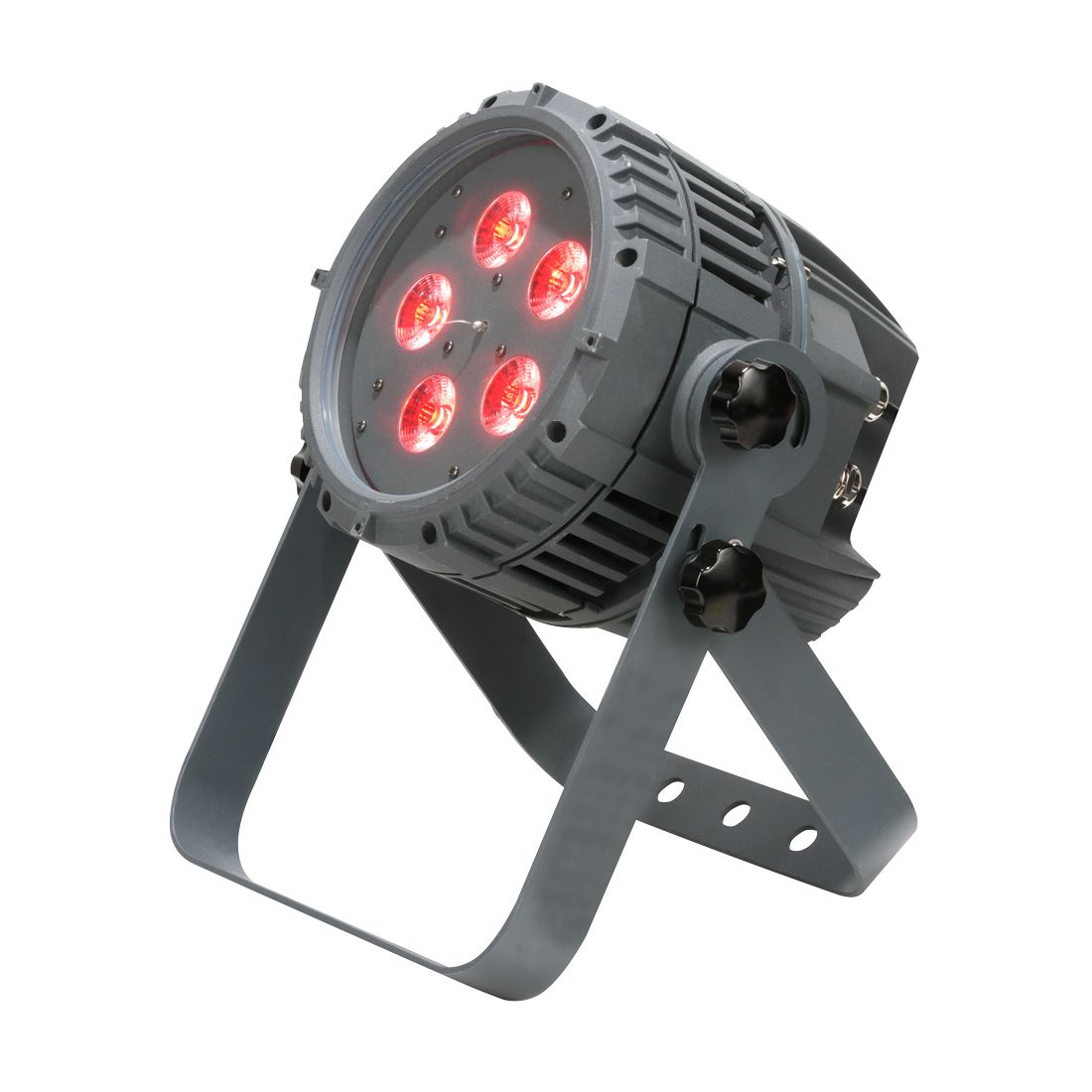

The ADJ WiFLY QA5 IP is an IP65 outdoor rated compact Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 5-Watt RGBA Quad LEDs (Red, Green, Blue & Amber) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 400 feet (open line of sight) with the WiFLY QA5 IP.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 35W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
Gallery
Specification
Specifications:
- IP65, Outdoor Rated, flat par fixture with five Quad RGBA LEDs (4-in-1 Red, Green, Blue & Amber LEDs)
- Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
- Creates no RGBA shadows
- Compatible with ADJ RFC wireless remote control (sold separately)
- 5 DMX Channel modes: 4, 5, 6, 10 or 11 channel modes
- 8 Operational modes: Manual Color; Color Change; Color Jumping; Color Dreaming: Auto (Program Run); Sound Active, WiFLY and DMX Controlled
- 64 built-in Color Macros
- LED pulse and strobe effect
- Flicker Free Operation
- Electronic Dimming: 0 - 100%

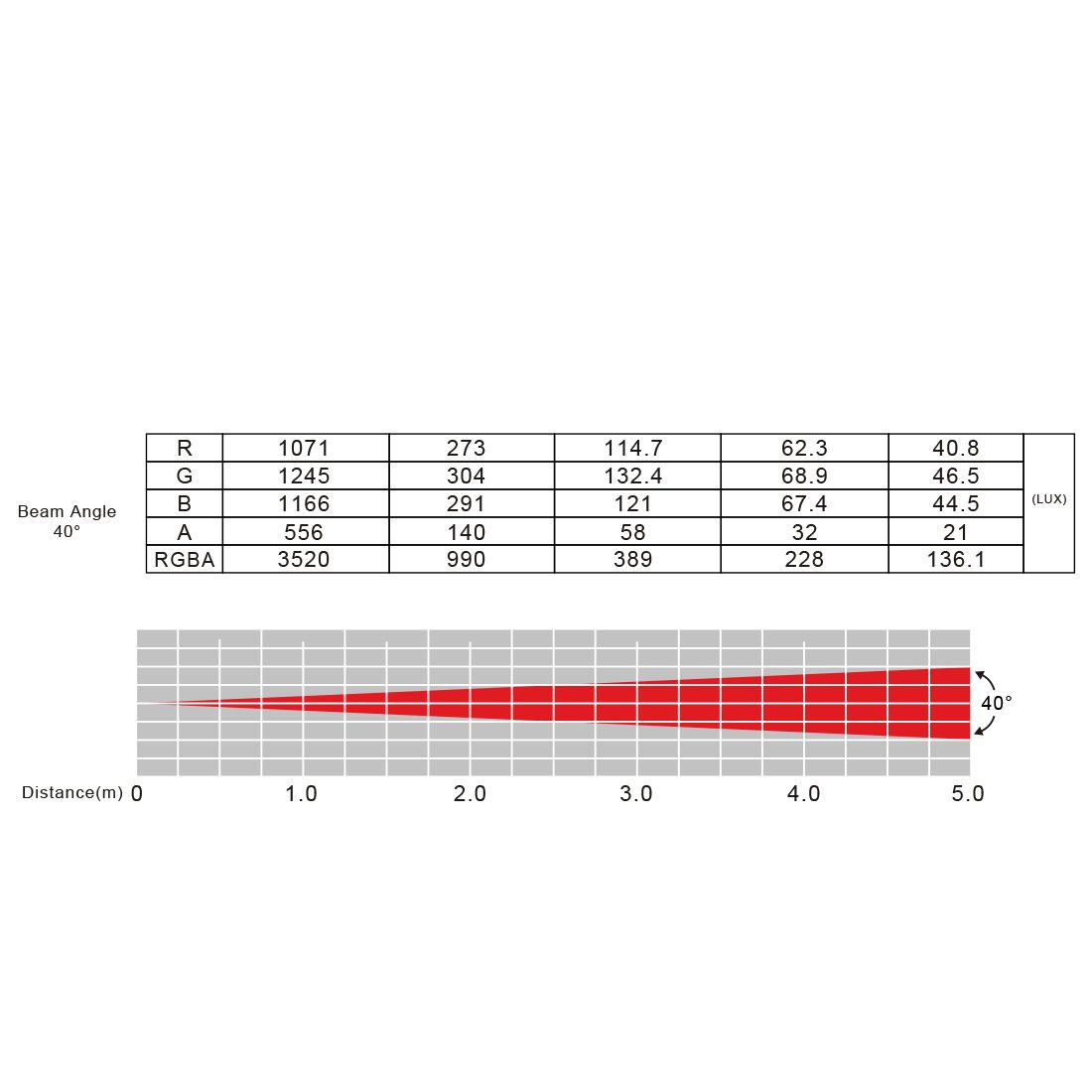

- Beam angle: 40-degree
- Linkable via 3-pin IP cable (In/Out)

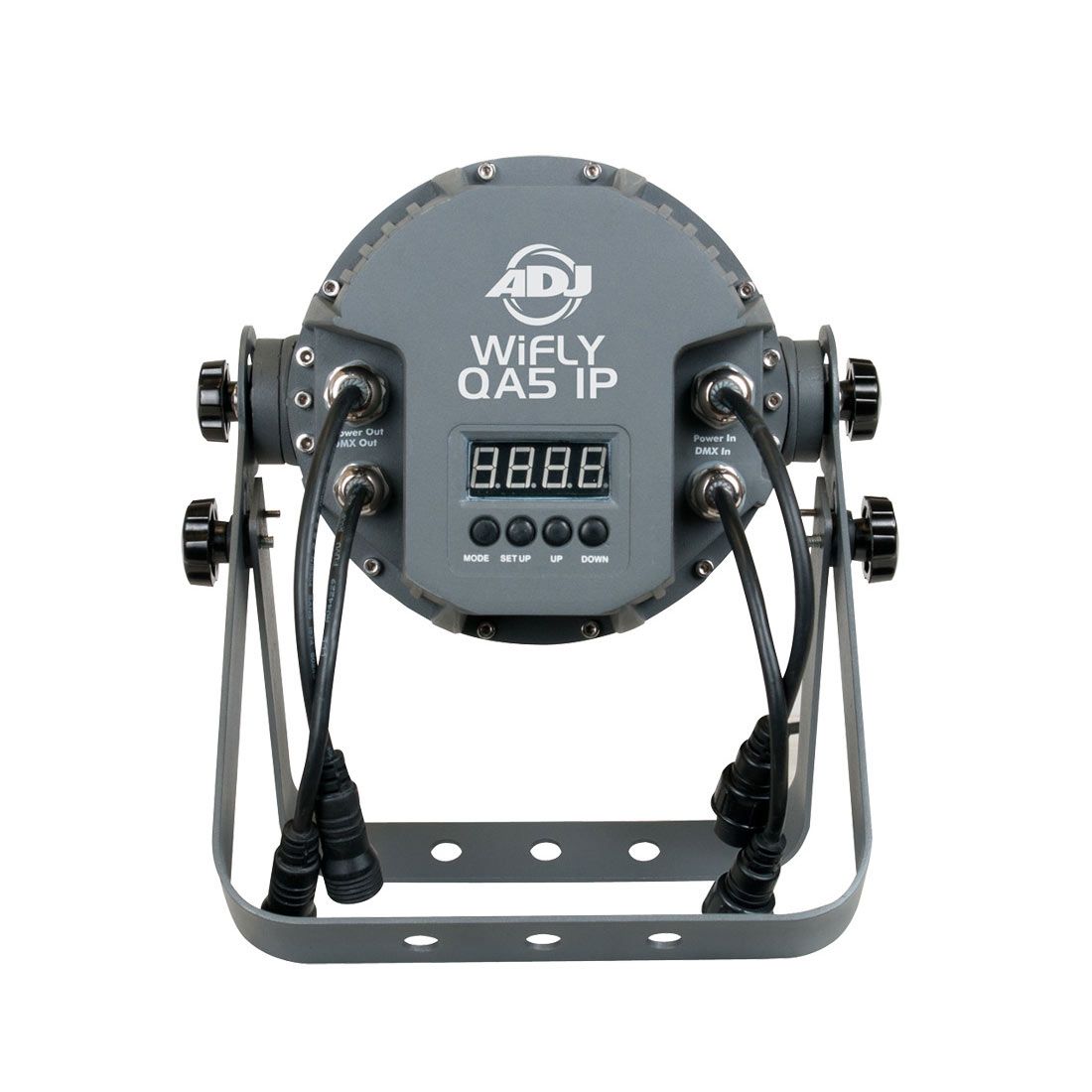

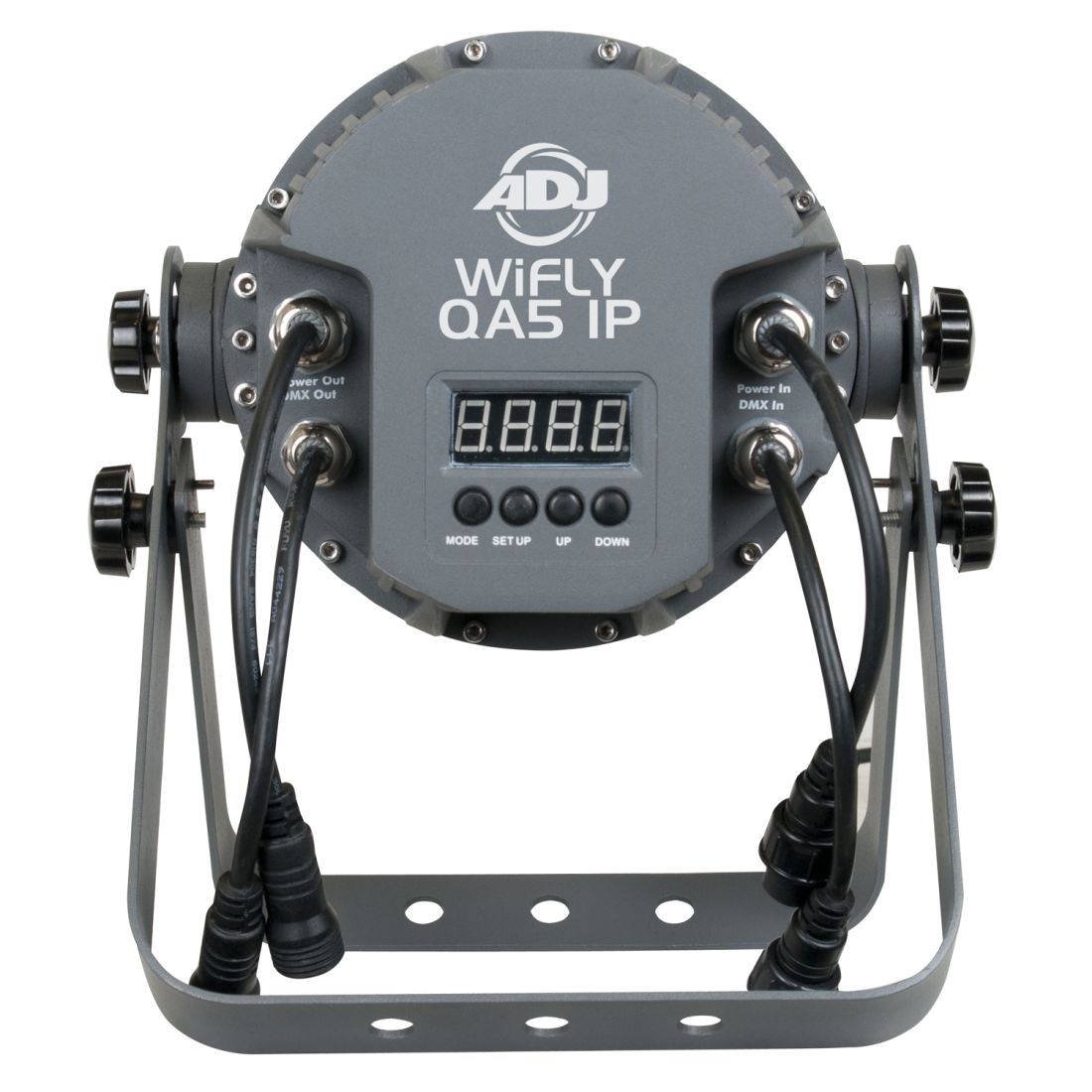

- 4-button DMX menu display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground
- 4-Pin Power AC IN/OUT outlets on rear to daisy chain power (up to 15 units)
- Run all night – No duty cycle
- LED Source: 5x 5-Watt QUAD LEDs (4-in-1 RGBA- Red, Green, Blue & Amber LEDs, rated at approximately 50,000 hrs)
- Power Draw: 35W total (All LED's @ Full On)
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Dimensions (LxWxH): 250 x 190 x 300mm
- Weight: 4.2 kg.
Specifications subject to change without notice.
