WiFly EXR HEX5 IP Select
Key Features
Construction
• Aluminium Metal Housing
• IP65 Rated
• Aluminium Metal Housing
• IP65 Rated
Optics
• Beam Angle: 40°
• Beam Angle: 40°
Source
• 5x 10W RGBAW+UV HEX LEDs
• 5x 10W RGBAW+UV HEX LEDs
Product Information
SKU: 1226100293
GTIN: 10819730014259
HS-Code: 9405423990

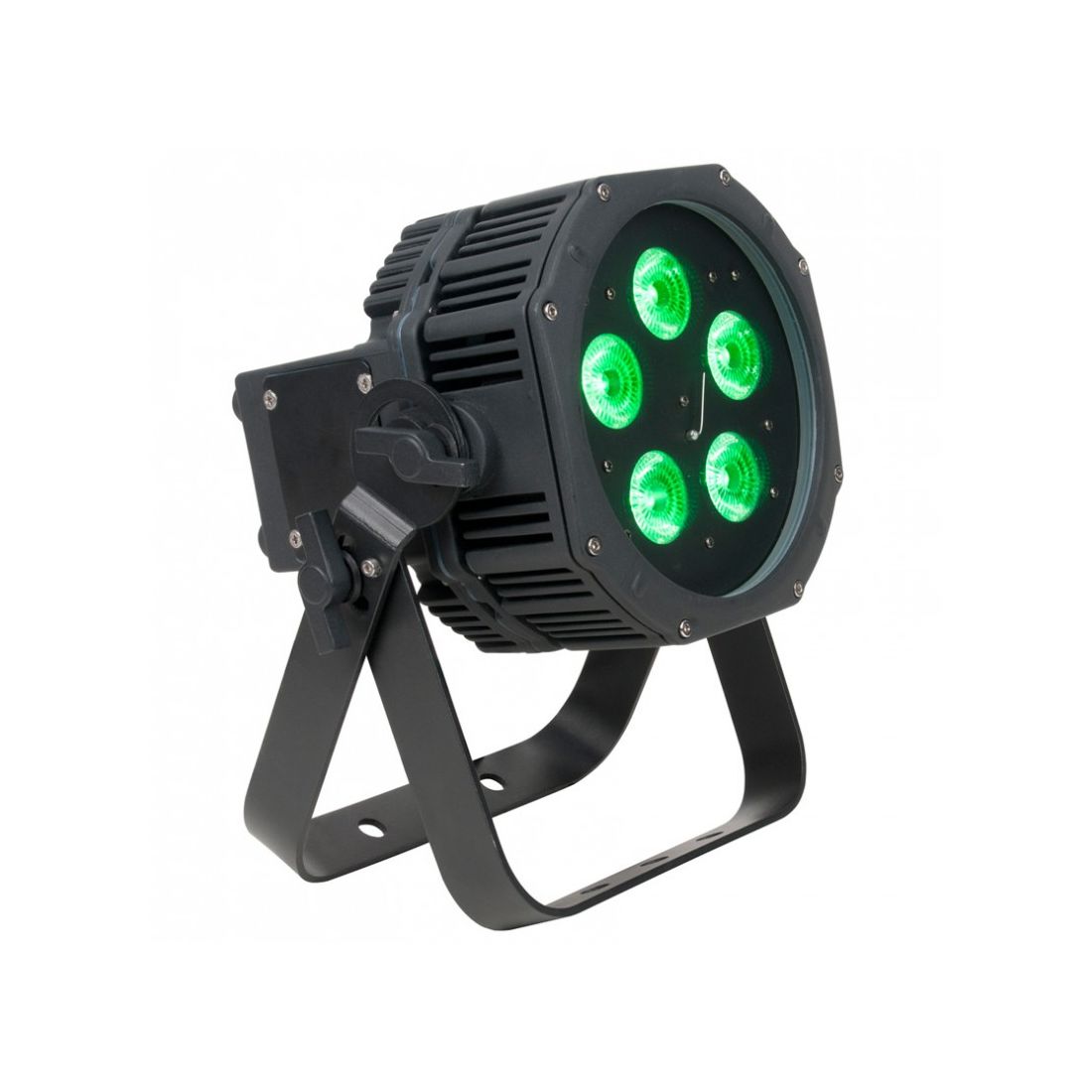

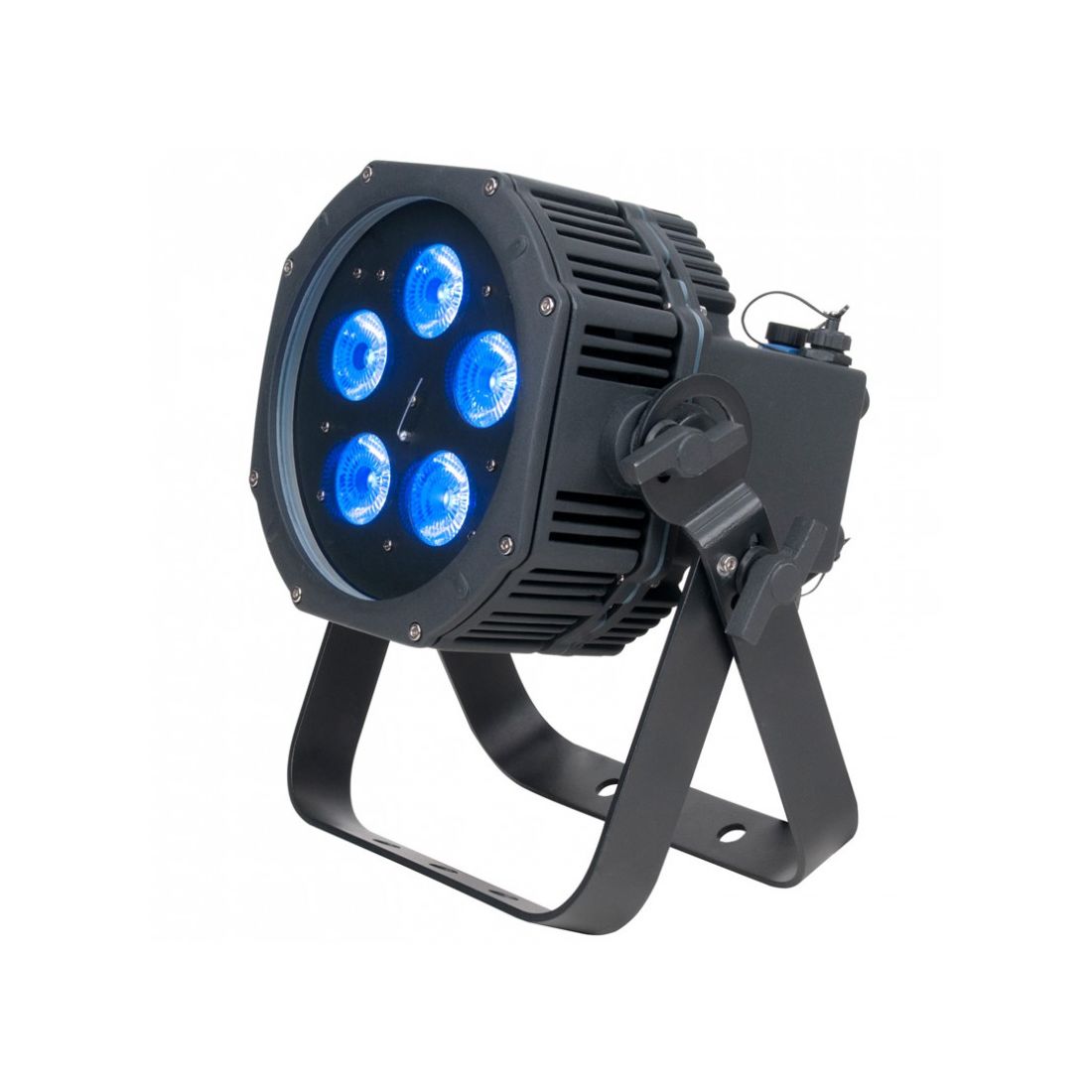

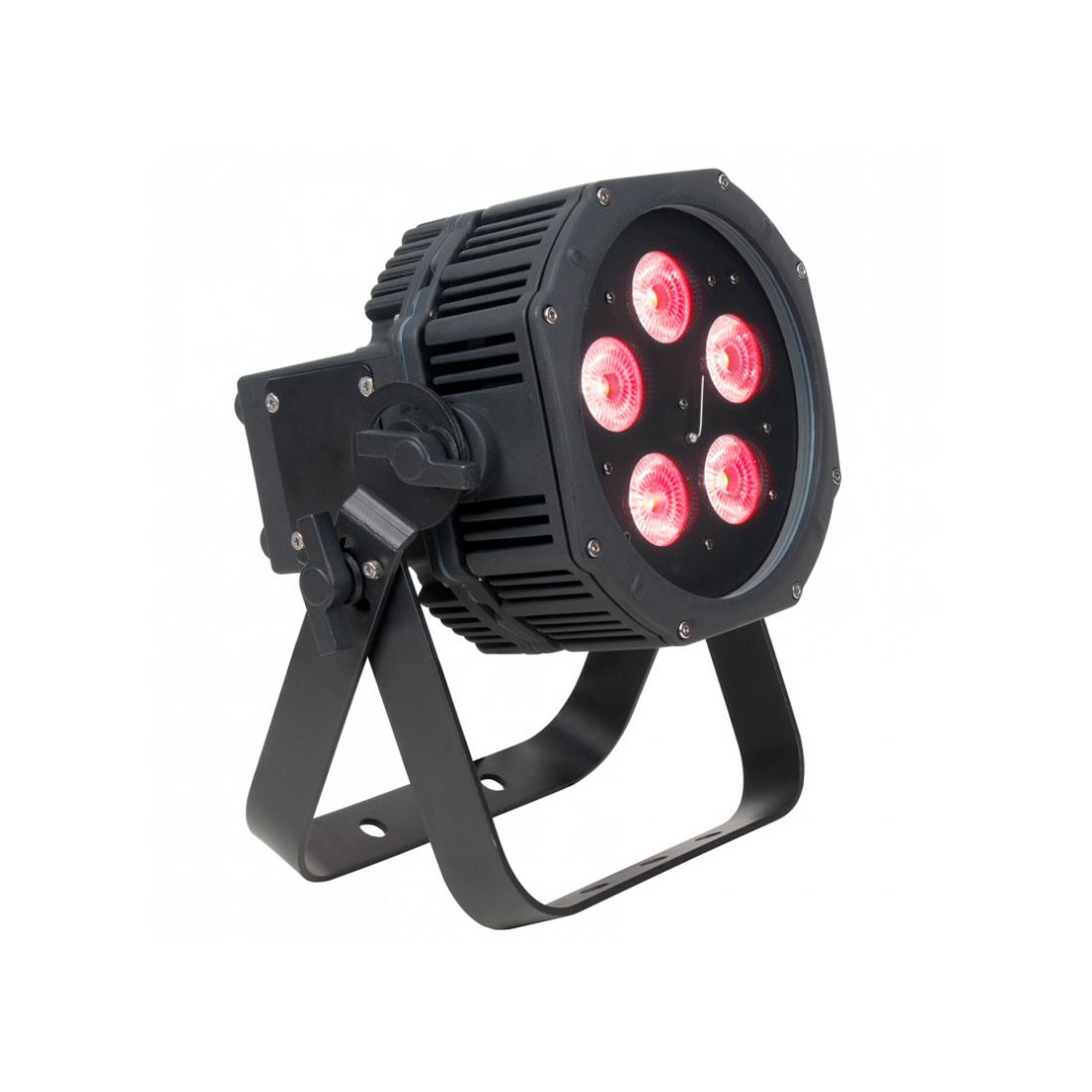

The ADJ WiFLY EXR HEX5 IP is an IP65 outdoor rated compact, battery powered Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 760m(open line of sight) with the WiFLY EXR HEX5 IP.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 56W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFly Transceivers.
Gallery
Specification
- • 5 RGBAW+UV HEX LEDs
- • Individual LED Wattage: 10W
- • Average LED lifetime: 50,000 hrs
- • LED Refresh Rate 1kHz for flicker free operation
- • Beam Angle : 40 degrees
- • 6 Operational modes: Static Color, RGBAW+UV Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
- • 5 DMX Channel modes: 6, 7, 8, 11 or 12 channels
- • 16 Color Change Modes
- • 16 Color Fade Modes
- • Electronic Dimming: 0 - 100%
- • LED pulse and strobe effect

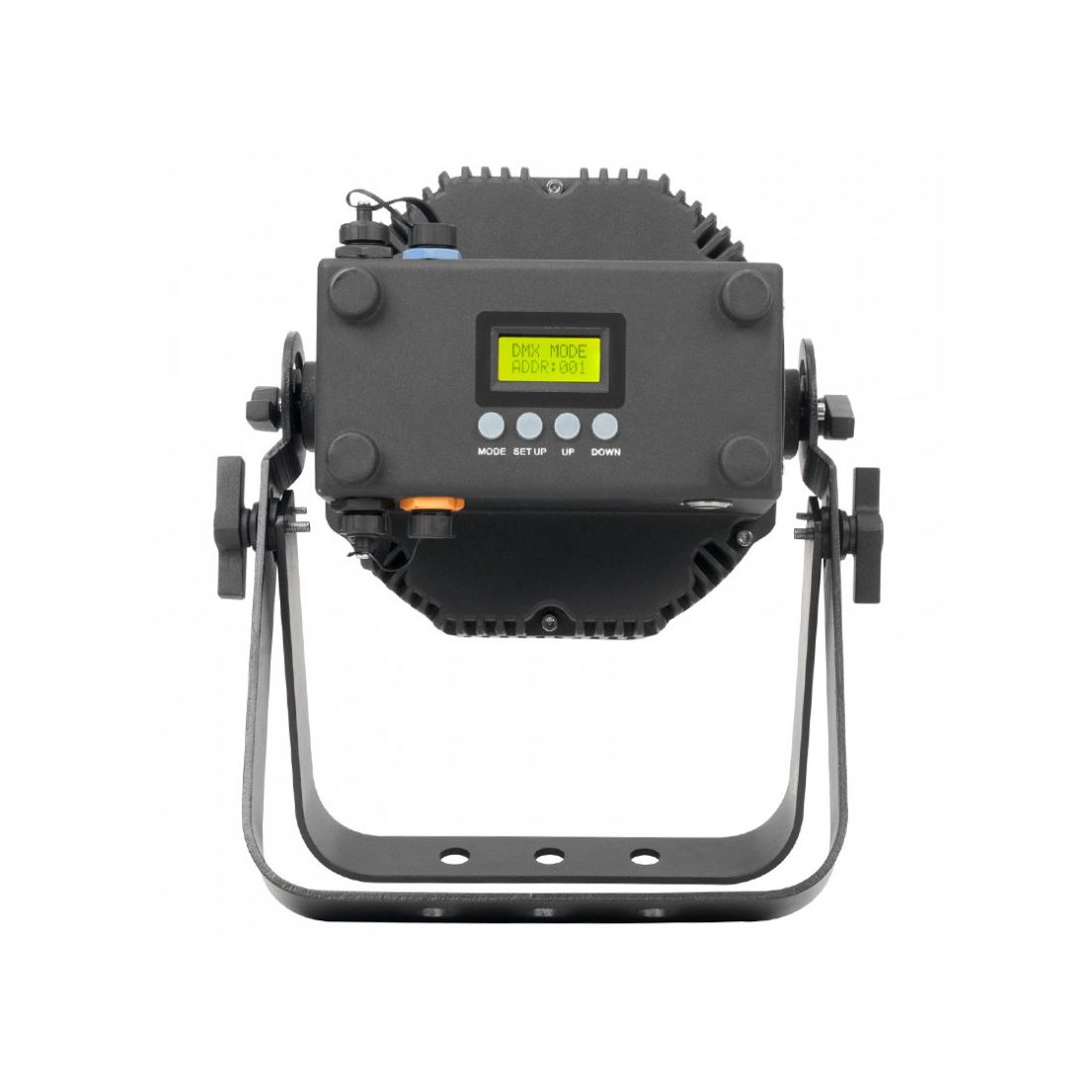

- • 4-button DMX menu display on rear panel
- • Built-In WiFly EXR wireless DMX
- • Compatible with optional ADJ RFC wireless RF remote control
- • RGBAW+UV Color Mixing
- • 63 built-in Color Macros
- • Aluminium Metal Housing
- • IP65 Rating
- • Scissor yoke
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Power Draw: 56W total (All LED's @ Full On)
- • Energy Saving Mode

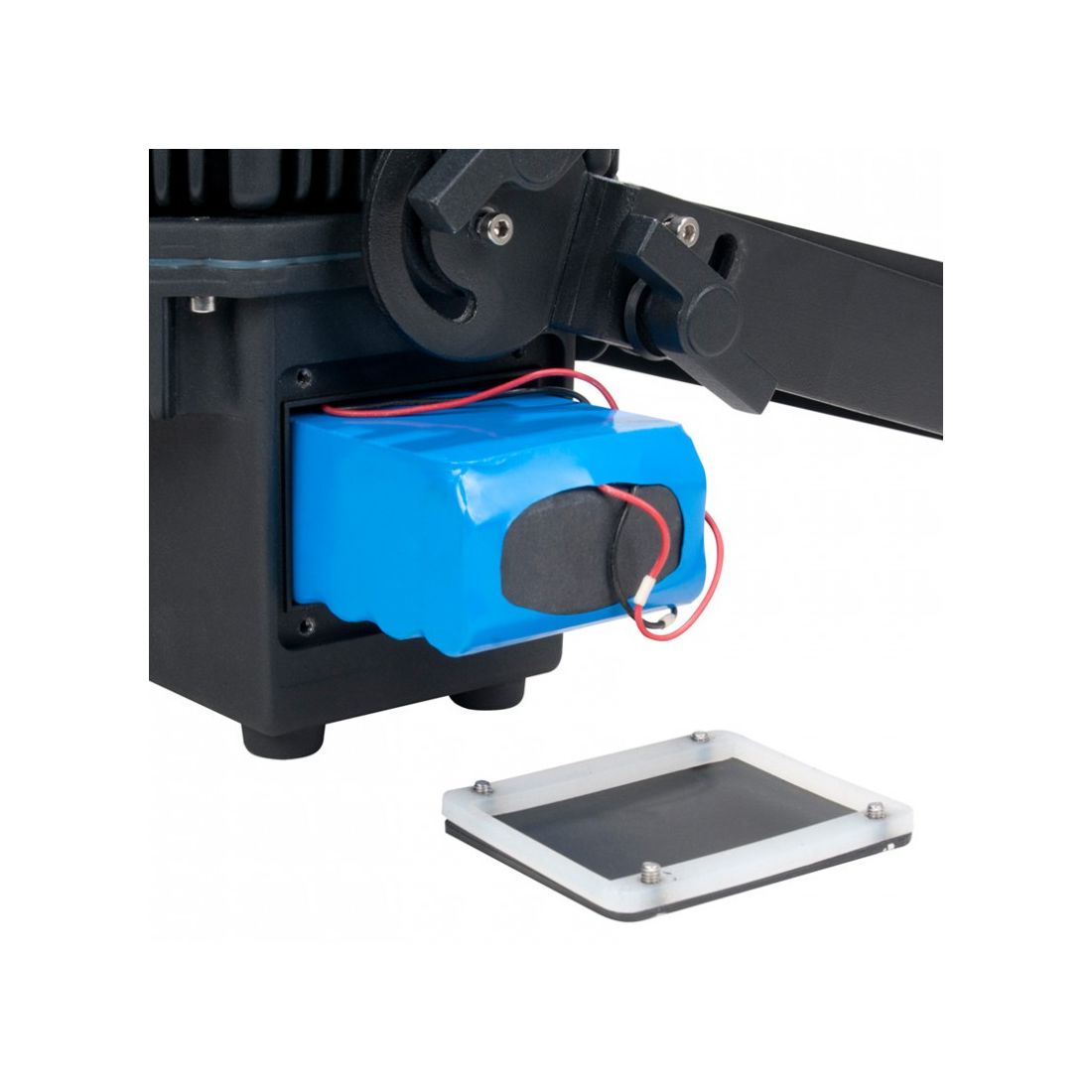

- • Battery
- Battery Type: Fixed Lithium Battery
- Battery Energy: 146.52WH (Watt Hours)
- Battery Weight: 0.84kg
- Battery Voltage: 22.2V
- Battery Capacity: 6.6AH
- Total Lithium Ion Cells: 18pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
- Battery Charge Time: 5 Hours (With Power Switch Off)
- Battery Life: Up to 20 hours (With Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
- • 4-pin proprietary Power In/Out connections
- • 3-pin proprietary IP65 DMX In/Out connections
- • 1 IP Power Cable included (Can also be ordered as spare part through the ADJ Part Shop: 9900006562)
- • Dimensions (LxWxH): 310 x 280 x 194mm
- • Weight: 5,48kg.
Specifications subject to change without notice
