Wifi Net 2
Select
New

Brand
WiFi NET 2 seamlessly integrates with any standard data source commonly used in the professional lighting industry, including Art-Net or sACN, from a computer, iPad, tablet, or a DMX lighting console. By effortlessly converting and decoding all Art-Net and sACN signals, WiFi NET 2 ensures compatibility and versatility, delivering DMX 512 signals through two dedicated DMX outputs. With support for Unicast, broadcast, fixed IP, and DHCP configuration on UDP, WiFi NET 2 offers flexible...

Product Information

SKU: 1321000088
HS-Code: 8537109899

WiFi NET 2 seamlessly integrates with any standard data source commonly used in the professional lighting industry, including Art-Net or sACN, from a computer, iPad, tablet, or a DMX lighting console. By effortlessly converting and decoding all Art-Net and sACN signals, WiFi NET 2 ensures compatibility and versatility, delivering DMX 512 signals through two dedicated DMX outputs.

With support for Unicast, broadcast, fixed IP, and DHCP configuration on UDP, WiFi NET 2 offers flexible networking options to suit your specific setup requirements. Configuration is made simple and convenient via any web browser, allowing for quick and easy customization to optimize your lighting control experience.

Configuring WiFi NET 2 is a breeze through Ethernet using any standard web browser, whether you're on a Windows or macOS device.

Whether it's Ethernet LAN or WLAN, enjoy swift and effortless communication across your local network with support for DHCP or static IP addressing. Plus, with the convenience of built-in 2.4G WiFi and Power over Ethernet (PoE) capability, connectivity is seamless, ensuring you're always connected.

WiFi NET 2 serves as your go-to Art-Net and sACN to DMX NODE, effortlessly handling decoding, conversion, and node functionality with compatibility across any data source.

Featuring two DMX universes output and ruggedly built with two DMX OUT ports, all housed in a sleek housing, WiFi NET 2 is not just powerful but also built to withstand the rigors of professional use.

Specification

  • ArtNet / sACN /DMX, 2 Port Node
  • 2.4G Wifi
  • Line Voltage or PoE powered
  • DHCP or Static IP Address
  • Configurable from unit menu or web browser

  • DMX512
  • Artnet
  • sACN

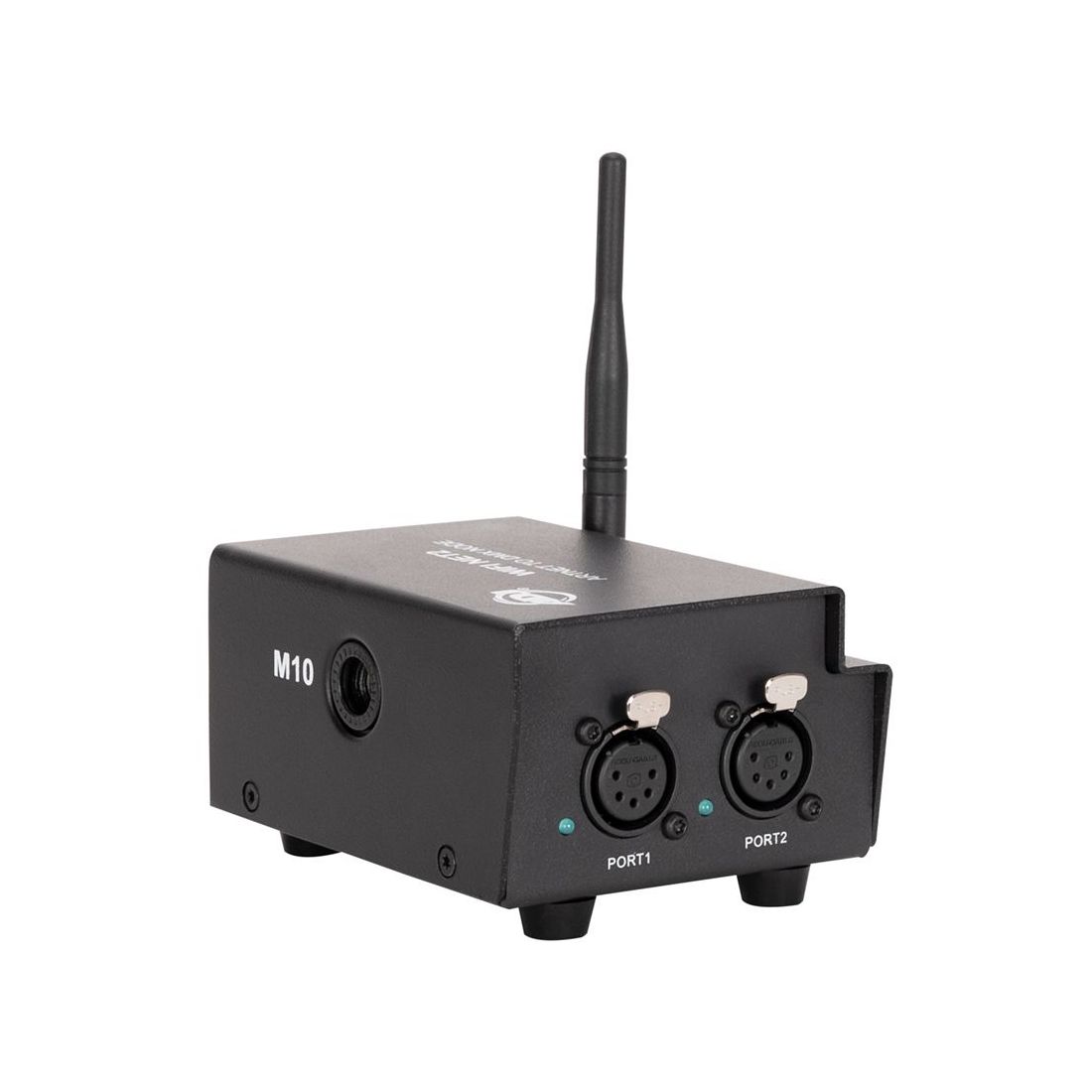

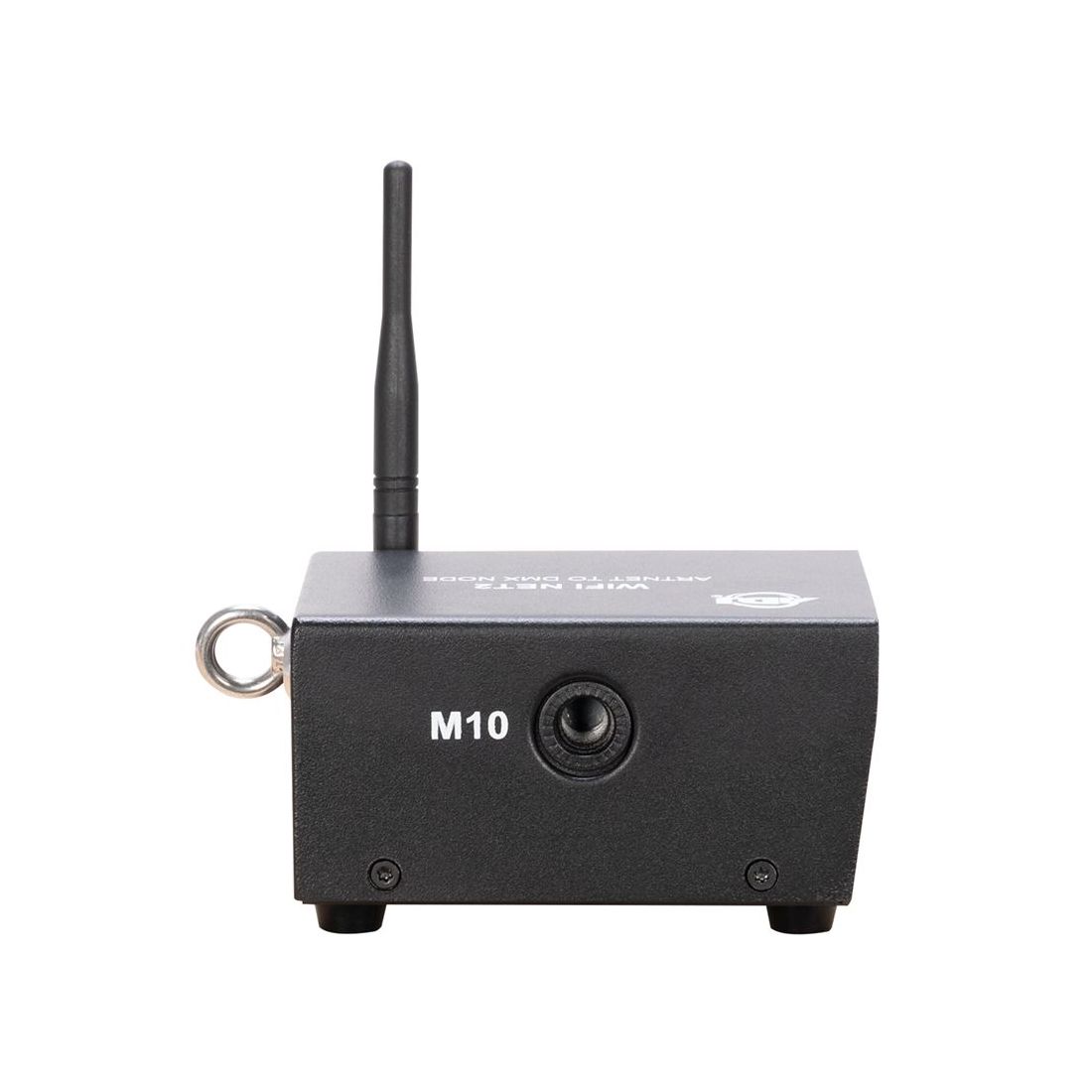

  • M10 Thread for clamp / rigging

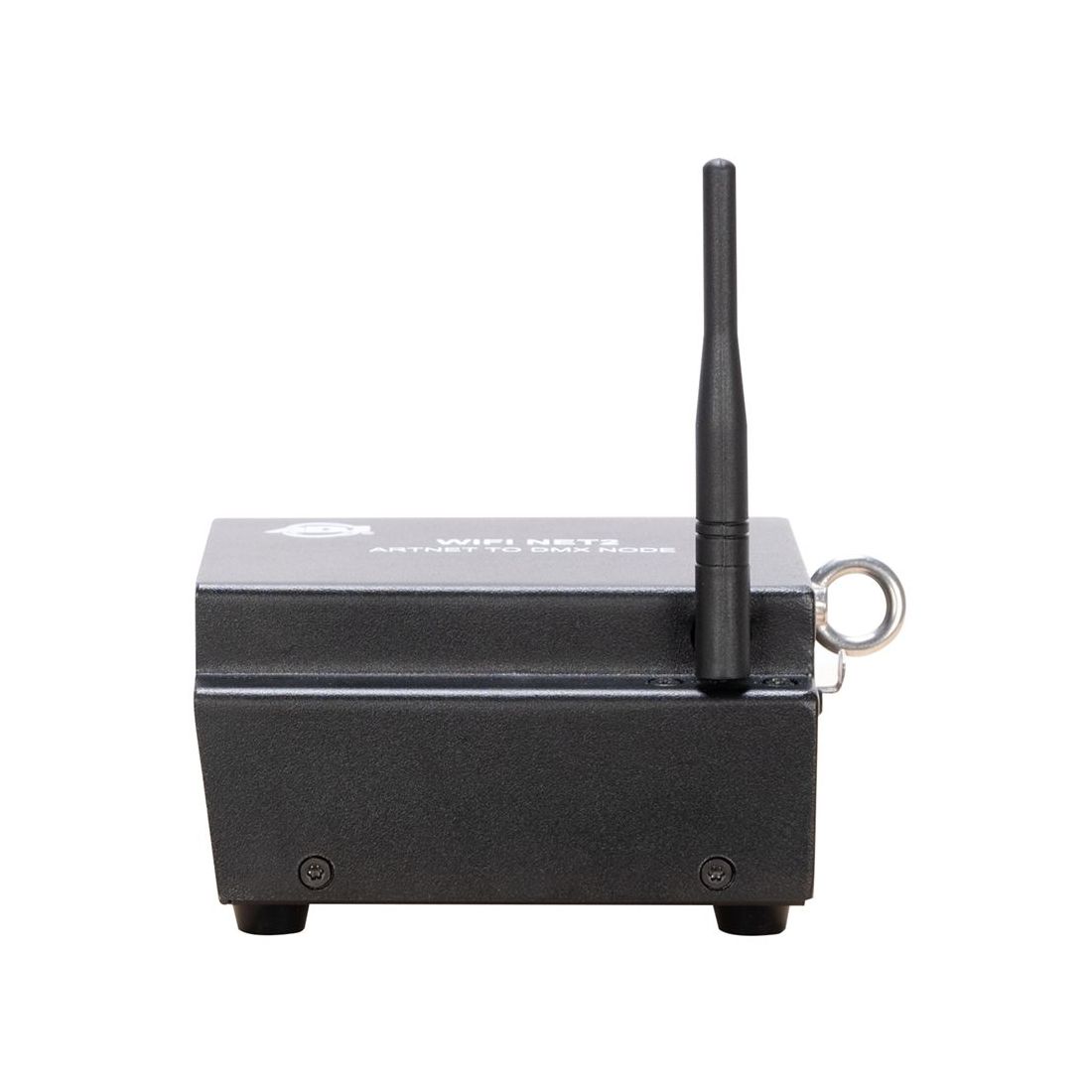

  • Safety eyelet

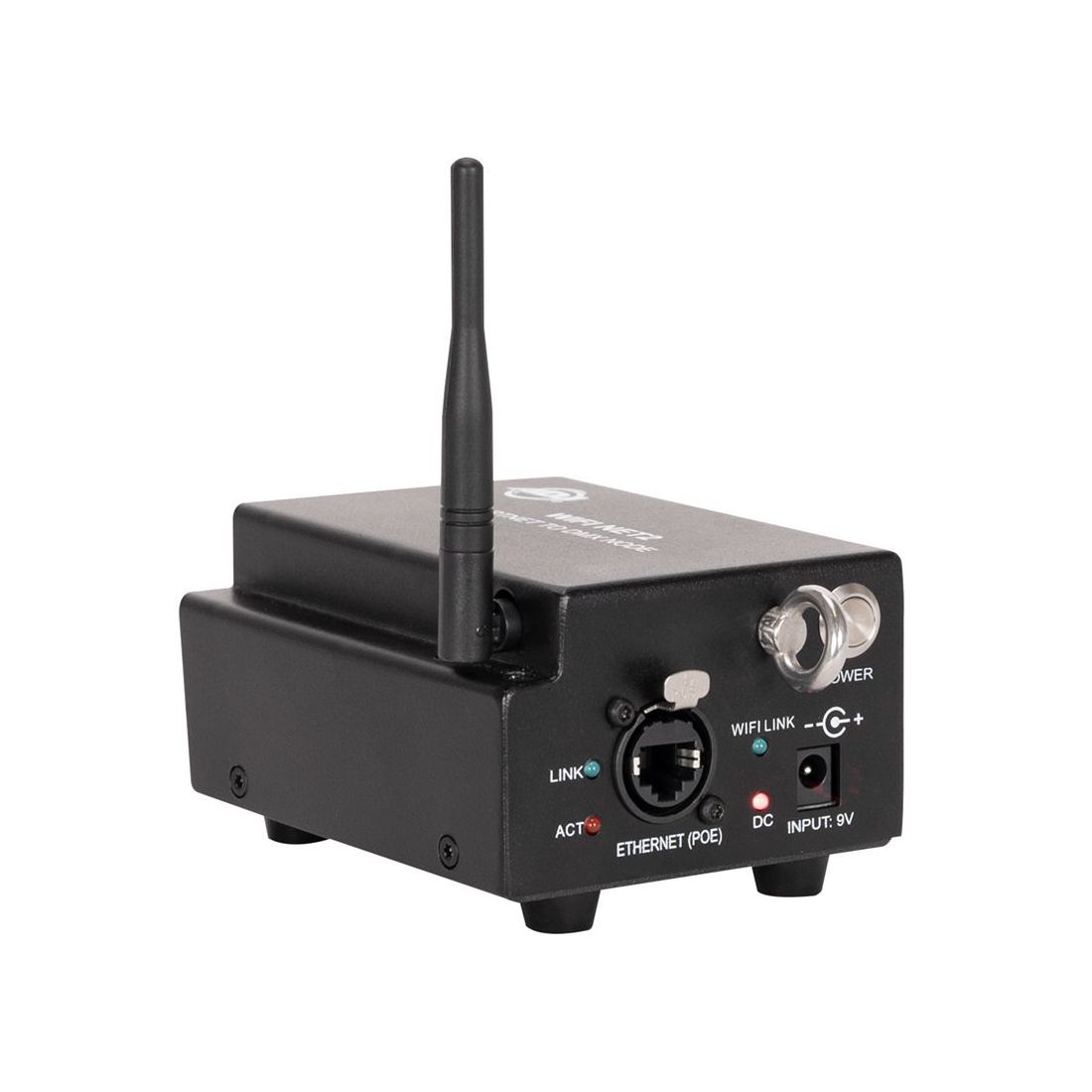

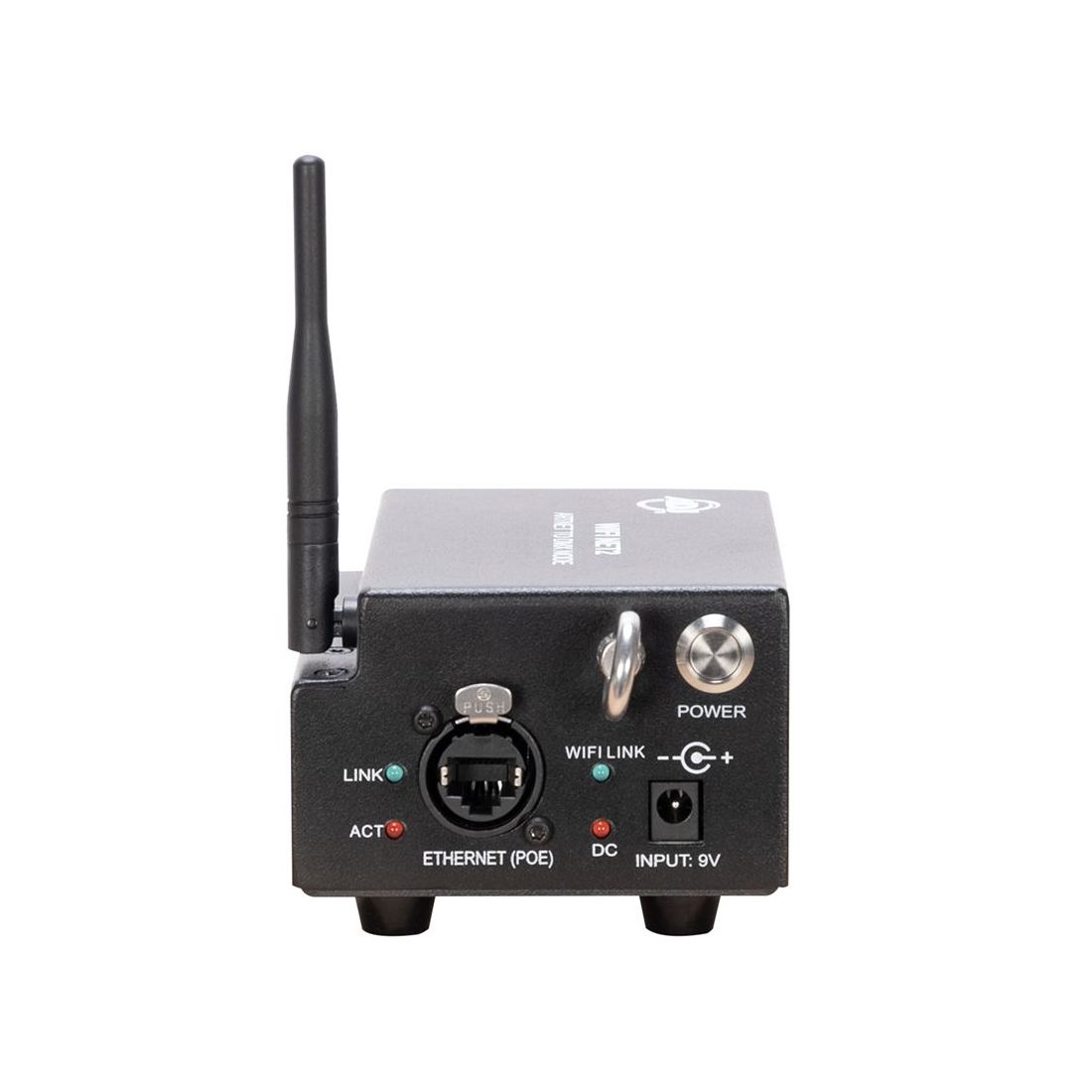

  • 1x Indoor RJ45 Input

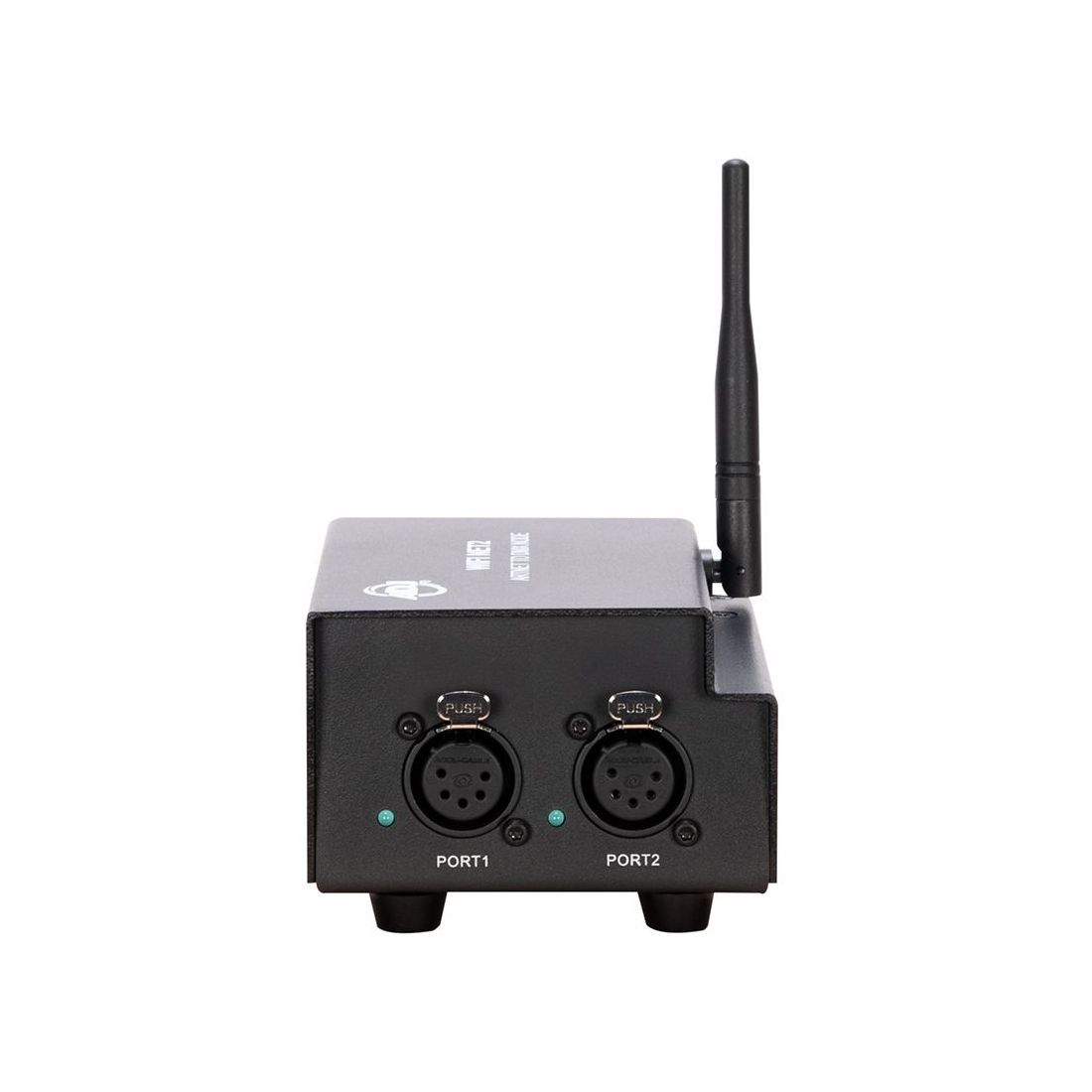

  • 2x 5-pin XLR Input / Output

  • Length: 88.50mm
  • Width: 128.55mm
  • Height: 62.5mm
  • Weight: 0.56kg

  • 9VDC and POE
  • POE 802.3af
  • AC Power: DC9V-12V 300mA min.
  • POE Power: ?
  • Power Consumption: 2W @ 230V

  • Ambient Operational Temperature: -20°C to 45°C
  • Humidity: <75%
  • Storage Temperature: 25°C

  • cETLus (Pending)
  • IP20

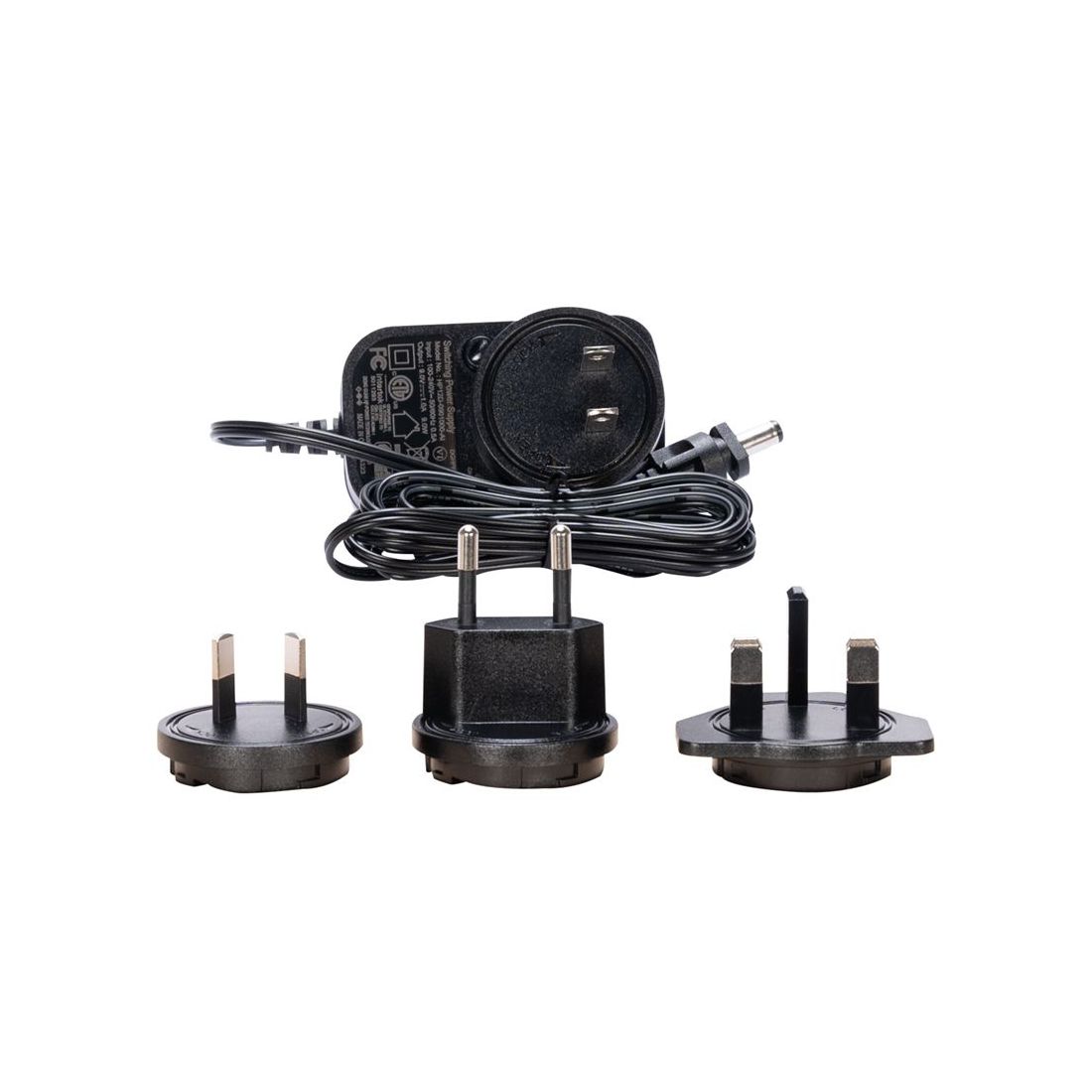

  • 9V Power Supply
Specifications subject to change without notice

Downloads

CAD Drawings

User Manual
