VLX-3000 Archive

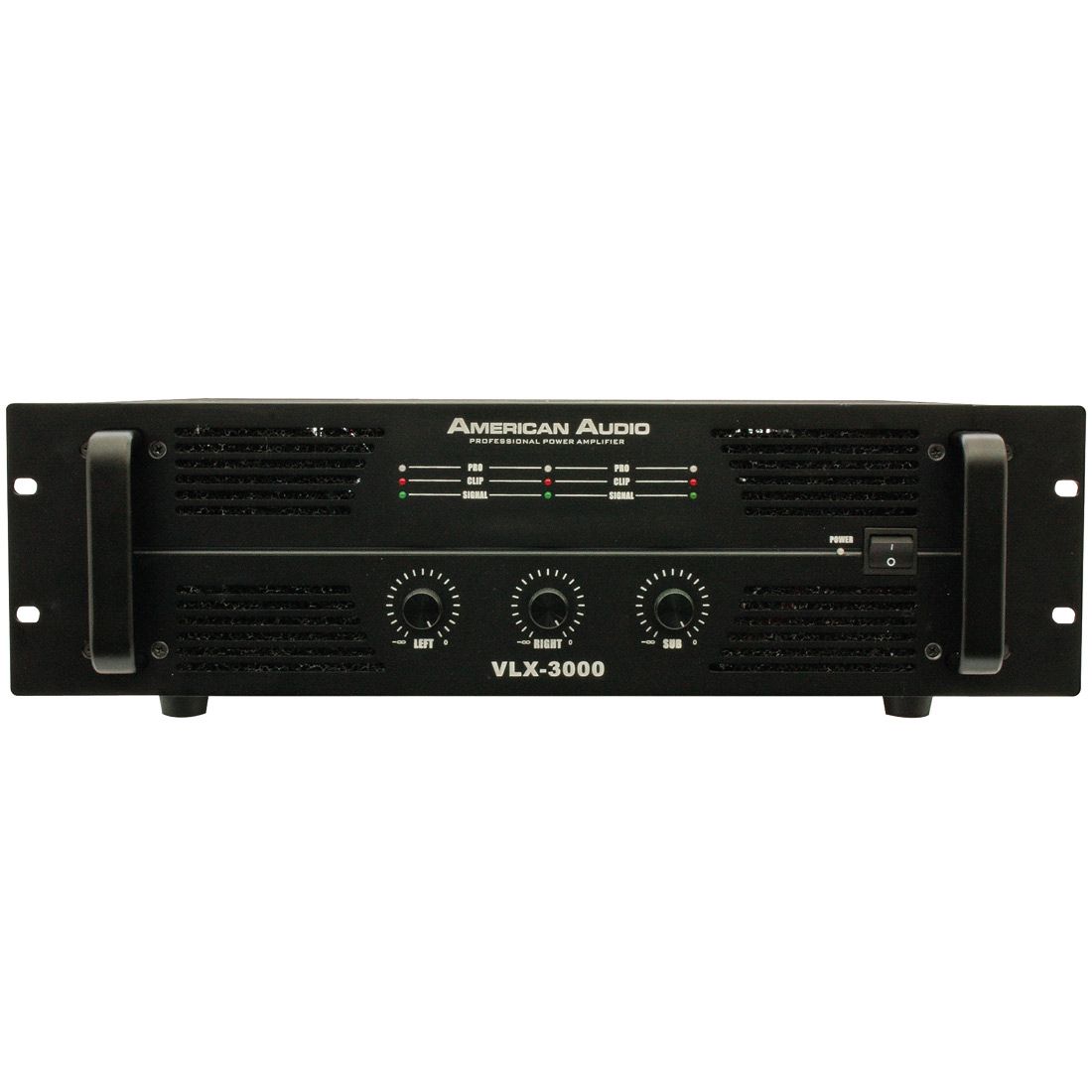

VLX-3000 is a professional 3 Channel amplifier for speaker systems. It is suitable for two or more top or fullrange speakers and one or two subwoofers. The amp features all necessary protections and has a remarkable good sound performance. Both in installation as for mobile applications the VLX-3000 is a great solution.
Product Information
VLX-3000 is a professional 3 Channel amplifier for speaker systems. It is suitable for two or more top or fullrange speakers and one or two subwoofers. The amp features all necessary protections and has a remarkable good sound performance. Both in installation as for mobile applications the VLX-3000 is a great solution.
Gallery
Specification
TECHNICAL FEATURES
- Output power: Top: 2 x 220W + Sub: 540W (8 Ohm)
- Output power: Top: 2 x 350W + Sub:850W (4 Ohm)
- Output Power: Sub @ 2 Ohms: 1200W
- Low pass filter: 40Hz- 120Hz adjustable
- High pass filter: 70Hz-20kHz/120Hz-20kHz adjustable
- Frequency response: A&B: 60Hz-20kHz (+/-1dB)
- Frequency response Sub: 20Hz-120Hz (+/1dB)
- Sensitivity: 1V
- Input Impedance: 20K balanced, 10K unbalanced
- Crosstalk: >=60dB
- S/N Ratio (8Ohm, 20Hz-20kHz): >=100dB
- Damping factor: A&B: >250; Sub: >300
- THD (8Ohm, 20Hz-20kHz, rated power): <=0,1%
- Slew rate: 15V/us
- Output circuitry: Class AB
- Input/Link connectors: female + male XLR
- Output connectors: 4 x Speaker (2 x Top, 2 x Sub)
- Protections: DC, Short Circuit, High temperature, Input over load, Output over load, Soft start protection
- 2 speed fan cooling
- dimensions: 482 x 143 x 432 mm
- 19” rack installation (3 rack mount spaces)
- Weight: 25kg
