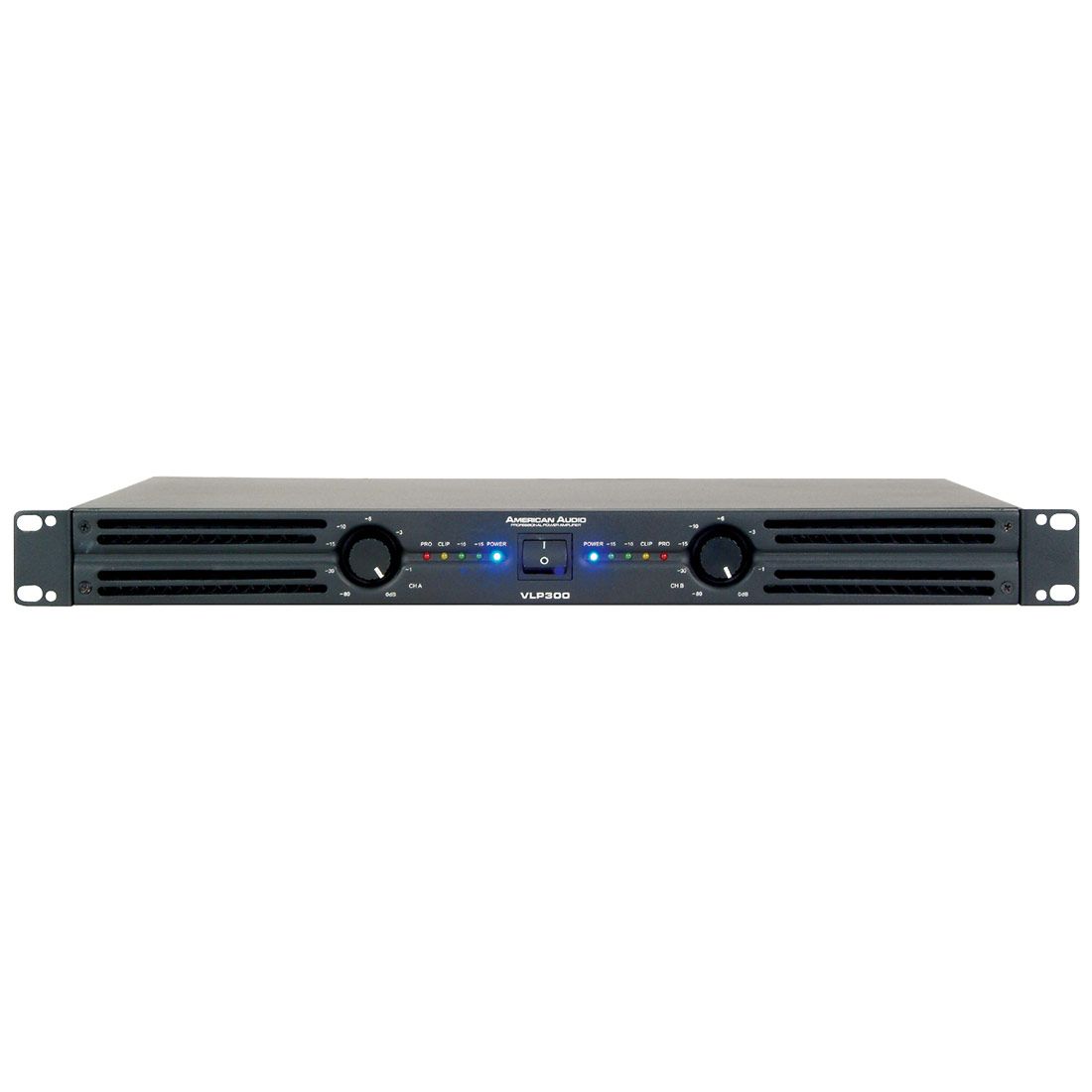

VLP300 power amplifier

Archive

Output Power:
- 150W RMS Per Channel @ 4 Ohms, 1kHz, 0.1% THD
   100W RMS Per Channel @ 8 Ohms, 1kHz, 0.1% THD
- Bridge Mode, Mono
   300W RMS @ 8 Ohms, 1K Hz, 1% THD^
- Total Harmonic Distortion: Less Than 0.1% (20Hz - 20kHz @ 8 Ohms)
- Frequency Response: (+/-01db, @rated output Power, 8 Ohms): 20Hz - 20K Hz
- Slew Rate: 15V Per usec
- Damping Factor: @ 8 Ohm: 260
- Impedance: 20 Ohms balanced / 10 Ohms unbalanced
- Cooling System:  2 indivdual fans
- Special Features: High/Low Pass Filter/Input Sensitivity Selector/Ground Lift
- Input: XLR 3pin + Jack 6,3mm
- output: Speaker + Binding post
- Dimensions (LxWxH): 336 x 482 x 44mm 1-rack mount space
- Weight: 24 lbs.(11kg)
