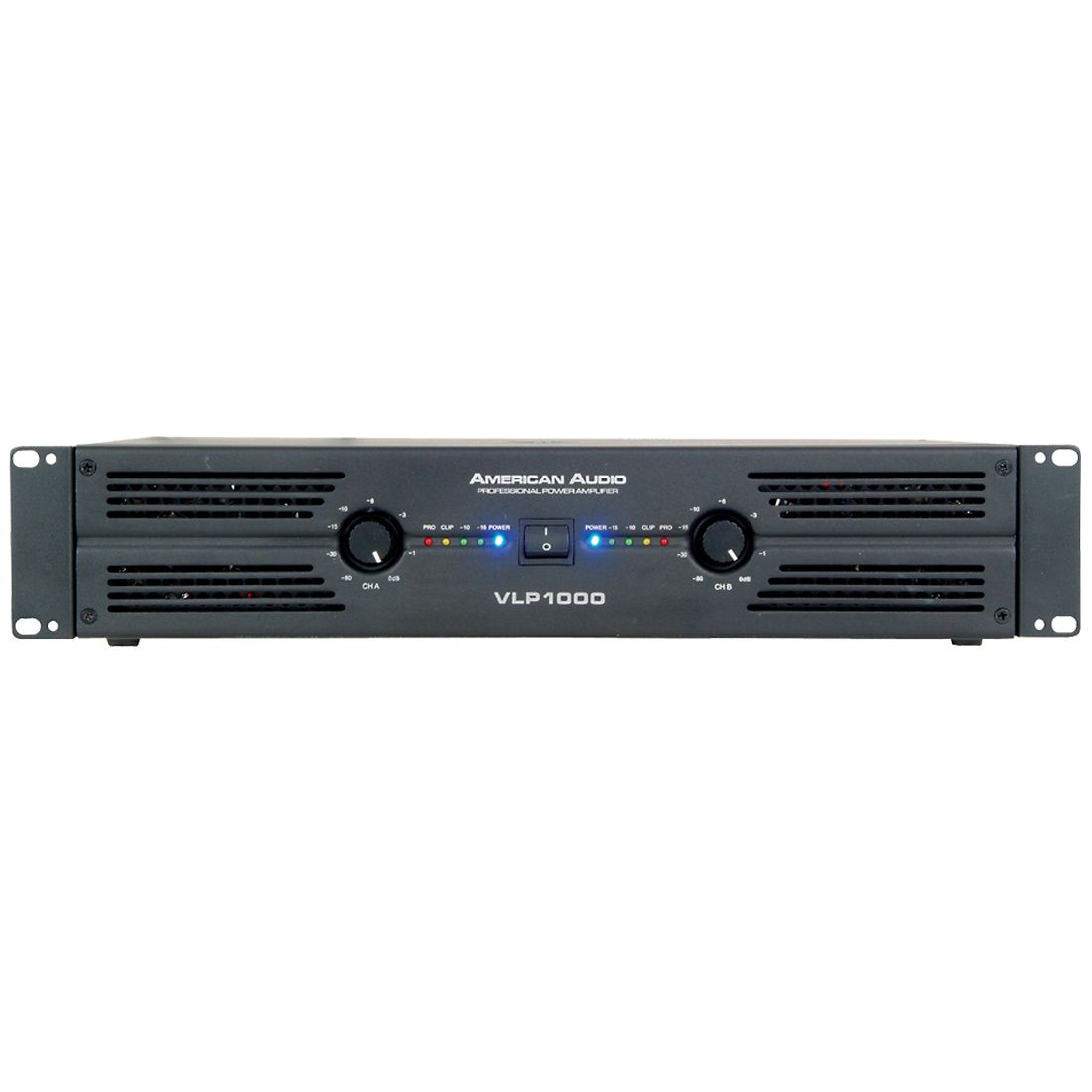

VLP1000 power amplifier

Archive

- Output Power:
  500W RMS Per Channel @ 4 Ohms, 1kHz, 0.1% THD
  330W RMS Per Channel @ 8 Ohms, 1kHz, 0.1% THD
- Bridge Mode, Mono 820W RMS @ 8 Ohms, 1K Hz, 1% THD
- Total Harmonic Distortion: Less Than 0.1% (20Hz - 20kHz @ 8 Ohms)
- Frequency Response: (+/-01db, @rated output Power, 8 Ohms): 20Hz - 20K Hz
- Slew Rate: 15V Per usec
- Damping Factor: @ 8 Ohm: 300
- Impedance: 20 Ohms balanced / 10 Ohms unbalanced
- Cooling System:  2 individual fans
- Special Features: High/Low Pass Filter / Input Sensitivity Selector / Ground Lift; Limiter
- build in clip limiter
- Input: XLR 3pin + Jack 6,3mm
- output: Speaker + Binding post
- Dimensions (LxWxH): 360 x 482 x 88mm 2-rack mount spaces
- Weight: 19 Kgs.
