Vizi Wash Z37 Select
Key Features
Color
• RGBW Color Mixing
• Built-In Zone Chase Patterns
• 44 Color Temperature Presets 2700K - 7000K
• RGBW Color Mixing
• Built-In Zone Chase Patterns
• 44 Color Temperature Presets 2700K - 7000K
Optics
• Motorized Zoom 10°-60° (Field Angle)
• Motorized Zoom 10°-60° (Field Angle)
Source
• 37x OSRAM RGBW QUAD-LEDs
• Max. 9710 Lumens (Zoom out, Full on)
• 37x OSRAM RGBW QUAD-LEDs
• Max. 9710 Lumens (Zoom out, Full on)
Product Information
SKU: 1226100374
GTIN: 818651026467
HS-Code: 94054210

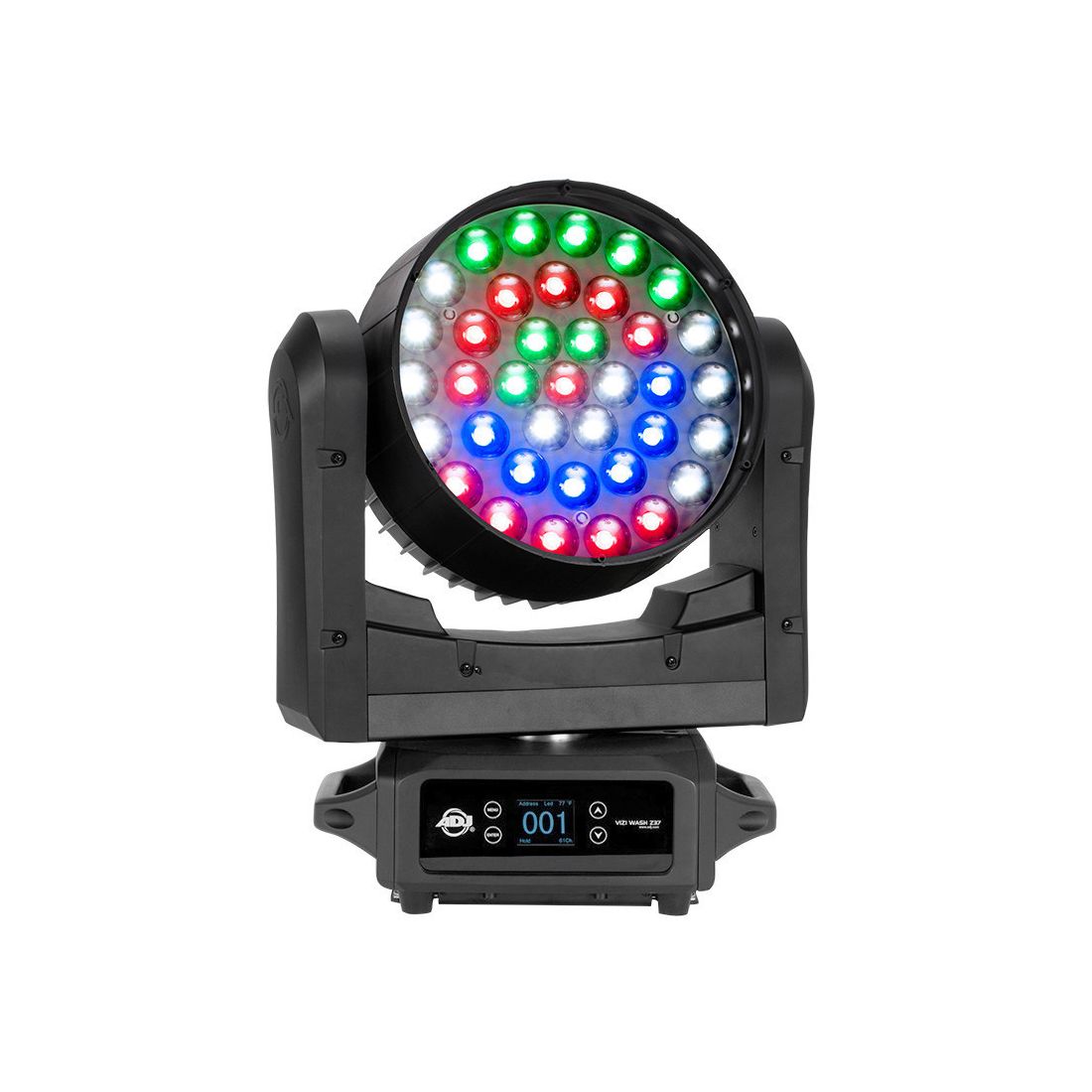

The Vizi Wash Z37 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and 37x 20W Quad (RGBW / 4-IN-1) LEDs. It features 11 zones of LED block control, or 4 zones of LED ring control, smooth 16bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.
There are 64 built-in color macros, 44 Color Temperature DMX Presets from 2700K-7000K, 16bit fine zoom control and 9 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.
Gallery
Specification
- • 37 OSRAM RGBW QUAD-LEDs
- • Max. 9710 Lumens (Zoom out, Full on)
- • 1250 Lux @5m at 60°
- • 17609 Lux @5m at 10°
- • Motorized Zoom 10°-60° (Field Angle)
- • 2 Operational Modes: Program Mode & DMX Control
- • 9 DMX Channel Mode: 14, 15, 17, 18, 19, 38, 39, 72 or 73 Channels
- • RDM compatible (Remote Device management)
- • 16bit Electronic Dimming 0-100%
- • 6 Dim Modes (Standard, Stage, TV, Architectural, Theatre, Stage 2)
- • Adjustable Dimmer Delay Time: 0.1secs - 10 secs
- • 4 Dim Curves: Linear, Square, Inv. Square, S-curve.
- • Display: Color display with 4-button function menu
- • 11-Zone or 4 Ring-Control
- • 16bit Pan 540°
- • 16bit Tilt 270°
- • Pan/Tilt Target Mode
- • 3 Fan Modes : Auto/High/Silent
- • RGBW Color Mixing
- • 64 Color Presets
- • Built-In Zone Chase Patterns
- • 44 Color Temperature Presets 2700K - 7000K
- • PVC molding
- • Includes Quicklock Omega Brackets
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 525W

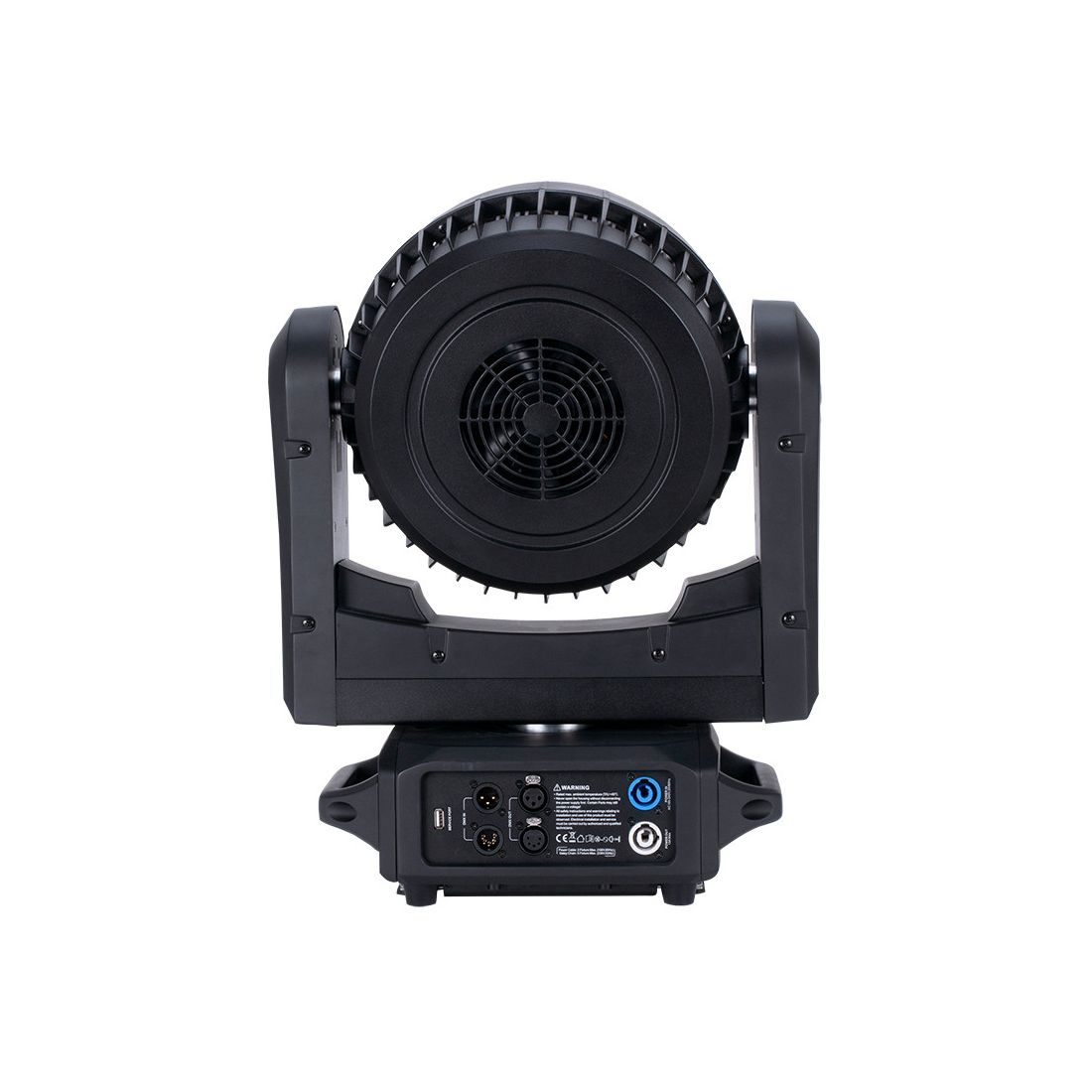

- • 3-& 5pin Locking DMX In/Out connections
- • Locking Power In connection
- • USB-Service Port for Firmware updates
- • Dimension: 408,4 × 226 × 520,3
- • Weight: 18 kg.
Specifications subject to change without notice
