Vizi Wash Z19 Select Archive
Key Features
Color
• RGBW Color Mixing
• Built-In Zone Chase Patterns
• 44 Color Temperature Presets 2700K - 7000K
• RGBW Color Mixing
• Built-In Zone Chase Patterns
• 44 Color Temperature Presets 2700K - 7000K
Optics
• Motorized Zoom: 10°-60° (field angle)
• Motorized Zoom: 10°-60° (field angle)
Source

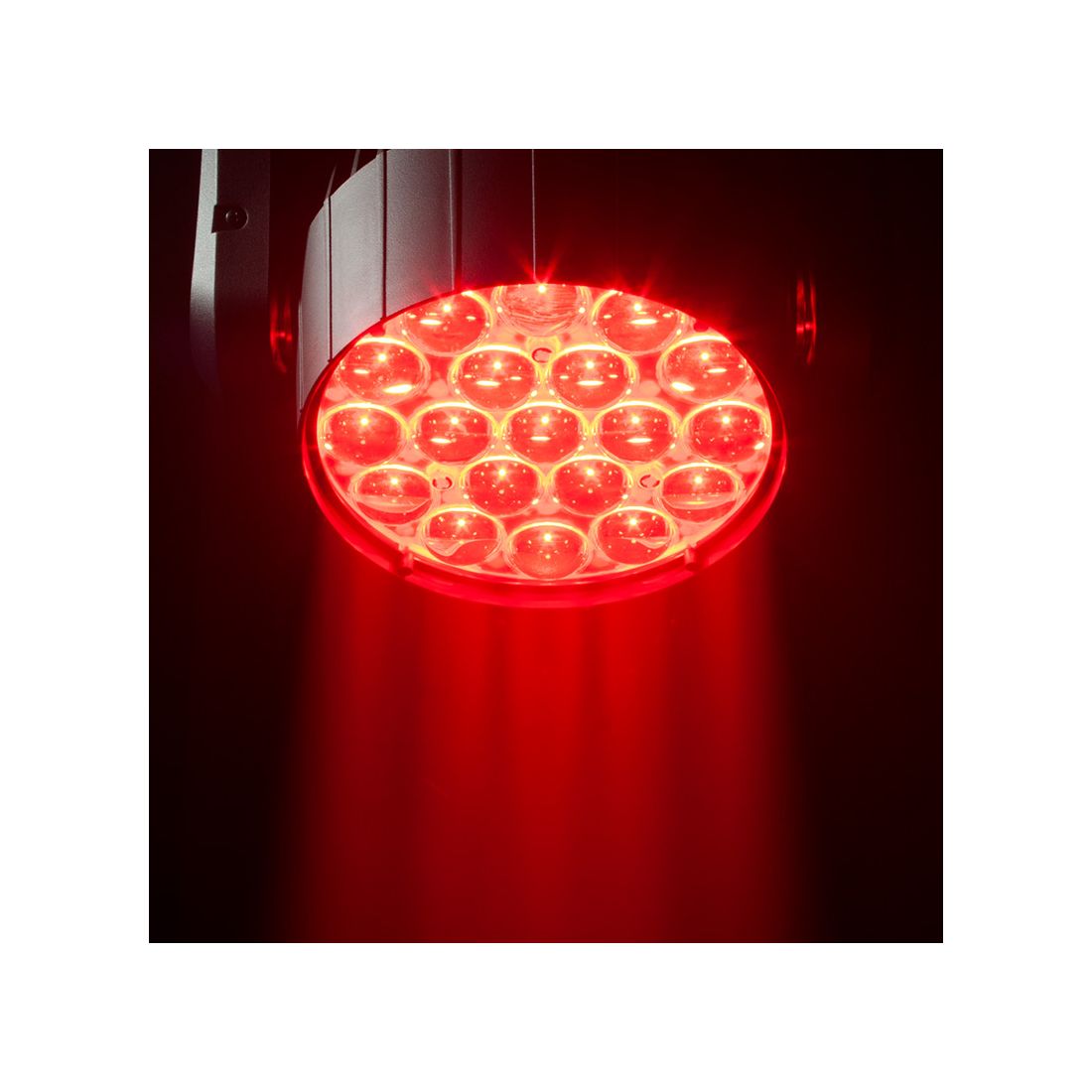

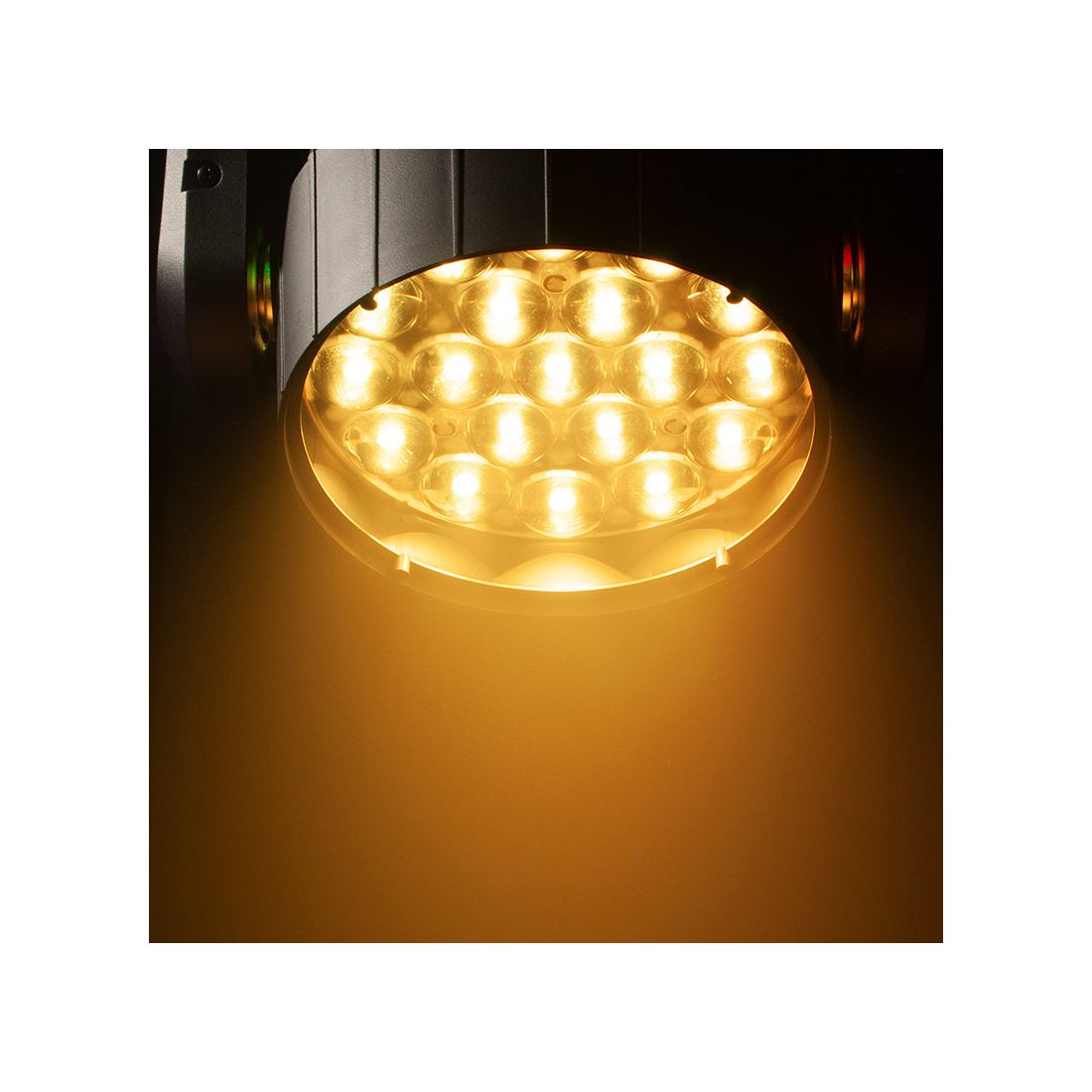

• 19x OSRAM RGBW QUAD-LEDs
• 5436 Lumens (Zoom out, full on)
• 19x OSRAM RGBW QUAD-LEDs
• 5436 Lumens (Zoom out, full on)
Product Information
SKU: 1226100372
GTIN: 818651025996
HS-Code: 94054210

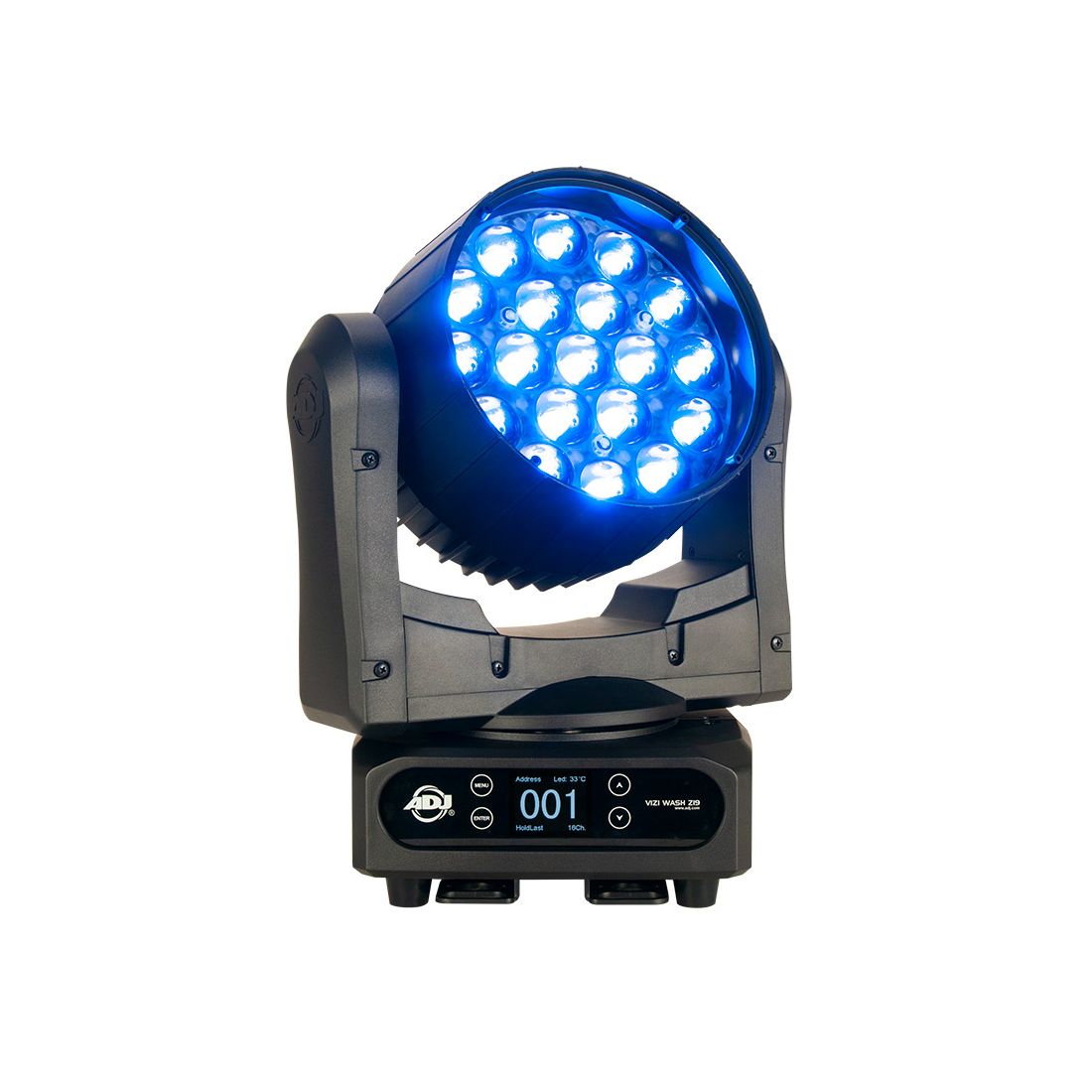

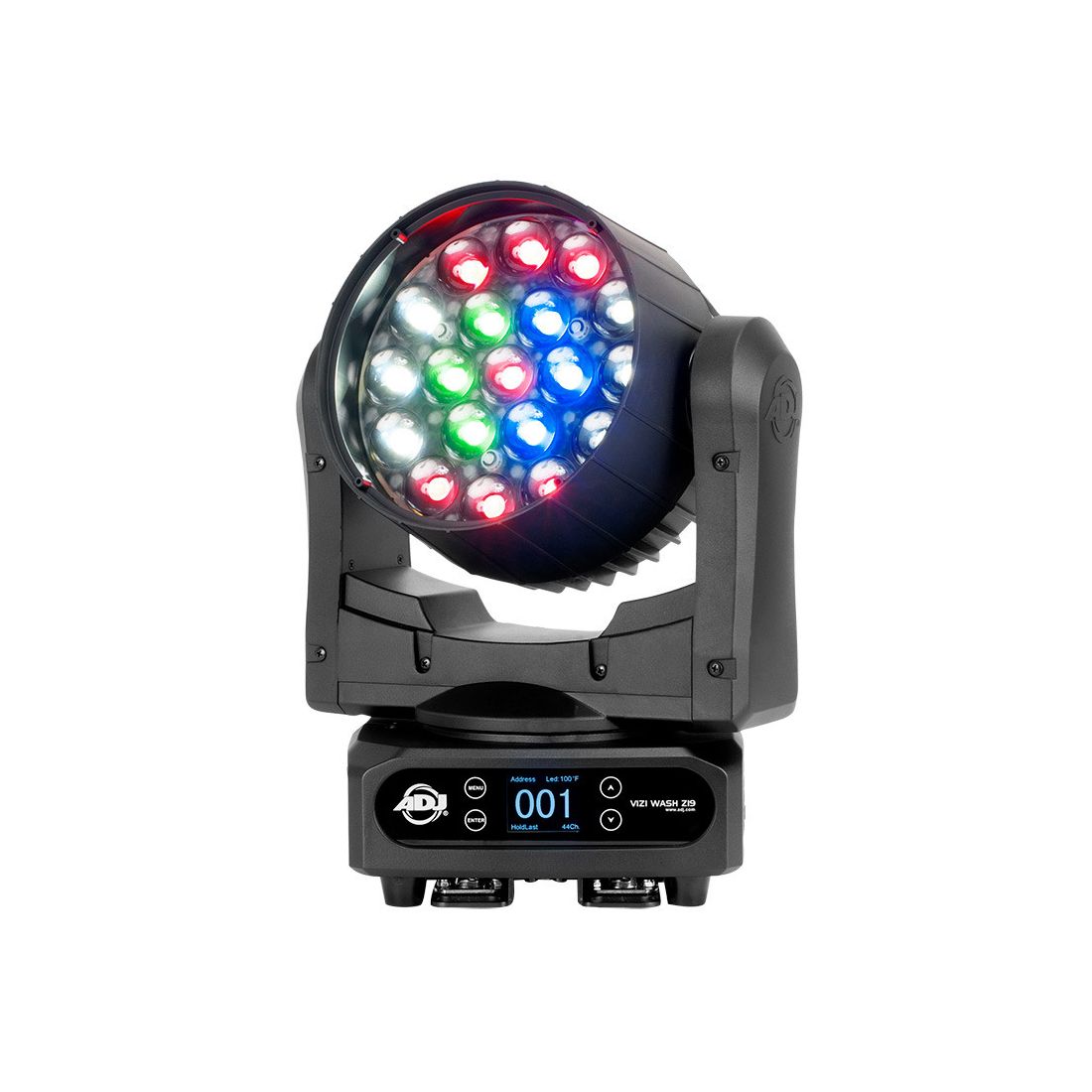

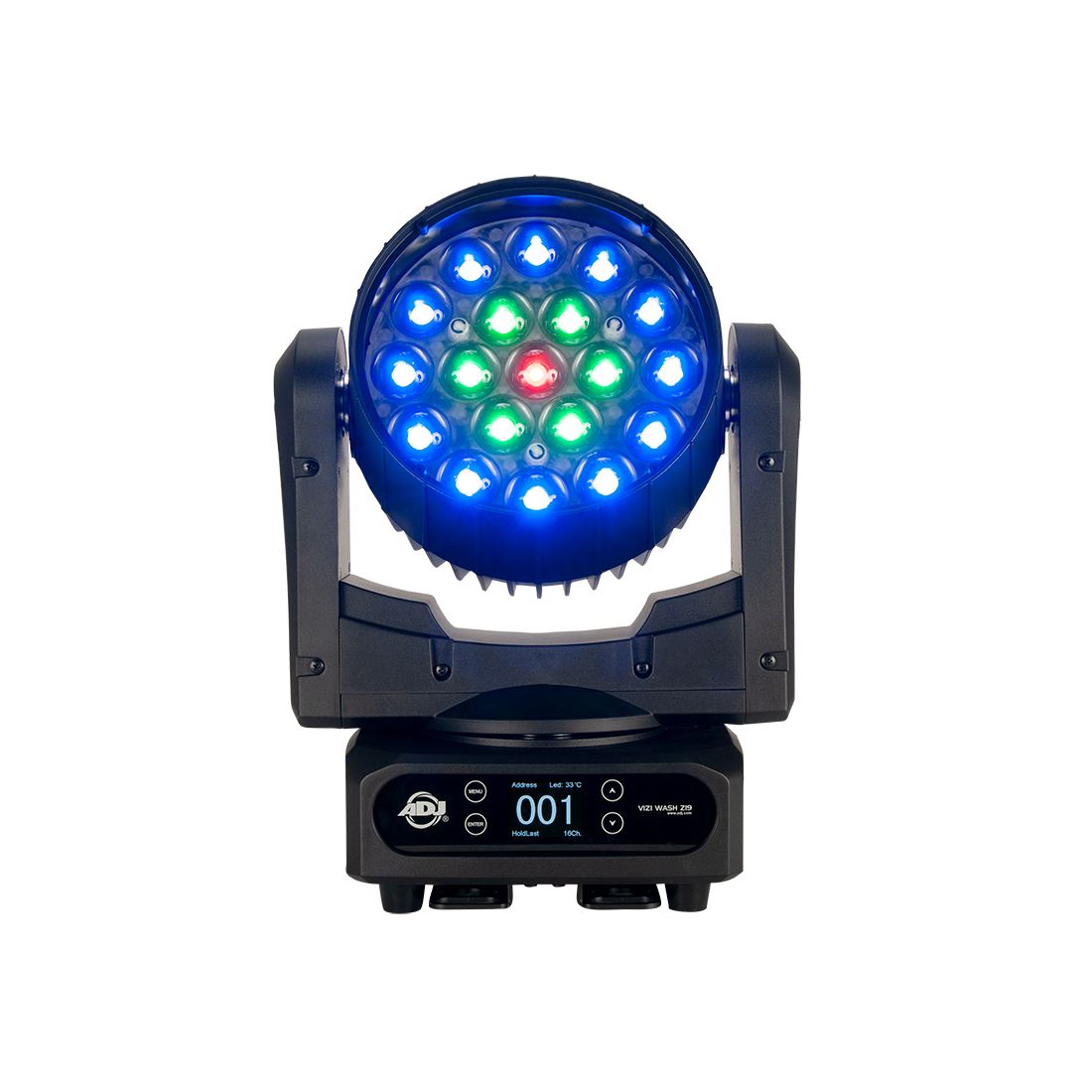

The Vizi Wash Z19 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth 16bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

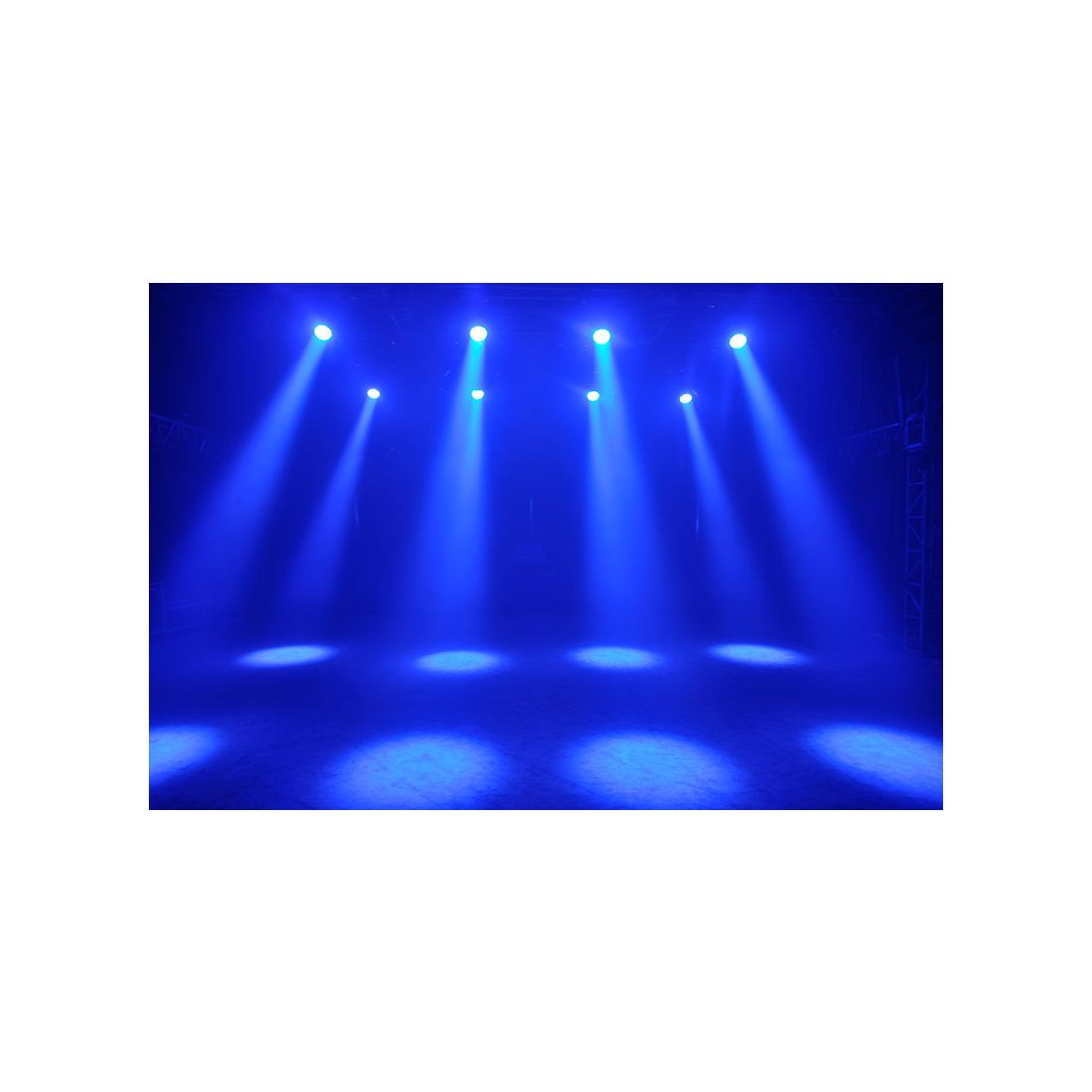

There are 64 built-in color macros, 44 Color Temperature DMX Presets from 2700K-7000K, 16bit fine zoom control and 8 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.
Gallery
Specification
- • 19 OSRAM RGBW QUAD-LEDs
- • 5436 Lumens (Zoom out, full on)
- • 9960 Lux @5m at 10°
- • 694 Lux @5m at 60°
- • Motorized Zoom: 10°-60° (field angle)
- • 2 Operational Modes: Program Mode & DMX Control
- • 8 DMX Channel Mode: 13, 14, 17, 18, 29, 30, 45 or 46 Channels
- • RDM compatible (Remote Device management)
- • 16bit Electronic Dimming 0-100%
- • 6 Dim Modes (Standard, Stage, TV, Architectural, Thetare, Stage 2)
- • Adjustable Dimmer Delay Time: 0.1secs - 10 secs
- • 4 Dim Curves (Square, Linear, Inverted Square, S-Curve)
- • Display: Color display with 4-button function menu
- • 7-Zone & 3 Ring-Control
- • 16bit Pan 540°
- • 16bit Tilt 270°
- • Pan/Tilt Target Mode
- • 3 Fan Modes : Auto/High/Silent
- • RGBW Color Mixing
- • 64 Color Presets
- • Built-In Zone Chase Patterns
- • 44 Color Temperature Presets 2700K - 7000K
- • PVC molding

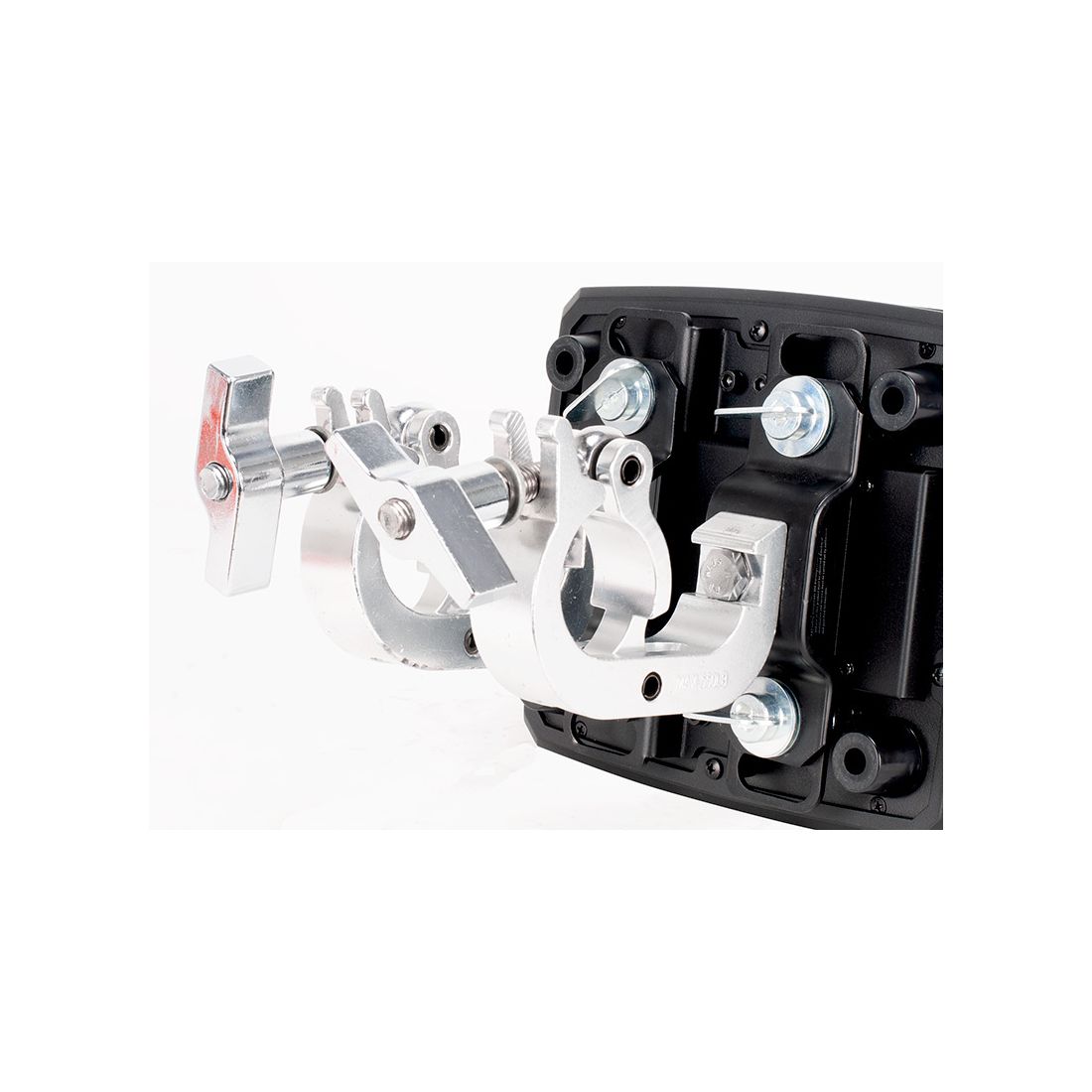

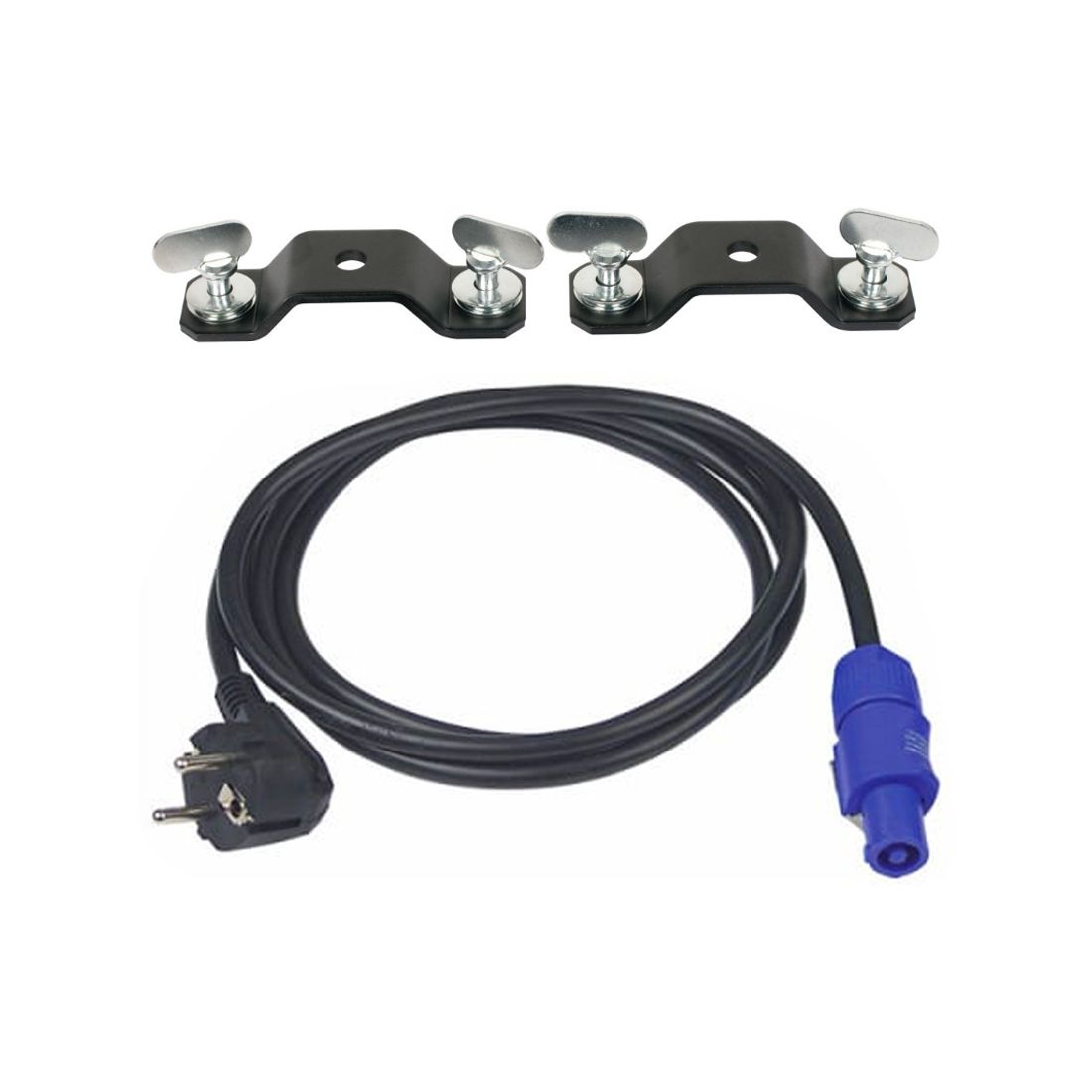

- • Includes Quicklock Omega Brackets
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 285W

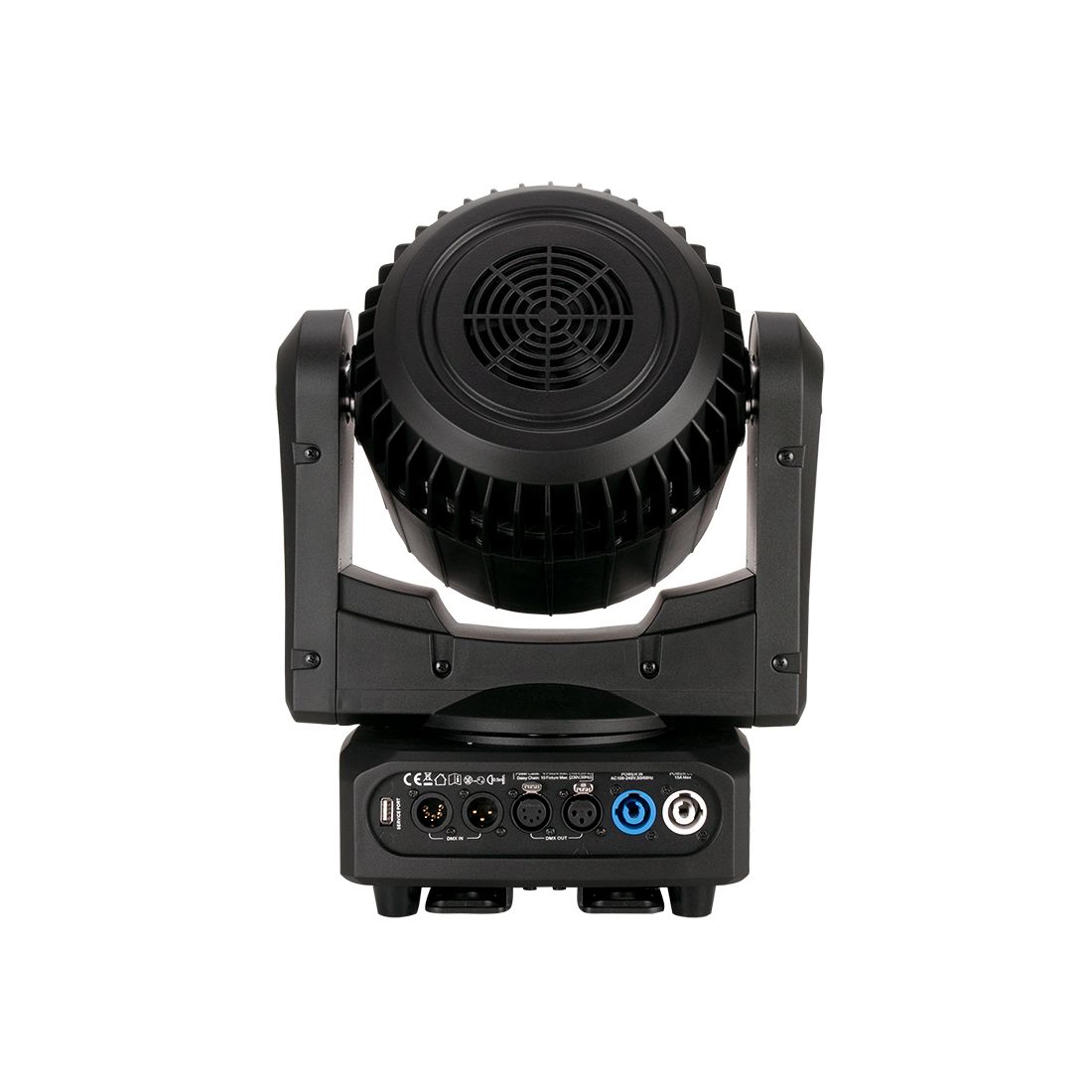

- • 3-& 5pin Locking DMX In/Out connections
- • Locking Power In/Out connection
- • USB-Service Port for Firmware updates
- • Dimension: 306.6 × 195 × 393.3mm
- • Weight: 9,4 kg.
