Vizi Spot LED PRO
Archive

Brand

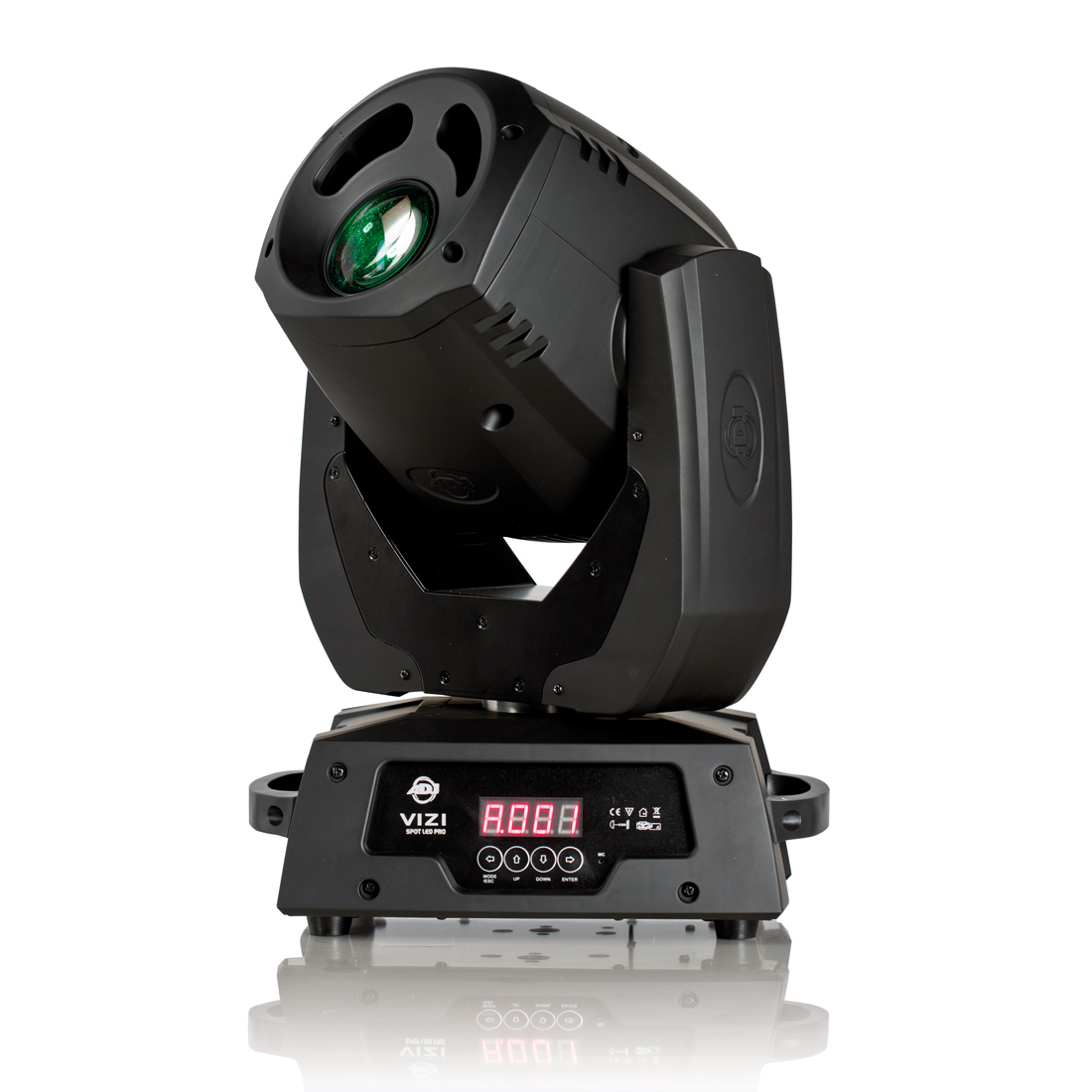

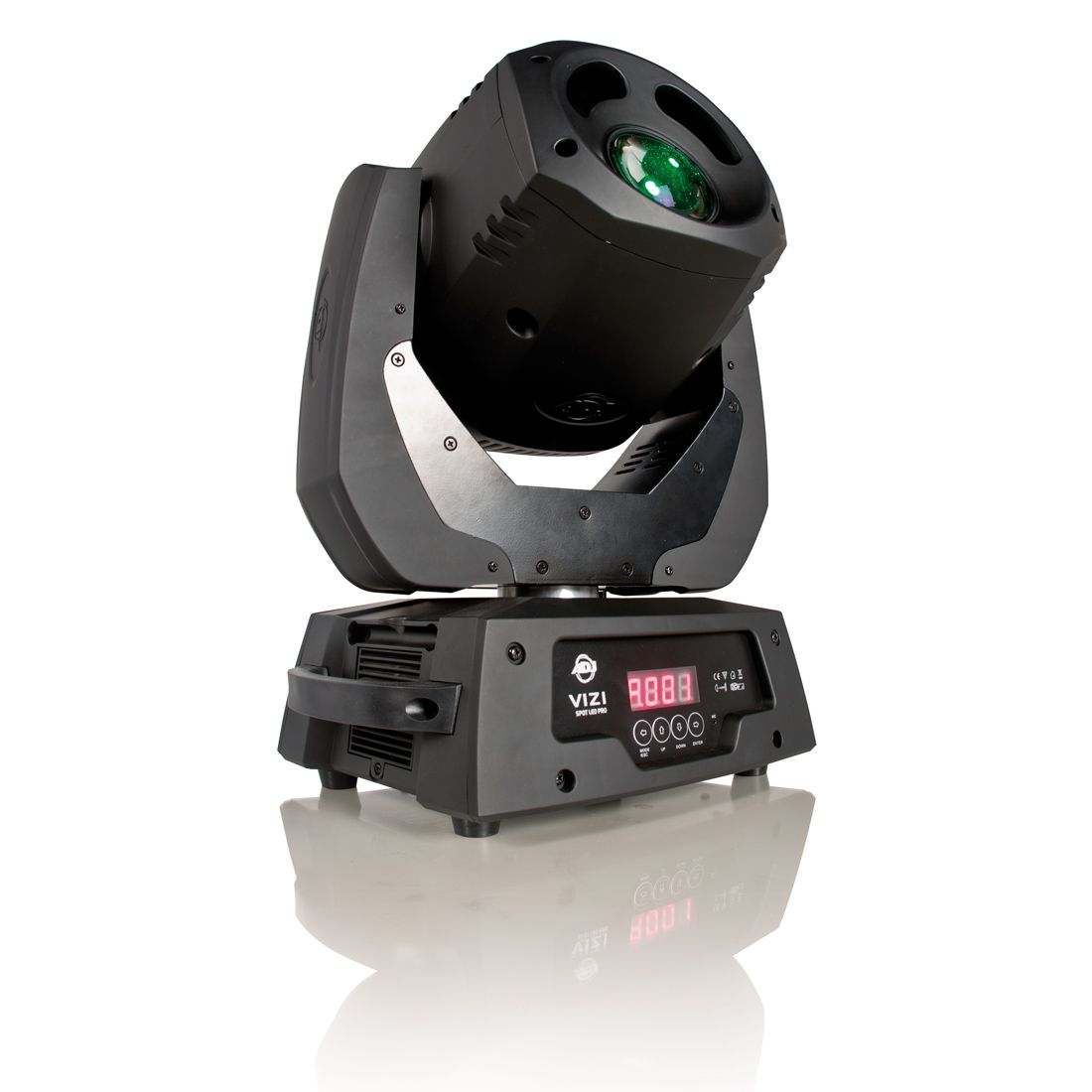

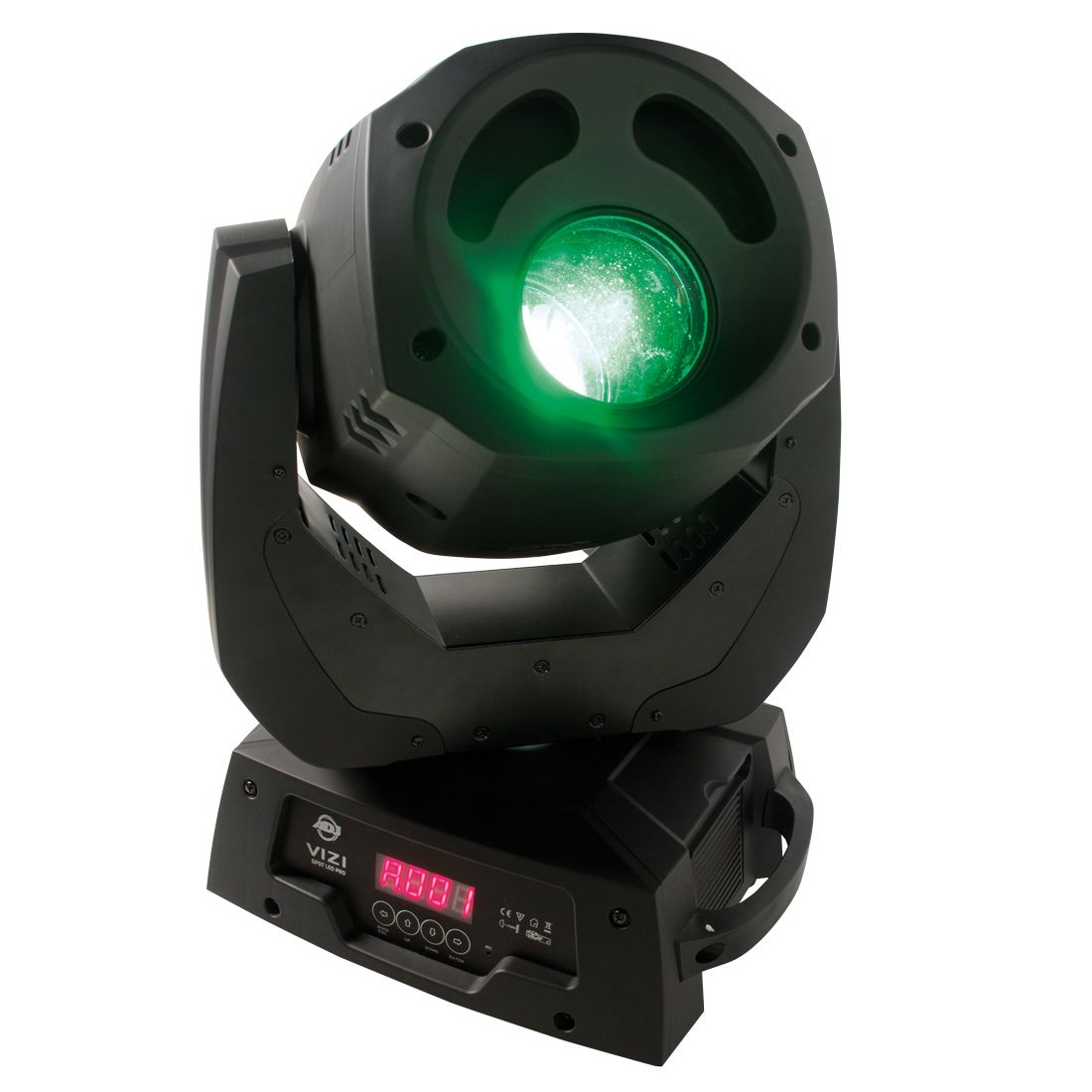

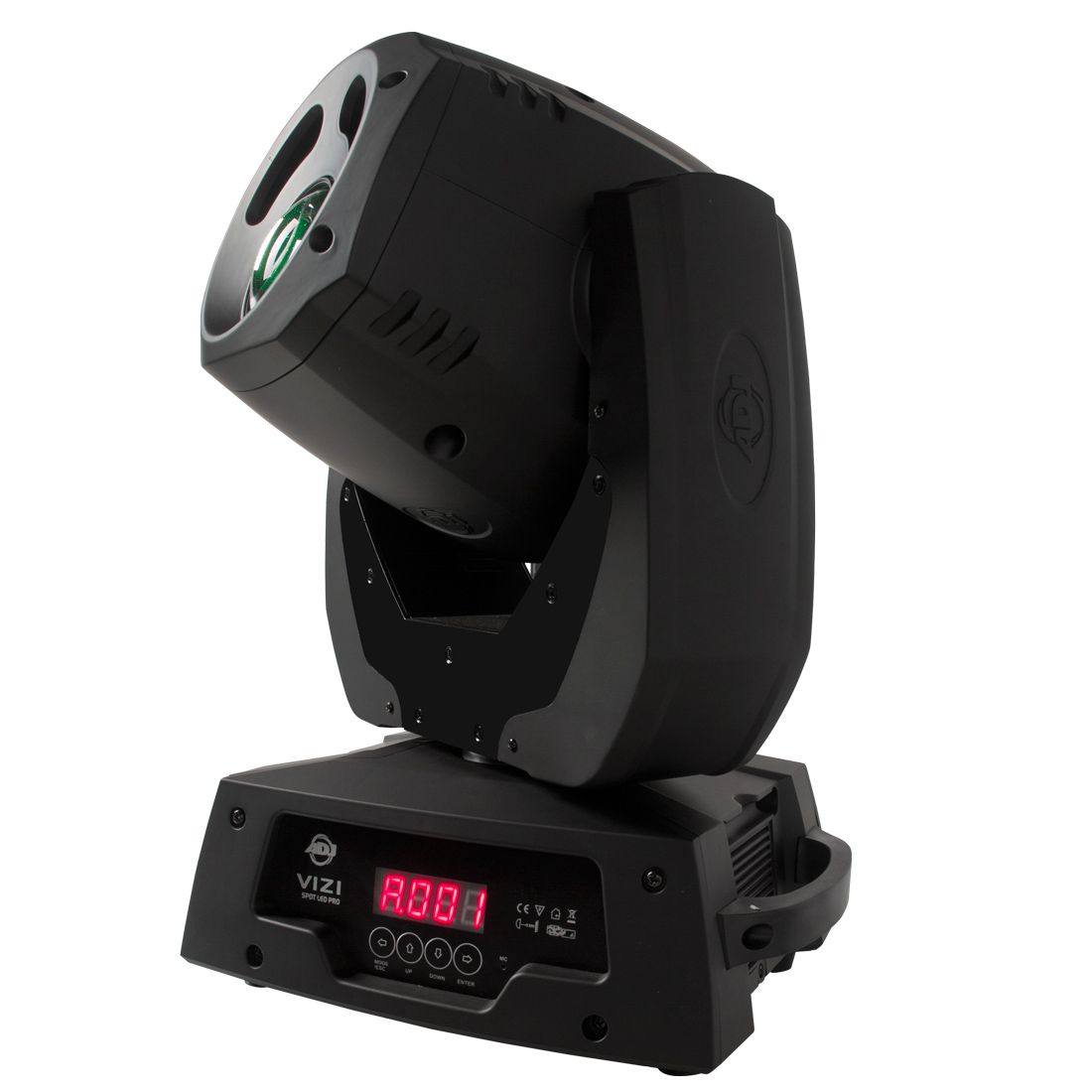

The Vizi Spot LED Pro is a high performance Moving Head fixture features two effects in one: A hard edge spot beam or a wash (frost) effect! This fixture is powered by a high output 50W long life LED source (6500?K, 60,000 hr.) with a low power draw of 130W. This unit is compact & light weight and offers plenty of pro features such as: 8 Dichroic Colors + white (includes UV), 7 Rotating Gobos (Interchangeable) a Prism Wheel with 3-facet and Infinite prisms, Remote Focus,...
Read More

Product Information

SKU: 1227000016
GTIN: 640282001953
HS-Code: 94054091 00

The Vizi Spot LED Pro is a high performance Moving Head fixture features two effects in one: A hard edge spot beam or a wash (frost) effect! This fixture is powered by a high output 50W long life LED source (6500?K, 60,000 hr.) with a low power draw of 130W.

This unit is compact & light weight and offers plenty of pro features such as: 8 Dichroic Colors + white (includes UV), 7 Rotating Gobos (Interchangeable) a Prism Wheel with 3-facet and Infinite prisms, Remote Focus, Gobo Indexing, Dimming (0-100%), Strobe effect, 2 DMX channel modes (12 or 14 Ch.) and a Gobo Scroll mode.

The Vizi Spot LED Pro also features the SLOCK™ - Slide Lock gobo changing system - that makes removing and installing gobos much easier.

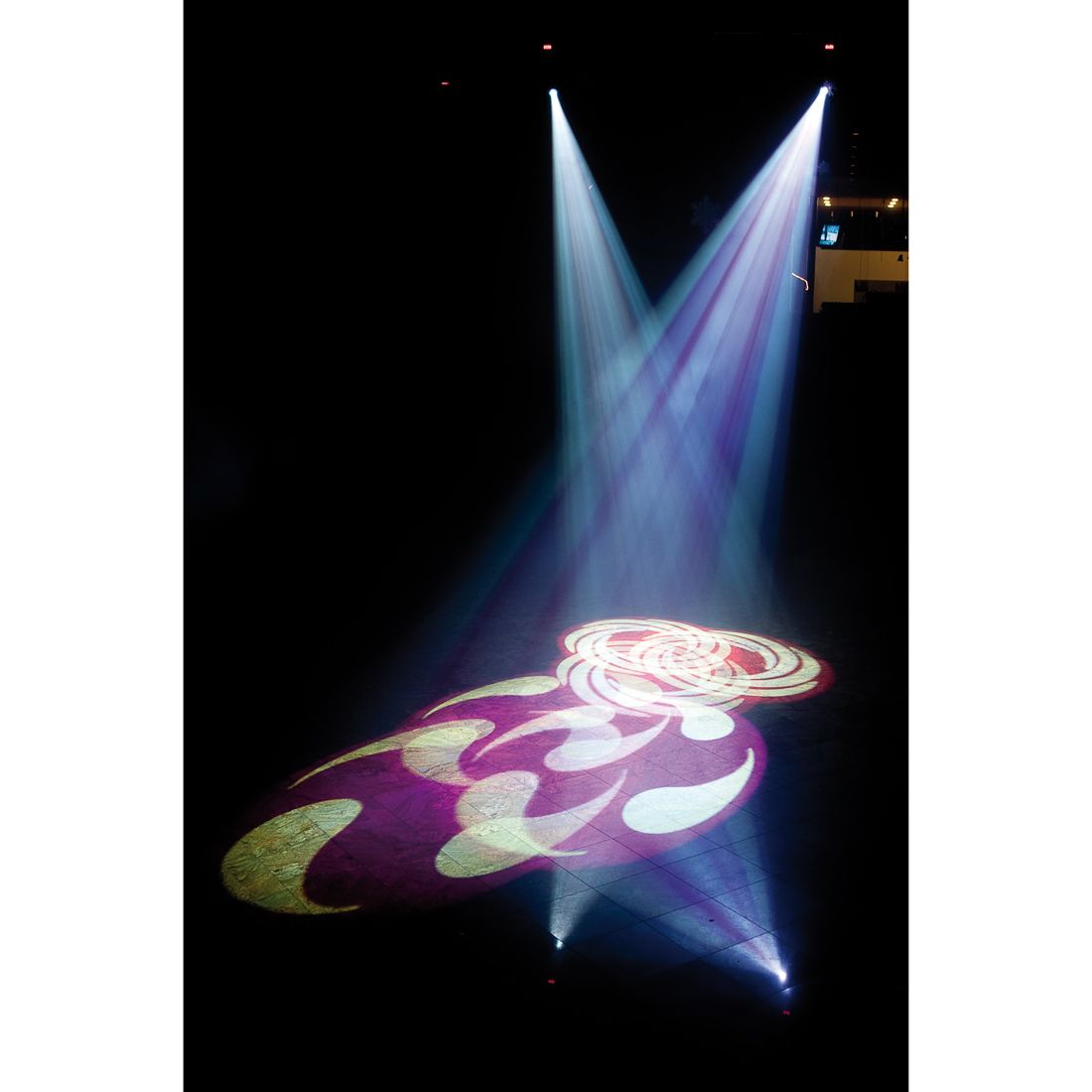

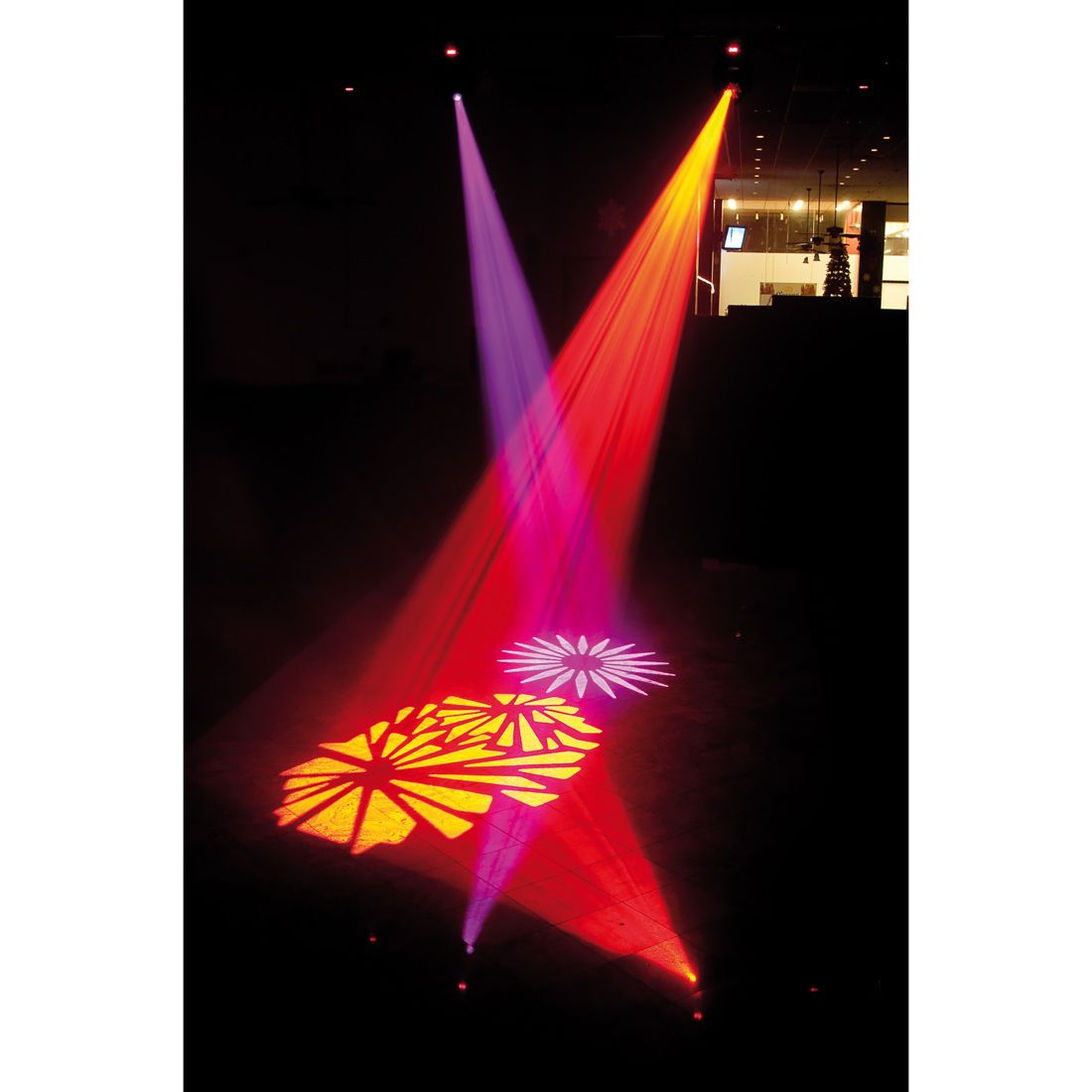

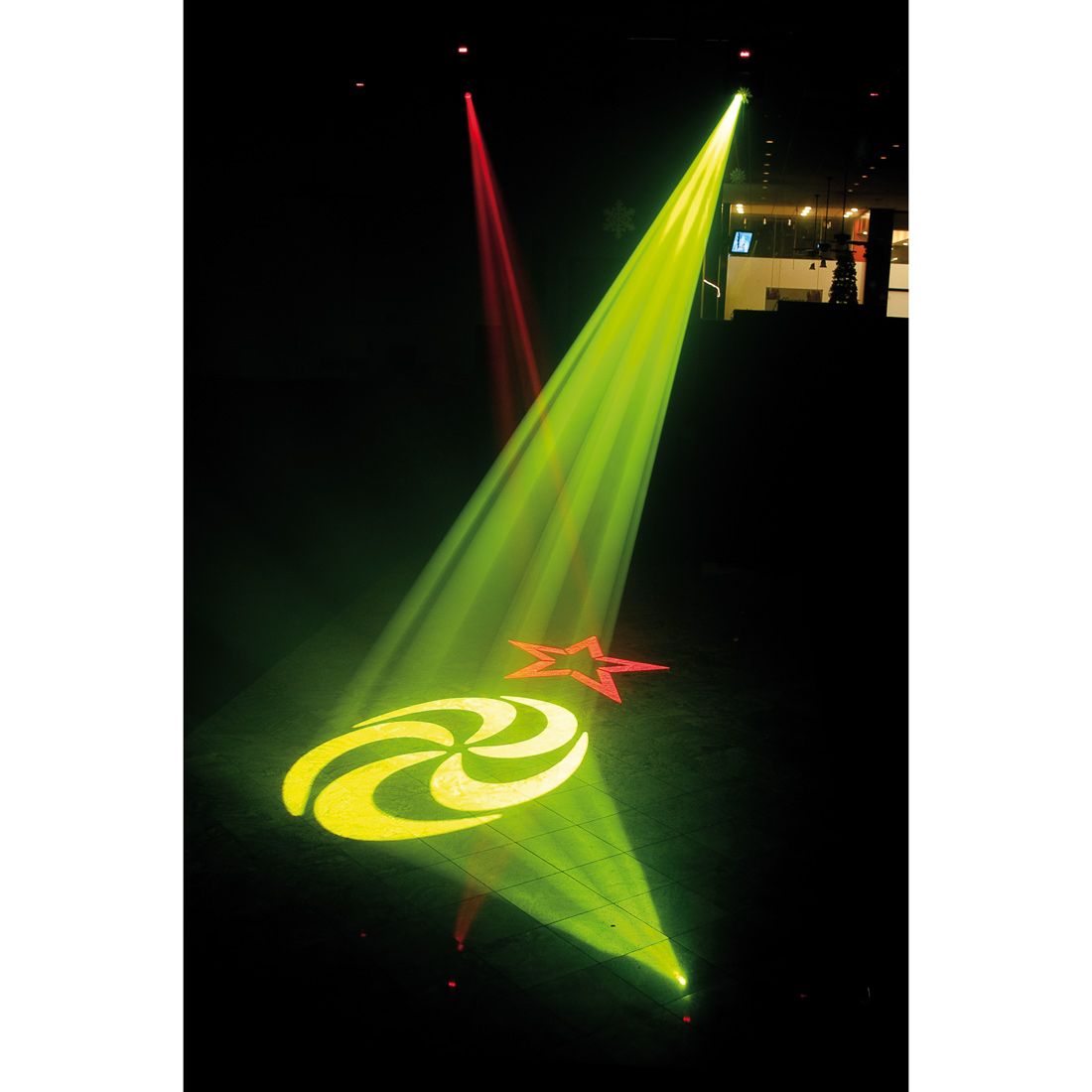

Gallery

Specification

    - 50W High Output LED Moving Head that produces a spot and a wash effect
    - RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
    - 7 Rotating, Interchangeable Gobos + Spot (5 metal + 2 glass gobos) with SLOCK™ (Slide Lock) gobo changing system
    - 7 Colors + UV Filter + White
    - Independent gobo and color wheels
    - 12 Ch. or 14 Ch. DMX Modes
    - 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
    - Prism Wheel: 3-Facet or Infinite
    - Frost Effect (Wash)
    - Pan/Tilt (8-Bit) + Fine Pan/Tilt (16-Bit)
    - Metal Gobo size: 26.7mm (25mm viewable gobo size; thickness: 0.3mm)
    - Glass Gobo size: 26.6mm (23.8mm viewable gobo size; thickness: 2mm)
    - Dimming: 0% - 100%
    - 13-degree beam angle
    - Remote Focus
    - Gobo Shake
    - Gobo Indexing
    - Strobe effect
    - Pan: 540-degree standard (630-degree optional)
    - Tilt: 270-degree
    - LED DMX 4-Button menu system
    - Stepper motors with micro stepping
    - Hanging bracket included

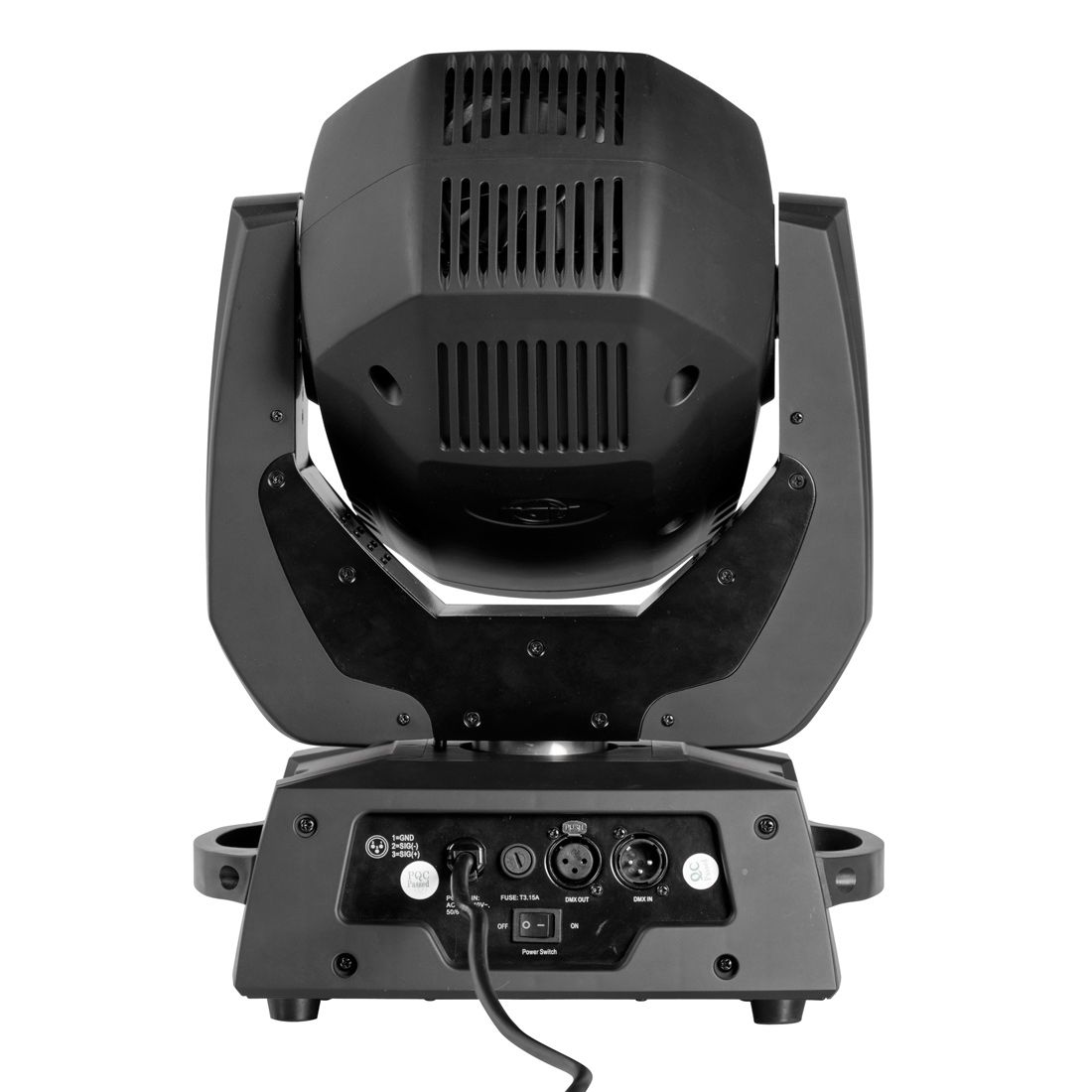

    - 3-pin XLR In/Out
    - Fan cooled
    - Gobo scroll mode
    - Auto X-Y repositioning
    - Shutter: Pulse effect; random strobe slow to fast
    - Flicker-free operation
    - Multi-voltage Operation: 100-240V, 50Hz/60Hz
    - Power Consumption: 130W max
    - Lamp: 50W white LED source, 6500?K (60,000 hour rated)
    - Dimensions (LxWxH):  303x253x422mm
    - Weight:  10,4 kg.


    specifications subject to change without notice

    Videos

    Downloads

    User Manual

    Vizi Spot LED PRO User Manual
    (Size: 4.5 MB)
