Vizi Spot 5R
Archive

Brand

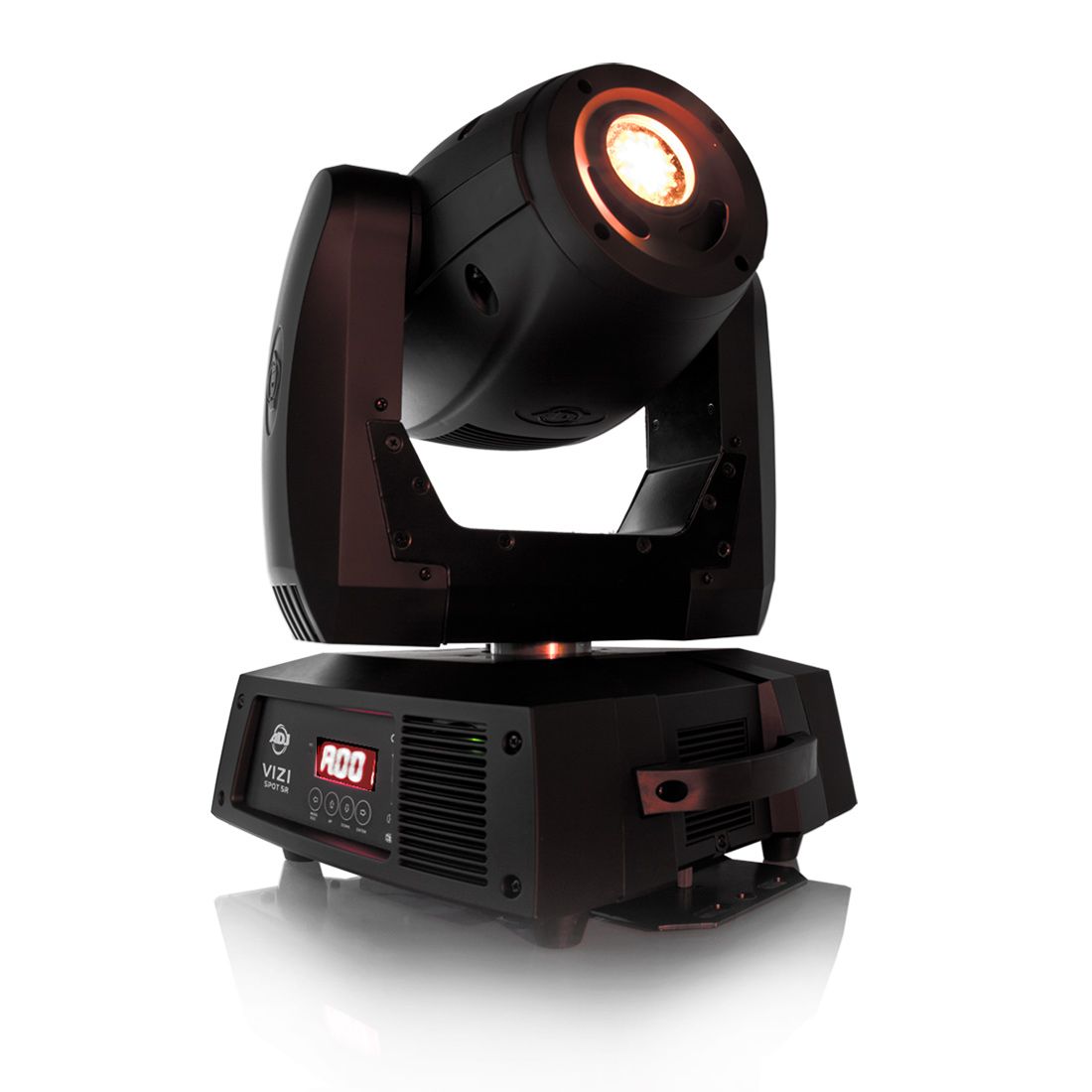

The ADJ Vizi Spot 5R, Moving Head Fixture features the revolutionary Philips® Platinum 5R discharge lamp technology (8000?K, 2,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Spot 5R is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.


Product Information

SKU: 1237000021
GTIN: 640282001236
HS-Code: 94054091 00

The ADJ Vizi Spot 5R, Moving Head Fixture features the revolutionary Philips® Platinum 5R discharge lamp technology (8000?K, 2,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Spot 5R is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.

Specification

    Specifications:
    - RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
    - 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
    - 13 DMX channels
    - Gobo scroll mode
    - LED DMX 4-Button menu system
    - 18-degree beam angle
    - Auto X-Y repositioning
    - 7 dichroic colors + white
    - 8 rotating gobos + spot (interchangeable: 4x metal, 4x glass)
    - 3-facet prism with macros
    - Gobo Shake effect
    - Gobo size: 13,8mm (9 mm viewable gobo size)
    - Independent gobo and color wheels
    - Pan: 360-degree standard (540-degree optional)
    - Tilt: 270—degree
    - Shutter: Pulse effect; random strobe slow to fast
    - Dimming: 0% - 100%
    - Strobe effect
    - Stepper motors with micro stepping
    - Hanging bracket included
    - LUX: 2947 @ 5M
    - Lumens: 8000 LUX
    - Multi-voltage Operation: 100-240V, 50Hz/60Hz
    - Lamp: Philips® Platinum 5R discharge, 8,000?K – 2,000 hr. long life
    - Dimensions (LxWxH): 335x310x448mm
    - Weight:  12 kg.


    Specifications subject to change without notice
