Vizi Hybrid 16RX Select Archive
Product Information

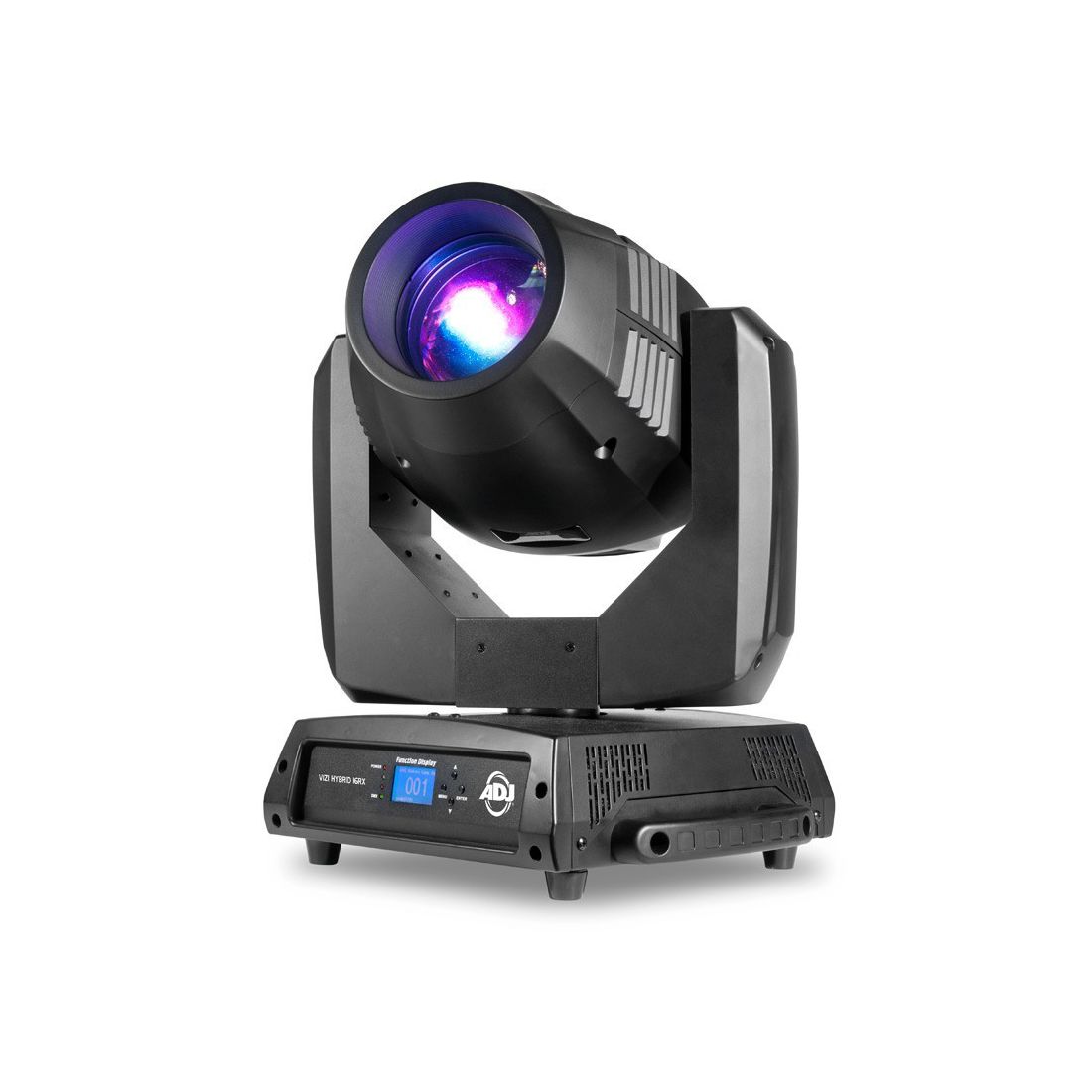

As Hybrid Spot/Beam/Wash Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 6 & 8-facet rotating prisms, stepper motors for quick, precise movement.
The Vizi Hybrid 16RX Moving Head fixture is powered by the revolutionary Philips® Platinum 16R discharge lamp technology (8000?K, 1,500 hr). The powerful Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Hybrid 16RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.
Gallery
Specification
- • Philips Platinum 16R MSD Discharge
- • Lamp Wattage: 330W
- • Average Lifetime: 1,500 hrs
- • Color Temperature : 8000K
- • CRI: 74.5
- Beam Mode: 10°
- Spot Mode: 5°-22°
- Wash Mode: 22°-63°
- • 2 rotating, layering Prisms : 16-facet circular & 5-facet linear prism
- • Prism Indexing
- • Linear Frost filter
- • Motorized Zoom 3°-32°
- • Motorized Focus
- • Operational Mode: DMX Control
- • 1 DMX Channel Mode: 19 Channels
- • RDM compatible (Remote Device management)
- • Mechanical Shutter 0-100%
- • Various strobe effects
- • Display: Color display with 4-button function menu
- • 16bit Pan 630°
- • 16bit Tilt 270°
- • 1 Color Wheel with 12 colors + CTB + UV + White
- • Color Indexing

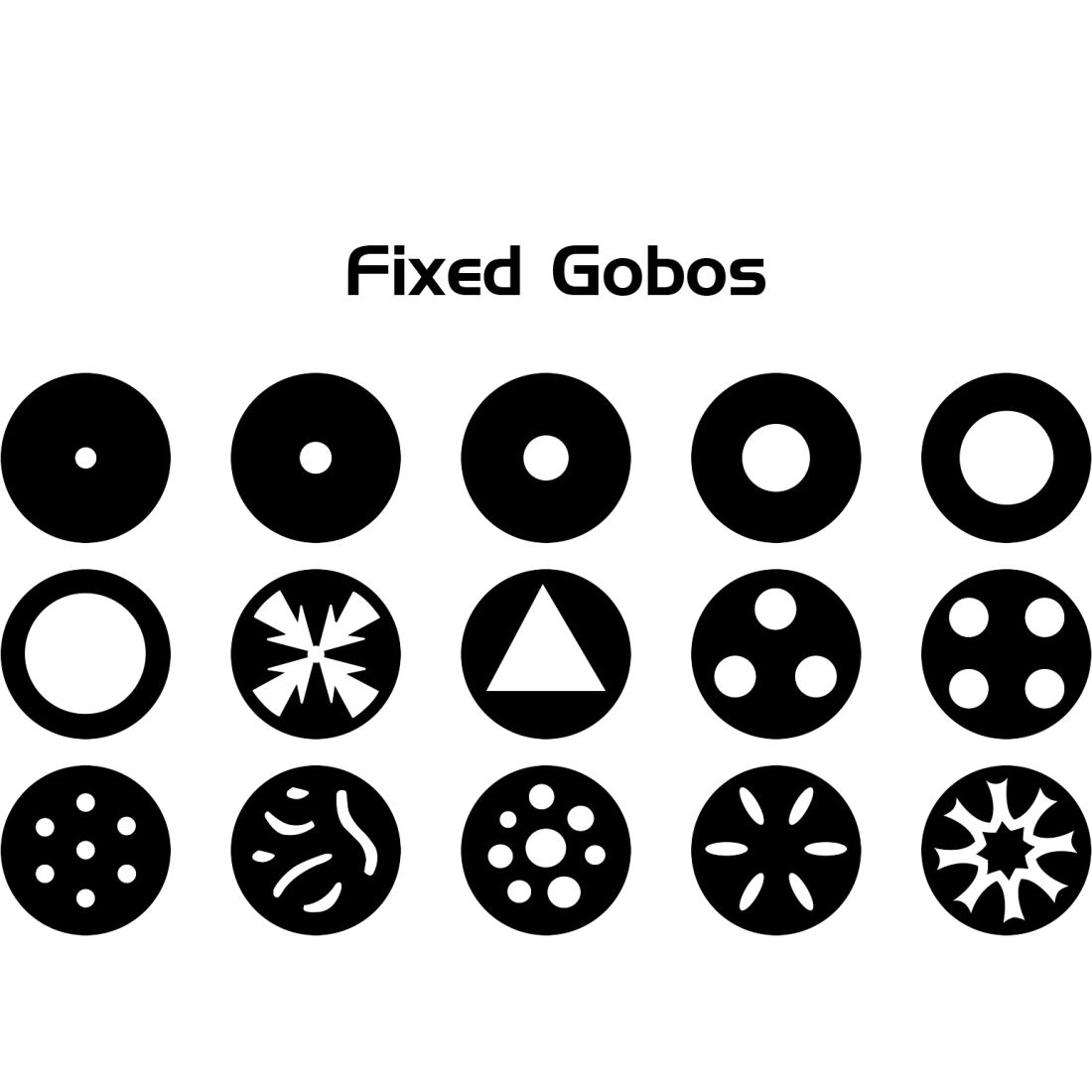

- • Gobo Wheel 1 with 10 static Gobos + 6 beam reducers + Open

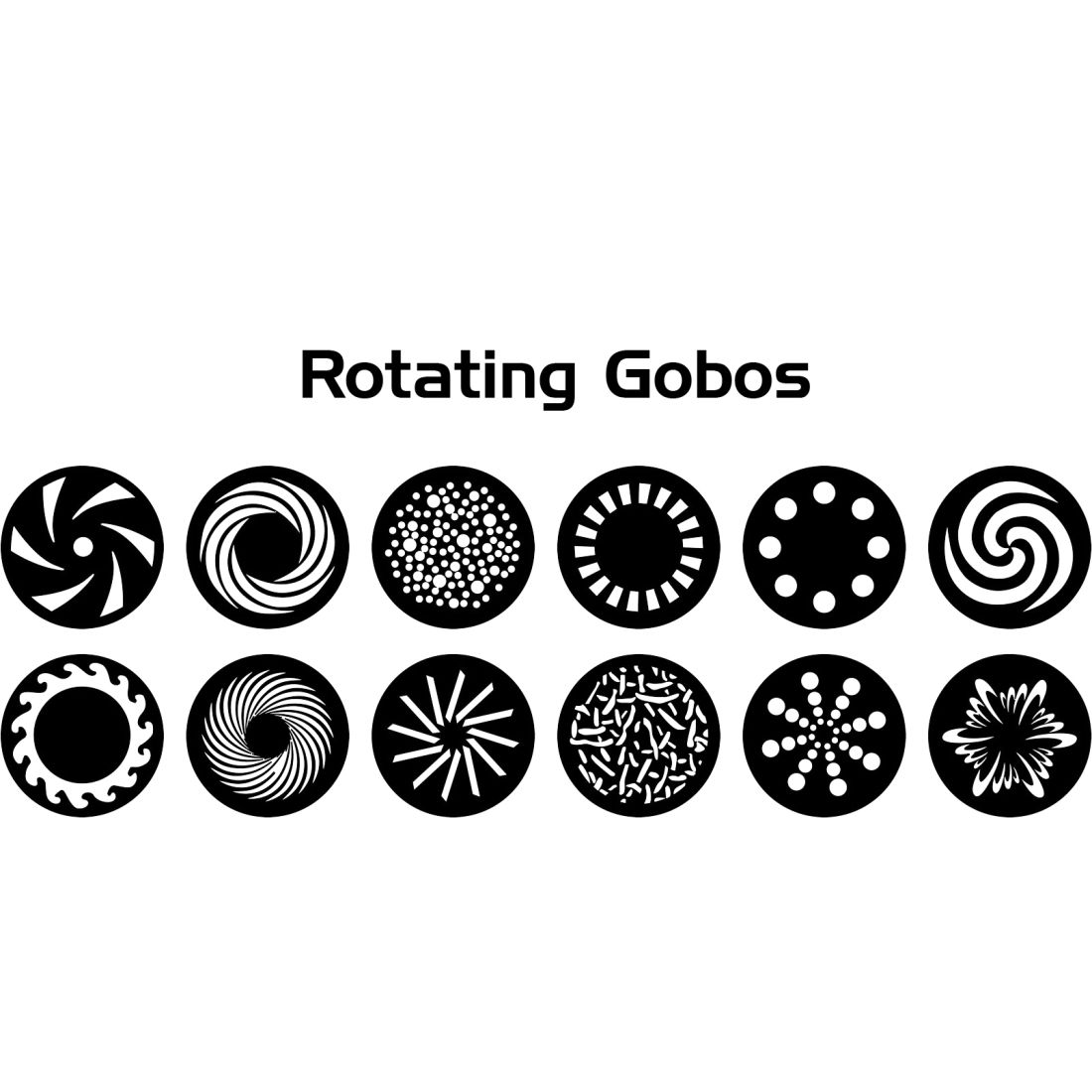

- • Gobo Wheel 2 with 12 rotating/replaceable Color Glass-Gobos + Open
- • PVC molding
- • Includes Quicklock Omega Brackets
- • Quite Cooling Mode
- • DB Rating @ 1Meter: Front: 54; Back: 54.7; Left: 53; Right: 53; Top: 55.2
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 537W
- • 3-& 5pin Locking DMX In/Out connections
- • Locking Power In connection
- • Dimension: 370 × 325 × 571mm
- • Weight: 23 kg.
