Vizi BSW 300 Select Archive
The Vizi BSW 300 uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.
Product Information
SKU: 1237000167
GTIN: 819730019776
HS-Code: 9405401000
The Vizi BSW 300 uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.

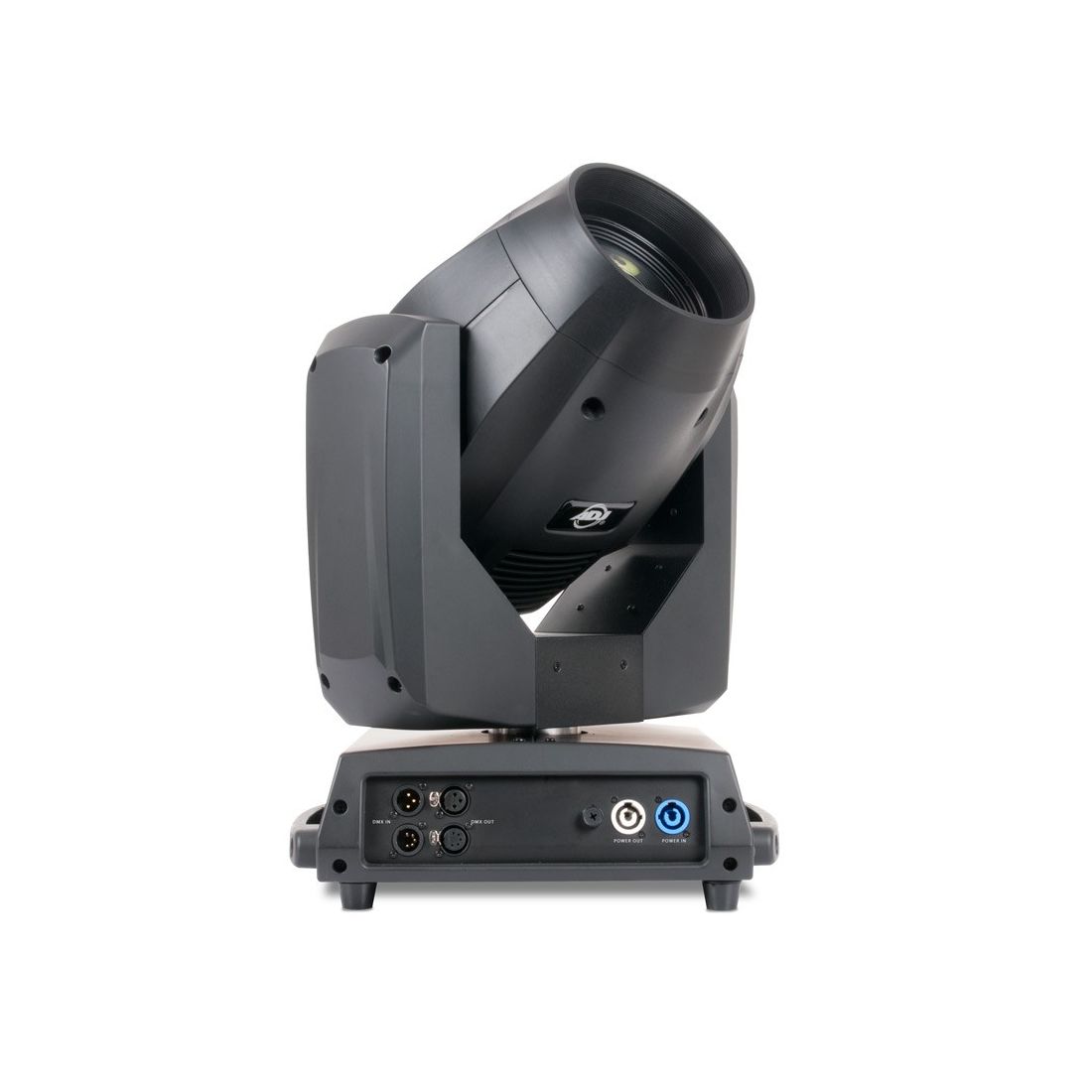

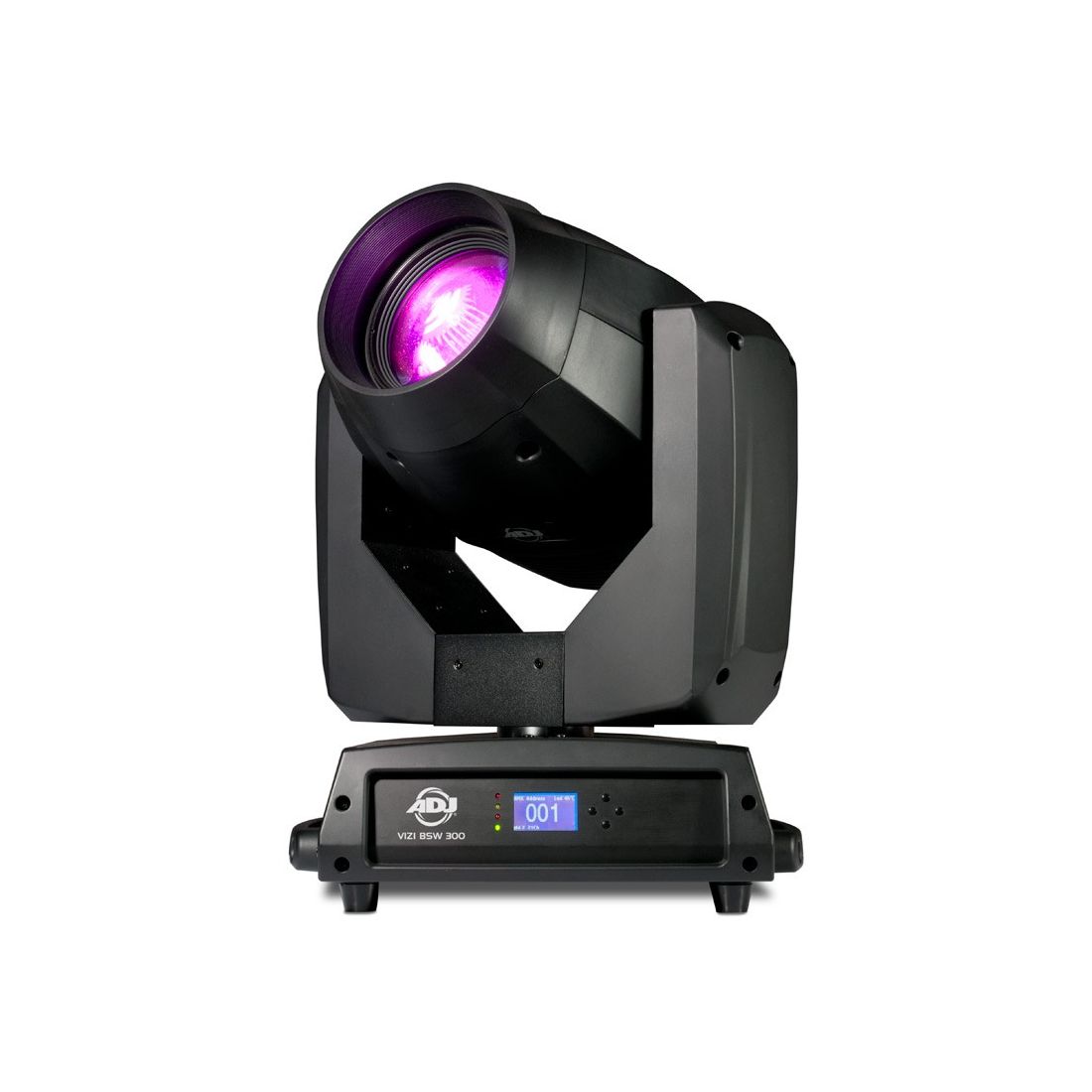

The Vizi BSW 300 offers motorized focus, two 6-facet rotating prisms (one linear & one circular), 2 separate color wheels, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a LCD function display on the front panel, with the rear panel offering power locking In/Out and 3-pin & 5-pin DMX connections.
Gallery
Specification
- • Cold White LED Engine
- • Lamp Wattage: 300W
- • Average Lifetime: 50,000 hrs
- • Color Temperature : 8000K
- • CRI: 70
- • Beam Angle
- Beam Mode : 1°-7°
- Spot Mode: 8°-17°
- Wash Mode : 18°-26°
- • Circular & Linear 6-facet rotating prisms
- • 26° Frost filter
- • Motorized Focus
- • 3 operational Modes: Internal Programs, Sound Active or DMX Control
- • 2 DMX Channel Modes: 17/20 Channels
- • RDM compatible (Remote Device management)
- • 5 Dimmer Curves
- • Various strobe effects
- • Display: LCD display with 4-button function menu
- • 16bit Pan 540°
- • 16bit Tilt 240°
- Colors • Color Wheel 1 with 7 colors + White • Color Wheel 2 with 4 colors + 3200K CTO + 5600 CTC + UV + White • Color Indexing on both color wheels Gobos • Gobo Wheel 1 with 6 static Gobos + 3 beam reducers + Open • Gobo Wheel 2 with 7 rotating/replaceable Gobos + Open Construction • PVC molding • Includes Quicklock Omega Brackets Electrical • Power voltage: AC100-240V, 50/60Hz (Multi-voltage) • Power consumption: 345W Connections • 3-& 5pin Locking DMX In/Out connections • Locking Power In/Out connections Dimensions & Weight • Dimension: 376 × 325 × 545mm • Weight: 22 kg.
- • Color Wheel 1 with 7 colors + White
- • Color Wheel 2 with 4 colors + 3200K CTO + 5600 CTC + UV + White
- • Color Indexing on both color wheels

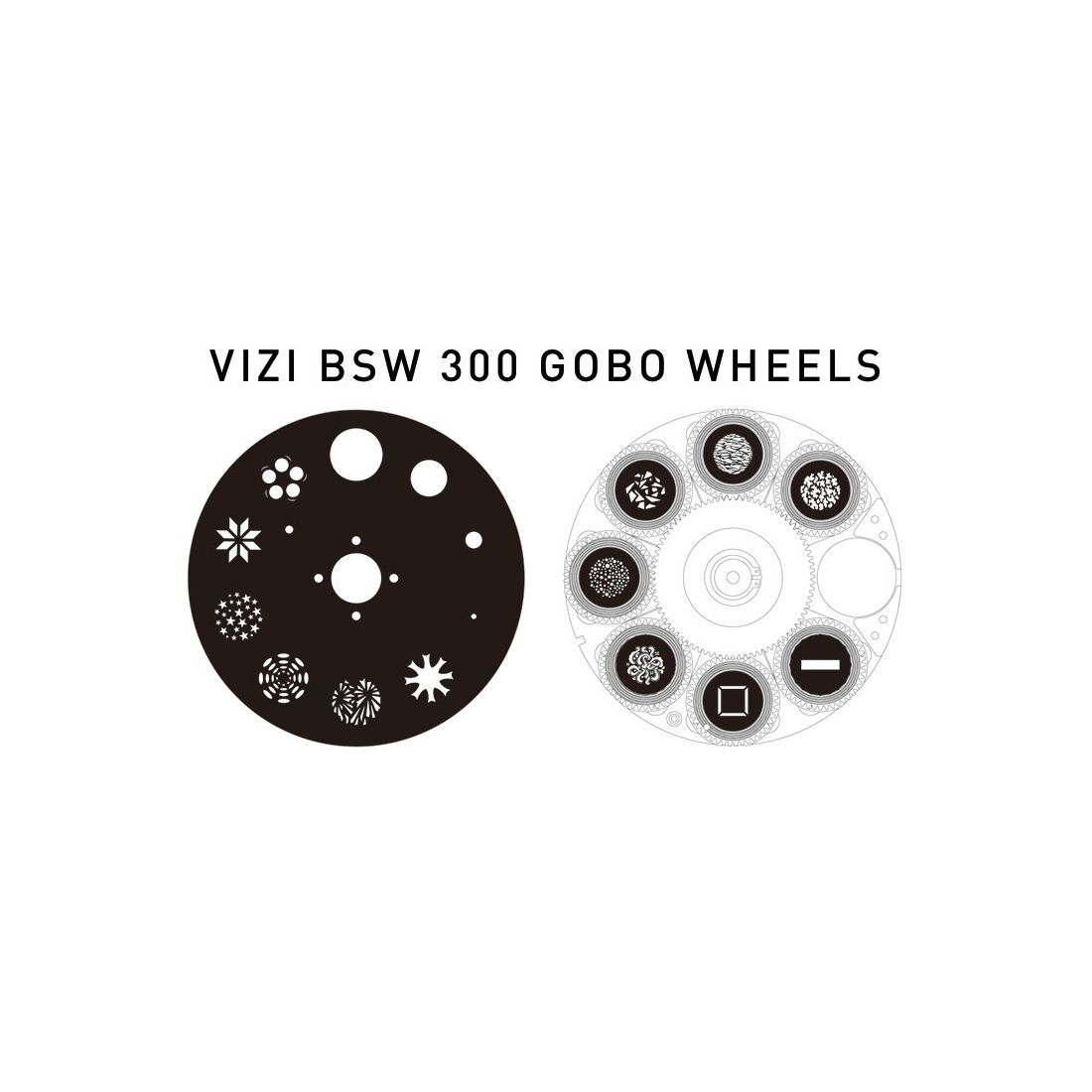

- • Gobo Wheel 1 with 6 static Gobos + 3 beam reducers + Open
- • Gobo Wheel 2 with 7 rotating/replaceable Gobos + Open
- • PVC molding
- • Includes Quicklock Omega Brackets
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 345W
- • 3-& 5pin Locking DMX In/Out connections
- • Locking Power In/Out connections
- • Dimension: 376 × 325 × 545mm
- • Weight: 22 kg.
