Vizi Beam 5RX Select Archive

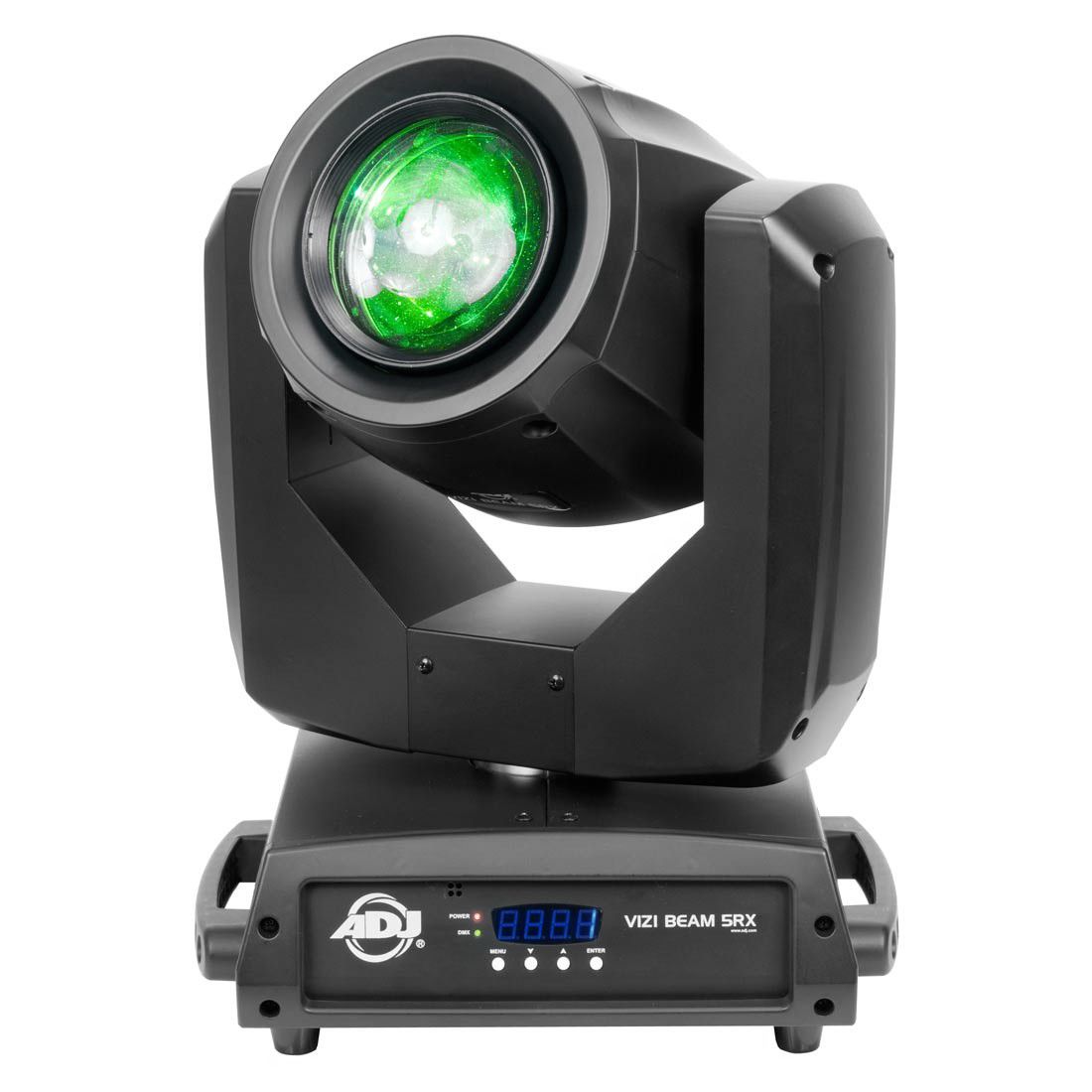

The Vizi Beam 5RX is high powered beam moving head powered by the brilliant 189W Philips® Platinum 5R MSD Discharge Lamp (3,000 hr.). It produces a razor sharp 5-degree beam of light. It comes with 14 colors + open, 17 fixed GOBOs + open, a rotating 8-facet prism and a frost filter for wash effects.
Product Information
SKU: 1237000119
GTIN: 819730015563
HS-Code: 94054910
The Vizi Beam 5RX is high powered beam moving head powered by the brilliant 189W Philips® Platinum 5R MSD Discharge Lamp (3,000 hr.). It produces a razor sharp 5-degree beam of light. It comes with 14 colors + open, 17 fixed GOBOs + open, a rotating 8-facet prism and a frost filter for wash effects.
The Vizi Beam 5RX offers 2 DMX modes (16 or 19 channels) and RDM control options. It has 3-pin DMX In/Out connections and Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.
Gallery
Specification
- • Philips Platinum 5R Long Life Discharge
- • Lamp Wattage: 189W
- • Average Lifetime: 3,000 hrs
- • Color Temperature : 8000K
- • Lux: 220,000 lux @10m
- • Beam Angle: 5-degrees, 220,000 lux @10m
- • 8-facet rotating circular prism
- • Frost filter
- • Motorized Focus
- • 2 operational Modes: Internal Programs or DMX Control
- • 2 DMX Channel Modes: 16 or 19 Channels
- • RDM compatible (Remote Device management)
- • 16bit Pan 540°
- • 16bit Tilt 270°
- • Various strobe effects
- • Color display with 4-button function menu

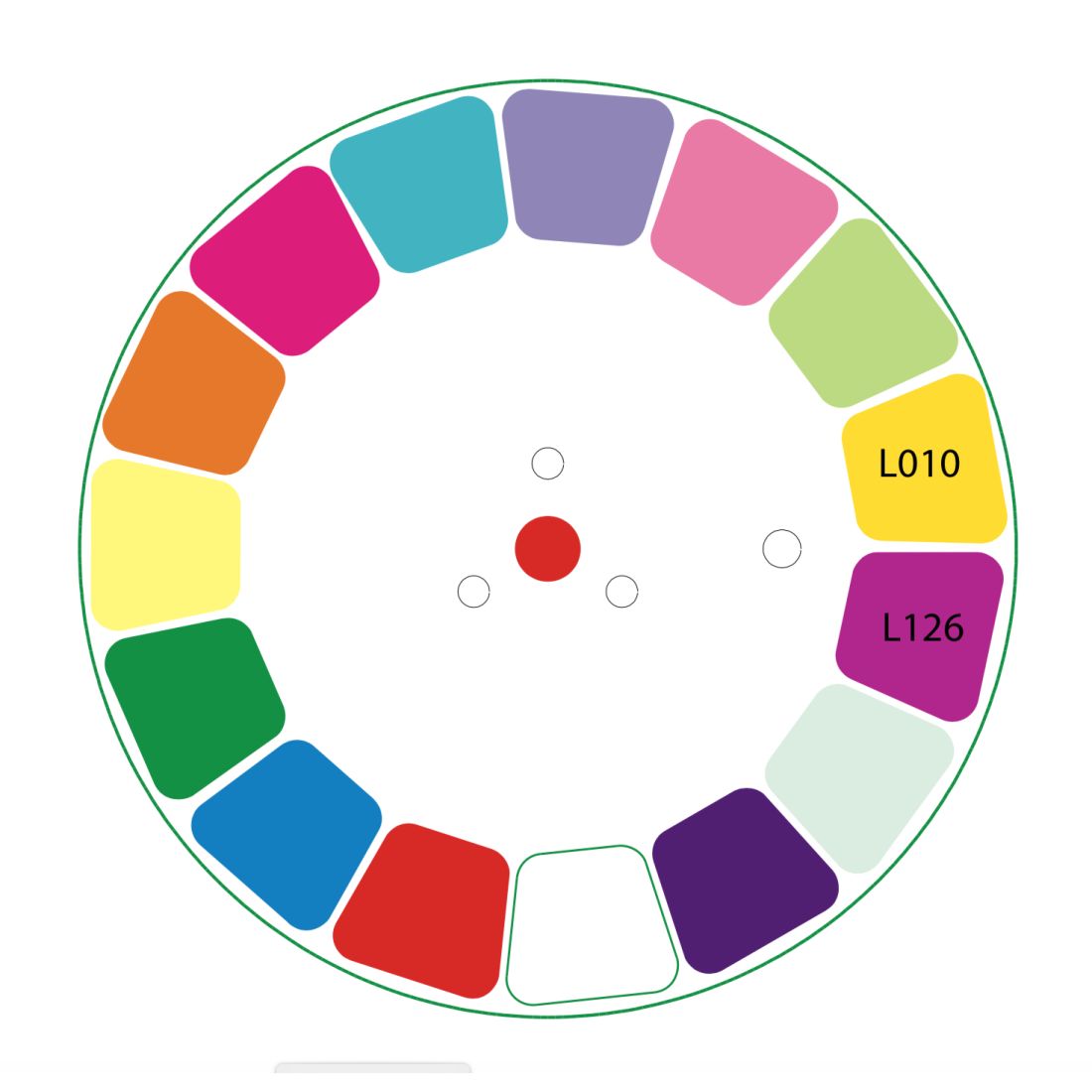

- • 1 Color Wheel with 10 colors + UV + White
- • Split Colors

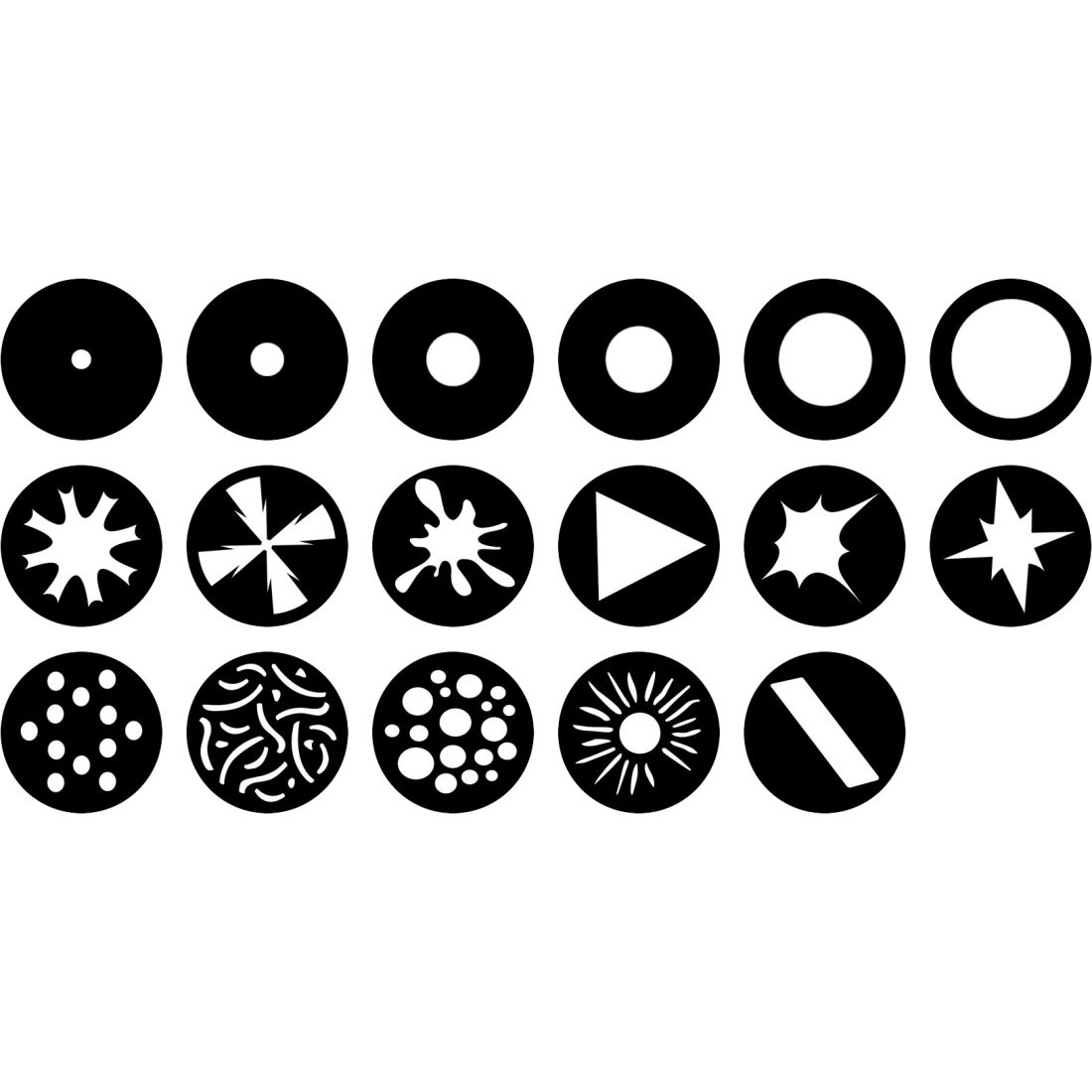

- • 1 metal Gobo Wheel with 11 static Gobos + 6 beam reducers + Open
- • PVC molding
- • Includes 2 Quicklock omega brackets
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 273W
- • DB Rating @ 1Meter: Front: 45; Back: 47; Left: 46; Right: 46; Top: 47

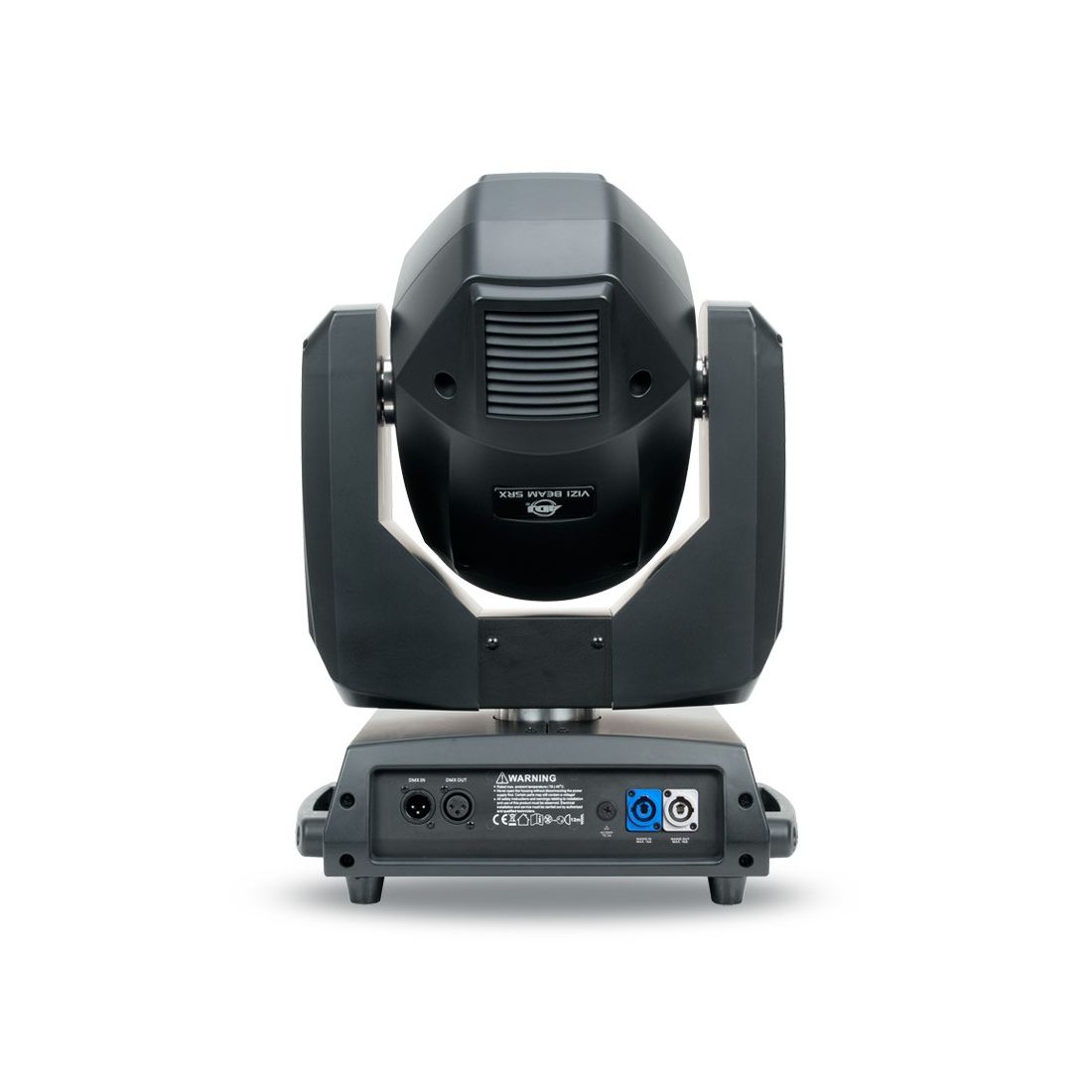

- • 3-pin Locking DMX In/Out connections
- • Locking Power In/Out connections
- • Dimension: 394 × 325 × 522mm
- • Weight: 19 kg.
