Vizi Beam 12RX Select
Key Features
Color
• 1 Color Wheel with 11 colors + CTO + CTB + UV + White
• Split Colors
• 1 Color Wheel with 11 colors + CTO + CTB + UV + White
• Split Colors
Optics
• Beam Angle: 0.8° / Field Angle: 1.8°
• High Quality, optical glass lens
• 16 bit Motorized Focus
• Beam Angle: 0.8° / Field Angle: 1.8°
• High Quality, optical glass lens
• 16 bit Motorized Focus
Source
• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7500K
• LUX: 70,000 @10M
• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7500K
• LUX: 70,000 @10M
Product Information
SKU: 1237000303
GTIN: 818651028218
HS-Code: 94054910

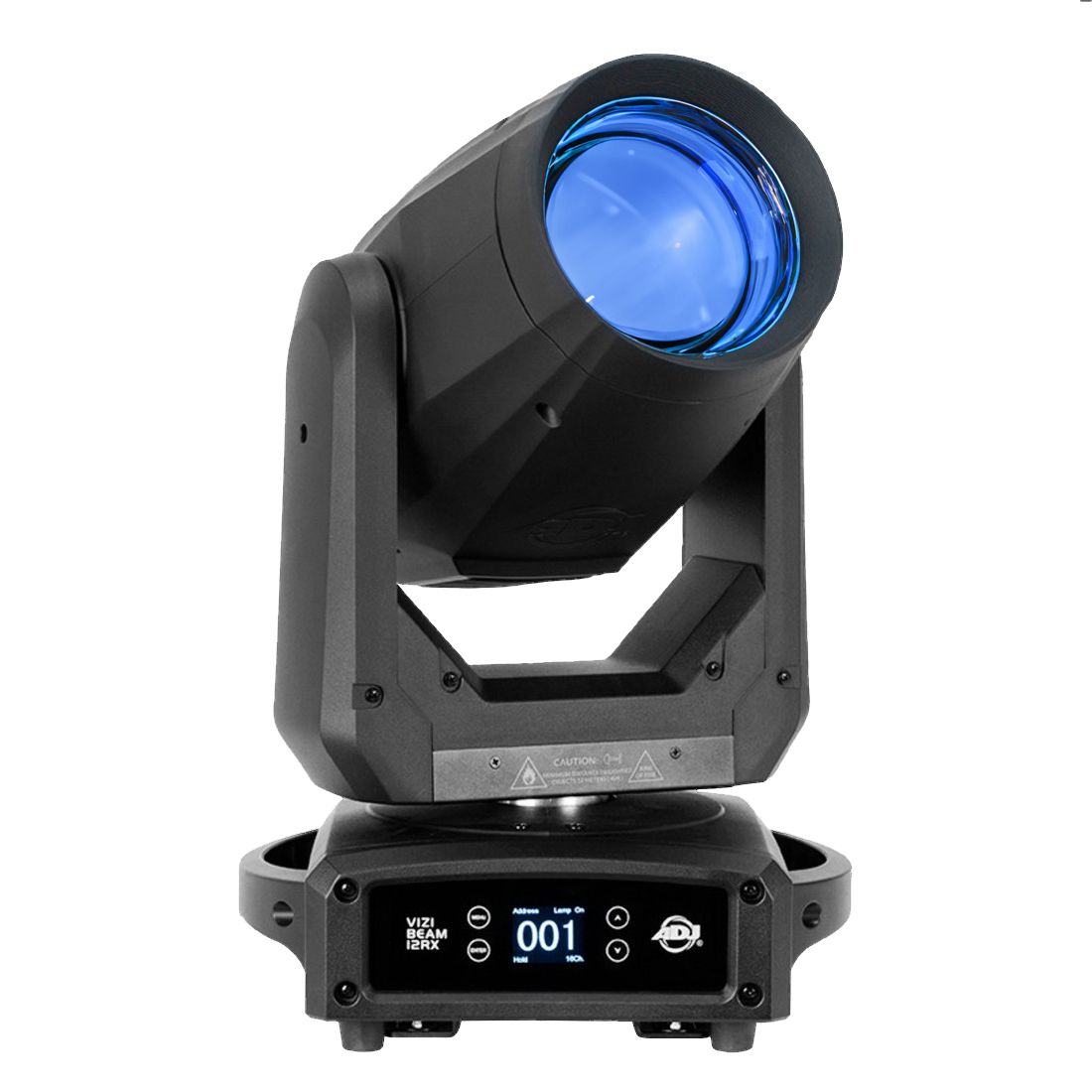

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 0.8° beam of light with motorized focus. It comes with 14 colors + open (including UV, CTO & CTB, with color indexing), 16 fixed GOBOs + open (with GOBO indexing), and a frost filter for wash effects. To create breathtaking aerial effects, the Vizi Beam 12RX is fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism.

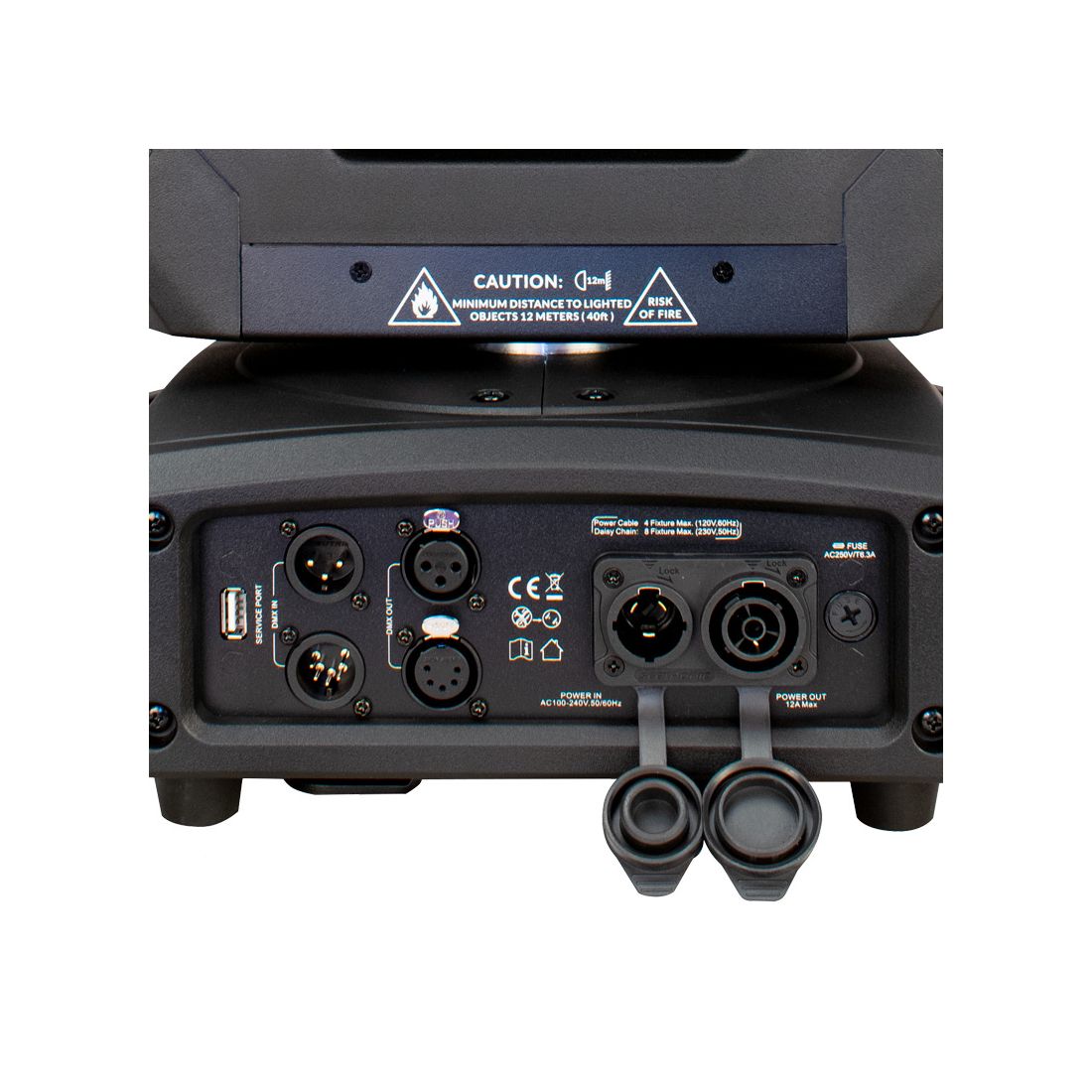

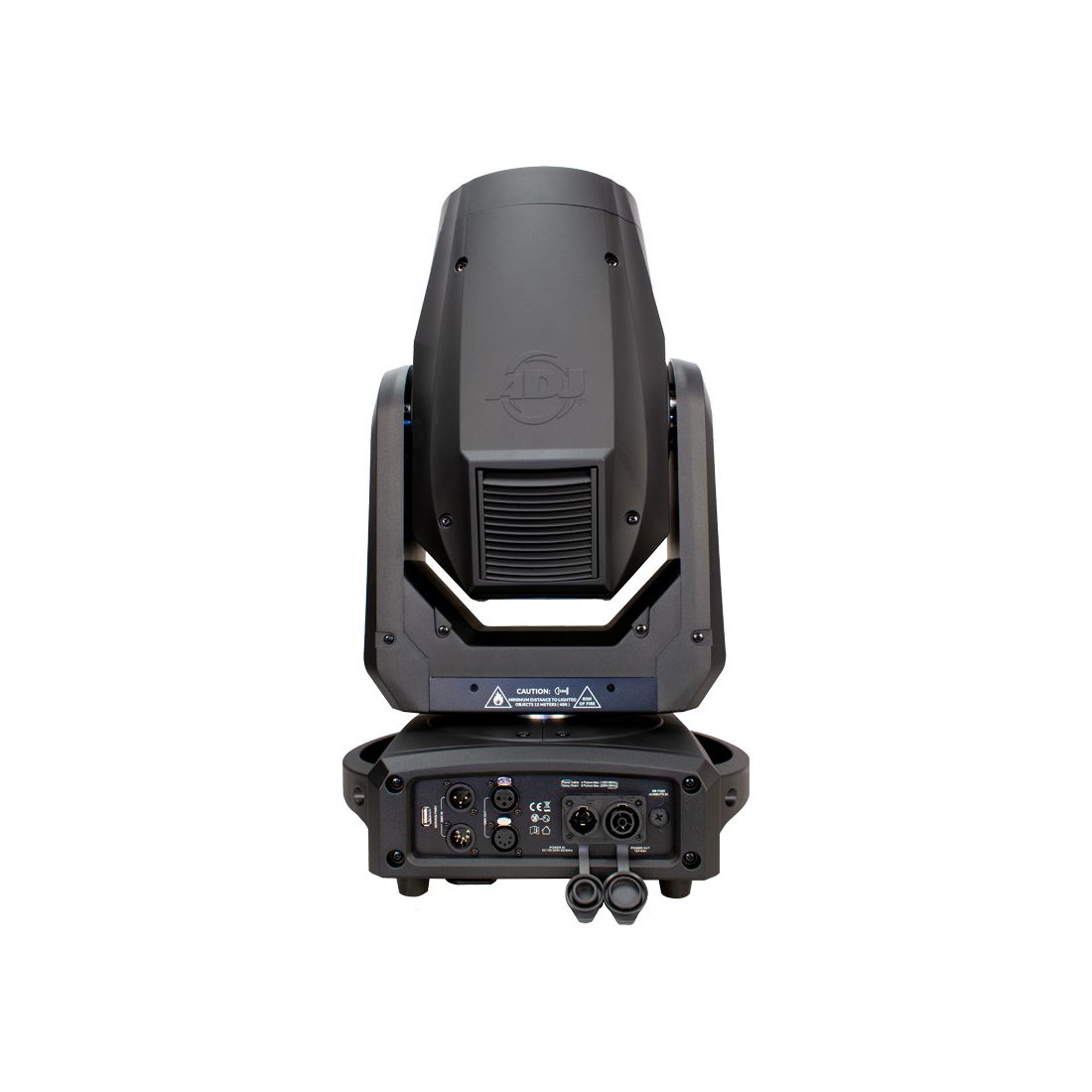

The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.
Gallery
Specification
- • Philips Platinum 12R Long Life Discharge
- • Lamp Wattage: 260W
- • Average Lifetime: 6,000 hrs
- • Color Temperature: 7500K
- • CRI: 74
- • Lux: 70,000 lux @20m
- • Beam Angle: 0.8°
- • Field Angle: 1.8°
- • High Quality Glass Lens
- •6-facet rotating linear prism
- • Linear Frost filter
- • Motorized 16bit Focus
- • 2 operational Modes: Internal Programs or DMX Control
- • 2 DMX Channel Modes: 14 or 16 Channels
- • RDM compatible (Remote Device management)
- • 16bit Pan 540°
- • 16bit Tilt 270°
- • Various strobe effects
- • Display: Color display with 4-button function menu
- • 1 Color Wheel with 11 colors + CTO + CTB + UV + White
- • Split Colors
- • 1 metal Gobo Wheel with 12 static Gobos + 4 beam reducers + Open
- • PVC molding
- • Includes omega brackets
- • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- • Power consumption: 371W
- • 3 & 5-pin Locking DMX In/Out connections
- • IP65 Locking Power In/Out connections
- • USB Service Port for software updates
- • Dimension: 350 × 343.5 × 565mm
- • Weight: 18 kg
Specifications subject to change without notice
COLORS AND GOBOS
Color Wheel 1
Gobo Wheel 1 Static
