VioRoll LED Archive
Product Information

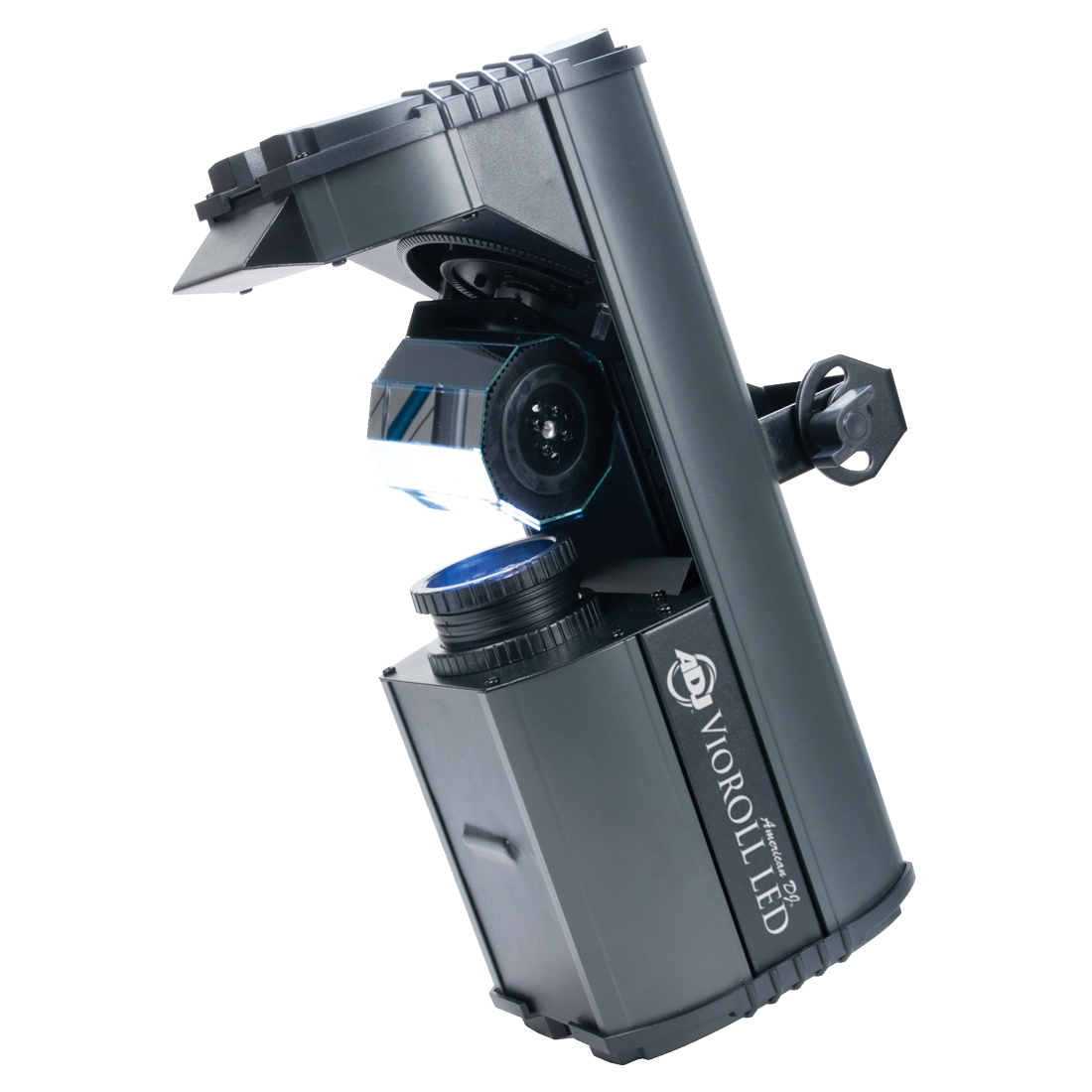

The American DJ VioROLL LED is a high output, low maintenance Moonflower effect with a smooth, stepper motor driven scanning barrel mirror. It’s 10-watt Quad LED source produces dozens of red, green, blue and white (RGBW) beams from it’s exciting built-in programs.
The VioROLL LED has three operational modes (DMX, Master/Slave, Sound Active), has a Pan/Tilt Inversion Mode and a long-life 30,000 hour rated LED. This unit offers many useful features not found on other effect lighting in this price range, such as: 4-button DMX menu, 1.8 degree stepper motors, IEC AC IN/OUT on rear to daisy chain power, ADJ UC3 easy-to-use controller compatibility and a safety hook.
Gallery
Specification
Specifications:
- LED DMX-512 barrel mirrored scanner with sharp Red, Green, Blue & White Beams
- Bright 10W RGBW Quad LED
- 2 DMX Channel Modes (1 Channel or 5 Channels)
- 4-Button menu system LED Display making it easy to navigate
- 3 Operational modes: DMX controller, Master/Slave & Sound Active
- Exciting built-in lighting programs
- Pan/Tilt Inversion Mode: when using 4 scanners in Master/Slave Scanner 1 & 3 sync opposite Scanner 2 & 4
- Manual focusing lens
- Dimming: 0-100%
- Strobe effect
- Beam angle: 30-degrees
- X/Y mirror movement
- 1.8 degree Stepper motors with micro stepping
- Hanging Bracket + safety hook included
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- Run all night – No duty cycle – Unit stay cool all night
- No cooling fan required - Very little maintenance needed

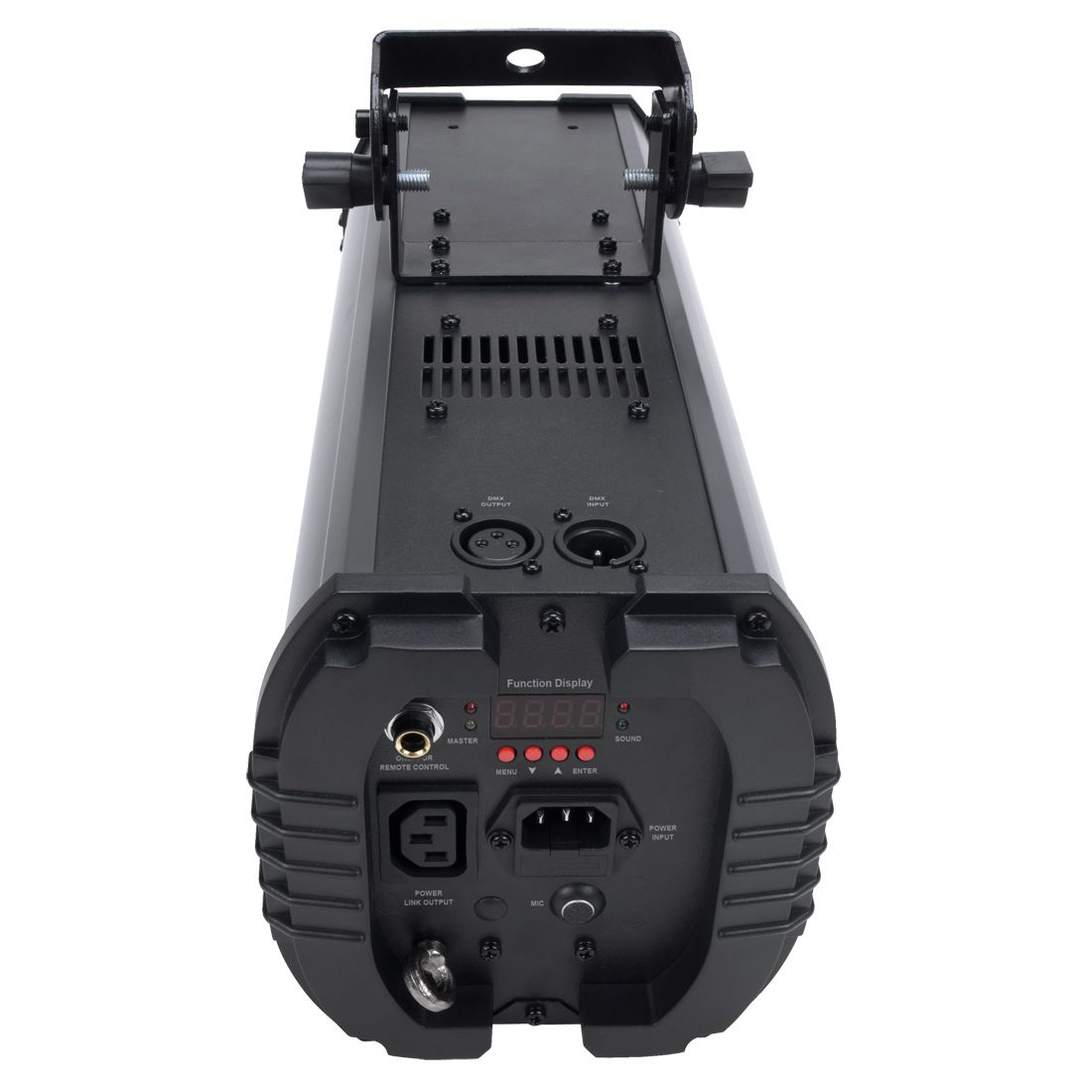

- IEC AC IN/OUT on rear to daisy chain power
- Extreme long lifetime of the LED (30,000 hr. rating)
- LUX @ 3M: Red = 177; Green = 493; Blue = 11; White = 620
- Power consumption: 34W max
- Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket
- Dimensions (LxWxH): 420x161x172mm
- Weight: 4.2kg.
Specifications subject to change without notice.
Videos
