Vintage Bar
Select
New

Brand

Key Features

Effects
Effects
• Powerful strobe 0.5 to 33Hz
• Unique retro RGBL background effect
Optics
Optics
• CRI: 70
• Field Angle: 160°
Source
Source
• 4 pcs high-power 150W COB white LED
• 120 pcs SMD 5050 RGBL LEDs (0.8W each)

Product Information

SKU: 1226100439
HS-Code: 9405423990

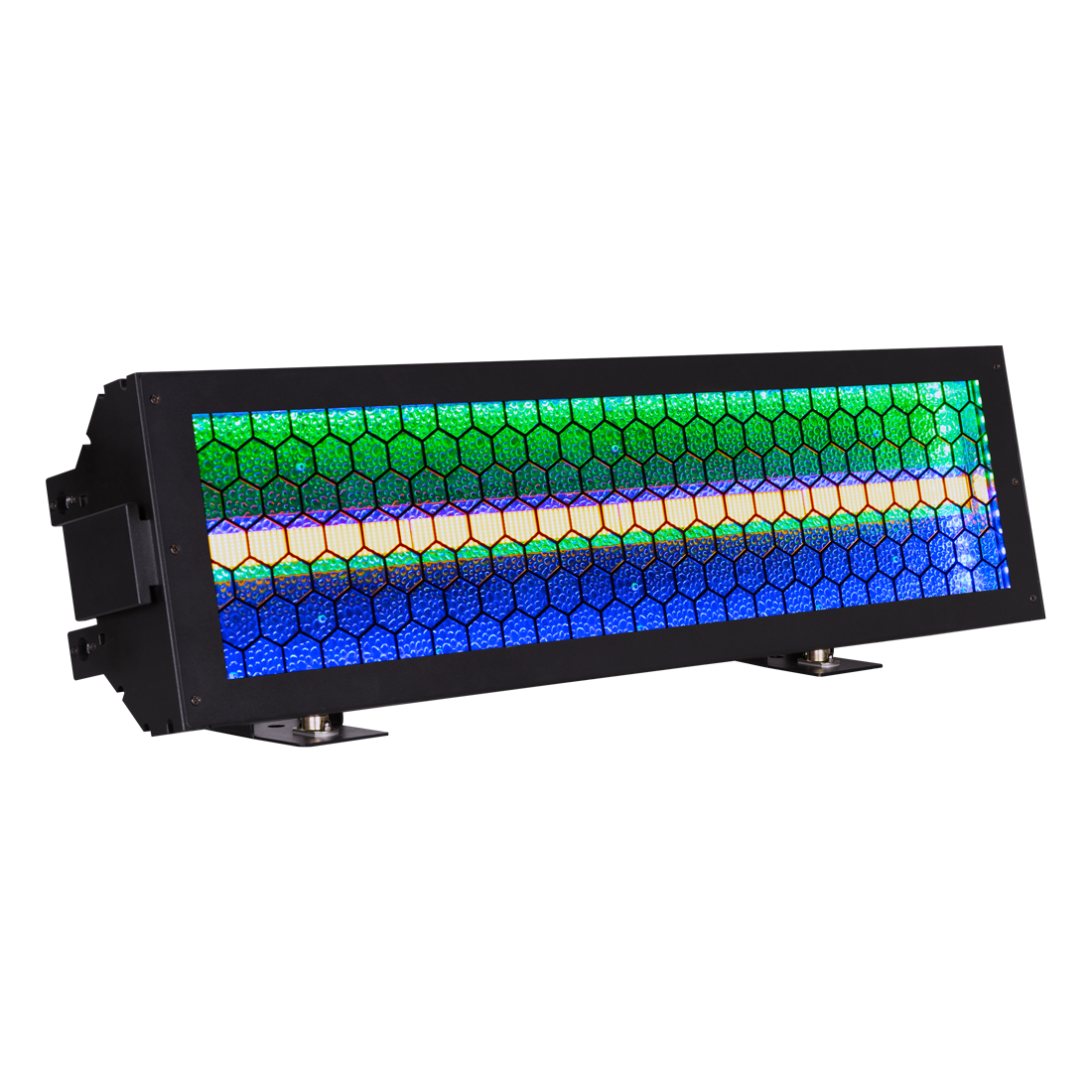

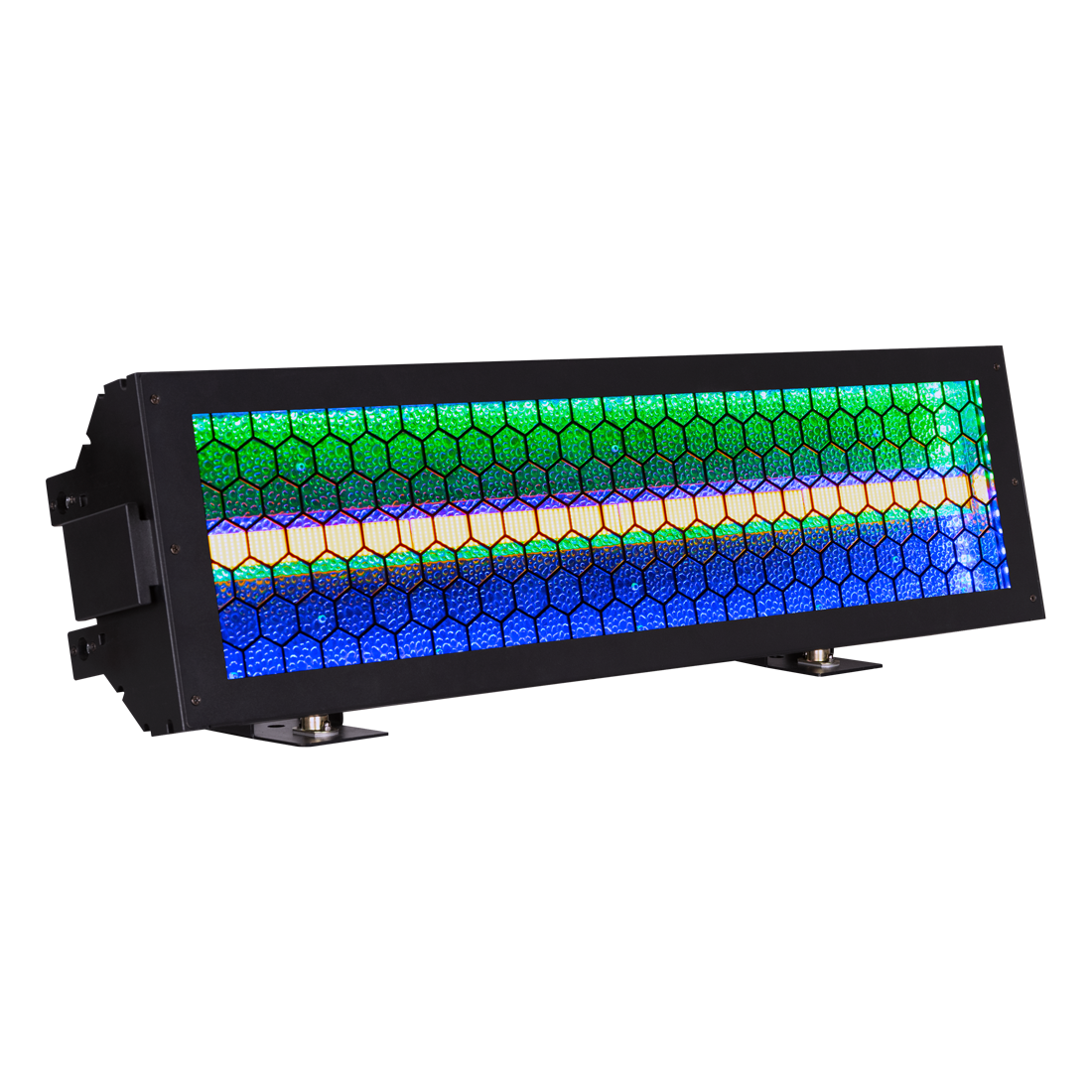

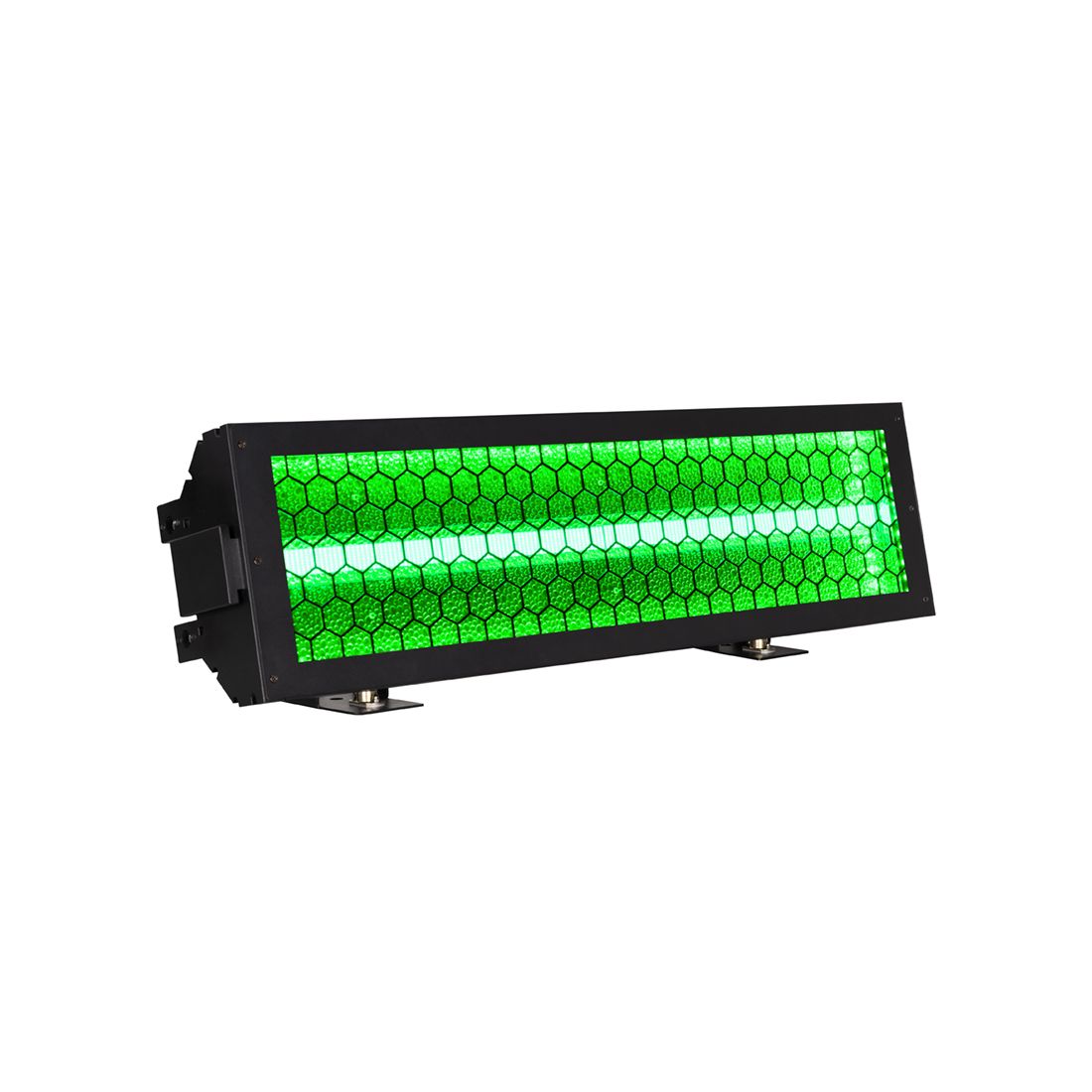

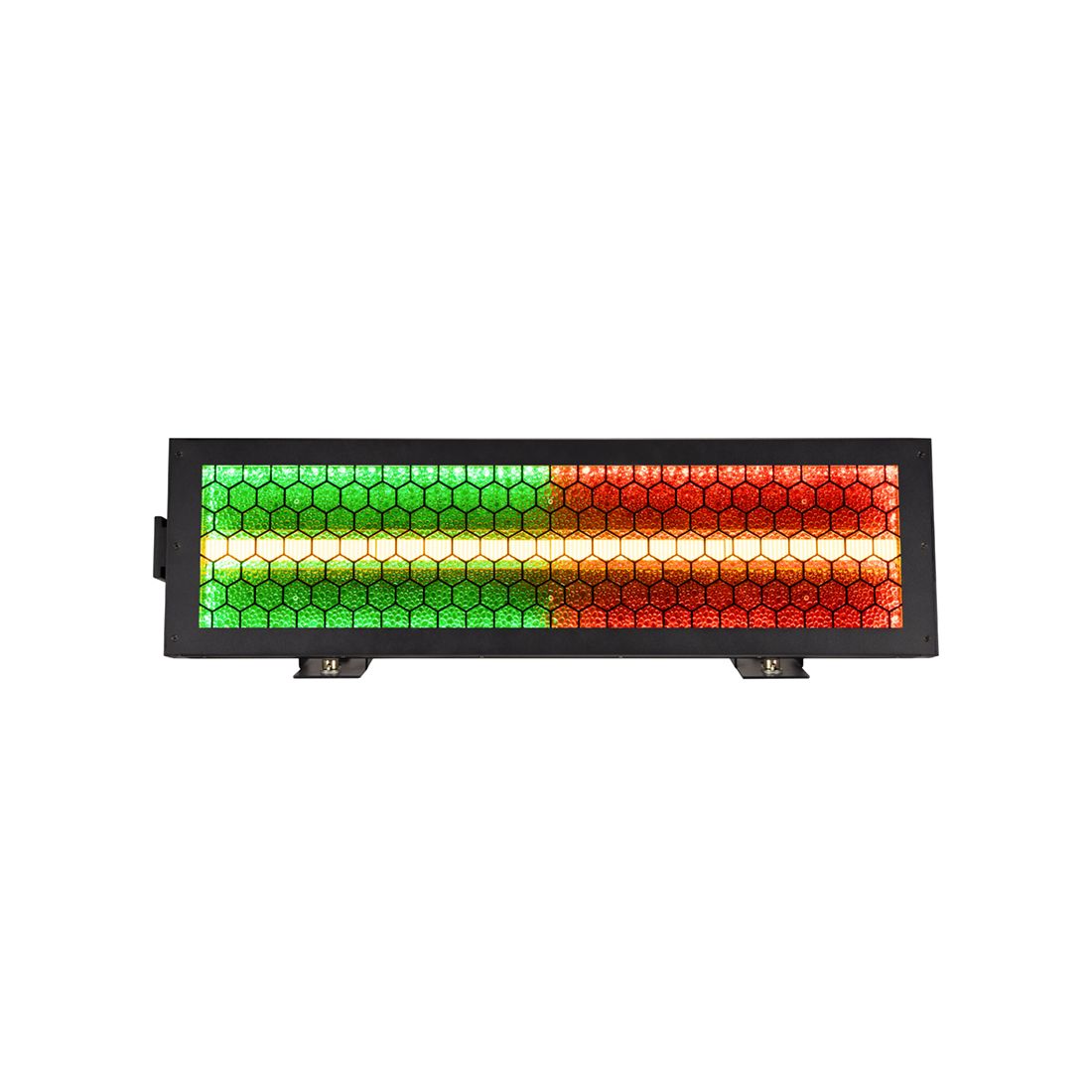

Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2600K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-color eye candy effects and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

Specification

  • • Primary Light Source: 4 pcs high-power 150W COB white LED
  • • CCT: 2000K
  • • Lumens: > 27,000
  • • CRI: 70
  • • Field Angle: 160°

  • • 120 pcs SMD 5050 RGBL LEDs (0.8W each)
  • • Configured into 20 pixel groups (6 LEDs per group)

  • • Powerful strobe, 0.5 to 33Hz
  • • Unique retro RGBL background effect
  • • Silent operation with low noise

  • • Aria X2 Management System
  • • Flicker-free

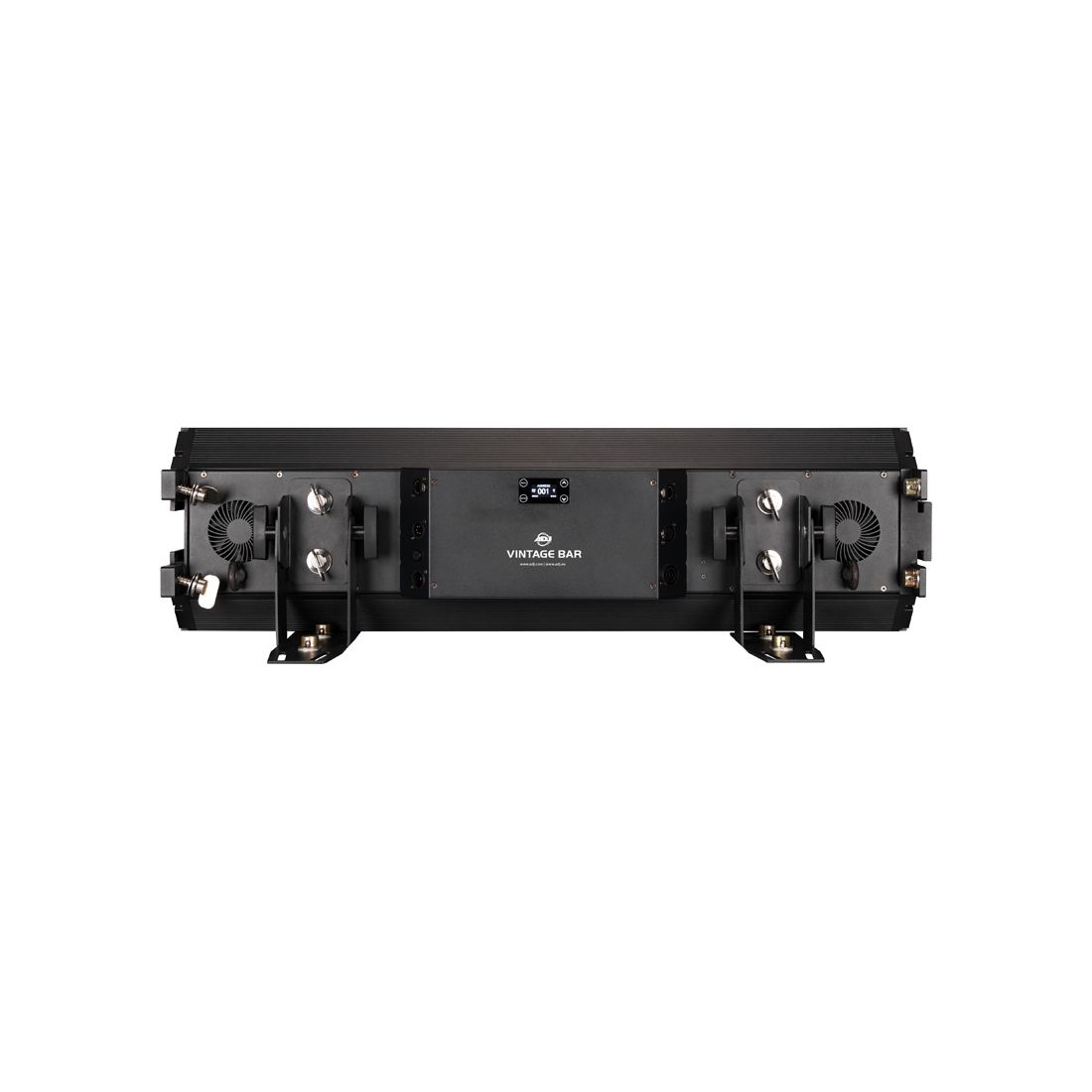

  • • OLED display with a 4-button touch menu

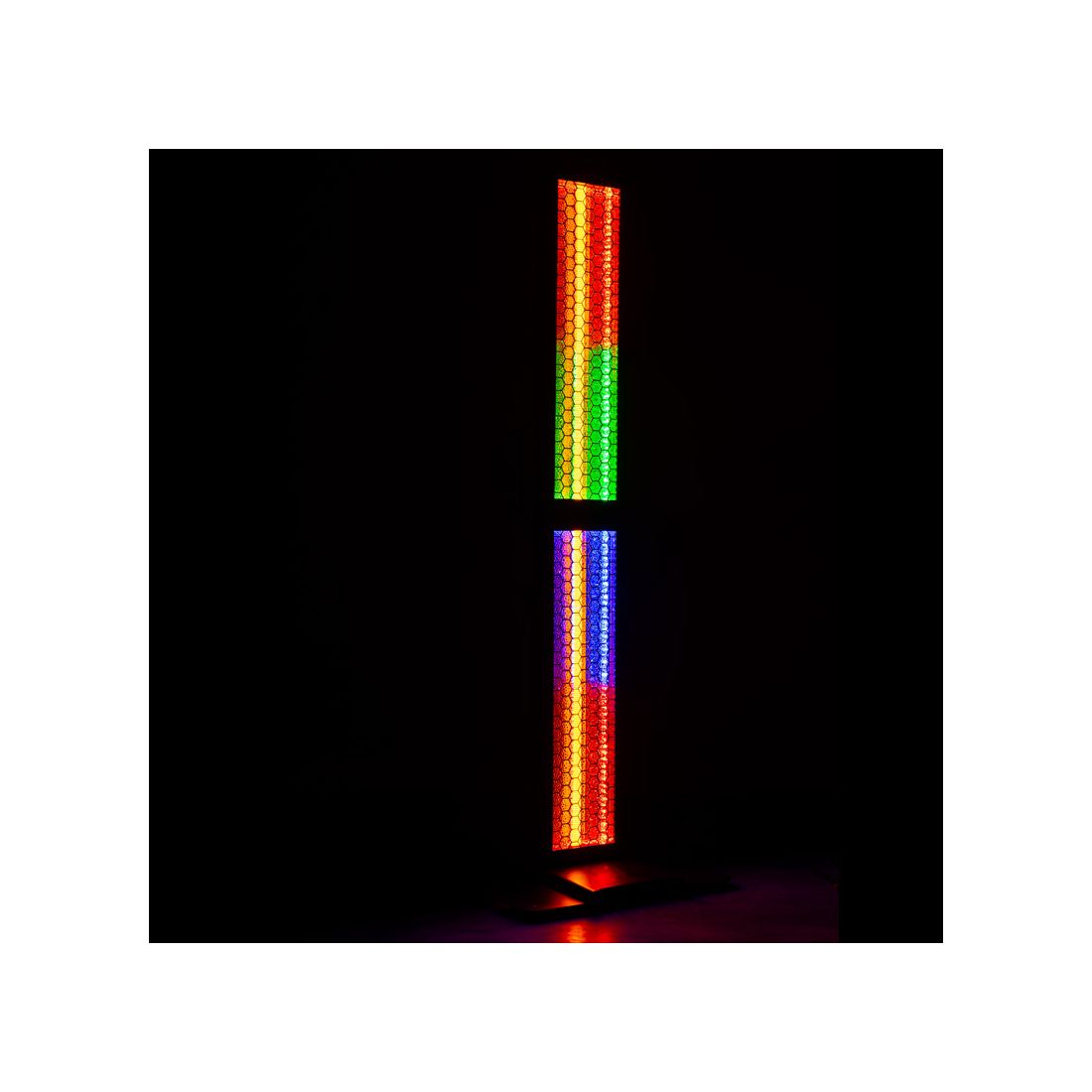

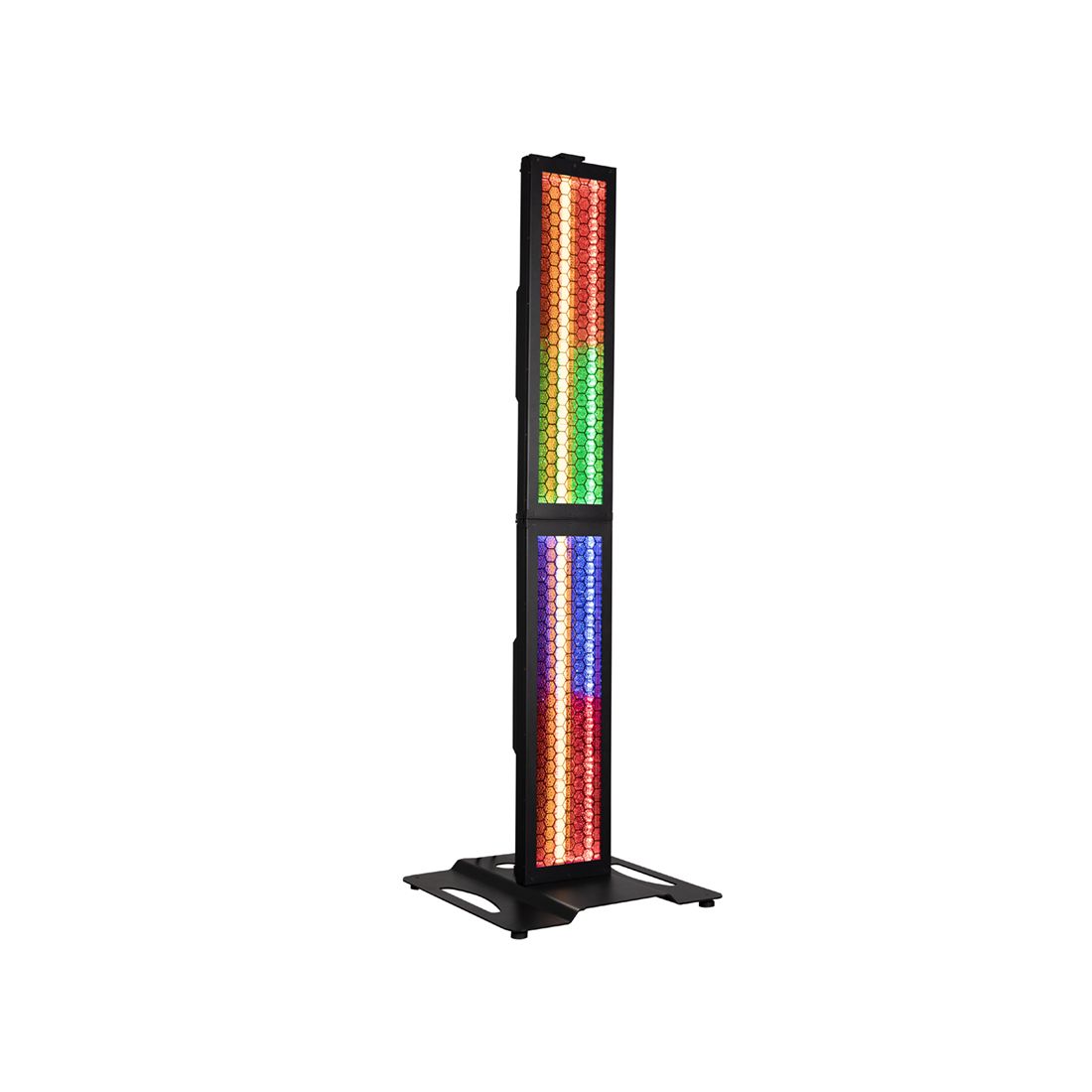

  • • Capable of interlocking multiple units together
  • • Dimmer: 0-100% linear dimming system

  • • Primary/Secondary synchronization
  • • Stand-alone mode
  • • DMX512 control mode
  • • 10 DMX Channel Modes (5/6/8/14/17/18/88/92/94/101 channels)
  • • DMX, RDM, and Art-NET protocol support

  • • IP20 indoor 5-pin DMX Input and Thru
  • • IP20 indoor RJ45 Ethernet
  • • IP65 outdoor power locking Input and Thru

  • • Dimensions (LxWxH): 908x292x257mm
  • • Weight: 19 kg

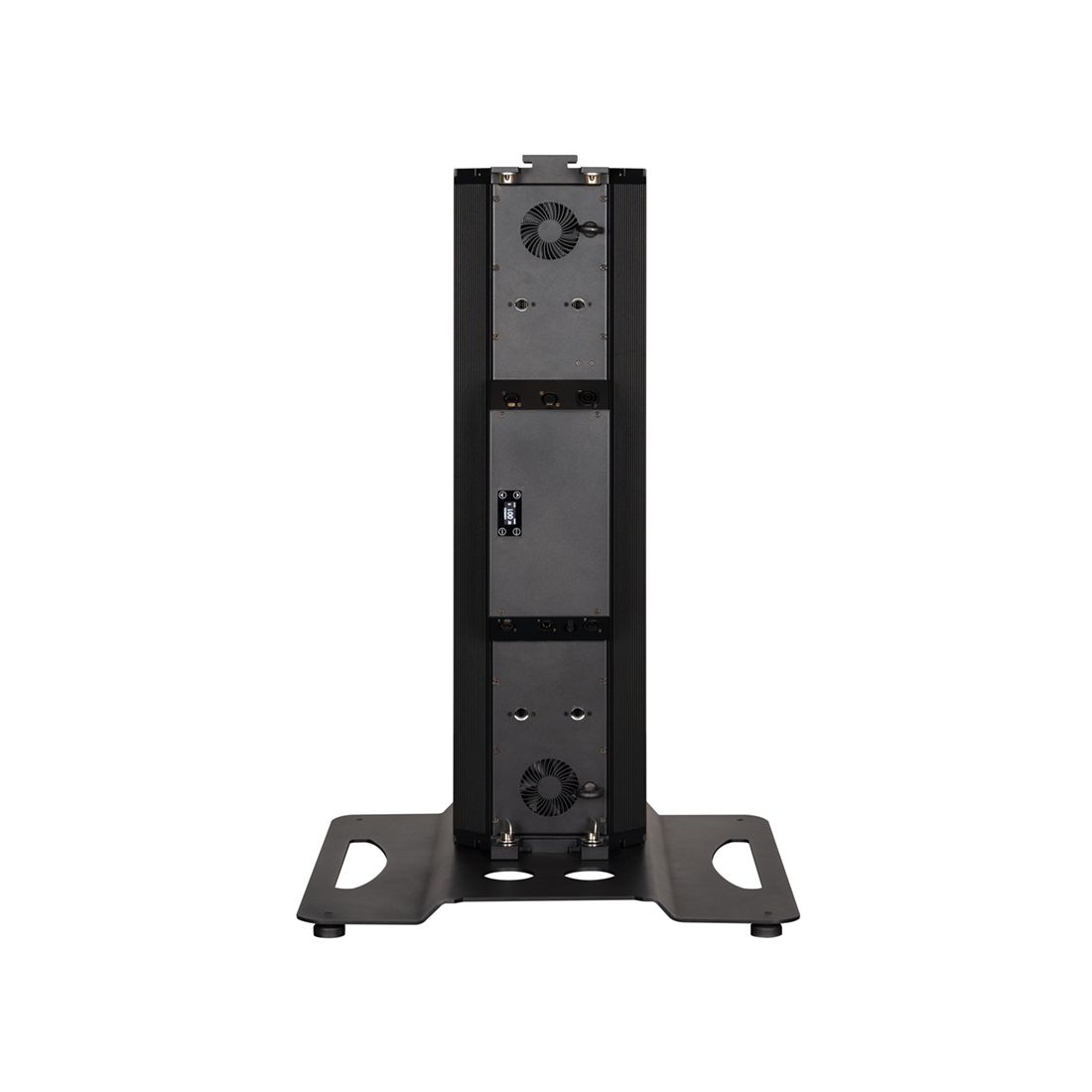

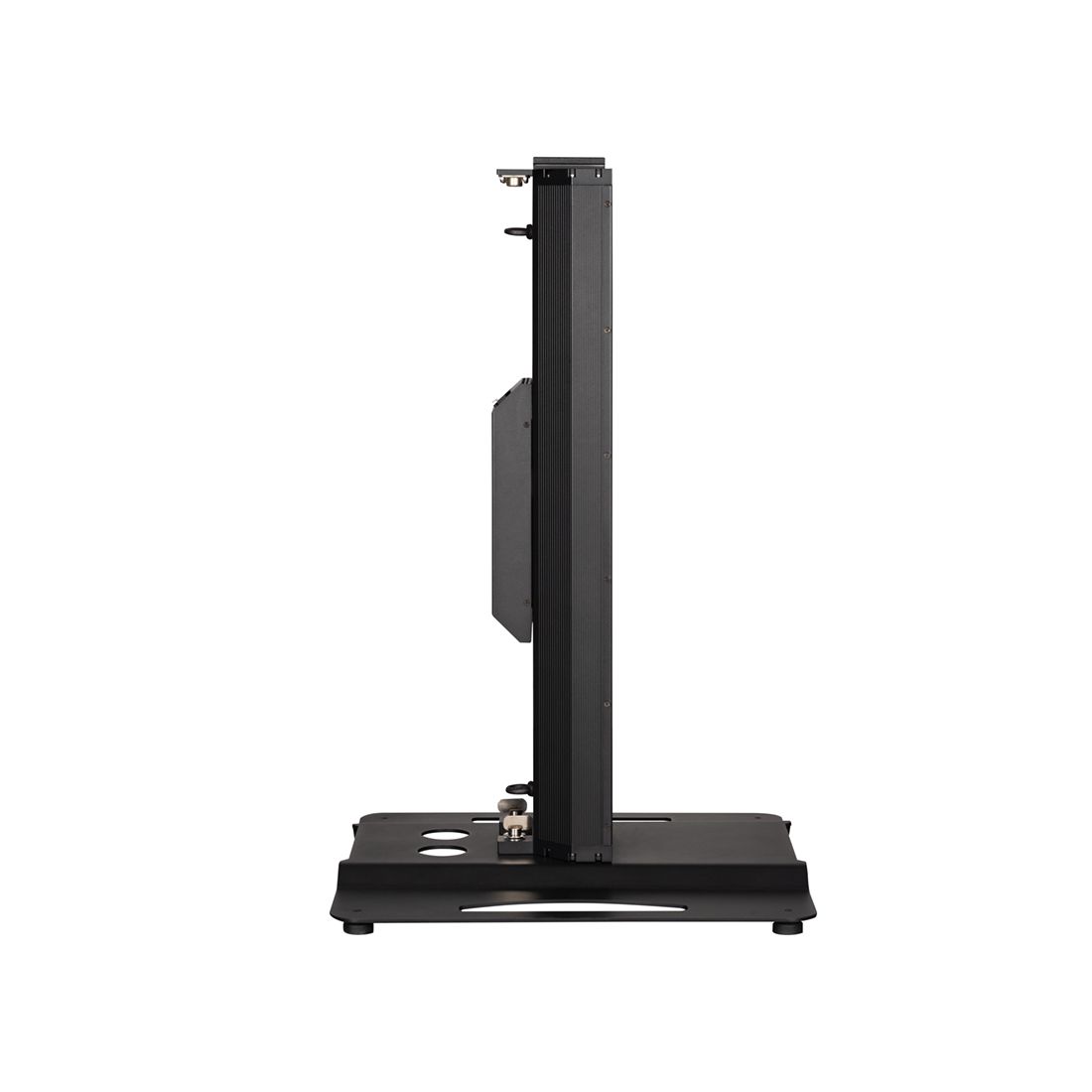

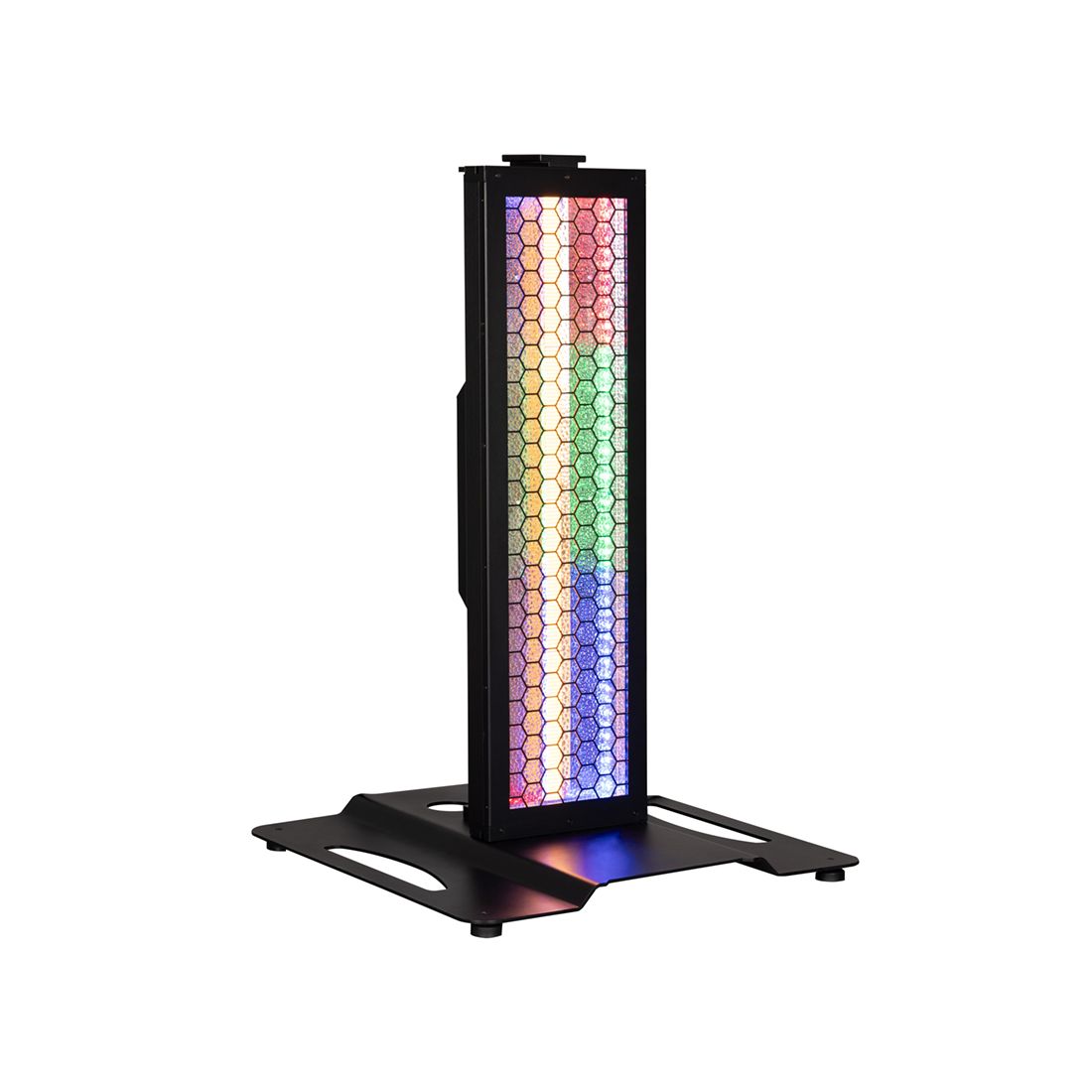

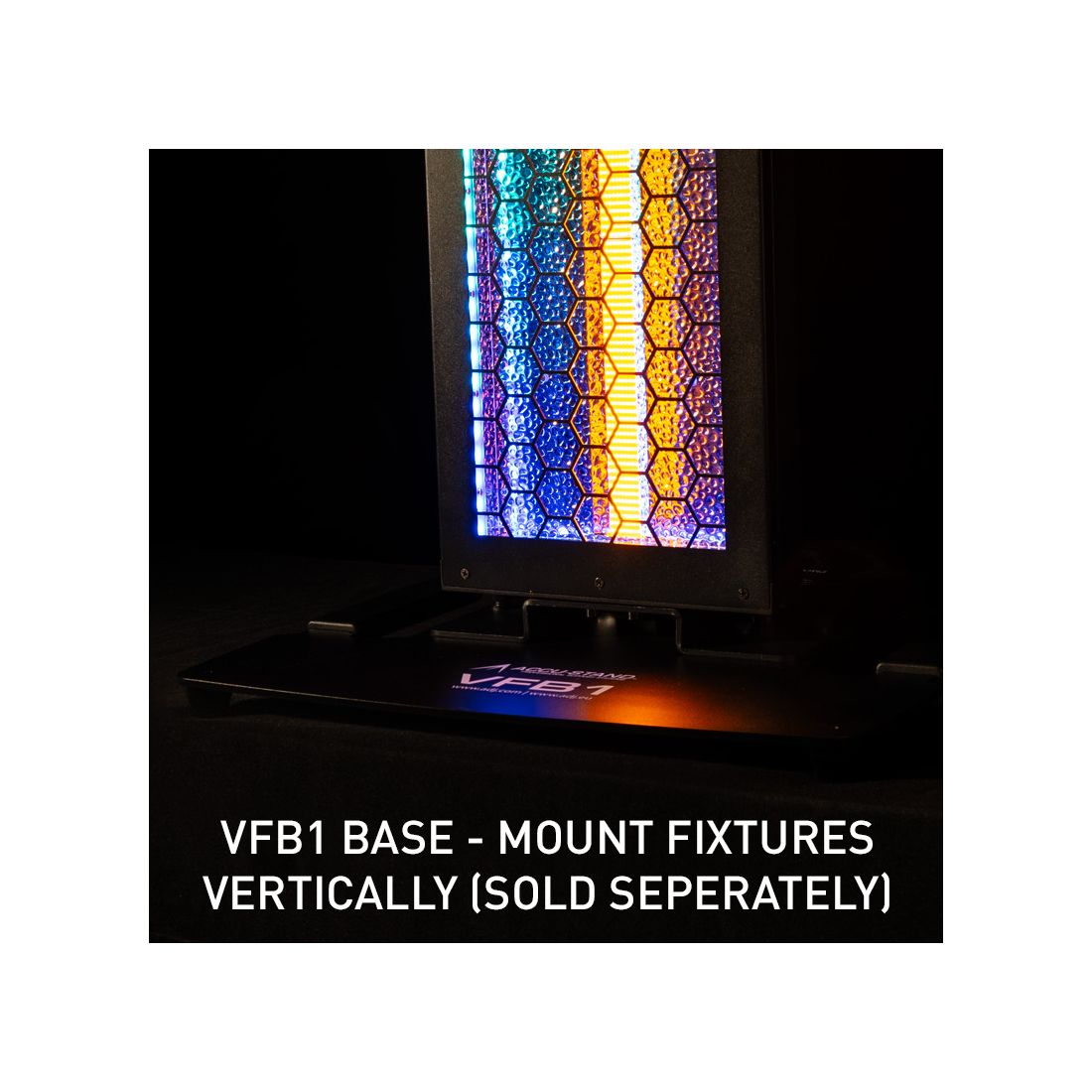

  • • VFB (Floor Base for Vertical Stand)
  • • VFB-VBA (Adapter to Adapt Vintage Bar to VFB Floor Base. One Adapter is Required per Floor Base)

  • • Protection Rating: IP20 (for indoor use only)
Specifications subject to change without notice
