VBAR PAK

Brand
The ADJ VBar Pak is a compact, low profile LED Linear fixture kit with two VBAR LED Bars, a soft case gig bag and an IR wireless remote. The LED Bars feature five 4-Watt, 4-IN1 LED (red, green, blue and amber), adjustable hanging brackets, rubber feet for uplighting and a 4-button DMX display. The VBar is designed for linear uplighting and stage lighting, and will bring color and excitement to any party.  The VBars offer smooth RGB Color Mixing, have a 40-degree beam angle, 15...
Read More

Product Information

SKU: 1226100281
GTIN: 819730013156
HS-Code: 9405423190

The ADJ VBar Pak is a compact, low profile LED Linear fixture kit with two VBAR LED Bars, a soft case gig bag and an IR wireless remote. The LED Bars feature five 4-Watt, 4-IN1 LED (red, green, blue and amber), adjustable hanging brackets, rubber feet for uplighting and a 4-button DMX display. The VBar is designed for linear uplighting and stage lighting, and will bring color and excitement to any party.

 The VBars offer smooth RGB Color Mixing, have a 40-degree beam angle, 15 built-in color macros, 5 operational modes (including DMX, Sound Active and Primary/Secondary), and has 8 DMX Channel modes for a variety of programming options. Users can also use the included ADJ LED RC2 IR wireless remote to change colors and functions of the LED Bars.

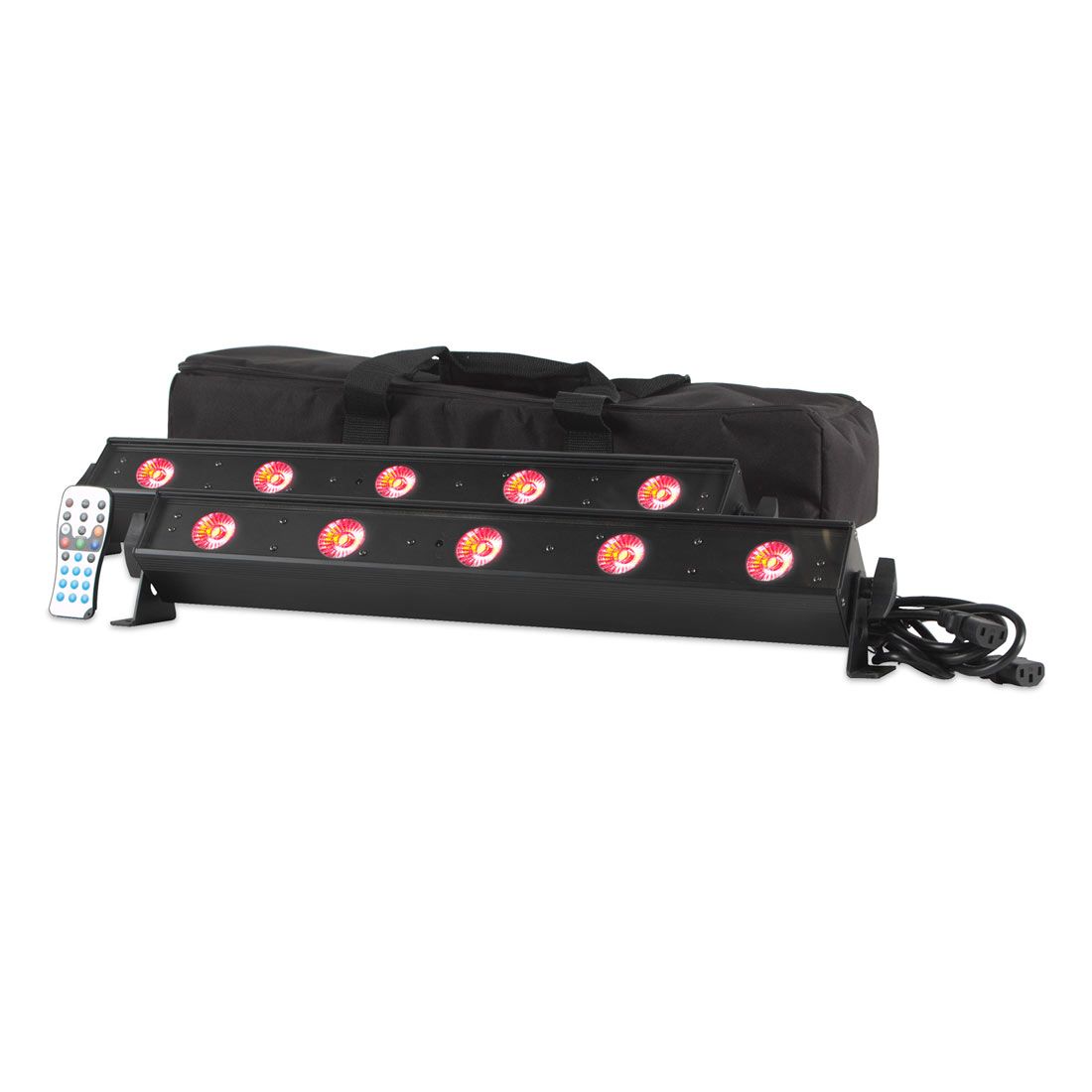

Pack Includes:

2x VBAR LED Linear Fixtures
1x ADJ LED RC2 IR
1x Soft Case Gig Bag
Wireless Remote

Gallery

Specification

    Specifications:

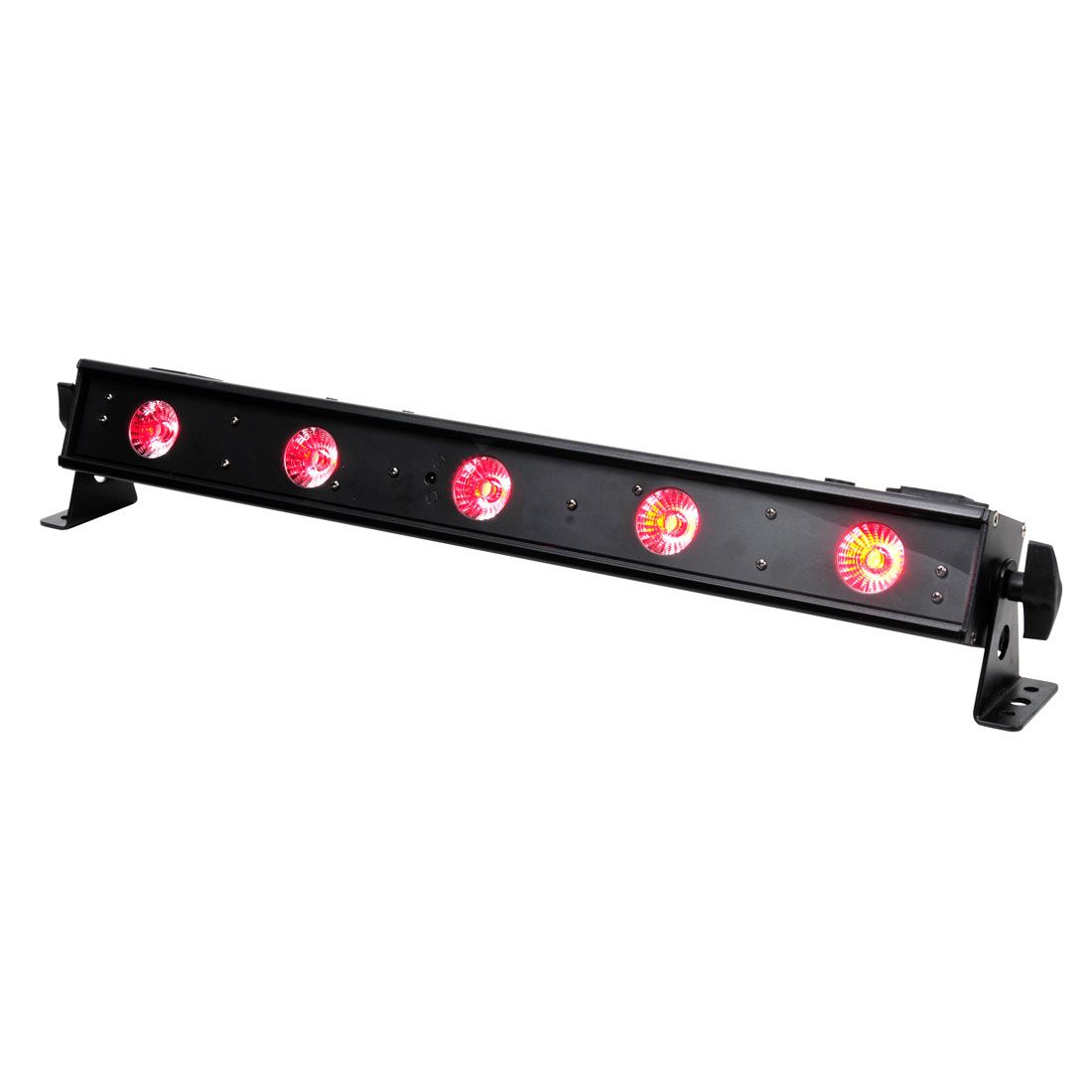

    - Ultra bright, compact black Linear fixture with 5x 4-Watt, 4-IN-1 QUAD LEDs (RGBA) – casts no RGB shadows
    - Smooth RGBA Color Mixing (fast or slow color change operation)
    - Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
    - 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channels
    - 5 Operational modes: RGBA Dimmer mode, sound active mode, static color mode, auto run mode (3 auto run modes), and DMX Control
    - Digital DMX Display with 4-button menu for easy navigation
    - Stand Alone or Primary/Secondary Configuration
    - Beam Angle: 40 degrees
    - 15 built-in Color Macros
    - DMX-512 protocol
    - Color strobe effect
    - Linkable via 3-pin XLR cable
    - Electronic Dimming: 0-100%
    - Flicker Free
    - Adjustable mounting brackets; mount on a wall or set on the ground
    - Long Life LEDs (50,000 hrs.)
    - Power Draw: 21W Max
    - IEC AC input and out put on the side of the fixture to daisy chain the power cords (link up to 30 fixtures)

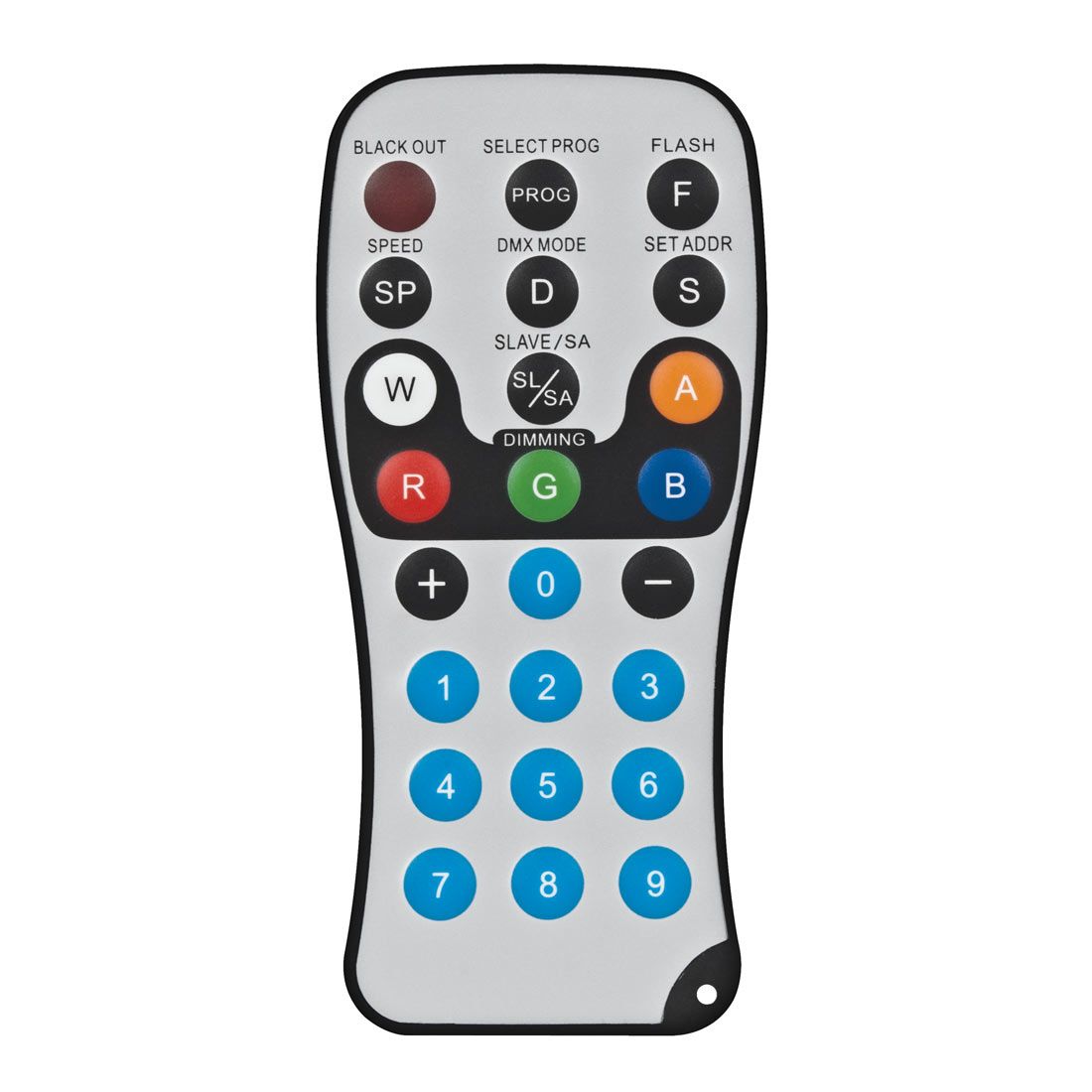

    - Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (included in the pak)
    - Multi-voltage operation: AC 100V-240V 50/60Hz
    - Dimensions (LxWxH):  560 x 63 x 90mm
    - Weight: 1.7 kg.
    - VBAR Gig Bag inner dimensions (LxWxH): 560 x 165 x 90mm
    - System Weight: 4 kg.

    Specifications subject to change without notice.
