V-3001 Archive
Product Information
SKU: 1141000005
GTIN: 640282045803
HS-Code: 85184089 90
Gallery
Specification
- Output Power: - 2 ohms, 1 khz 1% THD 1020W RMS per channel - 4 ohms, 1 khz 1% THD 670W RMS per channel - 8 ohms, 1 khz 1% THD 410W RMS per channel - 4 ohms, 1 khz 1% THD 2050W RMS (Bridged Mode, mono) - 8 ohms, 1 khz 1% THD 1360W RMS (Bridged Mode, mono) Total Harmonic Distortion (THD): - Less than 0.1% (20Hz-20kHz, @ 8 Ohms)

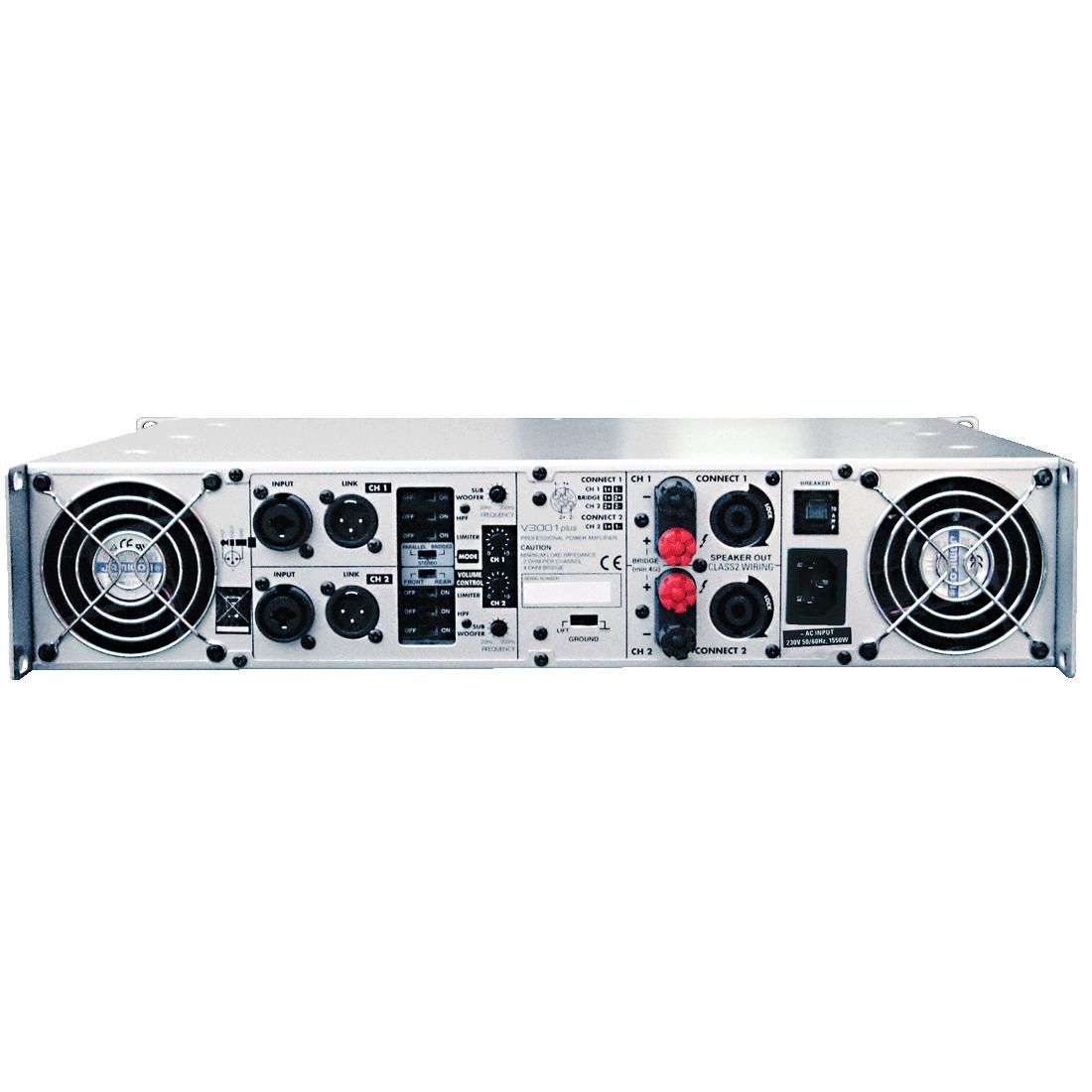

- Input Sensitivity & Impedance: - 1.0v rms (0 dBv) (@ 4 Ohms) Input & Output: Input: XLR 3pin + Jack 6,3mm Output: Speaker + binding post
- Dimensions & Weight: - Height : 88cm - Width:48.3cm - Depth: 40.5cm - Weight: 18,4 kg
- Frequency Response: - ±.5dB, 1W RMS 8 ohms (10Hz - 40 kHz) - ±3dB, 1W RMS 8 ohms (20Hz - 20 kHz)
- Hum & Noise: - 100 dB, unweighted (@ 8 Ohms)
- Signal to Noise Ratio: - 60 dB , unweighted (@ 4 ohms full power) A Weighted
- Slew Rate: - 25v/usec
- Damping Factor: - 400 (@ 8 Ohms)
- Protection Circuit: - DC output protection, Overload protection - Short circuit protection, On & Off protection
- Special Features: - Limiter - Sub Woofer Crossover - Contractor Smart Feature (Switch on rear panel to disable front volume controls)
- Power Consumption: - 5A @ 230V AC (@8 Ohms)
- Turn-On Thump Protection: - Yes
- Cooling System: - Dual 2 speed fans & heatsink
