Ultra Hex Par3 Archive
![Brand](/media/brand/adj.png)
![](https://www.adj.eu/media/catalog/product/1/2/1226100274_1.jpg)
Product Information

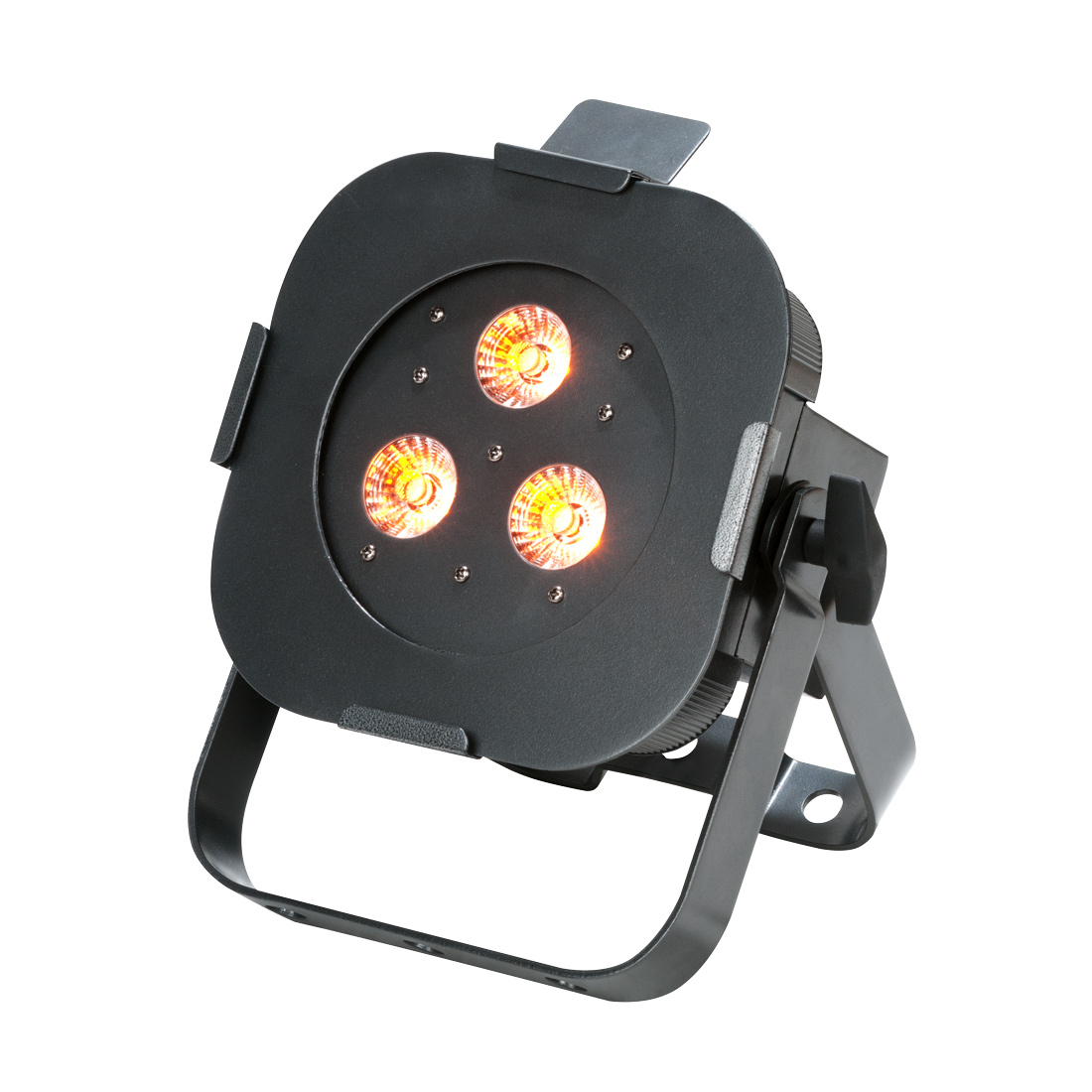

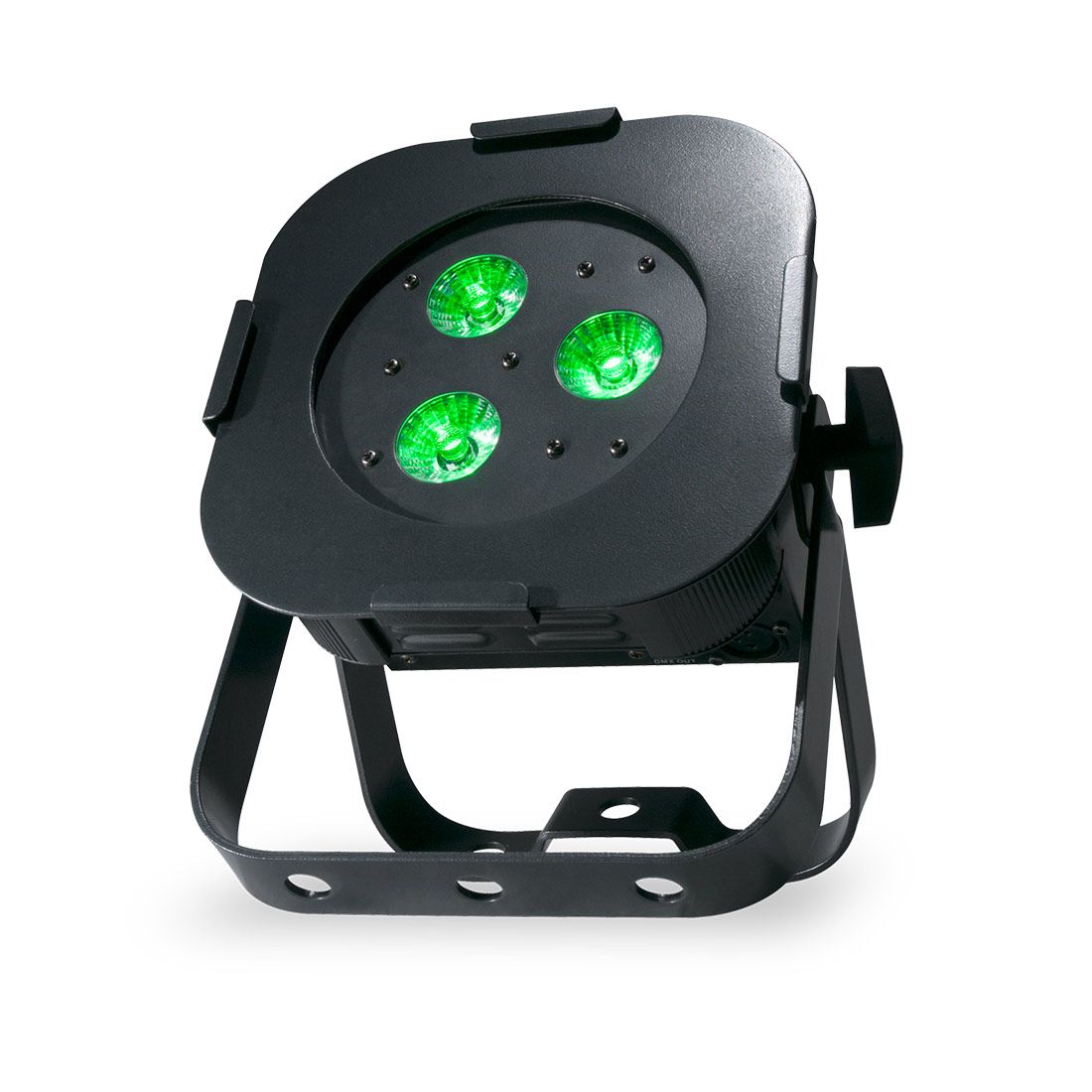

The ADJ Ultra HEX Par 3 is a versatile LED Par fixture with 3x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.
Ultra HEX Par 3 professional features include: 5 DMX modes (6, 7, 8, 11 & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 20 units together via the fixtures built-in IEC In/Out power connectors.

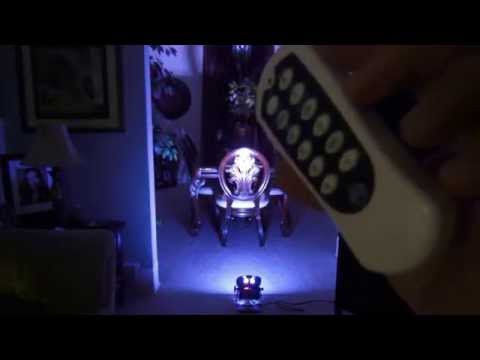

The Ultra HEX Par 3 is compatible with the ADJ RFC, easy-to-use, wireless infrared remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
Gallery
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100274_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100274_a_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100274_fx_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100274_ph_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/H/E/HEX_Logo_3.jpg)
Specification
Specifications:

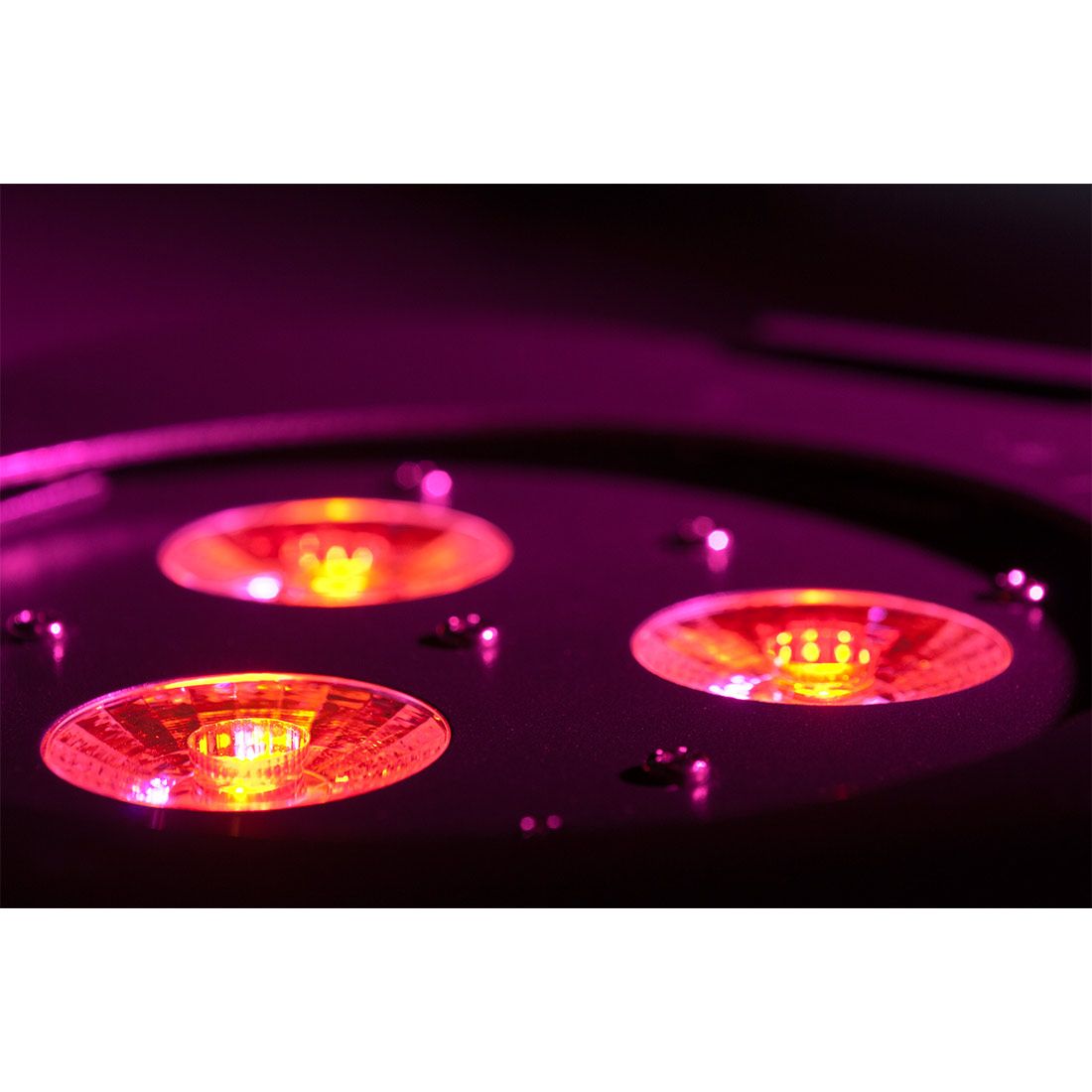

- Ultra bright, flat Par 38 wash fixture with 3x Red, Green, Blue, Amber, White & UV LED pixels
- Smooth RGBAW + UV color mixing
- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
- 5 DMX Modes: 6, 7, 8, 11 & 12 channel
- 5 Operational modes: Static Color, Dimmer, Auto Run, Sound Active and DMX Controlled
- Flicker Free operation (No flickering on camera)
- 63 built-in Color Macros
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%

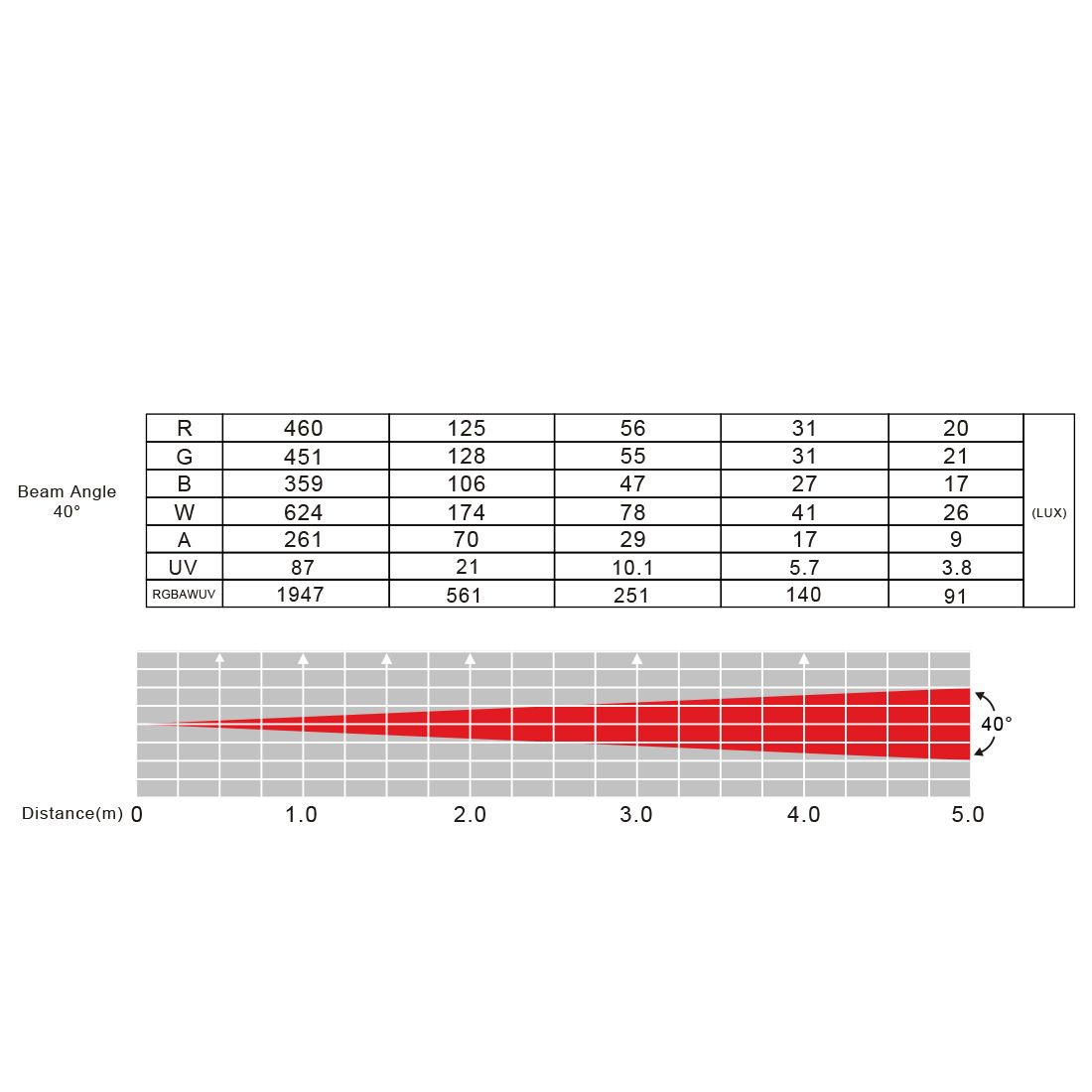

- Beam angle: 40-degree

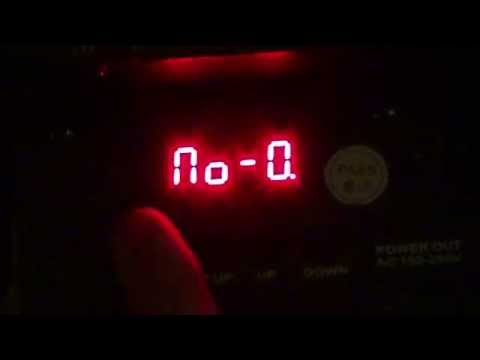

- 4-button, DMX digital display on rear panel
- Compatible with ADJ RFC wireless remote control (sold separately ID 1223200026)
- Dual yoke allows fixture to be hung or set on the ground
- Data linkable via 3-pin XLR cables
- Power linkable via IEC power cables. (20 Ultra Hex Par3’s Max.)
- Includes gel frame for optional diffusion filters
- Light Source: 3x 10-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
- Power Draw: 26W total (All LED's @ Full On)
- Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
- Dimensions (LxWxH): 224 x 213 x 120mm
- Weight: 2.02 kg
Specifications subject to change without notice
