Ultra HEX Bar 6 Select Archive
Product Information

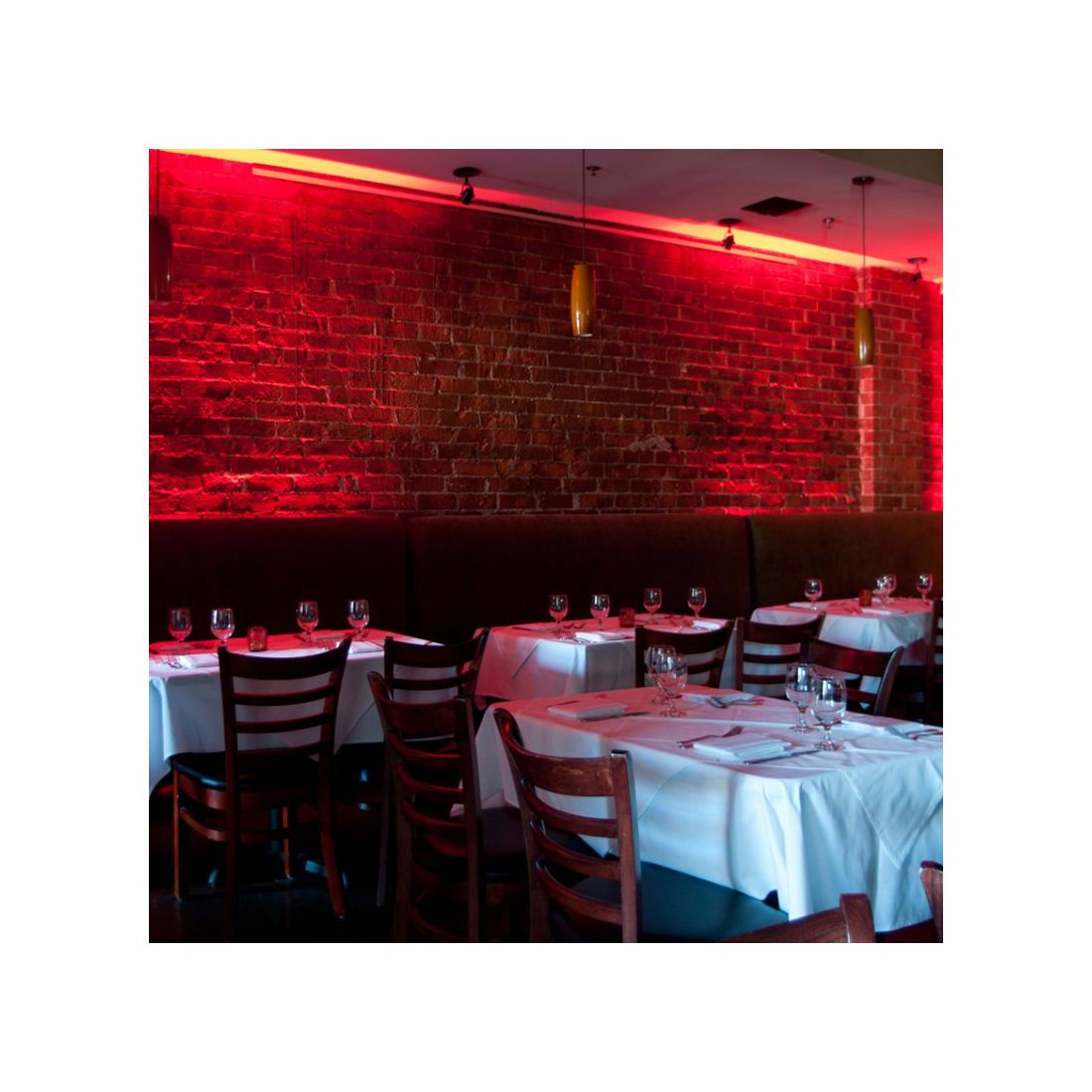

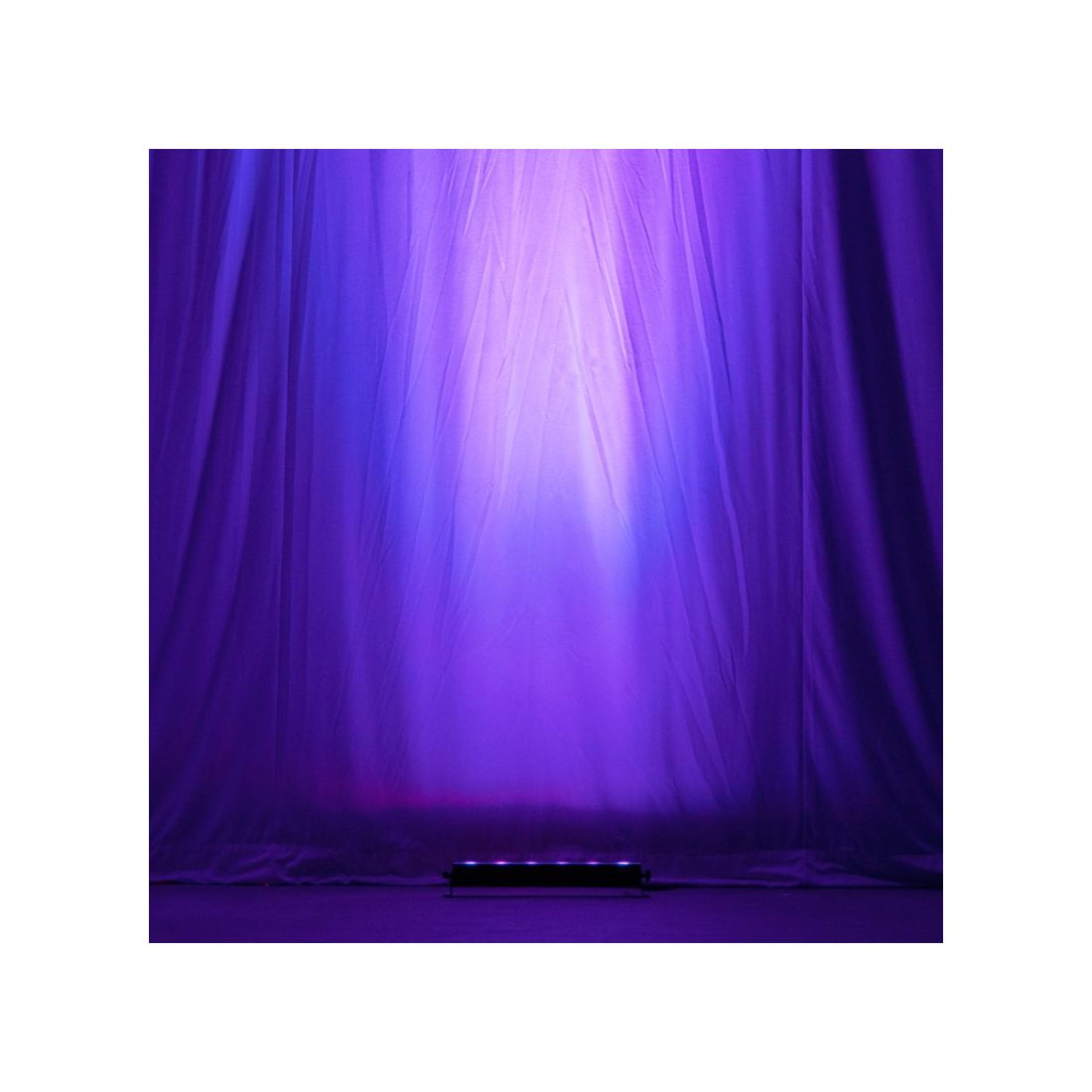

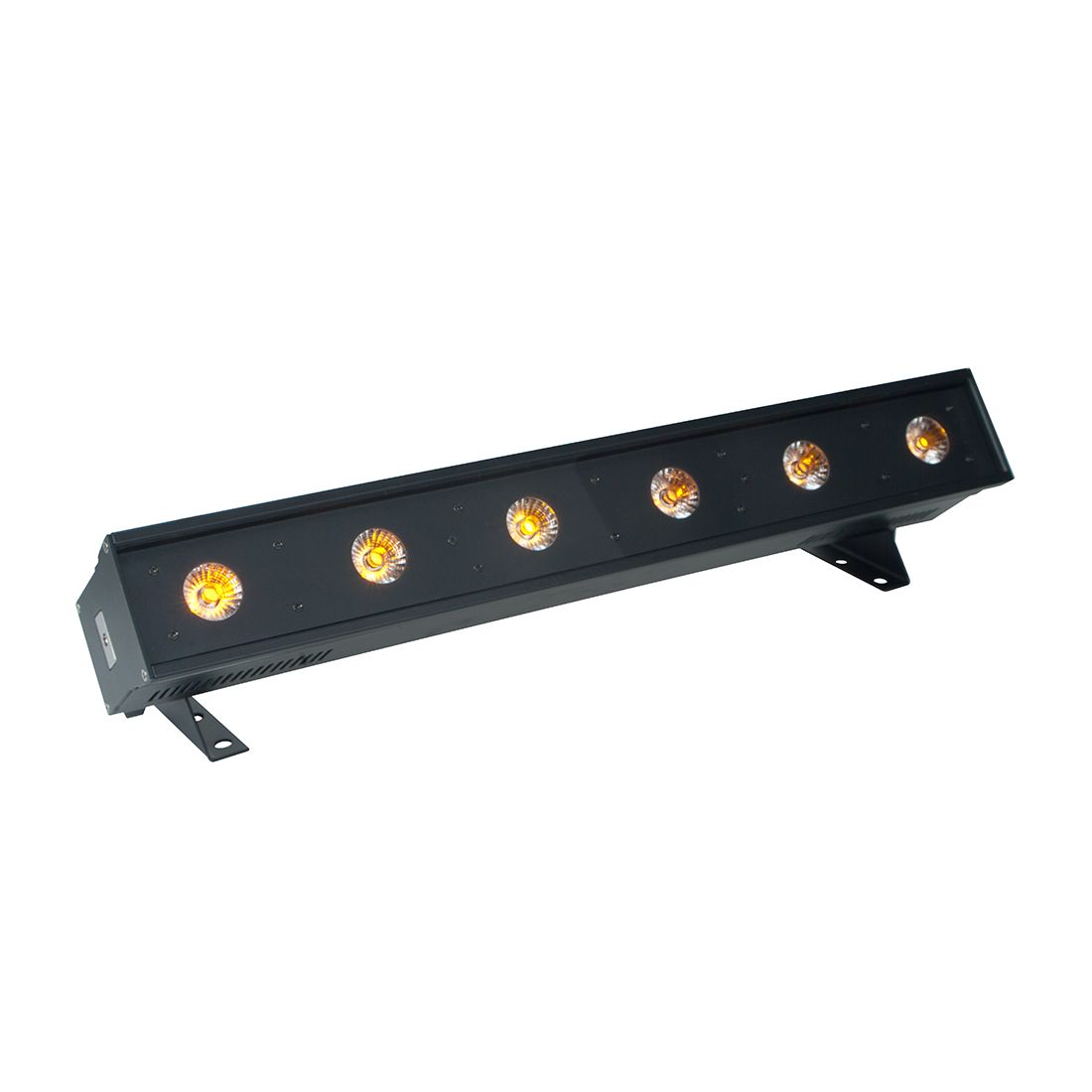

The ADJ Ultra HEX Bar 6 is a versatile LED Linear fixture with 6x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.
Ultra HEX Bar 6 professional features include: 5 DMX modes (6, 7, 8, 12 & 18 channel), 3-zone RGBAW+UV control, 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain multiple units together via the fixtures built-in IEC In/Out power connectors.
Gallery
Specification
- • Source: 6 RGBAW+UV HEX-LEDs
- • Individual LED wattage : 10W
- • Average LED lifetime: approx. 50,000hrs
- • Flicker-free operation for film and television
- • Beam angle: 40 degree
- • 6 Operational modes: AutoRun Mode, Program Mode, Sound-Active mode, , Manual Mode, Static Color Mode and DMX-512 Mode
- • 5 DMX Channel modes: 6, 7, 8, 12 or 18 channels
- • 3-Zone RGBAW-UV control
- • 0%-100% electronic Dimming
- • 5 Dim Curves: Standard/Stage/TV/Architectural/Theatre
- • Strobe & pulse effects
- • LCD display with 4-button control
- • RGBAW=UV color mixing
- • 63 Color Presets
- • Black Metal Huusing
- • 2 adjustable hanging brackets allows fixture to be hung or set on the ground
- • Magnetic "Quick-Align" endcaps
- • Multi-voltage operation: 100-240V, 47/63Hz
- • Power Draw: 55W
- • Locking 3-pin DMX 3 In/Out
- • IEC In/Out connections
- • Dimensions (LxWxH): 585 x 110 x 165mm
- • Weight: 2,82 kgs.
