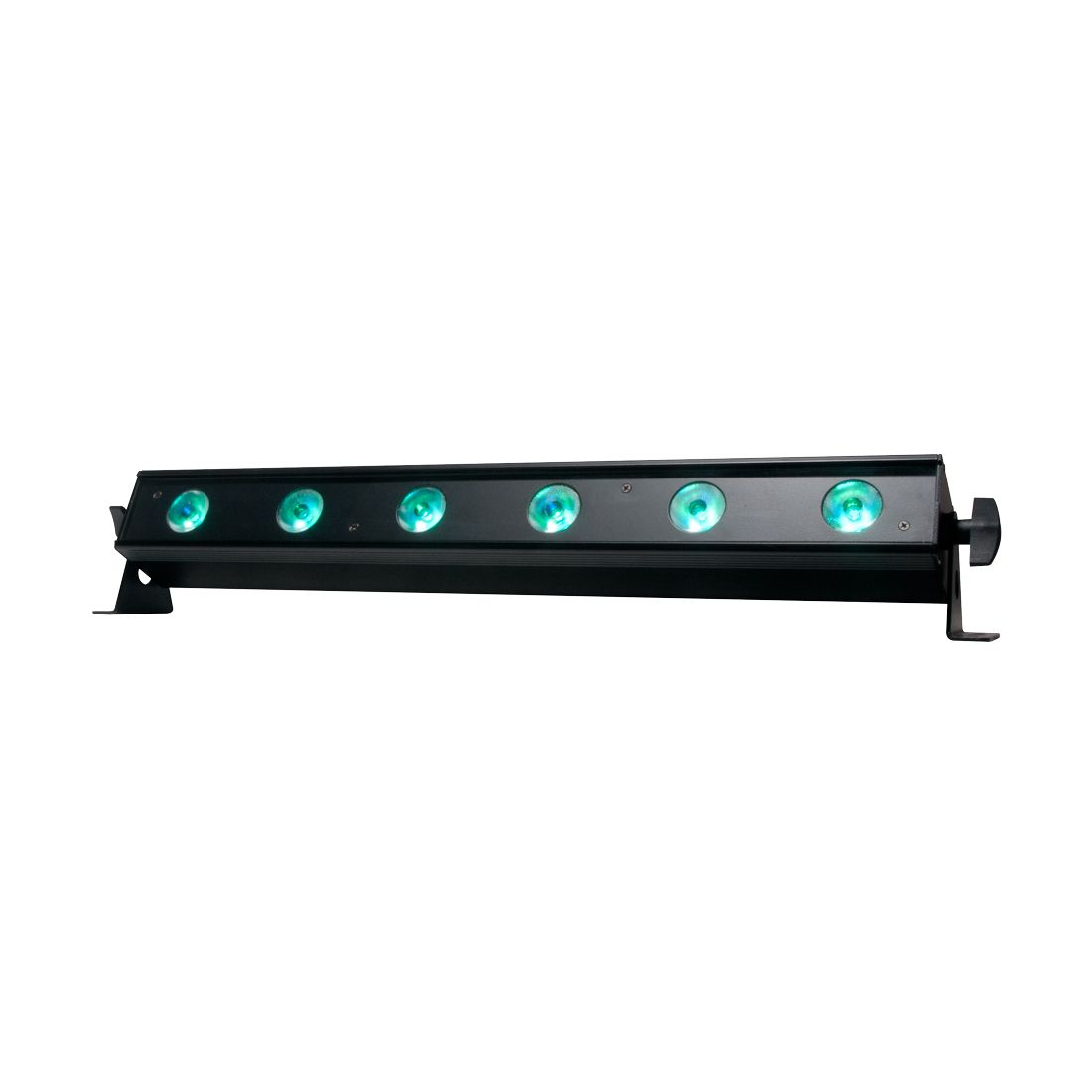

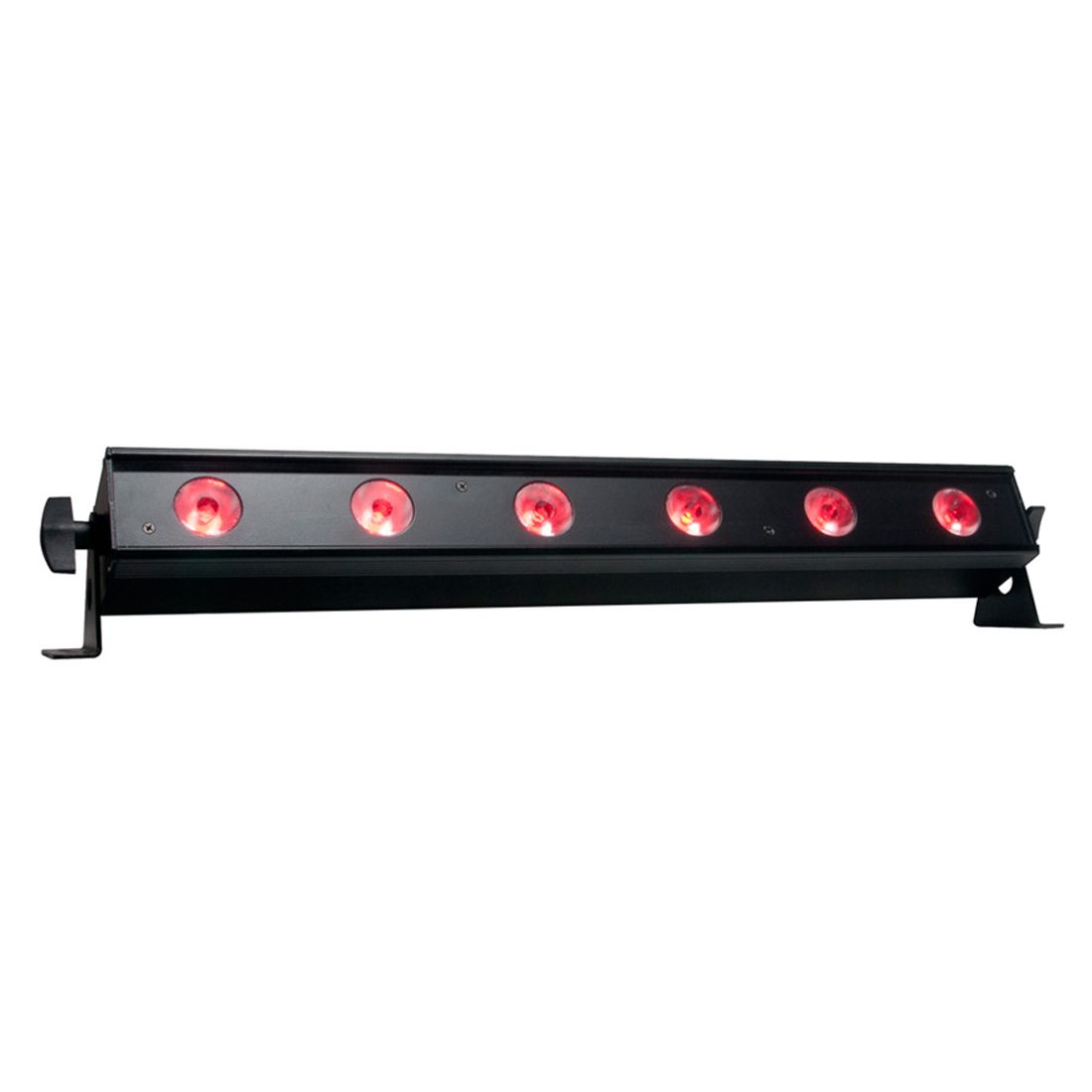

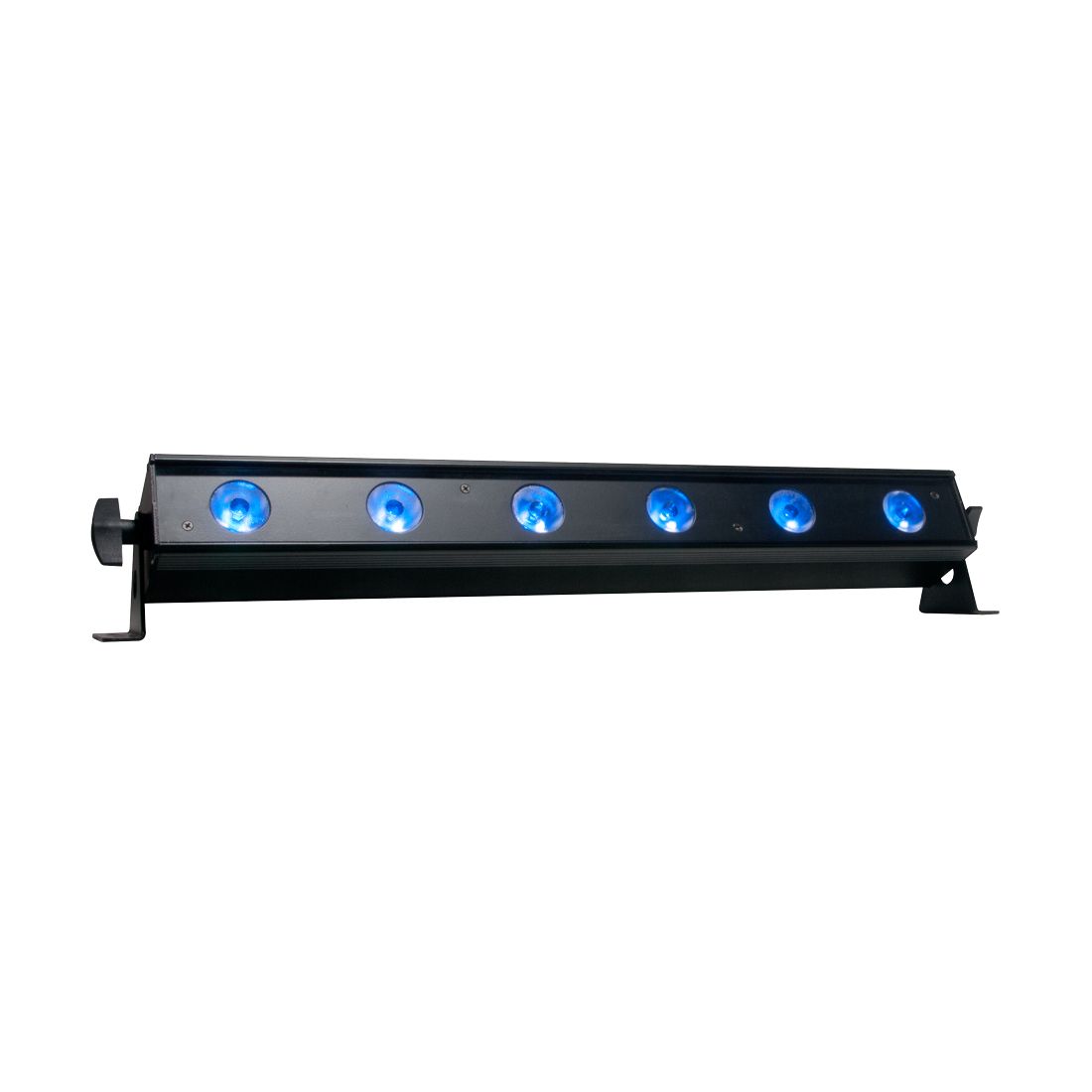

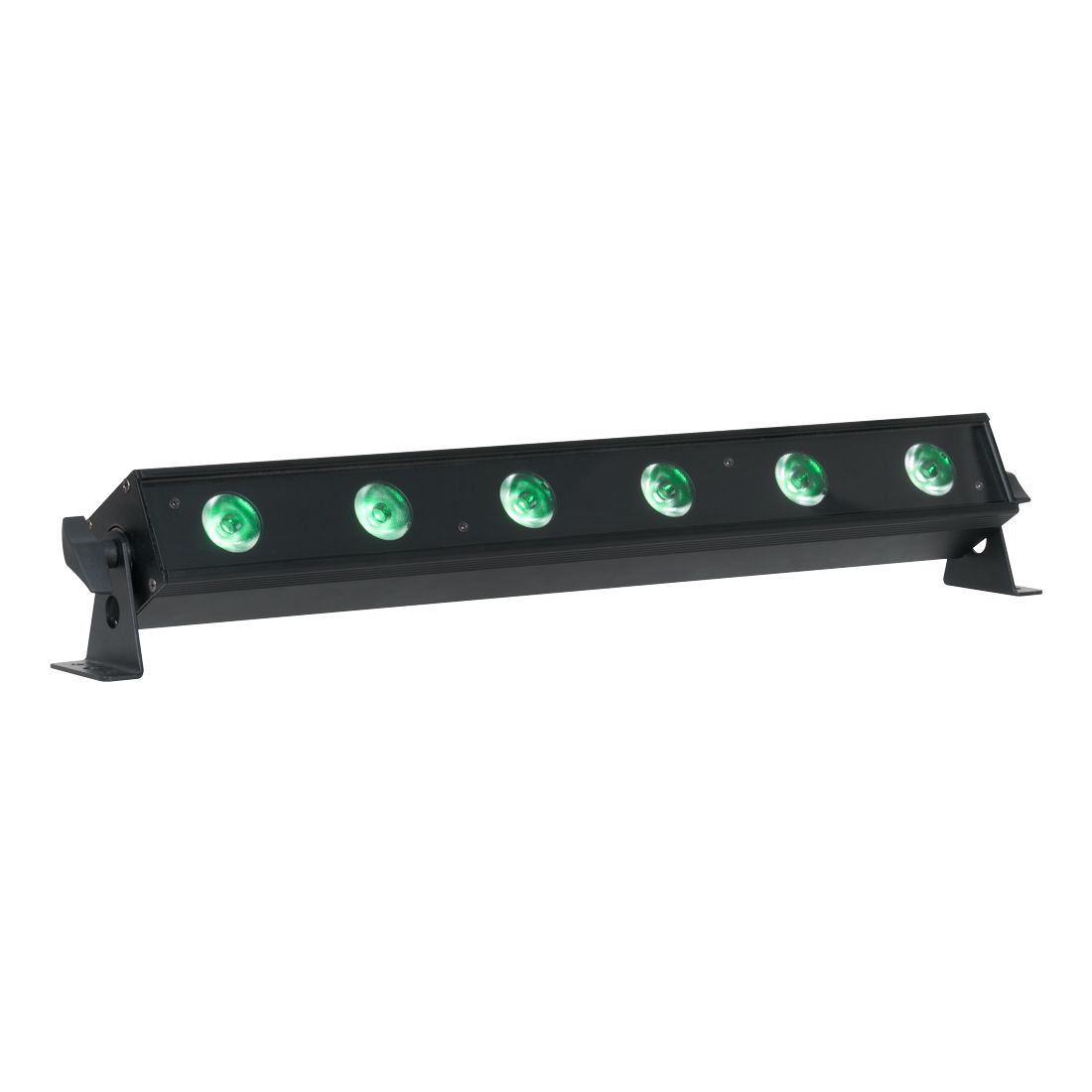

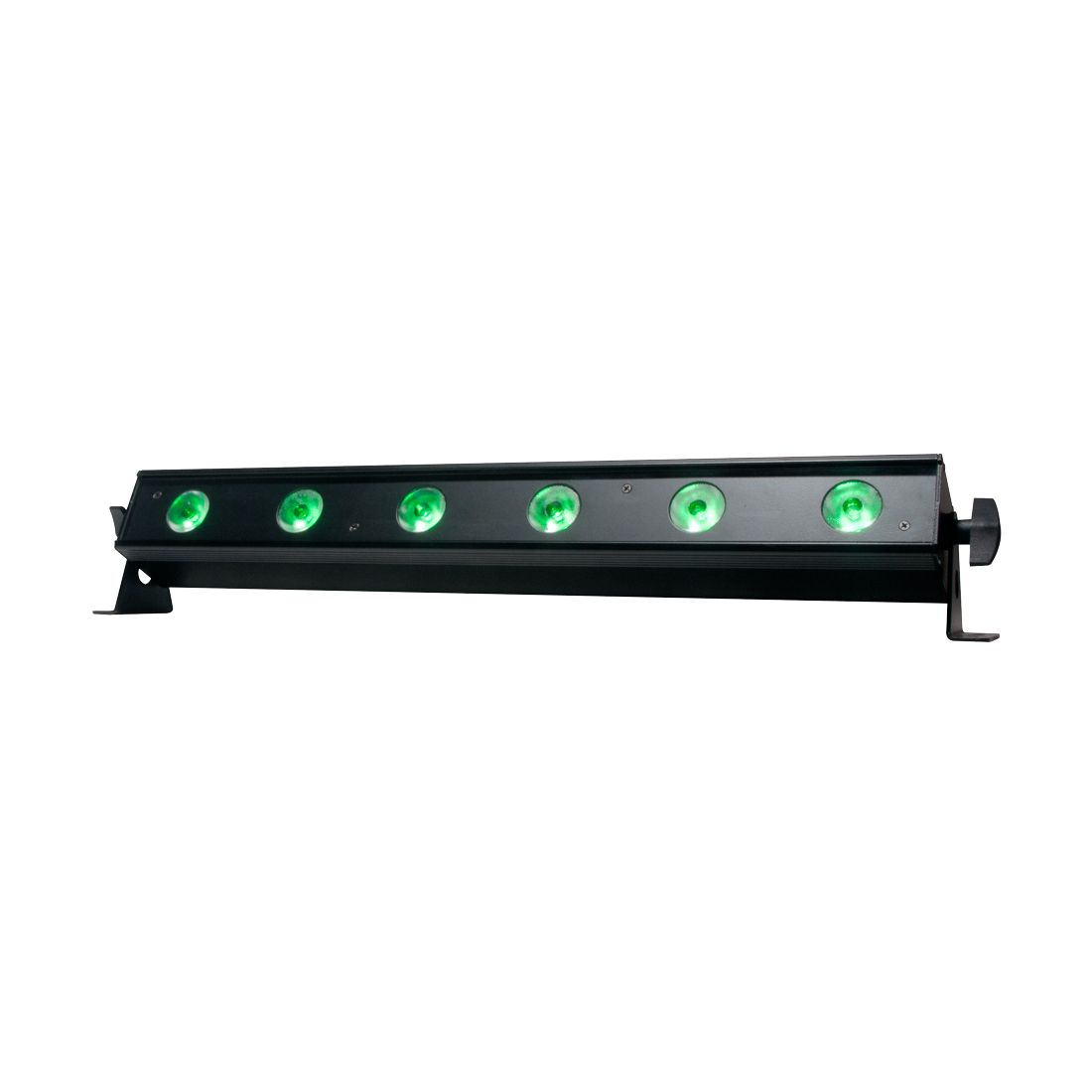

The ADJ Ultra Bar 6 is a 22.5-inch (0,5 meter) professional grade indoor linear fixture powered by six 3-Watt TRI (RGB: 3-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color. Ultra Bar 6 features built-in Color Macros (built-in colors), 7 DMX Channel Modes, 0-100%...

Product Information

SKU: 1226200039
GTIN: 819730010797
HS-Code: 9405409989

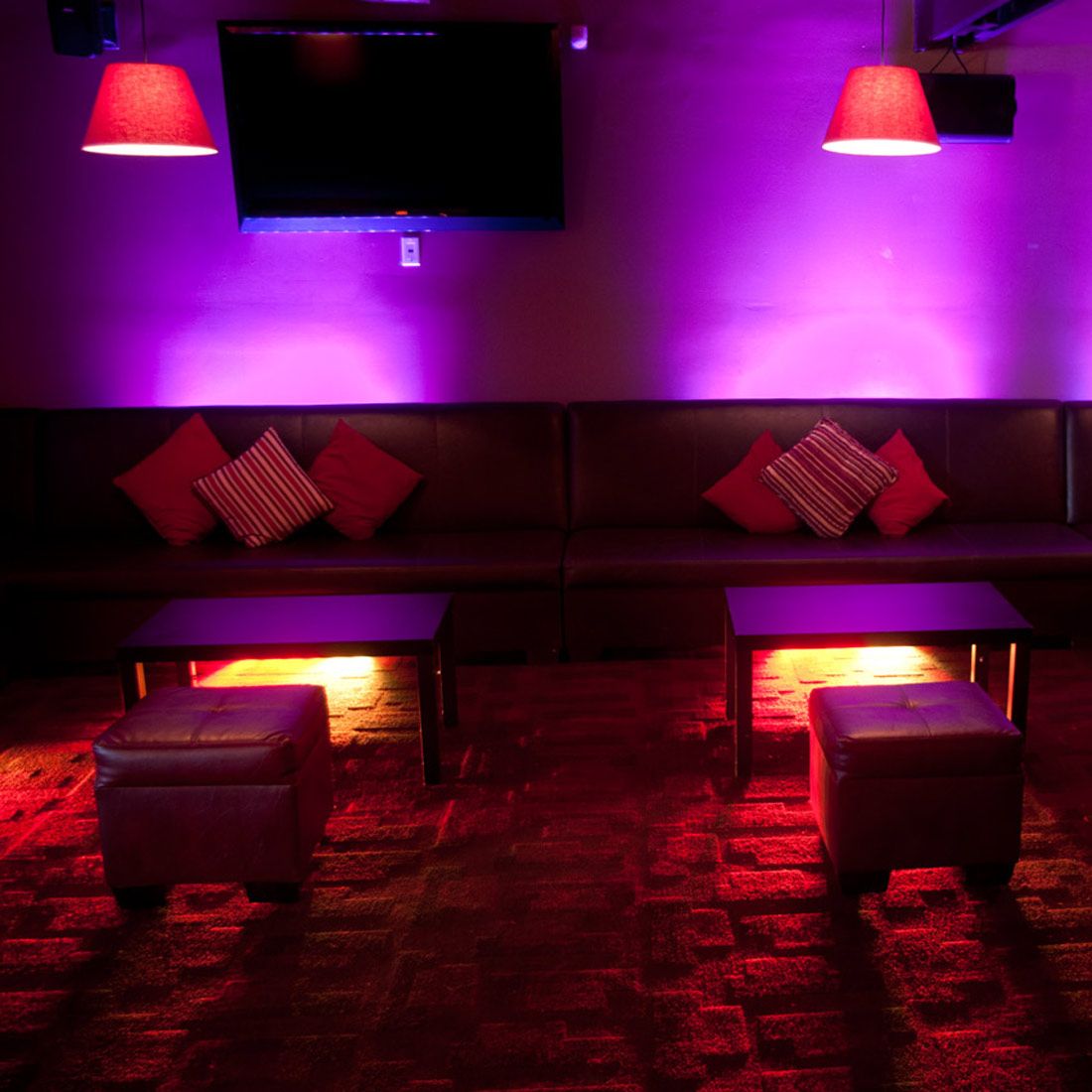

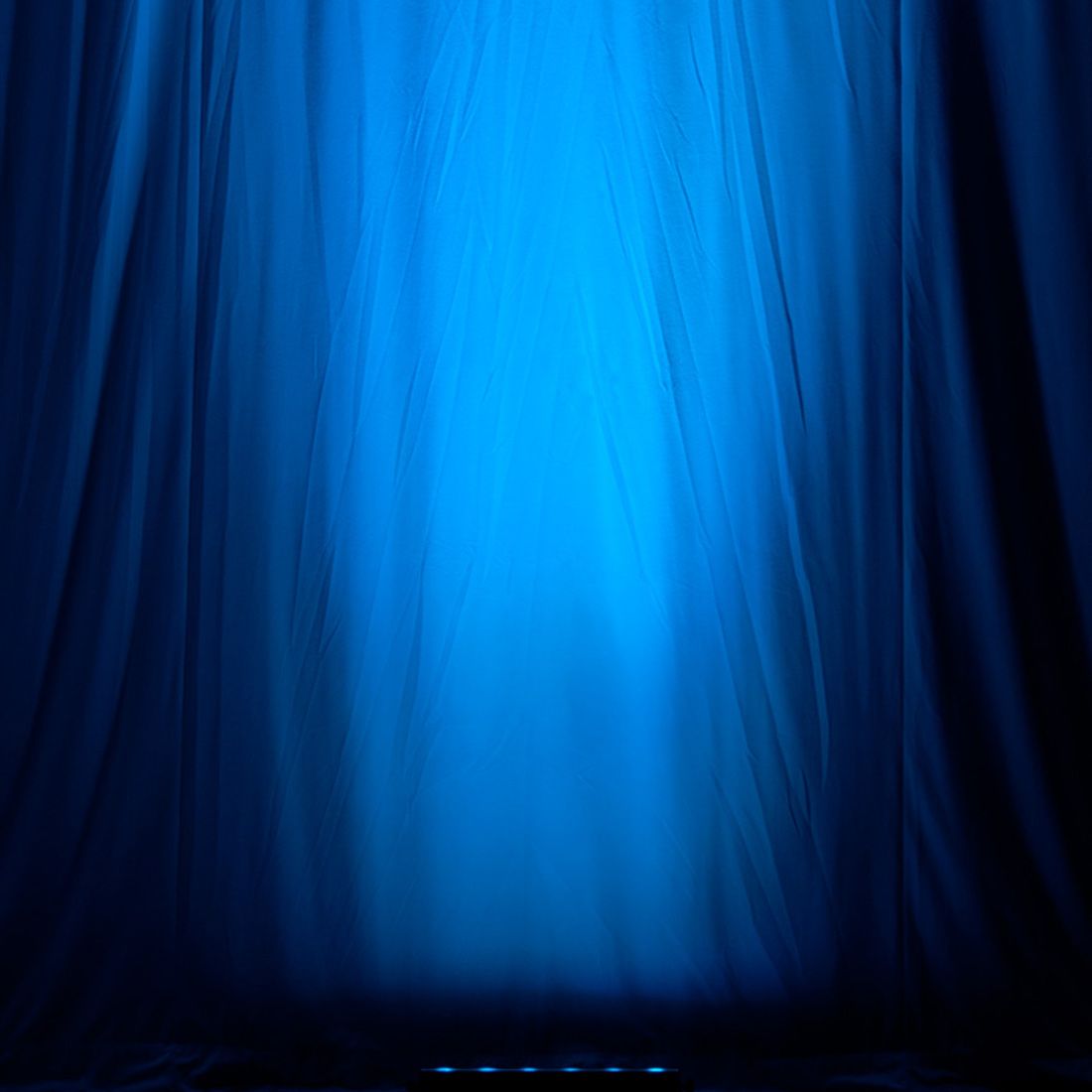

The ADJ Ultra Bar 6 is a 22.5-inch (0,5 meter) professional grade indoor linear fixture powered by six 3-Watt TRI (RGB: 3-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

Ultra Bar 6 features built-in Color Macros (built-in colors), 7 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ RFC RF wireless remote (sold separately).

Specification

    Specifications:
    - 22.5-inch (0,5 meter) indoor Linear Bar with 6 x 3W Ultra bright TRI (RGB: 3-IN-1) LEDs
    - Variable RGB color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
    - 7 DMX Channel Modes: 3, 5, 6, 7, 8, 9 or 11 channels
    - 5 operational modes: Auto (Program Run), Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
    - 3-Section Pixel control

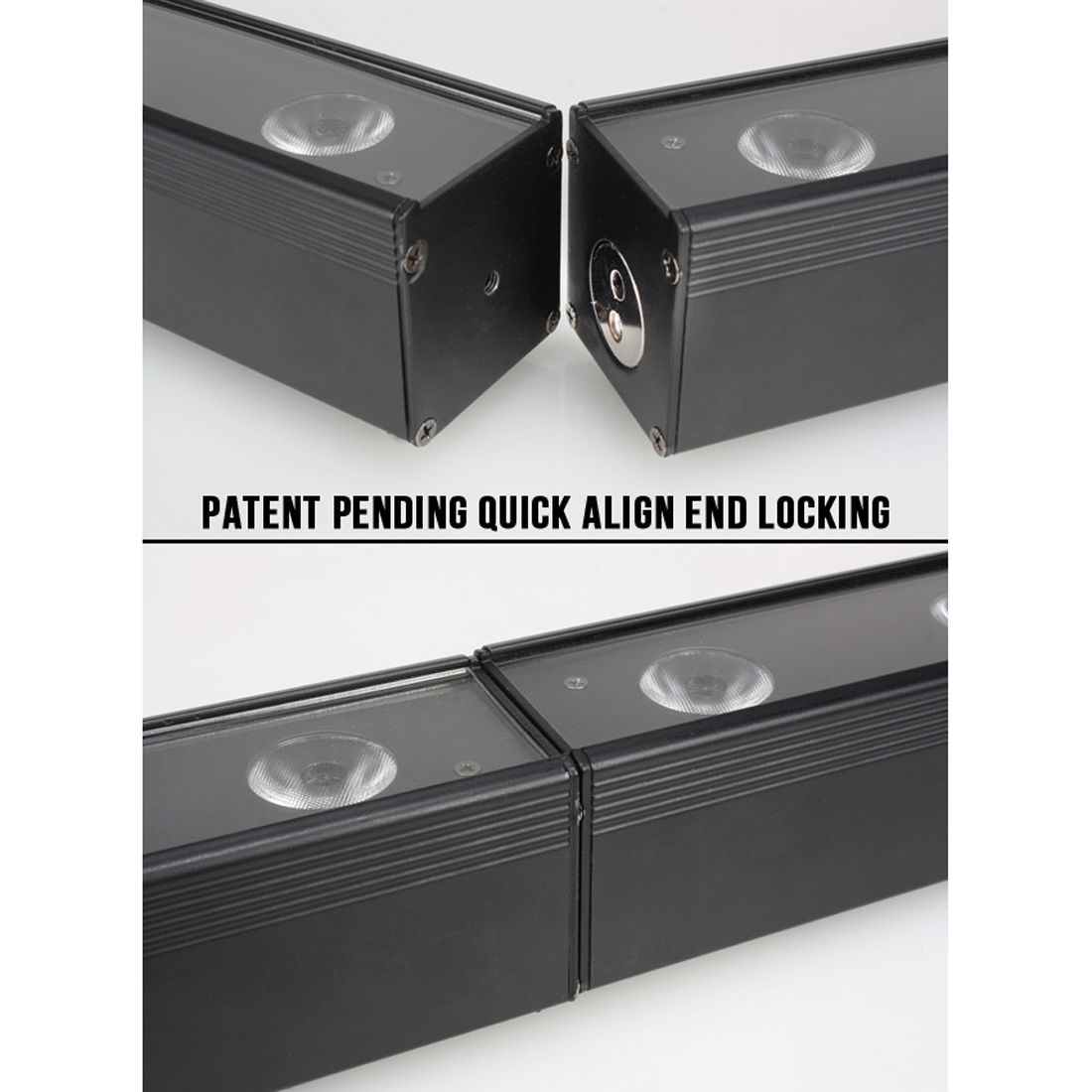

    - Patent Pending Quick Align (Magnetic)
    - Beam Angle: 40 degrees
    - Flicker Free
    - 4-Button DMX LED Display
    - 39 built-in Color Macros
    - LED pulse & strobe effect
    - Electronic Dimming: 0-100%
    - Includes mounting brackets to mount on a wall or set on the ground
    - Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
    - Long Life LEDs (Rated at approximately 50,000 hrs.)
    - Power Draw: 22W

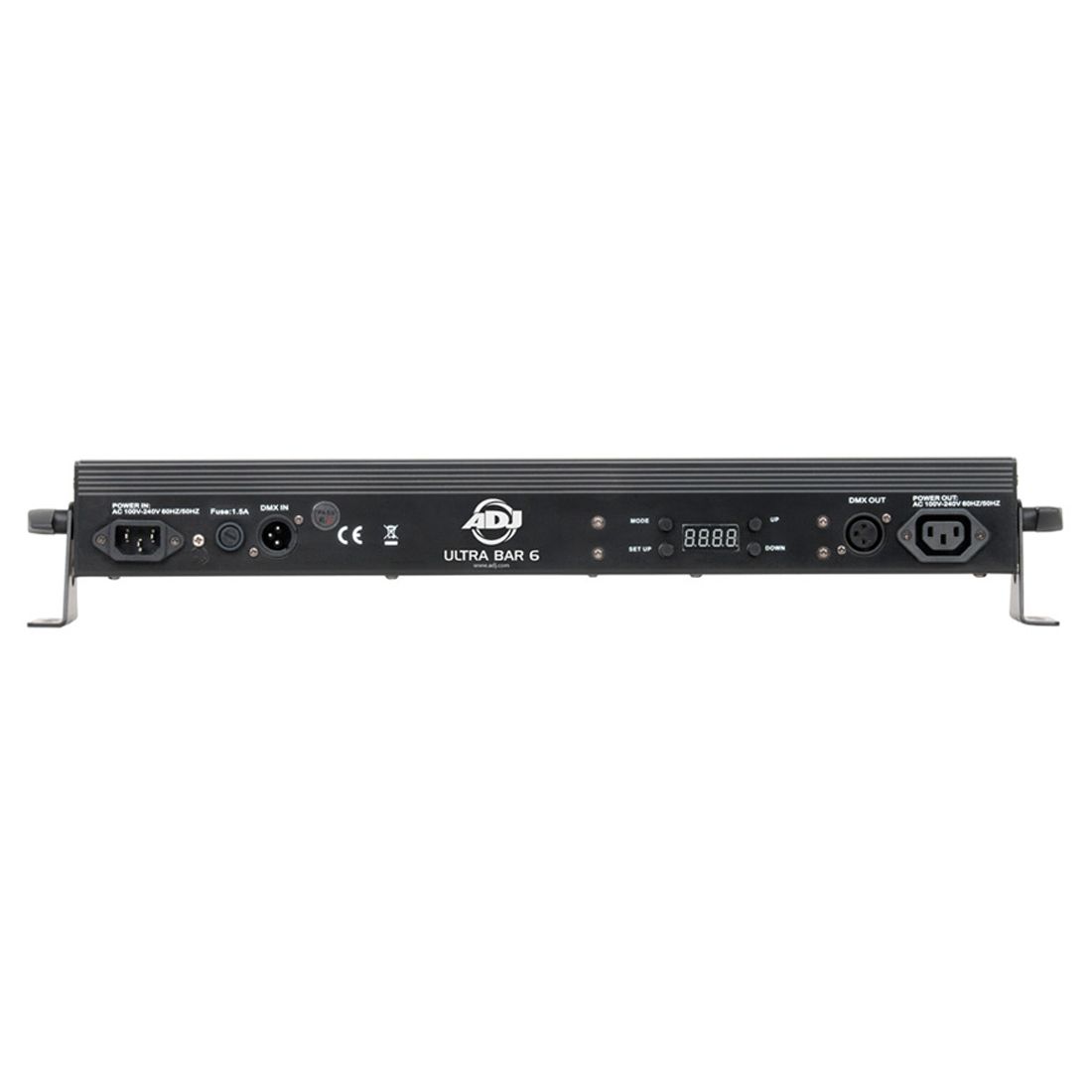

    - Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 25 Ultra Bar 6 fixtures)
    - Multi-voltage operation: AC 100V-240V 50/60Hz
    - Dimensions (LxWxH): 560 x 63 x 90mm
    - Weight:  1.6 kg.
      Specifications subject to change without notice.
