UB 9H Archive

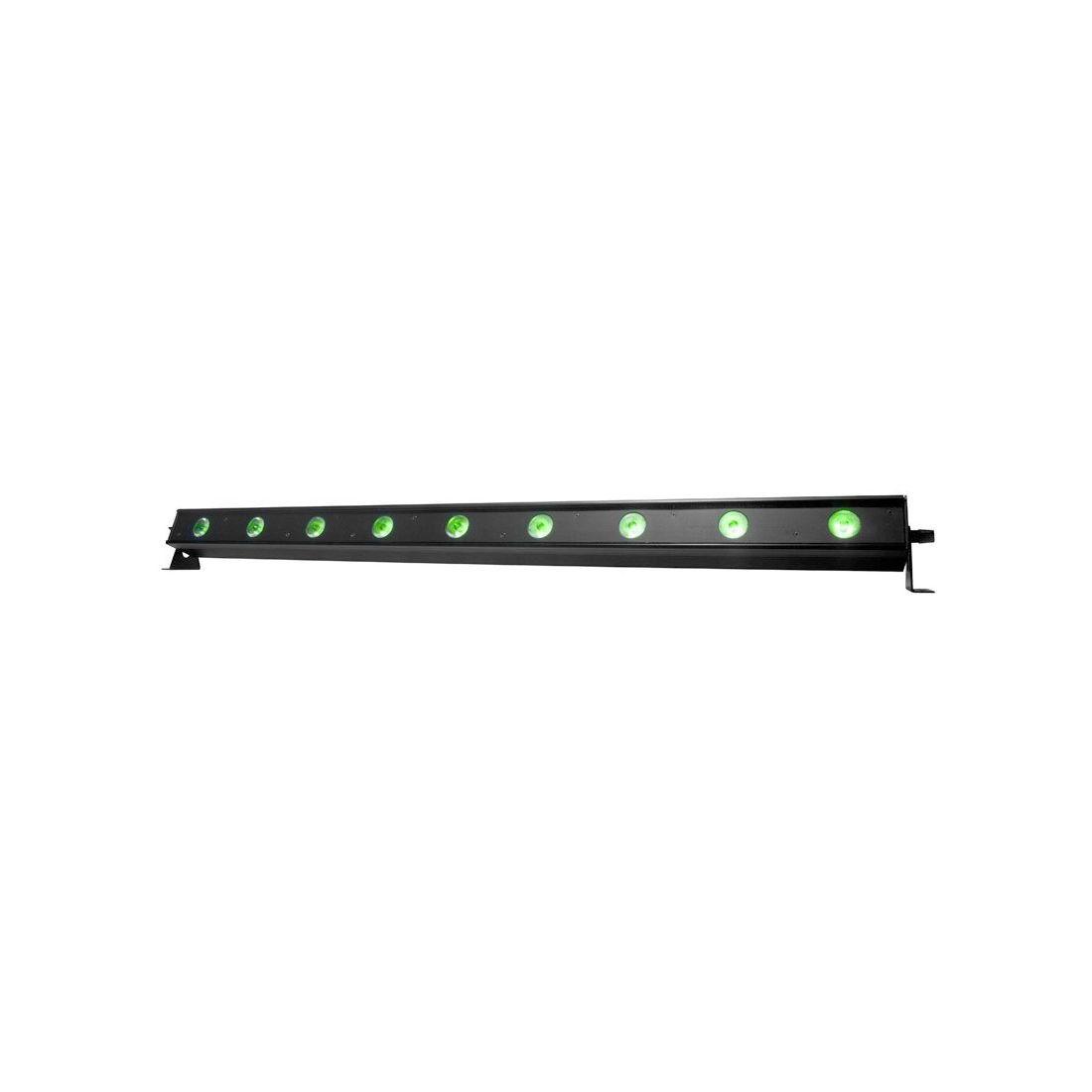

The ADJ UB 9H is a 41.75-inch (1meter) professional grade indoor linear fixture powered by nine 6W RGBAW+UV HEX LEDs. Its bright chromatic 40-degree beam angle provides vibrant 6-color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.
The UB 9H features built-in Color Macros (built-in preset colors), 4 DMX Channel Modes, 0-100% dimming and variable...
Product Information
SKU: 1226200055
GTIN: 818651020458
HS-Code: 9405423990
The ADJ UB 9H is a 41.75-inch (1meter) professional grade indoor linear fixture powered by nine 6W RGBAW+UV HEX LEDs. Its bright chromatic 40-degree beam angle provides vibrant 6-color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.
The UB 9H features built-in Color Macros (built-in preset colors), 4 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC-IR wireless remote (sold separately).
Gallery
Specification
- • 41.75-inch (1 meter) indoor Linear Bar with 9 x 6W Ultra bright RGBAW+UV HEX (6-in-1) LEDs
- • Variable RGBAW+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
- • 4 DMX Channel Modes: 6, 10, 12 or 18 channels
- • 5 operational modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Color and DMX-512 Mode
- • 3-Section Pixel control

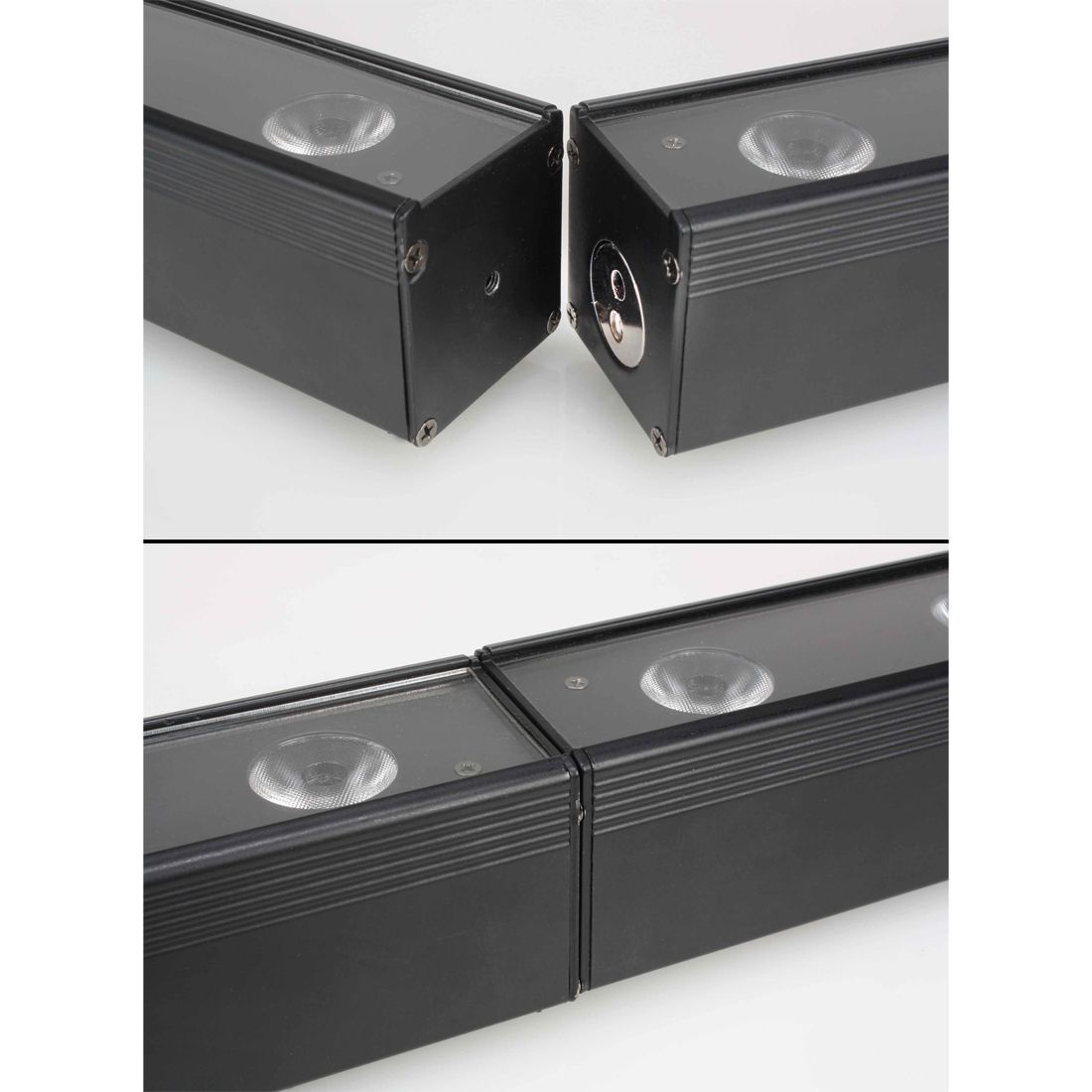

- • Patent Pending Quick Align (Magnetic)
- • Beam Angle: 40 degrees
- • Flicker Free @ 2200Hz
- • 4-Button DMX LED Display
- • 35 built-in Color Macros
- • LED pulse & strobe effect
- • Electronic Dimming: 0-100%
- • Includes mounting brackets to mount on a wall or set on the ground
- • Compatible with the ADJ UC-IR wireless remote(sold separately)
- • Long Life LEDs (Rated at approximately 50,000 hrs.)
- • Power Draw: 61W
- • Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 15 UB 9H fixtures)
- • Multi-voltage operation: AC 100V-240V 50/60Hz
- • Dimensions (LxWxH): 1060 x 63 x 90mm
- • Weight: 2.6 kg.
