UB 12H
Archive

Brand
The ADJ UB 12H is a 41.75-inch (1 meter) professional grade indoor linear fixture powered by twelve 6-Watt RGBAW+UV HEX (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant 6-color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color. The UB 12H features built-in Color Macros (built-in preset colors), 0-100% dimming and variable speed...

Product Information

SKU: 1226200056
GTIN: 818651020441
HS-Code: 9405423990

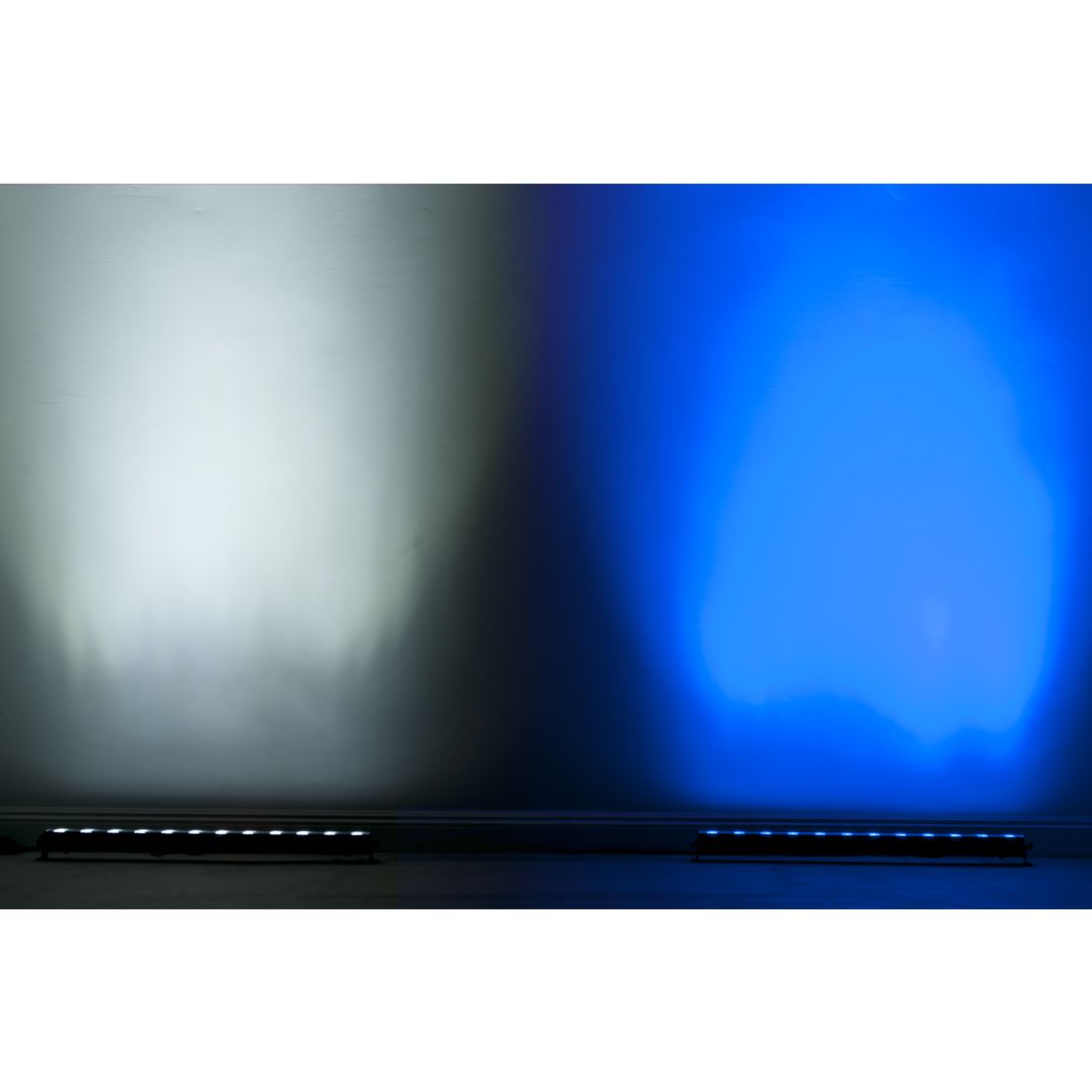

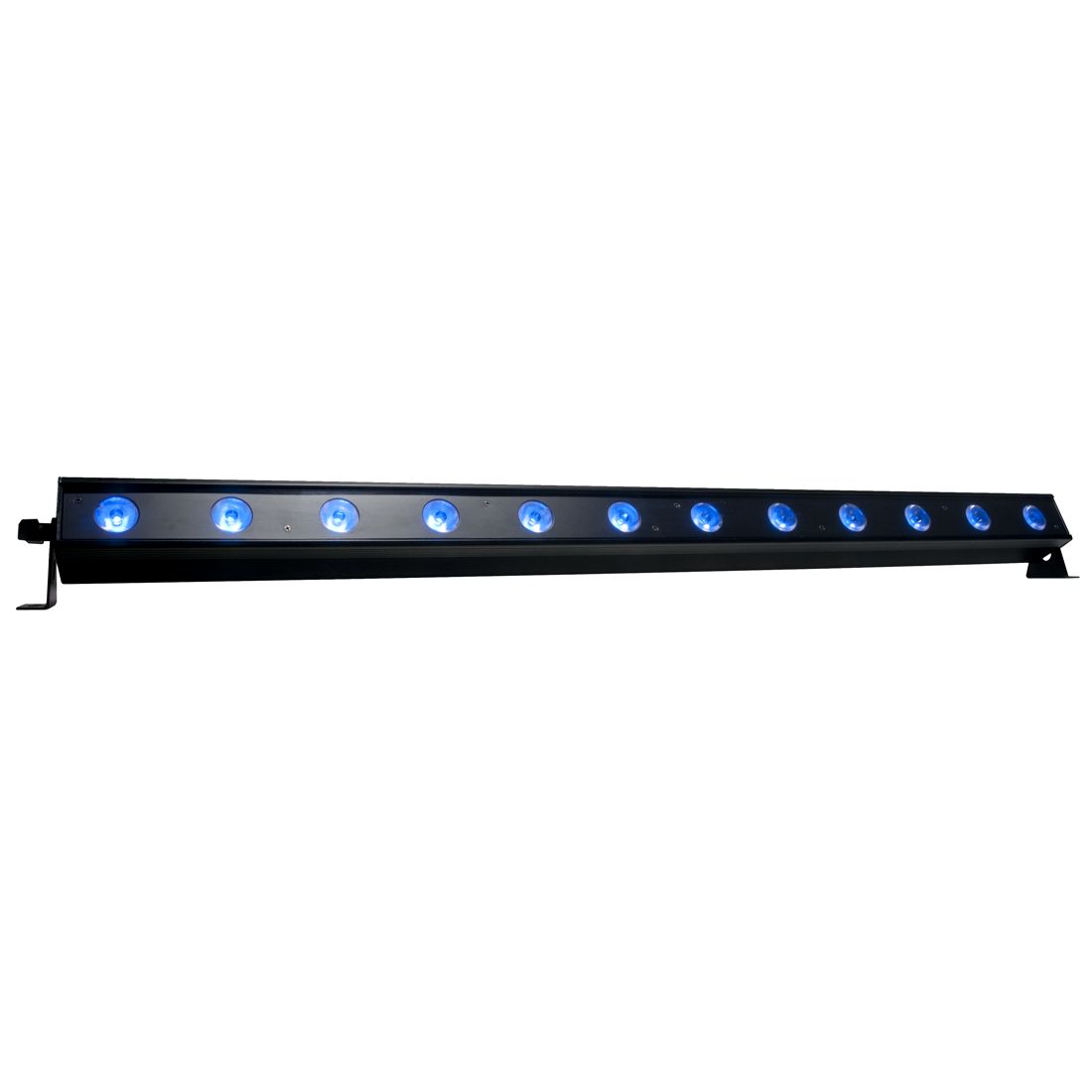

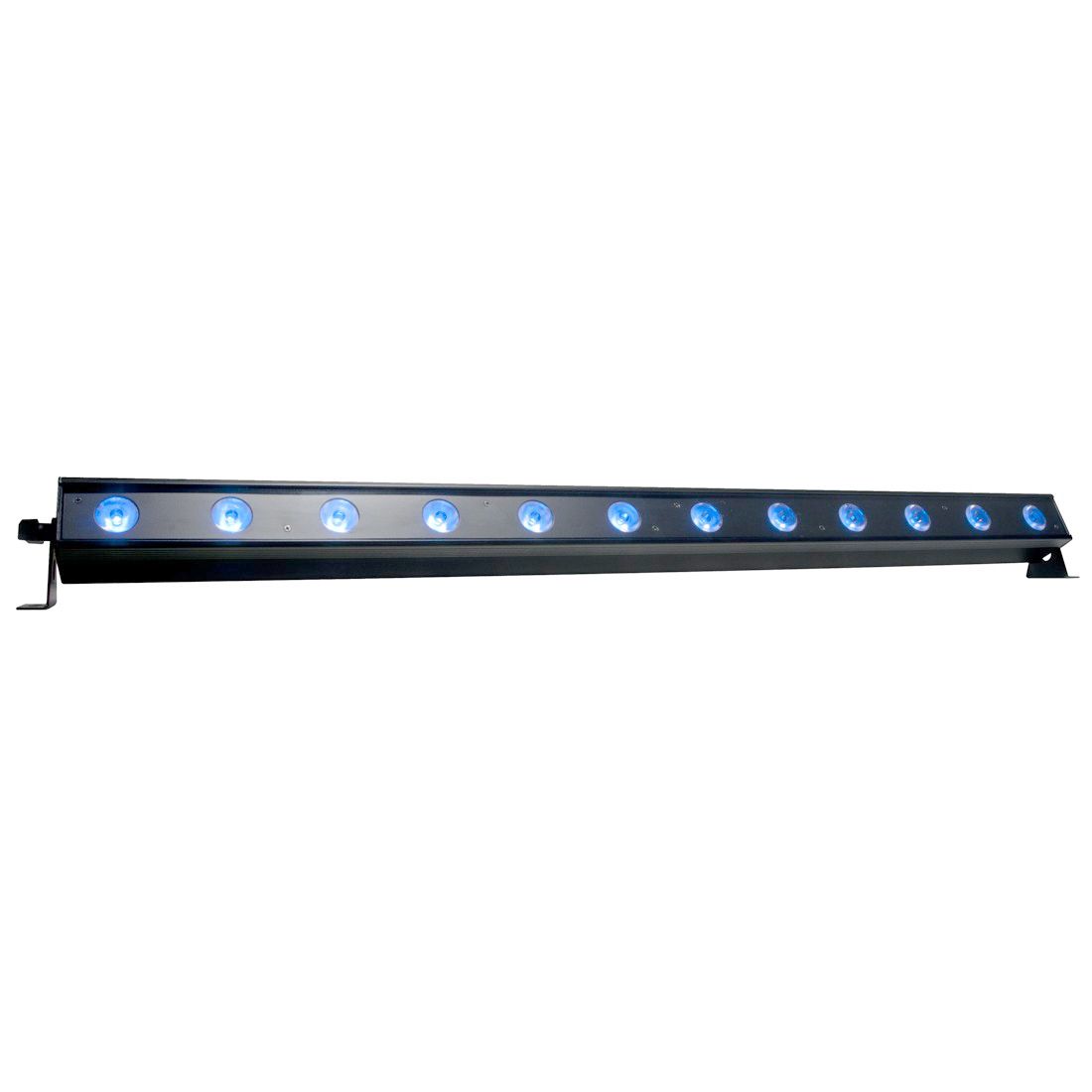

The ADJ UB 12H is a 41.75-inch (1 meter) professional grade indoor linear fixture powered by twelve 6-Watt RGBAW+UV HEX (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant 6-color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

The UB 12H features built-in Color Macros (built-in preset colors), 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the included ADJ UC-IR wireless remote.

Specification

  • • 41.75-inch (1 meter) indoor Linear Bar with 12x6W Ultra bright RGBAW+UV HEX LEDs
  • • Great for Stage or Wall Washing!
  • • 6 DMX Channel Modes: 3, 5, 6, 7, 8 or 20 channels
  • • 5 operational modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Color and DMX-512 Mode
  • • 3 or 6-Section Pixel control

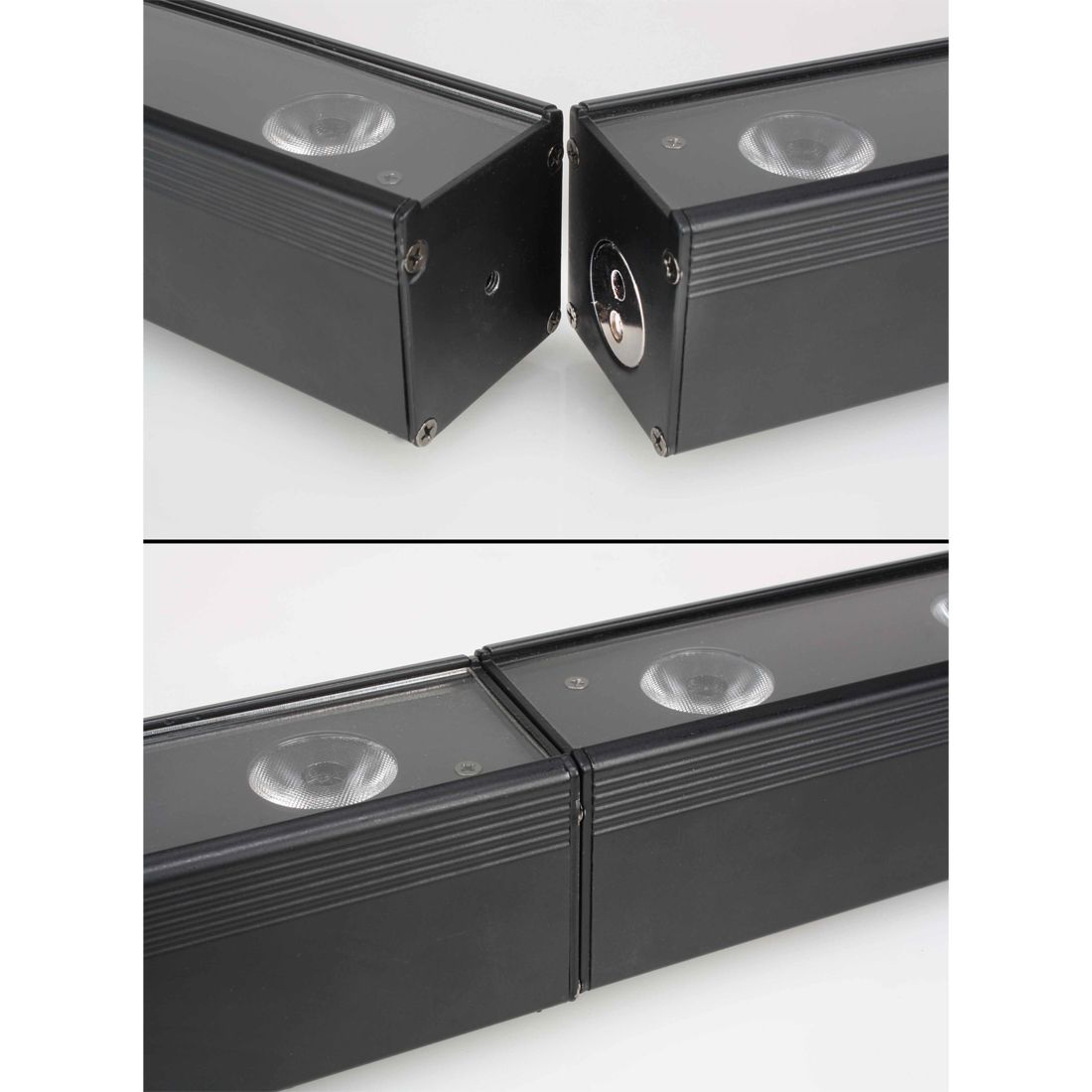

  • • Patent Pending Quick Align (Magnetic)
  • • Beam Angle: 40 degrees
  • • Flicker Free @ 2200Hz
  • • 4-Button DMX LED Display
  • • 35 built-in Color Macros
  • • LED pulse & strobe effect
  • • Electronic Dimming: 0-100%
  • • Includes mounting brackets to mount on a wall or set on the ground
  • • Compatible with the ADJ UC-IR remote
  • • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • • Power Draw: 87W
  • • Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 13 UB 12H)
  • • Multi-voltage operation: AC 100V-240V 50/60Hz
  • • Dimensions (LxWxH): 41.75” x 2.5” x 3.75”/1060 x 63 x 90mm
  • • Weight: 6 lbs./ 2.7 kg.

Downloads

User Manual

Photometric IES File

Photometric Data
