Saber Spot DTW Select Archive

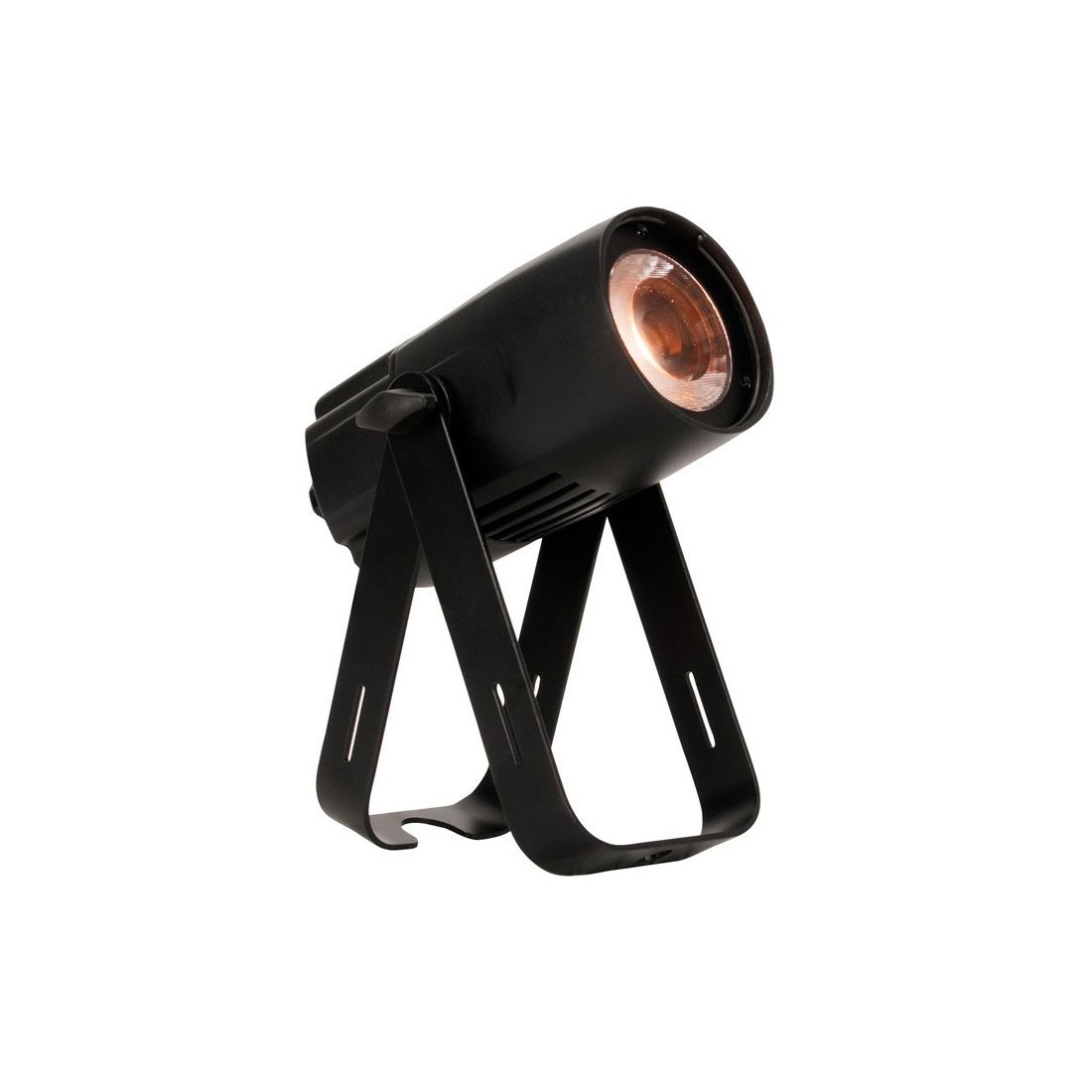

The Saber Spot DTW is a compact spot fixture with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button LED display system on the rear panel. Its built-in ACL lens produces a 20-degree beam angle. It features a dim to warm effect that replicates a halogen-like dimming profile.
The Saber Spot DTW has a scissor bracket system that allows the fixture to be...
Product Information
SKU: 1226100353
GTIN: 818651024708
HS-Code: 9405423990
The Saber Spot DTW is a compact spot fixture with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button LED display system on the rear panel. Its built-in ACL lens produces a 20-degree beam angle. It features a dim to warm effect that replicates a halogen-like dimming profile.
The Saber Spot DTW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.
Gallery
Specification
- • 1 WW LED with Dim-to-Warm effect
- • Individual LED wattage : 15W
- • Average LED lifetime: approx. 10,000hrs

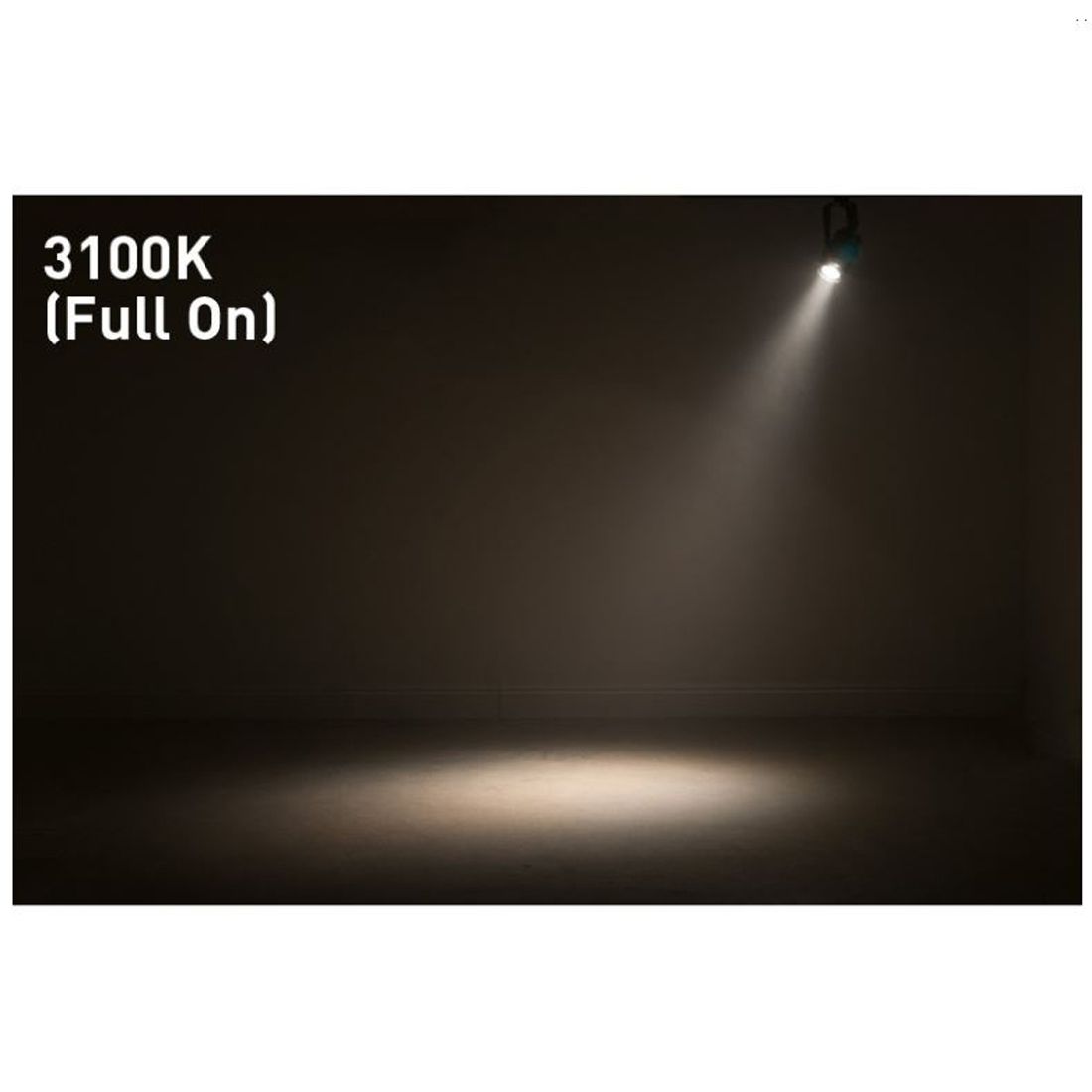

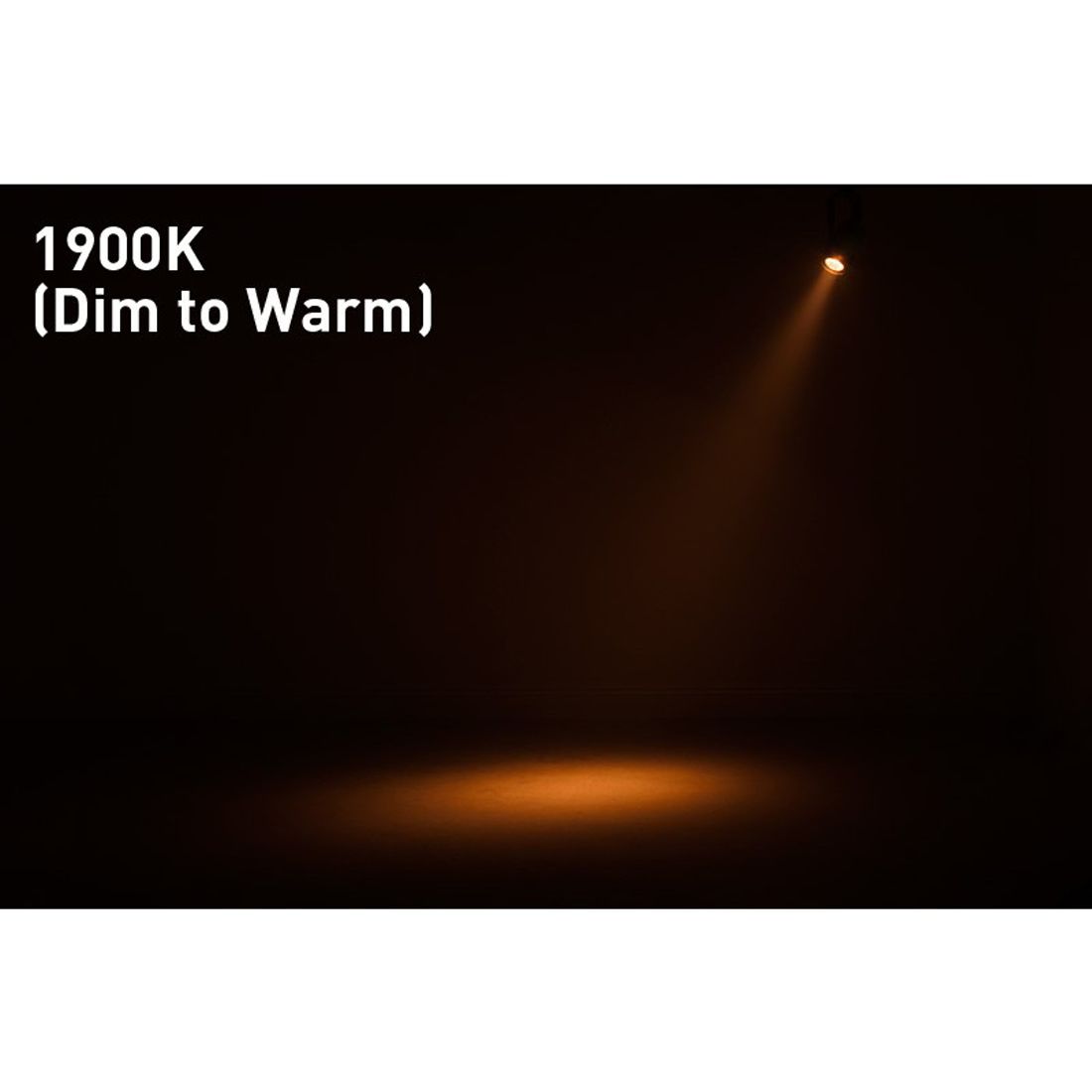

- • Color temperature: 3100K (ww); 1900K (amber)
- • LUX: 726 @ 3M
- • CRI (Full on): 92
- • Flicker-free operation for film and television
- • Beam angle: 20 degree

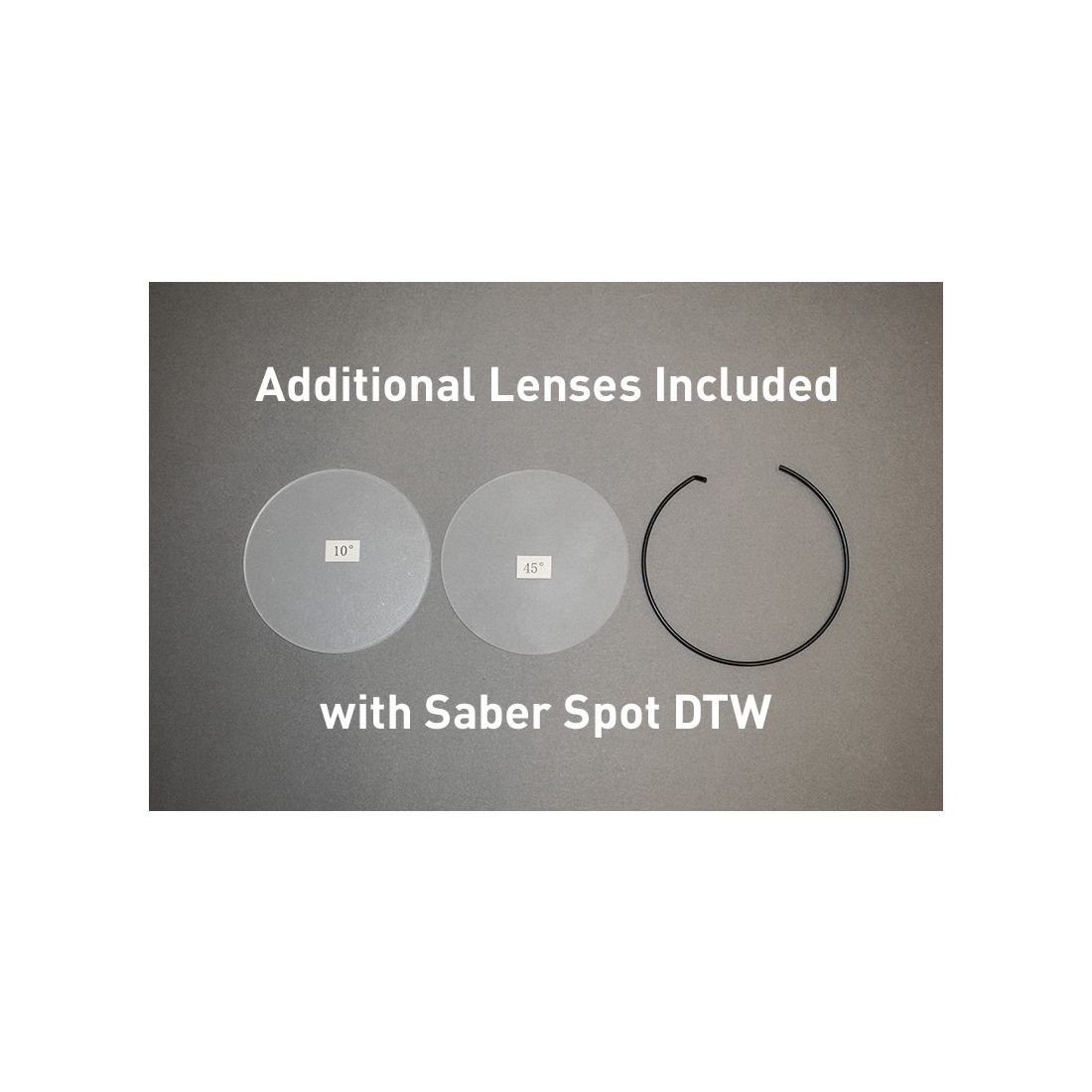

- • 2 additional fresnel lenses included (10° & 45°)
- • 3 Operational modes: Show Mode, Manual Mode and DMX-512 Mode
- • 3 DMX Channel modes: 1, 2 or 4 channels
- • 16bit Dimming
- • 6 Dim Curves: Standard/Stage/TV/Architectural/Theatre & Stage2
- • Strobe & pulse effects
- • LCD display with 4-button control
- • Warm White 3000K
- • Dim-to-Warm effect
- • Metal Black Housing
- • Scissor bracket system allows fixture to be hung or set on the ground
- • Multi-voltage operation: 100-240V, 47/63Hz
- • Power Draw: 24W max

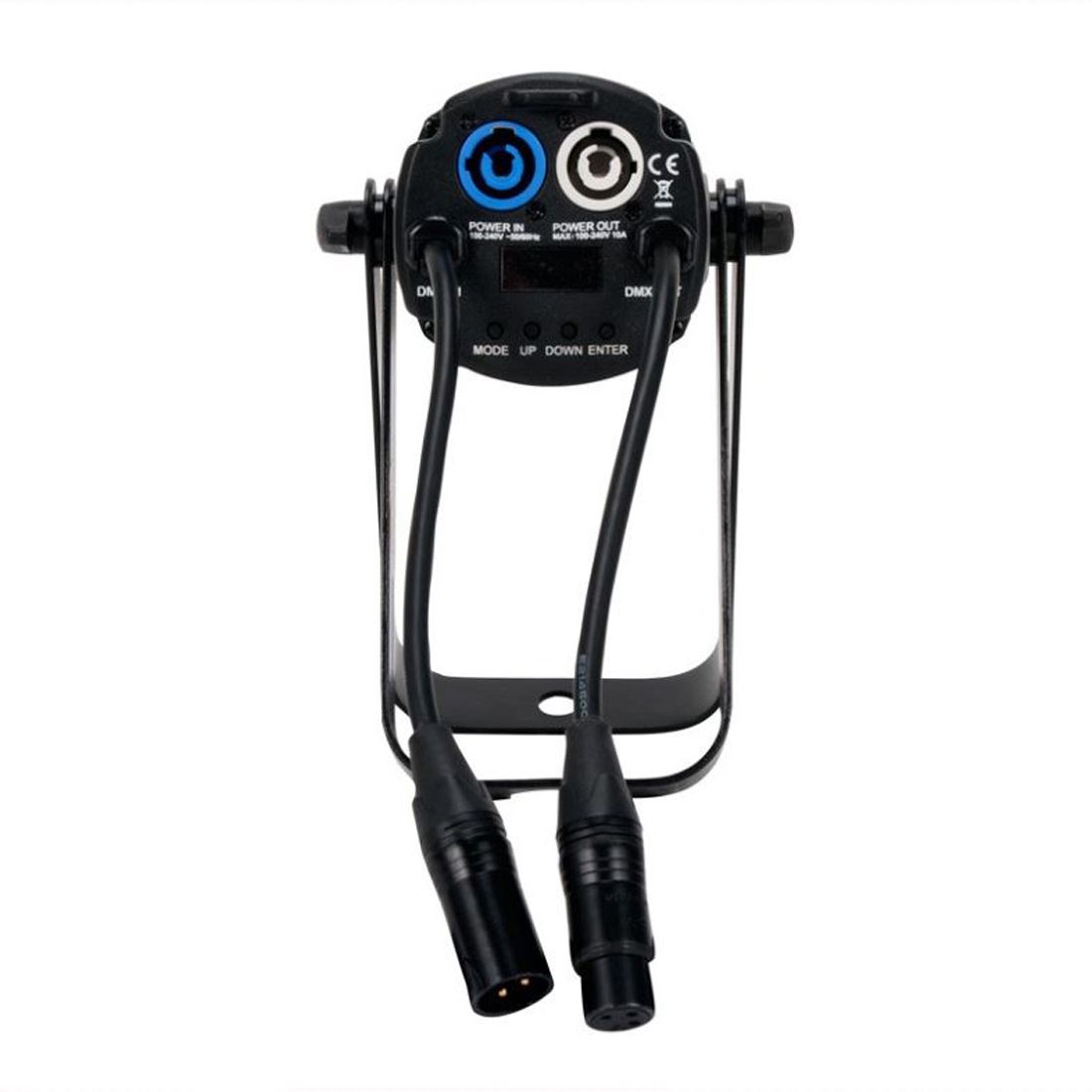

- • 3-pin XLR In/Out pigtails
- • Locking Power In/Out, Locking Power cable included
- • Dimensions (LxWxH): 135 x 108 x 170mm
- • Weight: 1,2 kgs
