Saber Bar 6 Select
Key Features
• Beam angle: 5°

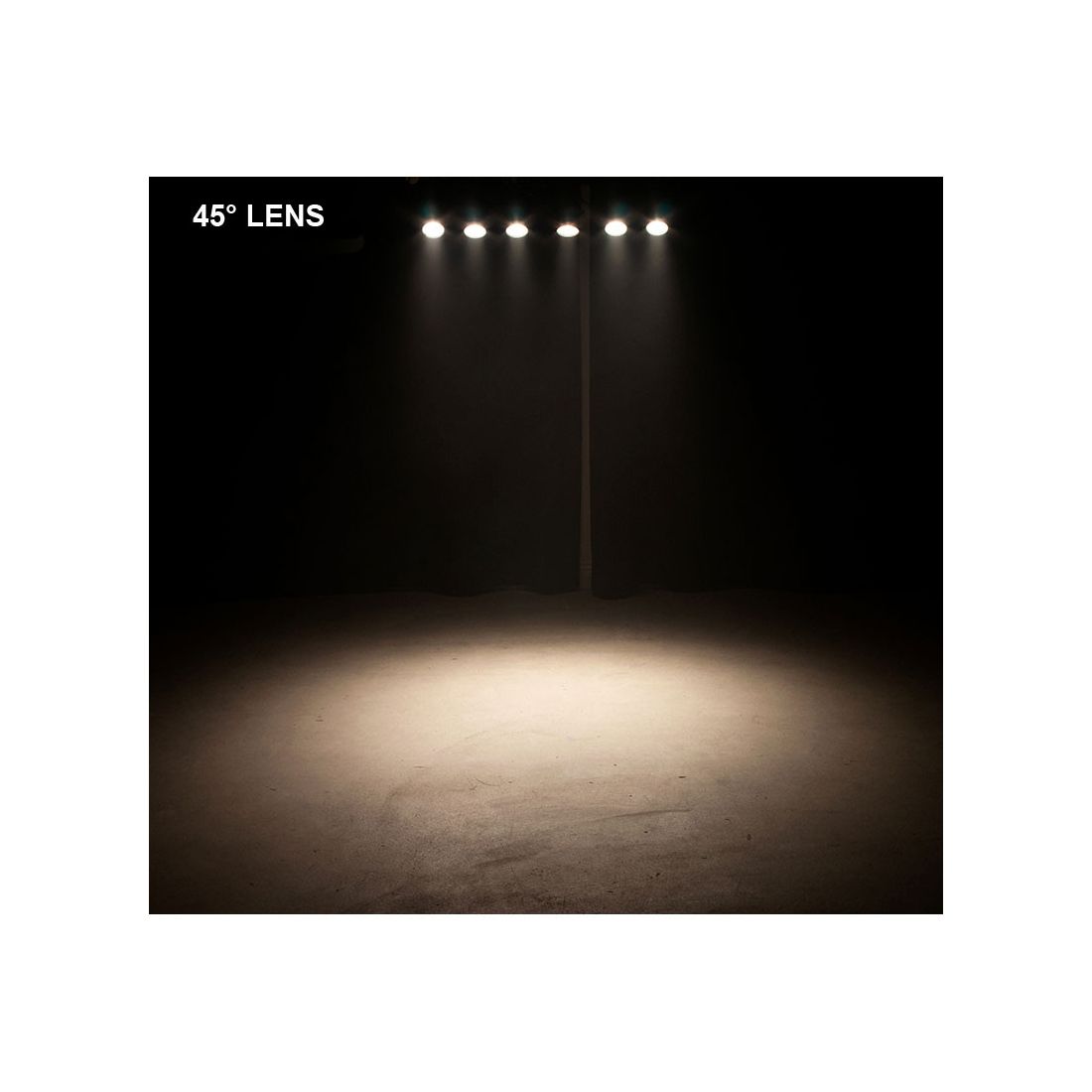

• Additional fresnel lenses included (10° & 45°)
• Source: 6x 15W WW LED (3100K)
• CRI: 96
Product Information

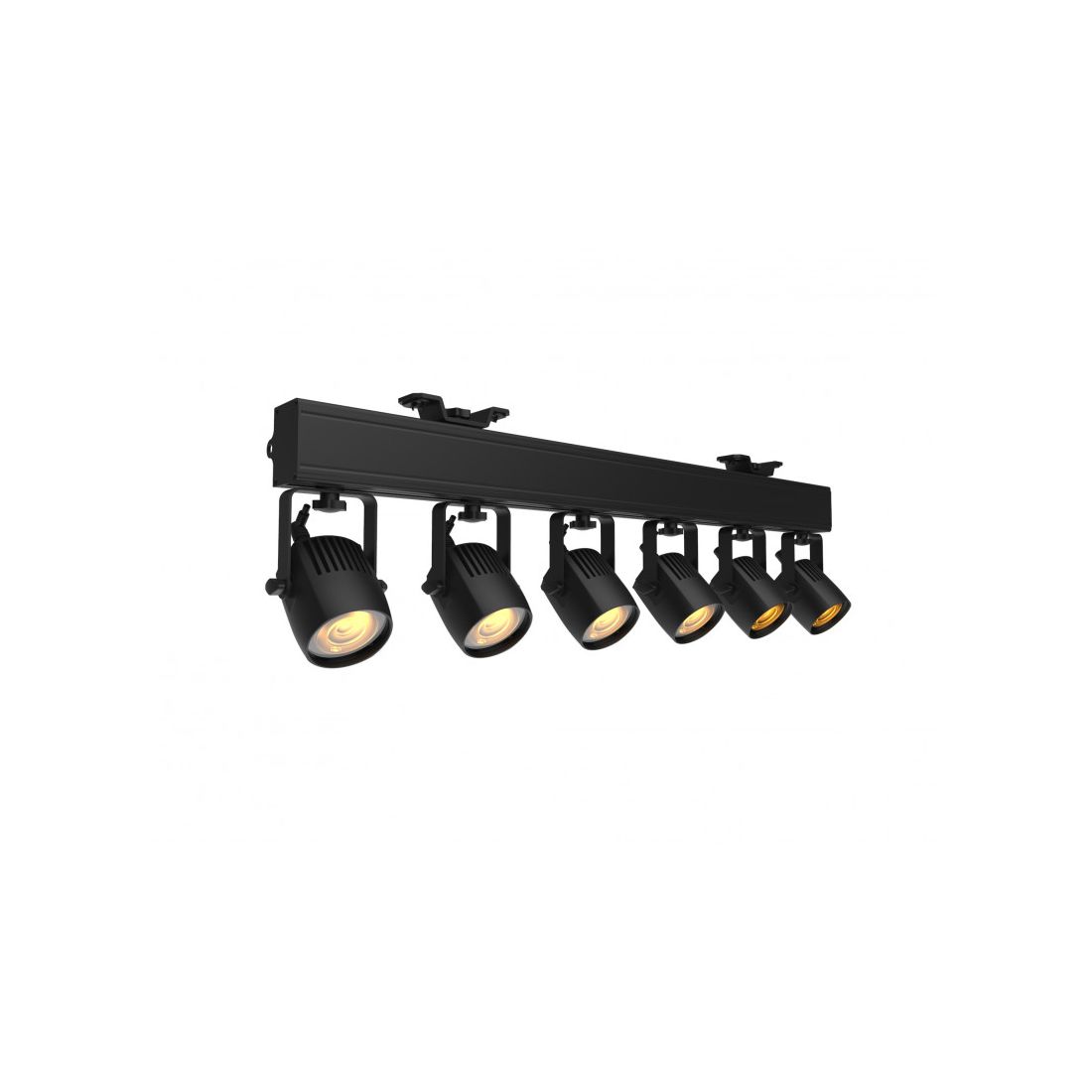

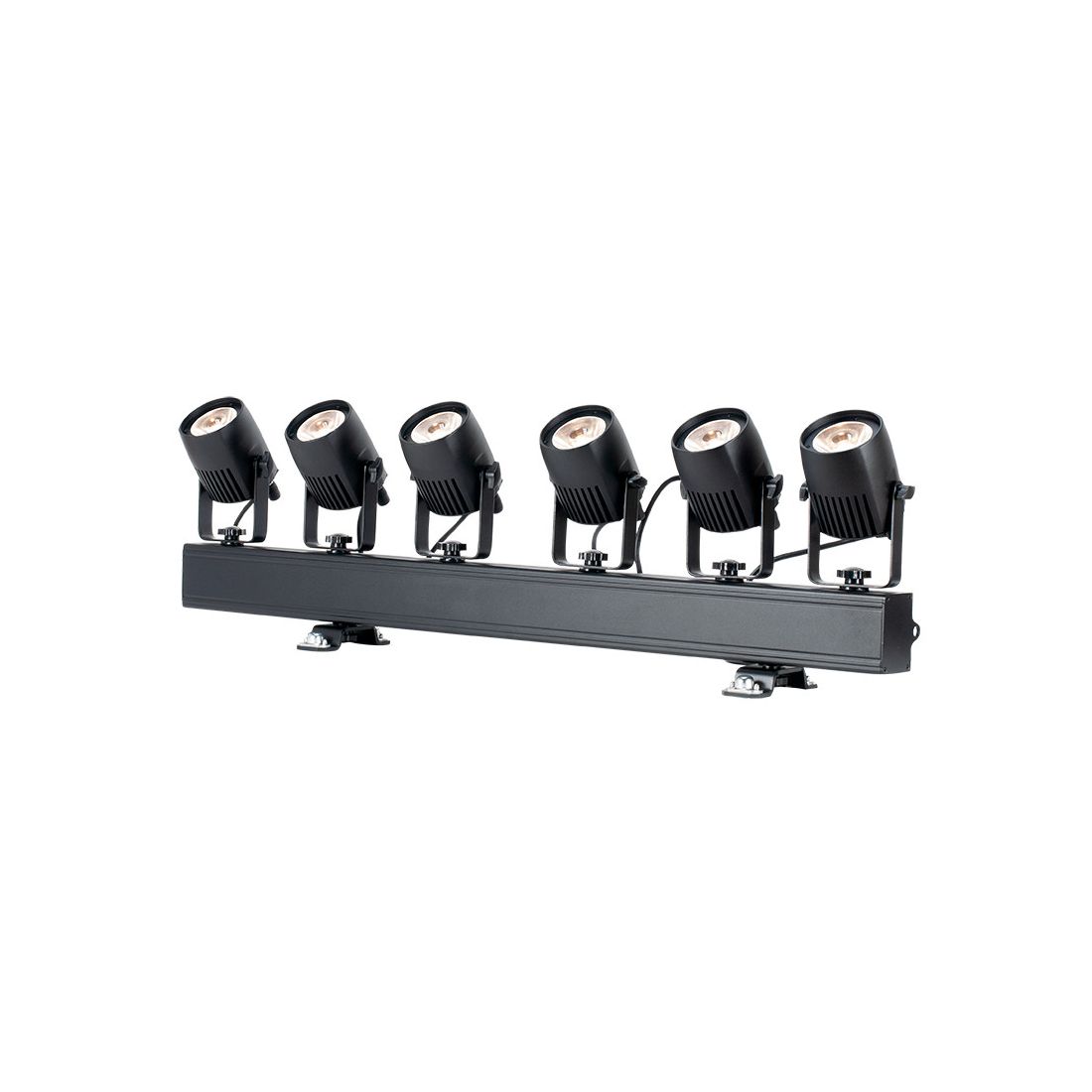

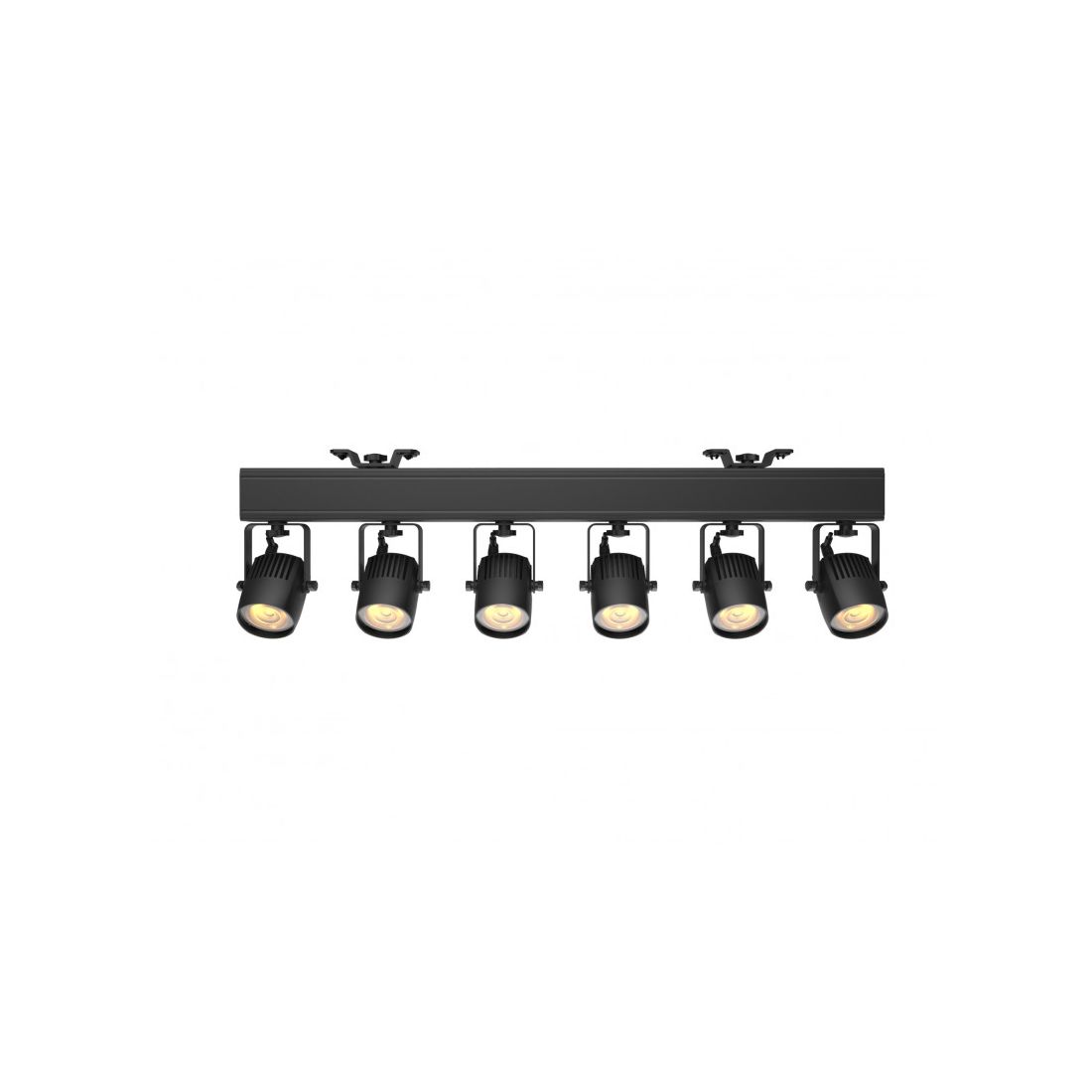

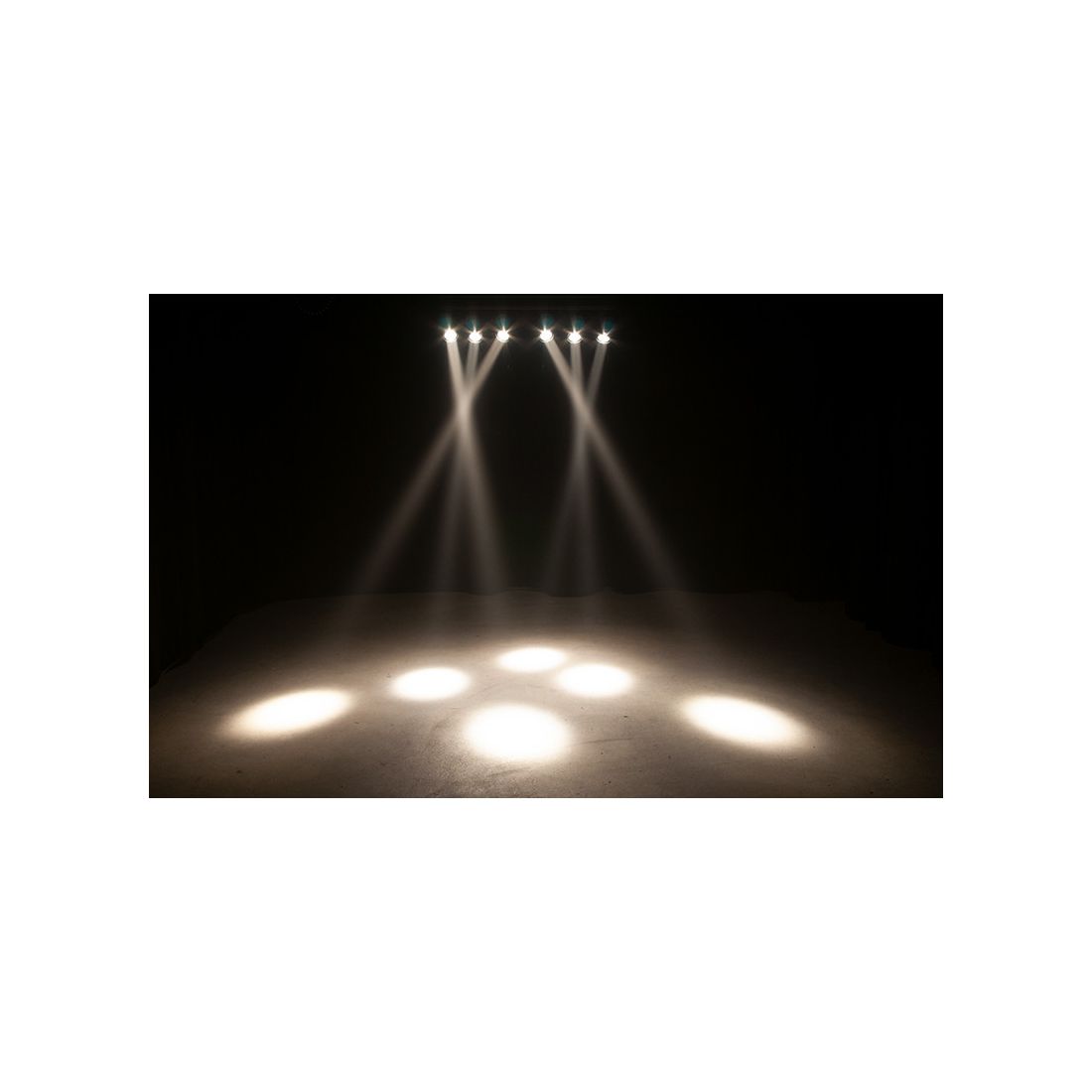

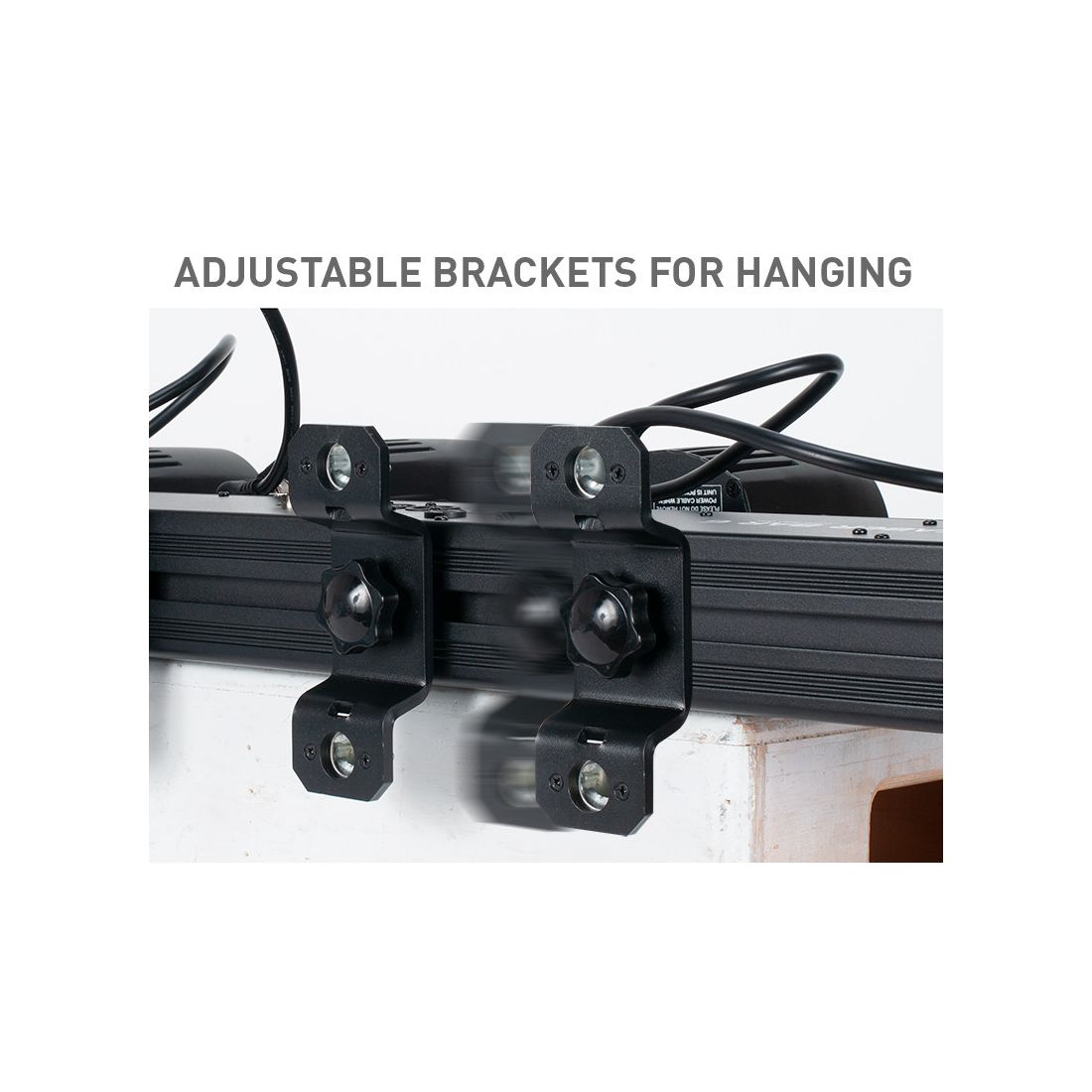

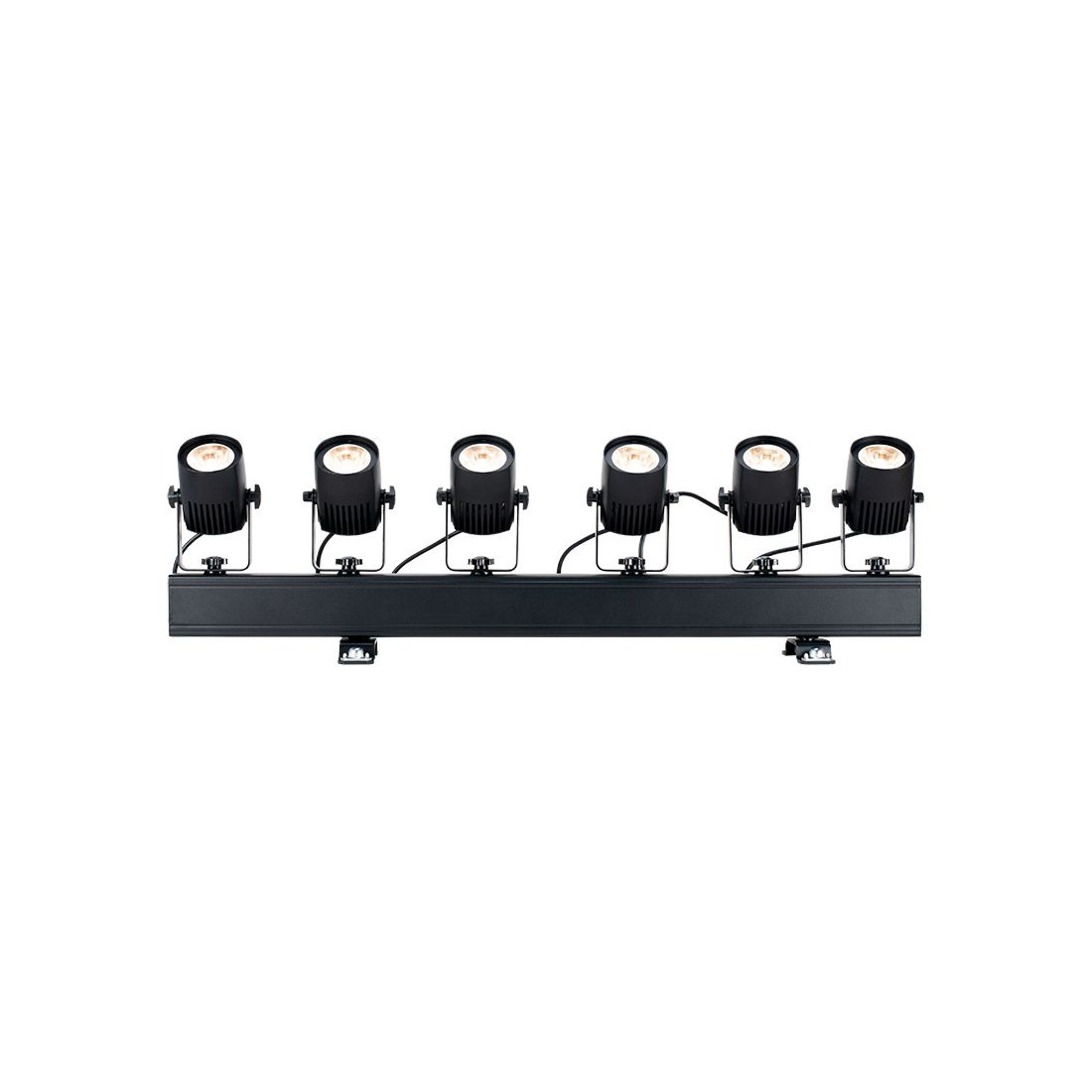

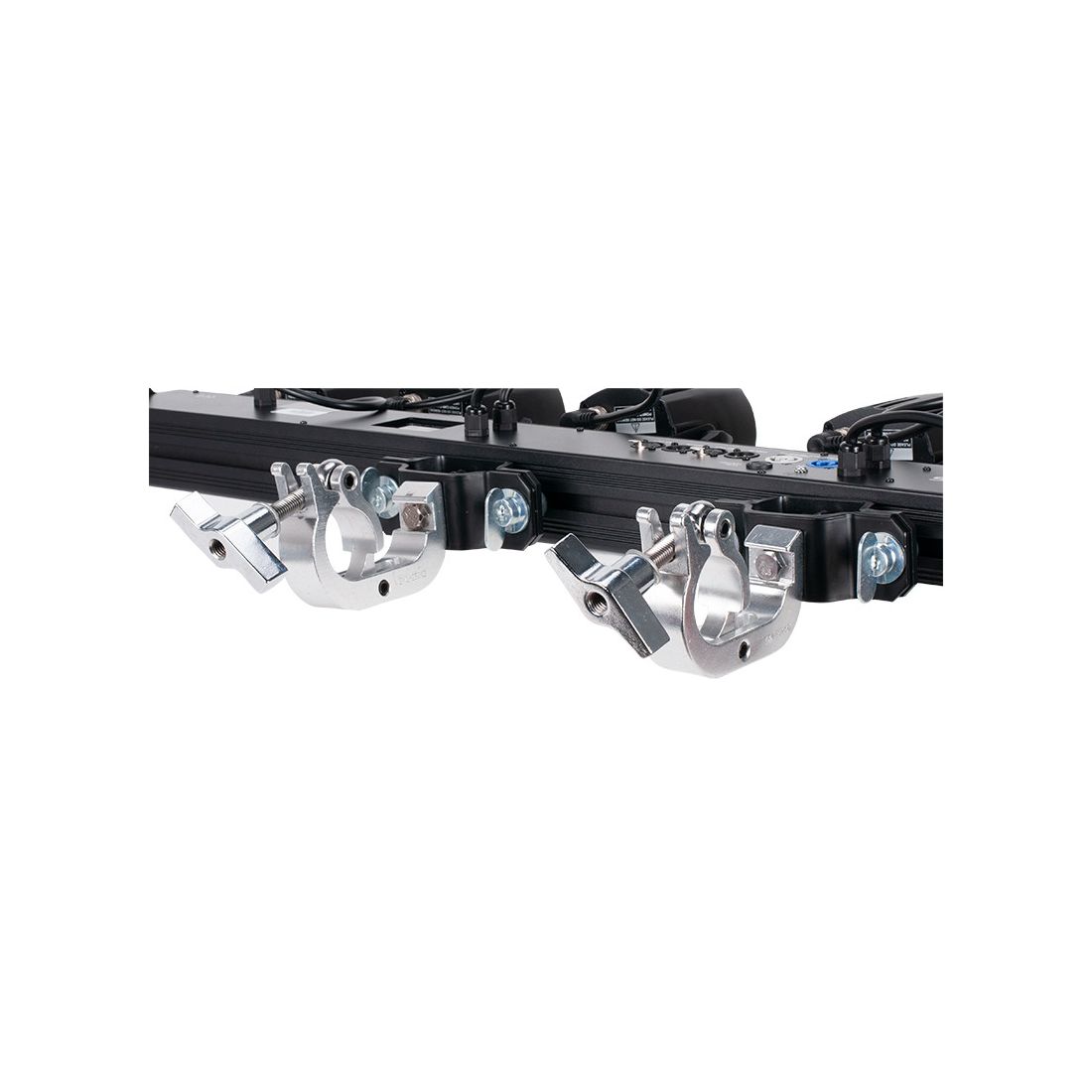

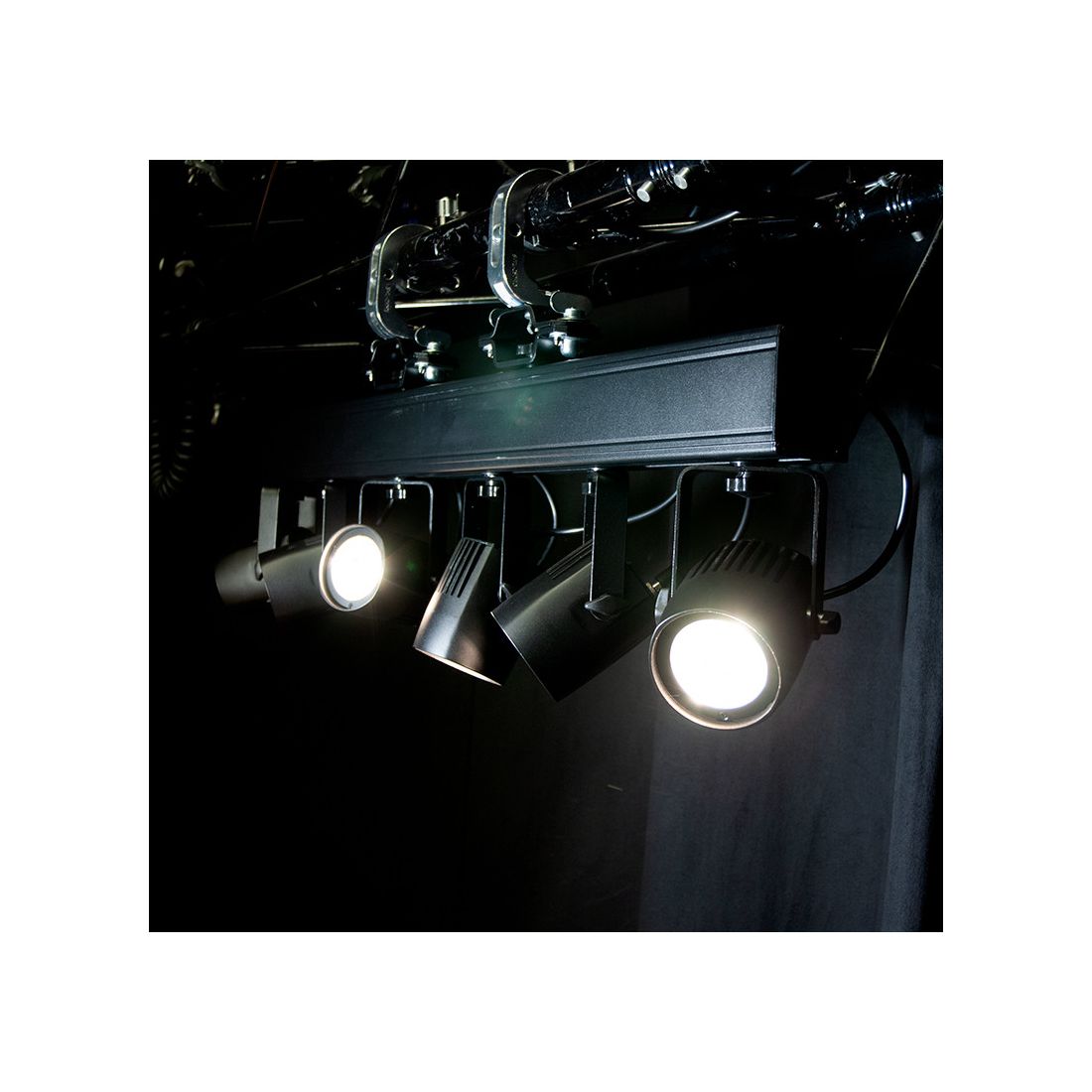

The Saber Bar 6 is a 6-head pinspot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot is similar to the Saber Spot WW with a 15W Warm White LED (3100K) and an ACL lens that produces a razor sharp 4-degree beam. Each fixture’s X/Y axis may be individually adjusted manually for precision angling of the beams. There are two heavy duty adjustable brackets to mount the fixture to a ceiling or truss.

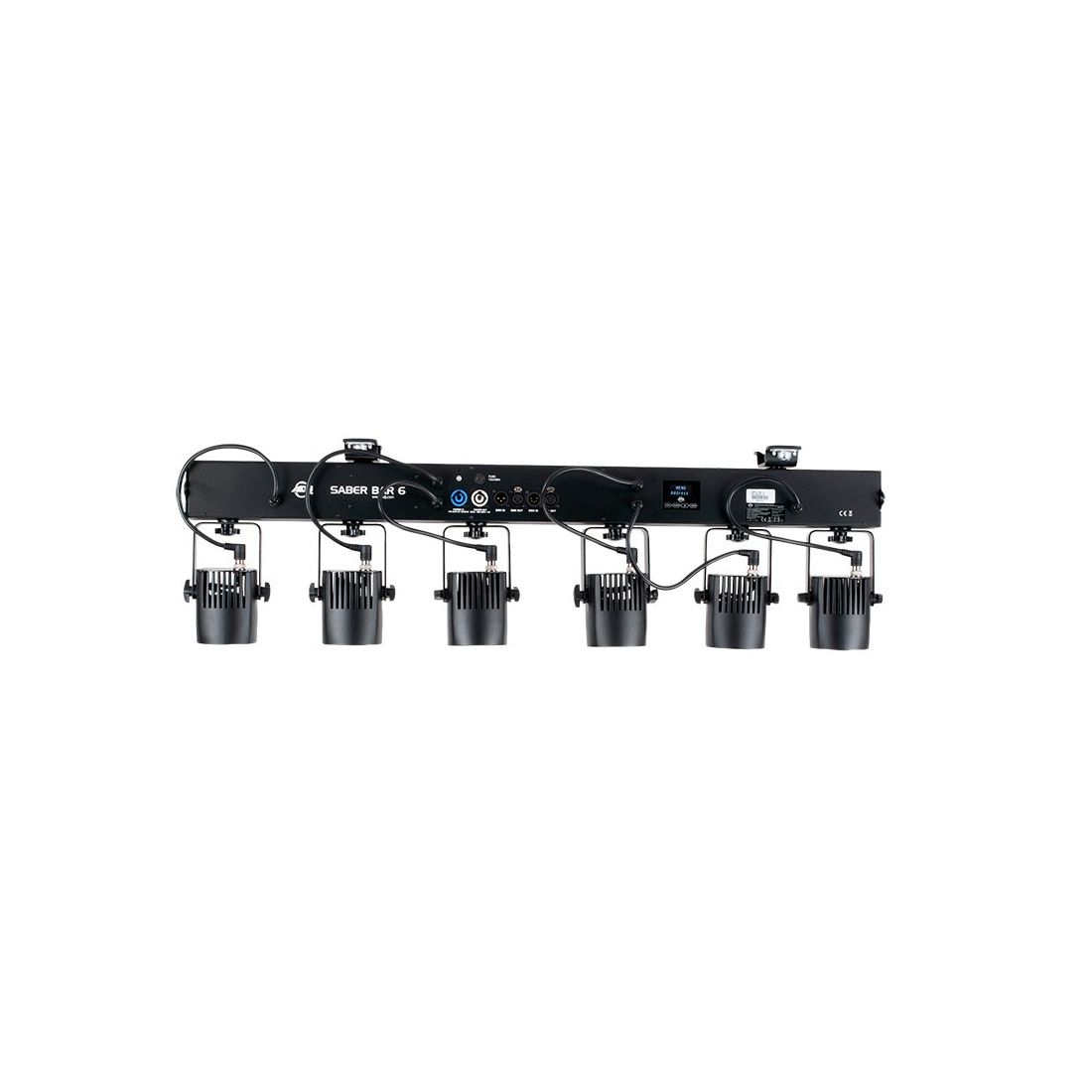

The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is s ideal for performance stages, installations, table spotting and lighting in retail stores.
Gallery
Specification
- Light Source:• LED: 6x 15W Warm White LEDs (50,000 hr.)• Color Temperature: 3100K• CRI: 96• Beam Angle: 5-degrees
- Features:• All metal construction with black housing• ACL lens for razor sharp beams• Additional 10 & 45 degree lenses included• RDM compatible (Remote Device management)• Includes heavy duty adjustable brackets for hanging• Individually adjust X/Y axis of each fixture manually
- Construction:• Display with function buttons• Data In/Out: 3-pin and 5-pin DMX In/Out to link data• Power locking In/Out connections to daisy chain power• Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240V
- Control:• Multiple DMX channel modes• Control Modes: DMX512• Built-in internal programs• 0-100% Dimming + smooth 16-bit fine dimming• 6 Dimming Curve Modes• Adjustable LED refresh rate• Strobe & Pulse effects• With Wired Digital Communication Network
- Electrical:• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)• Power consumption: 85W max
- Dimensions & Weight:• Dimension (LxWxH): 39.5” x 11.5” x 3.75” / 1005x292x95mm• Weight: 25 lbs. / 11.3 kg.
