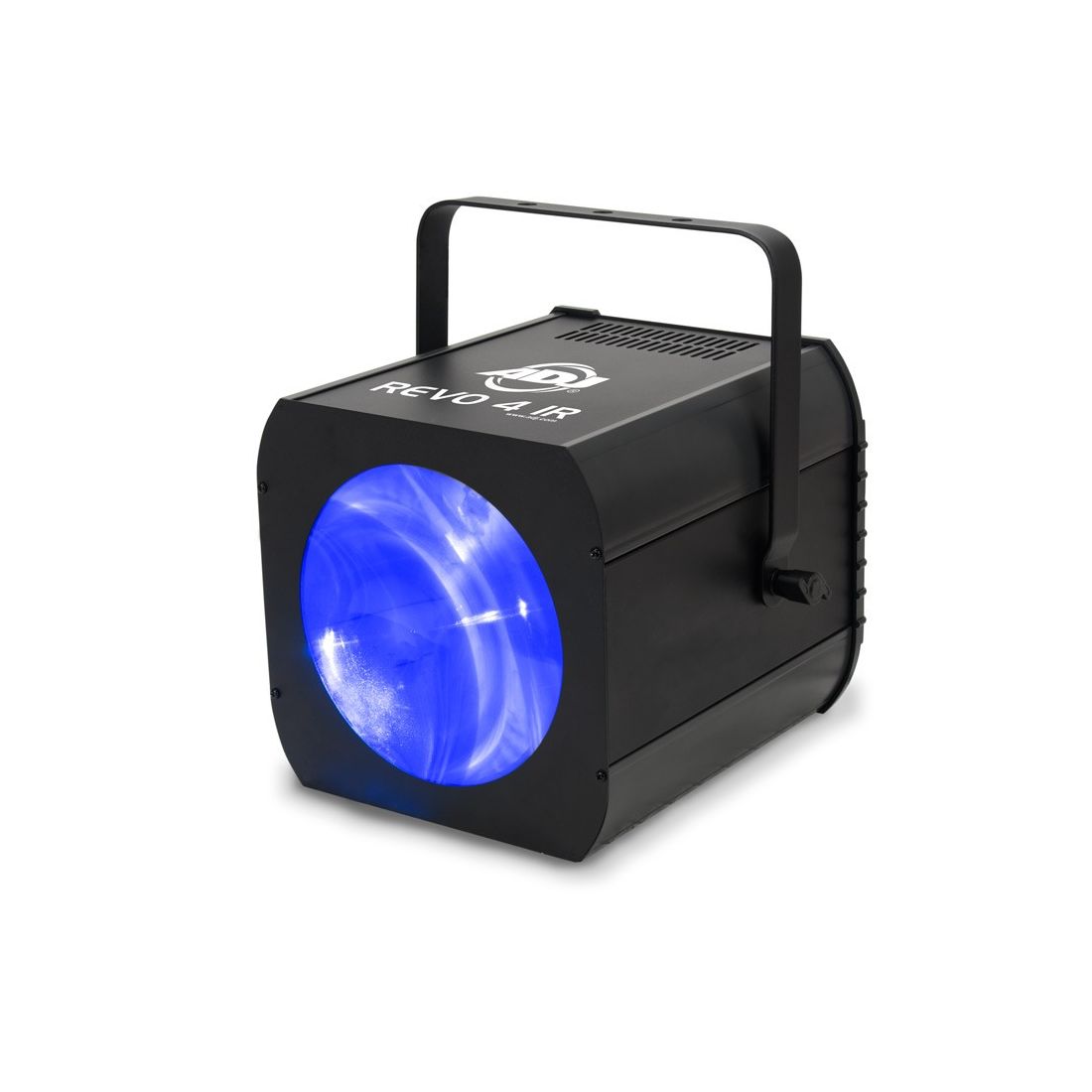

Revo 4 IR
Product Information
One of ADJ most popular Moonflower effects, the Revo 4 IR now includes wireless control options compatible with the UC-IR (sold separately). The Revo 4 IR produces a matrix grid of 256 LEDs that creates dozens of different patterns as the red, green, blue and white LEDs are turned on and off and kick up the excitement for any type of party with or without the use of fog.

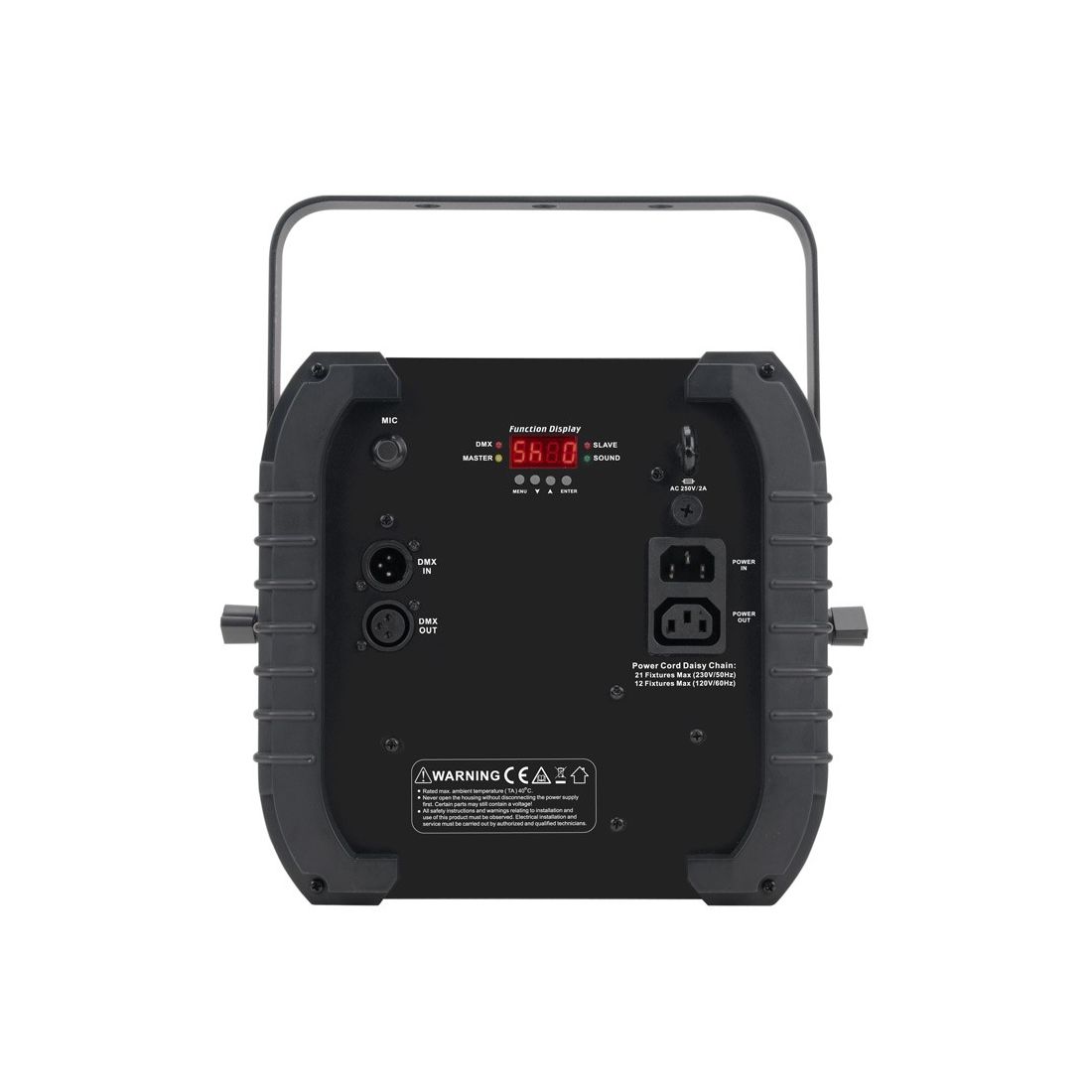

The rear panel features a 4-button LED menu display, 3-pin DMX in/Out to link units together and IEC power In/Out to daisy chain the power from one fixture to another
Gallery
Specification
- LED DMX-512 Moonflower from the popular REVO Series with 256 razor sharp Red, Green, Blue & White Beams
- Produces unique and exciting LED patterns that may be projected on a wall, ceiling or dance floor – great with or without fog
- 256 total 5mm LEDs : 64 Red, 64 Green, 64 blue and 64 White
- 2 DMX Channel Modes (4 Channel mode or 256 Channel mode)
- 4-Button LED DMX Display
- Linkable via XLR connections
- Wide beam spread covers a large area
- 3 operation modes: DMX, Sound Active & Primary/Secondary
- Sound active from built-in programs
- Strobe function
- Beam angle: 35 degrees
- Runs extremely cool! - NO Duty Cycles! – Run all night!
- Includes hanging bracket & safety loop
- Power Consumption: 34W maximum
- Extreme long lifetime of the LEDs (50,000 hr. rating)
- Compatible with ADJ UC IR Remote
- IEC AC IN/OUT on rear to daisy chain power (up to 12 fixture’s @ 120V and 21 fixture’s @ 230V )
- Multi-voltage Operation: AC 100-240V, 50/60Hz
- Dimensions (LxWxH): 312 x 306 x 334 mm
- Weight: 4.9 kg
