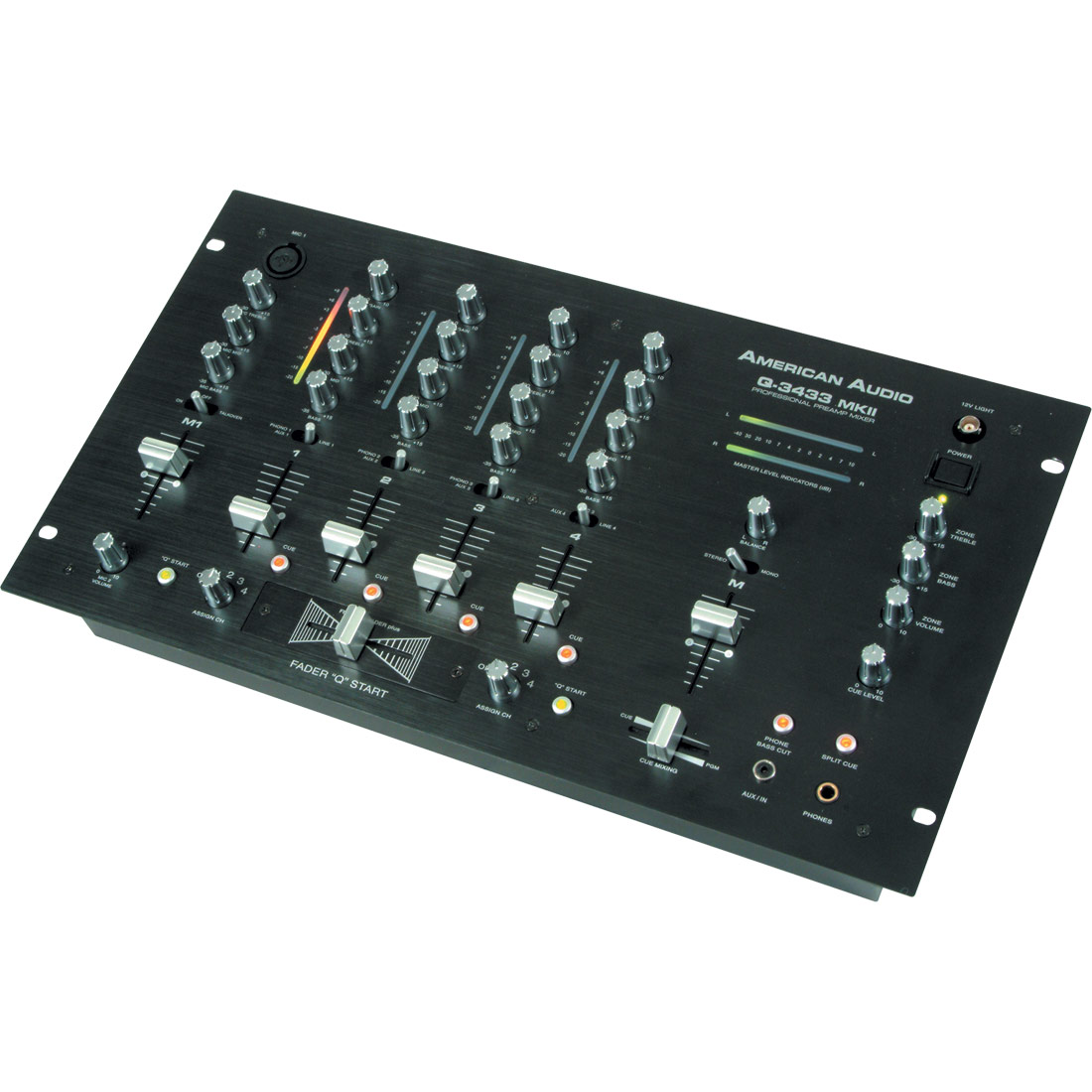

Q-3433 MKII Mixer 19"

Archive

MAIN FEATURES:

-3 phono, 4 line, 3 auxiliaries & 3 mic inputs
- Fader 'Q' Start control with On/Off switch (for use with compatible American Audio 'Q' series CD Players - fader allows auto return to preset digital cue points).

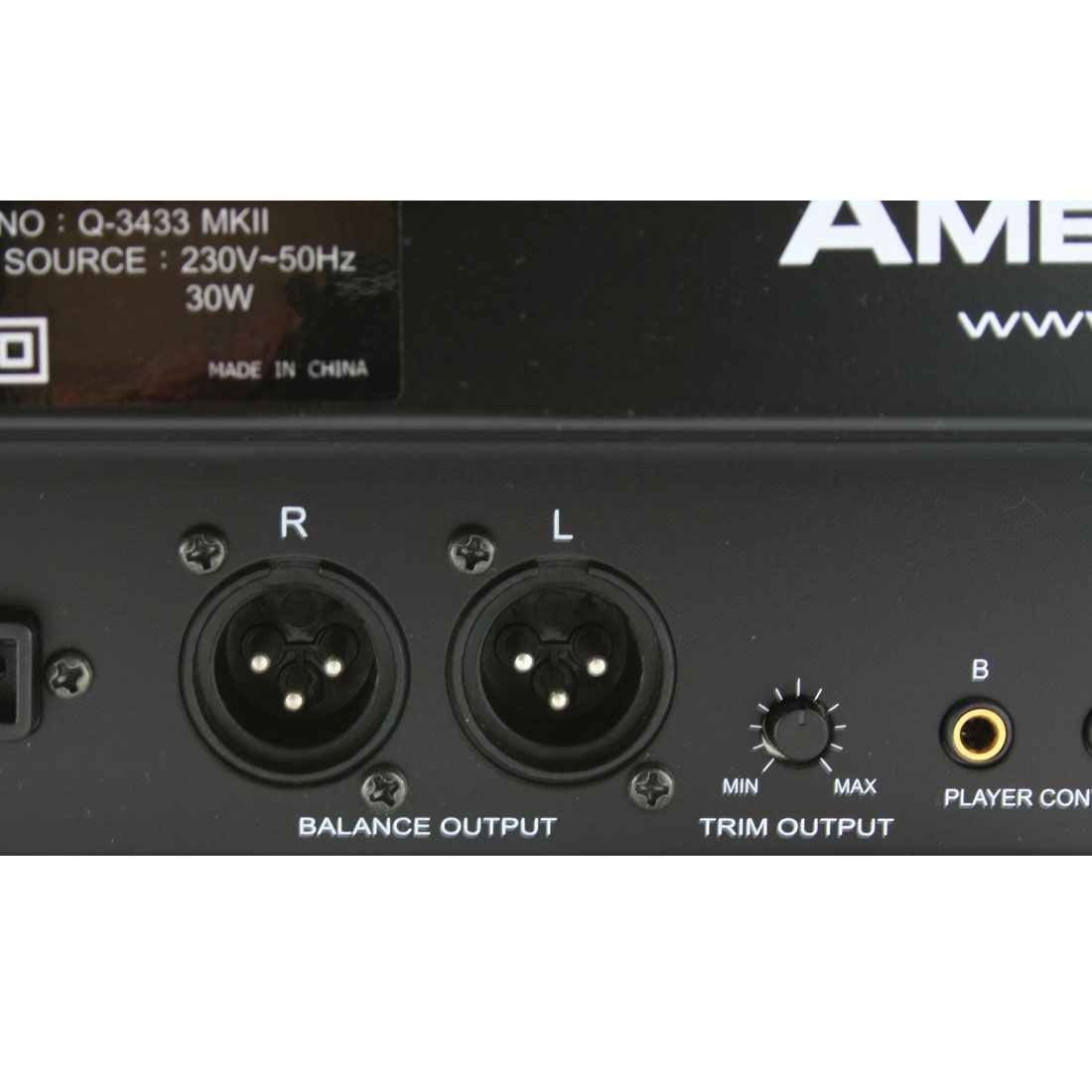

- Balanced XLR Master Outputs
- Bass, mid & treble control for mics
- Individual Volume control for each mic,  combo microphone connection
- 1/4''(6.3mm)/XLR. On/off/talkover switch for DJ mic
- High quality replaceable Feather Fader plus for smooth, clean crossfading
- On/Off Channel assign switch for crossfader
- Gain control for each channel
- Bass, mid and treble control for each channel
- Master volume control
- Stereo/Mono switch
- Cue mixing slider
- Split Cue monitoring
- Cue Level Control
- Cue button with LED for each channel
- Master Level Indicators
- Left/Right master balance
- 12V BNC light connector for gooseneck light
- Zone/Booth volume, treble and bass control
- High level headphone output

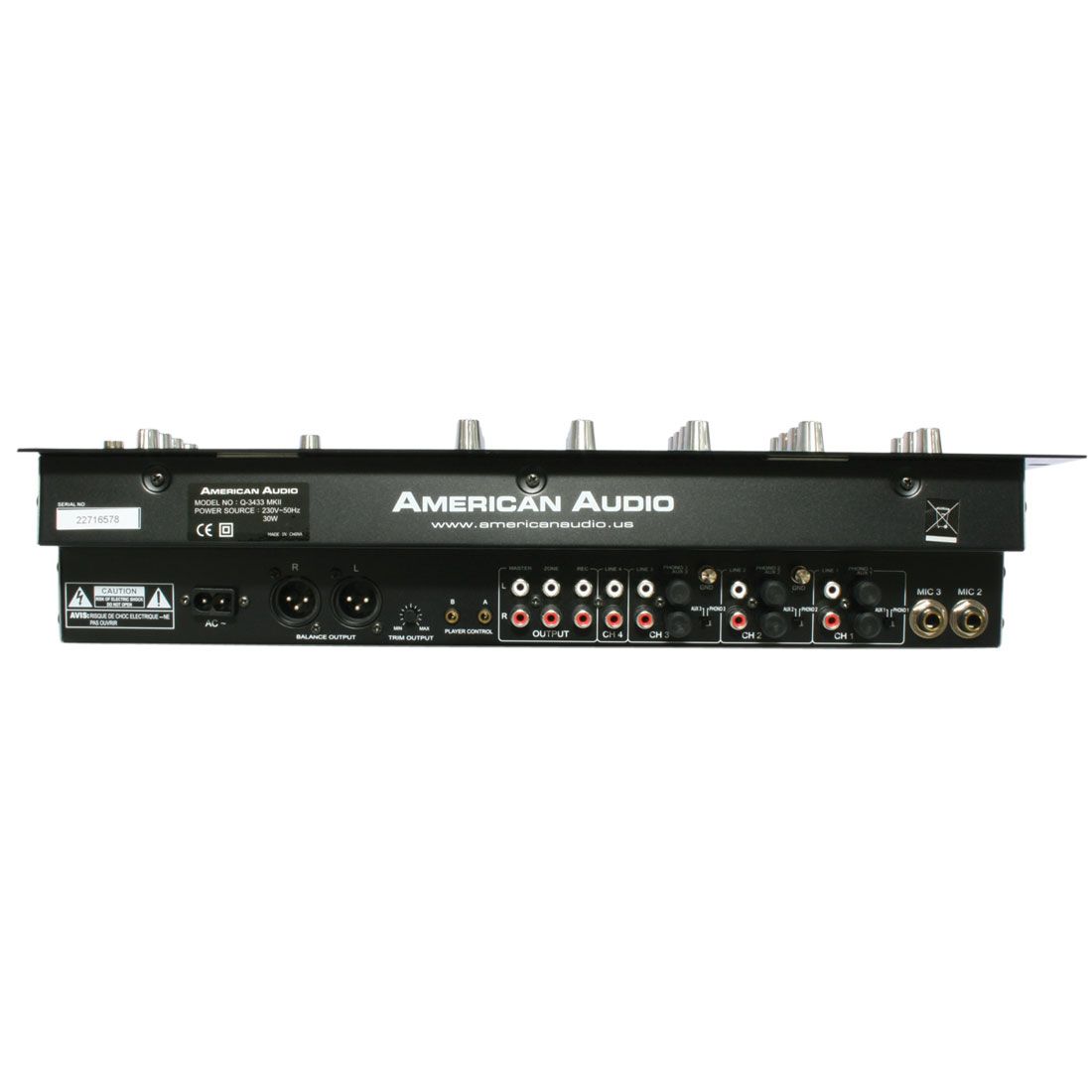

- Left & right turntable ground connectors conveniently located on rear panel
- Independent 1/4'' jack light control signal output for touch panels and chase controllers
- Headphone bass cut switch
- Pre Fader Level Switch
- Power: 115V/60Hz or 230V/50Hz switchable
- Crossfader: FF-Plus/S Dimensions: 19'' W x 9.5'' D x 10.5'' H - 482mm x 242mm x 65mm (6 rack spaces)
- Weight: 10 lbs. / 4.4kg.
