Pixie Strip 120 Select
Key Features
• Dimensions (LxWxH): 2000 x 32 x 67mm
• Viewing Angle : 120 x 120°
• Pixel Pitch: 16,5mm / 60 pixels/m

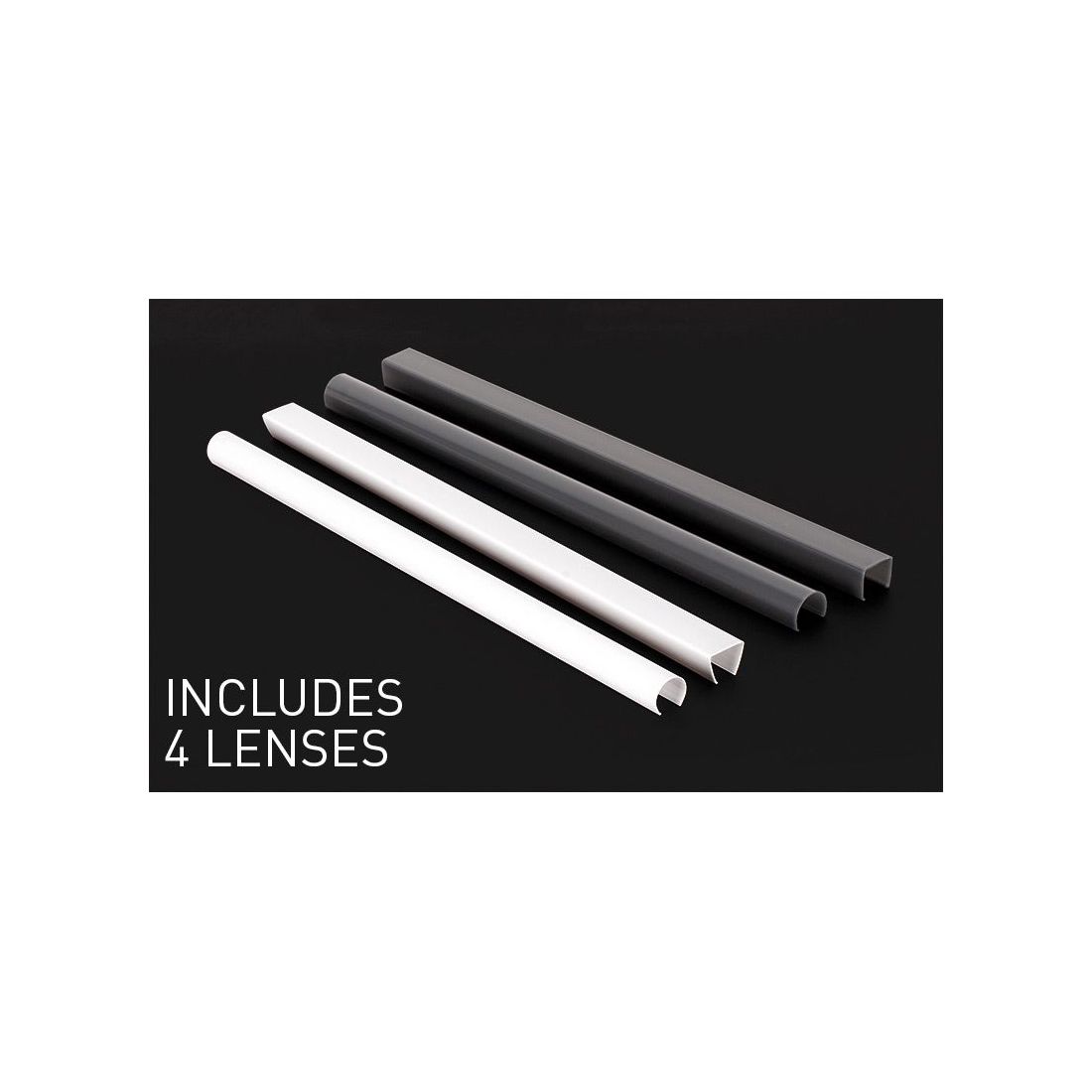

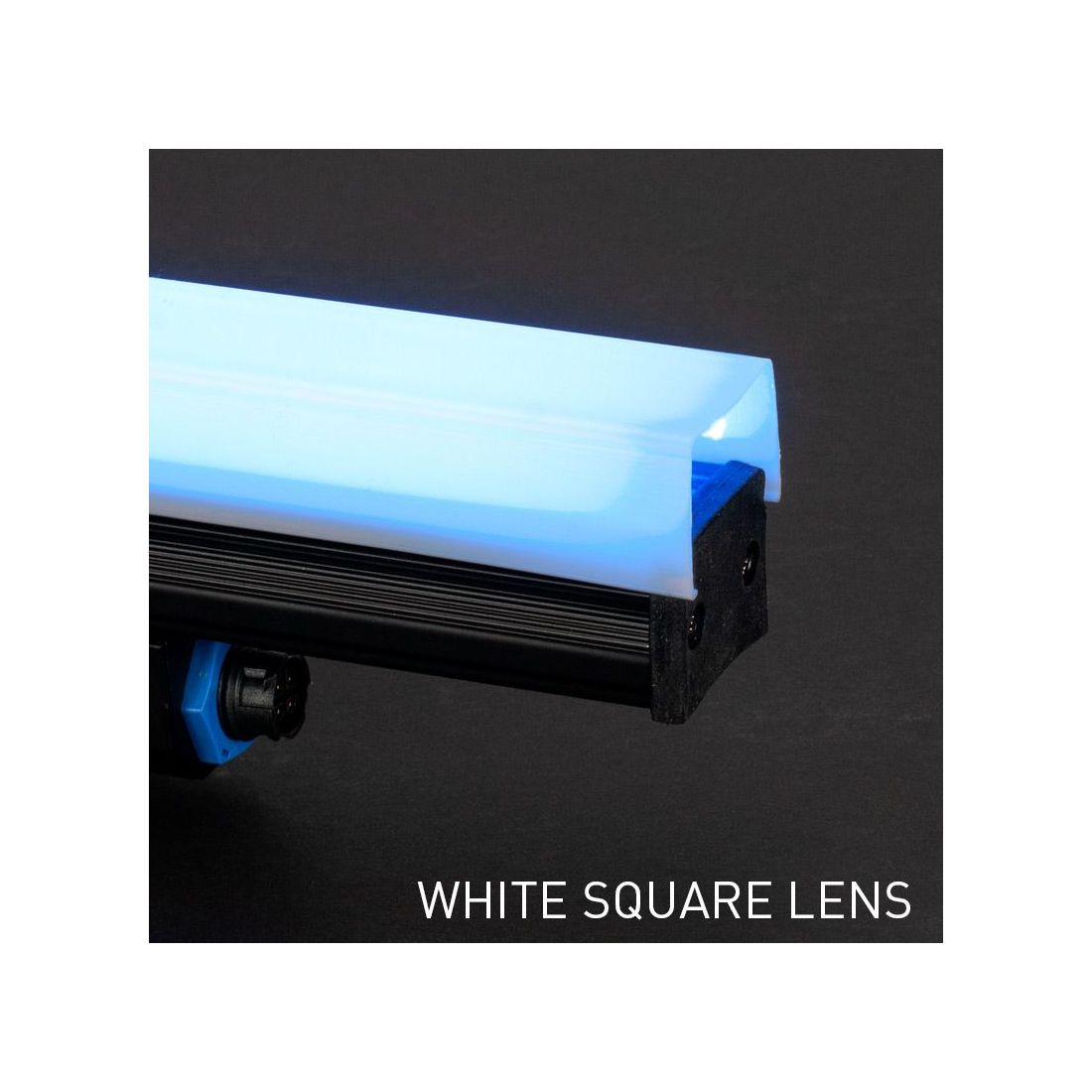

• 4 Frost lenses included (1 white rounded, 1 white square, 1 smoked rounded, 1 smoked square)
• 120x 0,2W SMD RGB LEDs
• PWM: 44kHz
Product Information

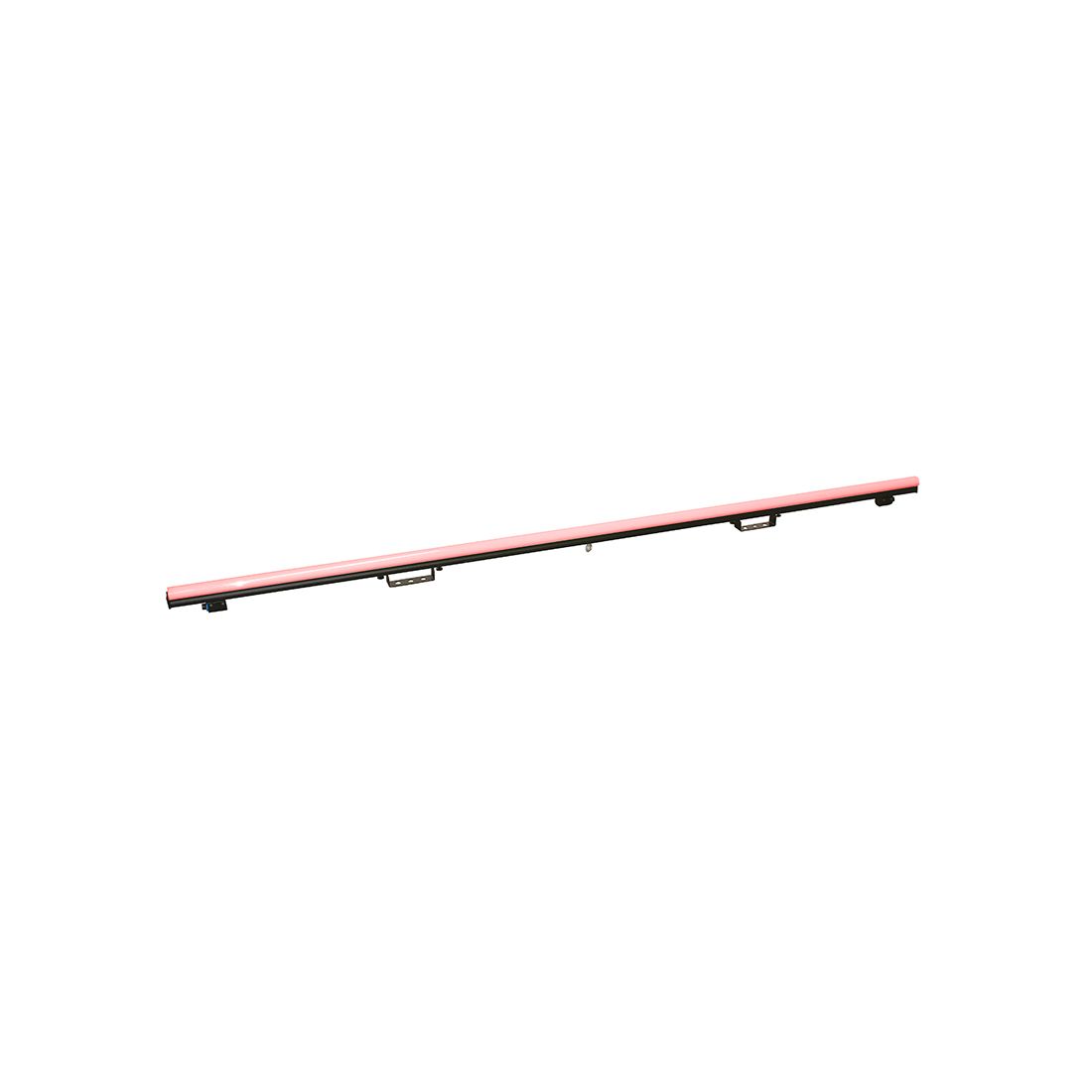

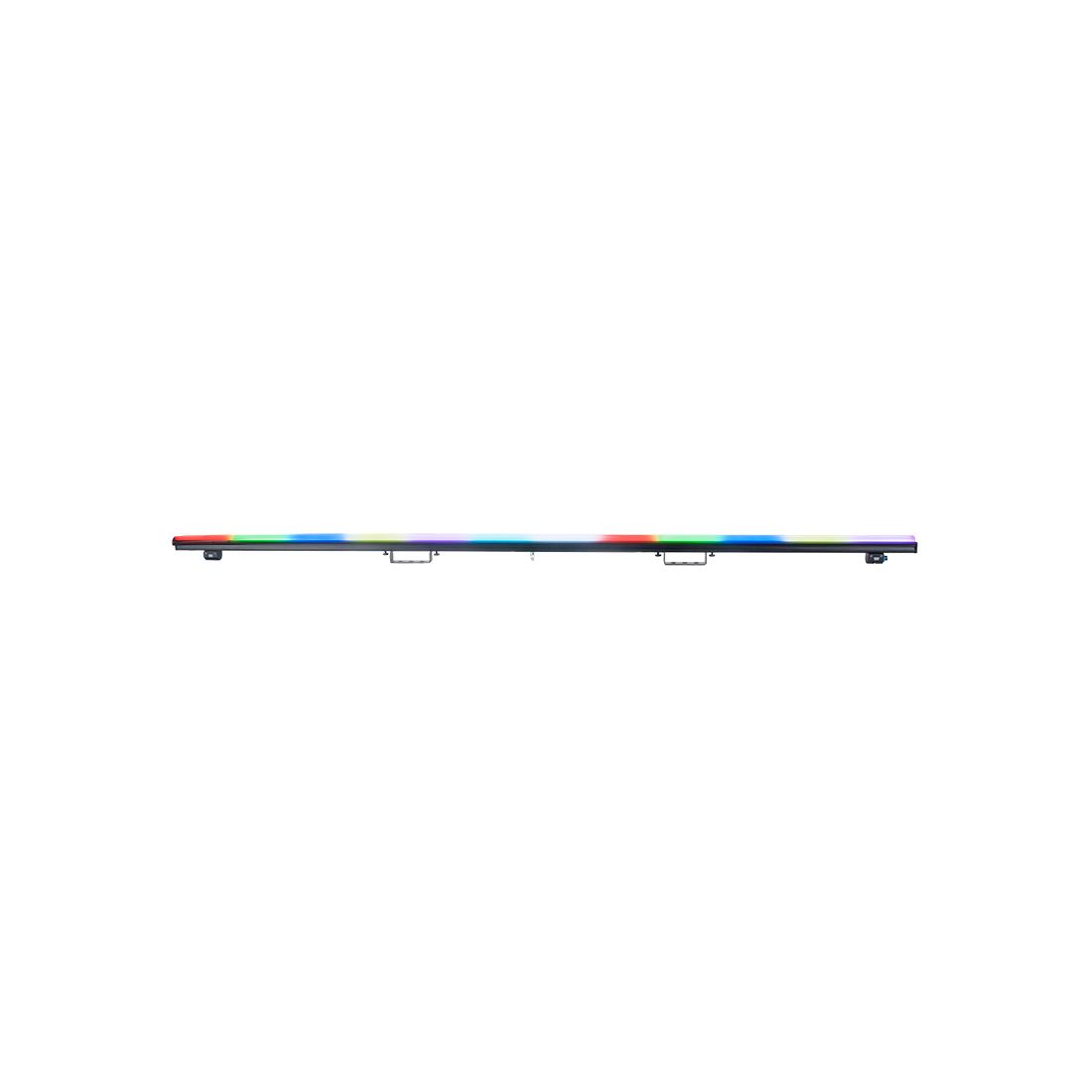

The PIXIE STRIP 120™ is a 2 meter, indoor LED pixel strip featuring (120) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44000Hz for flicker free operation for broadcast TV and FILM applications. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, two integrated adjustable mounting brackets, a safety cable loop, and includes square and rounded frosted lens attachments.
Easy and versatile control options are handled by the Pixie Driver 2000™ V2 (sold separately) which provides simple on-board programs, manual dimming and strobe control as well as full pixel mapping control of 2,040 max pixels via Kling-Net, Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary, 4pin combo cables (sold separately) which are available in lengths from 0,3 (1 cable included) to 15m
Gallery
Specification
- • 120 SMD RGB 3-in-1 LEDs
- • Individual LED Wattage: 0,2W
- • PWM: 44kHz
- • Viewing Angle : 120 x 120 degrees
- • Pixel Pitch: 16,5mm
- • 60 pixels/m

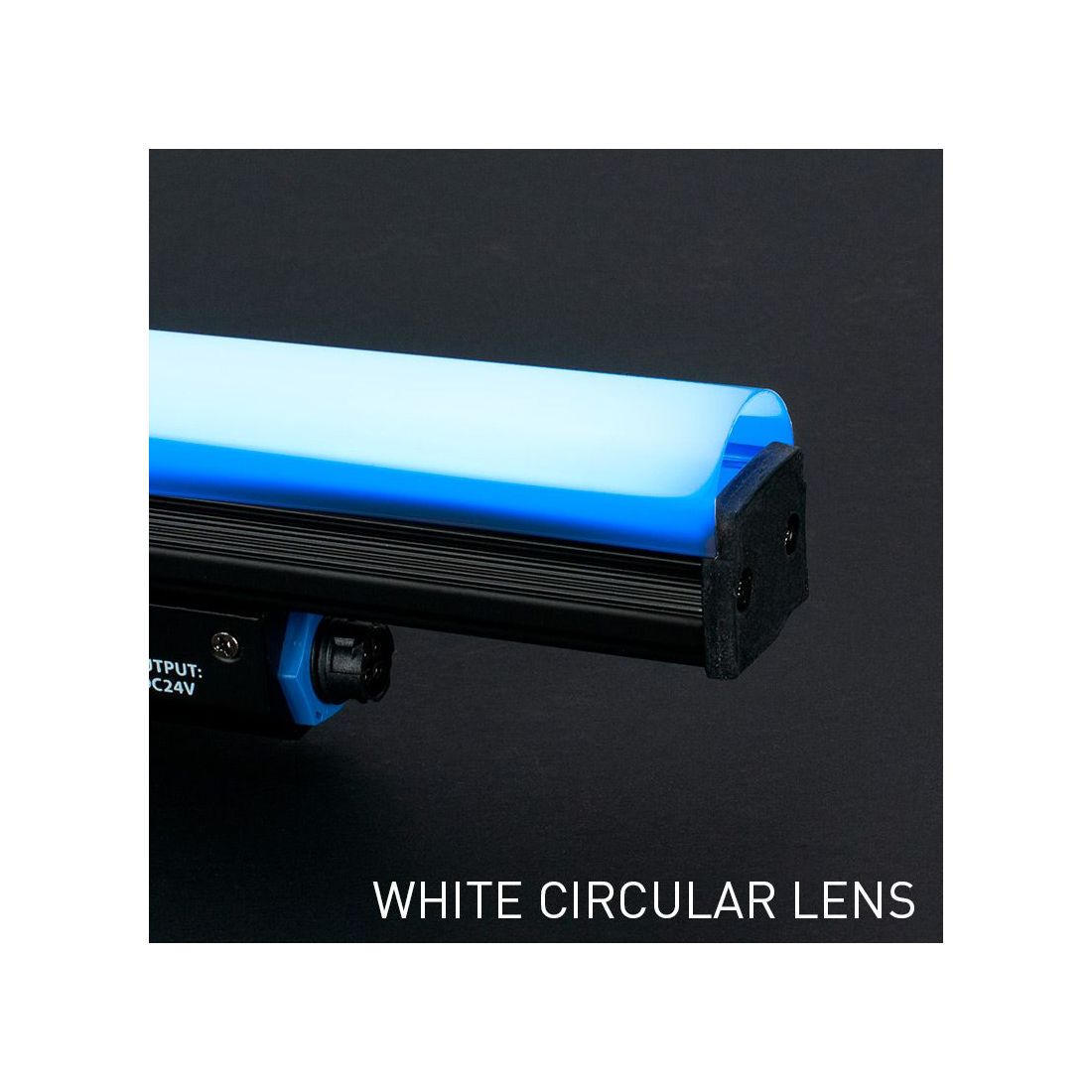

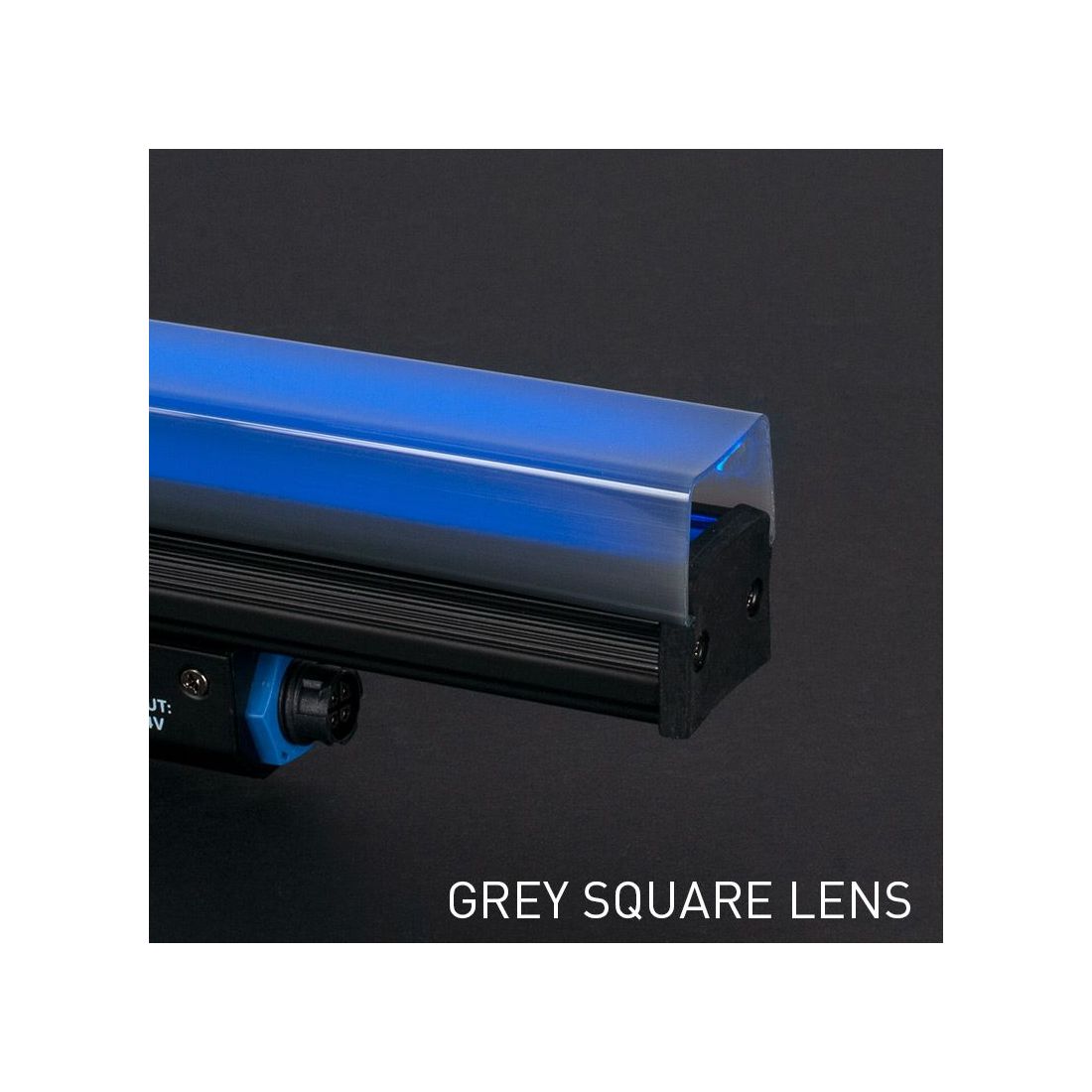

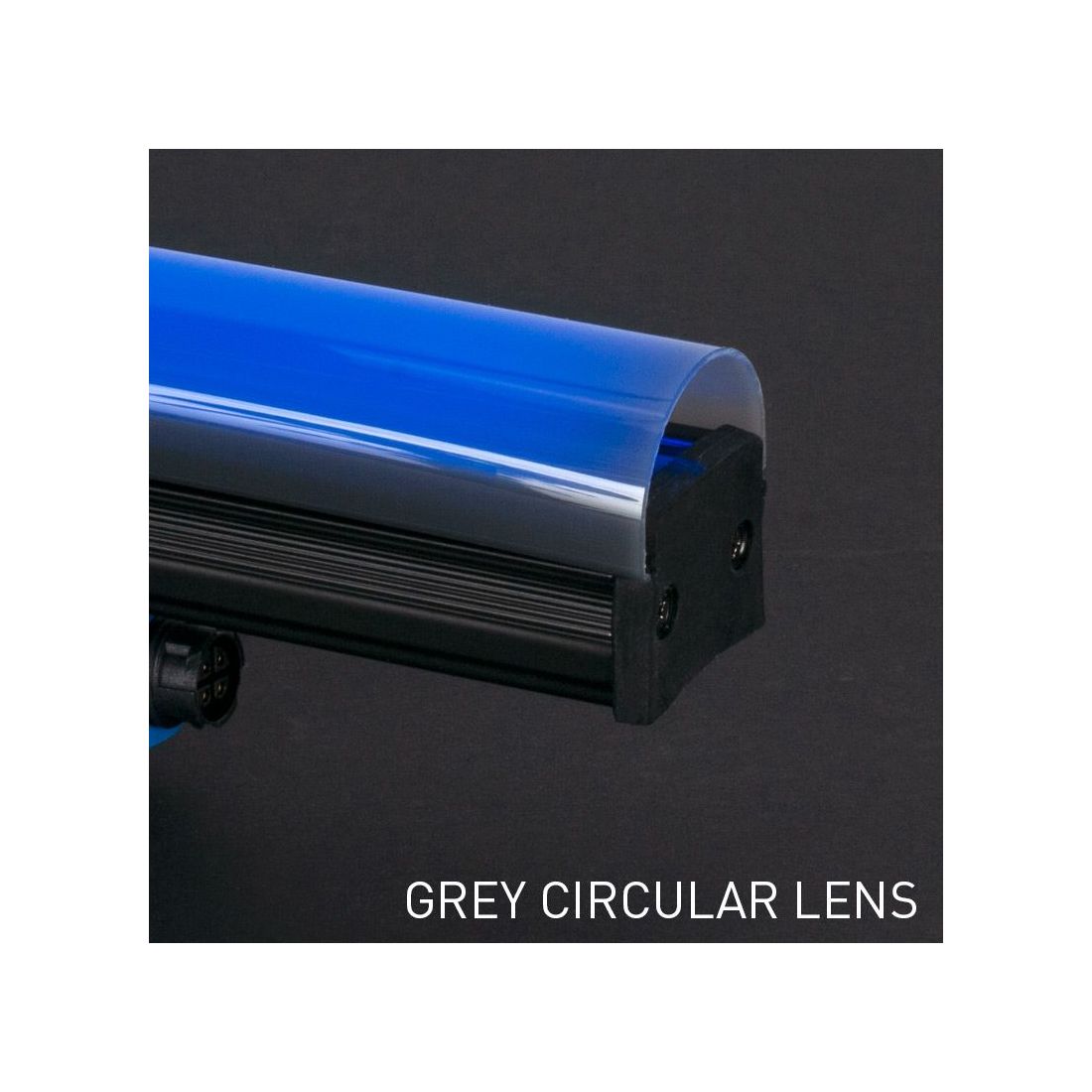

- • 4 Frost lenses included (1 white rounded, 1 white square, 1 smoked rounded, 1 smoked square)
- • Controlled by Pixie Driver 2000 V2 (code 1226200065) through Klingnet, ArtNet or sACN
- • RGB Color Mixing
- • Color Resolution : 8-bit per color / 24-bit per pixelConstruction:
- • Extruded Aluminium Metal Housing
- • Magnetic end-caps

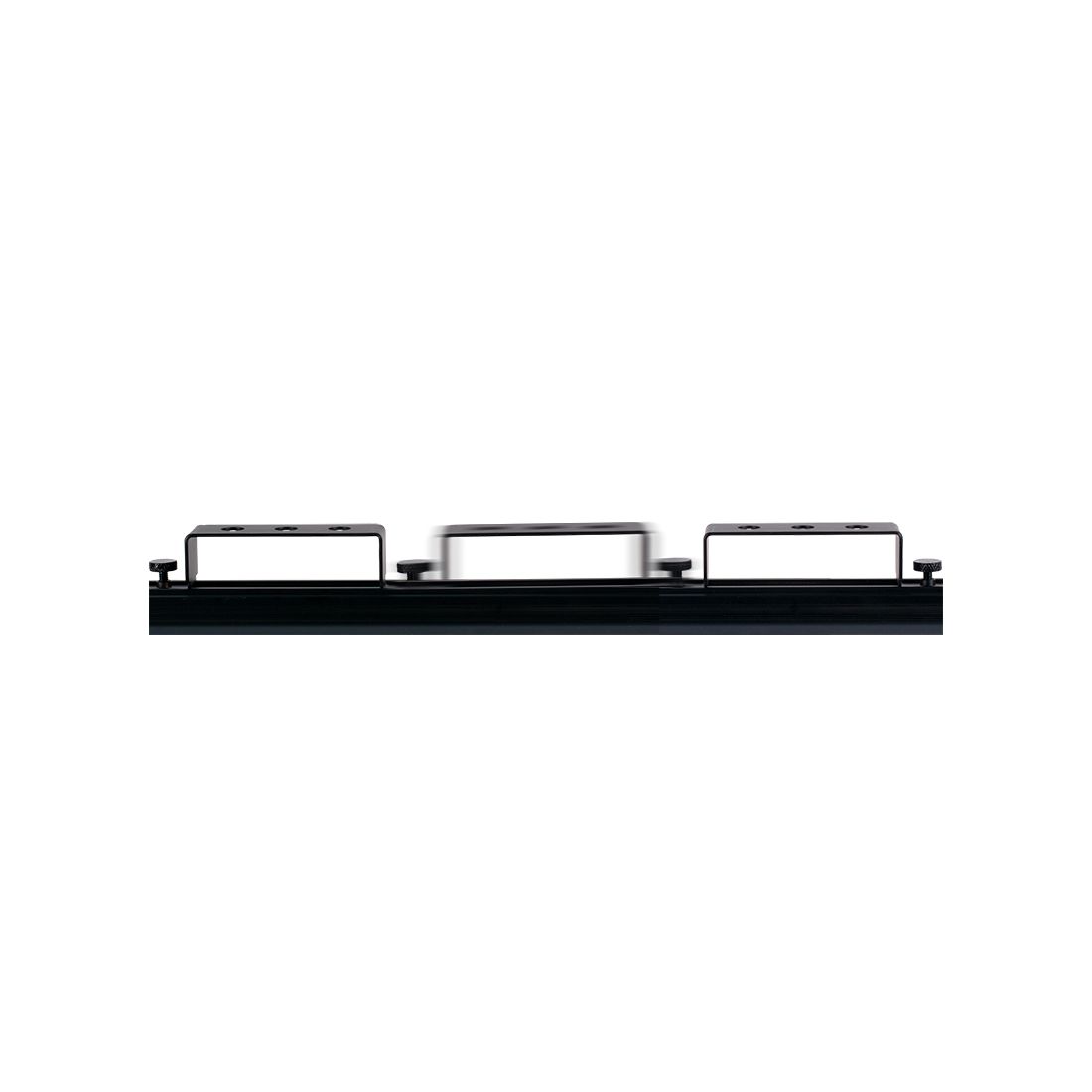

- • Includes 1 adjustable Hanging bracket
- • 24V In/Out
- • Max. Power consumption: 24W

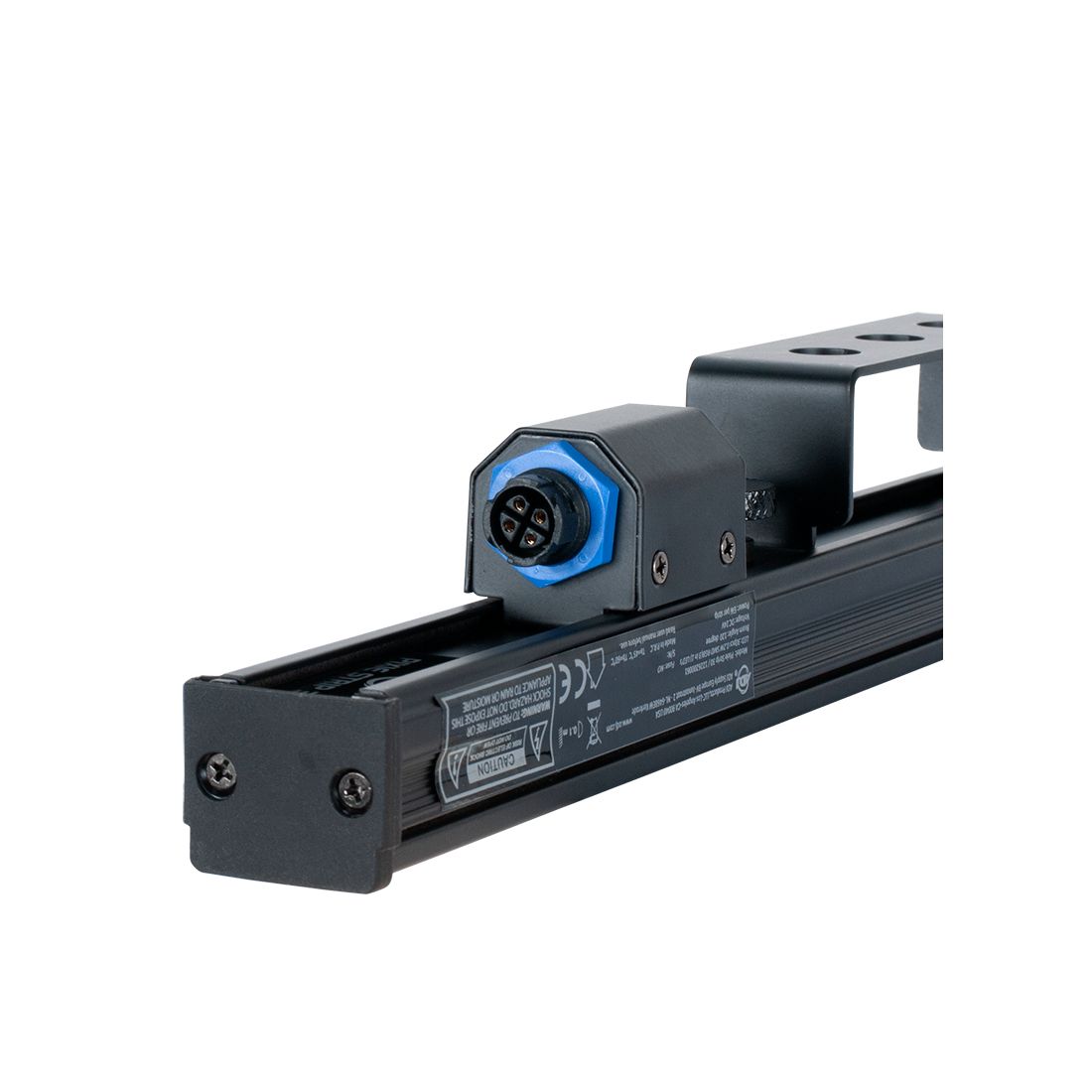

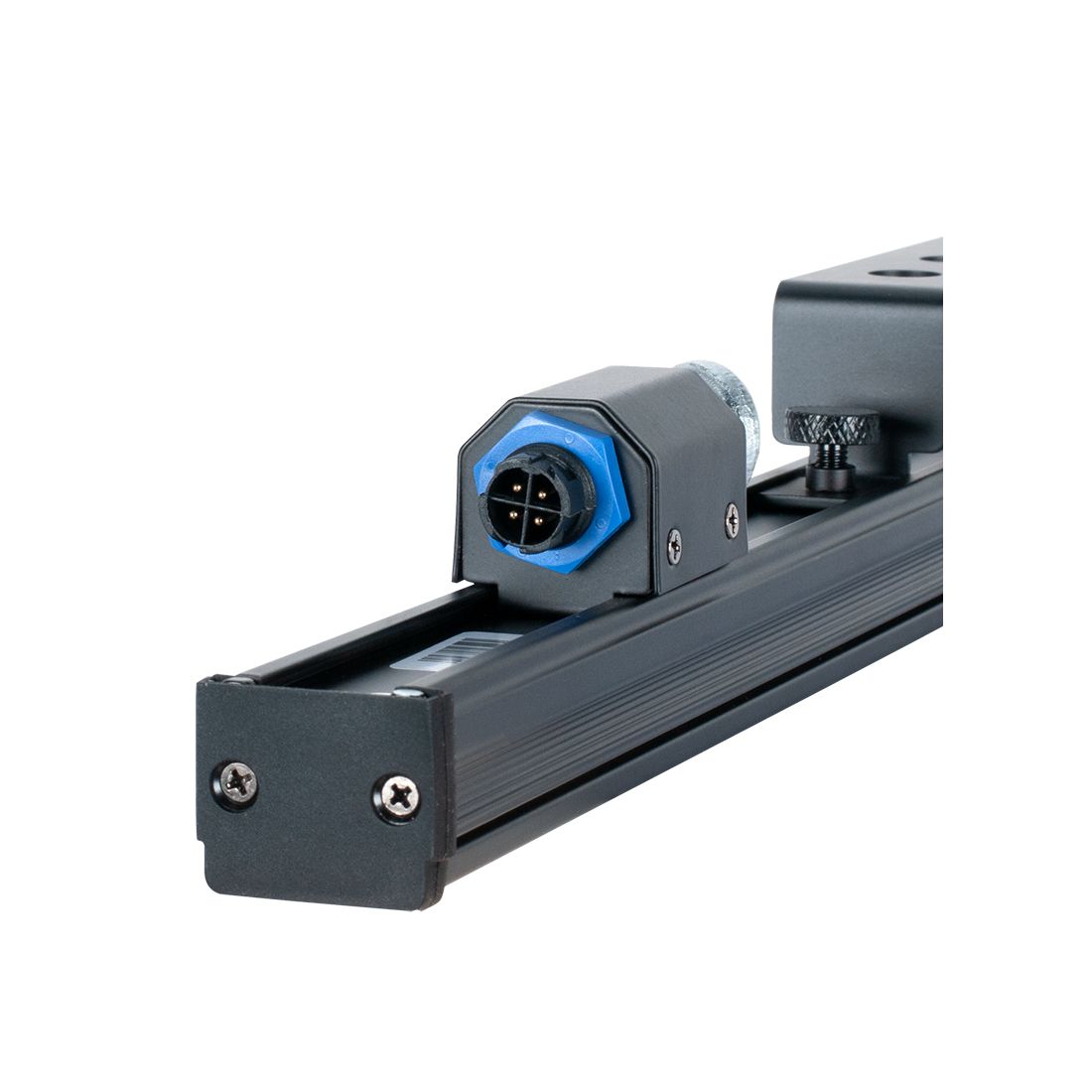

- • 4-pin proprietary Power/Data In/Out connections
- • Dimensions (LxWxH): 2000 x 32 x 67mm
- • Weight: 2,1kg.
