Pixie Driver 8000 Select
Pixie Driver 8000 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols.
The Pixie Driver 8000 features a universal auto switching power supply (100-240V), a 4-button LCD control menu...
Product Information
SKU: 1226200067
GTIN: 10810087370814
HS-Code: 8537109899
Pixie Driver 8000 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols.

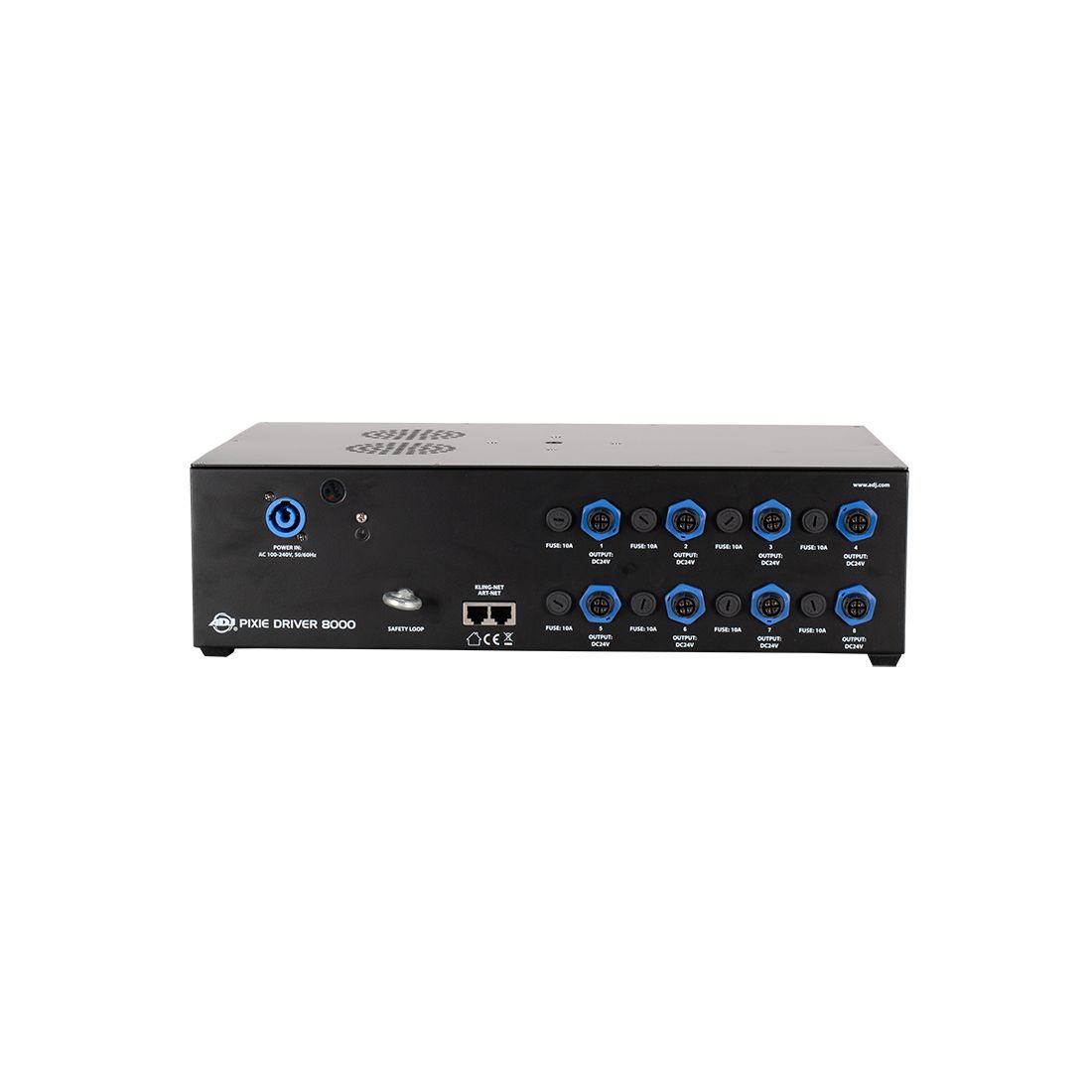

The Pixie Driver 8000 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 30cm to 15m. The Pixie Driver 8000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Gallery
Specification
- • Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
- • Manual RGB mode
- • Internal programs
- • Manual Dimming and Strobe Control
- • Full Pixel Mapping Control
- • Drives up to 8,160 Pixels via KlingNet (1,020 Pixels per port)
- • Drives up to 1,360 Pixels via Art-Net and sACN (170 Pixels per port)
- • OLED screen with 4-button menu
- • USB port for Firmware Updates
- • KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's or (8) Pixie Strip 120's (Per port. Or any combination not exceeding 1,020 pixel per port)
- • ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's or (1) Pixie Strip 120 (Per port. Or any combination not exceeding 170 pixel per port)
- • sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's or (1) Pixie Strip 120 (Per port. Or any combination not exceeding 170 pixel per port)
- • Locking Power Input
- • Two KlingNet / Artnet ethernet ports
- • Eight 4-pin DC24V power/data outputs to Pixie Strips
- • Bolt to add a clamp to hang from truss (clamp not included)
- • Includes 19-inch rack mount ears
- • Safety eye
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Power Consumption: 1,600W max
- • -20°C to 45°C
- • Dimensions (LxWxH): 294x480x120mm
- • Weight: 6.5 kg.
- • (1) PSLC10: 3m, 4-pin cable. Connects between Pixie Driver 8000 and Pixie Strip.
- • (1) Power Input cable
- • (2) 19" Rack Ears
Specifications subject to change without notice
