Pinspot LED Quad DMX
Archive

Brand
The ADJ Pinspot LED Quad DMX is a 8-Watt Quad Color (4-IN-1) Pinspot with red, green, blue and white diodes on one LED. It produces sharp 15-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects. The Pinspot LED Quad DMX comes with a wireless IR remote to control color fades, built-in shows, dimming, strobe, black out and sound activation. DMX connections allows users to connect and control multiple units at the same time from a DMX...
Read More

Product Information

SKU: 1212100010
GTIN: 819730012678
HS-Code: 9405403990

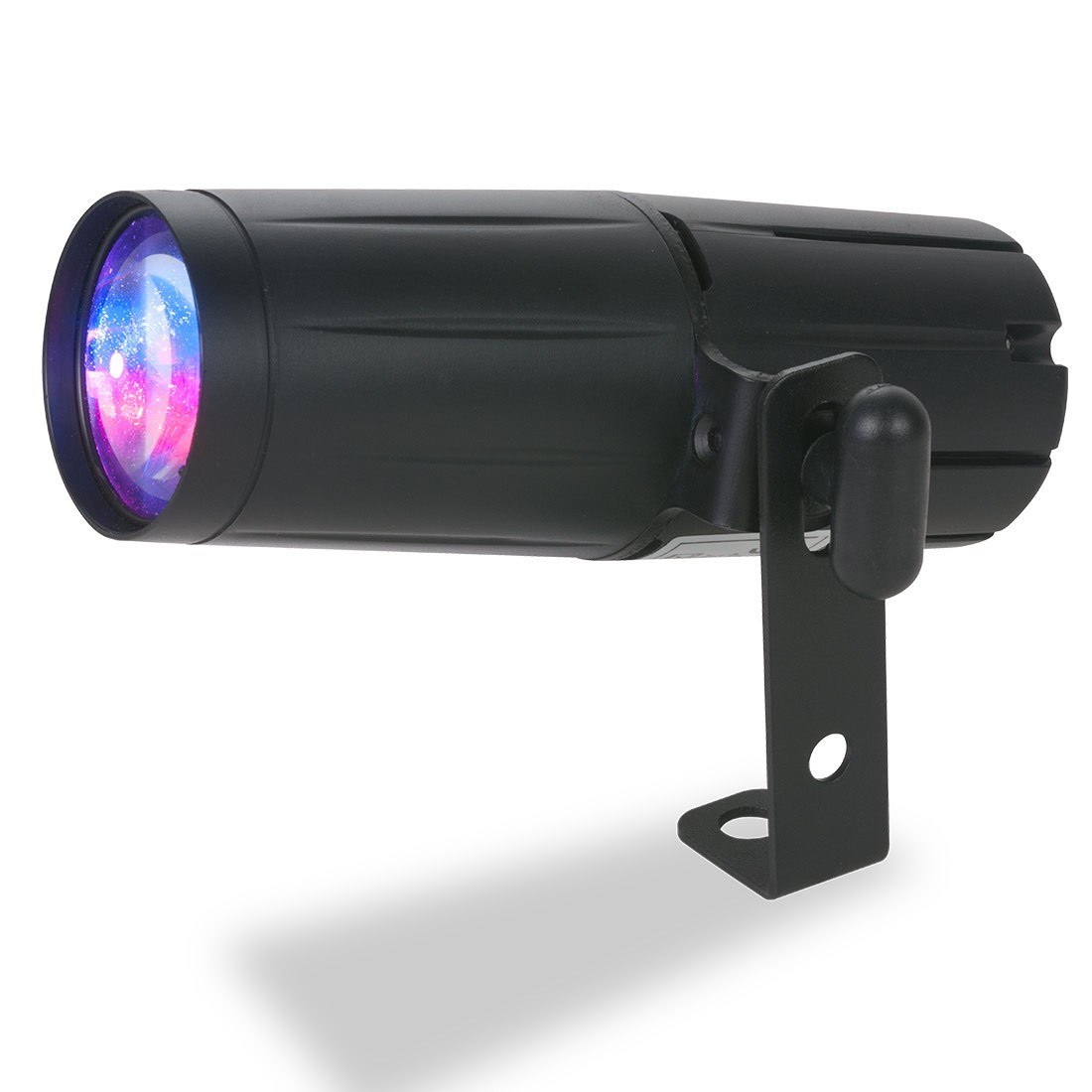

The ADJ Pinspot LED Quad DMX is a 8-Watt Quad Color (4-IN-1) Pinspot with red, green, blue and white diodes on one LED. It produces sharp 15-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects.

The Pinspot LED Quad DMX comes with a wireless IR remote to control color fades, built-in shows, dimming, strobe, black out and sound activation. DMX connections allows users to connect and control multiple units at the same time from a DMX software or hardware controller.



Gallery

Specification

    Specifications:
    8W Quad (4-in-1) RGBW LED Pinspot (Rated at approximately 10,000 hours)
    - Operational Modes: DMX Controlled / Sound Active / IR Remote / Auto Run Programs
    - Beam Angle: 15-Degrees
    - Lumens: 740 @ 1M at 15°
    - DMX Channel: 6 Channel
    - DMX Connections: 3-Pin DMX In / Out
    - Dimming: Adjustable via IR remote
    - Shutter / Strobe: Adjustable via IR remote
    - Flicker free
    - ADJ IR Remote included, compatible with Airstream IR iOS App (sold separately)
    - Power Consumption: 11W Max
    - Input Voltage: AC 100V-240V 50/60Hz
    - Dimensions:  205x98x61mm
    - Weight:  0.4kg

       Specifications subject to change without notice

    Videos

    Downloads

    Photometric IES File

    Pinspot LED Quad DMX Pinspot LED Quad DMX Photometric IES FIles (Size: 12.7 KB)

    Photometric Data

    Pinspot LED Quad DMX Pinspot LED Quad DMX Photometrics (Size: 2.8 MB)

    User Manual

    Pinspot LED Quad DMX User Manual
    (Size: 678.1 KB)
