Par Z300 6K Select New
Key Features
Control
• Aria X2 Wireless Management System
• Aria X2 Wireless Management System
Optics
• 13980 Lux (Zoomed In to 9° @ 5 meters)
• 1828 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: 95
• 13980 Lux (Zoomed In to 9° @ 5 meters)
• 1828 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: 95
Source
• 300-Watt, 6000K Cool White C.O.B. LED (Chip On Board)

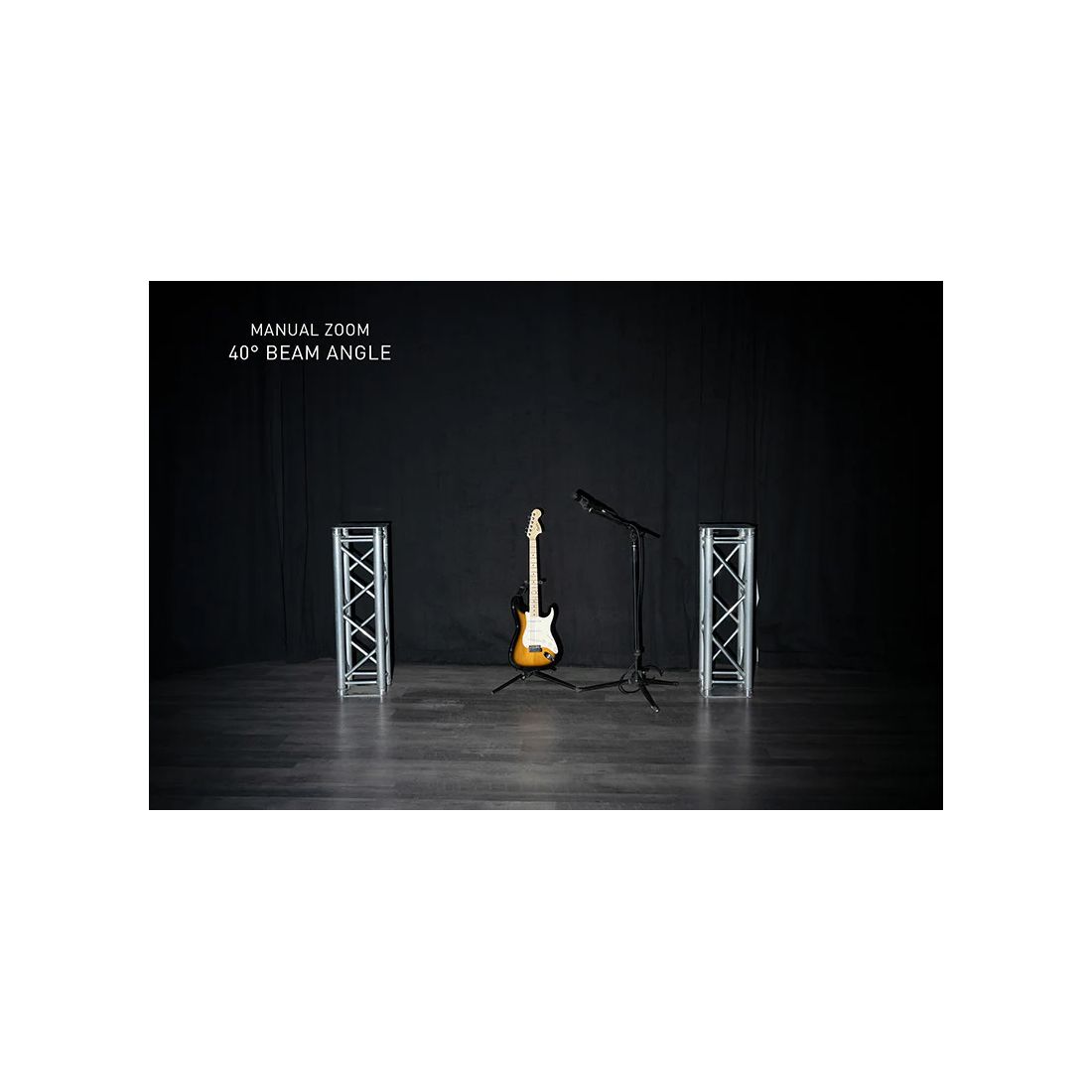

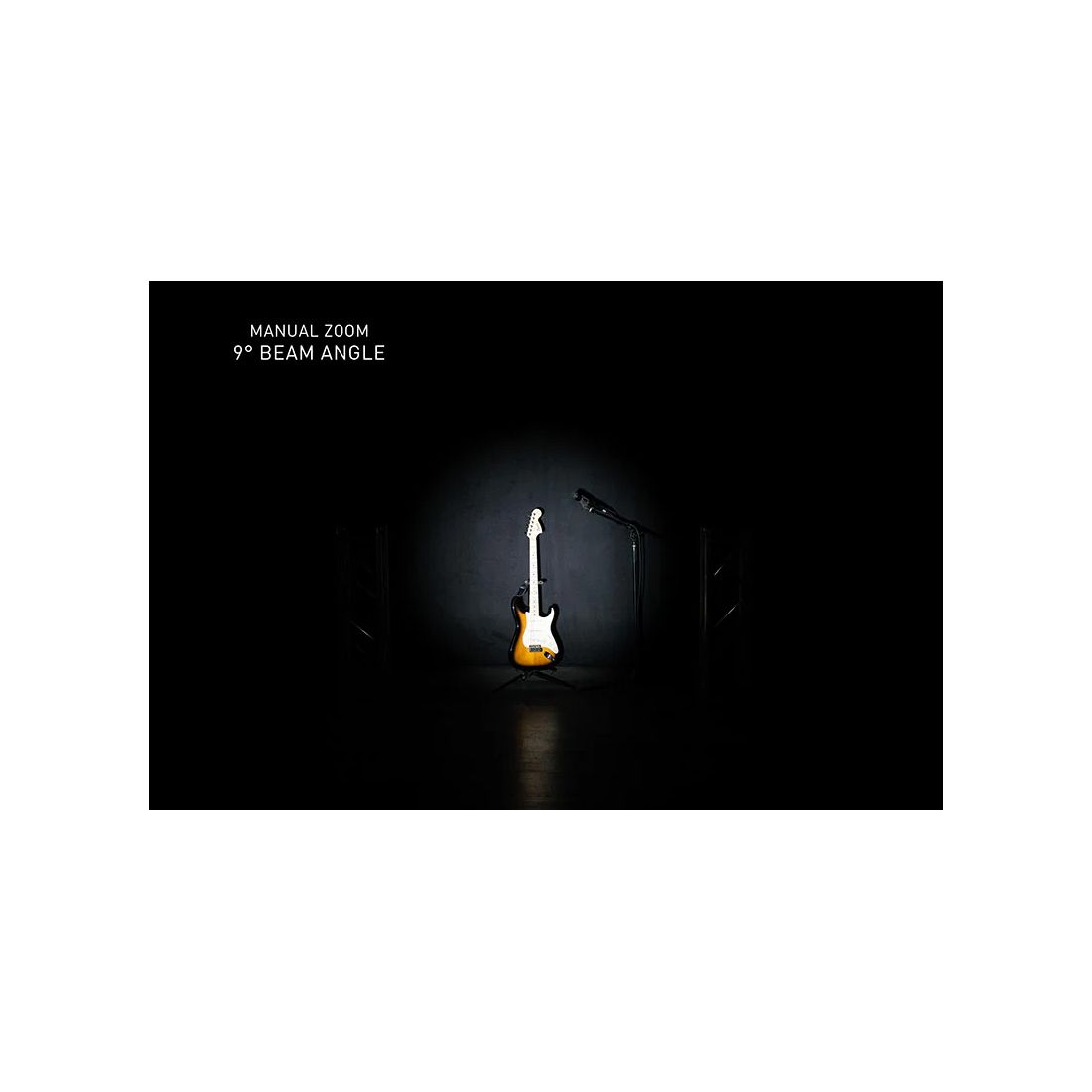

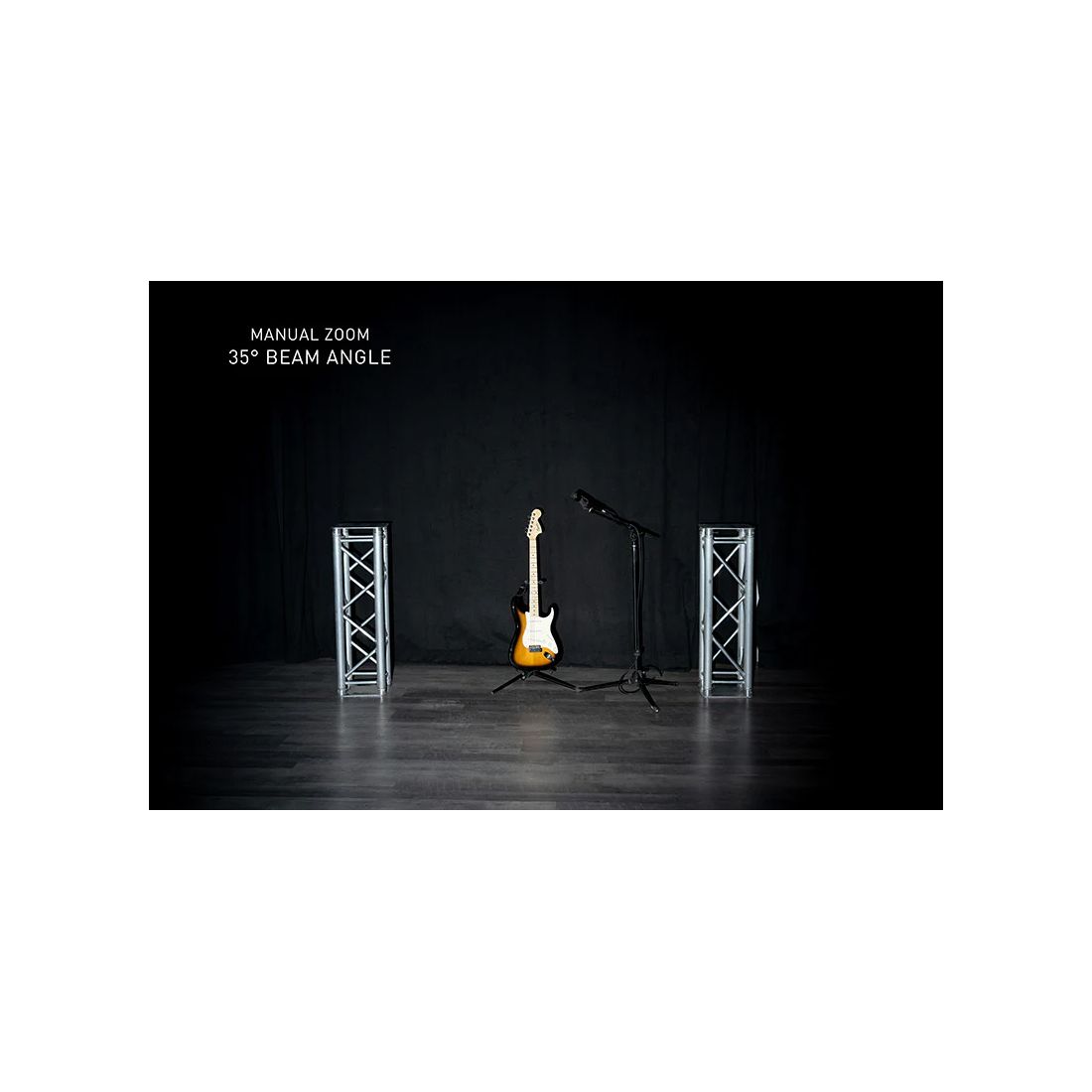

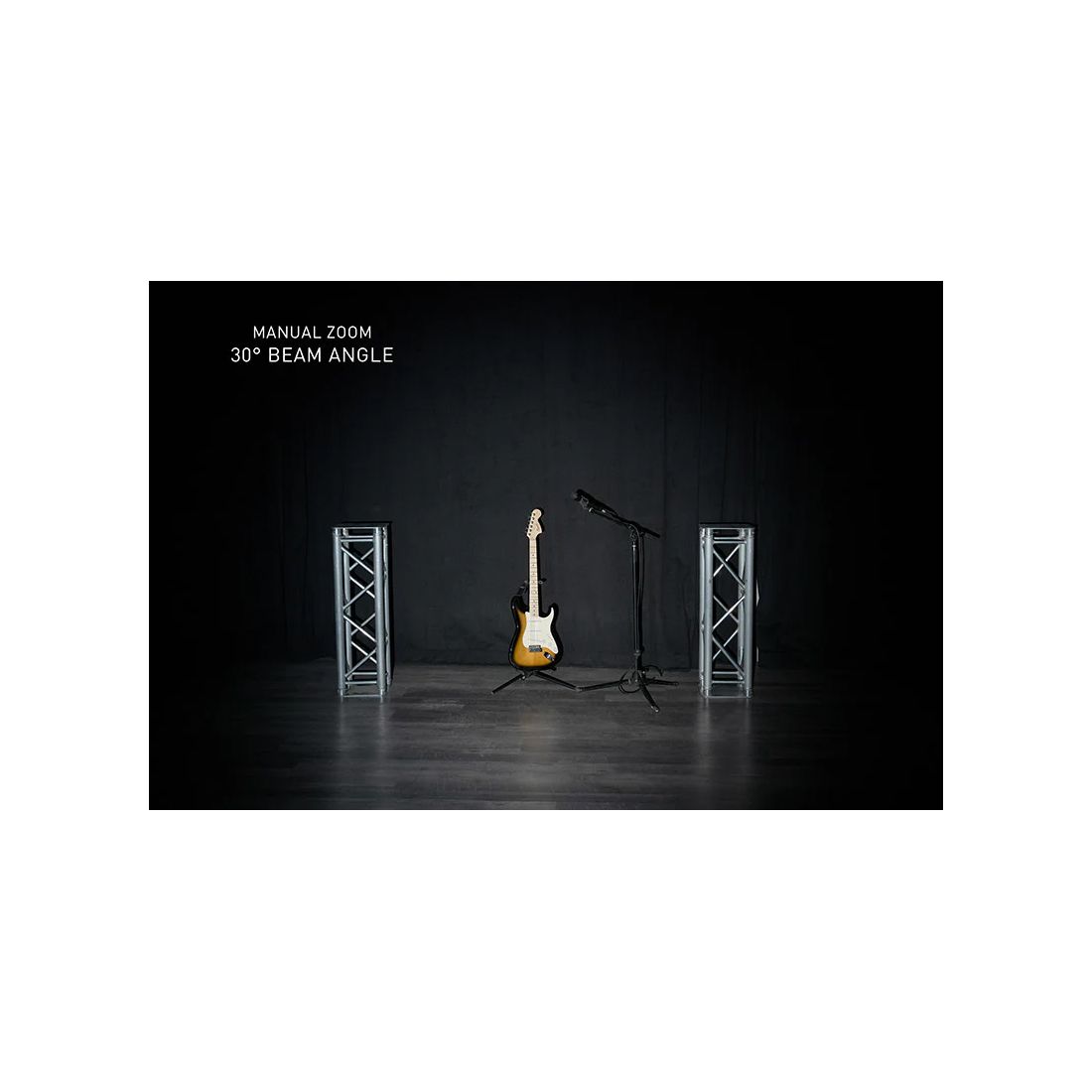

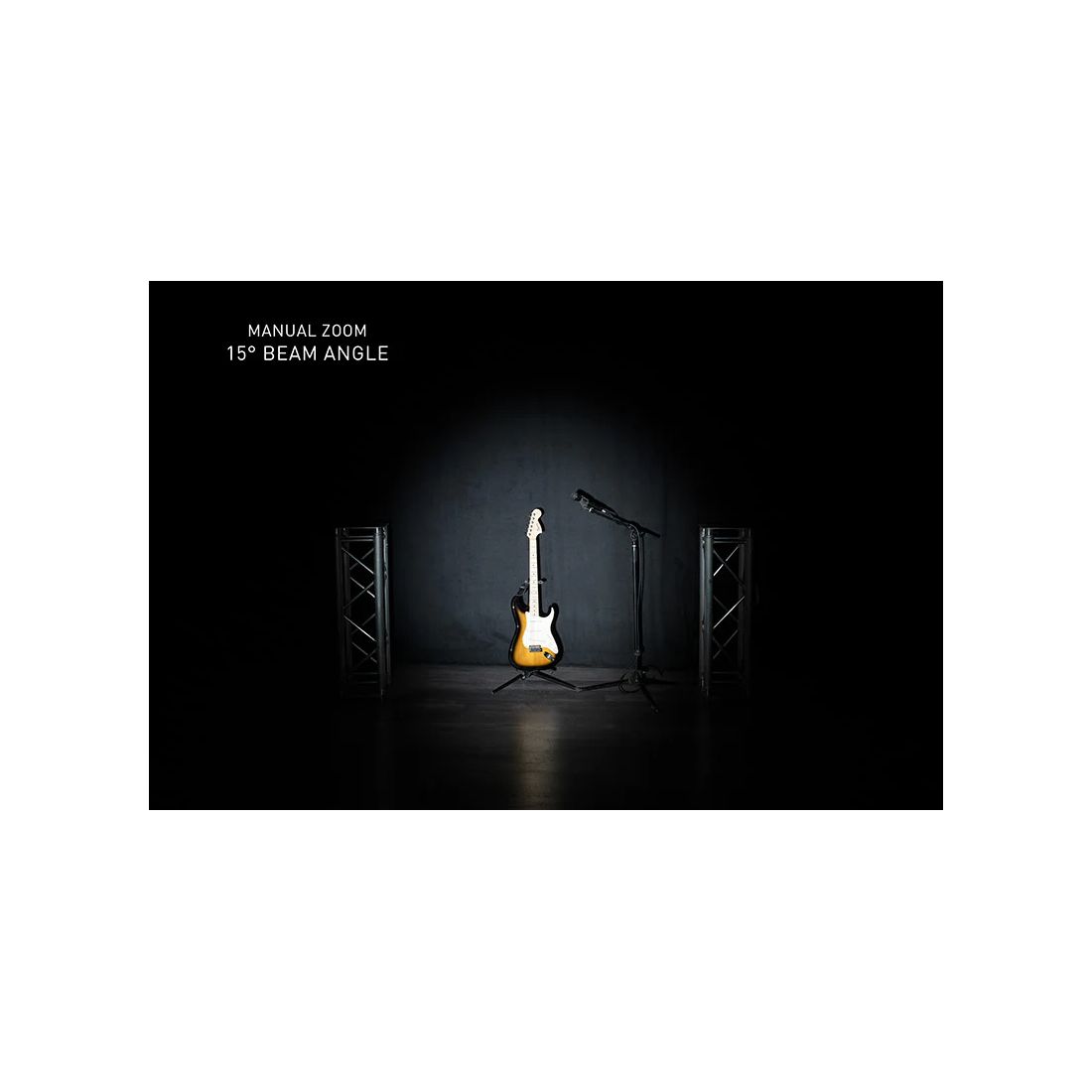

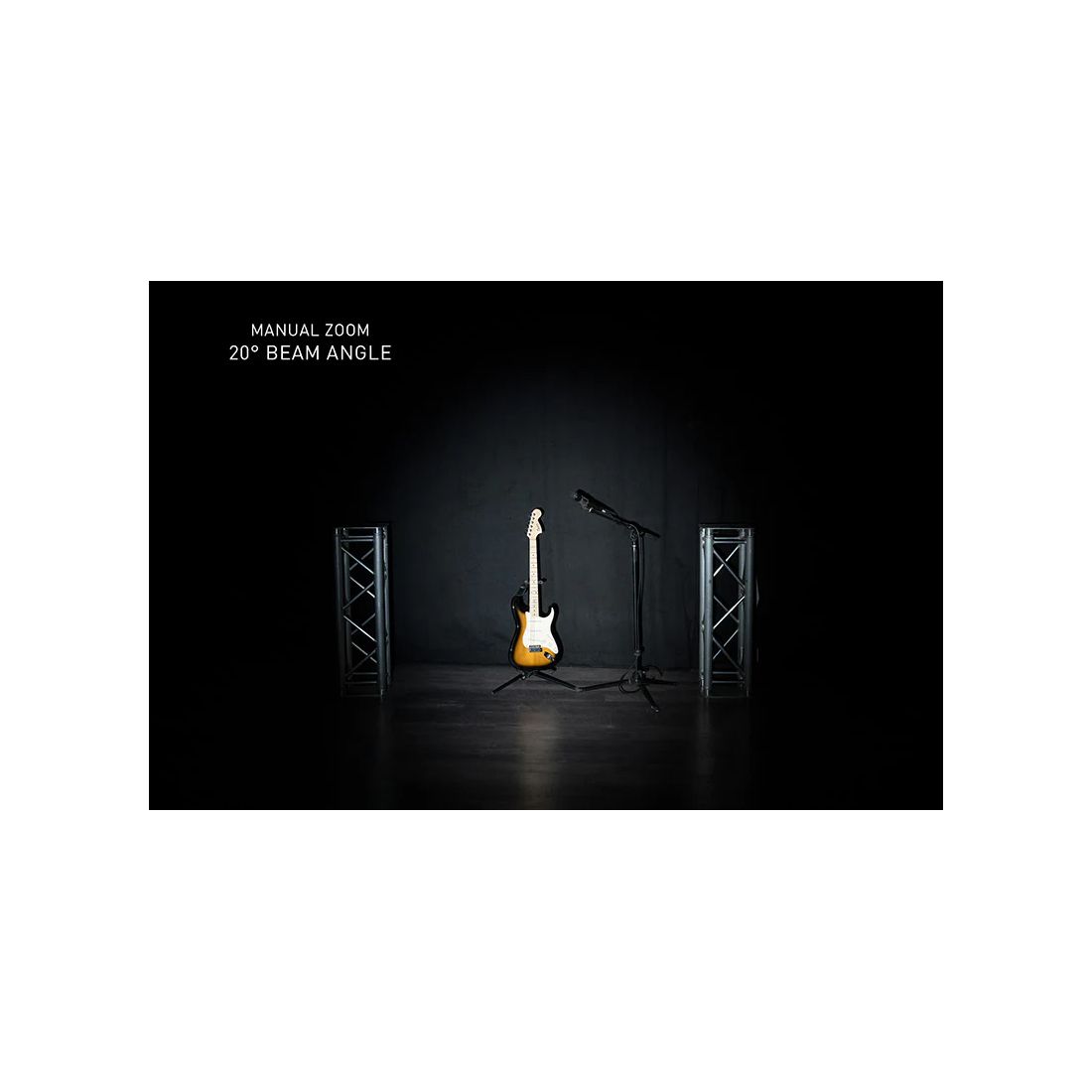

• Manual Zoom: 9°, 15°, 20°, 25°, 30°, 35° and 40°
• 300-Watt, 6000K Cool White C.O.B. LED (Chip On Board)
• Manual Zoom: 9°, 15°, 20°, 25°, 30°, 35° and 40°
Product Information
SKU: 1226100437
HS-Code: 9405423990

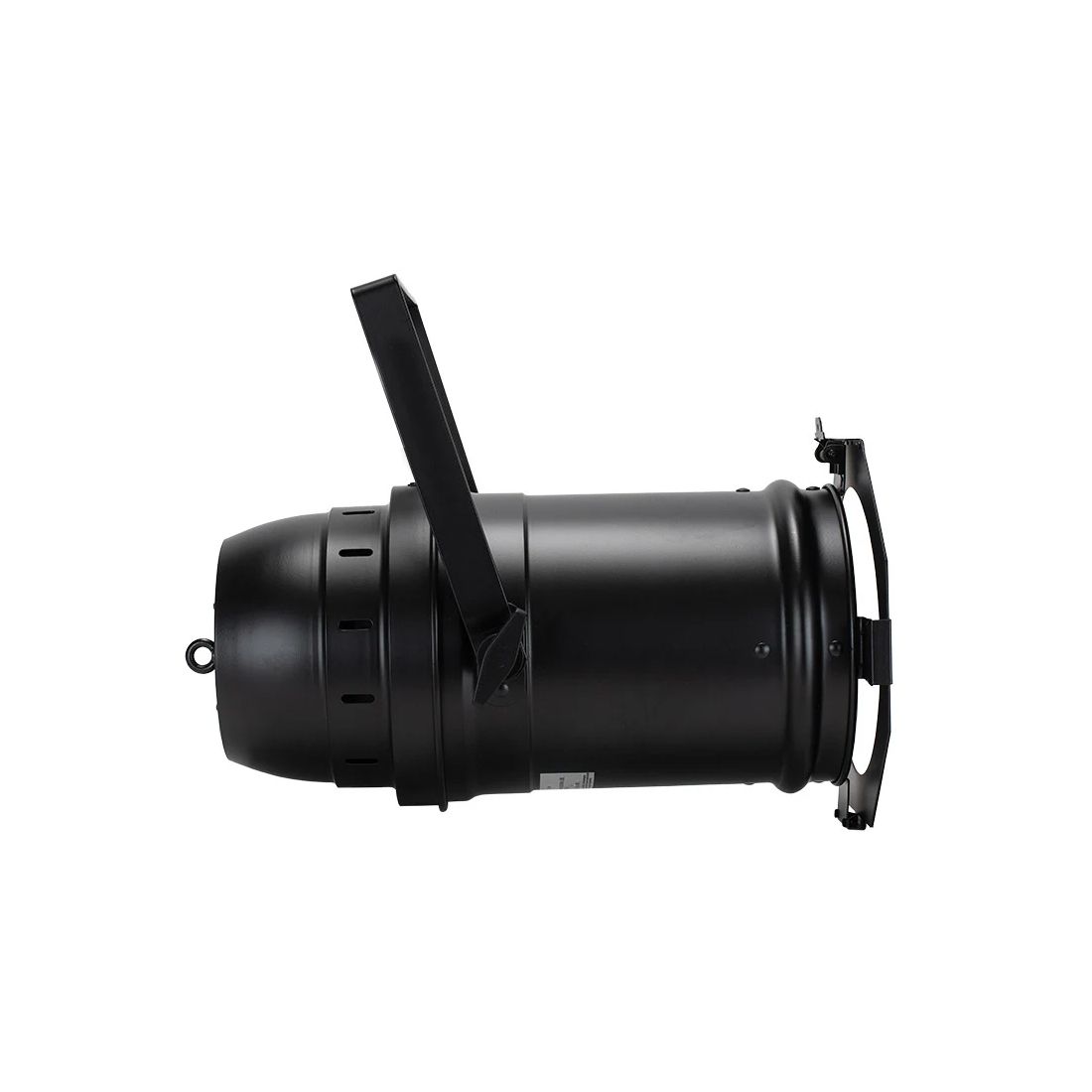

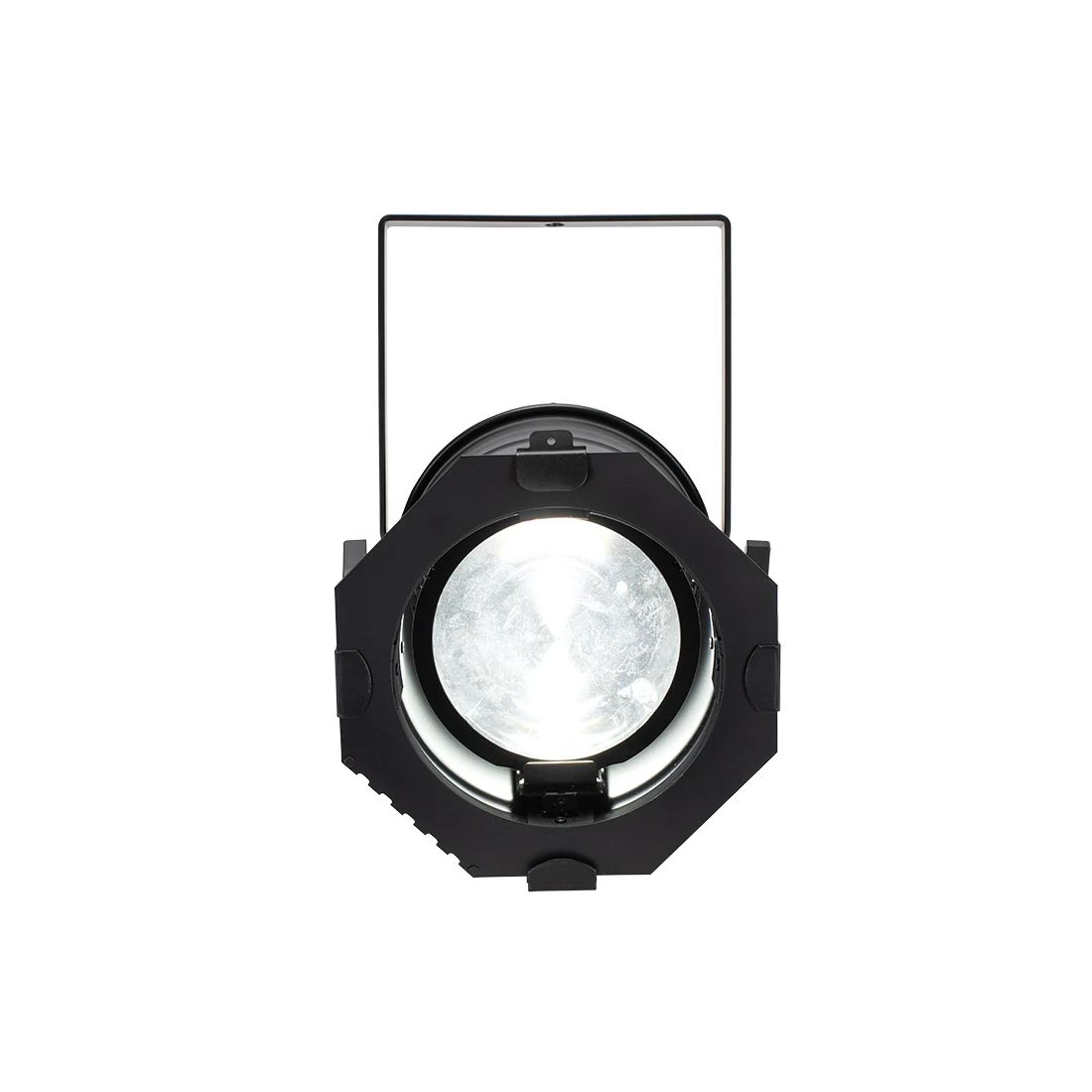

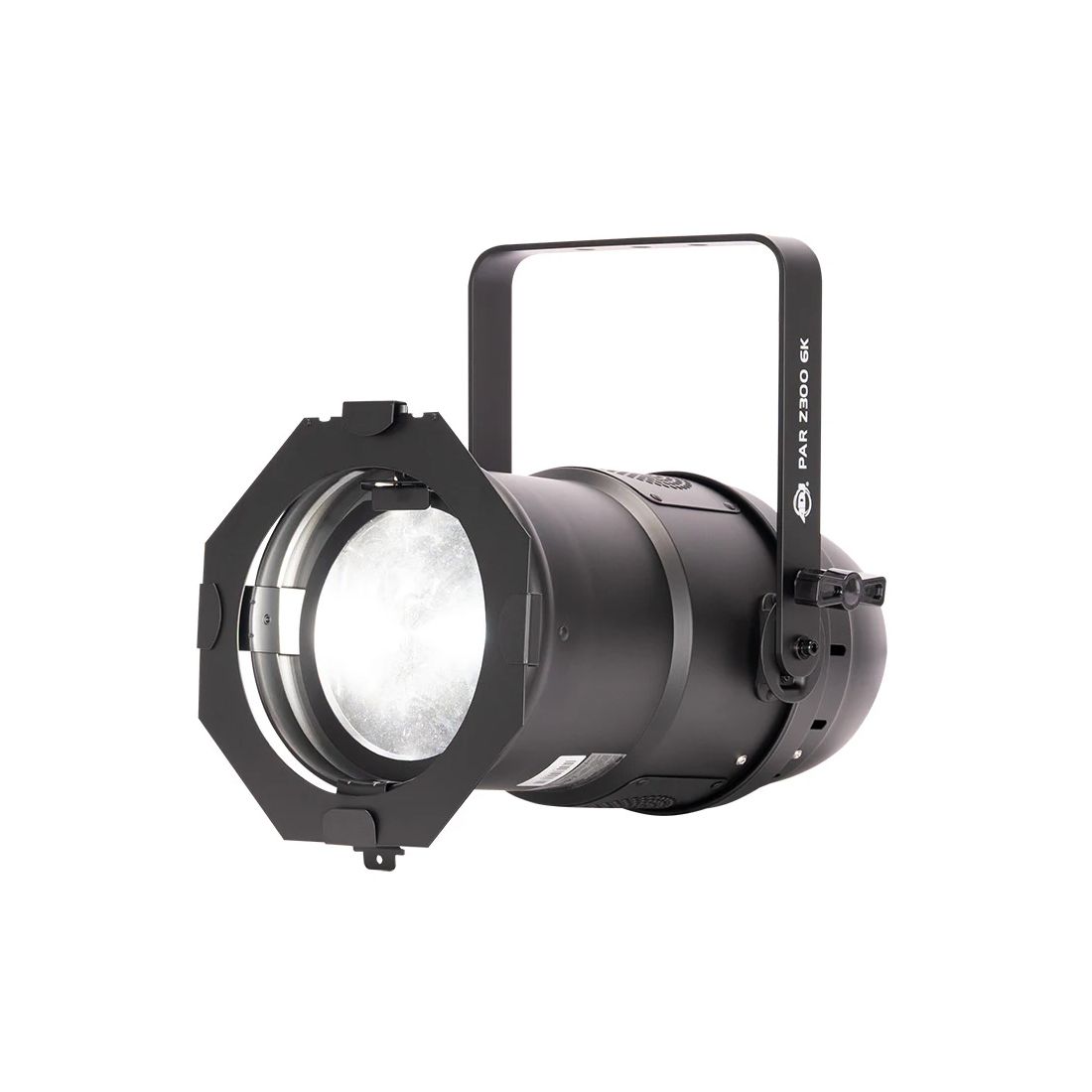

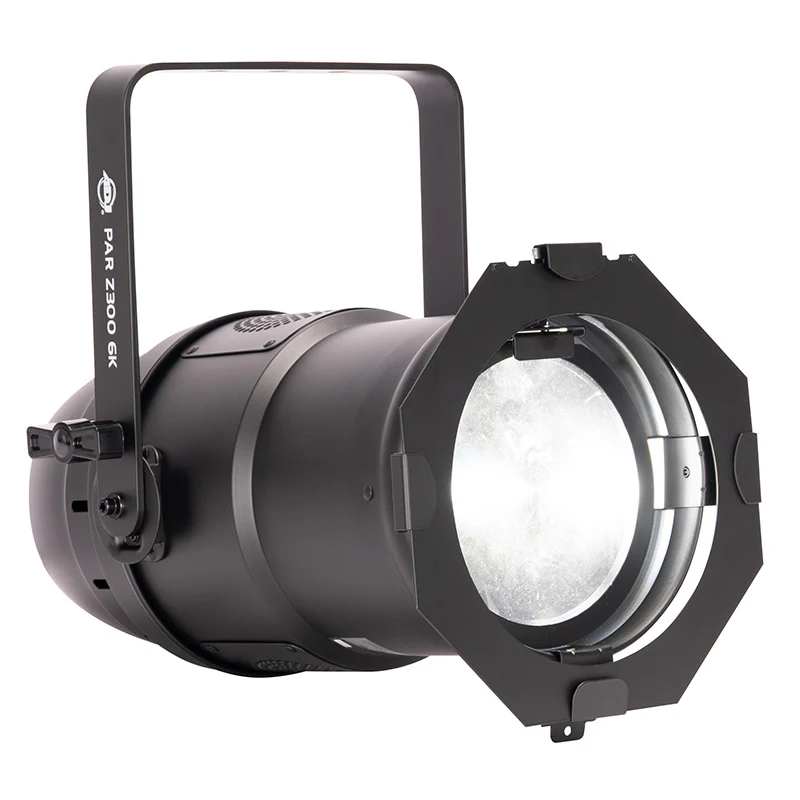

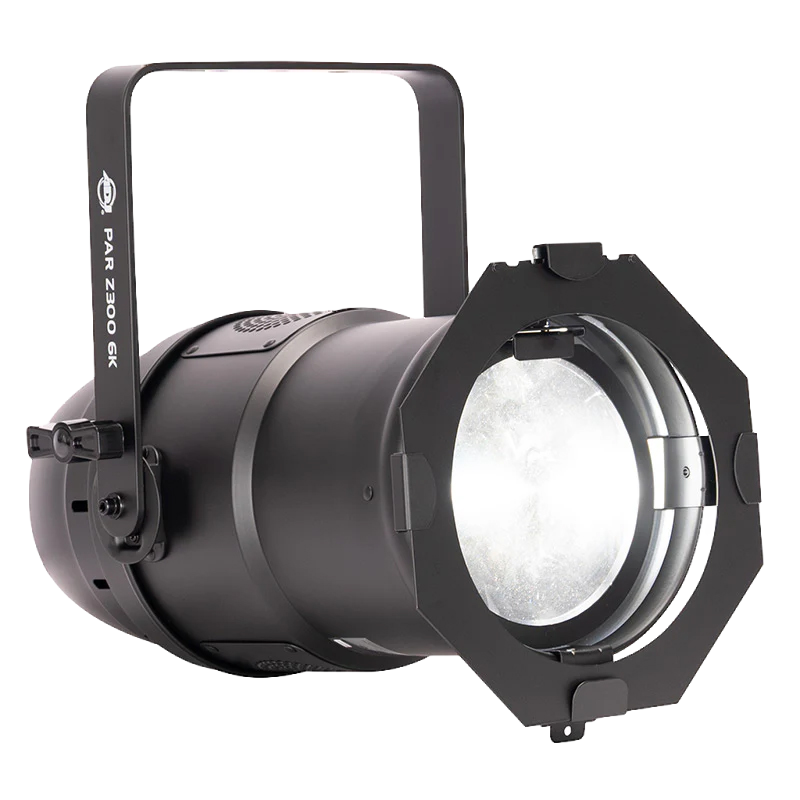

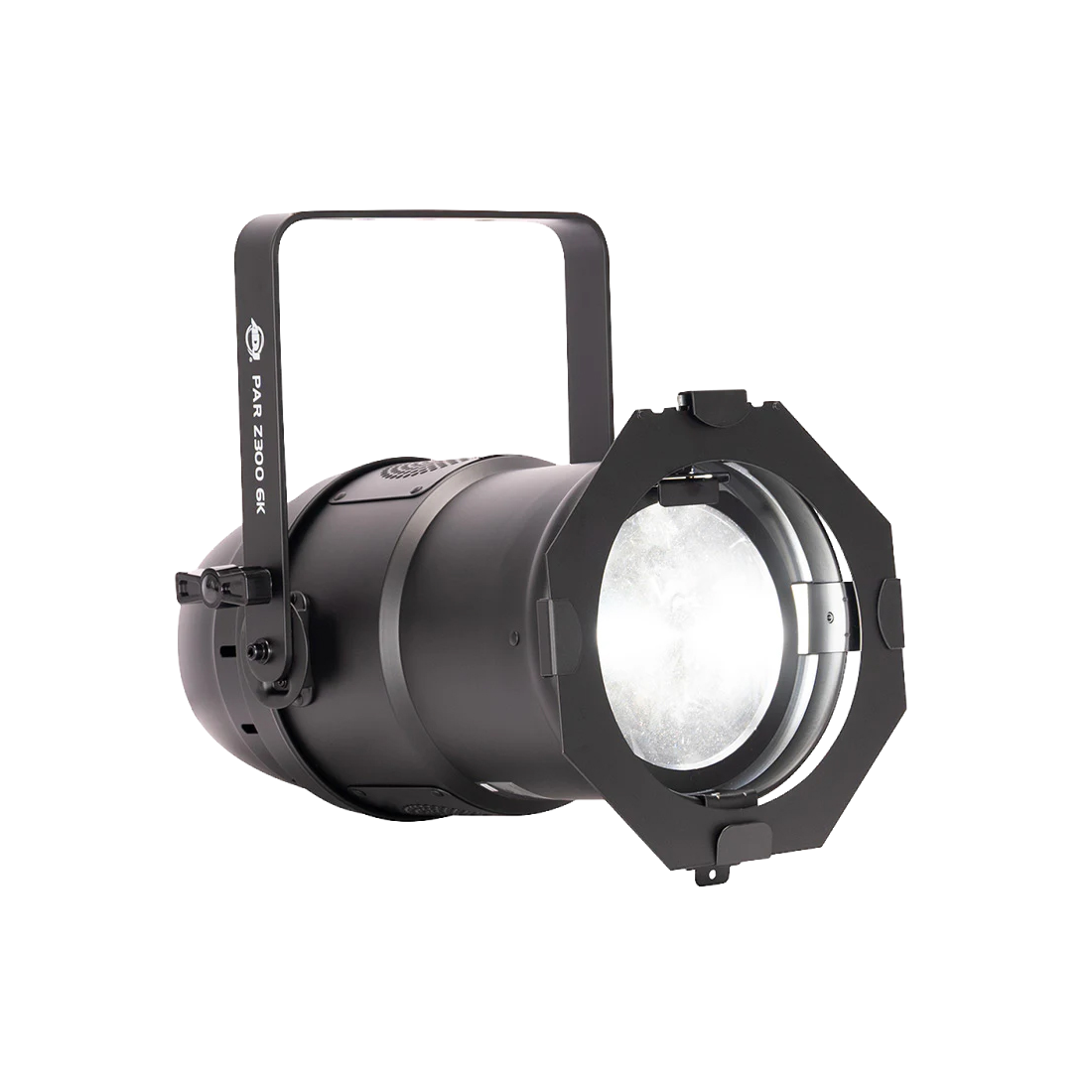

The Par Z300 6K combines the traditional par can aesthetic with the advantages of LED technology. Although it retains the classic black Par Can appearance, inside it features a high-performance LED light source. Delivering brightness comparable to a 1000W sealed beam Par while generating significantly less heat, it's perfect for stage lighting that keeps performers comfortable.
The Par Z300 6K is powered by a robust 300-Watt, 6000K cool white COB LED engine with a CRI over 90. The 6000K color temperature closely mimics ‘daylight white.” It offers seven manual zoom beam angles—9°, 15°, 20°, 25°, 30°, 35°, and 40°—and includes a traditional Par Can gel frame for adding diffusion filters to further control light output.

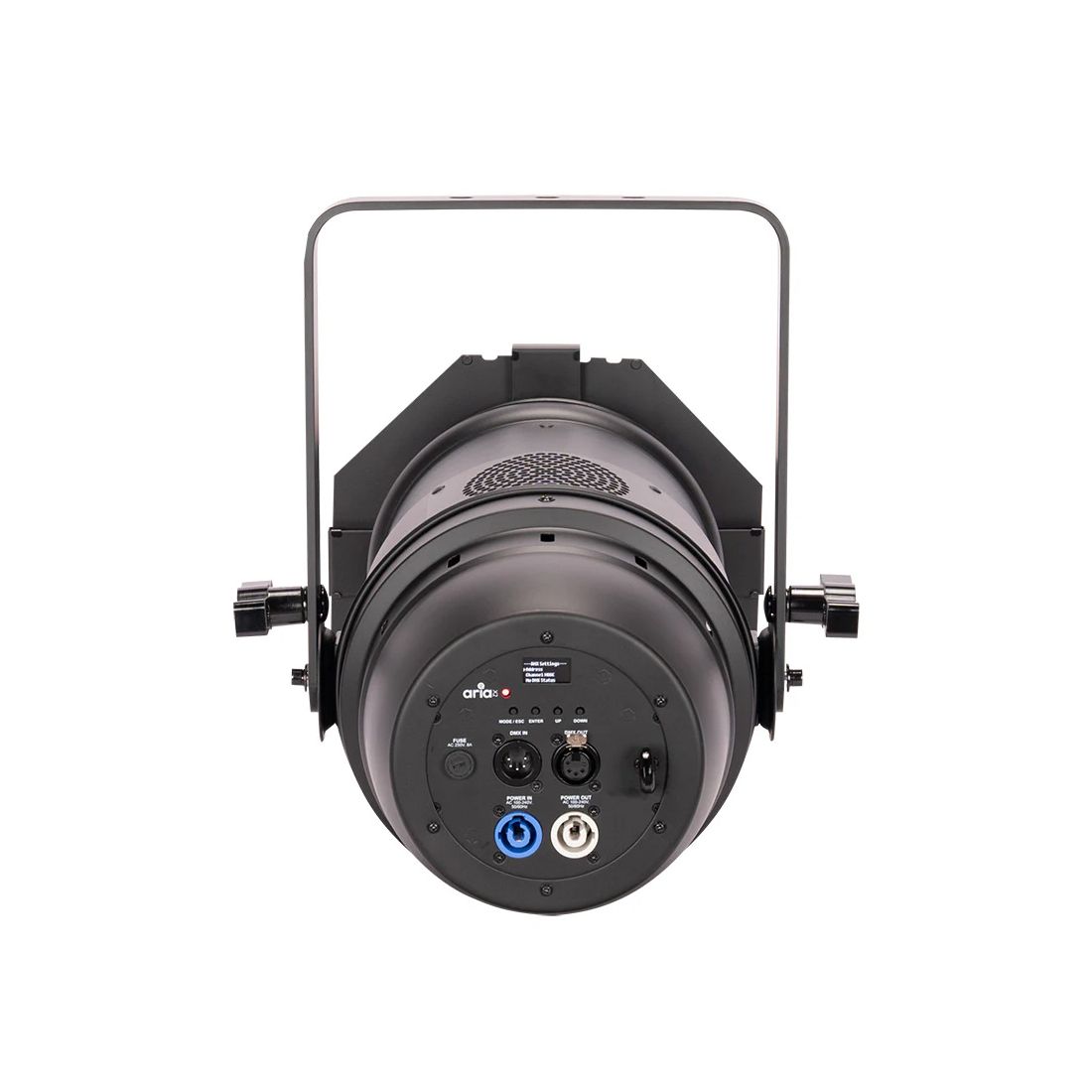

Advanced features include the Aria X2 wireless management system for over the air firmware/software updates for streamlined control, a 4-button DMX OLED display menu, adjustable strobe refresh rates, six dimming modes, and electronic dimming from 1-100%. The fixture is compatible with both RDM and RDM Net protocols. The rear panel has locking power In/Out sockets for daisy-chaining power, as well as 5-pin DMX In/Out connections for data.
Gallery
Specification
- • 300-Watt, 6000K Cool White C.O.B. LED (Chip On Board)
- • Life expectancy: rated at 50,000 hrs.
- • Manual Zoom: 9° , 15° , 20° , 25° , 30° , 35° and 40°
- • Zoom Ratio: 4.4:1
- • 13980 Lux (Zoomed In to 9° @ 5 meters)
- • 1828 Lux (Zoomed Out to 25° @ 5 meters)
- • DMX: 5-pin DMX In/Out
- • With Wired Digital Communication Network
- • Locking IP20 Power In/Out connections
- • DMX-512
- • 3 DMX control modes: (1, 3 & 4 Ch. modes)
- • RDM and RDM Net Compatible
- • Primary/Secondary, stand-alone mode
- • On-board manual control mode
- • Aria X2 Wireless Management System
- • 4-button DMX menu display on rear panel
- • OLED display

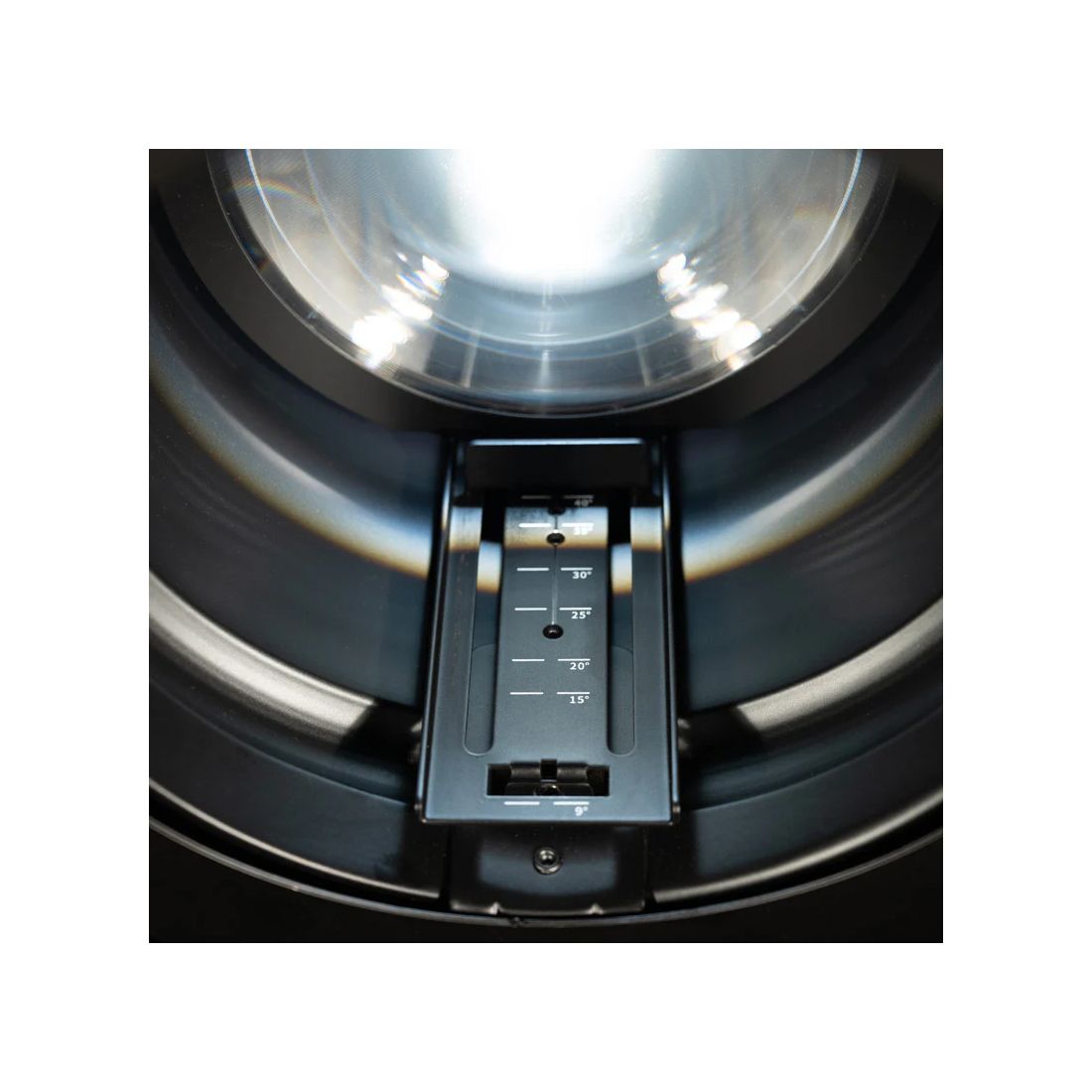

- • Adjustable latch to manually change beam angle

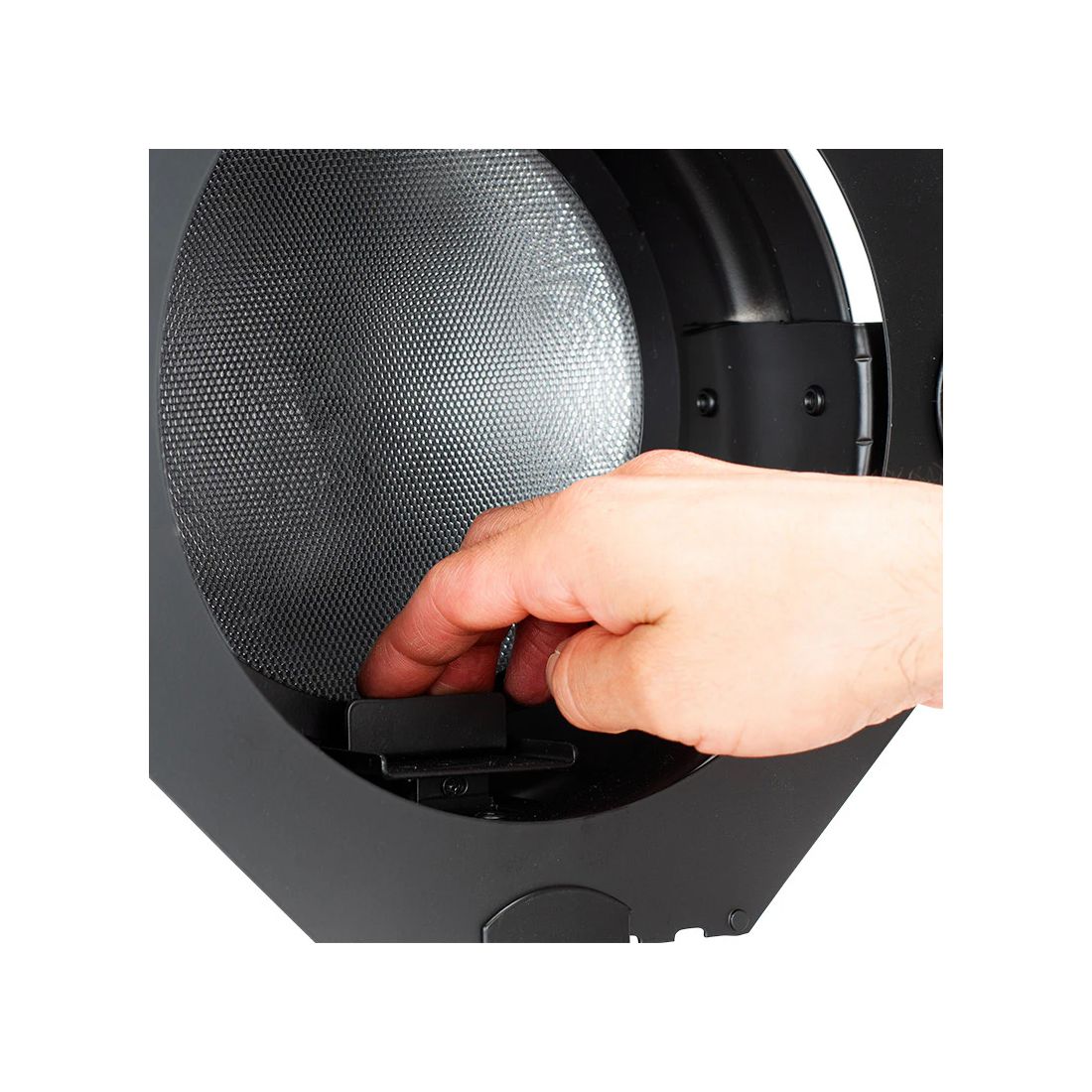

- • Includes gel frame for diffusion filters (Diffusion filter sold separately)
- • Strobe Rate: 0.6Hz to 7.5Hz
- • Selectable Refresh Rates: 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz
- • Electronic Dimming: 0 - 100%
- • 6 Dim Modes
- • Power Draw Total (@ Full On): 320W
- • Power Consumption: 1.5A @ 220V/50Hz
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Daisy chain: 4 fixtures @ 230V
- • Fuse protected: 8A/250V
- • -20° C ~ 40° C
- • -30° C ~ 45° C
- • Dimensions (LxWxH): 510 x 389.3 x 257.5mm
- • Weight: 6kg
- • IP20
- • Gel Frame
- • Power Cord
Specifications subject to change without notice
