Par Z150 RGBA Plus Select New
Key Features
Electrical
• Battery Powered (from 5 to 20 hours)
• Battery Powered (from 5 to 20 hours)
Optics
• 1360 Lux (Zoomed In to 7°)
• 487 Lux (Zoomed Out to 25°)
• CRI: >90
• 1360 Lux (Zoomed In to 7°)
• 487 Lux (Zoomed Out to 25°)
• CRI: >90
Source
• 150-Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber)
• Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees
• 150-Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber)
• Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees
Product Information
SKU: 1226100434
HS-Code: 9405423990

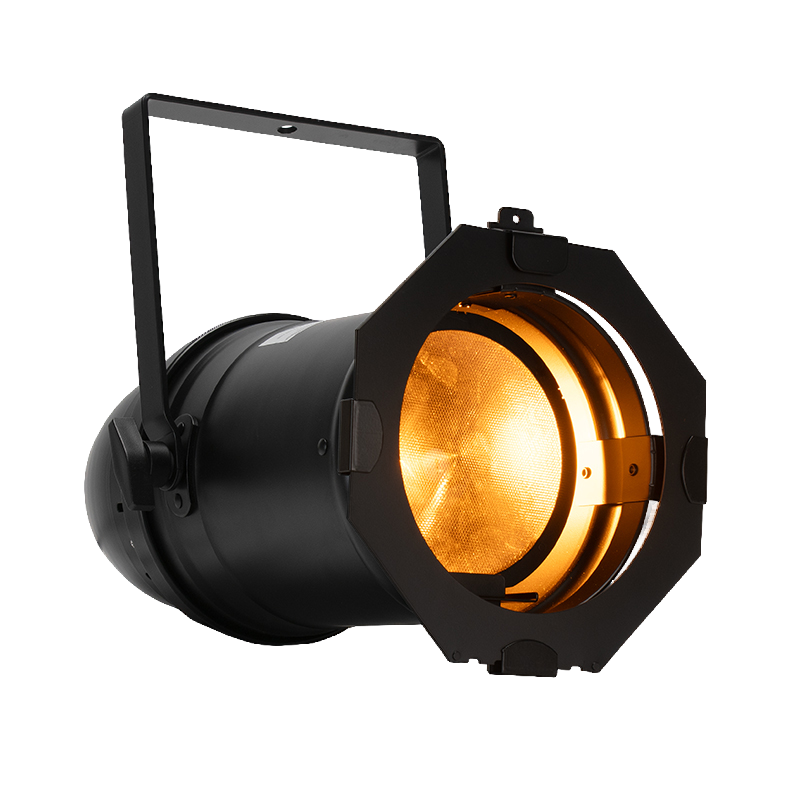

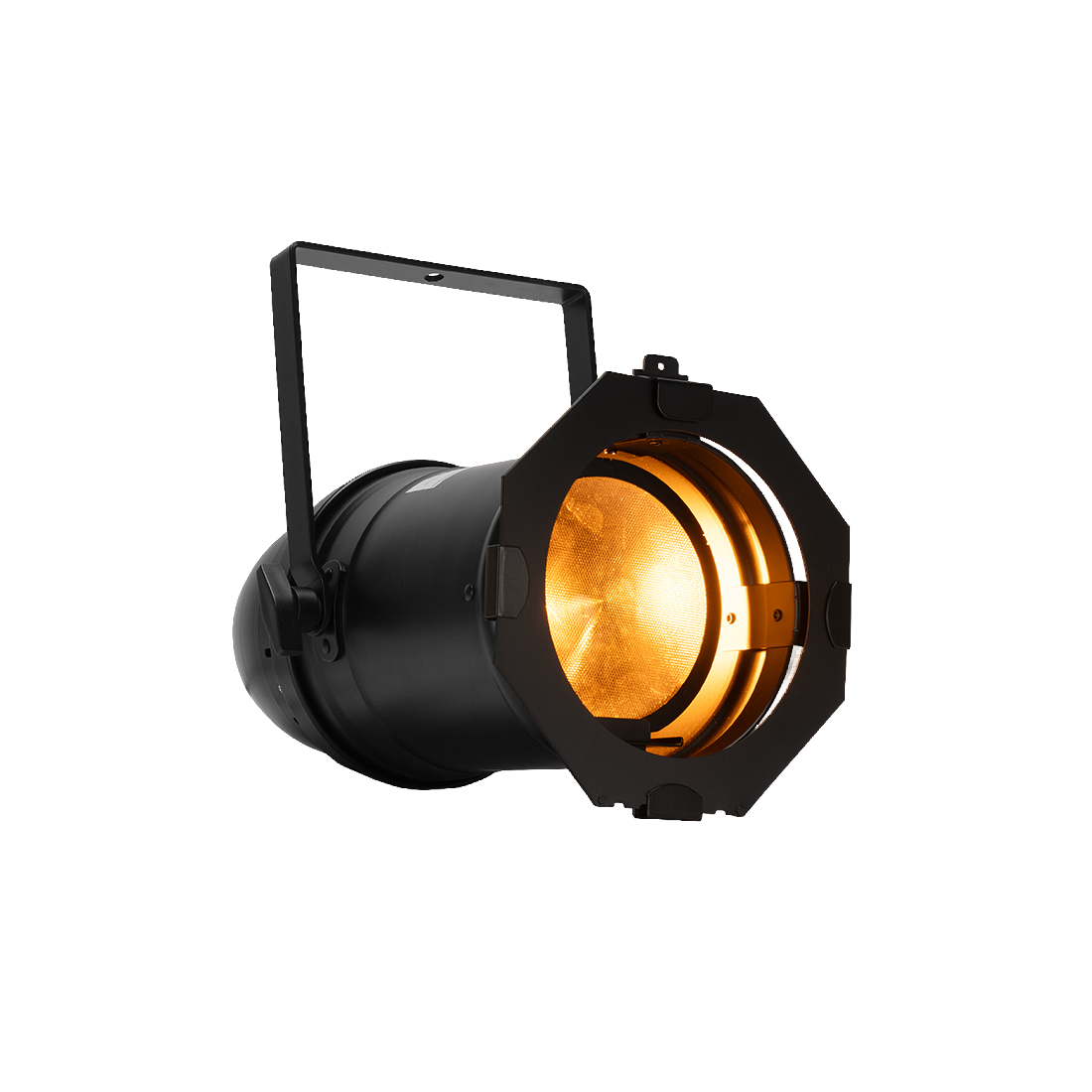

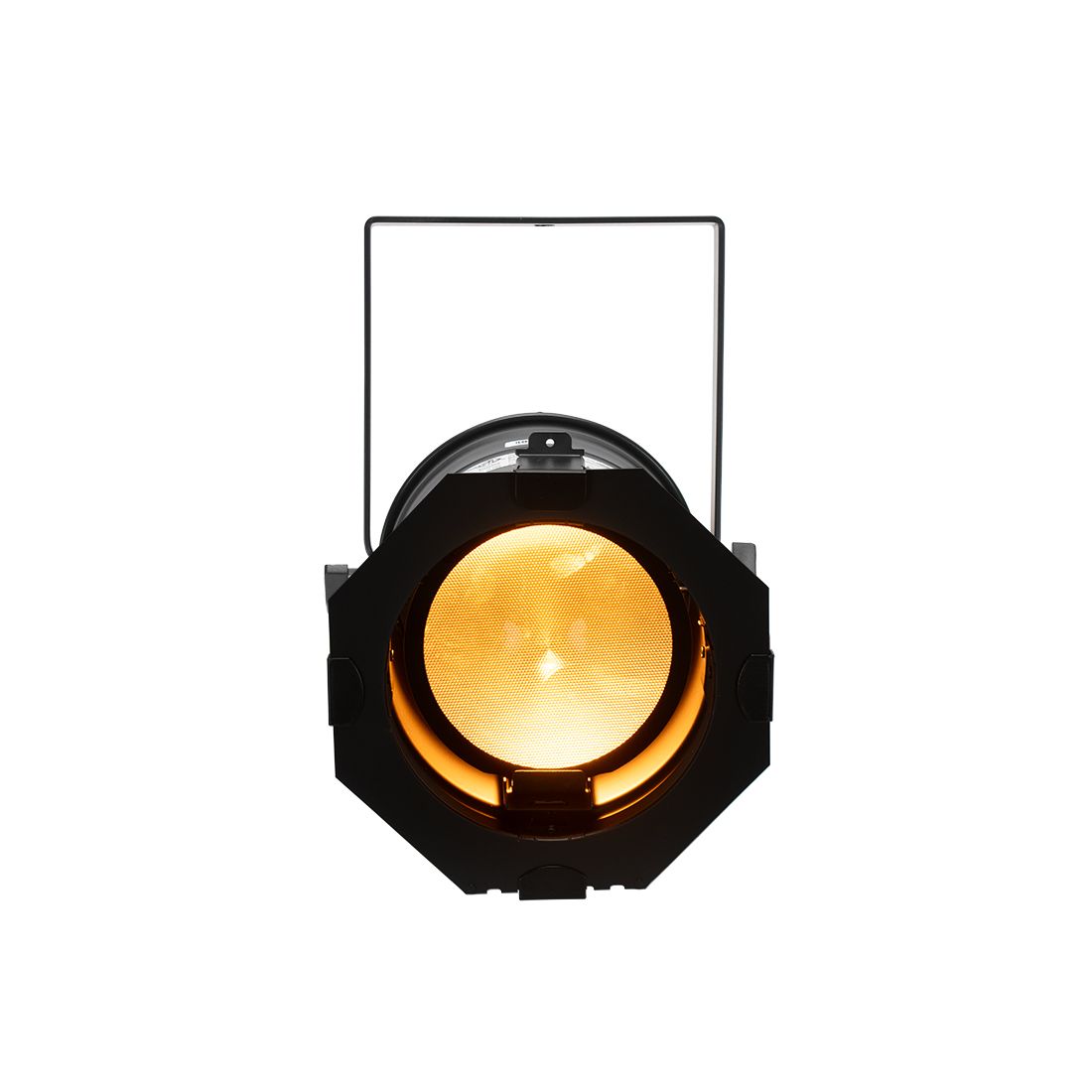

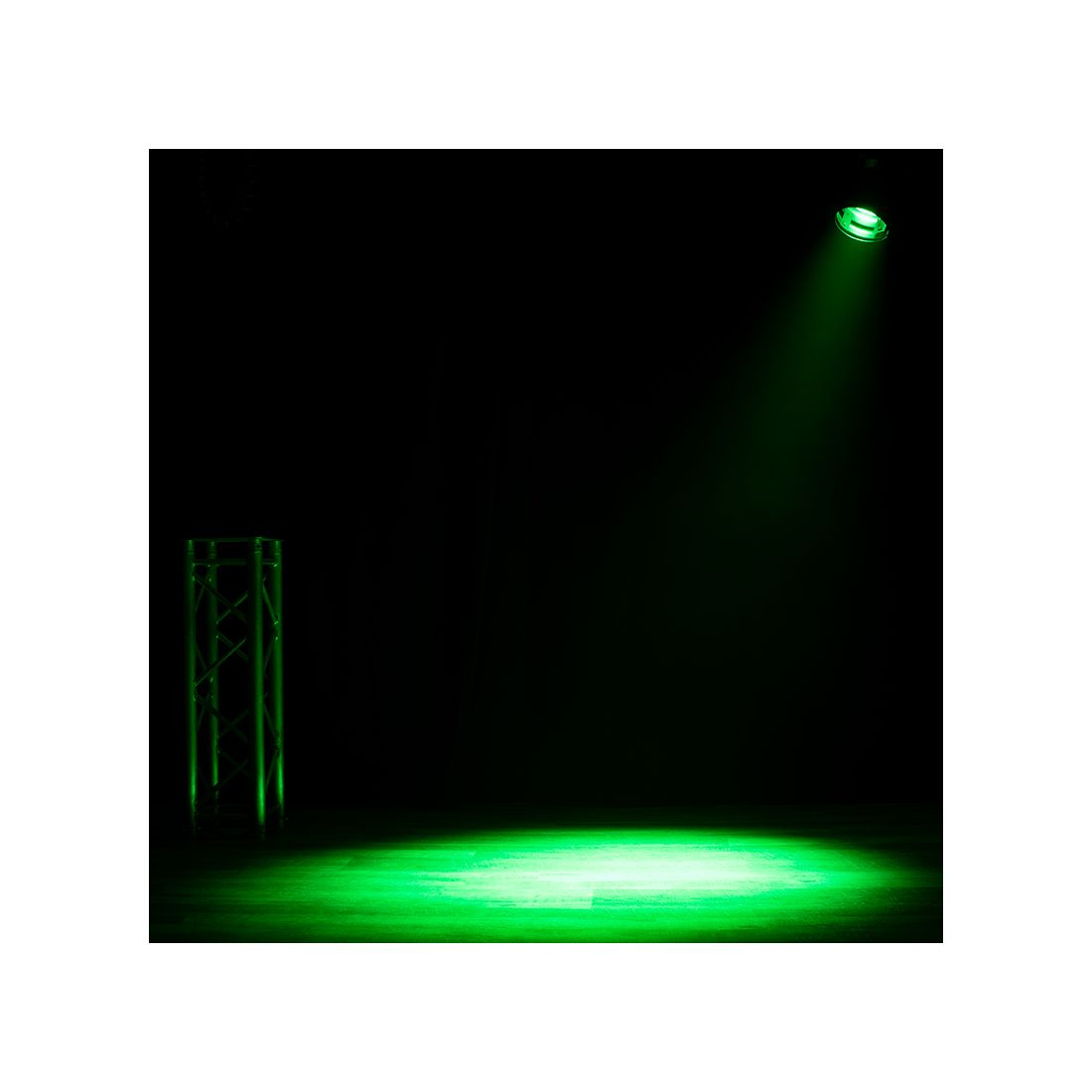

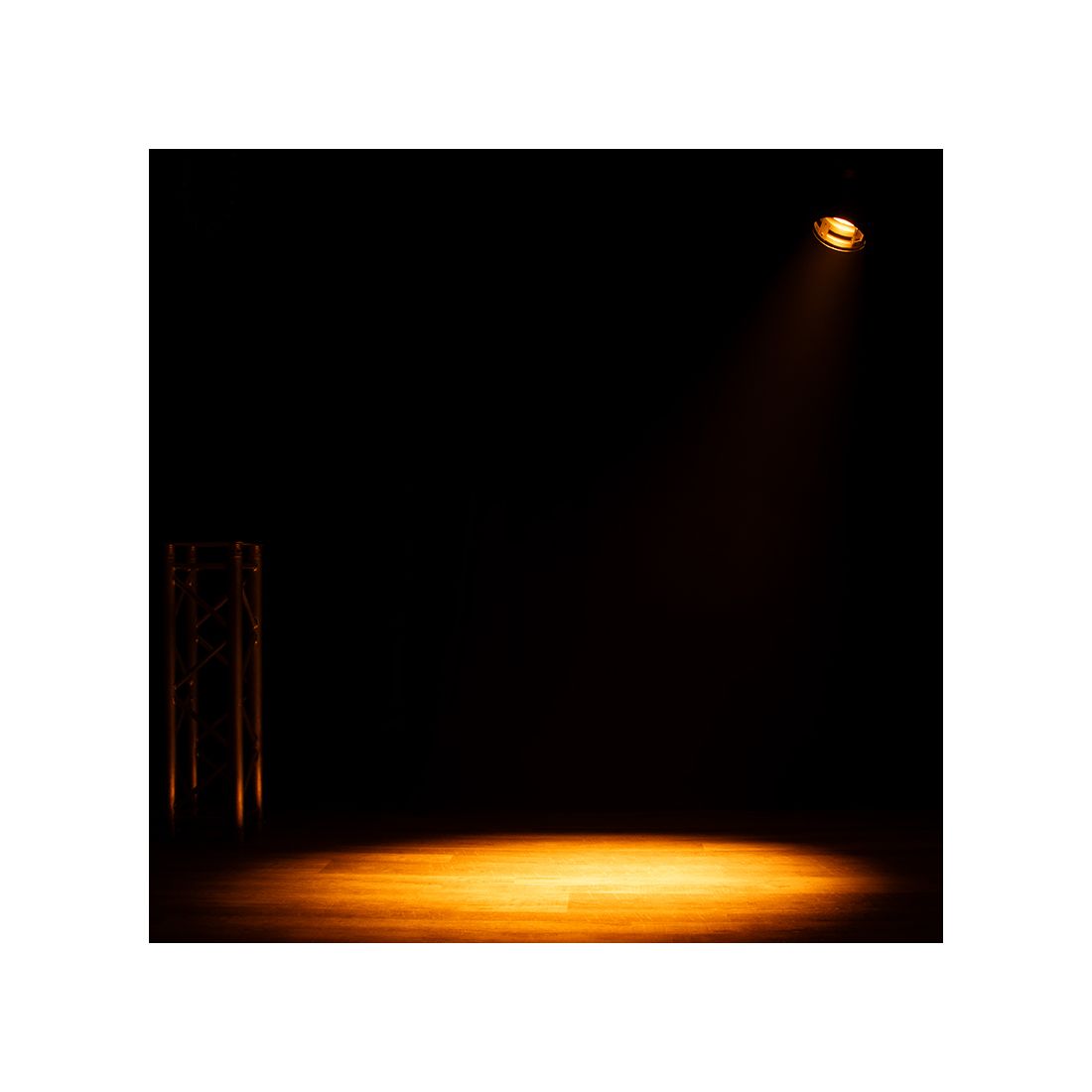

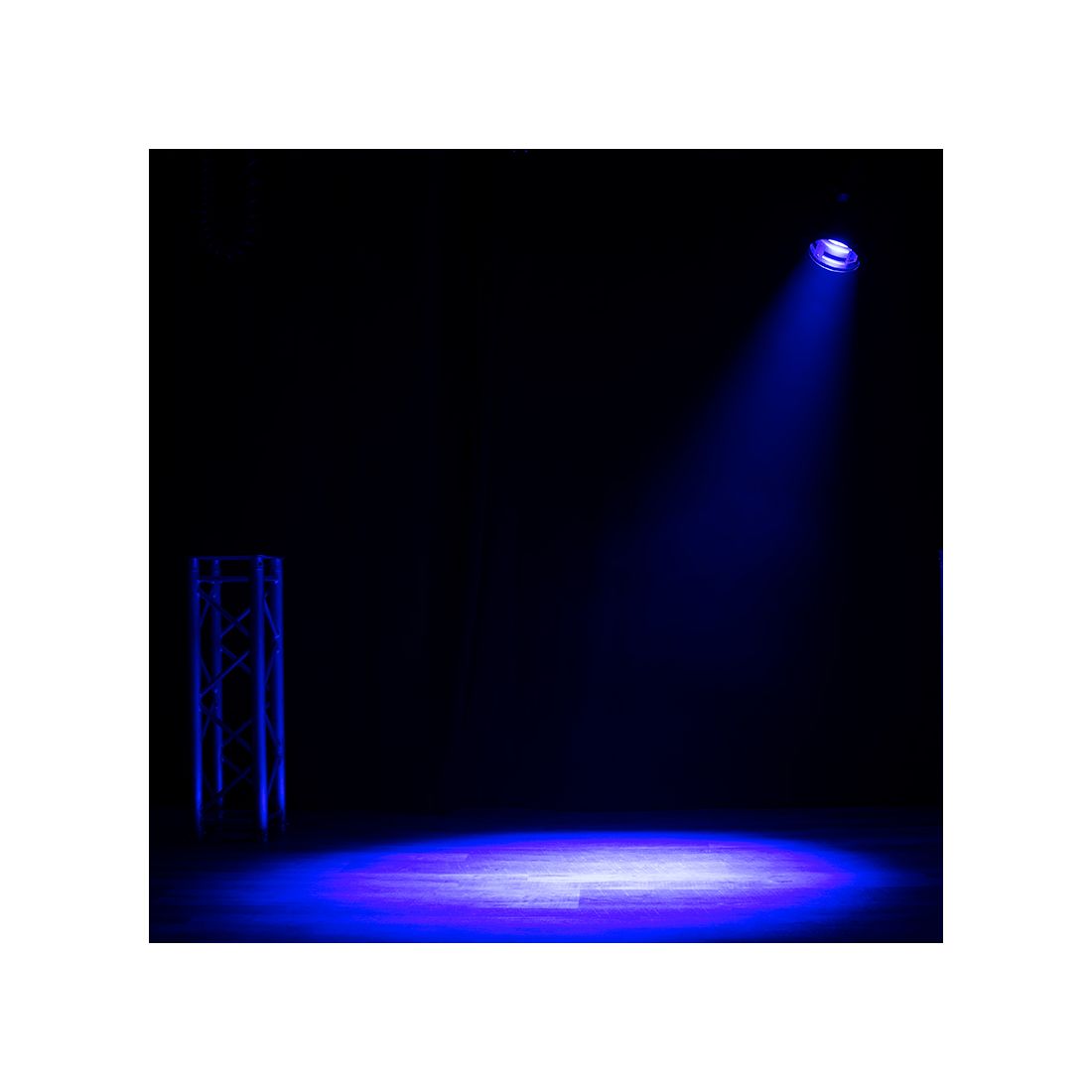

Combining the classic aesthetic of the traditional Par Can with the power-saving and heat-reducing advantages of a modern LED light source, ADJ’s Par Z Series provides flexible wash lighting solutions for a wide variety of applications. The battery-powered Par Z150 RGBA Plus model harnesses the power and versatility of a 150-Watt quad color (red, green, blue, and amber) C.O.B. LED engine, which delivers a huge spectrum of color options, including white light with color temperature variable between 2300K and 9900K, and is equipped with the Aria X2 wireless management system. Its built-in rechargeable lithium-ion battery makes it ideal for use in locations without a nearby power socket, offering unmatched portability and convenience.
C.O.B (Chip On Board) technology ensures uniform output with no color shadows, while a high CRI of >90 means that colors are rendered more accurately when the fixture is used to illuminate scenery, décor, or performers, which is particularly important to ensure natural skin tones and enhanced depth. 64 built-in color macros, along with additional white light color temperature macros, allow for quick and efficient programming. A choice of six dimming modes, four dimming curves, and an onboard color balance feature allows the fixture to be customized for different applications and user preferences.
The luminaire offers five beam angle options (7°, 11.5°, 16°, 20.5°, or 25°) and is supplied with a gel frame that can be used to add a diffusion filter (sold separately), allowing an even wider spread to be achieved. As well as smooth dimming control, the LED engine allows for variable-speed strobing effects with a flash rate of between 0.6Hz and 7.5Hz. Another advantage of the LED light source is its long-life expectancy of 50,000 hours, which essentially removes the cost and inconvenience of regular lamp replacement.

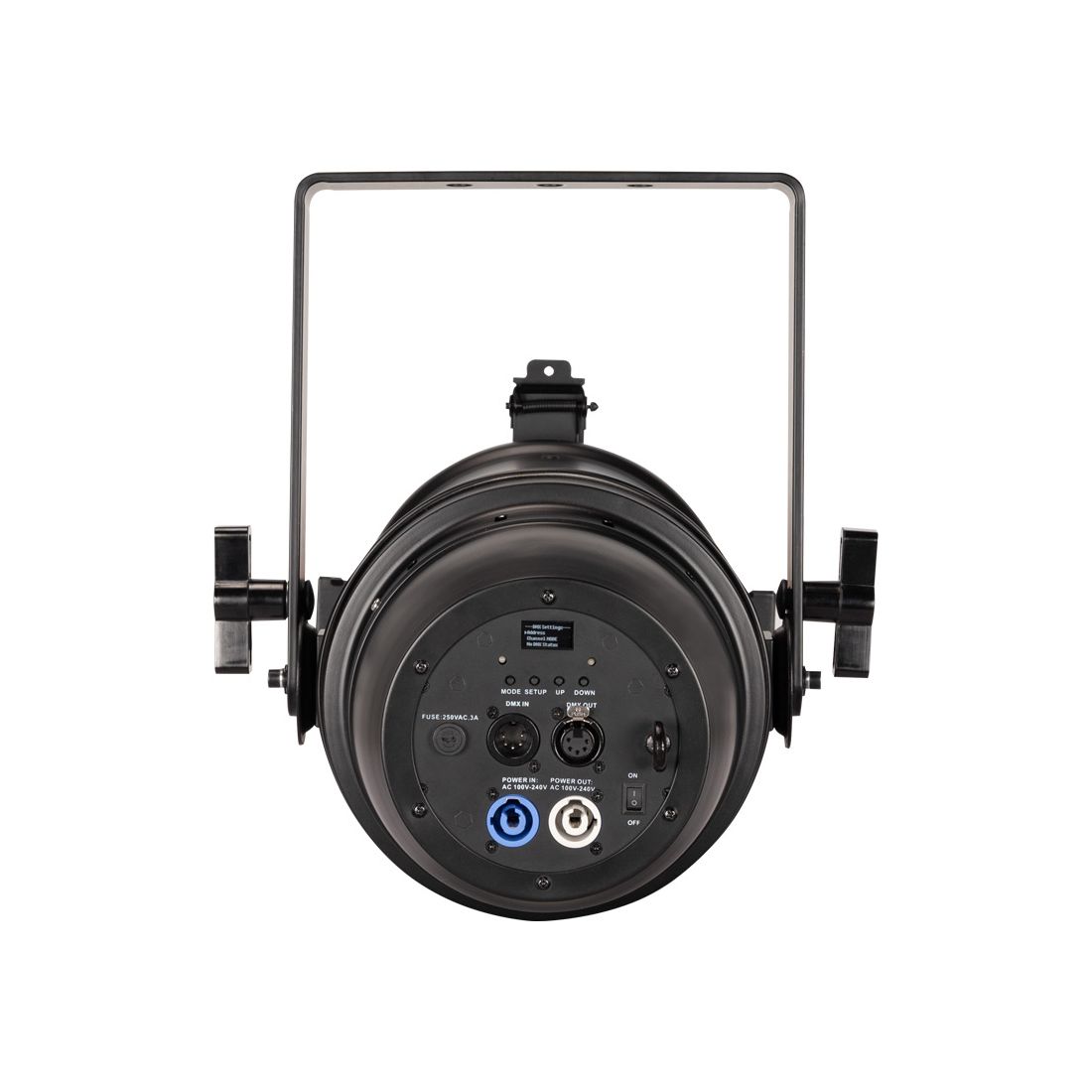

An adjustable bracket, locked in place using a pair of large plastic thumb screws, allows the fixture to hang from a truss or lighting stand at any desired angle. On the rear panel are 5-pin DMX input and output sockets as well as locking power input and output sockets, which allow the electrical supply for multiple fixtures to be daisy-chained from a single outlet. Mode selection and DMX addressing is facilitated by an LED display and four corresponding push buttons, also located on the rear panel. In addition to standard DMX, the fixture is also compatible with the RDM protocol to allow remote fixture addressing.
Gallery
Specification
- • 150-Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber)
- • Life expectancy: rated at 50,000 hrs.
- • Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees
- • Zoom Ration: 3.3:1
- • 1360 Lux (Zoomed In to 7°)
- • 487 Lux (Zoomed Out to 25°)
- • CRI: >90
- • DMX: 5-pin DMX In/Out
- • With Wired Digital Communication Network
- • Locking power In/Out connections
- • DMX-512 and Aria X2 Wireless DMX / APP
- • 9 DMX control modes: (4/5/6/7/8/9/10/11 & 12 Ch. modes)
- • RDM and RDM Net Compatible
- • Primary/Secondary, stand-alone mode
- • On-board manual control mode
- • Aria X2 wireless management system built-in

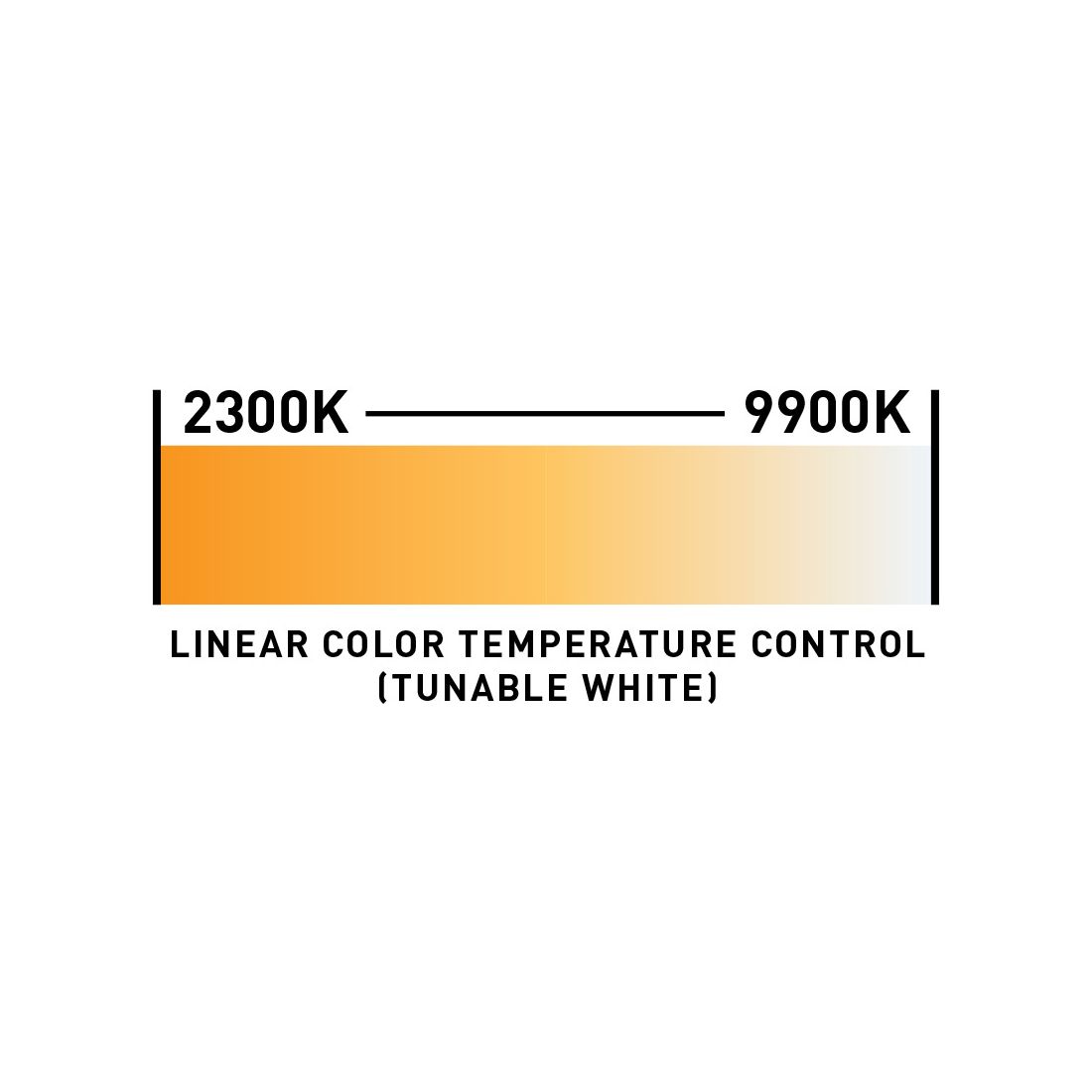

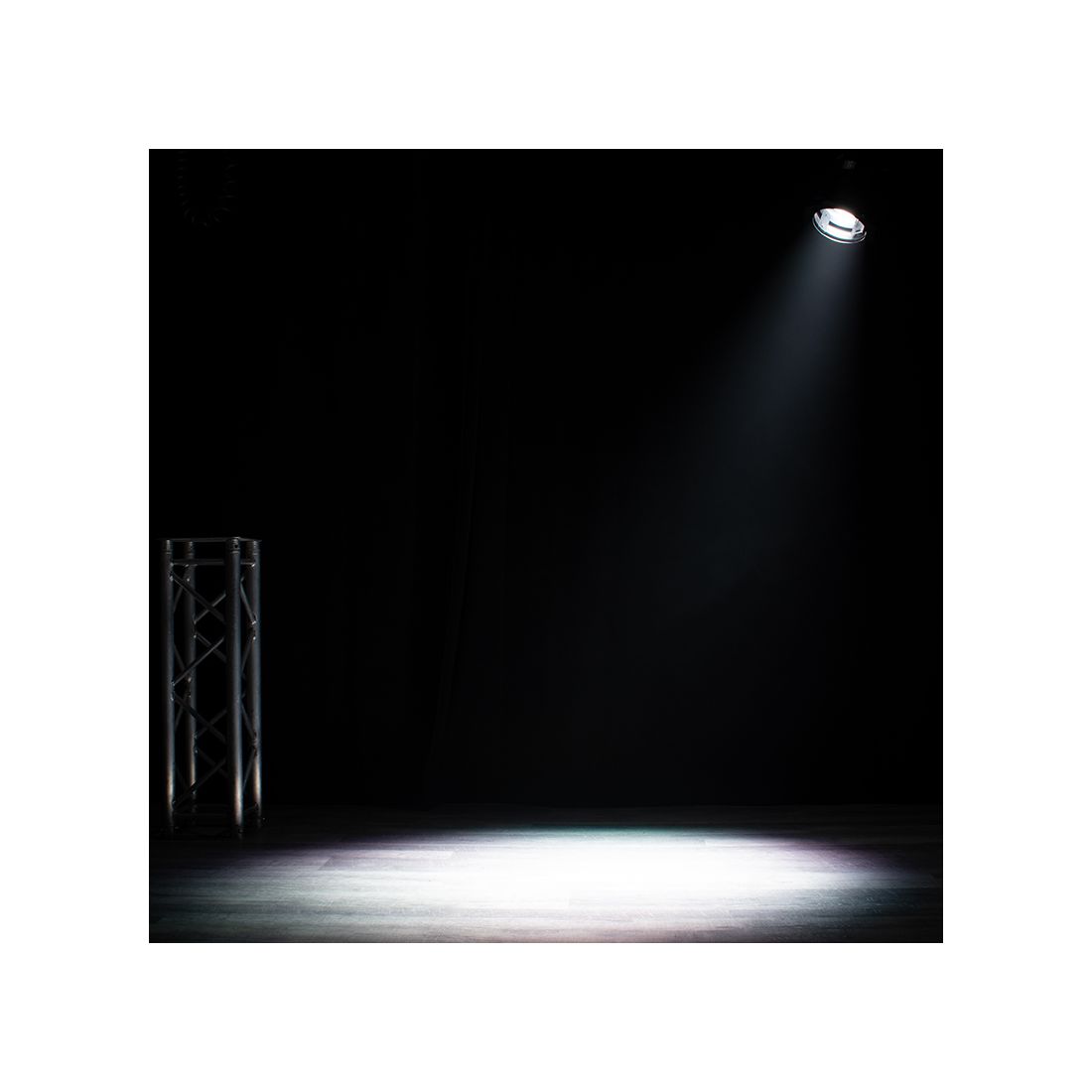

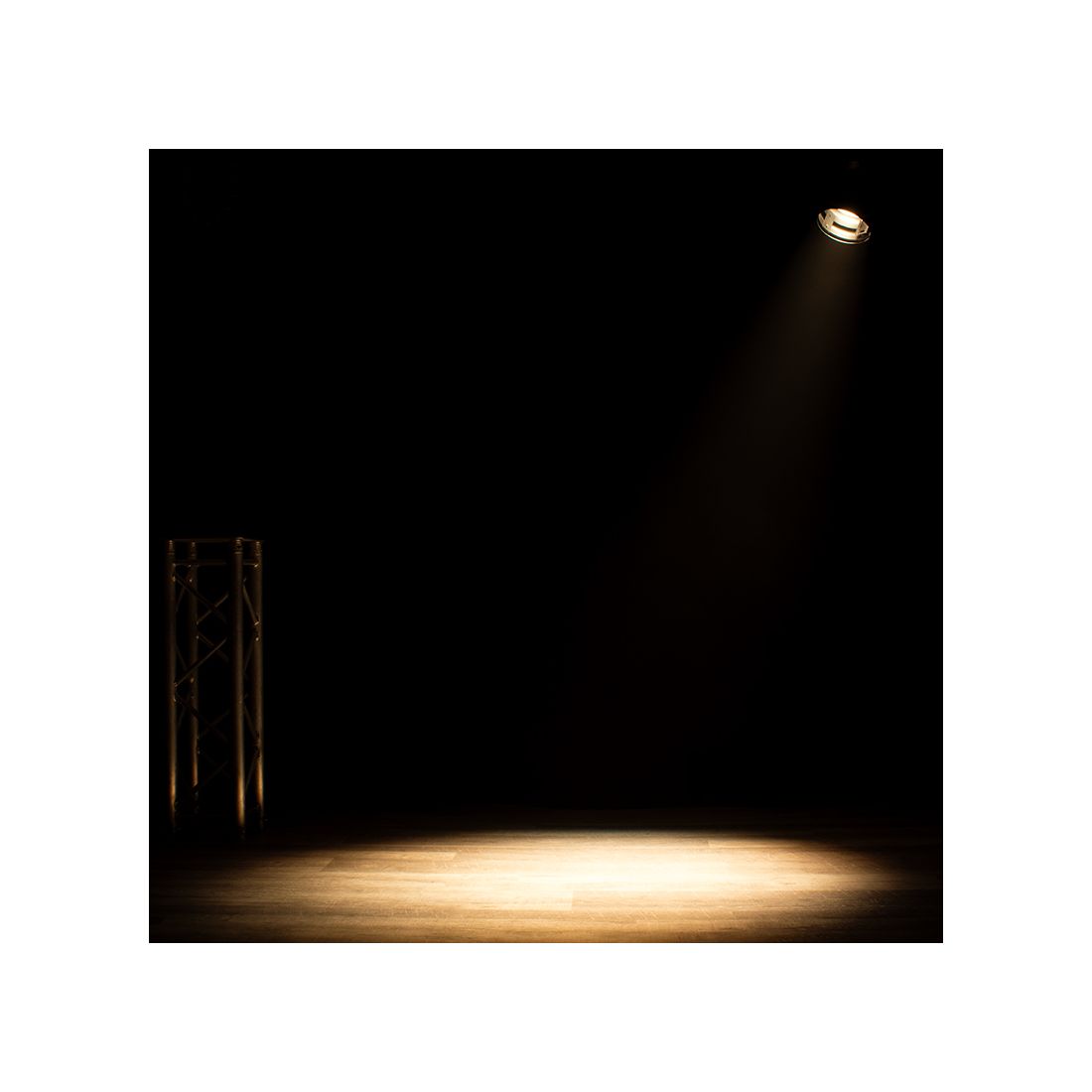

- • Linear white color temperature control (2300K ~ 9900K)
- • Color Temperature Presets (2300K ~ 9900K)
- • 4-button DMX menu display on rear panel
- • OLED display

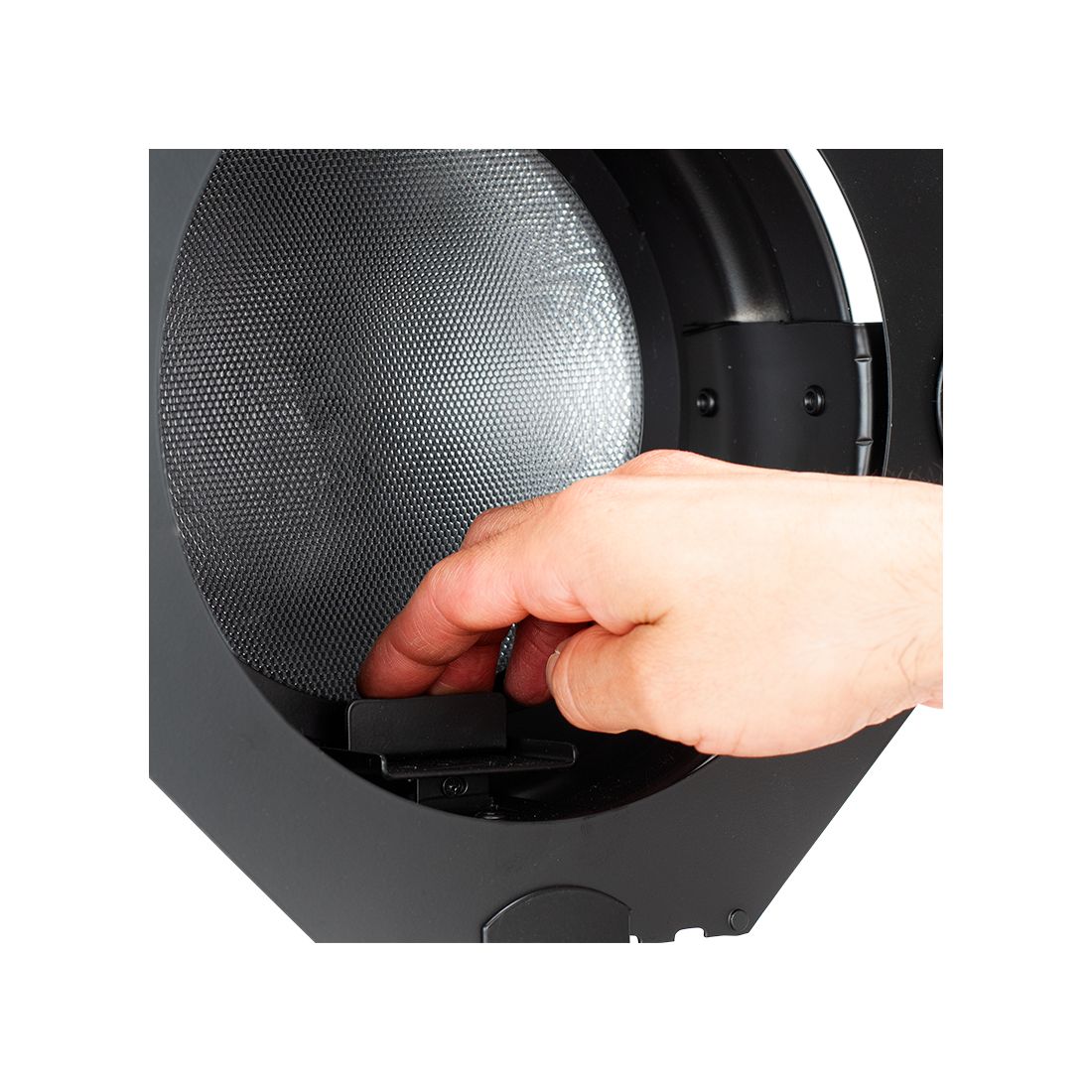

- • Adjustable latch to manually change beam angle
- • Includes gel frame for diffusion filters (Diffusion filter sold separately)
- • 64 Built-in Color Macros
- • 13 Built-in Internal Programs
- • Strobe Rate: 0.6Hz to 7.5Hz
- • Refresh Rate: 3KHz
- • Electronic Dimming: 0 - 100%
- • 6 Dim Modes
- • 4 Dim Curves
- • On-board, color balance feature for each color (RGBA)
- • Power Draw Total (All LED's @ Full On): 157W
- • Power Consumption: 0.7A @ 220V/50Hz
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Daisy chain: 17 fixtures @ 230V
- • Fuse protected: 3A/250V
- • Rechargeable Lithium-ion
- • Battery Capacity: 7,000mAh
- • Battery Voltage: 22.2V
- • Charge Time: 6 Hours (To Full)
- • Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
- • Battery Cycles: 500
- • Battery On/Off button
- • -20°C ~ 45°C
- • -30°C ~ 45°C
- • Dimensions (LxWxH): 489 x 277.7 x 272.1mm
- • Weight: 5.8kg
- • IP20
- • CE & FCC
- • ETL (Pending)
Specifications subject to change without notice
