Octo Beam WW Archive
Product Information
The ADJ Octo Beam WW produces a classic effect with a modern twist! The effect looks like an all white Halogen bulb effect but in essence uses 8x 3-Watt warm white LEDs. It produces sharp, bright beams at a 3.4 degree beam angle. The Octo Beam WW has 3 DMX channel modes (1, 8 or 10), 3 operational modes (Sound Active, Show or DMX modes), LED pulse and strobe effects and 0-100% electronic dimming.
The rear control panel features a 4-button LED display menu, 3-pin DMX In/Out connections and IEC In/Out for power linking up to 12 units at 120V or 19 units at 230V operation. This fixture is compatible with the ADJ UC3 easy-to-use controller.
Gallery
Specification
Specifications:

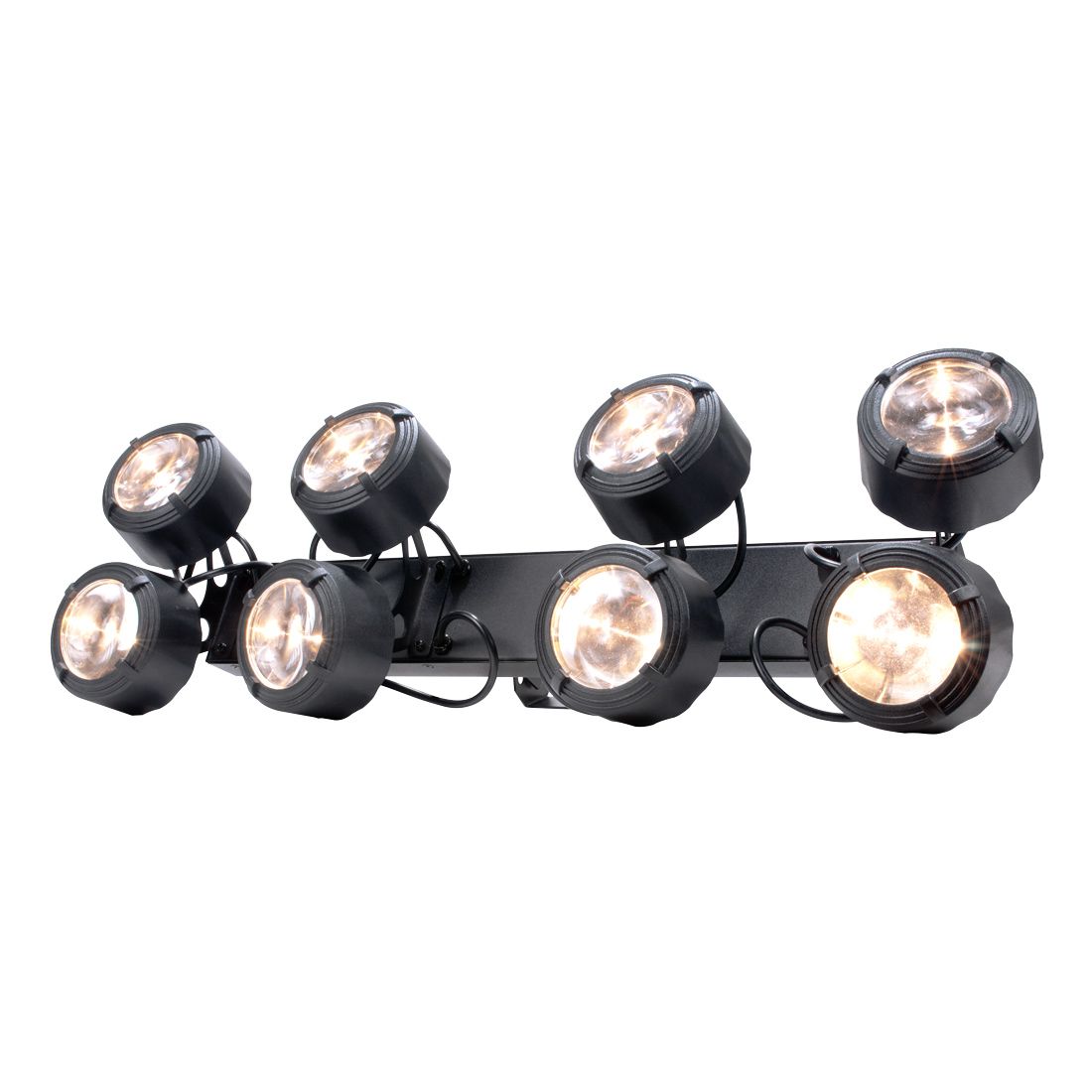

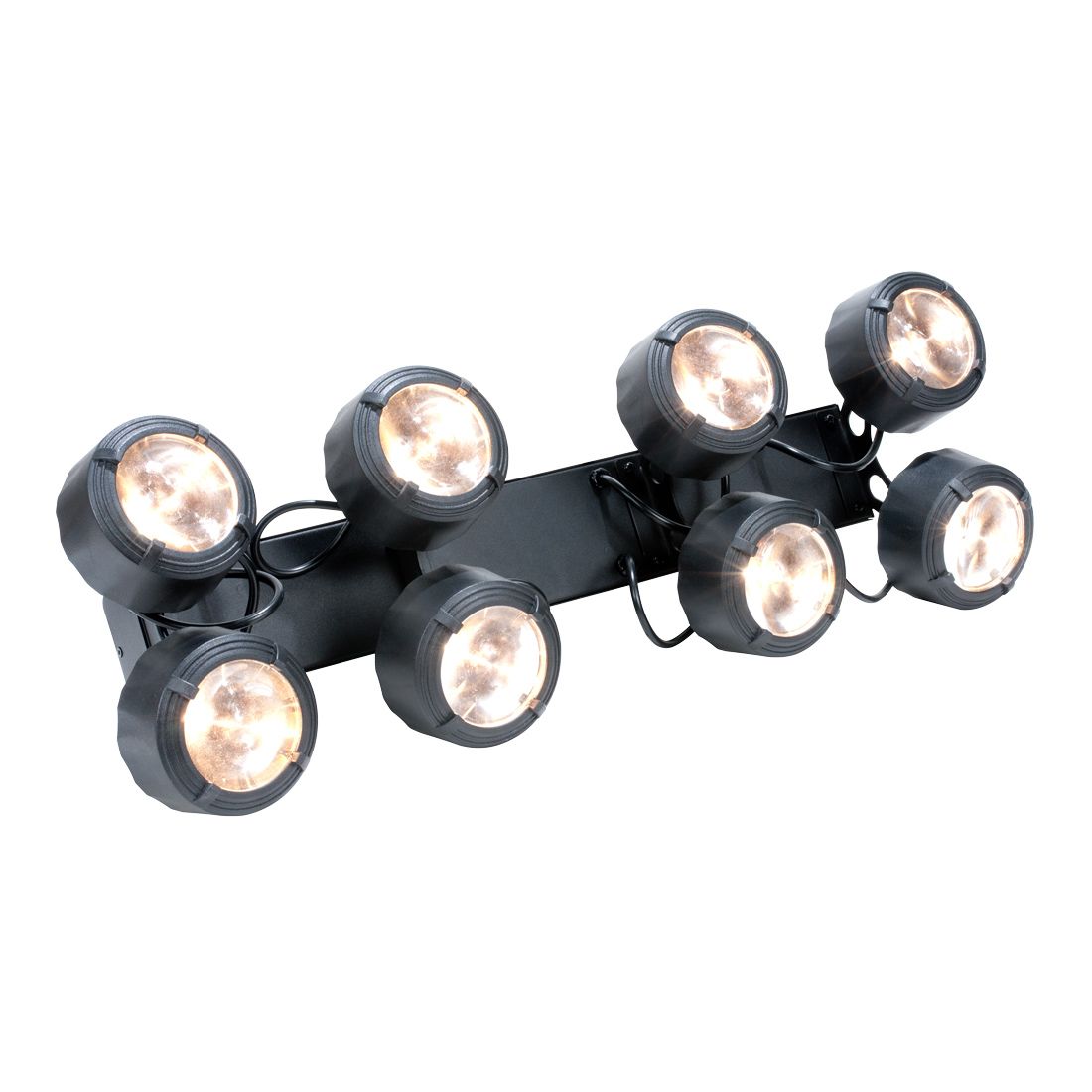

- 8-head beam effect with eight warm white LED’s
- 3 DMX Channel modes: 1, 8 or 10 channel modes
- 3 Operational modes: Sound Active Mode, Show Mode, & DMX Controlled
- Stand Alone or Master-Slave Configuration & Manual control of each fixture head setting Dim and Full on.
- LED pulse & strobe effect
- Flicker Free
- Electronic Dimming: 0 - 100%
- Beam angle: 3.4-degree
- Linkable via 3-pin XLR cable
- 4-button digital display on rear panel
- IEC AC IN/OUT on rear to daisy chain power (up to 12 Octo Beam WW’s @ 120V and 9 Octo Beam WW’s @ 230V )
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- Includes mounting yoke to mount on a wall or on to trussing
- Light Source: 8x 3W (2700K-3300K) Warm White LED source (Rated at approximately 50,000 hours)
- Safety loop on rear
- Run all night – No duty cycle - Low power consumption
- Multi-voltage: 100-240V, 50/60Hz
- Power Draw: 28.9W max (All LED's @ Full On)
- Dimensions (LxWxH): 632.6 x 226.9 x 199mm
- Weight: 3.5 kg.
Specifications subject to change without notice.
