Octo Beam RGBW
Archive

Brand
The ADJ Octo Beam RGBW produces a classic disco lighting beam effect with a modern LED twist! This 8-head Beam effect is powered by two red, two green, two blue and two white 3-Watt LEDs. It produces sharp, bright beams at a 3.4 degree beam angle. The Octo Beam RGBW has 3 DMX channel modes (1, 8 or 10), 3 operational modes (Sound Active, Show or DMX modes), LED pulse and strobe effects and 0-100% electronic dimming. The rear control panel features a 4-button LED display...
Read More

Product Information

SKU: 1237000081
GTIN: 819730010506
HS-Code: 94054091 00

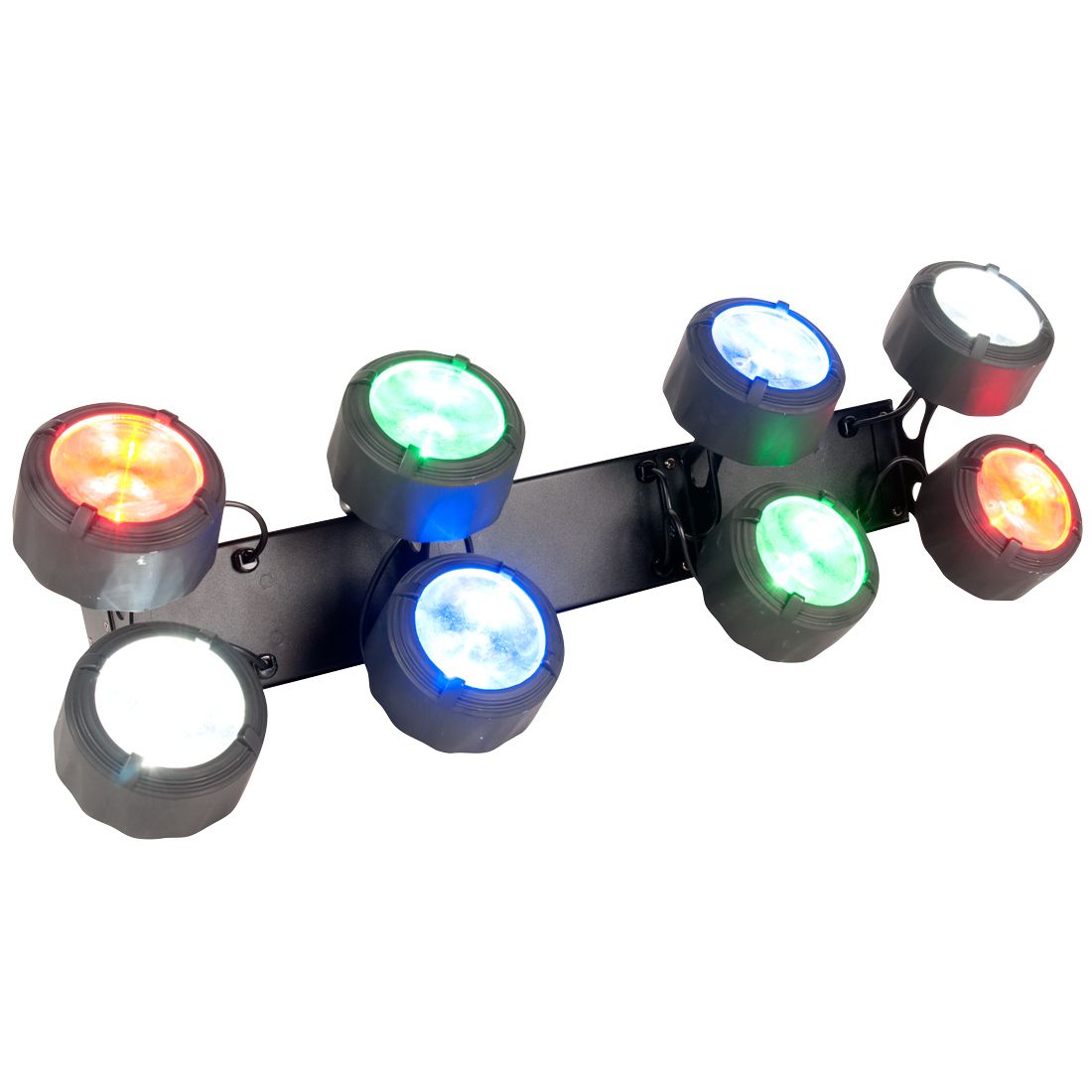

The ADJ Octo Beam RGBW produces a classic disco lighting beam effect with a modern LED twist! This 8-head Beam effect is powered by two red, two green, two blue and two white 3-Watt LEDs. It produces sharp, bright beams at a 3.4 degree beam angle. The Octo Beam RGBW has 3 DMX channel modes (1, 8 or 10), 3 operational modes (Sound Active, Show or DMX modes), LED pulse and strobe effects and 0-100% electronic dimming.

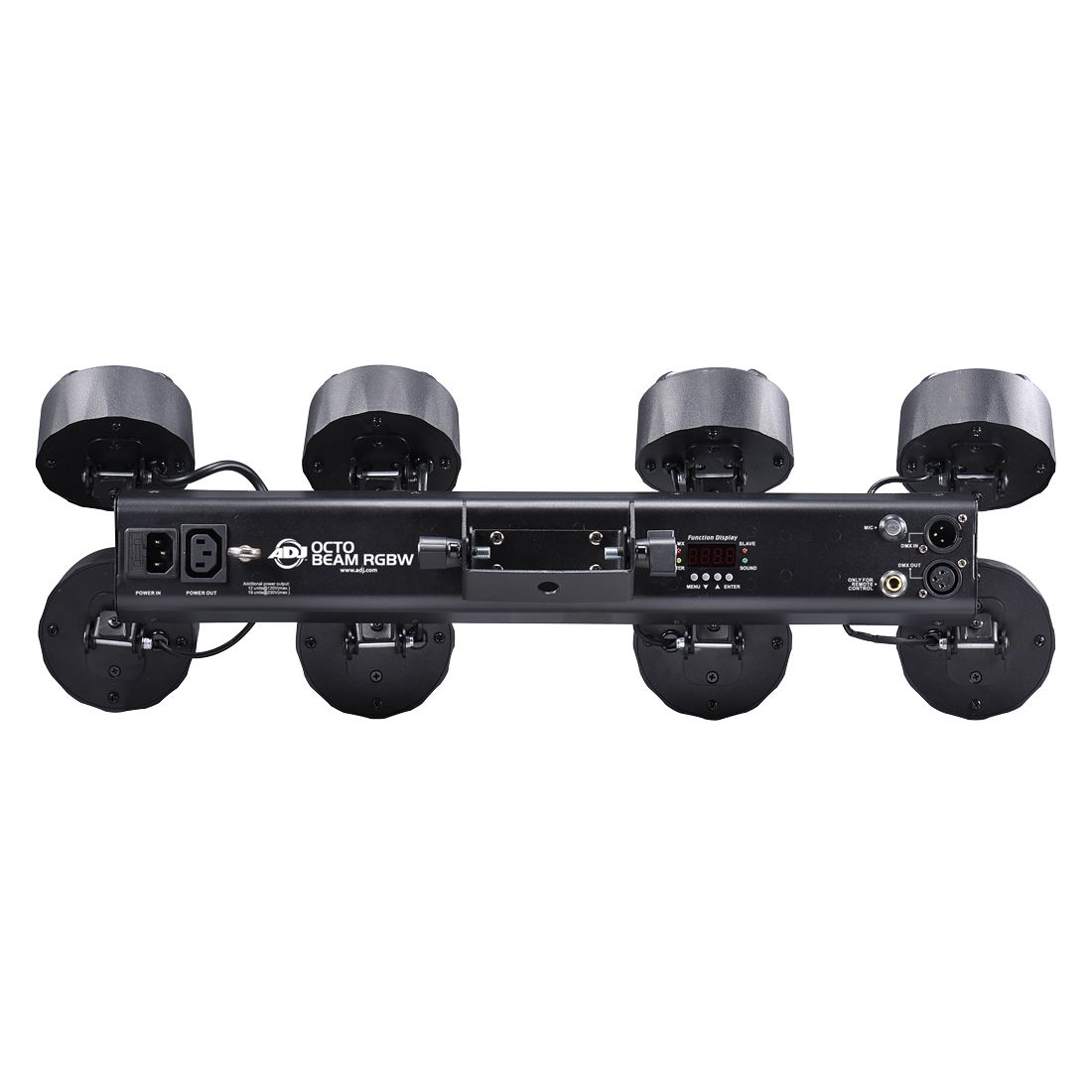

The rear control panel features a 4-button LED display menu, 3-pin DMX In/Out connections and IEC In/Out for power linking up to 12 units at 120V or 19 units at 230V operation. This fixture is compatible with the ADJ UC3 easy-to-use controller.

Gallery

Specification

    Specifications:
    - 2-Foot (25-inch) indoor Linear Fixture with 8x 3W LEDs (2 Red, 2 Green, 2 Blue & 2 White)
    - 3 DMX Channel modes: 1, 8 or 10 channel modes - 3 Operational modes: Sound Active Mode, Show Mode, & DMX Controlled
    - Stand Alone or Master-Slave Configuration
    - LED pulse & strobe effect
    - Flicker Free
    - Electronic Dimming: 0 - 100%  - Beam angle: 30-degree - Linkable via 3-pin XLR cable - 4-button LED display on rear panel - IEC AC IN/OUT on rear to daisy chain power (up to 12 Octo Beam RGBW’s @ 120V and 19 Octo Beam RGBW’s @ 230V )
    - Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
    - Includes mounting yoke to mount on a wall or on to trussing
    - Long life LED (Rated at 50,000 hrs.) - Low power consumption
    - Safety loop on rear - Run all night – No duty cycle - Multi-voltage: 100-240V, 50/60Hz - Power Draw: 28.5W max - Dimensions (LxWxH): 632.6 x 226.9 x 199mm - Weight: 3.5 kg.   Specifications subject to change without notice.
