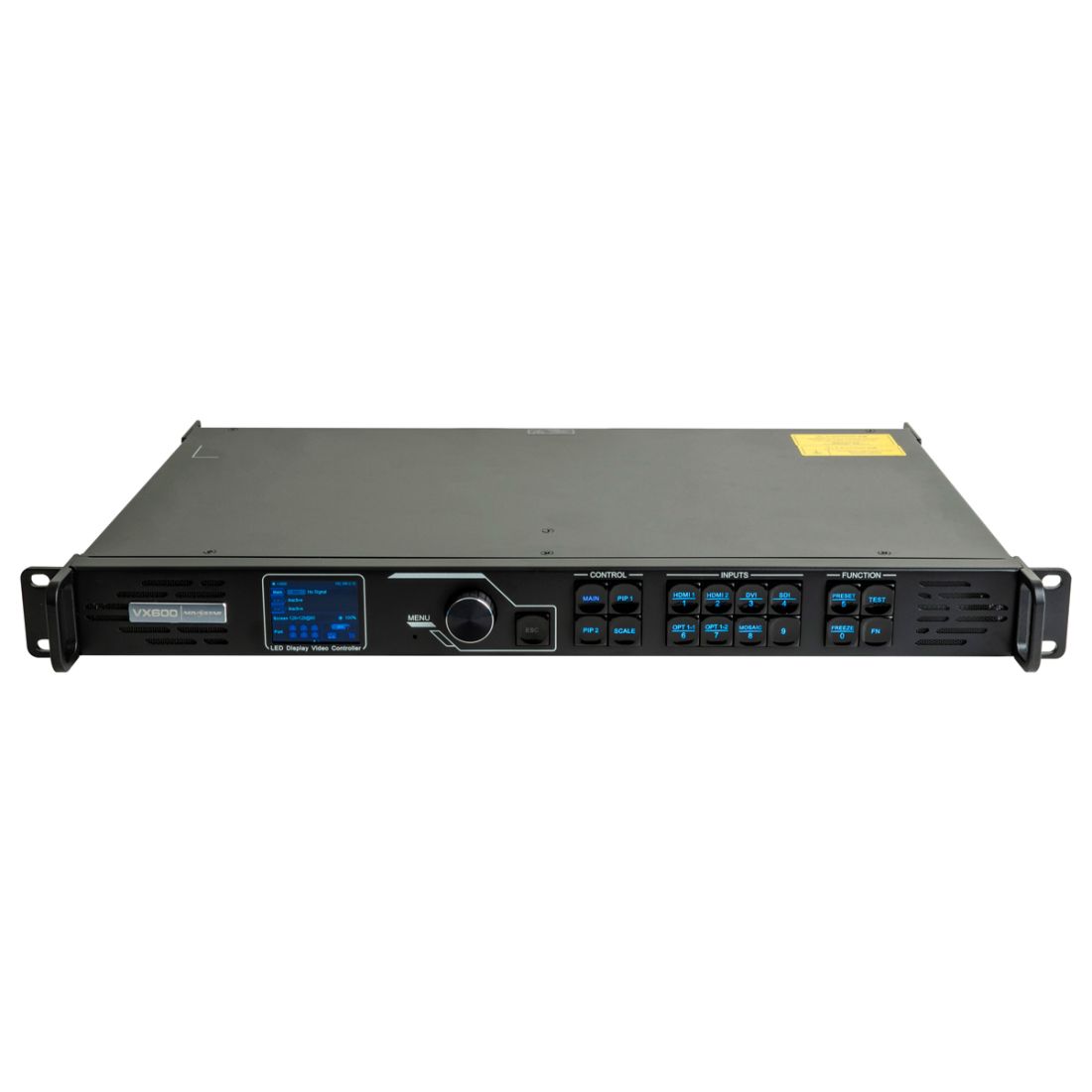

Novastar VX600 Select New
The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration,...
Product Information
SKU: 1226300145
GTIN: 810087370664
HS-Code: 8537109899
The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
Gallery
Specification
- • 3.9 million pixels
- • Width up to 10,240 pixels
- • Height up to 8,192 pixels
- • 3x 2K×1K
- • 2x HDMI1.3 • 1x DVI • 1x 3G-SDI • 1x OPT1
- • 2x HDMI1.3
- • 1x DVI
- • 1x 3G-SDI
- • 1x OPT1
- Outputs:

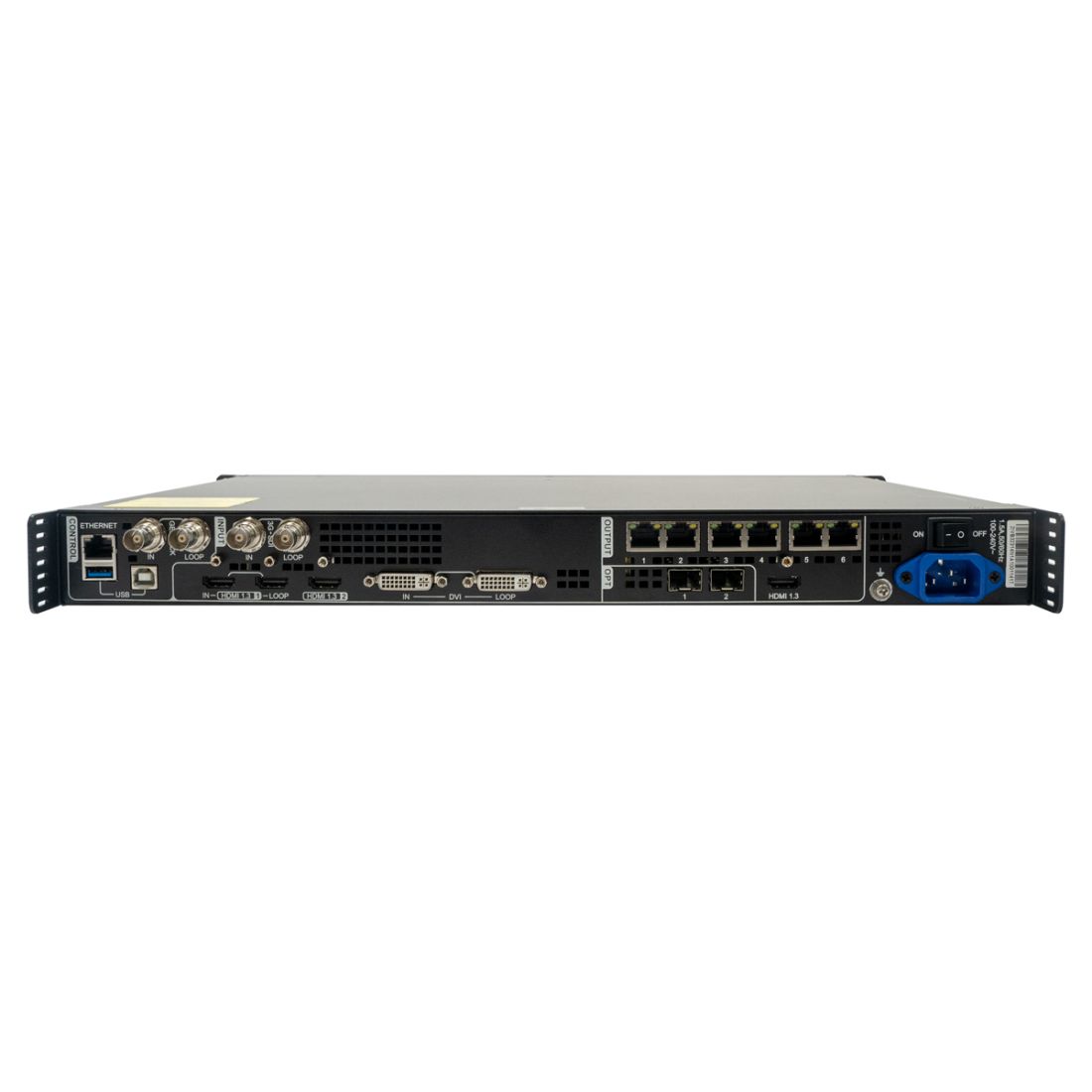

- • 6x Ethernet Ports for LED Screen connection • 1x HDMI (Monitoring or Output) • 1x HDMI1.3 LOOP • 1x DVI LOOP • 1x 3G-SDI LOOP • 2x OPTICAL for LED Screen connection
- • 6x Ethernet Ports for LED Screen connection
- • 1x HDMI (Monitoring or Output)
- • 1x HDMI1.3 LOOP
- • 1x DVI LOOP
- • 1x 3G-SDI LOOP
- • 2x OPTICAL for LED Screen connection
- Control: • GENLOCK (IN & LOOP):Yes • 1x Ethernet Port • 1x USB-A • 1x USB-B • Low Latency: Yes • Input Source Backup: Yes • Bypass Mode: Yes • Fiber Converter Mode: Yes
- • GENLOCK (IN & LOOP):Yes
- • 1x Ethernet Port
- • 1x USB-A
- • 1x USB-B
- • Low Latency: Yes
- • Input Source Backup: Yes
- • Bypass Mode: Yes
- • Fiber Converter Mode: Yes
- • Power connector 100–240V~, 1.5A, 50/60Hz
- • Rated power consumption 28 W
- • Temperature –10°C to +60°C
- • Humidity 20% RH to 90% RH, non-condensing
- • Dimensions 483.6 mm × 351.2 mm × 50.1 mm
- • Weight 4 kg
- • 1x Power cord
- • 1x HDMI to DVI cable
- • 1x USB cable1x Ethernet cable
- • 1x HDMI cable
- • 1x Quick Start Guide
- • 1x Certificate of Approval
- • 1x Customer Letter
- • 1x Safety Manual
Specifications subject to change without notice
