The new NOVASTAR VX4s-N™ is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.3 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.
NOVASTAR VX4s-N™ is compatible with all ADJ video panels.
Product Information
The new NOVASTAR VX4s-N™ is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.3 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.
NOVASTAR VX4s-N™ is compatible with all ADJ video panels.
Gallery
Specification
- • Built-In Scaler
- • Touch-Track : Onboard configuration and Test of video walls
- • Detailed control of Video Walls via LCTMars PC-Software
- • Seamless High-Speed Switch and Fade-In/Out effect
- • PIP-functionality with adjustable size and position
- • Multiple VX4S can be cascaded via DVI for redundancy setup
- • Max pixel capacity : 2.3 million pixels (575.000 pixels per port)
- • 1920x1200@60Hz
- • 3840x600@60Hz
- • 10bit/8bit HD Video Source
- • Supports HDCP, 1080i/P, 480i, 576i, 720P, PAL/NTSC
- • Aluminium Metal Housing
- • Rack Mountable
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Power Draw: 25W
- • Operating Temperature: -20°C - +60°C

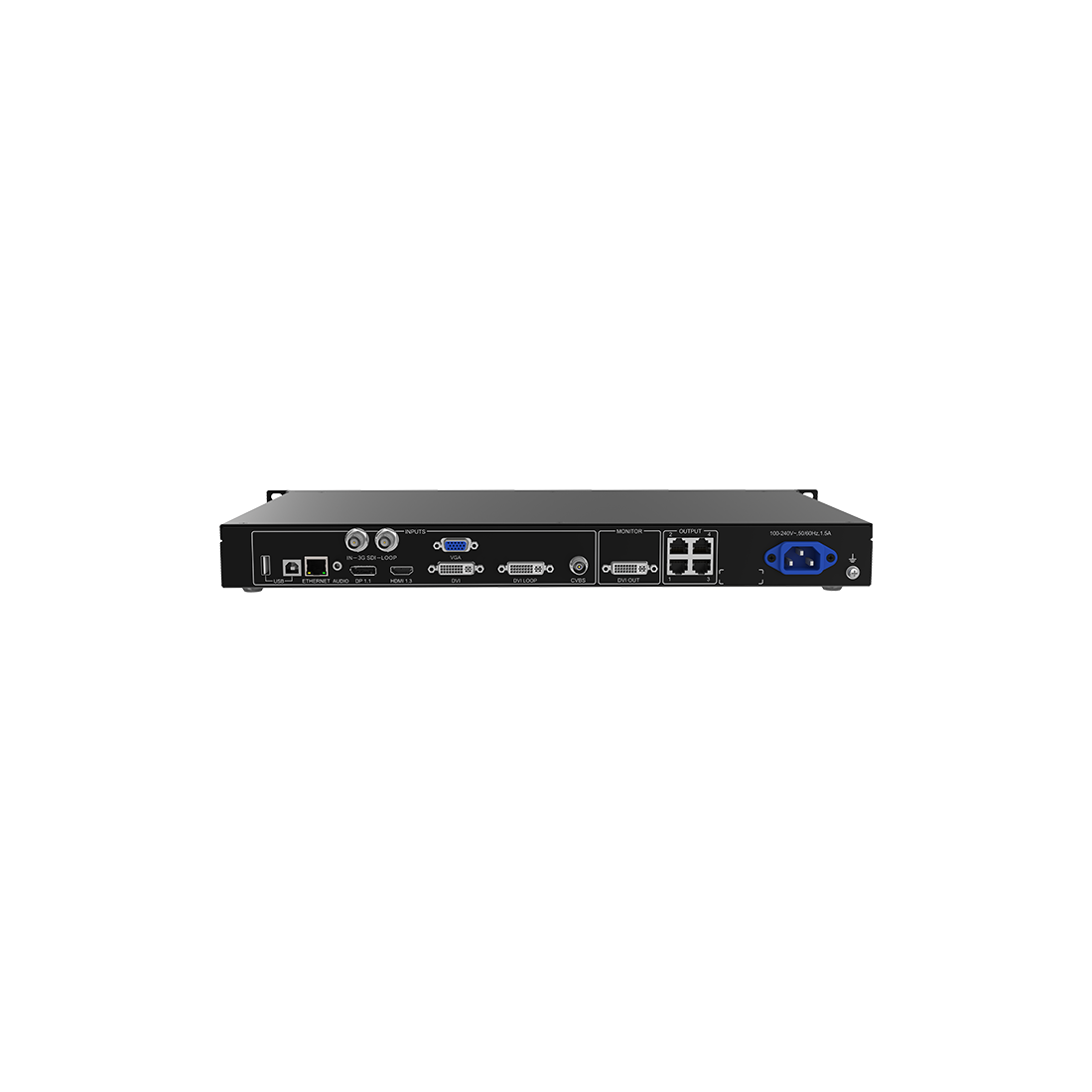

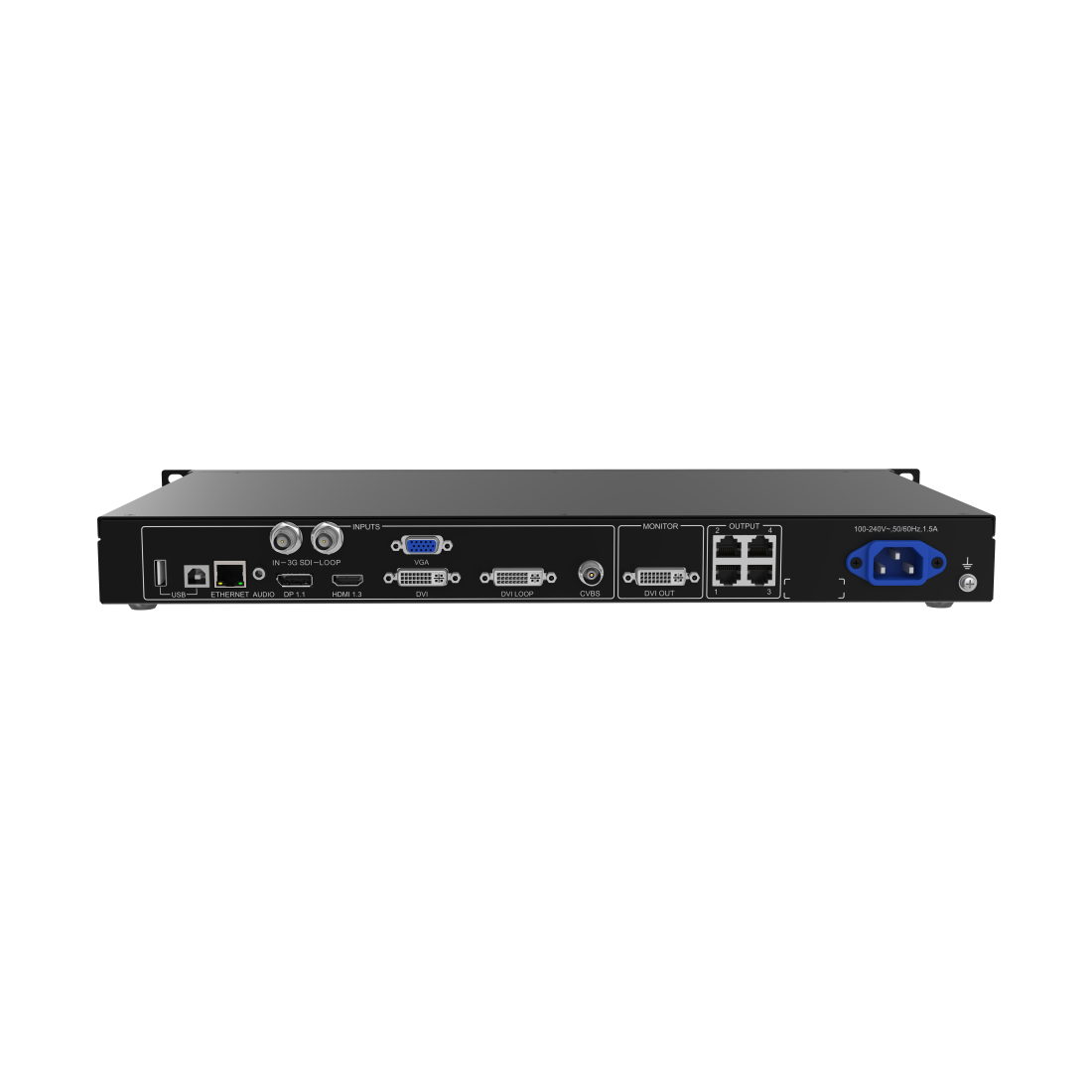

- • Inputs
- 1x CVBS
- 1x VGA
- 1x DVI
- 1x HDMI 1.3
- 1x DP
- 1x SDI
- 1x 3.5mm MiniJack Audio In
- 1x RJ45 Network LAN Connector for IP-based Control
- 1x Locking IEC Power connector
- • Outputs
- 4x RJ45 Screen outputs
- 1x DVI Loop
- 1x DVI Monitor Out
- 1x SDI Loop
- • USB
- 1x USB Type A port to cascade next processor
- 2x USB Type B control interface for connection with PC or Cascade IN
- • DP, VGA, USB, HDMI, DVI, CAT5 & Power cable included
- • Dimensions (LxWxH): 482.6 x 251.5 x 45mm
- • Weight: 2,55kg.
