Key Features
Electrical
• Line Voltage or Power over Ethernet (PoE) powered
• PoE 802.3af
• PoE Power: 15W
• Line Voltage or Power over Ethernet (PoE) powered
• PoE 802.3af
• PoE Power: 15W
Connections
• 2x Indoor Locking RJ45 Input & Output
• 4x 5pin XLR Input / Output
• 2x Indoor Locking RJ45 Input & Output
• 4x 5pin XLR Input / Output
Construction
• M10 & M12 Threads for rigging
• M10 & M12 Threads for rigging

Product Information
SKU: 1321000085
GTIN: 10810087372634
HS-Code: 8537109899

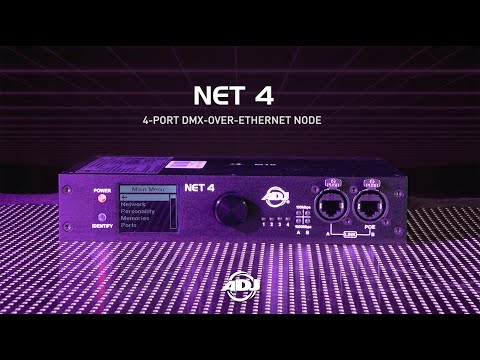

NET 4, a cutting-edge 4-port DMX over Ethernet node that revolutionizes your lighting control experience. This versatile node supports ArtNet, sACN, DMX and RDM protocols, providing a seamless integration platform for your dynamic lighting setups. Whether you prefer traditional Line Voltage or the convenience of Power over Ethernet (PoE), NET 4 empowers you with flexible power options to suit diverse installation scenarios.
Configuring NET 4 is a breeze, offering the choice between DHCP or Static IP Address settings. This adaptability ensures that the node seamlessly integrates into your existing network infrastructure. What sets NET 4 apart is its user-friendly interface, allowing configuration adjustments from the unit menu or the convenience of a web browser. Whether you’re on-site or managing your lighting system remotely, NET 4 puts control at your fingertips.

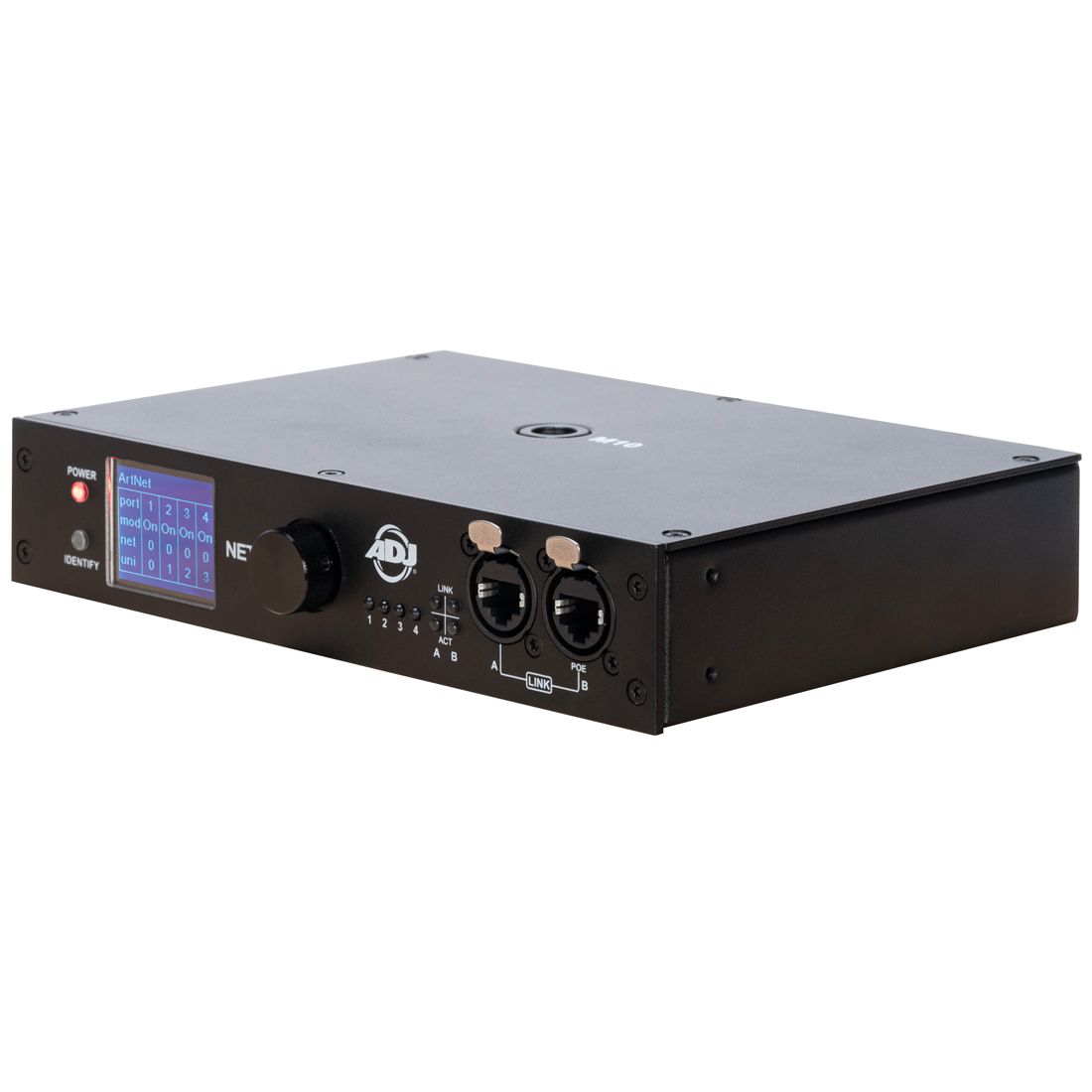

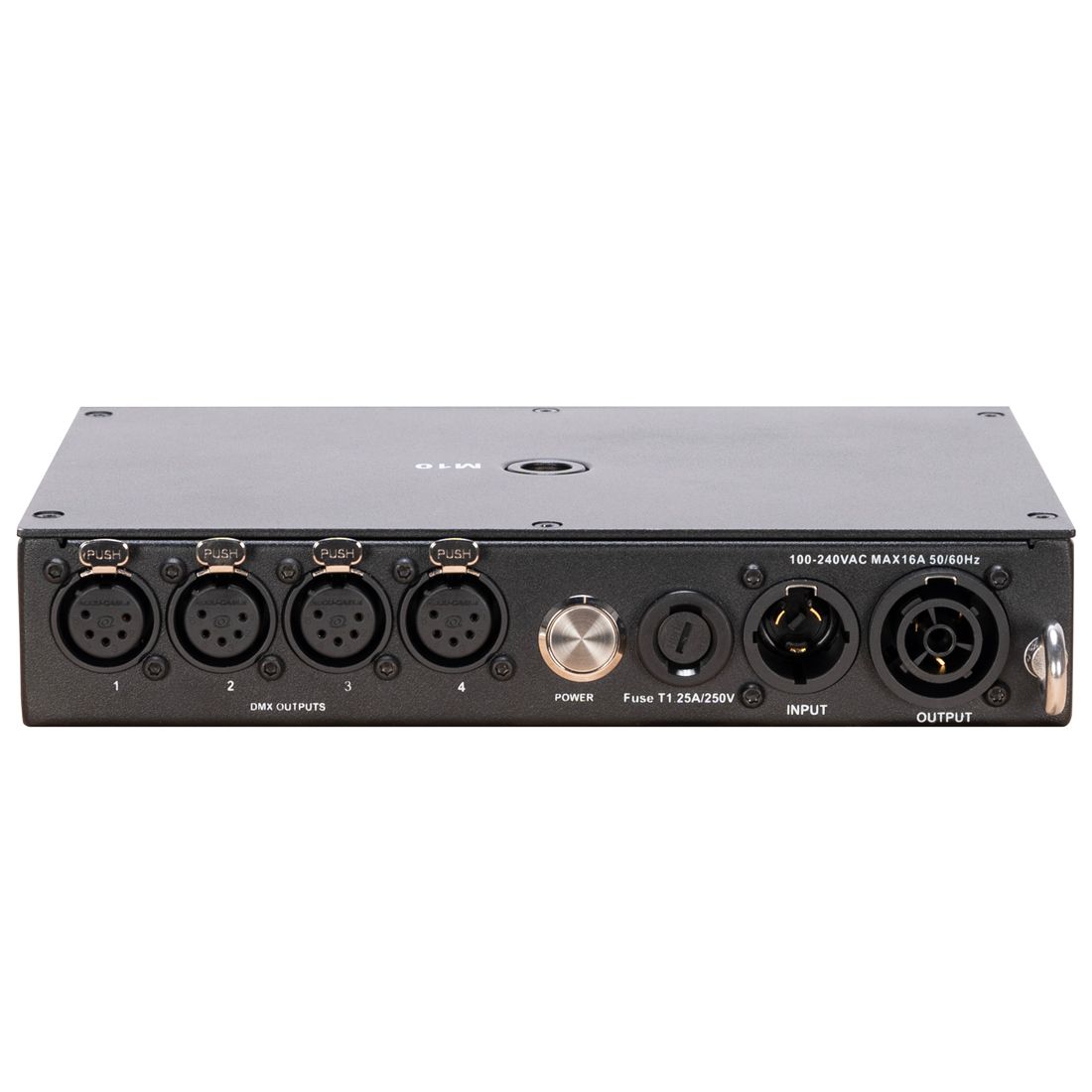

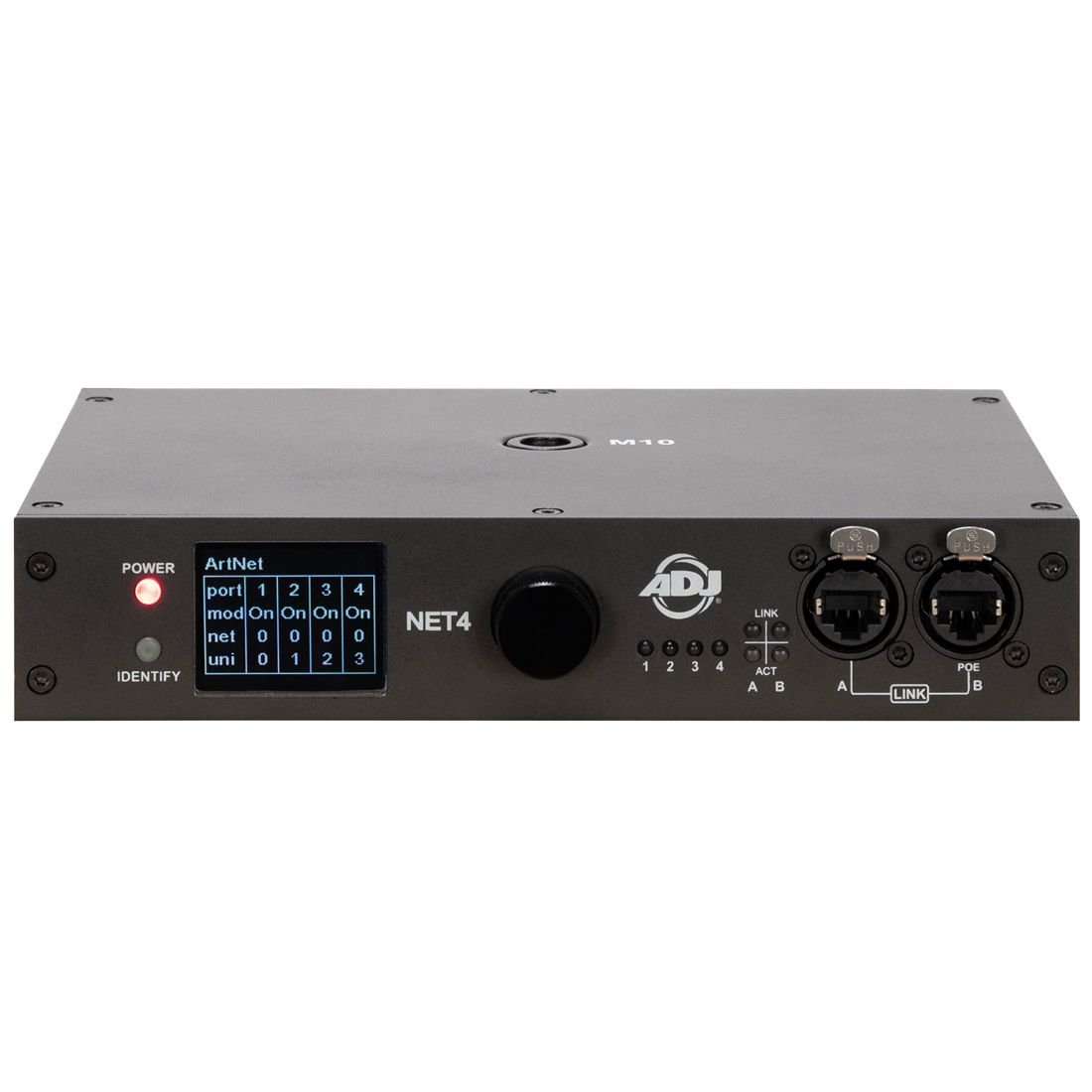

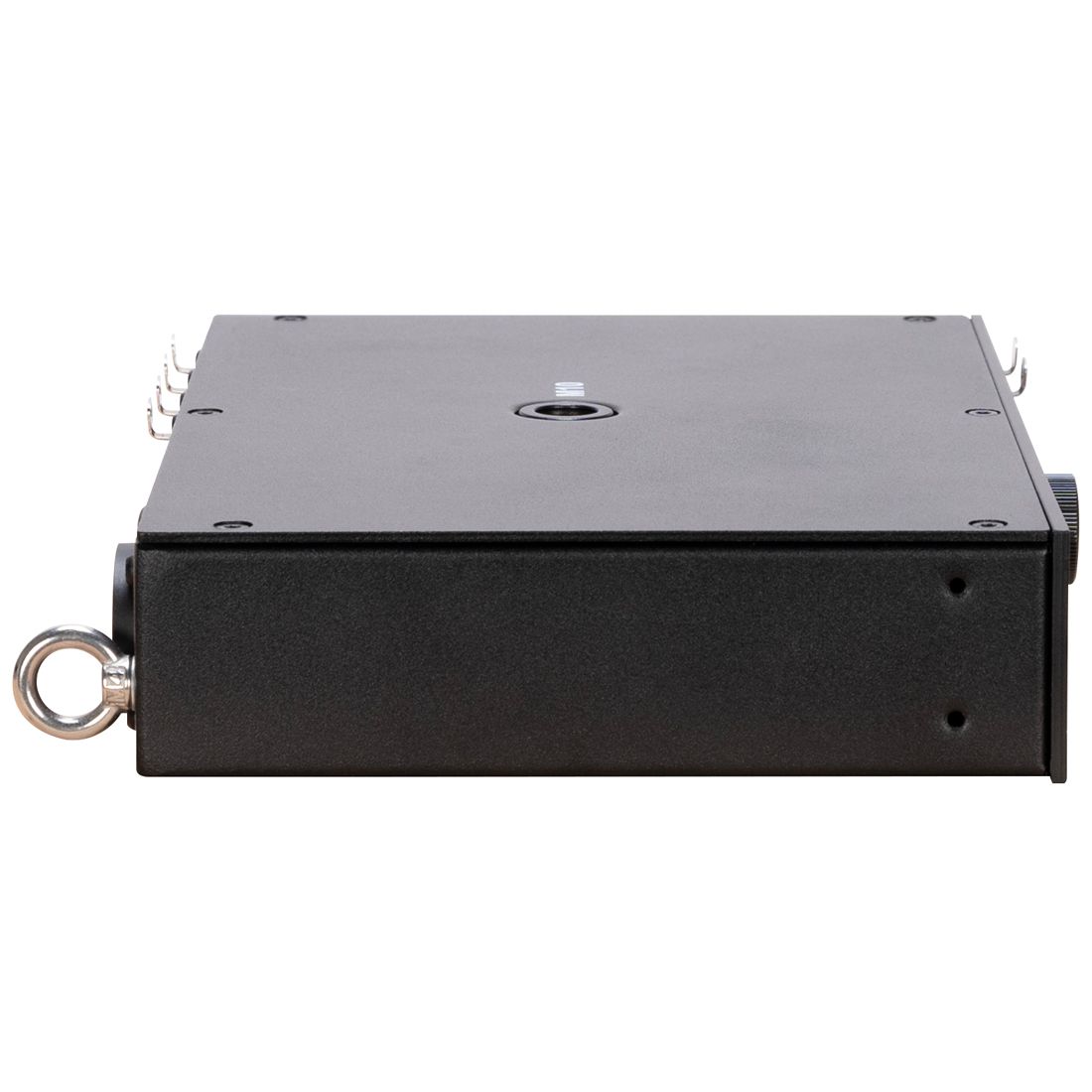

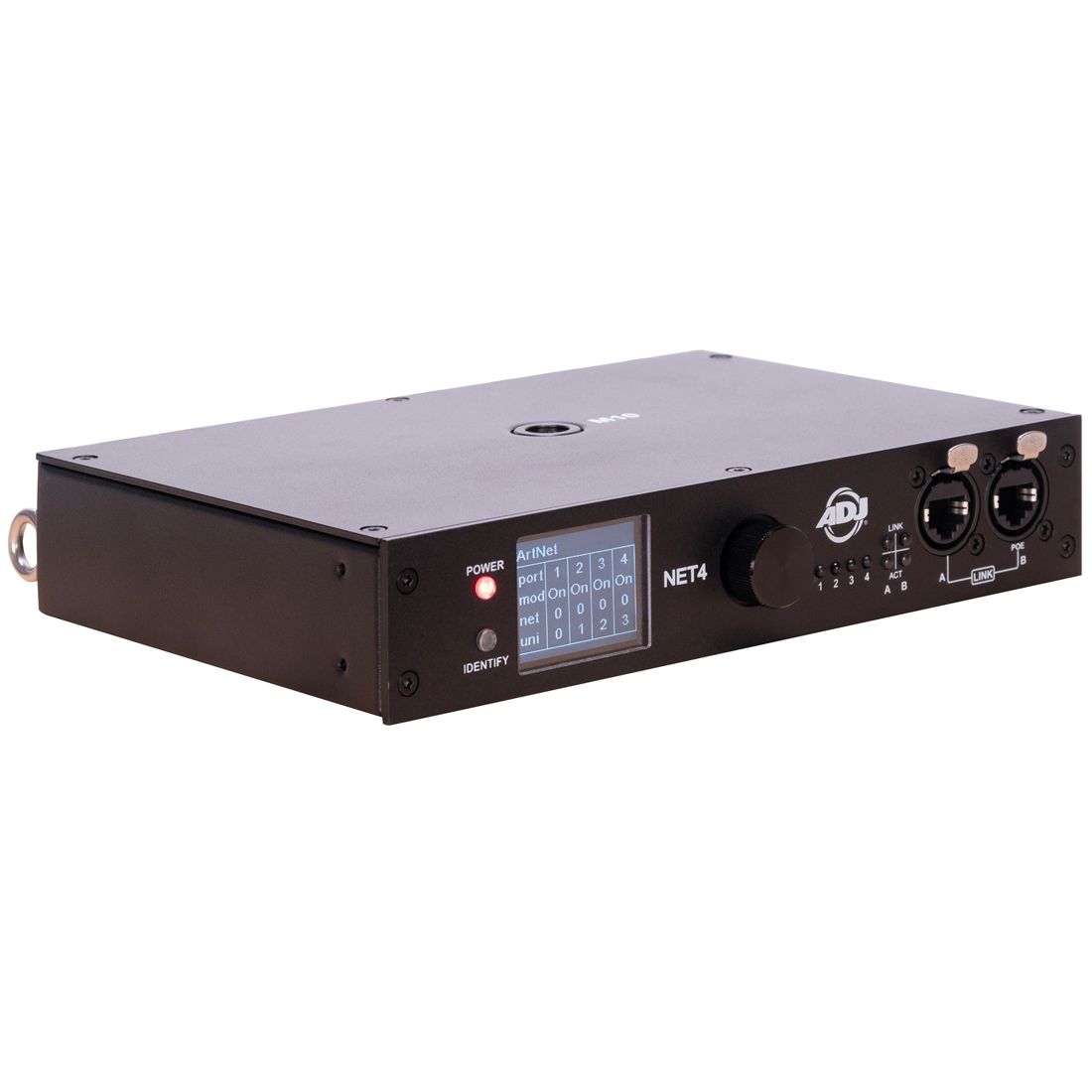

Gallery





Specification
- • ArtNet / sACN /DMX, 4 Port Node
- • Line Voltage or Power over Ethernet (PoE) powered
- • DHCP or Static IP Address
- • 1.7-inch LCD Display
- • Configurable from unit menu or web browser
- • DMX512
- • RDM
- • Artnet
- • sACN
- • M10 & M12 Threads for rigging
- • Safety eyelet
- • 2x Indoor Locking RJ45 Input & Output
- • 4x 5pin XLR Input / Output
- • Length: 150.5mm
- • Width: 215.3mm
- • Height: 42mm
- • Weight: 1.43kg
- • AC Input 95-240V,50/60Hz
- • PoE 802.3af
- • AC Power: 15W
- • PoE Power: 15W
- • Power Consumption: 4W @ 230V
- • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
- • Ambient Operational Temperature: -20°C to 45°C
- • Humidity: <75%
- • Storage Temperature: 25°C
- • IP20
- • IP65 locking power cord
- • Aria X2 Shelf
Specifications subject to change without notice
