MyDMX 3.0 Archive
ADJ’s myDMX 3.0 is a multi-platform DMX control software/hardware system (Windows and OSX Mac compatible). myDMX 3.0 has a new, robust hardware dongle and exciting new features to take greater command of your lightshow. Out of the package, myDMX 3.0 software will run in Express Mode; 512 "Live" DMX channels & 60 "Stand Alone" DMX channels (No 3D visualizer, Easy Remote, 8 port contacts or Midi features). However, these features plus other upgrades, including additional Live &...
Product Information
SKU: 1310000051
GTIN: 819730019684
HS-Code: 8537109899
ADJ’s myDMX 3.0 is a multi-platform DMX control software/hardware system (Windows and OSX Mac compatible). myDMX 3.0 has a new, robust hardware dongle and exciting new features to take greater command of your lightshow. Out of the package, myDMX 3.0 software will run in Express Mode; 512 "Live" DMX channels & 60 "Stand Alone" DMX channels (No 3D visualizer, Easy Remote, 8 port contacts or Midi features). However, these features plus other upgrades, including additional Live & Stand Alone channels can be purchased at https://store.dmxsoft.com/. myDMX 2.1 and 3.0 interfaces will run in Full mode when running myDMX 2.1 software.
If you already own myDMX 2.1 hardware, you can download the myDMX 3.0 software for free from the Downloads tab. Note: it will run in Express Mode. See above for additional details.
Gallery
Specification
- Computer working under Windows 7 or higher, or MAC OSx 10.13 or higher
- 1 Ghz speed processor
- 2 Gb Memory (RAM)
- 1280*768 pixel screen
- OpenGL 3.1 (for 3D)
- *NOTE: we have had several reports of the Intel HD Graphics 3000 adapter not properly working with OpenGL 3.1*
- Computer working under Windows 7 or higher, or MAC OSx 10.13 or higher
- 2 Ghz speed processor, dual core
- 4 Gb Memory (RAM)
- Video card with 1GB video memory
- 1920*1080 pixel screen
- OpenGL 3.1 (for 3D)
- • Play multiple scenes at a time
- • Arrange scenes into groups
- • Sound-light with BPM audio analysis and pulse analysis
- • Live snapshots
- • Live scene dimming and scene speed controls
- • Stand Alone backup memory
- • BPM tap
- • Flash scenes
- • Blind editing - edit scenes without outputting the DMX
- • Fully compatible with myDMX 2.1 software
- • Easy-to-use DMX software
- • 512 DMX channels
- • Extensive fixture profile library
- • SSL2 Profile editor & support
- • Drag and drop effects generator
- • Works with simple scenes/steps
- • Windows and Mac installers that will download the latest ssl library with an internet connection upon install.
- • “Maintenance” application that installs with the program to check for component updates or new versions of the software.
- • “Cloud search for profiles” Search for the latest and greatest fixture profiles from within the program itself, no more hunting through dropbox
- • Improved multi Pan and Tilt support
- • Users can select multi select steps in a scene and modify a channel parameter without it interfering with the rest of the channels
- • Vast optimizations and stability improvements for both Windows and Mac OS
- • Not compatible with ARM based Windows tablets (only Intel)
- • Additional feature and software upgrades available at https://store.dmxsoft.com/
- ----------------------
- 3D: Design your 3D environment and add 3D objects from the built in 3D object library and create your own virtual venue to program your light show without having to set up your entire rig.
- MIDI: Use your favorite USB to MIDI device to assign physical buttons and faders to the virtual buttons and faders in the program to get that perfect hardware lighting console feel to your show and playback capabilities.

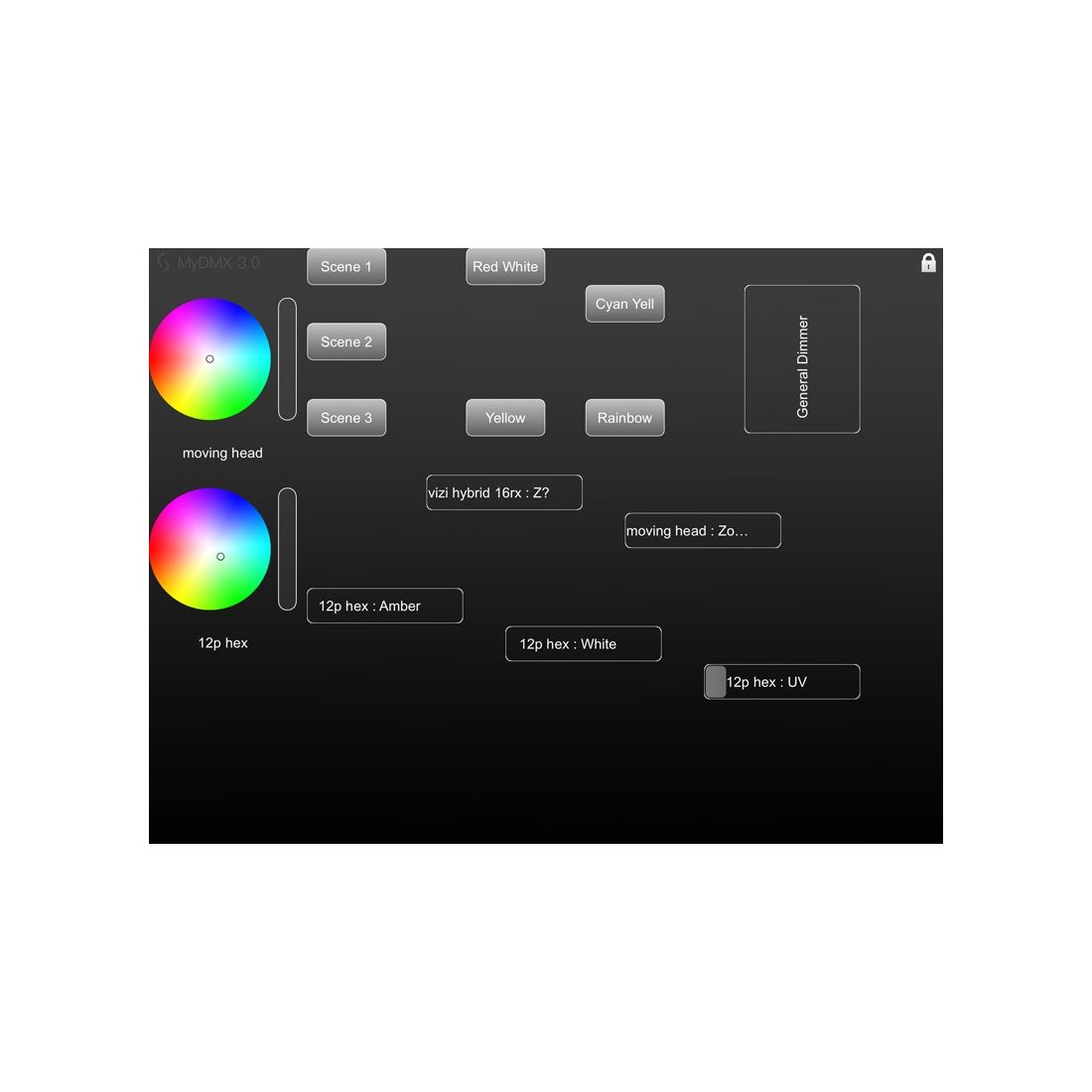

- Easy Remote: Using the "Show" function in the program you can quickly and easily build your own Virtual Lighting desk using any DMX channel or preset or Scene in the MyDMX 3 software to get your very own custom Console set up, and it is automatically linked to your smartphone or tablet running the Easy Remote app, there are even presets for popular iOS and Android devices ready to be used and edited!
- Multiple Universes: If you own a 2nd or 3rd or more MyDMX 3 interfaces, or purchase a MyDMX Buddy with at least the Express mode license for 3.0 software, you can "stack" interfaces to get multiple universes of DMX output on the 3.0 software.

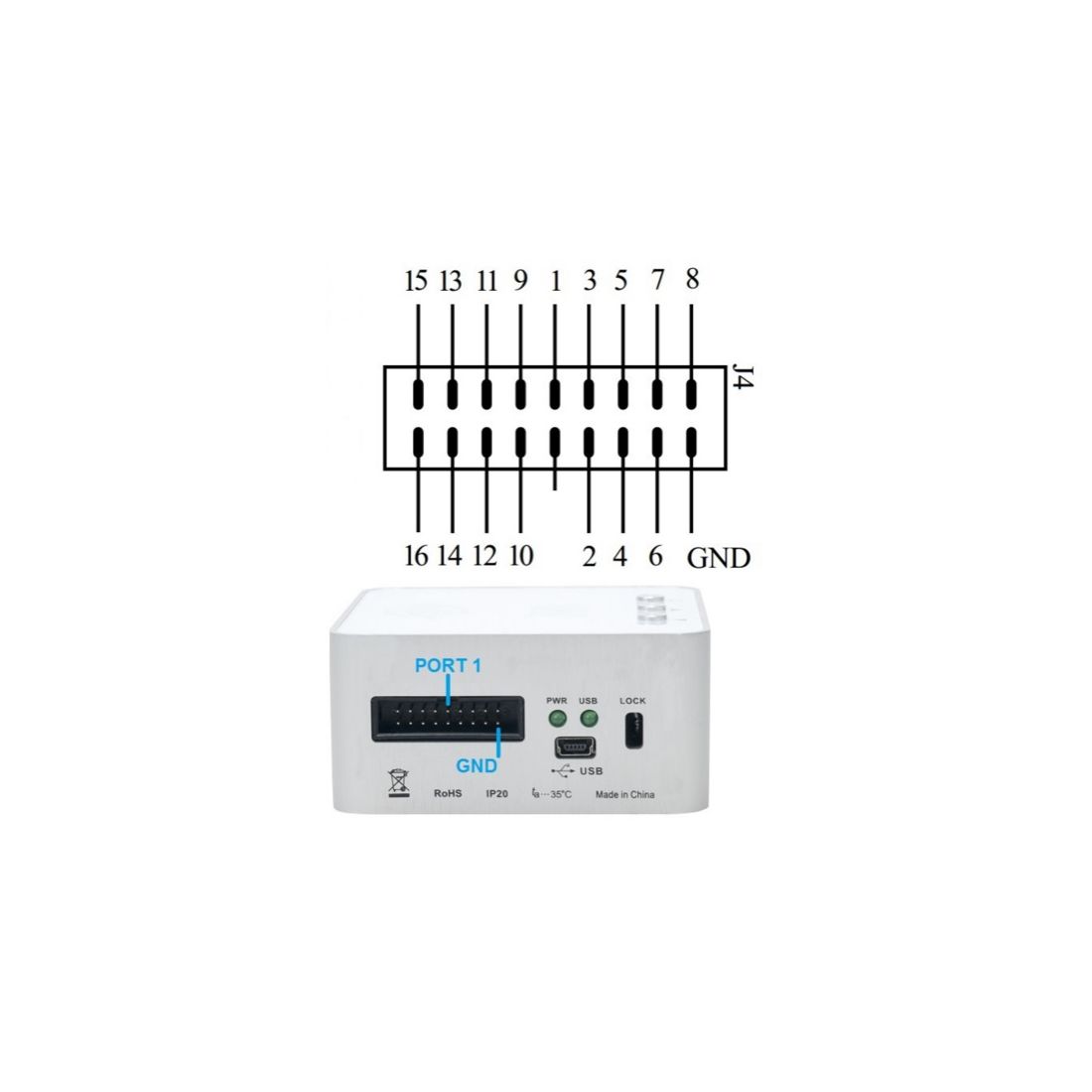

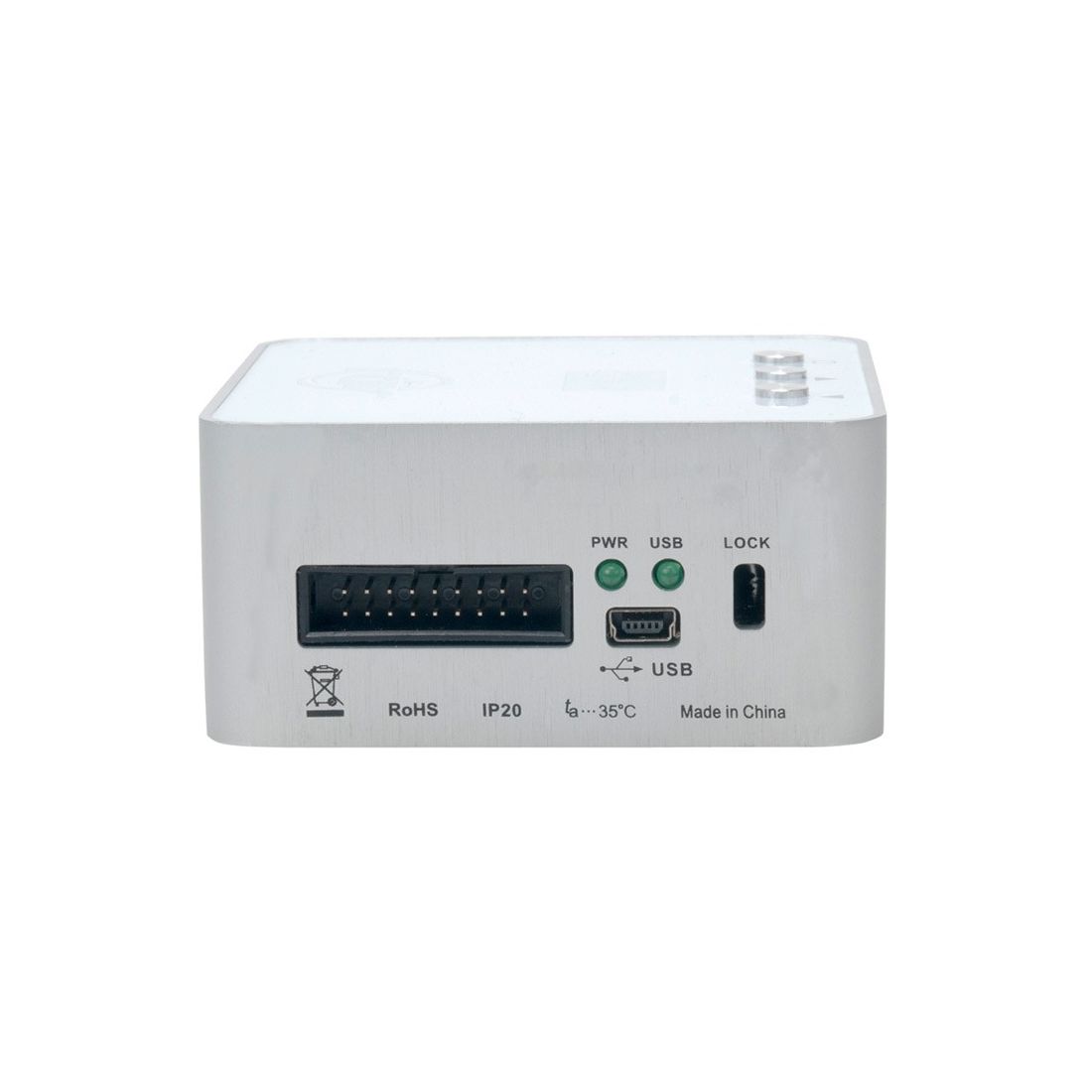

- 8-Port Contacts: Trigger scenes in both live and stand alone mode via the 8 dry contact ports. Bridge the ground pin with pins 1-8 of the HE10 connector to start scenes from a push button or relay. The 8 ports can be combined in binary for up to 255 triggers.
- Stand Alone: Want to trigger a few of your scenes without lugging your computer around? Stand alone channels let's you do just that. With 60 Stand alone channels included with each MyDMX 3 interface you can store scenes that use up to 60 channels of DMX that you can use to playback lighting looks using the push buttons on the top of the MyDMX 3 interface. you can purchase up to 512 stand alone channels in packs of 50 additional Stand alone channels from the web store.
- myDMX 3 upgrades available at: https://store.dmxsoft.com/
