Mirage Par H IP Select New
Key Features
Electrical
• Battery or Wall Powered (ranging 5 to 20 hrs)
• Battery or Wall Powered (ranging 5 to 20 hrs)
Construction
• IP65 Housing
• IP65 Housing
Optics
• 2,300K ~ 9,900K White Color Temperature Range
• 17° Beam Angle
• 2,300K ~ 9,900K White Color Temperature Range
• 17° Beam Angle
Product Information
SKU: 1226100431
HS-Code: 9405423990

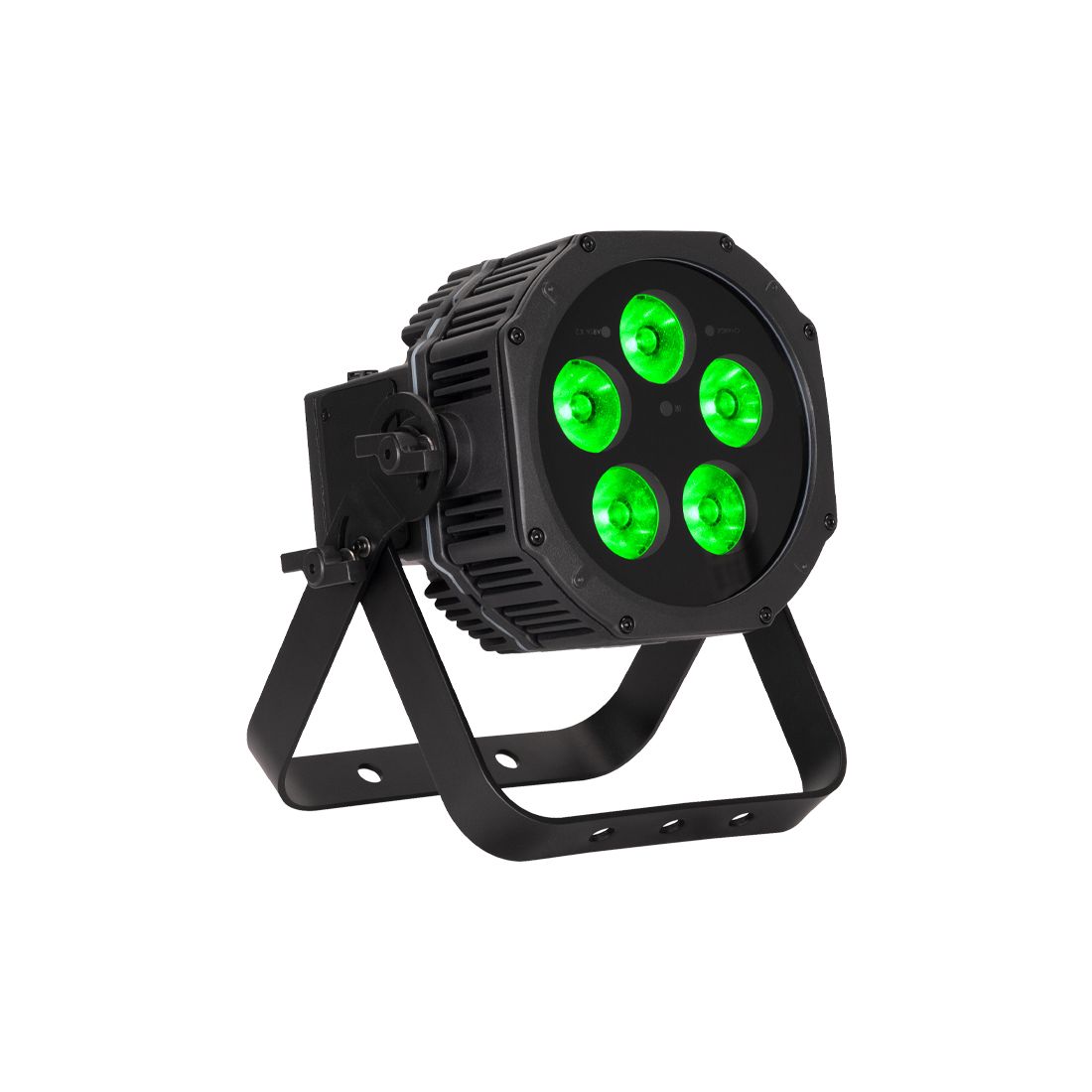

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,300K to 9,900K, the Mirage Par H IP allows access to massive gamut of colors.
This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over the air firmware/software updates, Bluetooth, RDM and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.
Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.
The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options and all-weather protection in one durable package.
Gallery
Specification
- • 5 Pixel, Hex Color LED (RGBAL+UV) LED Par
- • Battery or Wall Powered
- • Battery operation can be selected by the user for durations ranging from 5 to 20 hours
- • Built-In Programs

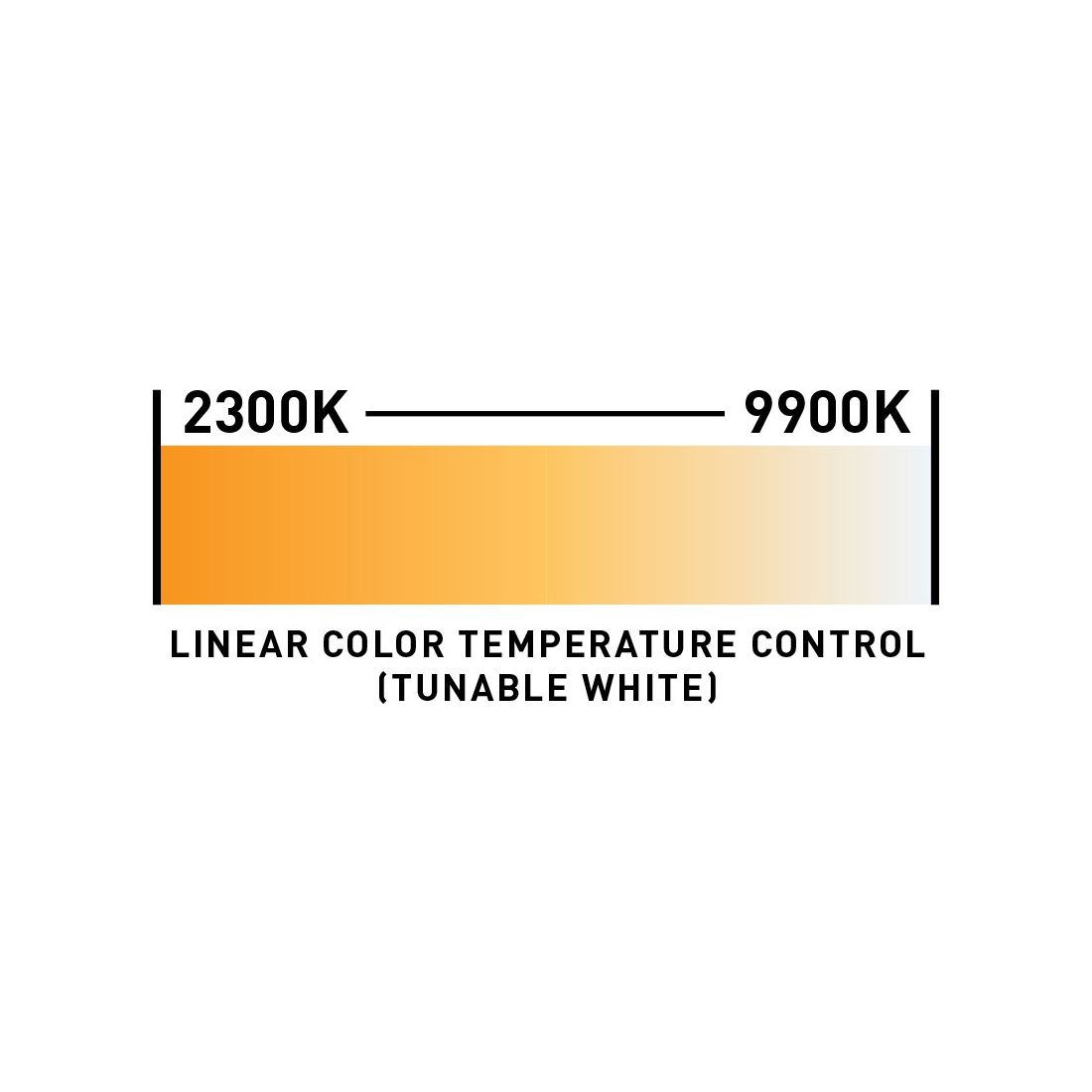

- • Variable White Color Temperature Control (2,300K ~ 9,900K)
- • User Selectable LED Refresh Rates (900Hz ~ 25K)
- • 6 User Selectable Dim Modes
- • 4 User Selectable Dim Curves
- • Electronic Strobe (0.3Hz ~ 11Hz)
- • Electronic Dimming
- • (5) 20W Hex Color RGBAL+UV LED's
- • 50,000 Hour Average Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- • 2,300K ~ 9,900K White Color Temperature Range
- • 17° Beam Angle

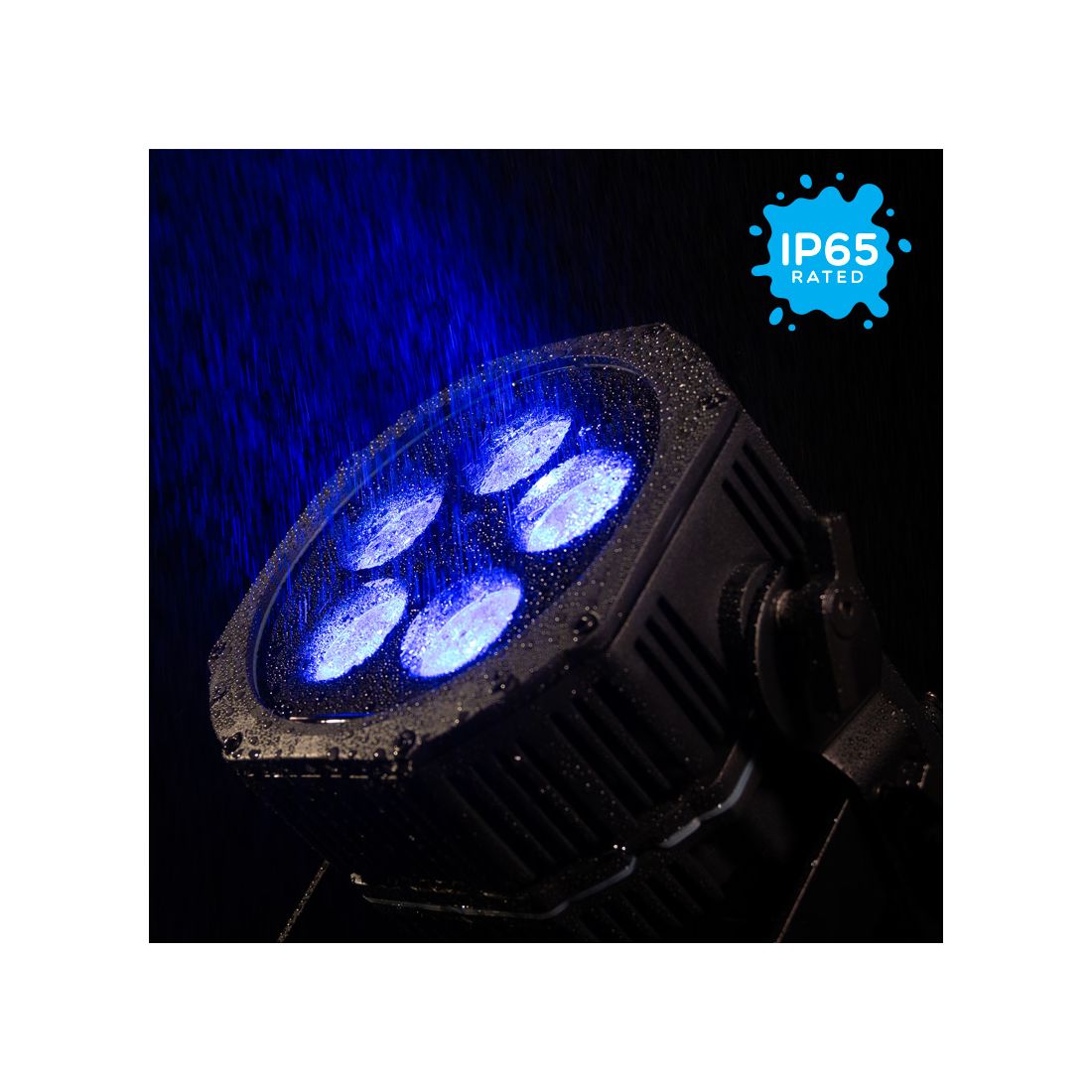

- • IP65 Housing

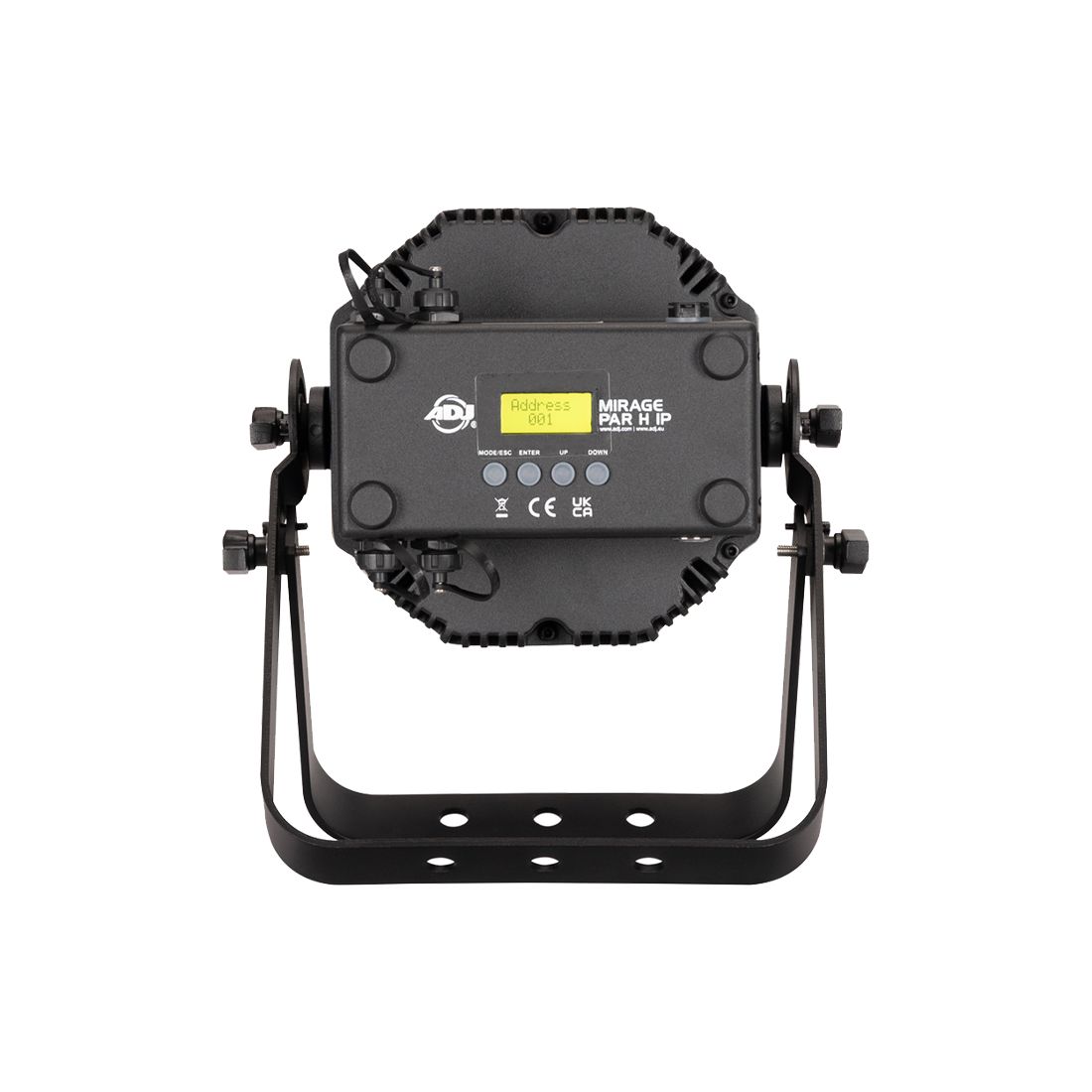

- • Digital display

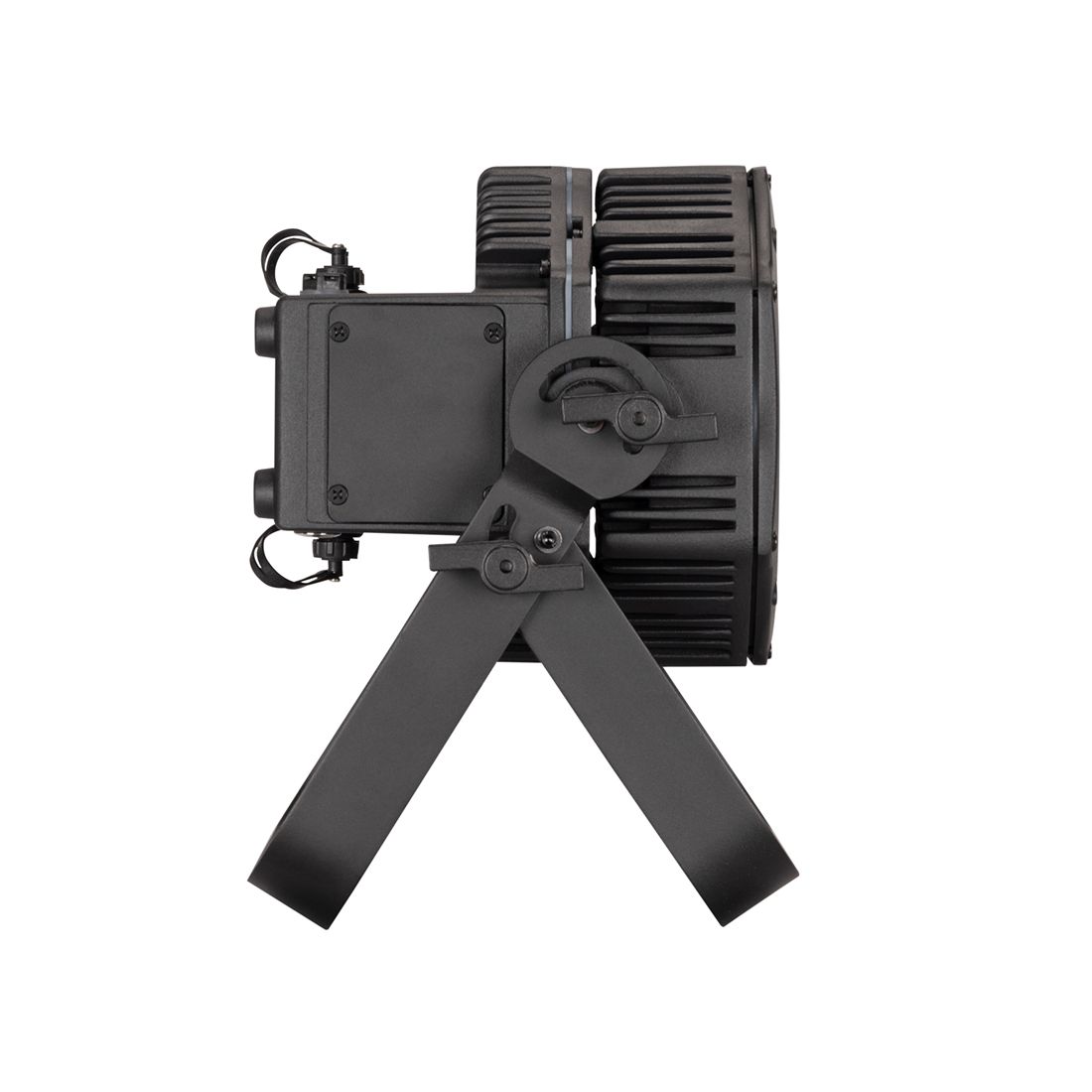

- • Adjustable, hanging / kick stand bracket
- • DMX512
- • Aria X2 Wireless Management / DMX System
- • Bluetooth
- • RDM and RDM Net Compatible

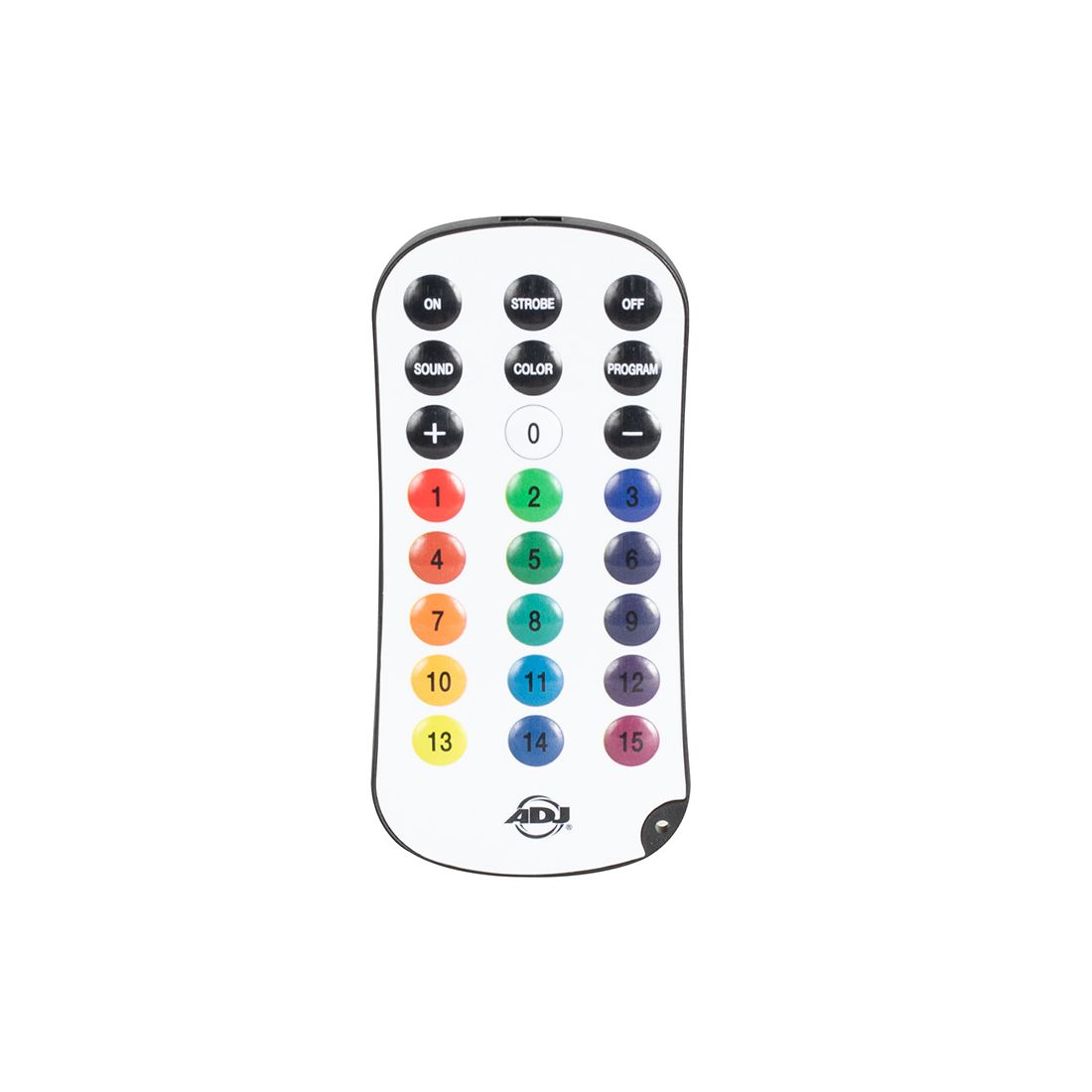

- • IR (Includes UCIR24 wireless remote)
- • (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
- • On-board Manual Control Mode
- • Primary / Secondary Mode

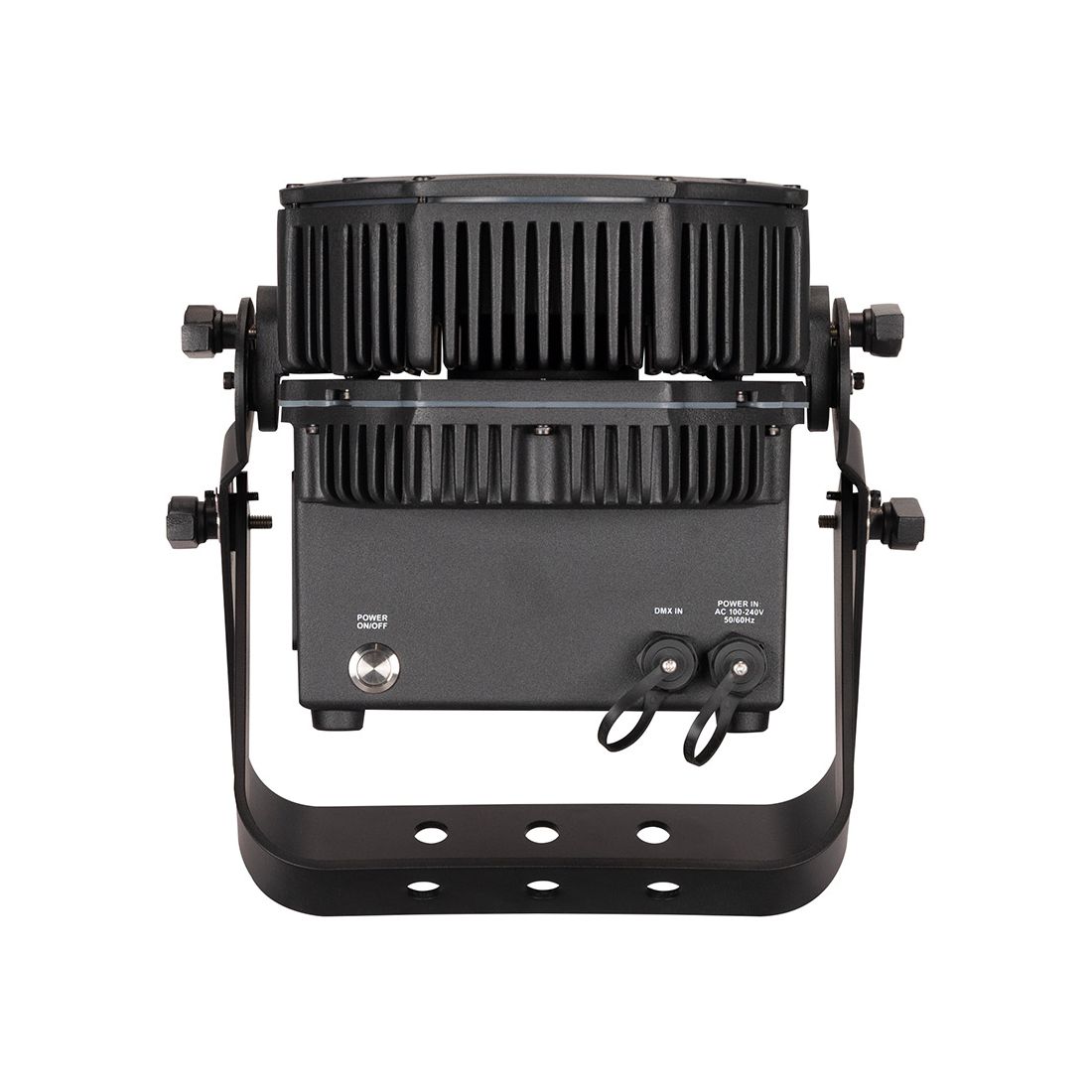

- • 4-pin proprietary Power In/Out connections
- • 3-pin proprietary IP65 DMX In/Out connections
- • Dimensions (LxWxH): 282mm x 269mm x 265mm
- • Weight: 5.4 kg
- • AC100-240V/50Hz-60Hz Input
- • 60W Power Consumption
- • Link 28 pieces @ 230VAC
- • Rechargeable Lithium ion
- • Battery Capacity: 6,600mAh
- • Battery Voltage: 22.2V
- • Charge Time: 5 Hours (To Full)
- • Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
- • Battery Cycles: 500
- • Ambient Operational Temperature: -20°C to 45°C
- • Storage Temperature: -30°C to 45°C
- • IP65

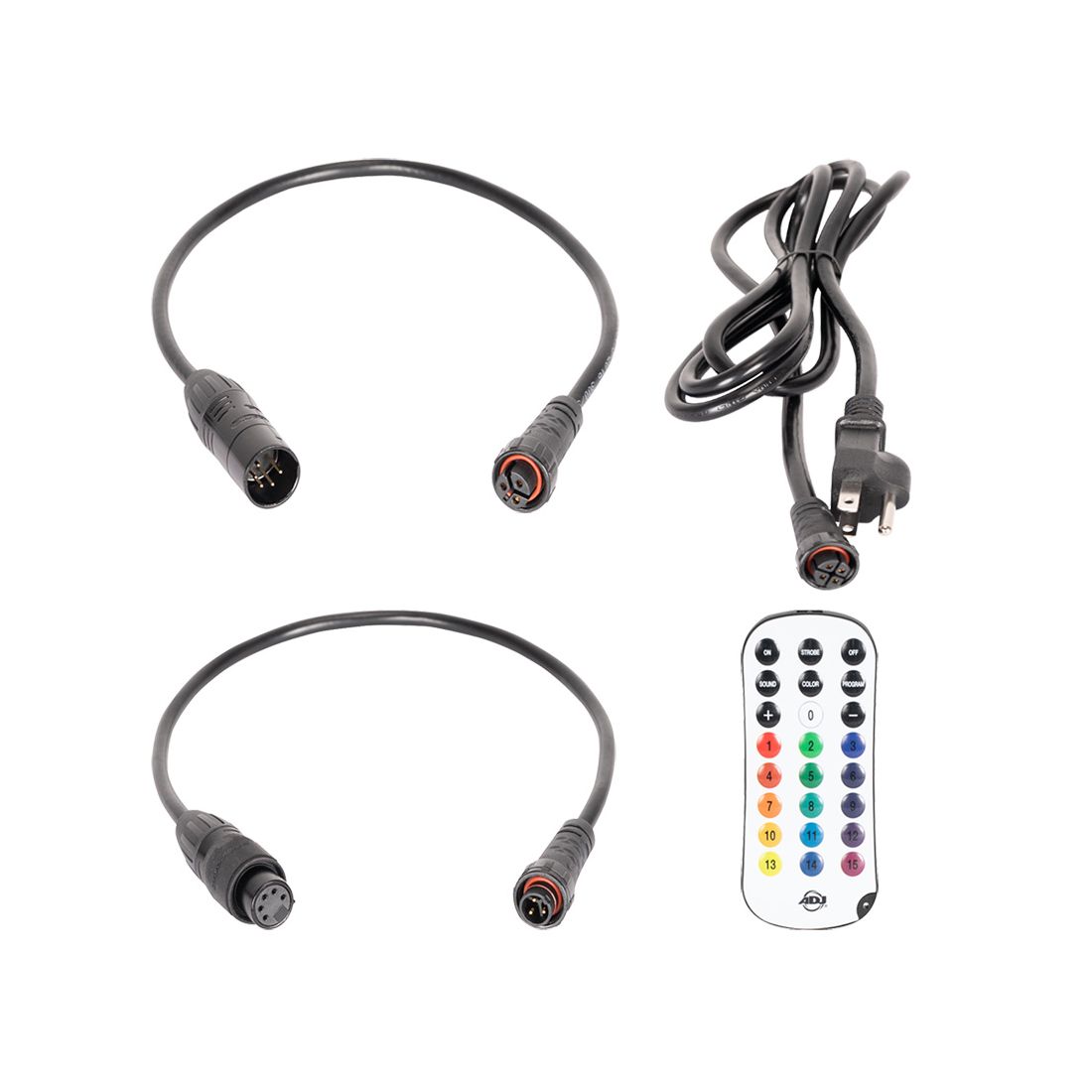

- • (1) Outdoor Locking Power Cable
- • (1) Floor / Mounting Bracket
- • (1) UCIR24 Remote
Specifications subject to change without notice
