Mega 64 Profile Plus Archive
![Brand](/media/brand/adj.png)
![](https://www.adj.eu/media/catalog/product/1/2/1226100311_RT_1.jpg)
Product Information
DISCONTINUED. Please check the replacement: 1900000042 - Mega 64 Profile EP

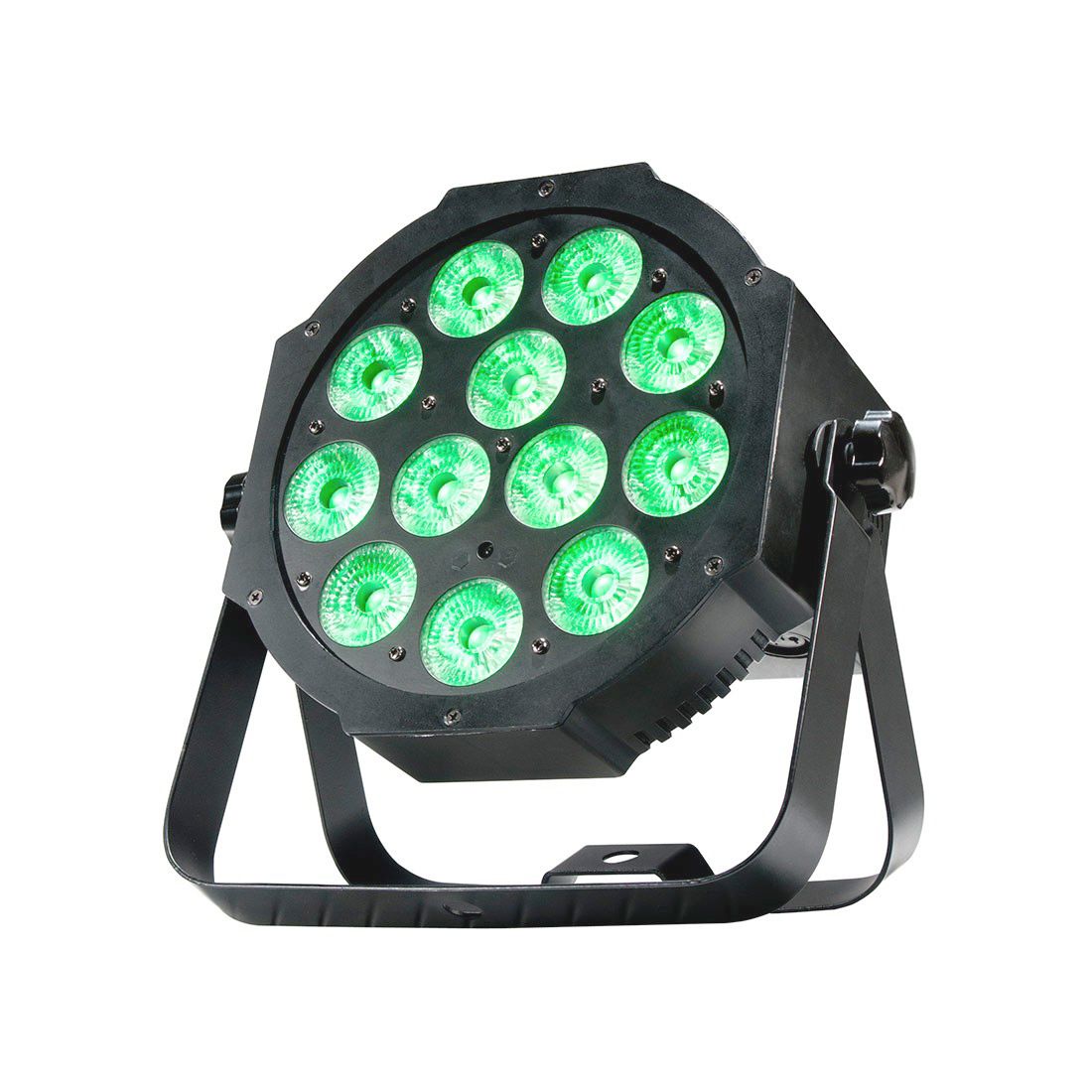

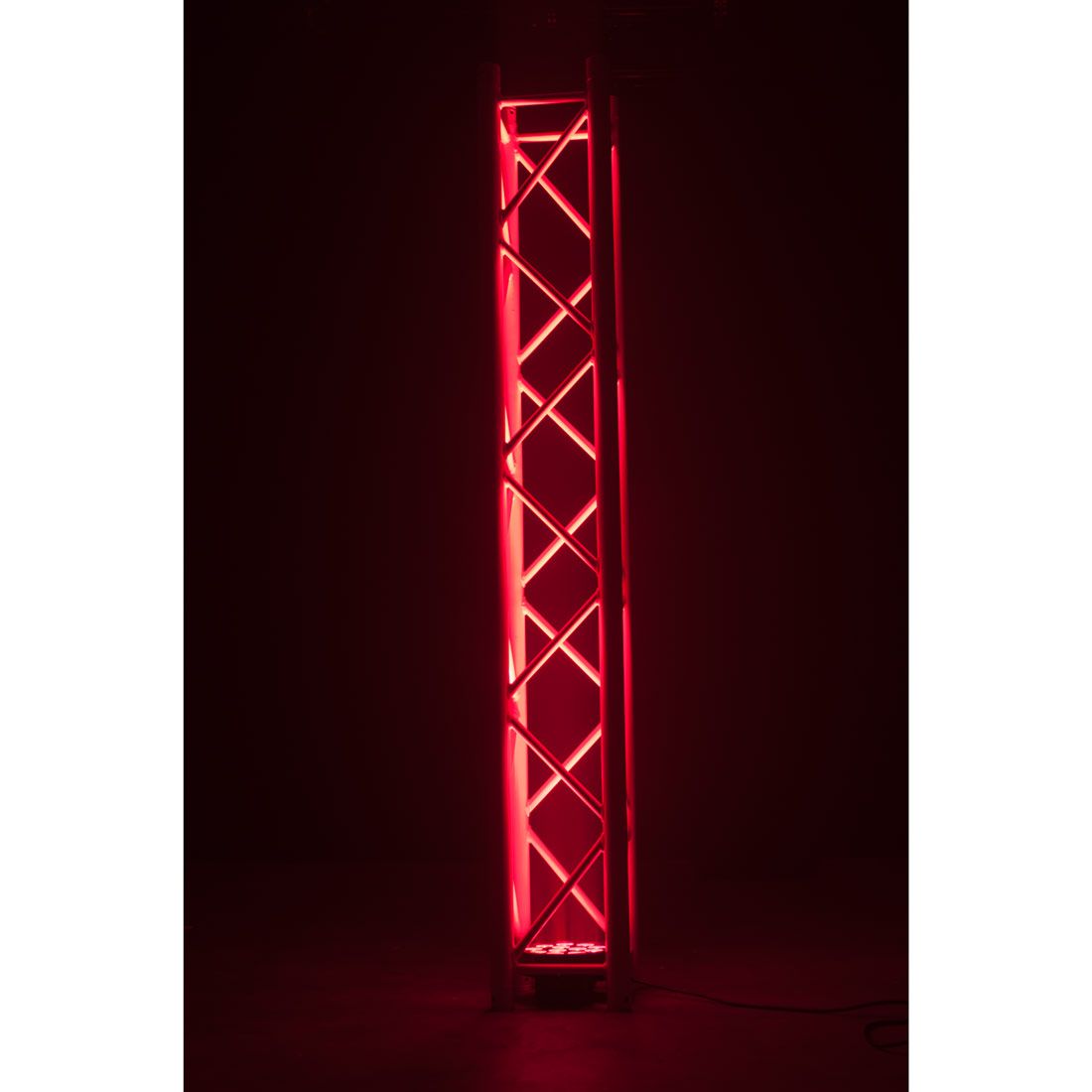

The ADJ Mega 64 Profile Plus is a compact, low profile wash fixture designed for uplighting, stage lighting and wall washing, and will bring color and excitement to any party. The Mega 64 Profile Plus is powered by twelve bright 4-Watt Quad (RGB+UV 4-In-1) LED. This Par is intelligently designed so that it may sit directly on the ground or inside truss without the hanging bracket because the power & DMX Ins and Outs sit on the side of the fixture, not on the rear.
The Mega 64 Profile Plus offers smooth RGB Color Mixing with no RGB+UV shadows, has a 25-degree beam angle and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote, which is sold separately, to control the Mega 64 Profile Plus.
Gallery
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_RT_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_back_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_fx1_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_fx2_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_fx3_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_fx4_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_fx5_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_fx6_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_input_1.jpg)
![](https://www.adj.eu/media/catalog/product/cache/675c0c791e7c515e3278f9260f8845cc/1/2/1226100311_output_1.jpg)
Specification
Specifications:
- Ultra bright flat Par 64 with 12 x 4W Quad (RGB+UV 4-IN-1) LEDs
- Smooth RGB Color Mixing (fast or slow color change operation) with no RGB+UV shadows

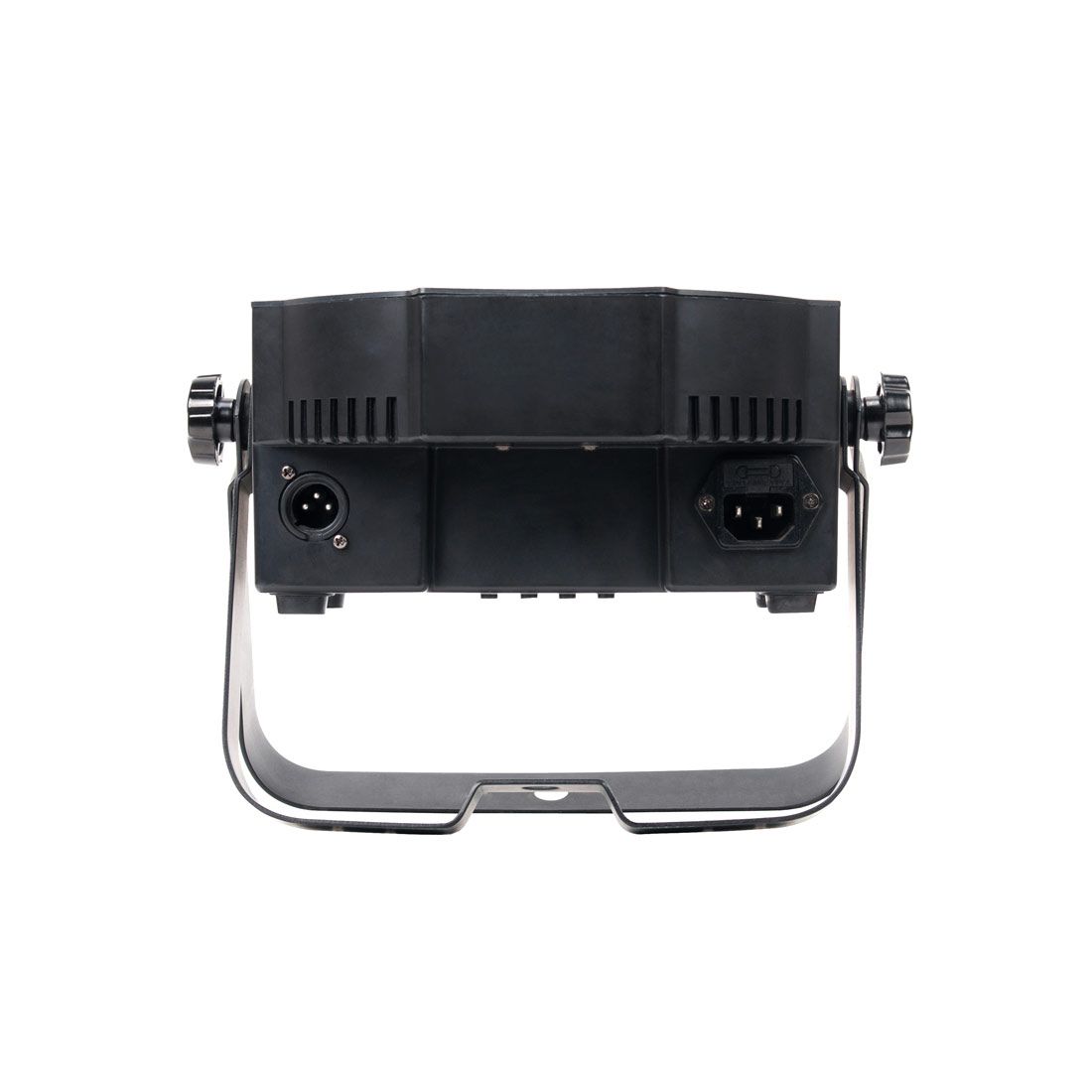

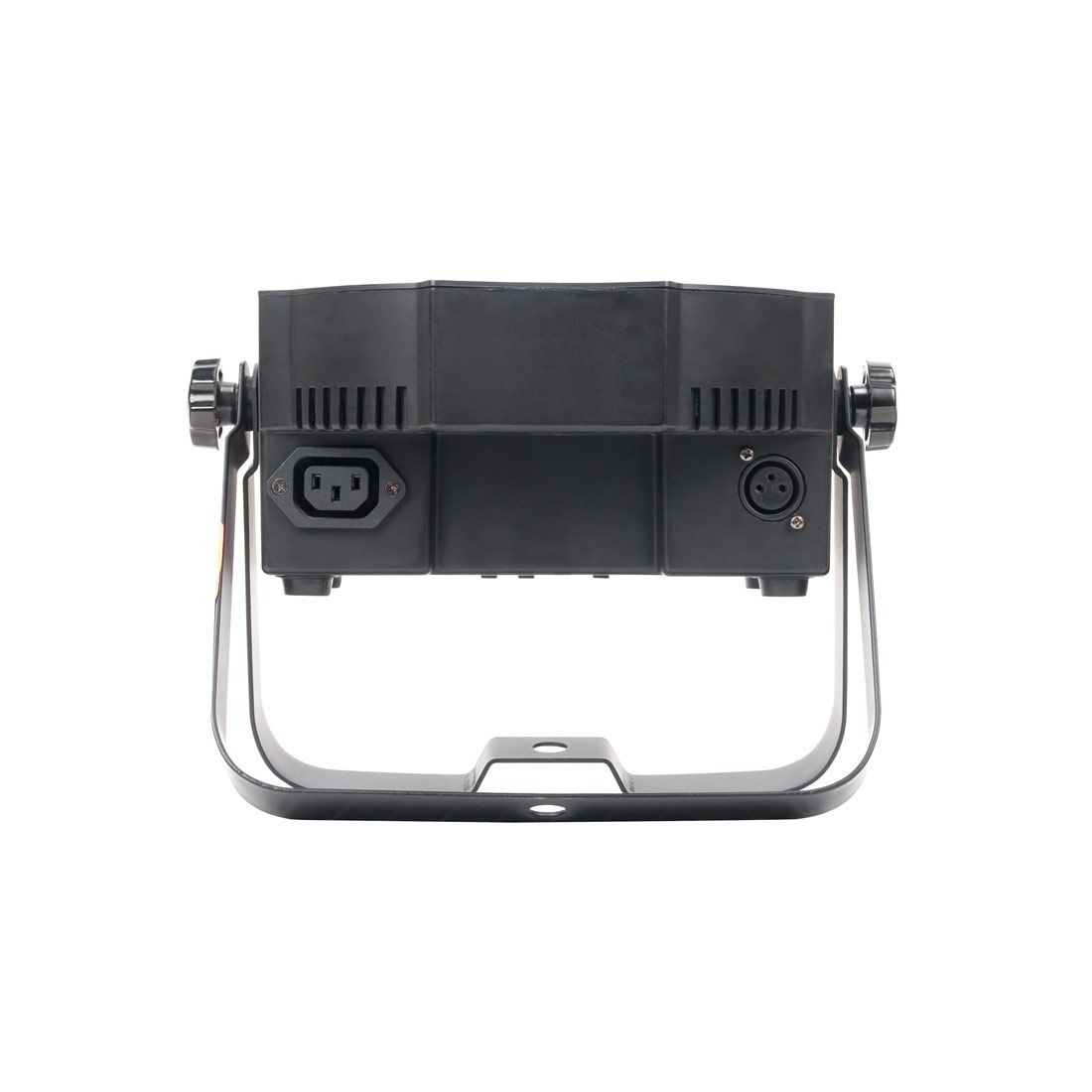

- Power & DMX Ins/Outs are intelligently designed to sit sideways so the unit can be set flat on the ground

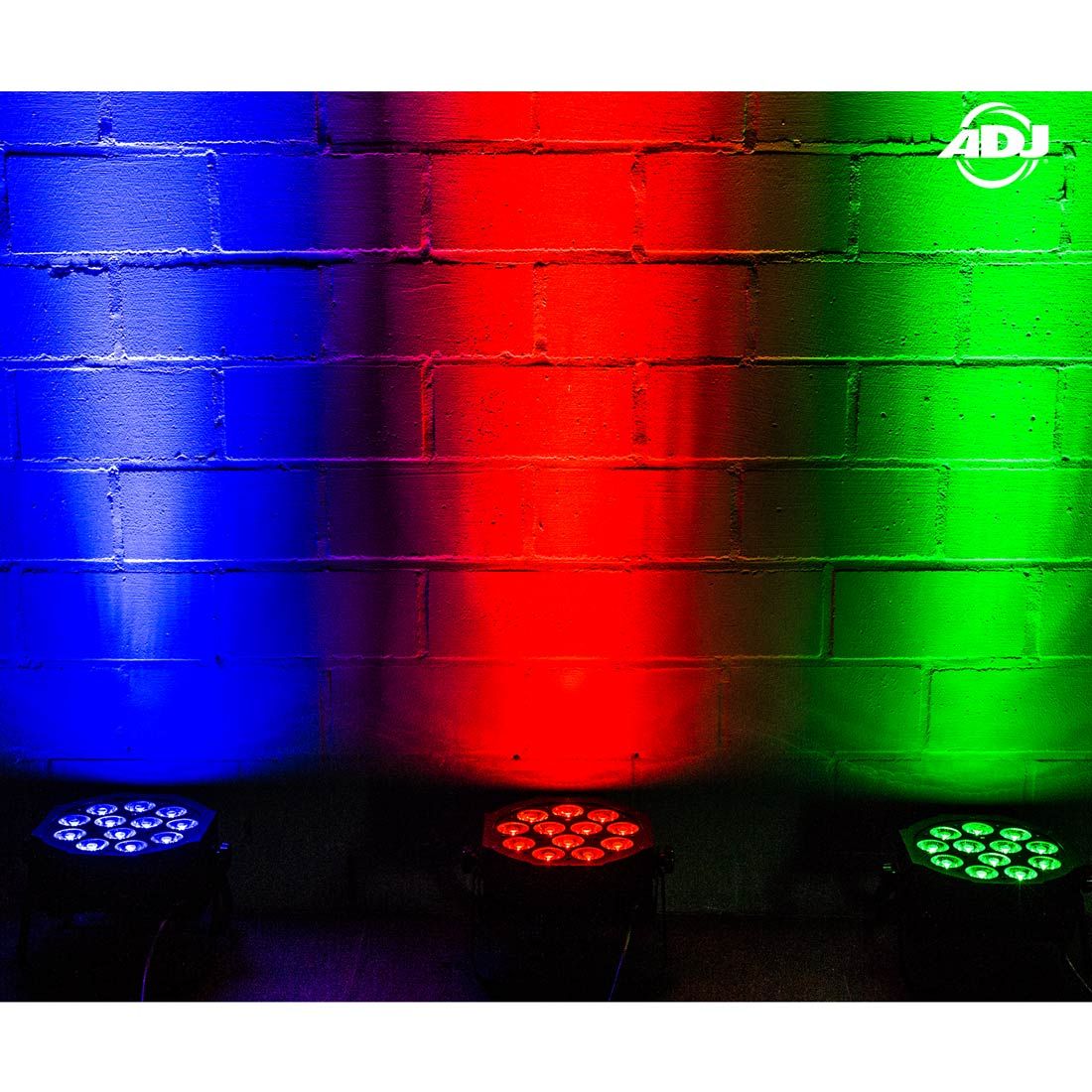

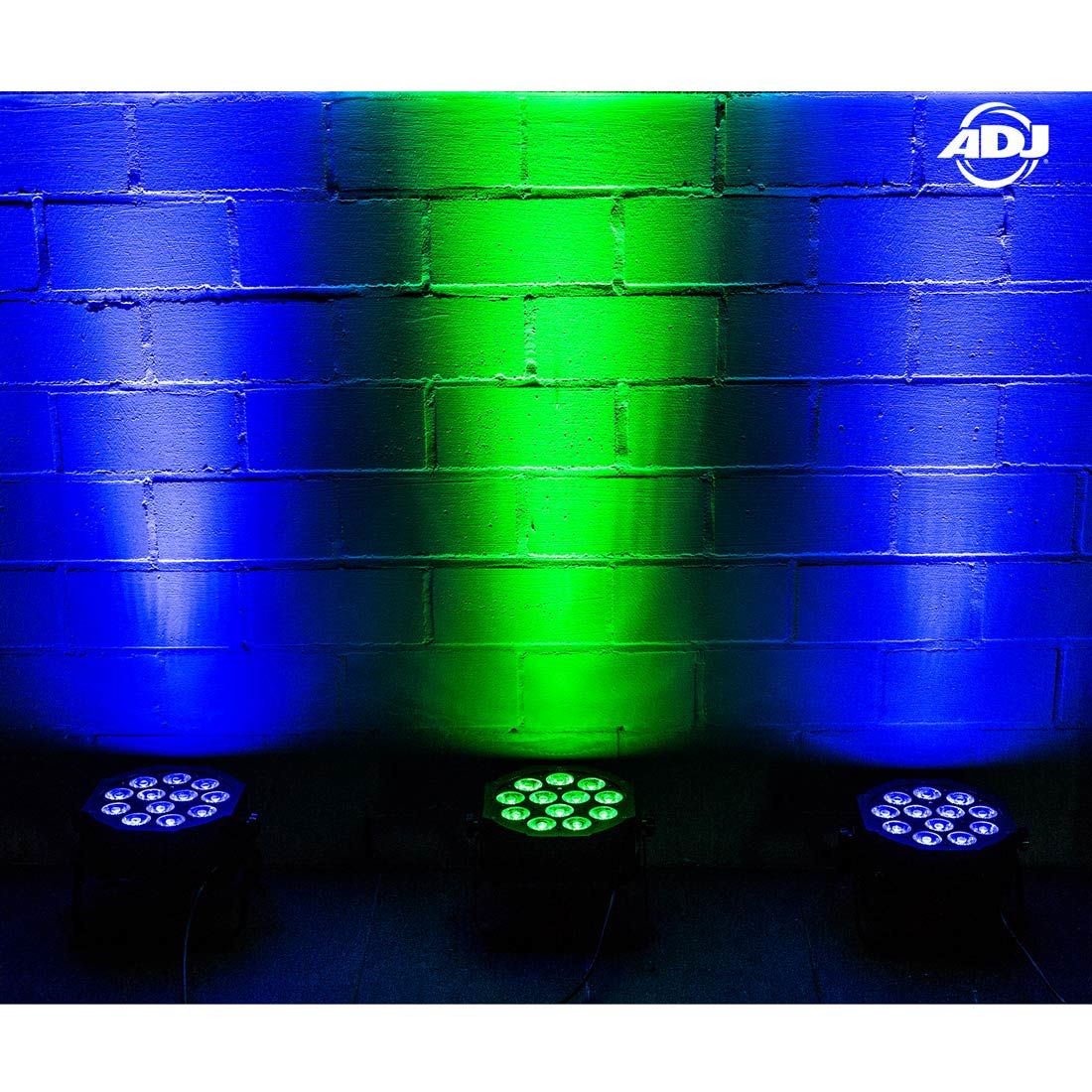

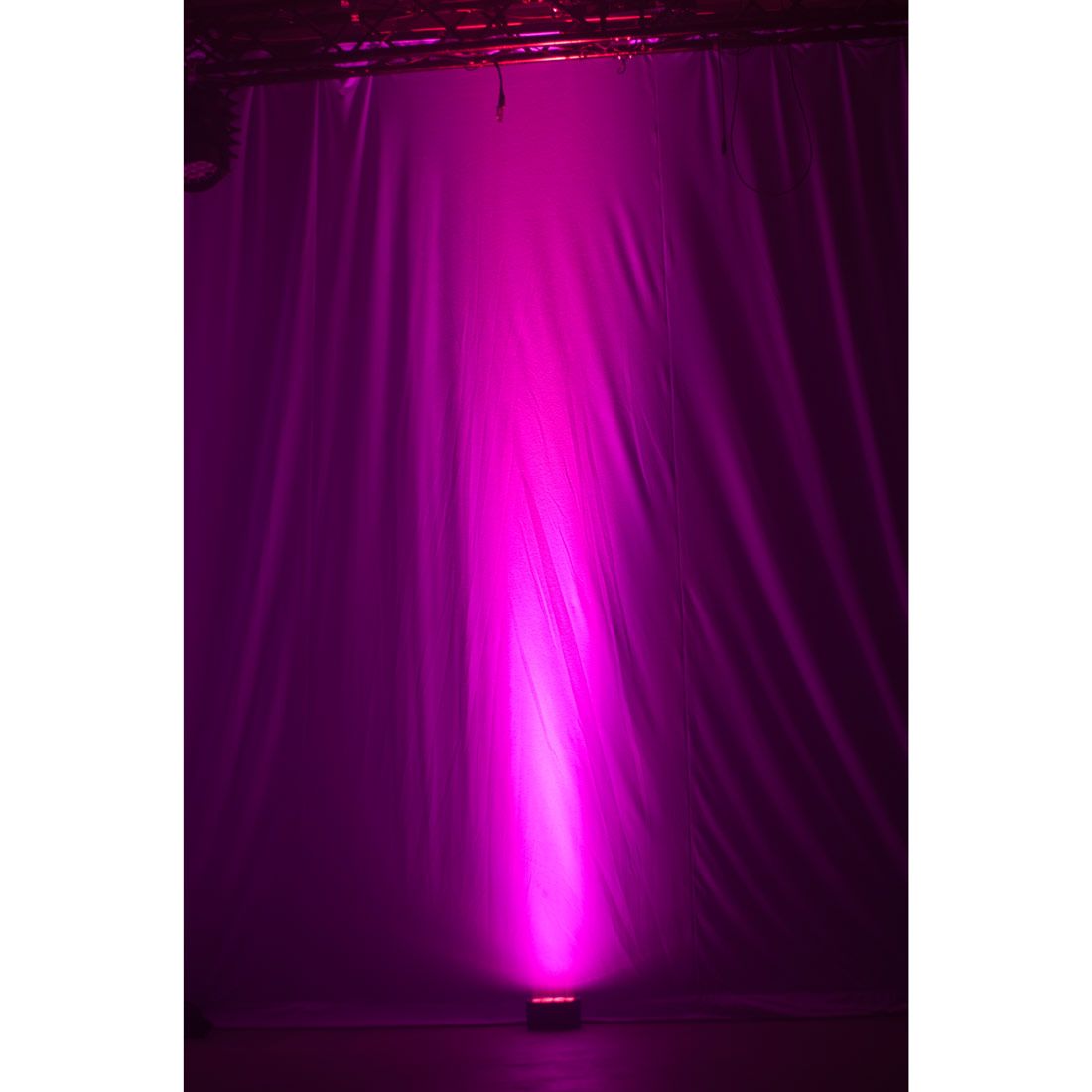

- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- 5 DMX Channel Modes: 4/5/6/9/10 Channels
- 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode (16 Color Change Programs, 16 Color Fade Programs, & Color Change & Fade Combination), Static Color Mode, & DMX Controlled
- Stand Alone or Master/Slave Configuration
- Beam Angle: 25 degrees

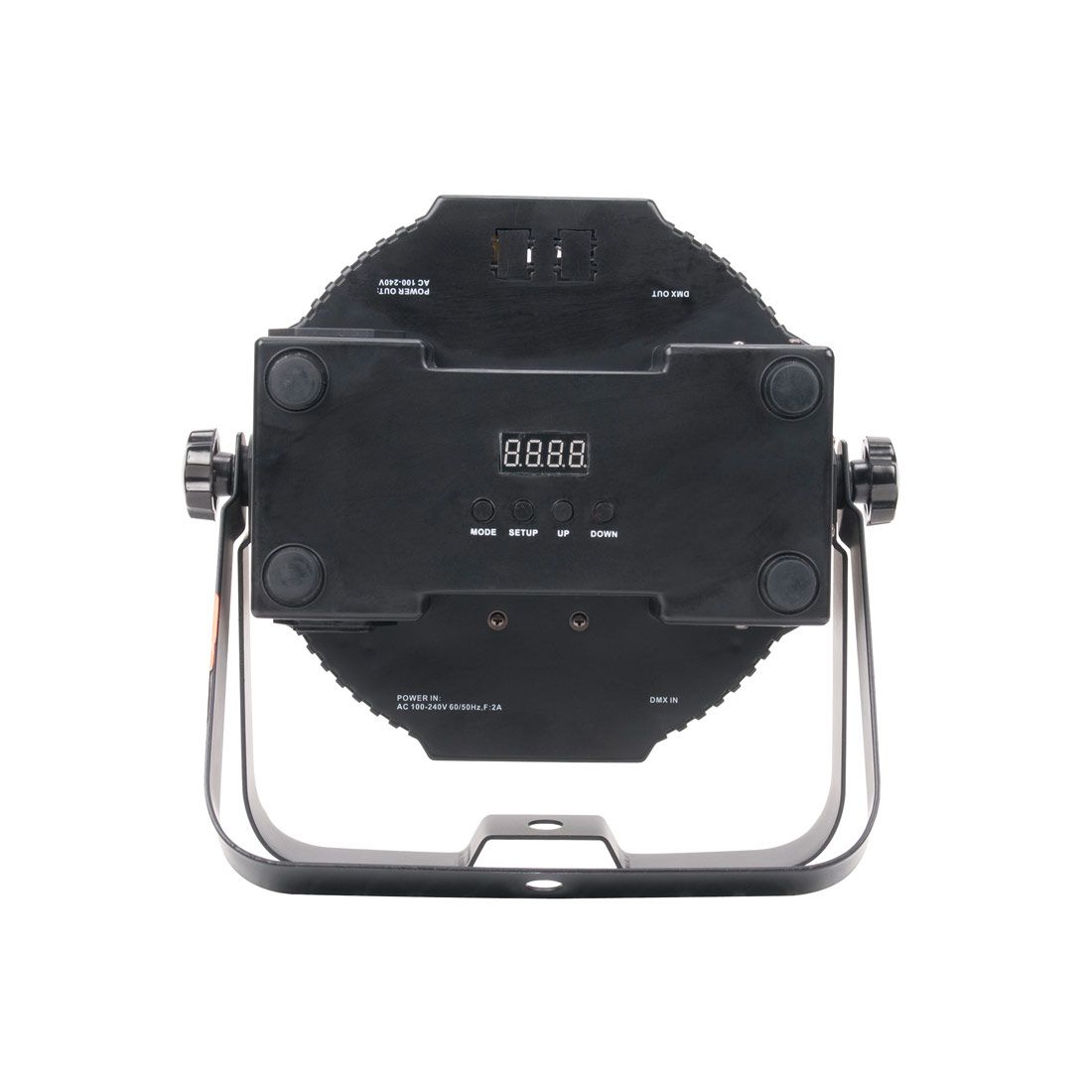

- 4-Button DMX LED Display
- 64 built-in Color Macros
- Flicker Free
- DMX-512 protocol
- LED Pulse and strobe effect
- Linkable via 3-pin XLR cable
- Electronic Dimming: 0-100%

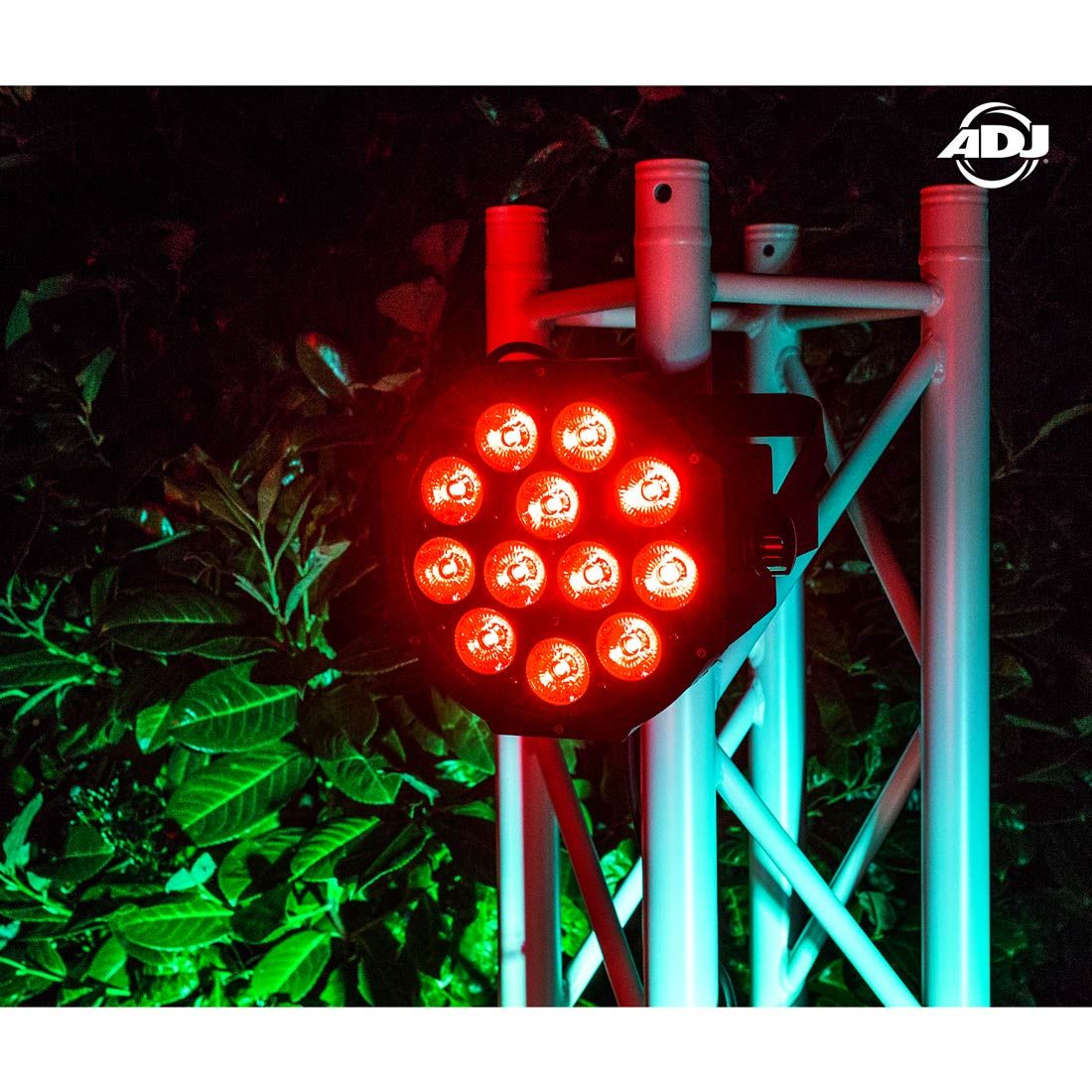

- Includes scissor yoke to hang on truss, mount on a wall or set on the ground
- Long Life LEDs (50,000 hrs.)
- Power Draw: 54W Max
- IEC AC input and output on rear to daisy chain power (Up to 12 Mega 64 Profile Plus fixture’s)
- Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Dimensions (LxWxH): 261 x 260 x 110mm
- Weight: 2.1 kg.
- Accu Case: ASC AC-117
Specifications subject to change without notice.
