Media Operator BT

Brand

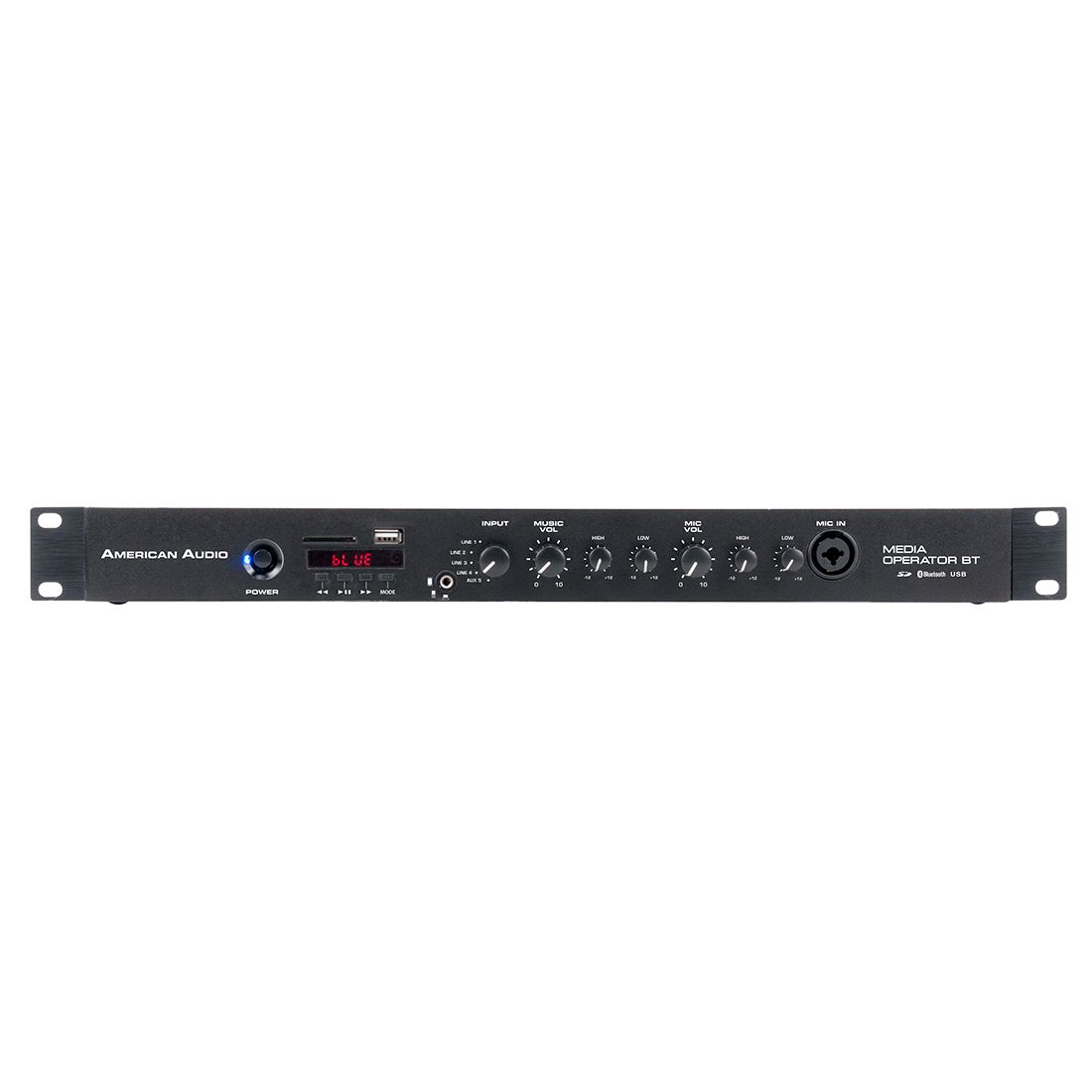

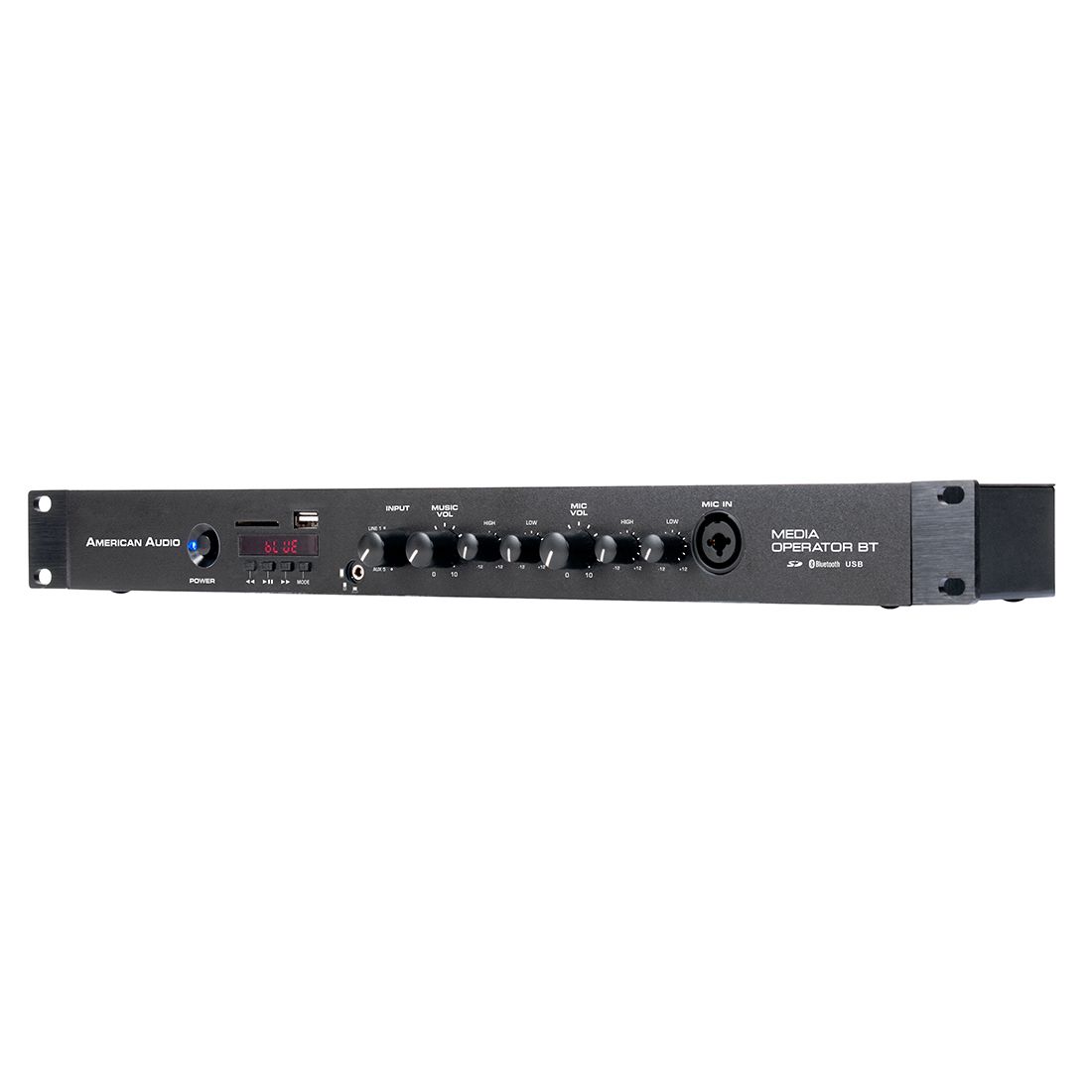

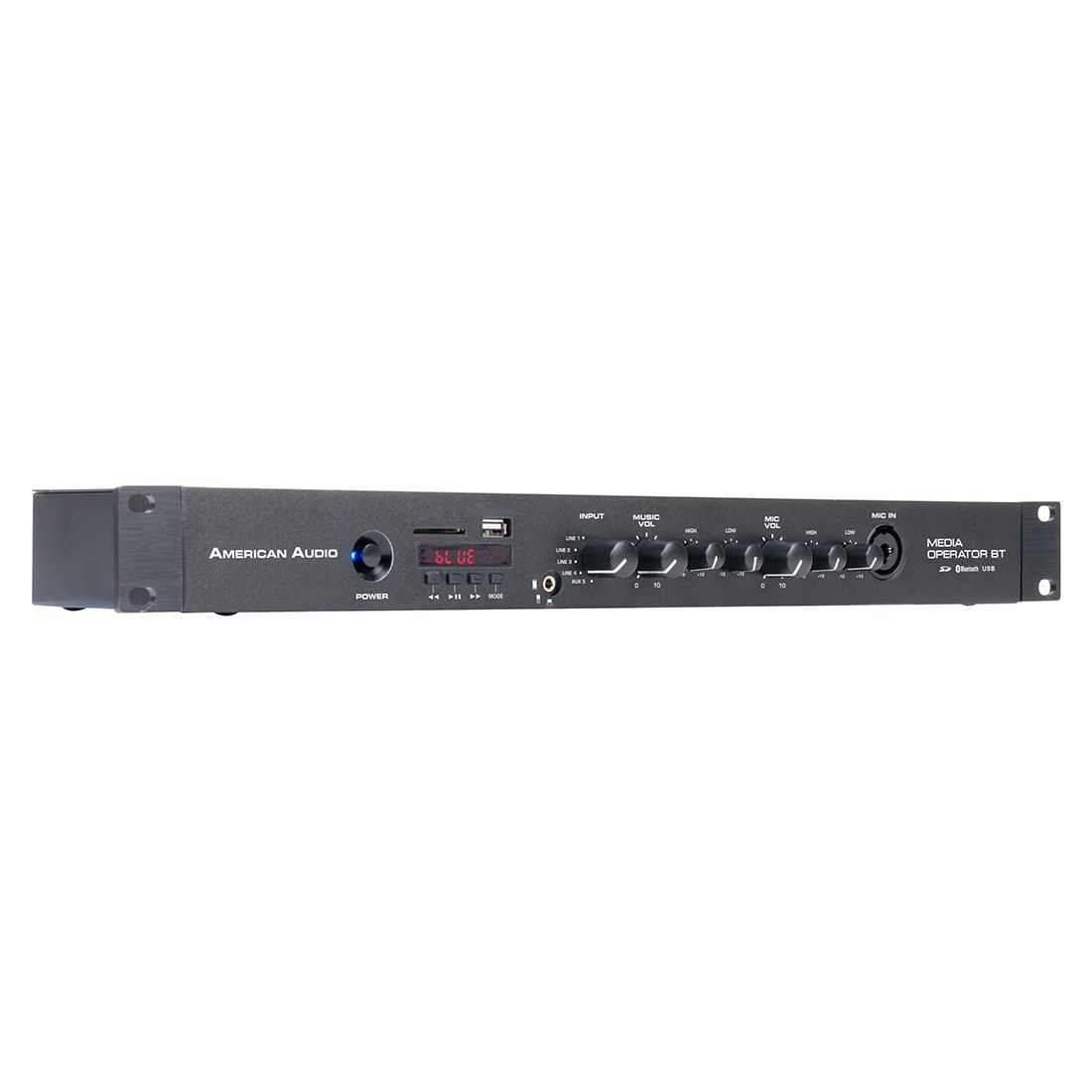

The American Audio Media Operator BT is a fast, simple and reliable all-in-one MP3/Bluetooth media player designed for permanent installations where easy control of music is a must (ie. restaurants, fitness studios, retail locations, etc.) and great for mobile entertainers as well. The Media Operator BT offers digital playback from SD cards or USB sticks/drives. The Media Operator BT includes full MP3 playback control as well as a microphone input (XLR / ¼” combo),...

Product Information

SKU: 1112000005
GTIN: 819730017086
HS-Code: 8519810090

The American Audio Media Operator BT is a fast, simple and reliable all-in-one MP3/Bluetooth media player designed for permanent installations where easy control of music is a must (ie. restaurants, fitness studios, retail locations, etc.) and great for mobile entertainers as well. The Media Operator BT offers digital playback from SD cards or USB sticks/drives.

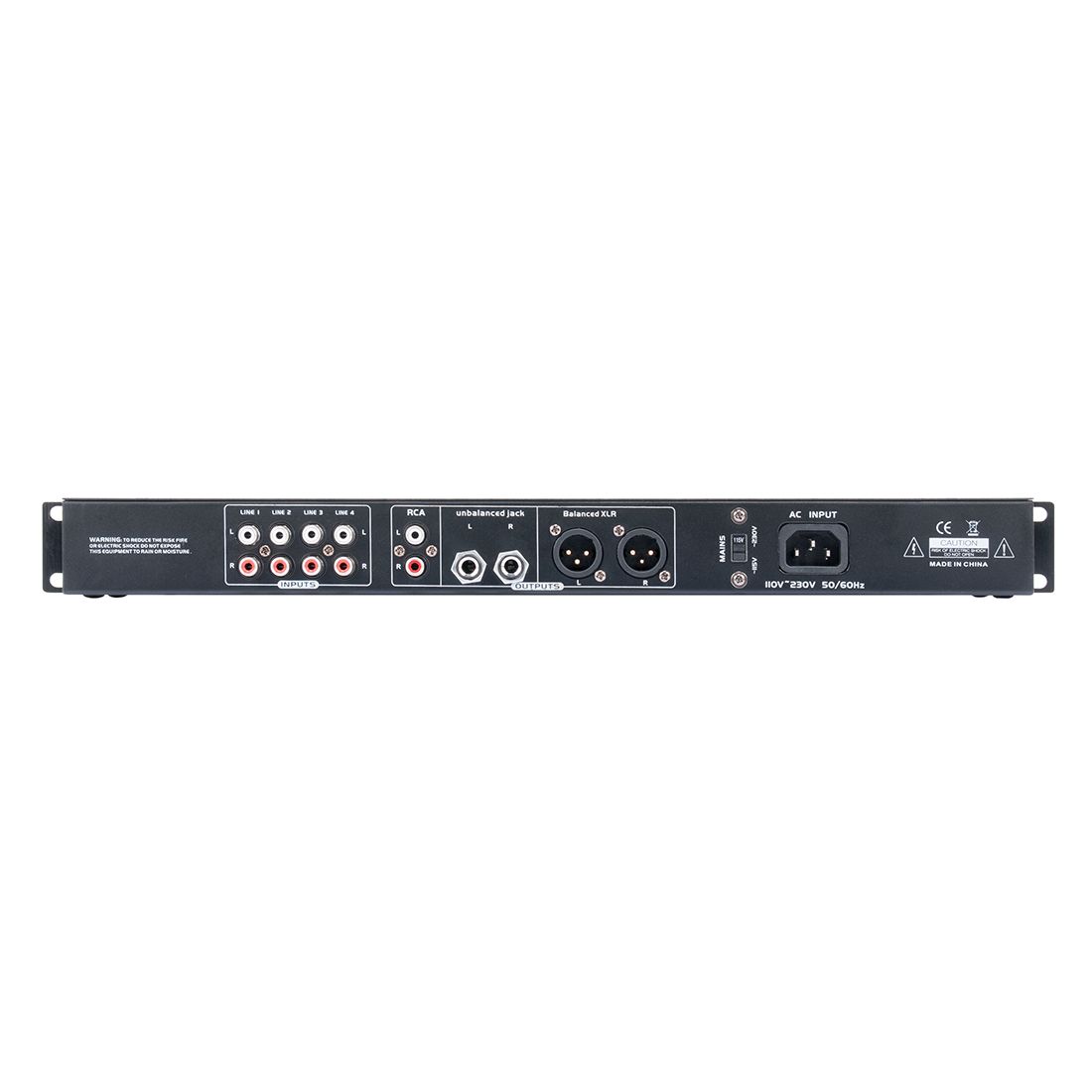

The Media Operator BT includes full MP3 playback control as well as a microphone input (XLR / ¼” combo), master volume control and 3x line output options. Plug the unit directly into powered speakers, an amplifier or secondary mixer through the balanced XLR, ¼” or stereo RCA outputs.



Specification

  • • Memory Card* / USB 2.0 / Wireless Audio full functioning MP3 Player
  • • Track Time Display
  • • Track Search Buttons
  • • Easy-to-use
  • • Bright LCD Display
  • • Reads standard or High Capacity Memory cards up to 32GB
  • • Up to 1000 MP3 songs on a 1G Memory Card** (MP3 recorded at 128bit rate**)
  • • 4x RCA line Inputs and 1x 3,5mm Auxiliary Jack Input
  • • 1x RCA, 1x L/R Unbalanced 1/4” Jack, 1x L/R Balanced XLR Outputs
  • • Master music output volume control
  • • Individual EQ Treble / EQ Bass control for Music
  • • Combo Mic input: 1/4” jack and XLR
  • • Master mic output volume control
  • • Individual EQ Treble / EQ Bass control for Mic
  • • Voltage Selector Switch: 115V or 230V 50/60Hz
  • • Dimensions (L x W x H): 19” x 4” x 1.75” in. / 483 x 193 x 44 mm (1 rack unit)
  • • Weight: 4 lb. / 1.7 kg.
  • *Memory Card is not Included
  • **Capacity may vary
Specifications subject to change without notice

Downloads

User Manual
