MDF2 Magnetic Dance Floor Panel
Select
Archive

Brand
ADJ’s MDF (Magnetic Dance Floor) System is a robust, lightweight and extremely easy to setup portable LED dance floor solution. Each panel (MDF2) features an array of 3-in-1 RGB LEDs that cause its opaque tempered glass surface to glow intensely in an almost limitless selection of vibrant colors. With surface dimensions of 600mm x 600mm and a low height of just 70mm, the individual panels weigh just 12.05 kgs. yet can support a weight of up to 300 kgs/m2 – more than enough for...
Read More

Product Information

SKU: 1226300120
GTIN: 818651026627
HS-Code: 9405990090

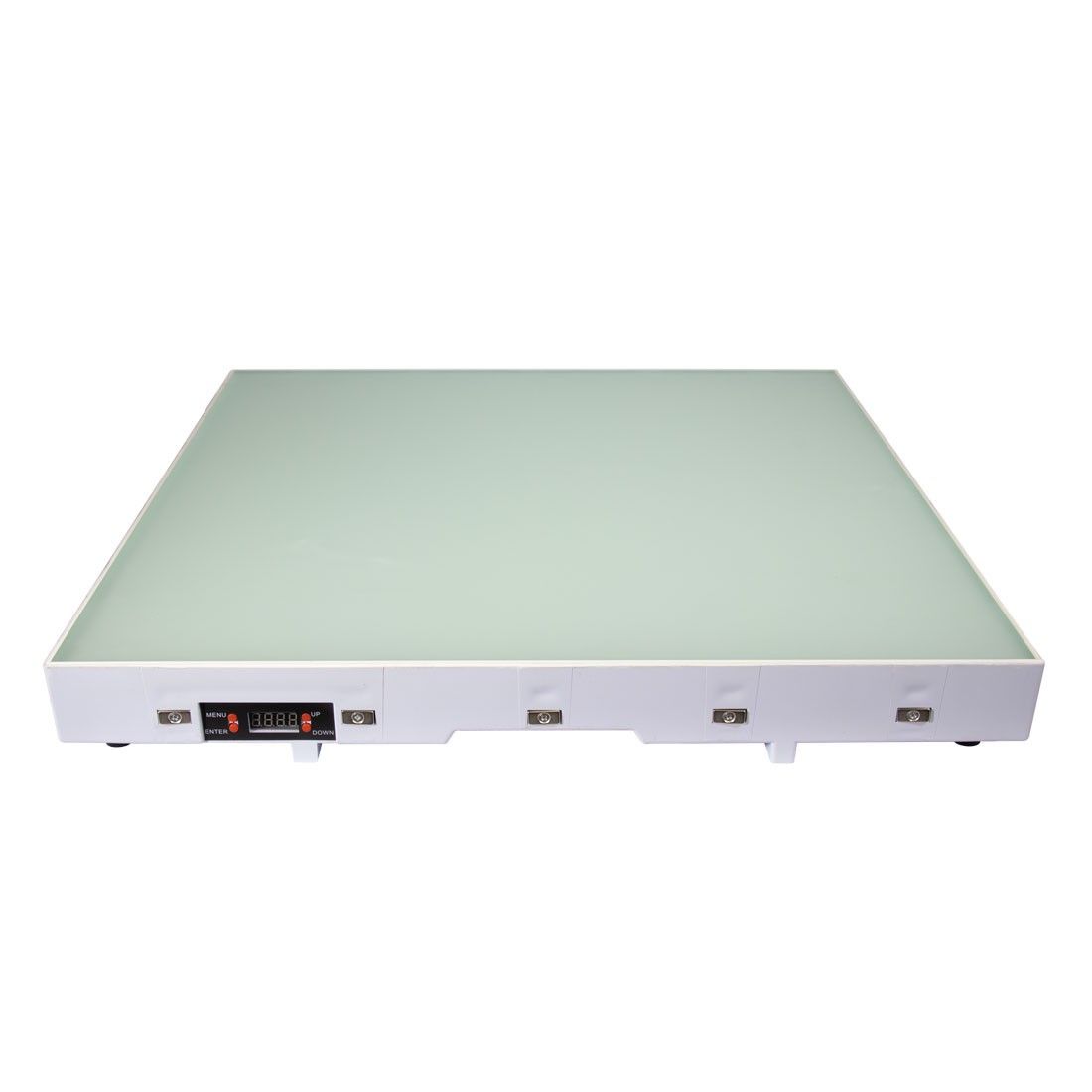

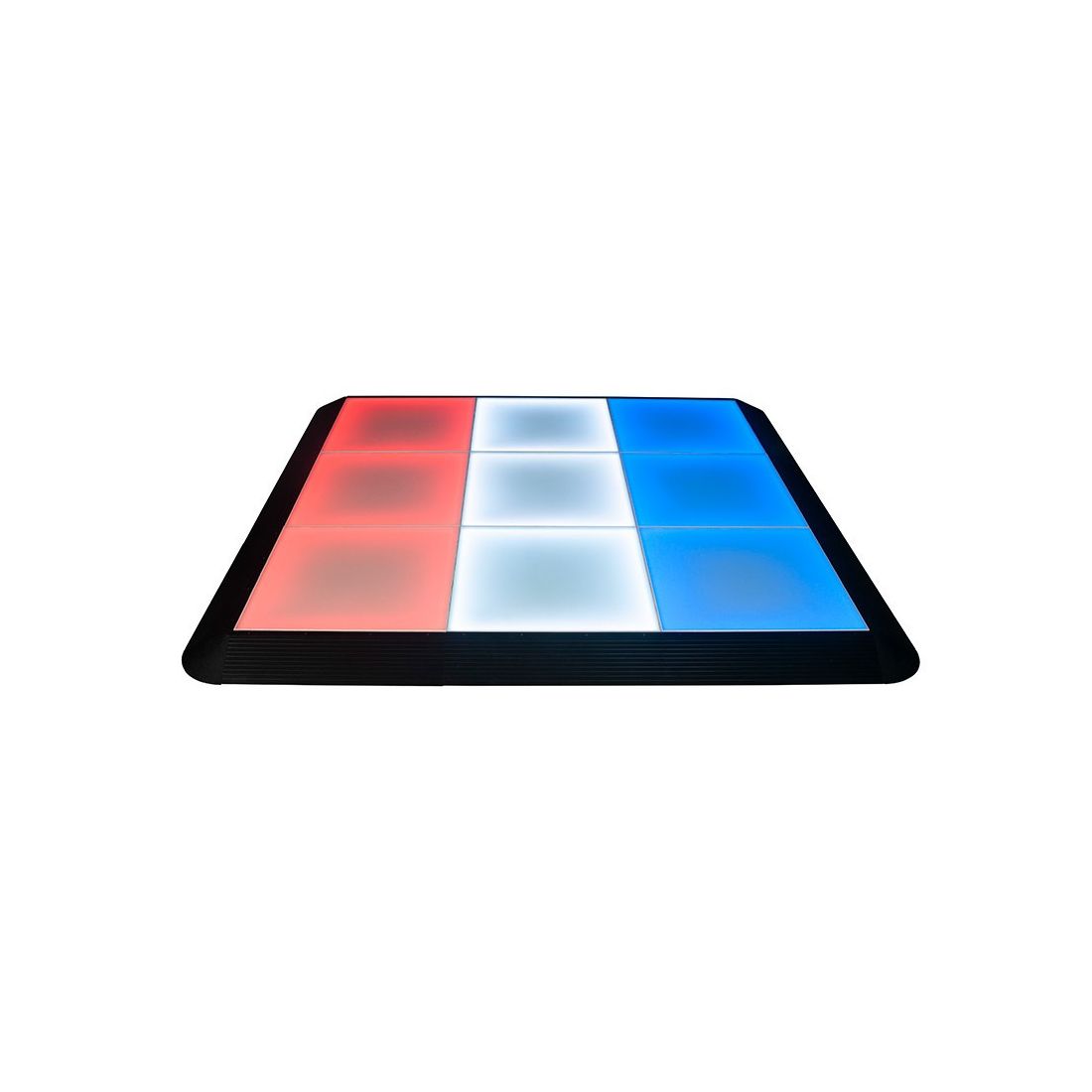

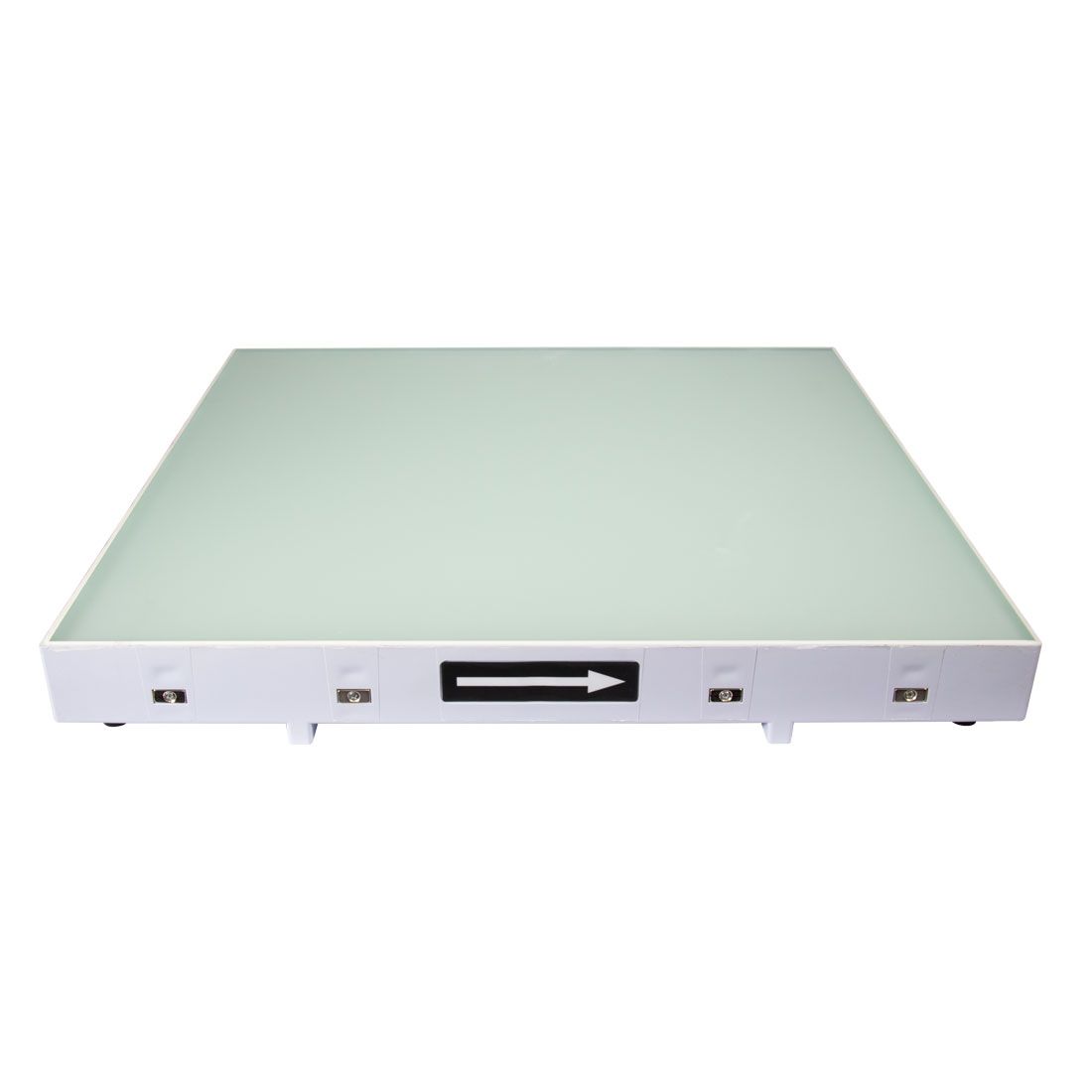

ADJ’s MDF (Magnetic Dance Floor) System is a robust, lightweight and extremely easy to setup portable LED dance floor solution. Each panel (MDF2) features an array of 3-in-1 RGB LEDs that cause its opaque tempered glass surface to glow intensely in an almost limitless selection of vibrant colors. With surface dimensions of 600mm x 600mm and a low height of just 70mm, the individual panels weigh just 12.05 kgs. yet can support a weight of up to 300 kgs/m2 – more than enough for a dense crowd of party goers!

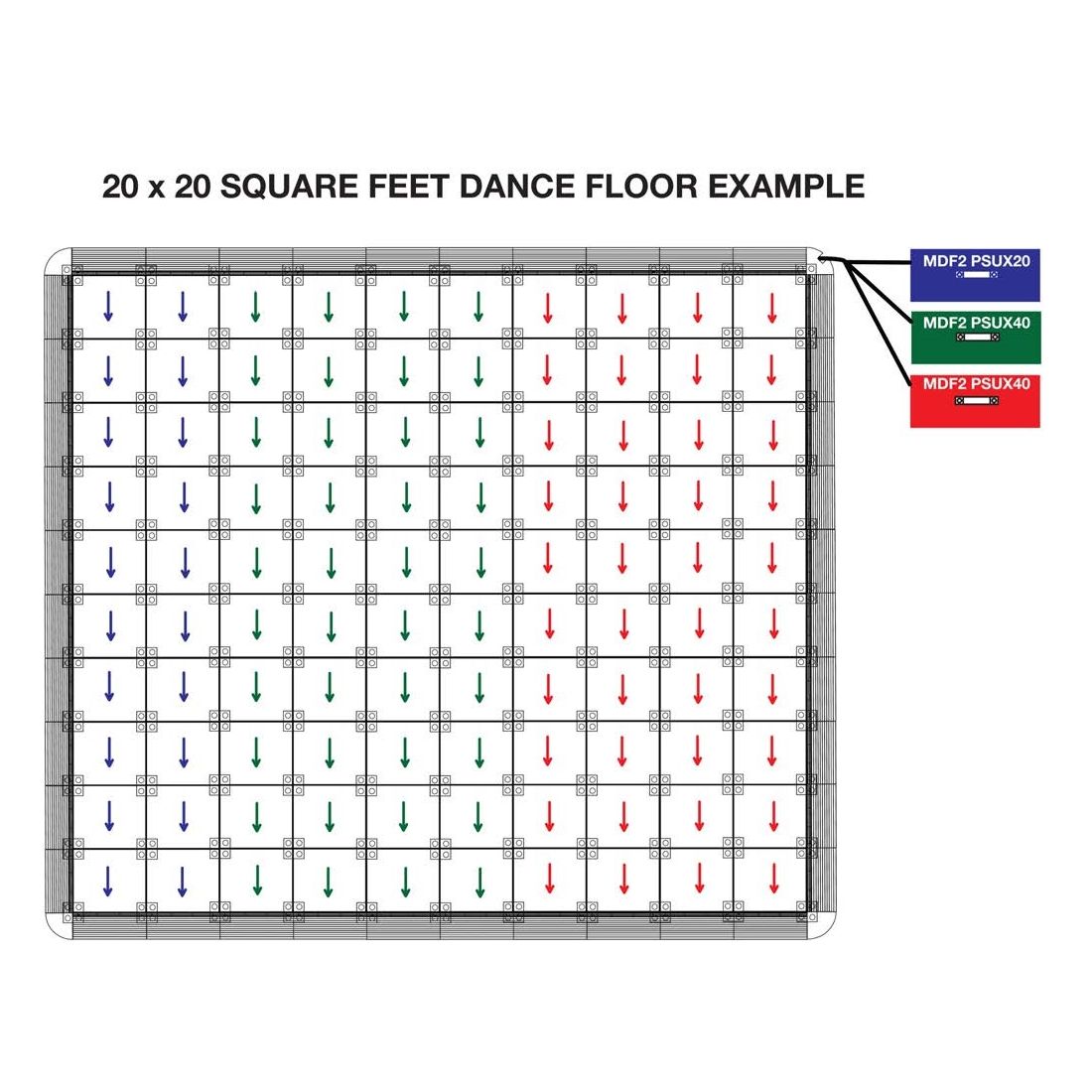

The panels fit together together quickly and easily thanks to an innovative magnetic locking system as well as a convenient cable-free power and data transmission arrangement that connects adjacent units in a row. Power and DMX control is then supplied to each row via a dedicated power ramp (Code 1226300131 MDF2 Power Ramp) which features 3-pin XLR input and output sockets alongside proprietary 4-pin 24V DC power connections. Power is supplied to the system by a choice of dedicated power supply units designed to supply different quantities of panels (9, 15, 20 ,40, 117 or 156 panels), while a complete range of accessories is also available. These include edging ramps (for the three other sides) and corner ramps as well as a dedicated 9 panel flight case and special tool for lifting panels from the middle of a dancefloor.

Thanks to its easy-to-setup design, the MDF Series is ideal for temporary event use by mobile entertainment and event production companies.

Gallery

Specification

  • Source:
  • • RGB 3-in-1 LEDs
  • • Average LED lifetime : 50,000 hours
  • Optics:
  • • Visual Angle: 160 degrees
  • • High Brightness
  • Control:
  • • 5 Operating Modes: built-in programs, Manual RGB Dimming, Color Macro Mode, Sound Active or DMX control
  • • 4 DMX Channel Modes: 3, 5, 7 or 10 Channels
  • • Built-in Programs (Color change, Color Fade, Color Pulse, Random)
  • • Sound Active Mode
  • • LCD Function Display with 4-button navigation
  • Colors:
  • • RGB Color Mixing
  • • 32 Built-In Color Macros

    • • ABS Housing
    • • Tempered Glass surface
    • • Bearing weight : up to 300kg/m2
    • • Magnetic Data and Power transmission via optional MDF2 Power Ramps (Code 1226300131)
    • Electrical:
    • • Input Voltage: DC 24V
    • • Needs externals power supplies (optional power supplies available for 9/15/20/40/117 or 156 panels)
    • • Power consumption per panel: 15W max
    • • Working Temperature : -20 to +40 degree Celsius
    • Connections:

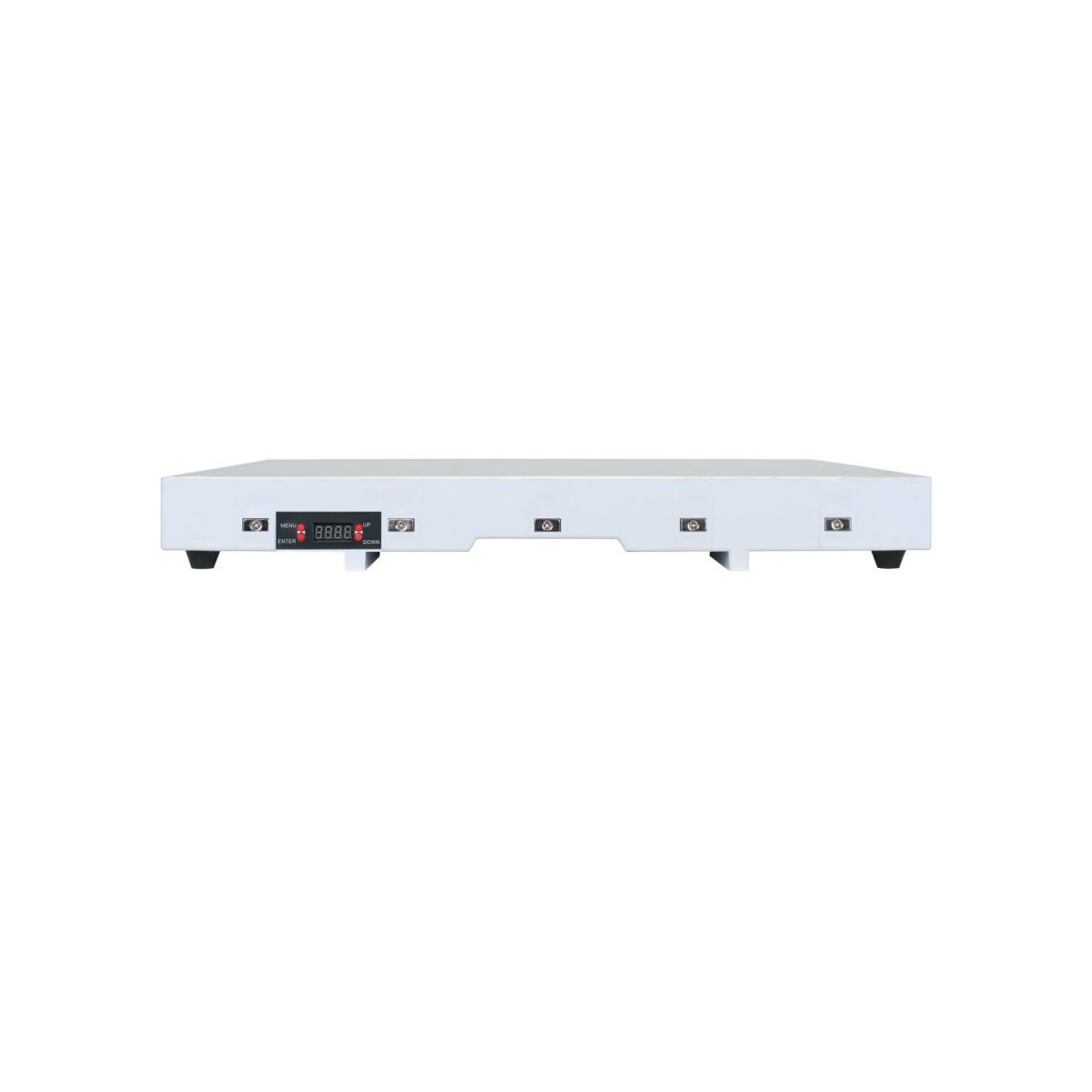

    • • 5 magnetic connexions on opposite sides for transmitting 24V power and DMX signal
    • • 3-pin locking DMX In/Out connections via Power Ramp
    • • Proprietary Locking 4-pin 24V Power In/Out connection via Power Ramp
    • • Optional 24V Main Power cables available from 5m-15m (Code 1226300125-128)

    • • Dimensions (LxWxH): 600 x 600 x 70mm
    • • Weight: 12,05 kg.
