M1224FX Archive
The new American Audio Live-Mixer offer balanced sound and an exceptional brought range of features packed in tight measures. It doesn`t matter if it`s used in a practice room or somewhere live during a big event, those mixers will convince you with their clearly arranged face and the operator convenience resulting out of it. All mixers have an integrated 24Bit DSP effects unit offering 100 presets.
Product Information
The new American Audio Live-Mixer offer balanced sound and an exceptional brought range of features packed in tight measures. It doesn`t matter if it`s used in a practice room or somewhere live during a big event, those mixers will convince you with their clearly arranged face and the operator convenience resulting out of it. All mixers have an integrated 24Bit DSP effects unit offering 100 presets.

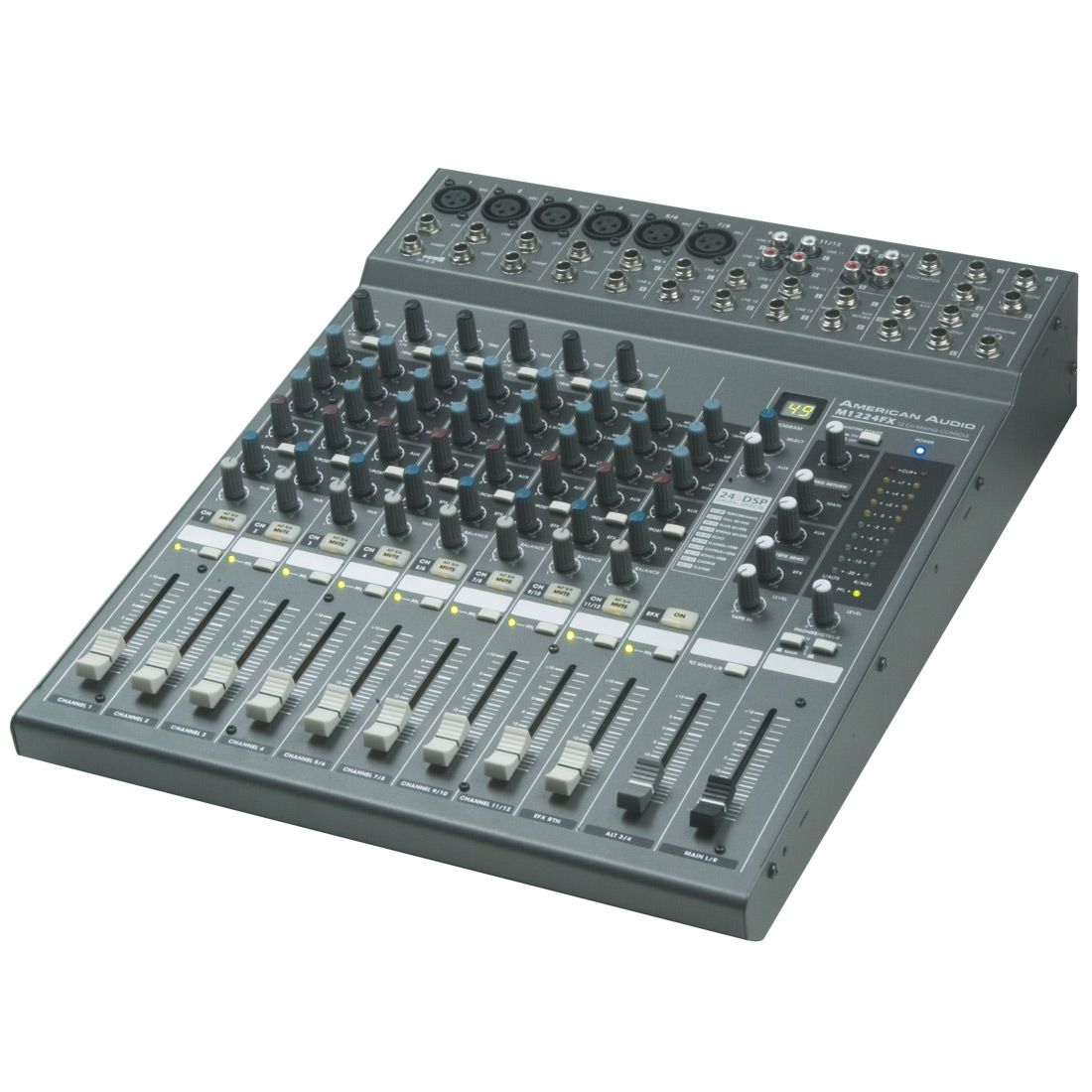

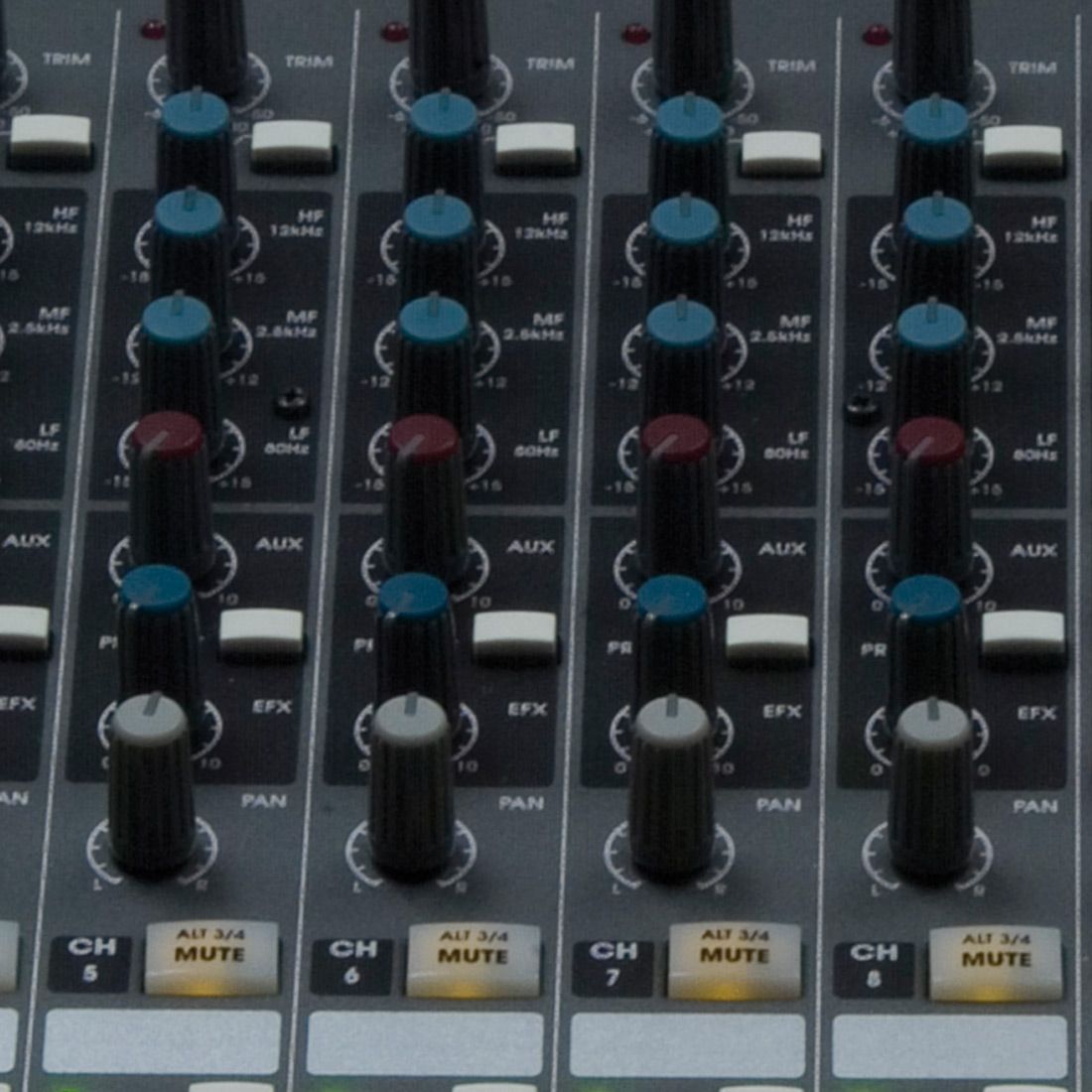

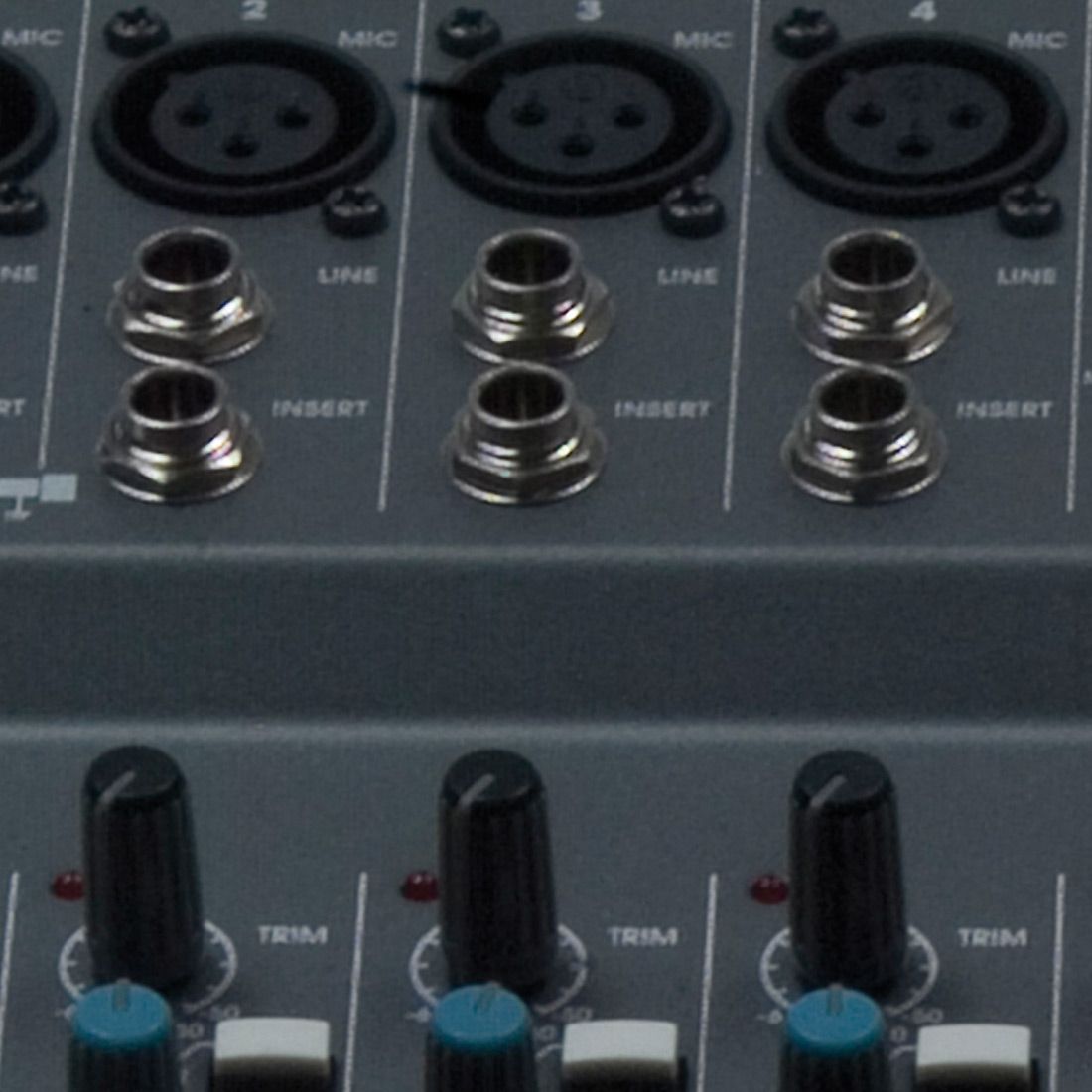

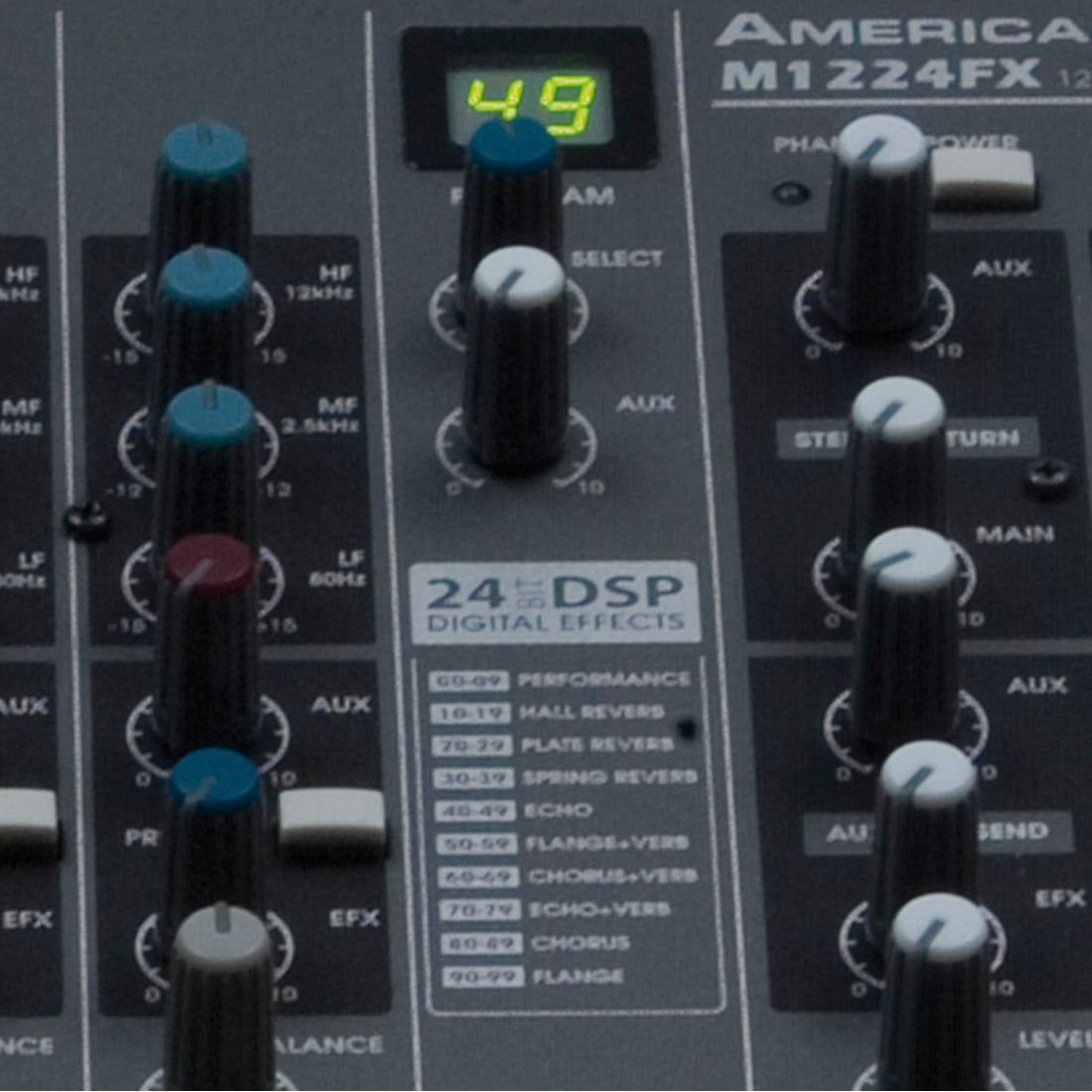

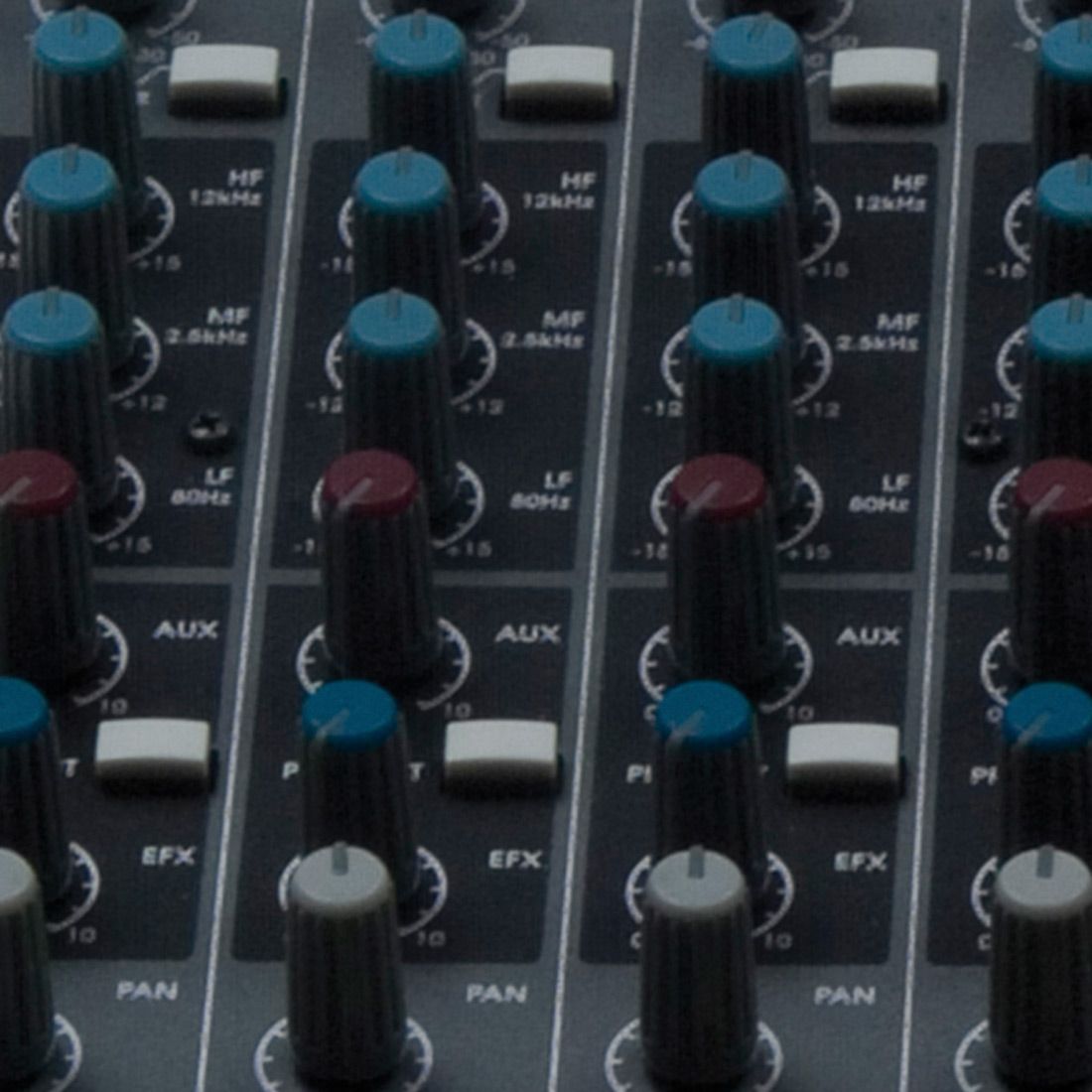

Gallery
Specification
- MONOCHANNELS - 4 mono & 4 stereo channels input - Stereo Main output & ALT 3/4 output. - Trim with Peak LED, HPF, 3-band EQ, 1 AUX with Pre/Post switch, 1 EFX, PAN, Mute & PFL switch for mono input. - Trim with Peak LED, HPF (CH5-8) - 3-band EQ, 1 AUX with Pre/Post switch, 1 EFX, BAL, Mute & PFL for stereo input. - Main L/R with AFL switch, ALT3/4 with AFL, To Main switch, AUX Send, EFX send, AUX return & EFX return - Tape with PFL switch, HP/Control Room & Phantom Power - 24-bit DSP effect 100 presets, EFX on/off & EFX level
- STEREOCHANNELS - XLR & 1/4” phone jack balanced & 1/4” phone jack for Insert on mono input - XLR & 1/4” phone jack for stereo (CH5-8) 1/4” phone & phono jack for stereo input - 1/4” phone jack for stereo return & phono jack for Tape - 1/4”phone jack for Main, ALT 3/4, AUX Send, EFX Send,Control Room & Headphone - Phono jack for Tape & 1/4” phone jack for Footswitch
- FEATURES - Peak for each mono channel, PFL, level meter, phantom power & DSP program - 19“ standard rack mount included - Maximum Output Level: 24 dBm - Frequency Response (-1dB): 20 Hz - 20 kHz - T.H.D.: < 0.01%, Crosstalk: > 70 dB - Hum & Noise Ratio: EIN > 127 dB; Residual > 100 dB; Main, ALT3/4, AUX, EFX output > 80 dB - Equalization High: 12 kHz ±15 dB, Mid: 2.5 kHz ±12 dB, Low: 80 Hz ±15 dB - DSP Effect 24 bit / 100 presets - Power Source: AC 100~240V, 50/60 Hz (external power supply) - Dimensions: (W x H x D) 328 x 420 x 65 mm, Weight (Net): 3.4 kg
