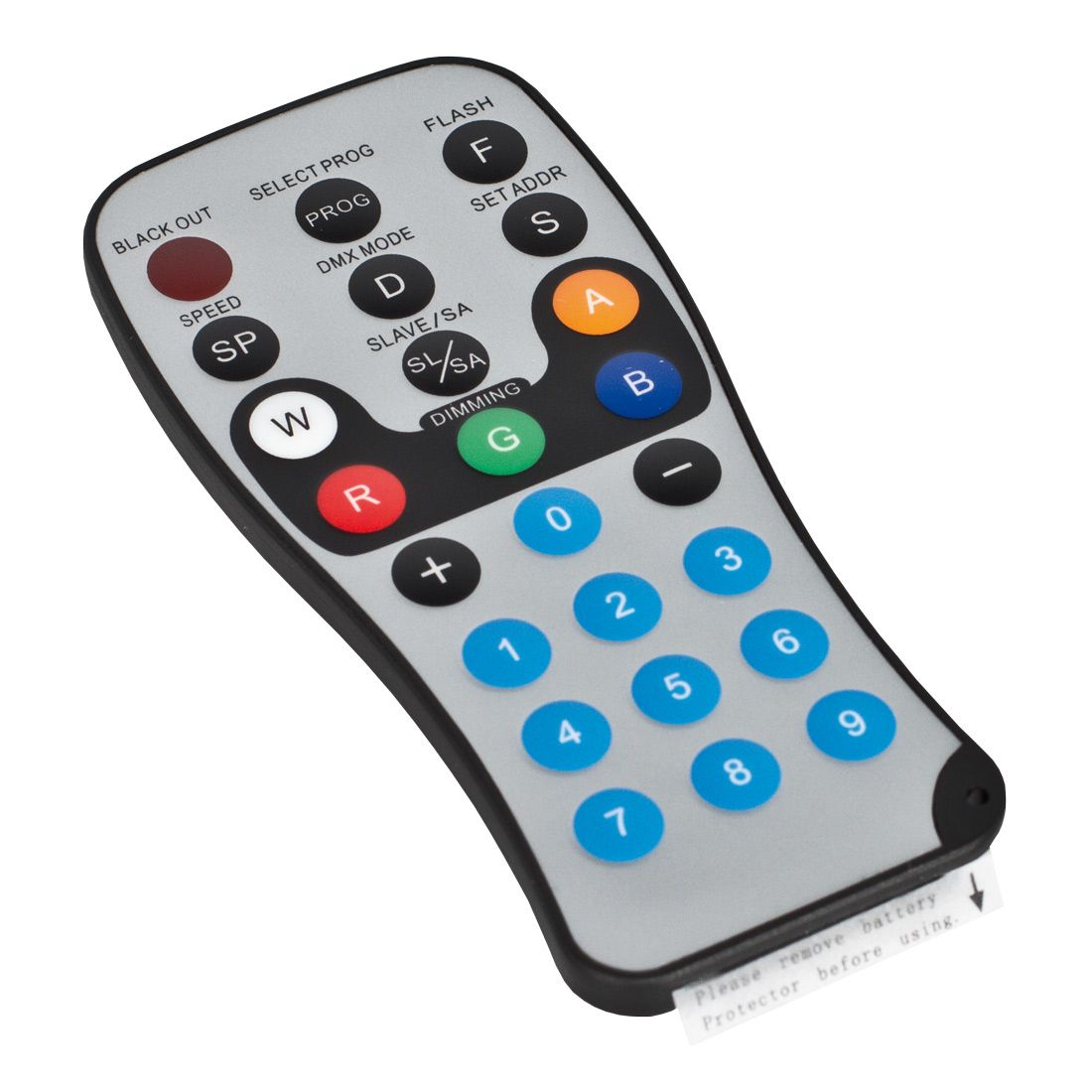

LED RC2

Blackout - Pressing this button will blackout the fixture.

PROGRAM SELECTION - This button has multiple functions depending on the fixture used. It can activate Auto Run, or activate/shut off the LCD Display of the fixture, scroll through the preset colors and programs.
FLASH - This button will activate the strobe effect. You can control the flash rate by pressing the
“+” and “-” buttons. Press this button again to exit strobe mode.
SPEED - Press this button and use the “+” & “-” buttons to adjust the speed of the Auto run.
DMX MODE - This button will let you select which DMX mode you want to use. Some fixtures will
come with different DMX channel modes. This button will switch between the different
modes. Please see your corresponding fixture in this user manual to find out
about your DMX modes, values, and traits.
SOUND ACTIVE - This button activates sound active mode. Sound active mode will not work for
outdoor LED lights.
SLAVE - This designates the fixture as a Secondary fixture in a Primary/Secondary configuration.
SET ADDRESS - Press this button to set the DMX address. Press this button first, then press the
numbers to set the address. Example: DMX Address 1 Press “S001”
DMX Address 245 Press “S245”
R G B A W- Press either one of these buttons, and then press the “+” and “-” to adjust the brighness.
“+” and “-” - Use these buttons to adjust the flash rate, speed of the Auto Run, dimming, and program
selection.
