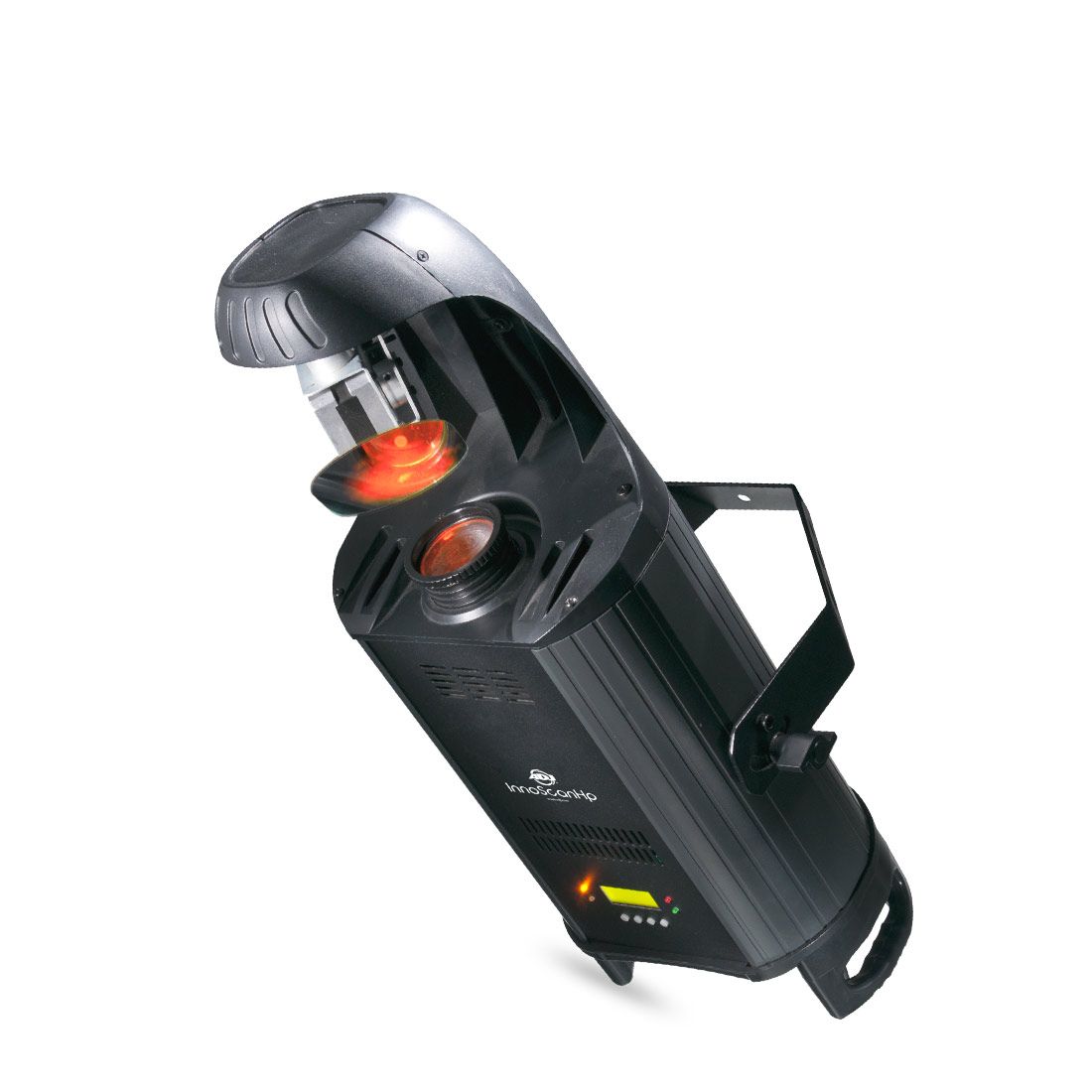

Inno Scan HP Archive
Features:
- 80-Watt White LED flat-mirrored scanner
- 3 Operational Modes
- 2 DMX Channels
- 8 Colors + White
- 6 Replaceable Gobos + Spot
- Electronic Dimming 0-100%
- 5 Dimmer Curves
Product Information
Features:
- 80-Watt White LED flat-mirrored scanner
- 3 Operational Modes
- 2 DMX Channels
- 8 Colors + White
- 6 Replaceable Gobos + Spot
- Electronic Dimming 0-100%
- 5 Dimmer Curves
Gallery
Specification
Specifications:
- Light Source:80W White LED, (Rated at approximately 50,000 hours)
- Operational Mode:DMX Controlled / Sound Active / Auto Run (Programs)
- Beam Angle:16-Degrees
- Luminance:2260 @ 3M at 16°
- Color Temperature:8000K
- Colors:8 Colors + White (Split Color)

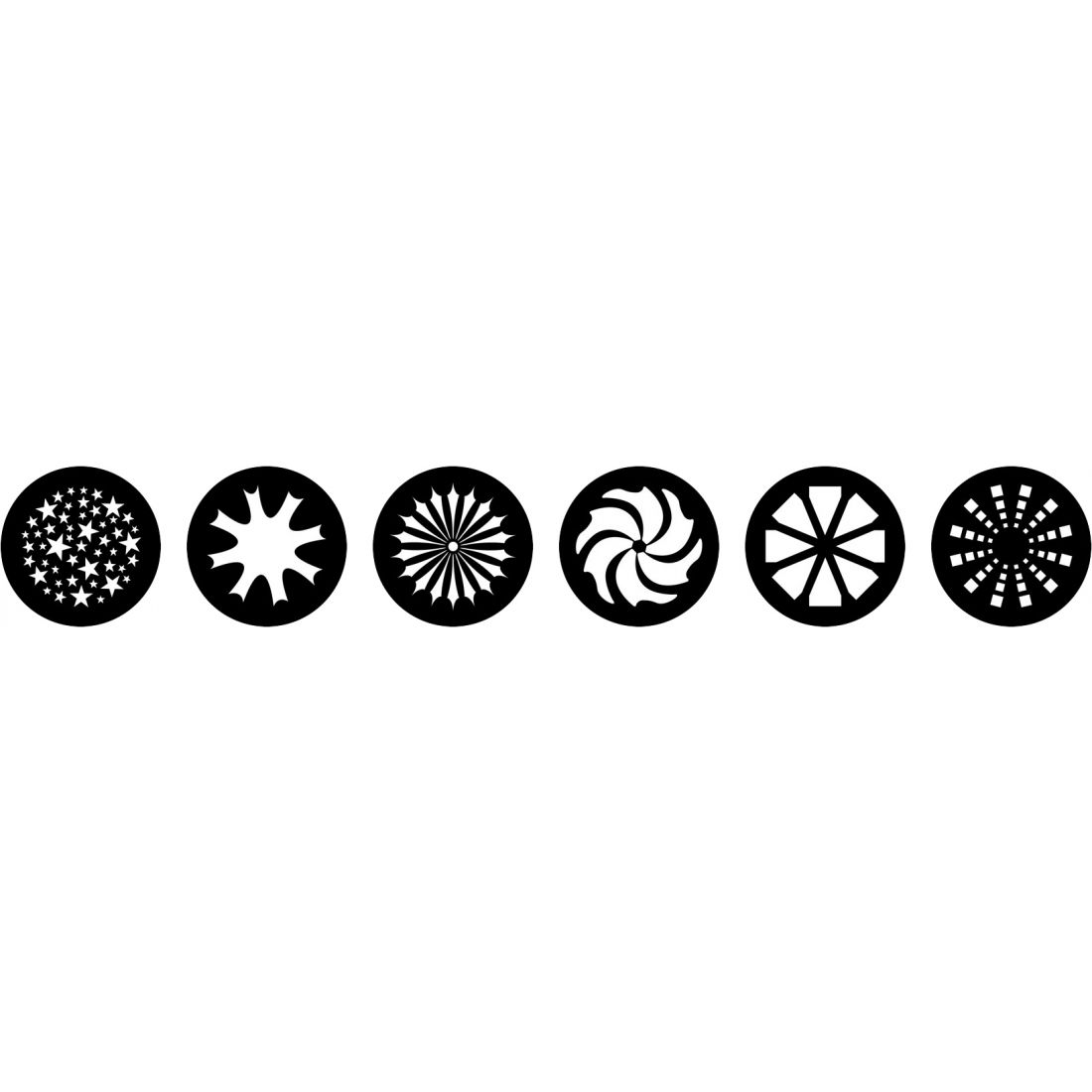

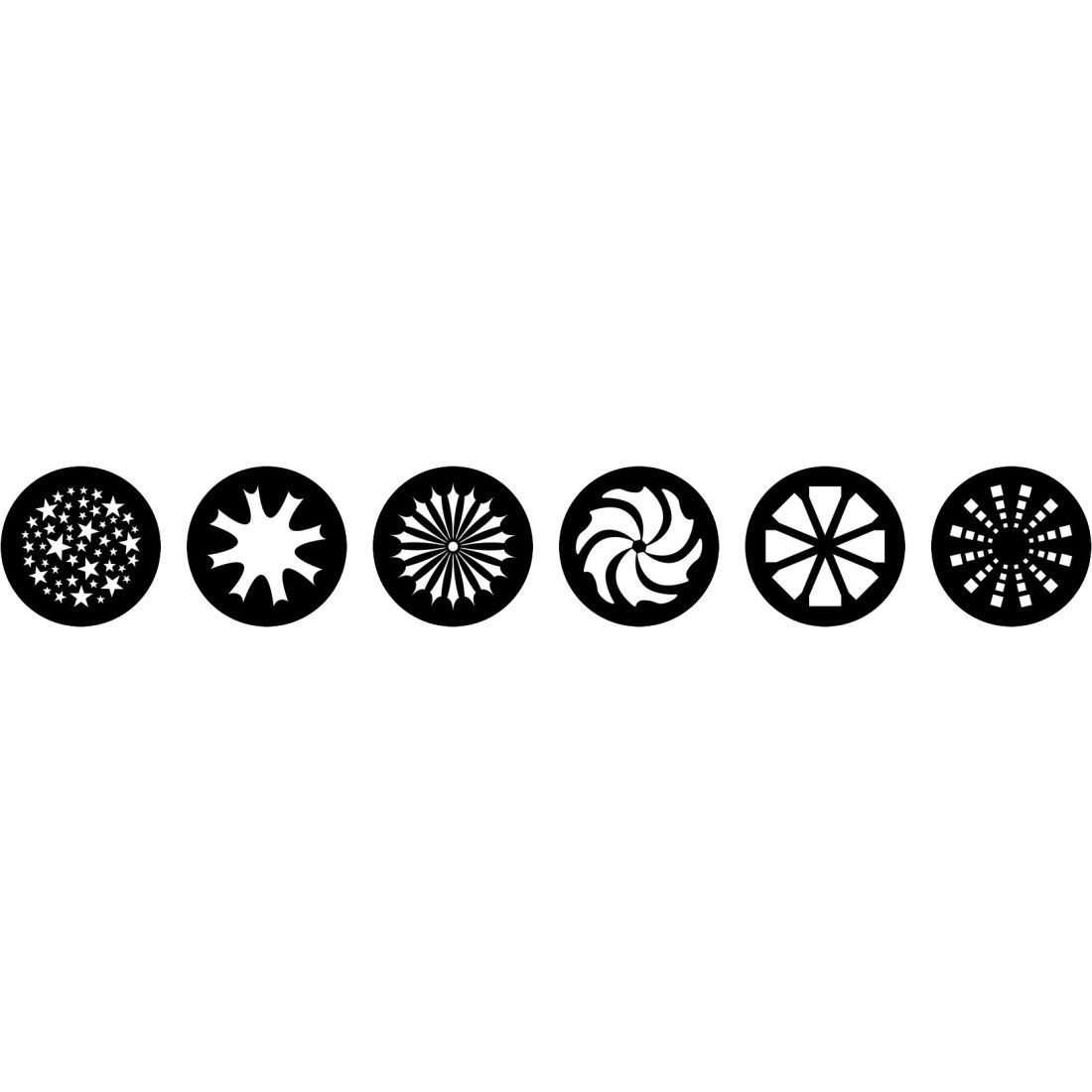

- Gobos:6 Rotating replaceable gobos + Spot (Gobo Size: 23.8mm / Viewable: 19mm)
- Pan:180 - Degree
- Tilt:72-138 - Degree
- DMX Channels:9 or 12 ch

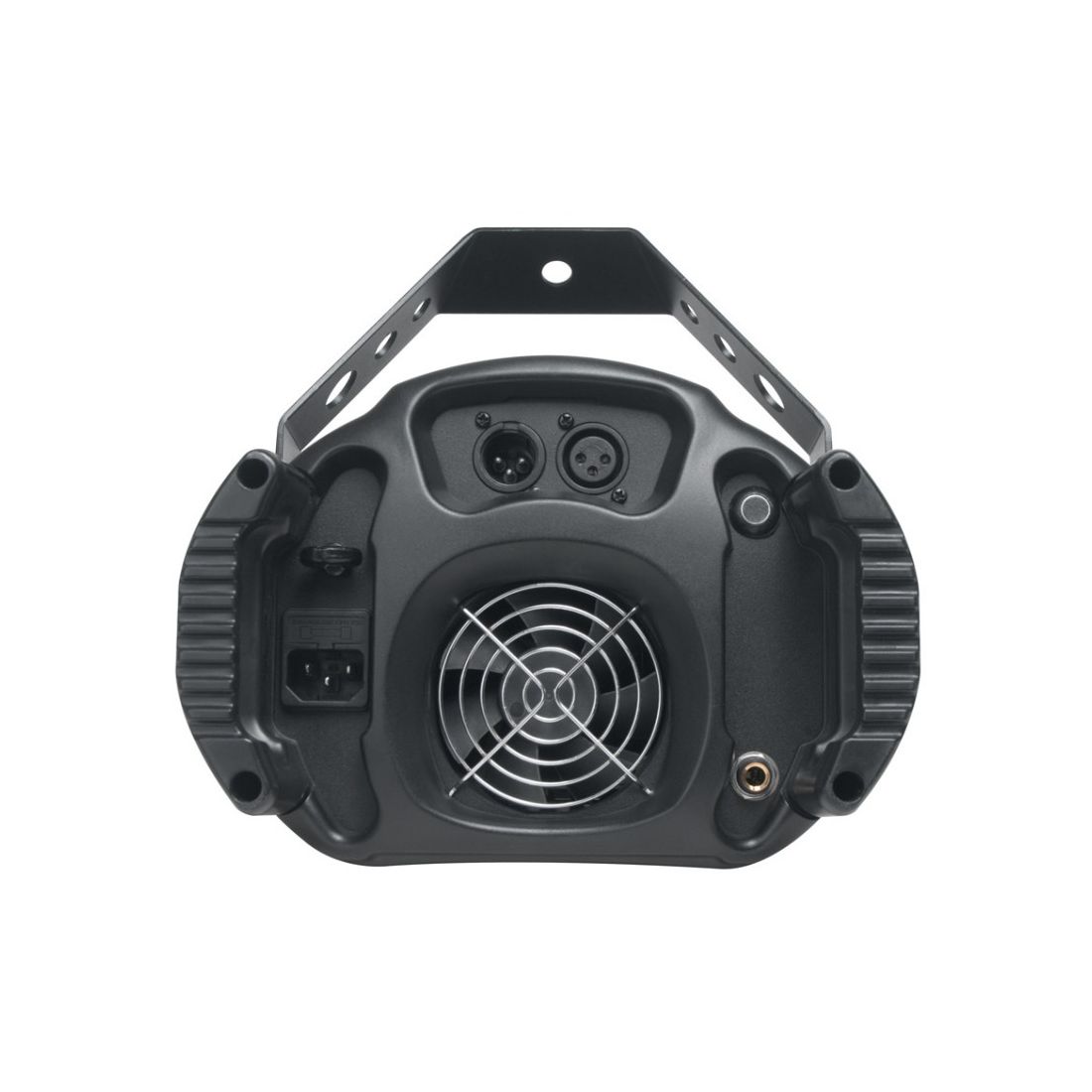

- DMX Connections:3-Pin DMX
- Dimming:Electronic 0-100%
- Focus:Manual
- Shutter / Strobe:Yes
- Strobe Rate:Adjustable via DMX
- Sound Active:Yes
- Optional Accessories:ADJ UC3 Remote
- Power Connection:IEC AC In
- Input Voltage:AC 100V-240V 50/60Hz
- Power Consumption:108 W (Full on)
- Power and Current:1.457A amps @ 120V
- Power and Current:0.827A amps @ 230V
- Power Link:No
- Dimensions: Millimetre:578 x 278 x 209mm
- Weight: kgs:6.7 kg
Specifications subject to change without notice
