Inno Roll LED Archive
Product Information

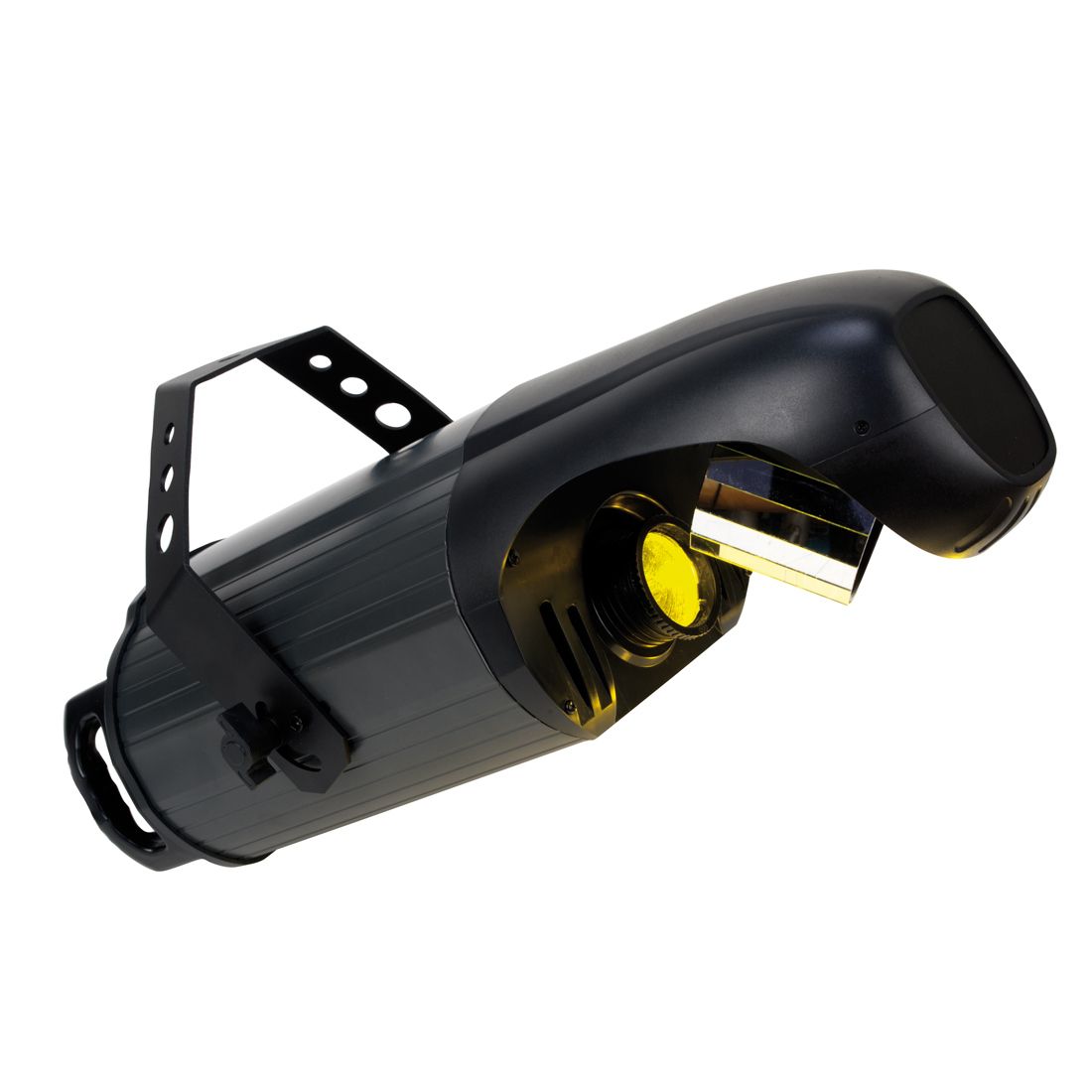

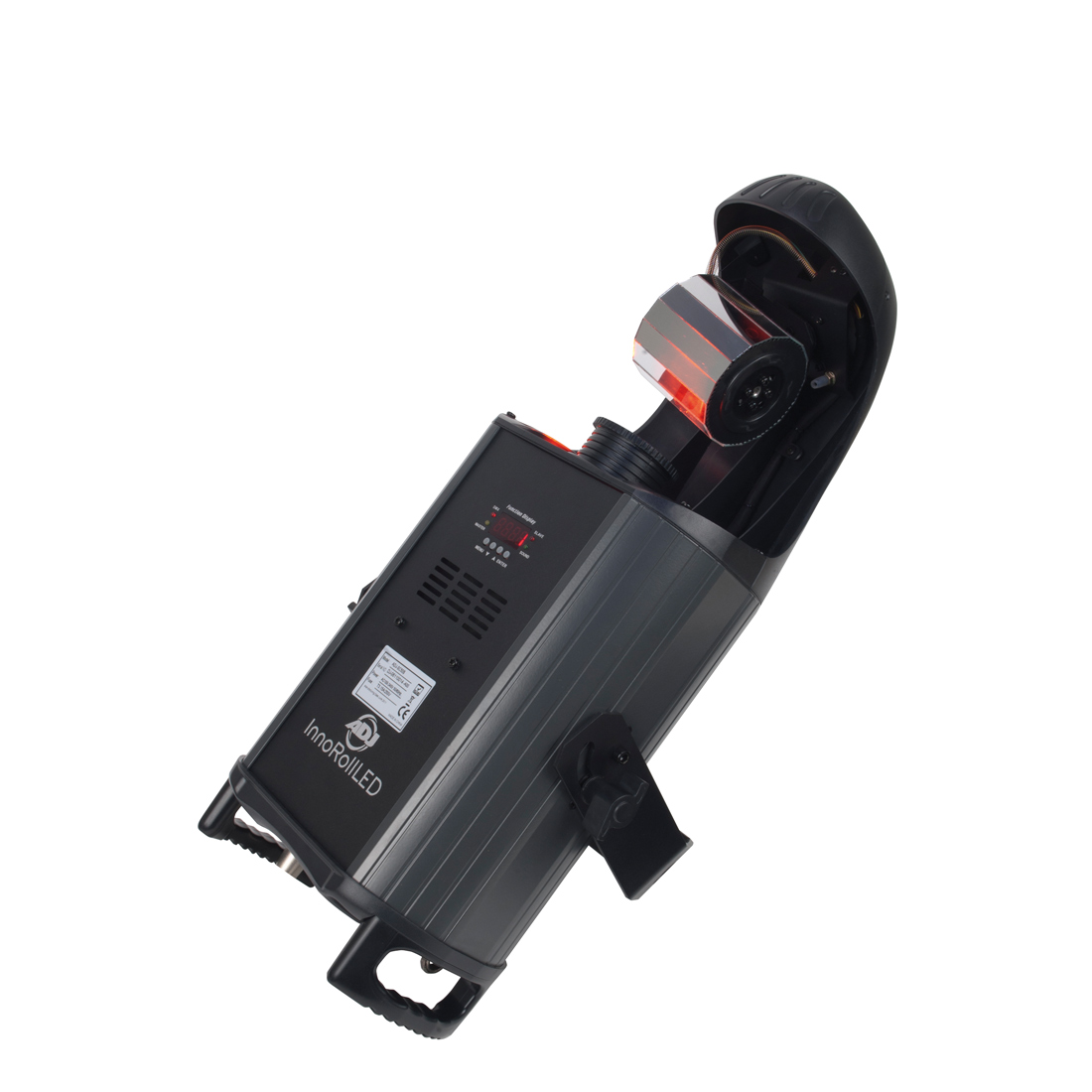

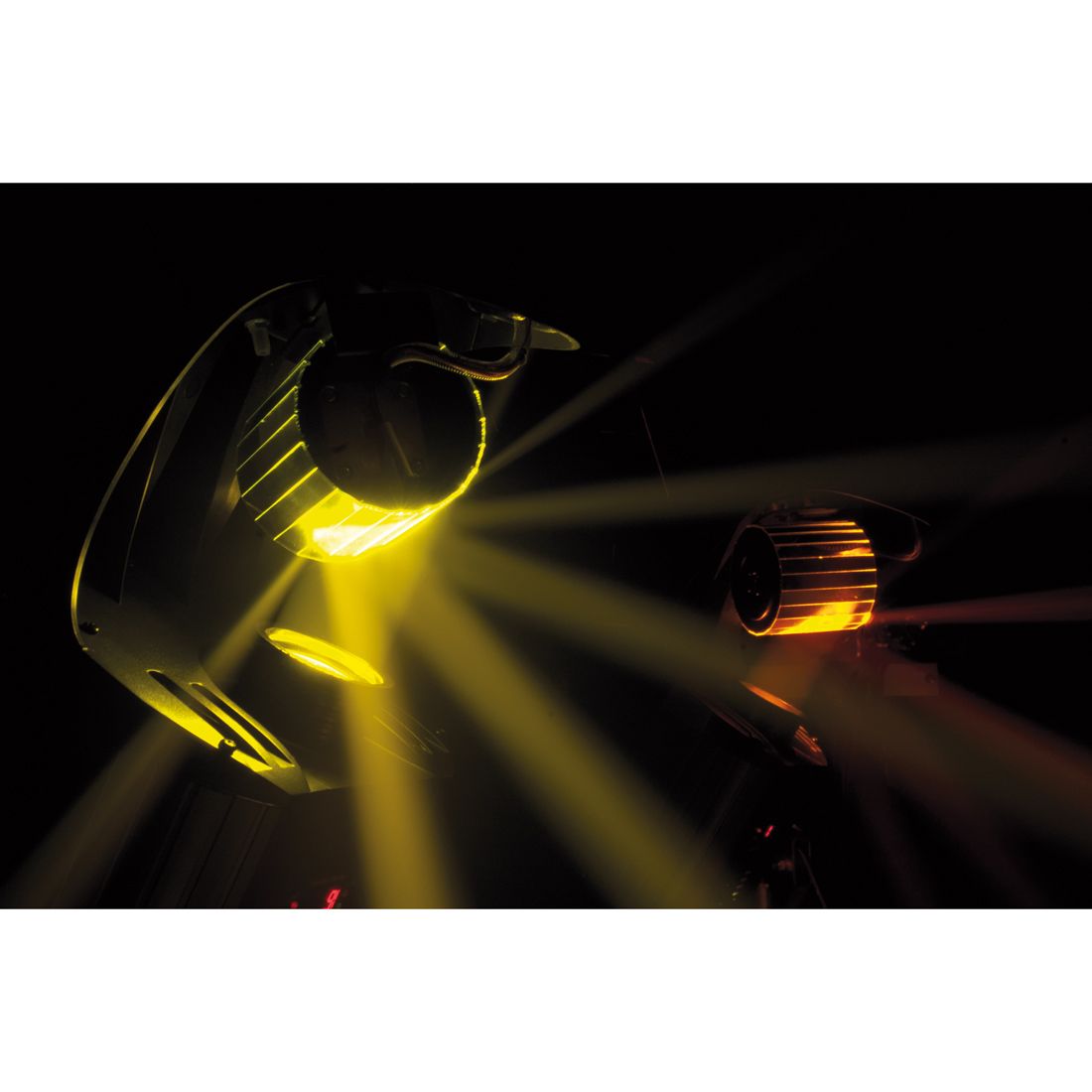

The LED revolution continues with American DJ’s Inno Roll LED Barrel Mirror Scanner powered by a 50-Watt, 30,000 hour LED source. Inno Roll LED features include: 6 rotating, replaceable gobos, 8 colors and 8 DMX channels.
This intelligent scanner has two operational modes (DMX-512, Master/Slave and Sound Active), has a Pan/Tilt Inversion Mode and only draws 103-Watts of power.
It offers other useful professional features such as: 4-button DMX Menu, 1.8 degree stepper motors, ADJ UC3 easy-to-use controller compatibility and Stepper motors for smooth movement.
Gallery
Specification
Specifications:
- 50-Watt LED DMX-512 Barrel Mirrored Scanner
- 8 colors + white - 6 rotating, indexing gobos + spot
- Separate Color & Gobo Wheels
- Replaceable Gobos (Gobo size: 23.8mm / Viewable size: 19mm)
- 8 DMX Channels
- 4-Button menu system LED Display making it easy to navigate
- 3 Operational modes: DMX-512, Master/Slave & Sound Active
- Built-in lighting programs
- Pan/Tilt Inversion Mode: When using 4 scanners in master/slave scanner 1 & 3 sync opposite scanner 2 & 4
- Sound Active
- Manual focusing lens
- Gobo Shake effect - Strobe and Pulse effect
- 7-degree beam angle - X/Y mirror movement
- Stepper motors with micro stepping
- DMX-512 protocol
- Fan cooled
- 9-degree Beam Angle
- Hanging Bracket + safety hook included
- Power consumption: 103W
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- LED life rating: 30,000 hours

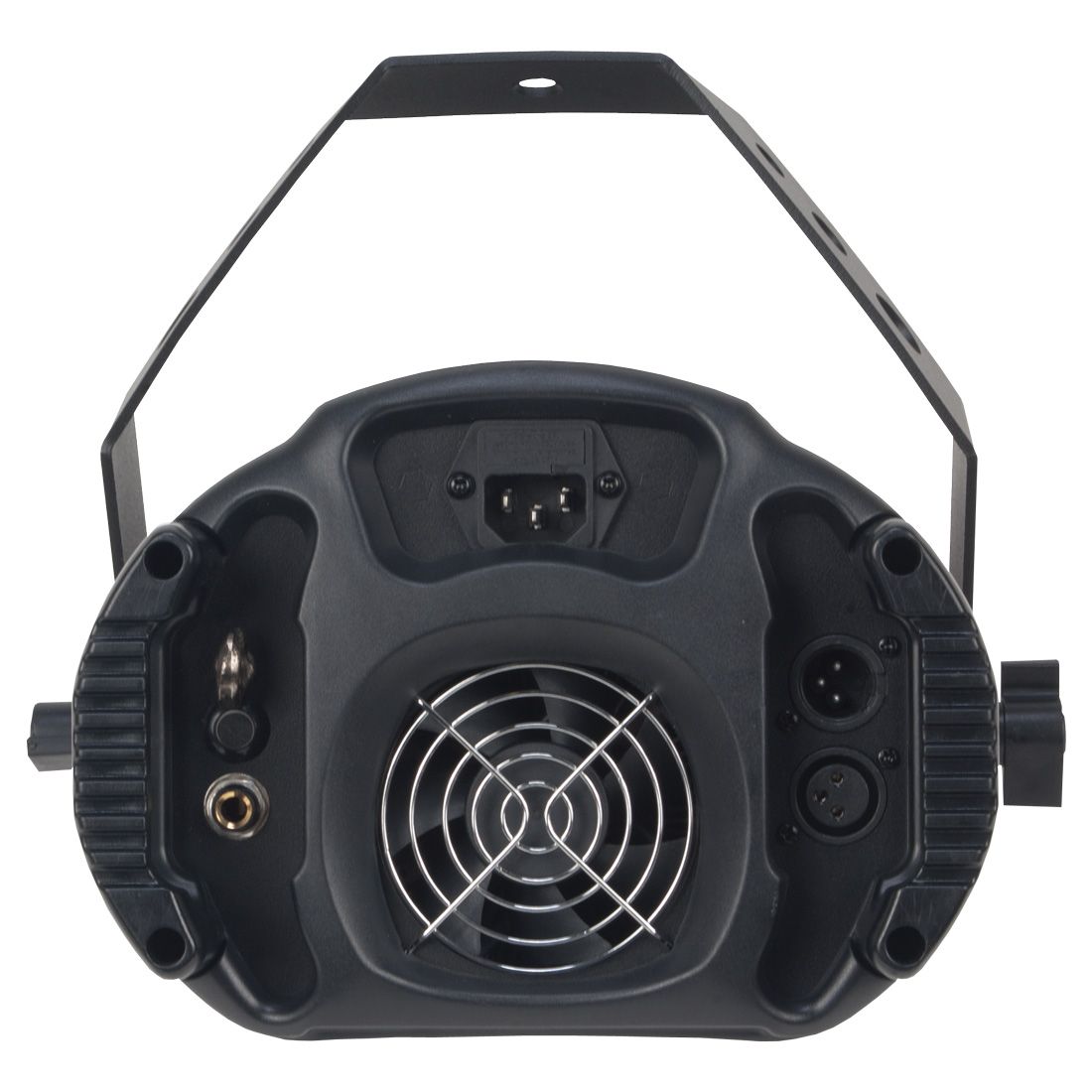

- Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
- Dimensions (LxWxH): 274x208x555mm
- Weight: 6.3 kgs. Specifications subject to change without notice.
