Inno Pocket Scan
Archive

Brand
It’s time for a Scanner revolution! With it’s compact size and light weight, the ADJ Inno Pocket Scan is an ideal lighting effect for any mobile entertainer, small nightclub, bar our lounge and for Bowling and entertainment centers. This fixtures features a bright 12-Watt LED engine and 12 exciting built-in light shows in a very compact, mobile case.   This pocket sized, flat mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns...

Product Information

SKU: 1237000102
GTIN: 819730013743
HS-Code: 9405401000

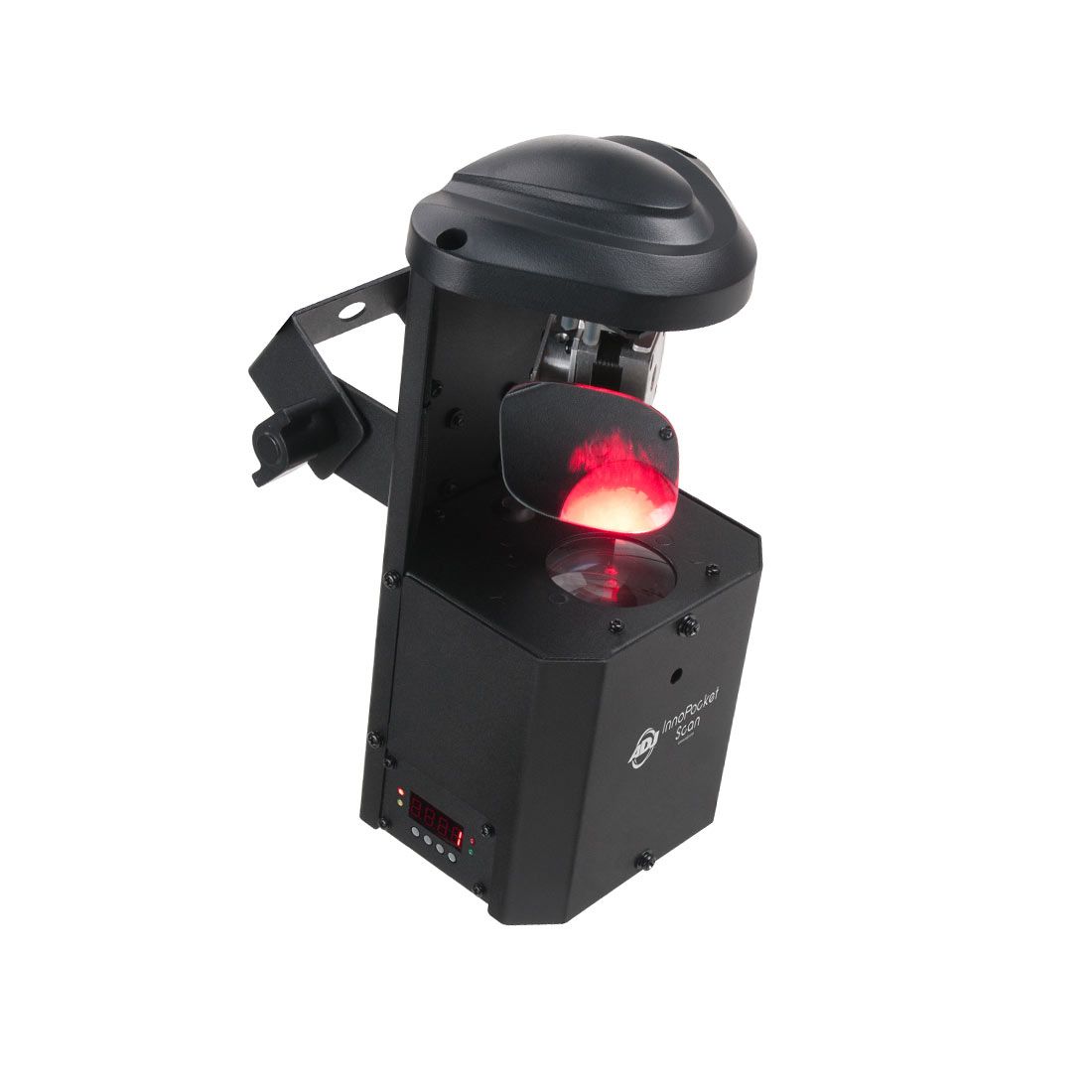

It’s time for a Scanner revolution! With it’s compact size and light weight, the ADJ Inno Pocket Scan is an ideal lighting effect for any mobile entertainer, small nightclub, bar our lounge and for Bowling and entertainment centers. This fixtures features a bright 12-Watt LED engine and 12 exciting built-in light shows in a very compact, mobile case.

 This pocket sized, flat mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns (plus spot/white) from a single wheel. The Inno Pocket Spot is built with high quality, precision stepper motors for speed and accuracy.

  The fast mirror speed means that the Inno Pocket Scan is great for high energy music, and provides a great compliment to Moving Head effects for pure lighting excitement.



Specification

    Specifications:
    - 12-Watt LED DMX Barrel Mirrored Scanner
    - Single GOBO/Color wheel: 8 fixed GOBO/Colors  + spot/white
    - 3 Operational modes: DMX, Sound Active & Internal Show control modes
    - 6 DMX channels
    - 12 Built-in shows
    - Gobo Shake effect
    - Gobo scroll mode
    - Beam Angle: 14-degrees
    - X/Y mirror movement
    - Stepper motors with micro stepping
    - 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
    - Shutter: Pulse effect; random strobe slow to fast Inno Pocket Roll
    - Dimming: 0% - 100%
    - Display Inversion Mode
    - IEC AC IN/OUT on rear to daisy chain power (up to 19 Inno Pocket Roll’s @ 120V and 35 Inno Pocket Roll’s @ 230V )
    - Hanging Yoke + safety hook included
    - Optional IR wireless remote control: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off  (ADJ UC IR Not Included)
    - Power consumption: 36W (Full-On)
    - Multi-voltage Operation: AC 100 - 240V, 50/60Hz
    - LED Source: 12W White LED source (Rated at approximately 50,000 hrs)
    - Dimensions (LxWxH): 329 x 132 x 165mm
    - Weight: 2.6 kgs.

      Specifications subject to change without notice.
